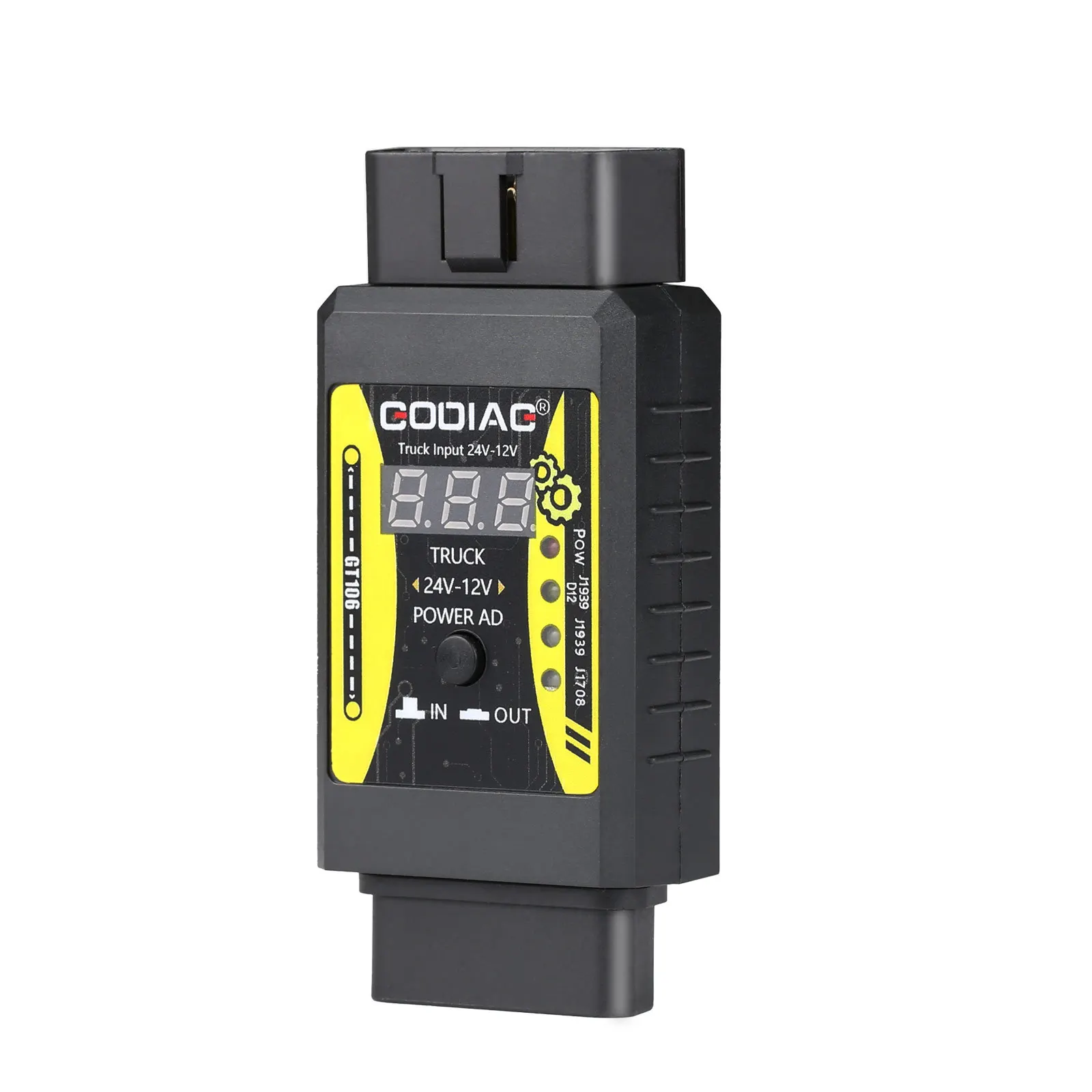

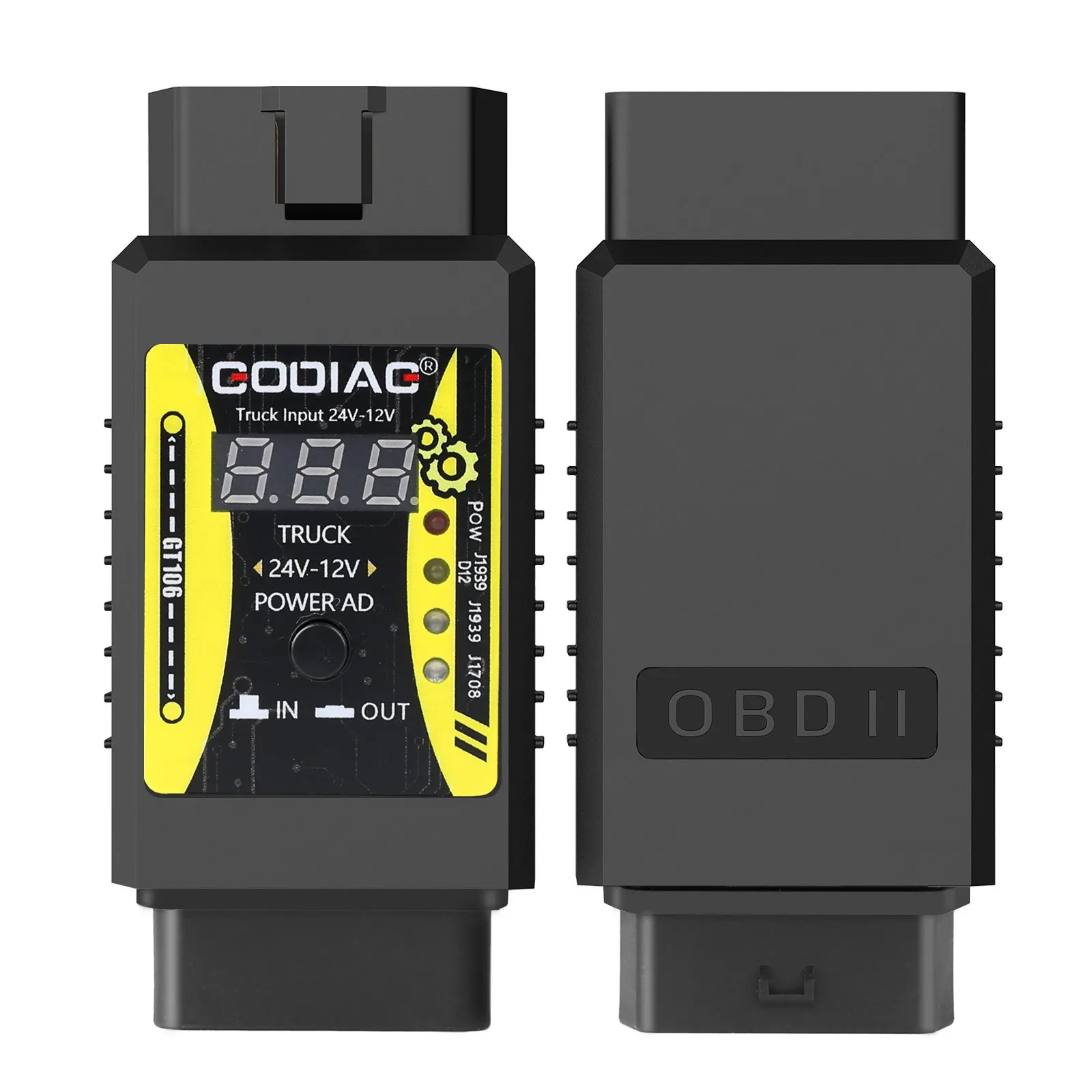

Newest GODIAG GT106 OBD II Break Out Box 24V to 12V Heavy Duty Truck Adapter
- Category: >>>
- Supplier: Chengdu Ogart Trading Co. Ltd.
Share on (1600887584559):
Product Overview
Description
Newest GODIAG GT106 OBD II Break Out Box 24V to 12V Heavy Duty Truck Adapter
Product Description
Godiag GT106 24V to 12V Heavy Duty Truck Adapter for X431 easydiag/ Golo/ M-DIAG/ IDIAG/ ThinkCar/ ICarScan/ Diagun/ GOLO/ DBScar II

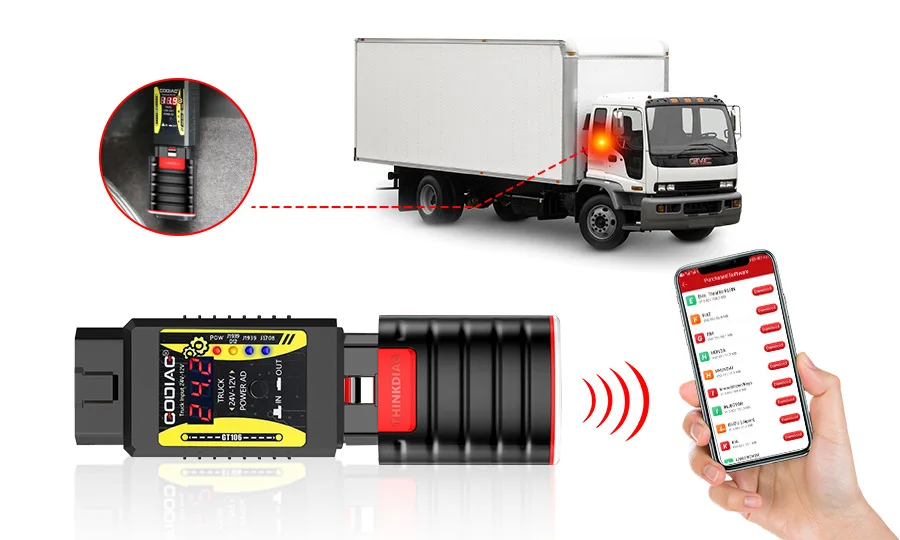

Godiag GT106 heavy truck power module converter can convert heavy truck diagnostic interface from 24v to 12v, used for X431 easydiag 3.0, easydiag 2.0, Golo Carcare 3, ICARSCAN golo technician box, ThinkCar diagnostic Bluetooth head for truck diagnosis.
It helps to convert the truck 24v K-Line communication protocol to 12v K-Line, so that the launch vehicle equipment can be used, and the launch 12v diagnostic head will not be burned.
Product Function:
1. Convert the 24v voltage of the diagnostic interface of heavy trucks, light trucks, pickups, etc. into 12v voltage that can be used by diagnostic equipment.
2. Convert The 24v truck k-line communication protocol into the 12v k-line communication protocol.
3. When inputting 24v voltage, the screen will display the input voltage is 24v, and the switch button pops up.
4. When outputting 12v voltage, the screen will display the output voltage is 24v, and the switch button is pressed down.
5. The communication protocol indicator light shows that when the device is communicating, and it can display the communication status.
Product Comparison:
| Product Name | Godiag GT106 24v to 12v adapter | Other 24v to 12v adapters |
| Diagnosis port 24v to 12v | √ | √ |
| Input voltage display | √ | × |
| Output voltage display | √ | × |
| 24v K-line protocol to 12v K-line protocol | √ | × |
| Communication protocol indicator | √ | × |
| Power DC interface | √ | × |
Works with the following scanners:
EasyDiag, EasyDiag 3.0, Golo Green Adition, M-DIAG, IDIAG, ICarScan, Diagun, GOLO, DBScar II
Notice:
We only Provide GT106 12V to 24V adapter, You need to get diagnostic software for trucks and other heavy duty vehicles.
Notice:
We only Provide GT106 12V to 24V adapter, You need to get diagnostic software for trucks and other heavy duty vehicles.
Product Features:
1. Our voltage is 12.5v, which is to simulate the real voltage after starting the vehicle. The similar products are 12v, but the normal car is about 12.5v after starting.
2. Let the diagnostic software better recognize the ignition voltage of the vehicle. Because some car models have requirements for the ignition voltage, and when the 12v decays a little to about 11v, some software with stricter requirements will alarm or stop the diagnosis.
Supported Trucks or Heavy Duty Vehicles
ABS (HD), ALLISON (HD), BENDIX ABS (HD), BONLUCK (HD), BOSCH (HD), CATERPILLAR (HD), CHAOCHAI (HD), CHRYSLER (DIESEL) CITROEN (DIESEL), CTRUCKTY (HD), CTRUCKZY (HD), CUMMINS (HD), DACHAI (HD), DAF (HD), DAYUN (HD), DEMO (HD), DETROIT (HD), DFL (HD), DongFeng (HD), EATON (HD), FAW (HD), FIAT (DIESEL), FORD (DIESEL), FOTONAUMAN (HD), FREIGHTLINER (HD), GM (DIESEL), Great WalI (DIESEL), HALDEX ABS (HD), HIGER (HD), HINO (HD), HONGYAN (HD), HUANGHAI (HD), HYUNDAI (HD), INTERNATIONAL (HD), ISUZU (HD), IVECO (HD), JAC (DIESEL), JAC (HD), JAC LIGHT (HD), JMC (HD), KAMA (HD), KARRY (HD), KARRY TRUCK (HD), KENWORTH (HD), KINGLONG (HD), KOBELCO (HD), LAIDONG (HD), MACK (HD), MAN (HD), MAXUS (DIESEL), MAXXFORCE (HD), MAZDA (DIESEL), MERCEDES (HD), MITSUBISHI (DIESEL), MITSUBISHI FUSO (HD), NISSAN (DIESEL), OBD (HD), OPEL (DIESEL), PACCAR (HD), PETERBILT (HD), PEUGEOT (DIESEL), QUANCHAI (HD), RENAULT (HD), SCANIA (HD), SCR (HD), SHACMAN (HD), SHANGCHAI (HD), SINOTRUK (HD), SPRINTER (DIESEL), STERLING (HD), SUNWIN (HD), TOYOTA (DIESEL), UD (HD), VOLVO (HD), VW (DIESEL), WABCO ABS (HD), WAW (HD), WEICHAI (HD), WESTERN STAR (HD), WUZHOULONG (HD),XICHAI (HD), YANGCHAI (HD), YQSH (HD), YUCHAI (HD), YUNNEI (HD), YUTONG (HD), ZHONGTONG (HD)
Package Includes:
1pc x Godiag GT106 24V-12V Heavy Duty Truck Diesel Adapter
The device provides OBD2 independent PIN4 body GND, PIN5 signal GND, which is convenient for some modules to be used for special programming. In addition, with the OBD2 full protocol ECU programming cable, users can also connect the ECU in the studio to adjust the ECU programming power. The device has PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash. Users can judge the communication status, and also can judge whether the diagnostic programming device can communicate.
Product Highlights:
Product Highlights:
A full-protocol ECU connection line for ECU programming power adjustment
OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.
PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
Standard OBD2 independent PIN4, PIN5.
Pure copper female seat supports repeated insertion and removal, and has a long service life.
Battery clip treated with environmentally friendly salt spray, with a thickness of 0.5mm.
The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
The DC connector has a resettable 7A fuse.
DC power interface, dedicated laboratory power connector.
DC power interface, dedicated laboratory power connector.
