Techinical parameter for Isuzu 4x2 New Tipper Truck
Cabin | Isuzu single row, Left hand drive, with air conditioner, Driving type 4x2 |
Overall dimensions | 5900×2100×2300(mm) |
Wheel base | 3360mm |
Wheel track (front/rear) | 1504/1425 |
Approach/Departure angle | 24/16° |
Approximate Curb Weight | 2705 |
Recommended Payload | 5000 |
Front axles loading capacity | 2000 |
Rear axles loading capacity | 4800 |
Engine Brand | ISUZU |
Engine Model | 4KH1CN5LS |
Horse Power(HP) | 98hp |
Emission standard | Euro V |
Fuel Type | Diesel |
Displacement | 2.999L |
Gearbox | ISUZU MSB, 5 Forwards gear & 1 reverse gear |
Steering Gear | Left hand driven, Power steering |
Tire | 700R16, 6 pieces with one spare |
Chassis Number | QL1070A6HAY |
Dump Body Material | Common steel Q235/B |
Dump Body Thickness | Side plate: 3mm Bottom plate: 4mm |
Dump Box Dimension | 4000×1800×600mm |
Tipping hydraulics | Middle lifting tipper, full set of Chinese famous hydraulic system, cylinder 110 |
Dumping direction | Rear |
Warranty | One Year for key parts: engine, gearbox and axle, tank body |

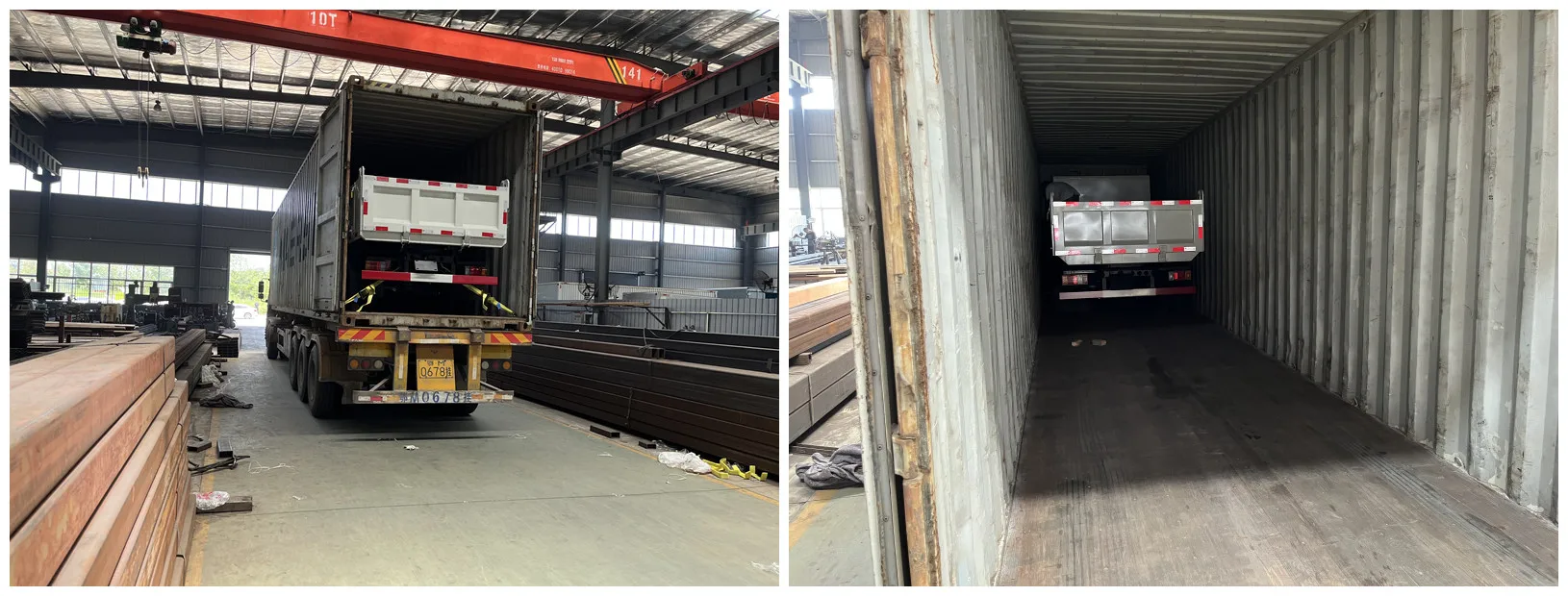

Nude and wax, shipped by bulk vessel, RO-RO vessel, by flat rack or by container vessel
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly


1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc. Our product have passed the ISO9001 quality system certification, and CCC certificate.

Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
1. Q: Are you original manufacturer?
A: Yes, we are a leading manufacture in LPG trucks and LPG trailers in China and we have the whole series products you need. we have big factories in China. All factories produce all kind of trucks or trailers.
2. Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.
3. Q: How long will I receive my product?
A: Usually 25-30 days after the deposit is received.
4. Q: How can I know the quality?
A: we can offer quality report; you can send someone to check or your autherize some agent to test.
5. Q: How can I place order?
A: Confirm the products details , sign the contract and then pay the deposit.
