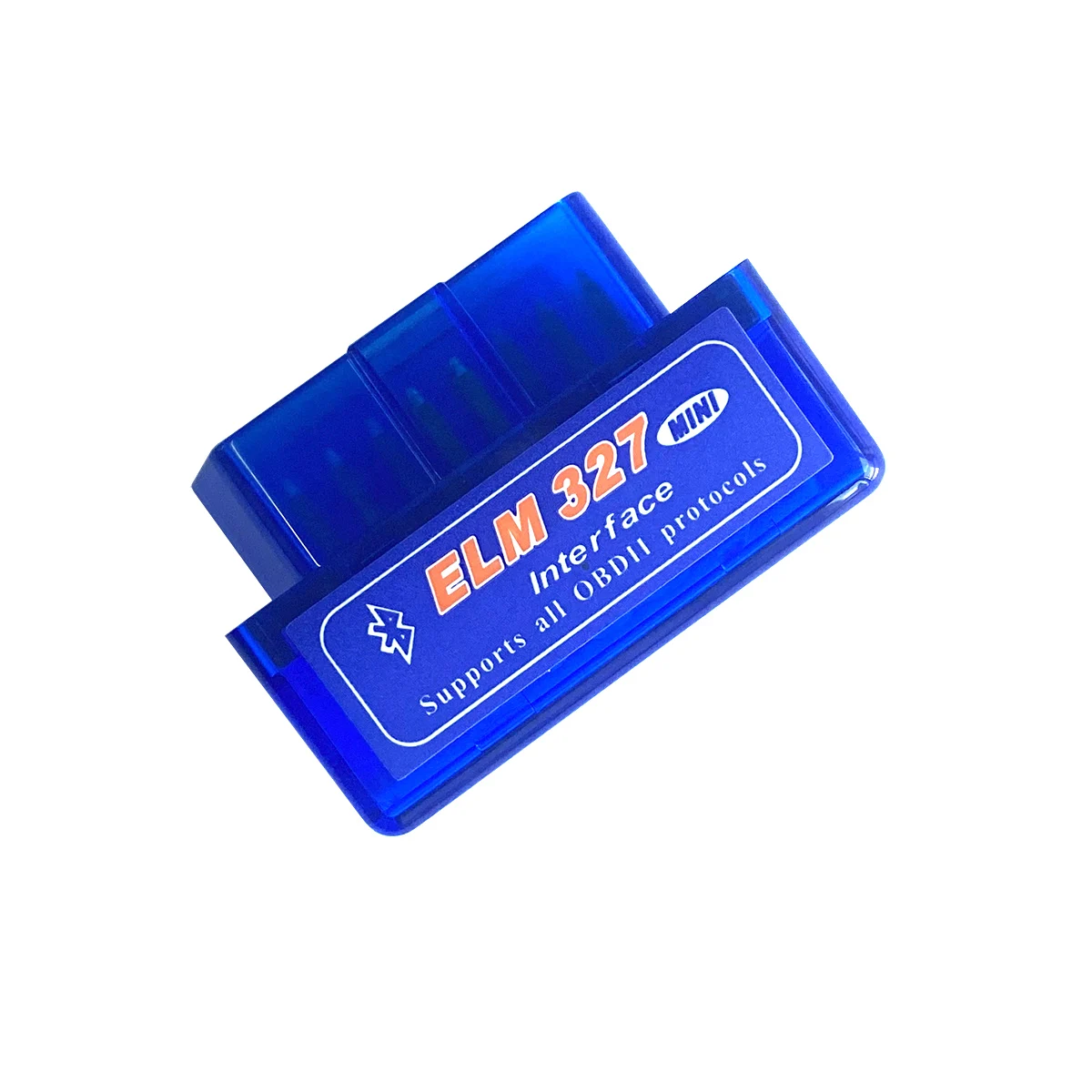

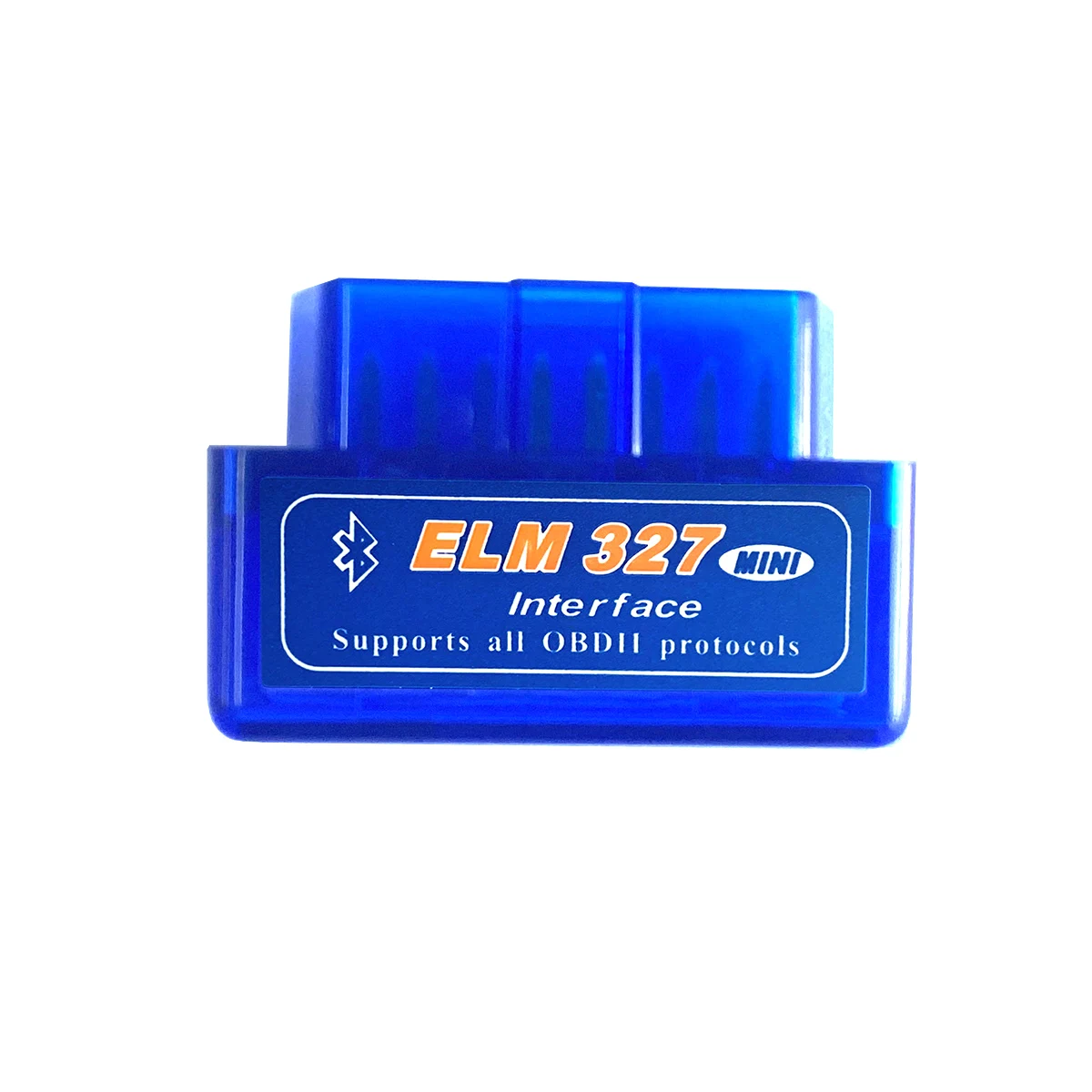

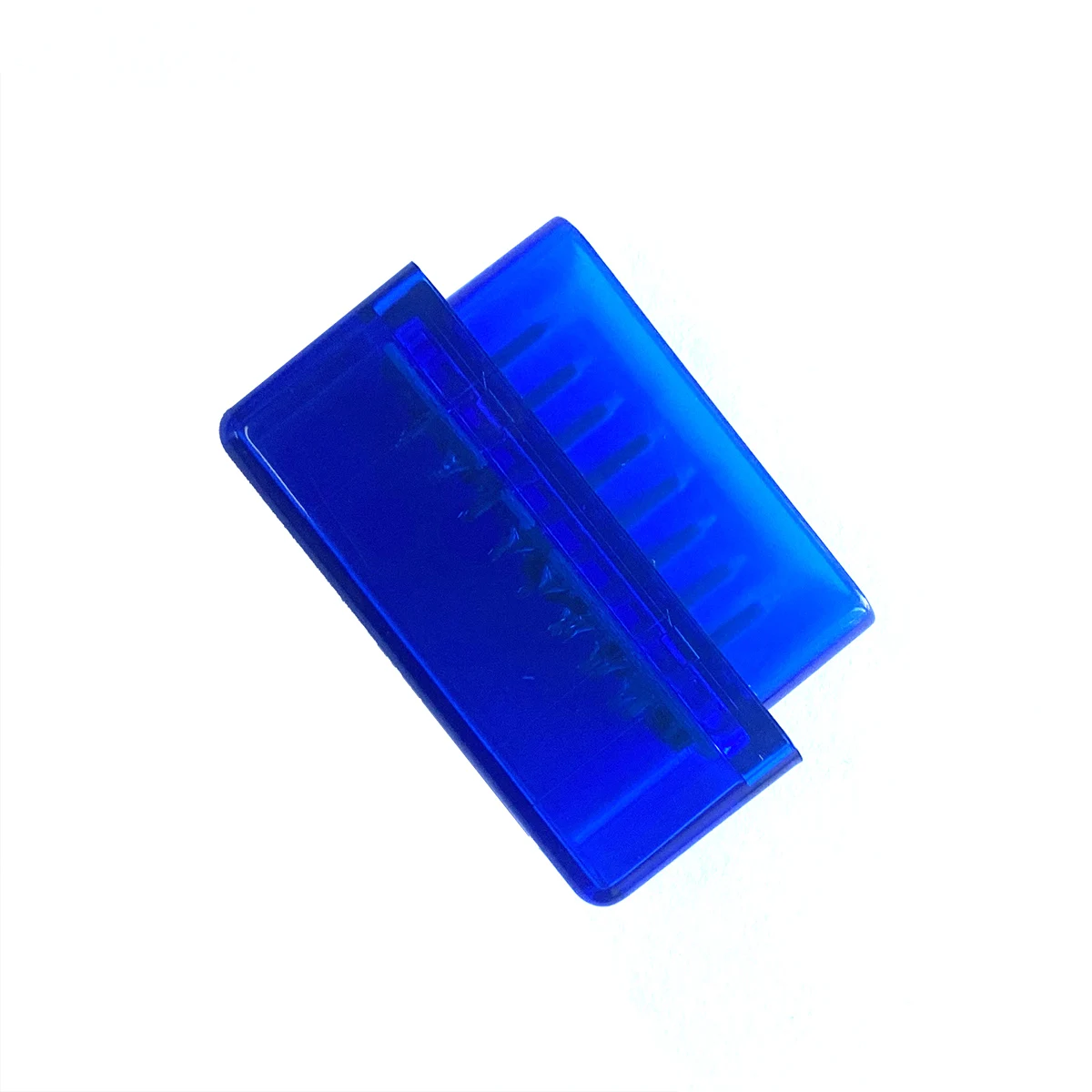

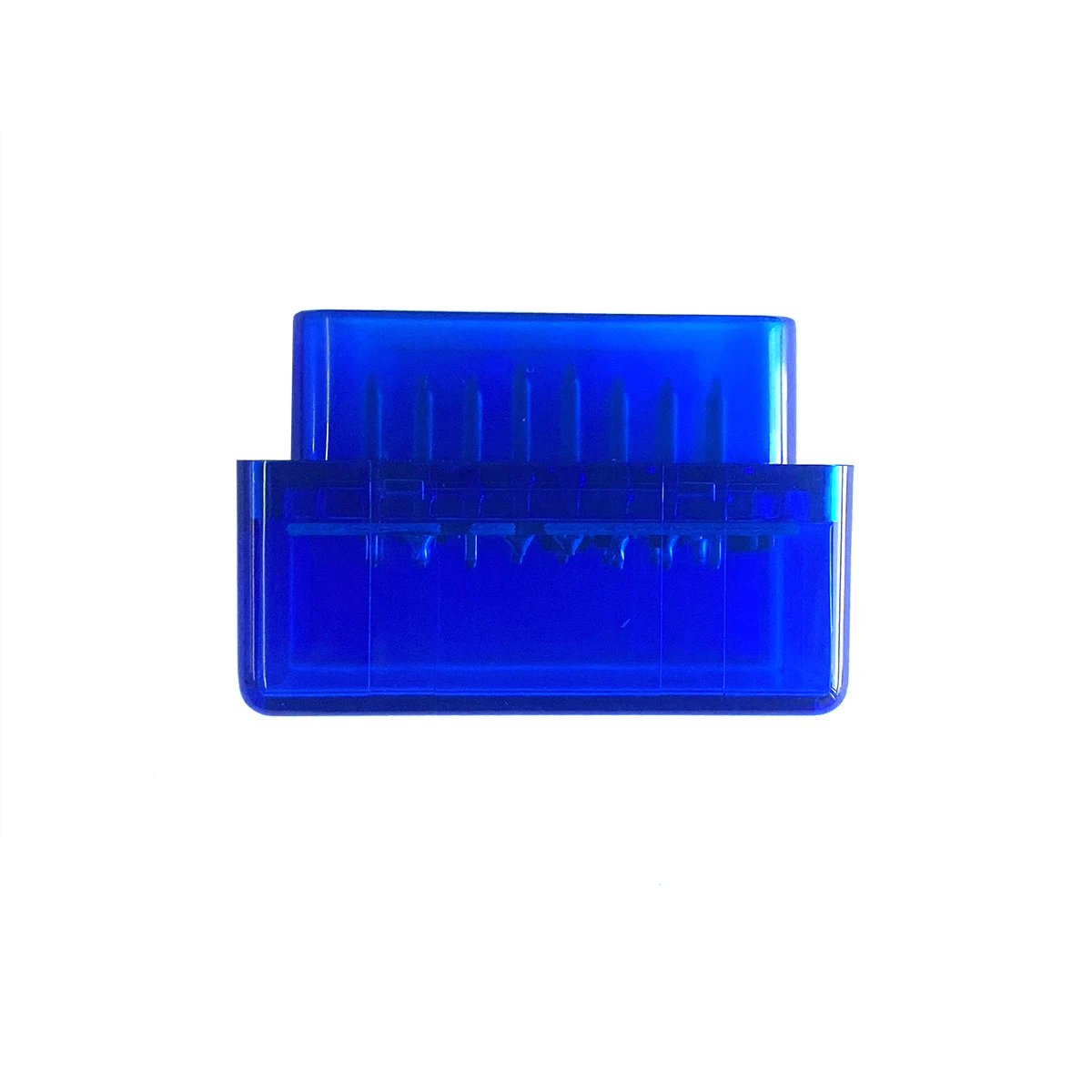

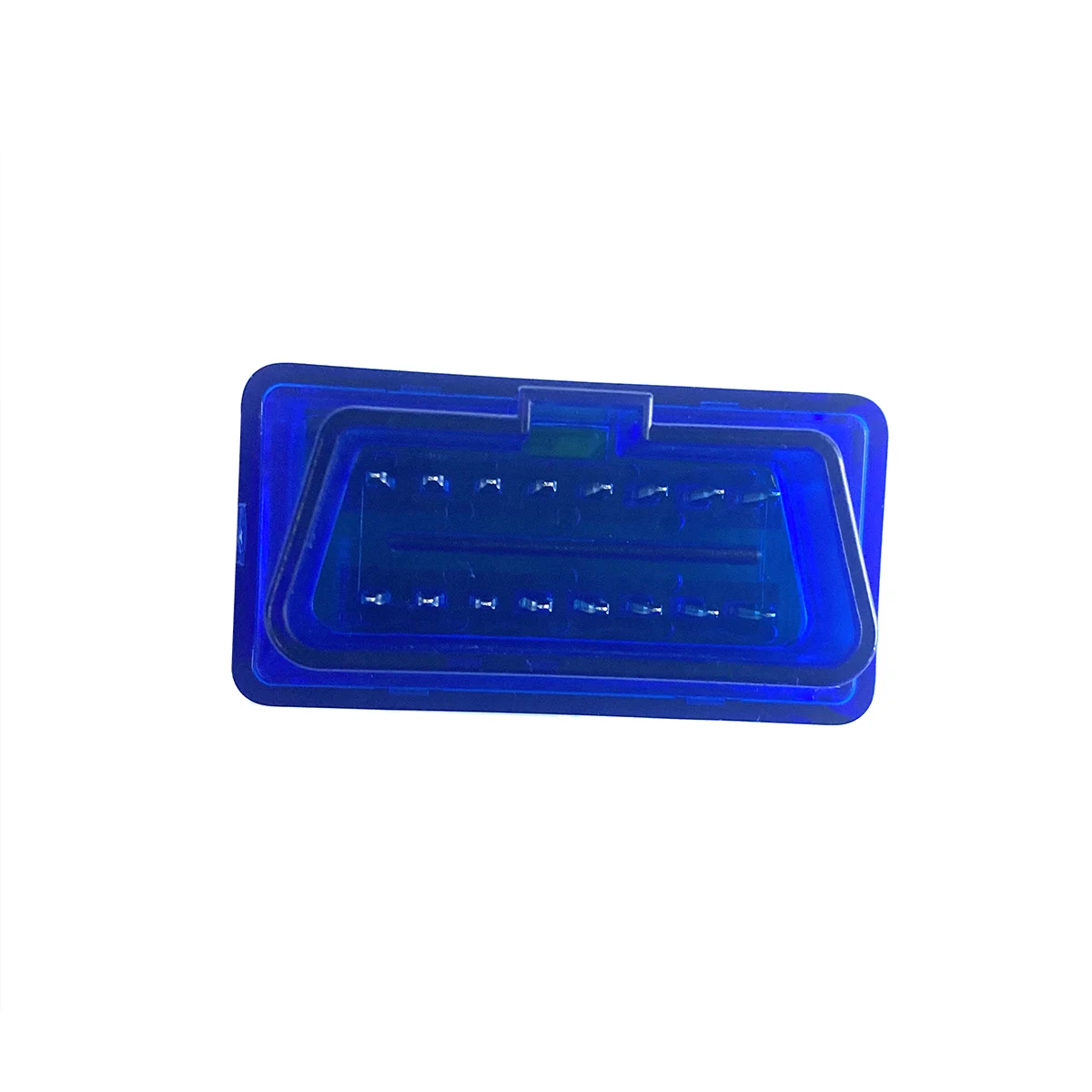

B02 V2.1 New Elm327 Code Reader CE FCC RoHS Cars Diagnostic Tools Car Scanner OBD2 Scanner
- Category: >>>
- Supplier: Shenzhen Lonauto Technology Co. Ltd.
Share on (1600906213652):
Product Overview
Description
Product Description
B02 V2.1 Blue Car Computer Reader OBD Scanner OBD2 Diagnosegerat Scanner ELM327 OBD 2 Bluetooth Adapter Car OBDii ELM 327 V2.1
1. ISO9141-2(5 baud init, 10.4Kbaud)
2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3. ISO14230-4 KWP (fast init, 10.4 Kbaud)
4. ISO15765-4 CAN (11bit ID, 500 Kbaud)
5. ISO15765-4 CAN (29bit ID, 500 Kbaud)
6. ISO15765-4 CAN (11bit ID, 250 Kbaud)
7. ISO15765-4 CAN (29bit ID, 250 Kbaud)
2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3. ISO14230-4 KWP (fast init, 10.4 Kbaud)
4. ISO15765-4 CAN (11bit ID, 500 Kbaud)
5. ISO15765-4 CAN (29bit ID, 500 Kbaud)
6. ISO15765-4 CAN (11bit ID, 250 Kbaud)
7. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Support Cover Up to Universal Vehicle Manufacturers From America, Europe , Asia, and etc
Examples are as follow Chart:
Country Of Sale | Model Years |
American Car | From 1996-Now |
European Car | From 2008-now |
Asian Car | From 2008-Now |
Product Model: | B02 V2.1 Blue |
Communication method: | Bluetooth 4.0 |
Compatible platform: | Android / Windows / iOS |
Operating voltage: | 9V~16V |
Operating current: | 35mA |
Standby current: | 25mA |
Operating temperature: | -40°C~85°C |
Operating humidity: | <60% |
Product size: | 49m*30mm*26mm |
Weight: | 20G(Static Bag Packing) |

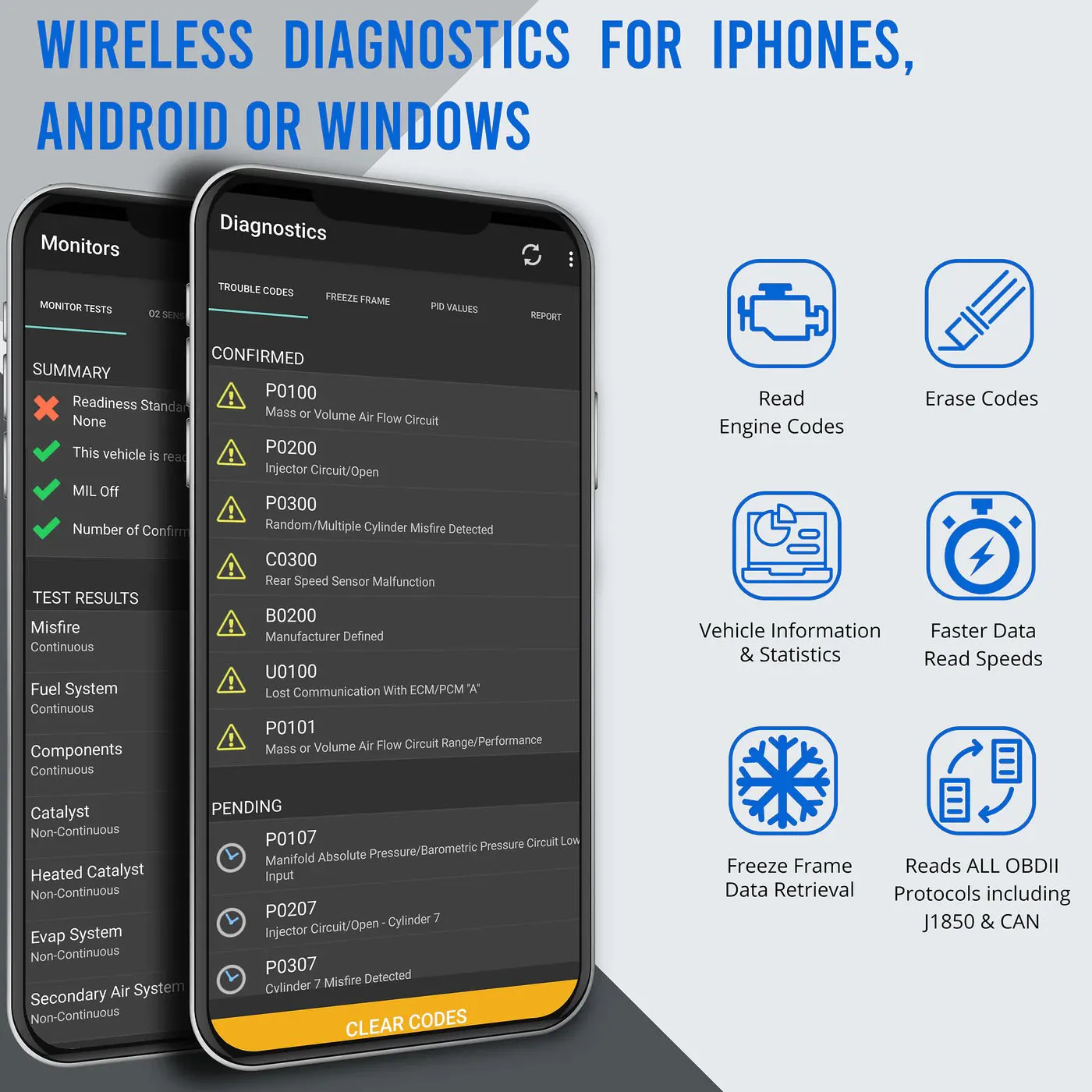

What Are The OBD2 Scanner's Functions?
Read Fault Code & Clear Fault Code .
Read Diagnostic Trouble Codes, Both Generic And Manufacturer-Specific, Display Meaning Over 3000 Generic Code Definitions In the Database.
Clear Trouble Codes And Turn Off The MIL ("Check Engine" light).
Fault Code Analysis & View Freeze Frame.
Display Current Sensor Data, Including:
Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure, and etc.
Vehicle Info.
Display The Graph And Log Real-Time Sensor Reading.
Create You Own Dashboard And Select The PIDs That You Want To See.
Create You Own Dashboard And Select The PIDs That You Want To See.

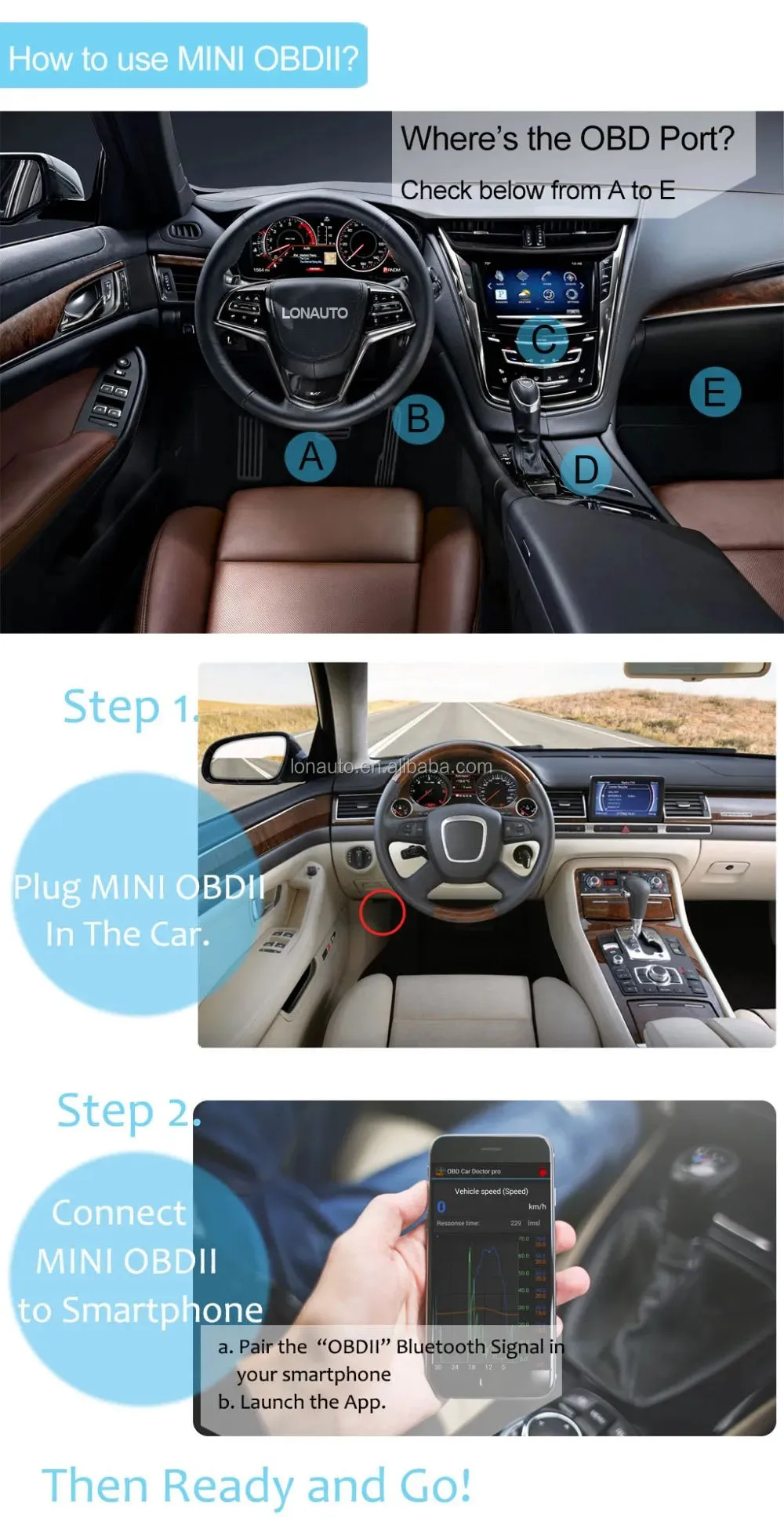

How To Connect With Your Phone?
Do Not To Connect OBD2 Through Bluetooth Settings. As It Will Lead to An Error. You Just Need To Start The App To Connecting. And The Bluetooth Connection Will Be Done Succeeded Through The App(Not Through The Bluetooth Setting Of The Phone / iPad).
2. If You Have Connected Through The Bluetooth Settings And Scanner No Longer Shows Up?
Please Restart iPhone, Then It Will Show Up.
3. If It Doesn't Pair With Your Android Phones?
Restart Phone.
Turn off Bluetooth And Return.
Disconnect Any other Bluetooth Devices.
Disconnect Any other Bluetooth Devices.
NOTES
1. Scanner Does Not Use WiFi To Connect.
2. For Android Devices, Please Change The Default Bluetooth Pairing Pin To 1234 In The Head Unit Bluetooth Setting.
2. For Android Devices, Please Change The Default Bluetooth Pairing Pin To 1234 In The Head Unit Bluetooth Setting.
FAQ

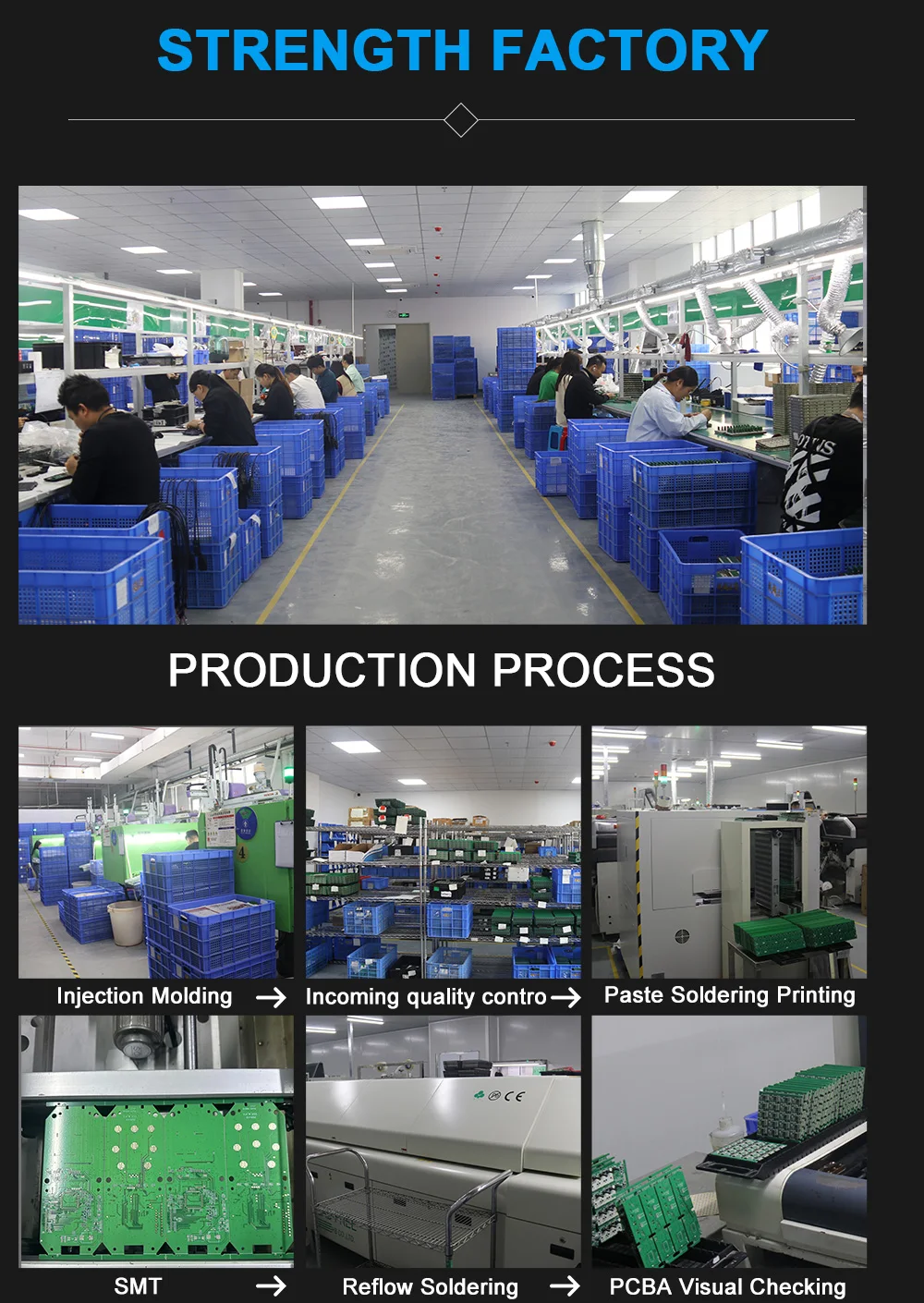

Q:Are You A Factory Or Trading Company?
A: Factory.
Q: How Long Is your delivery time?
A: For small order, products will be shipped with 1-3 working days. For OEM order, please check the shipping time with us.
Q: What Is The Shipment Way?
A: Express company like DHL, TNT, UPS, Fedex, EMS.
Q:Do You Accept OEM/ODM Order?
A: Yes! We accept it.
You can OEM the label/logo and package.change Bluetooth name and password,you also can change the product color.
Q: How Can I Send The Inquiry?
A: Whatever product you are interested, welcome send your information directly to my email,or chat with us online.
Q: Do You Provide Samples ? Is It Free Or Extra ?
A: We charge Sample's fee and the ship cost,But we'll make a balance or cut down the sample's quantity when you place order in our company.
Q: What Is Your Terms Of Payment ?
A: We accept payment by T/T, West Union, PayPal;
For big order, 30% T/T as advance, full payment before shipment. For small order, full payment when you place order.
Q: How Do You Make Our Business Long-Term And Good Relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Model | B02L4 | V03H2 | V05LW5 |
Connection Method | Bluetooth 4.0 | Bluetooth 2.0 | WIFI |
Firmware Version | V2.1 | V1.5 | V1.5 |
Works For Android & Windows | ✓ | ✓ | ✓ |
Works For iOS | ✓ | X | ✓ |
Low Power Consumption | ✓ | ✓ | X |
Compatible Apps | Android：Torque IOS：Car Scanner, inCarDoc | Torque | Android：Torque IOS：Car Scanner, inCarDoc |
Features | Small Size For Minimum Space | Easy To Plug In And Unplug | Small Size For Minimum Space |
Master chip | No | PIC18F25K80 | No |
