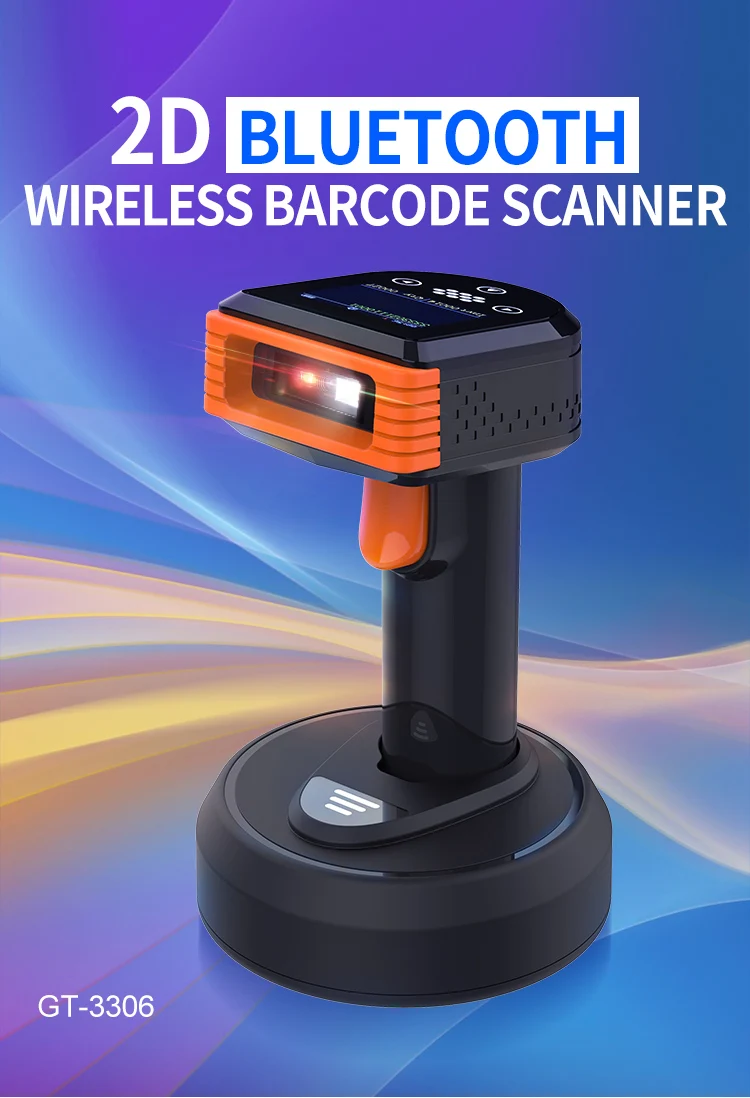

GTCODESTAR Handheld QR Code Reader 2.4G Barcode Reader android 2D Barcode Scanner Wireless QR Code Scanner for Inventory Scan
- Category: >>>
- Supplier: Foshan Xincode Electronics Technology Co. Ltd.
Share on (1600907377518):
Product Overview
Description
Brand
Hot-selling Products
Features
Read all standard 1D and 2D(QR CODE,PDF417,DATE MATRIX) barcodes even on electronic screen;
Interface: USB;2.4G;Blue tooth;
2.4G wireless distance: 70-100 meters;
2M capacity for Inventory mode to memory barcode EAN13 40000 pieces; Sensor:Planar CMOS sensor;

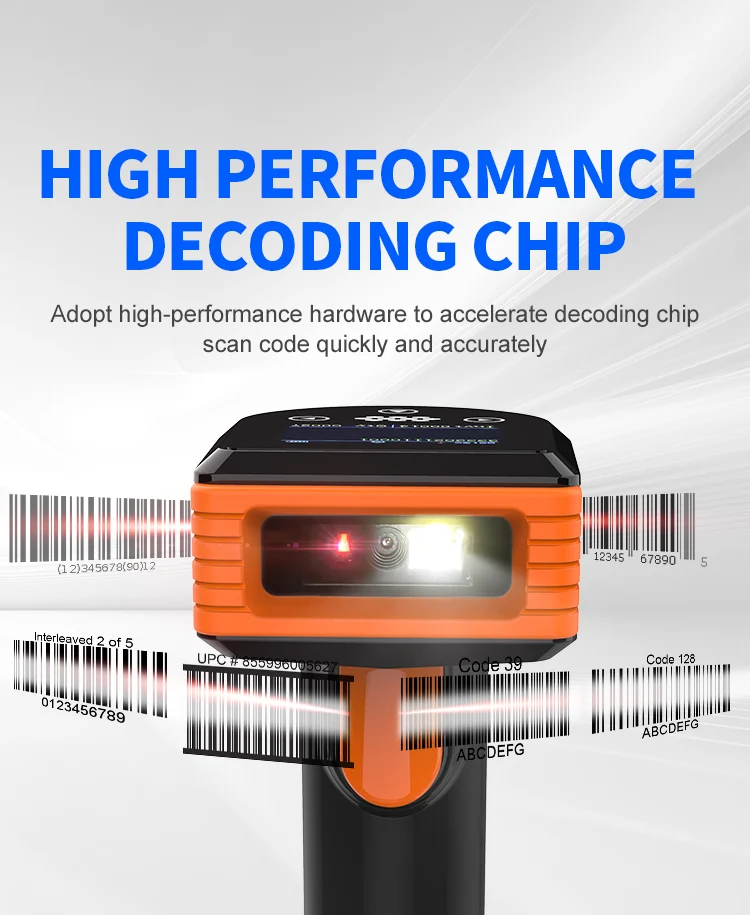

Processor Type: ARM Cortex™-M3, 32-bit; Scan Rate: up to 220scans/second
pass drop test from 1.5meter
Support Windows, Android, Lunix, MAC
Product Description
| Physical Parameter | |||||||
| Material | ABS+PVC+PC | ||||||

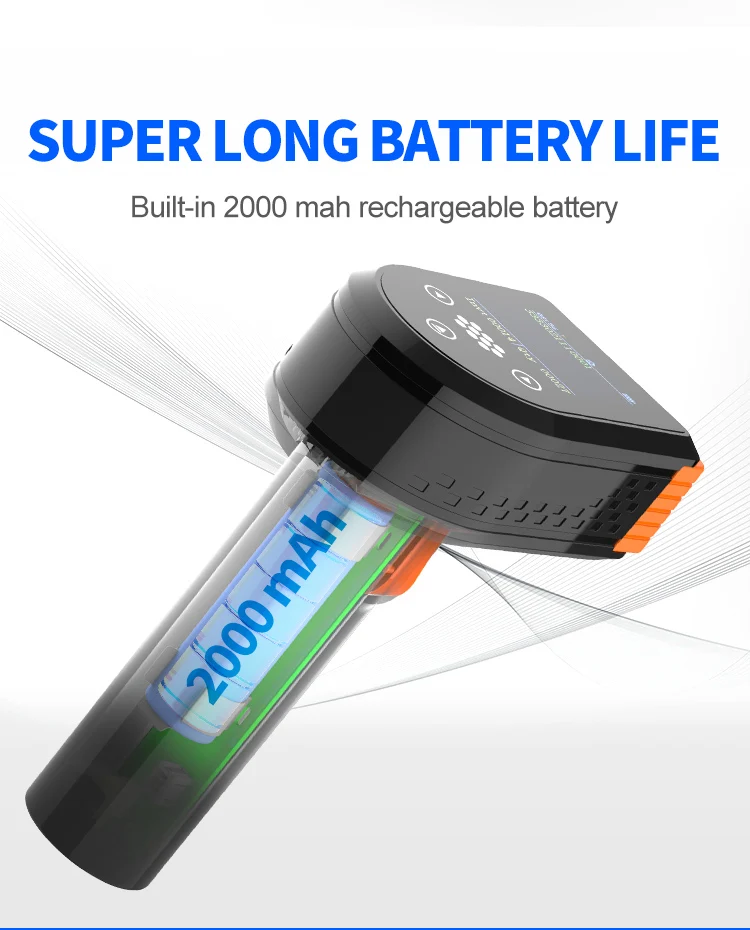

| Power Supply | Charge DC 5V ±5% ;Built-in 3.7V 2000mA lithium Battery | ||||||
| Power Consumption | 0.41W(Working); 0.20W(Stand by); 0.75W(Maximum) | ||||||
| Weight | 151g±5g(Without Cable) | ||||||

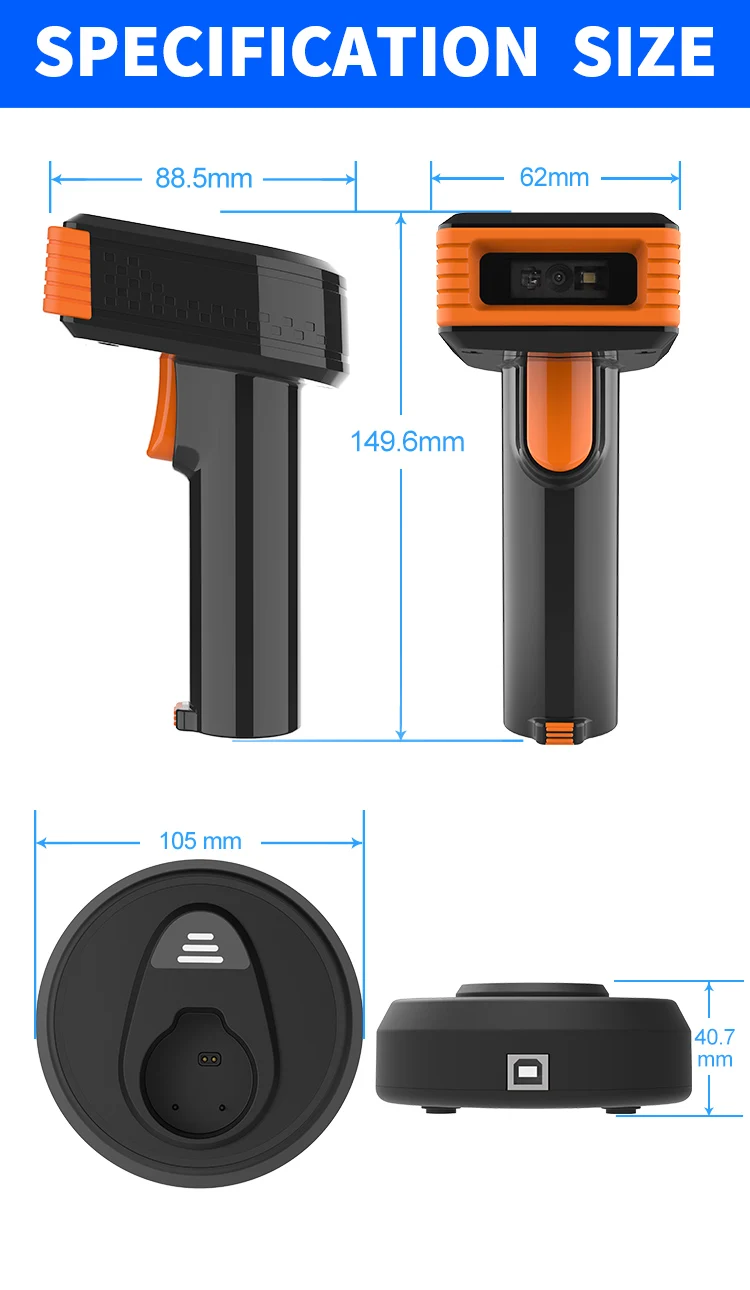

| Size | L * W * H:149.6 * 62.0 * 88.5(Unit/mm) | ||||||

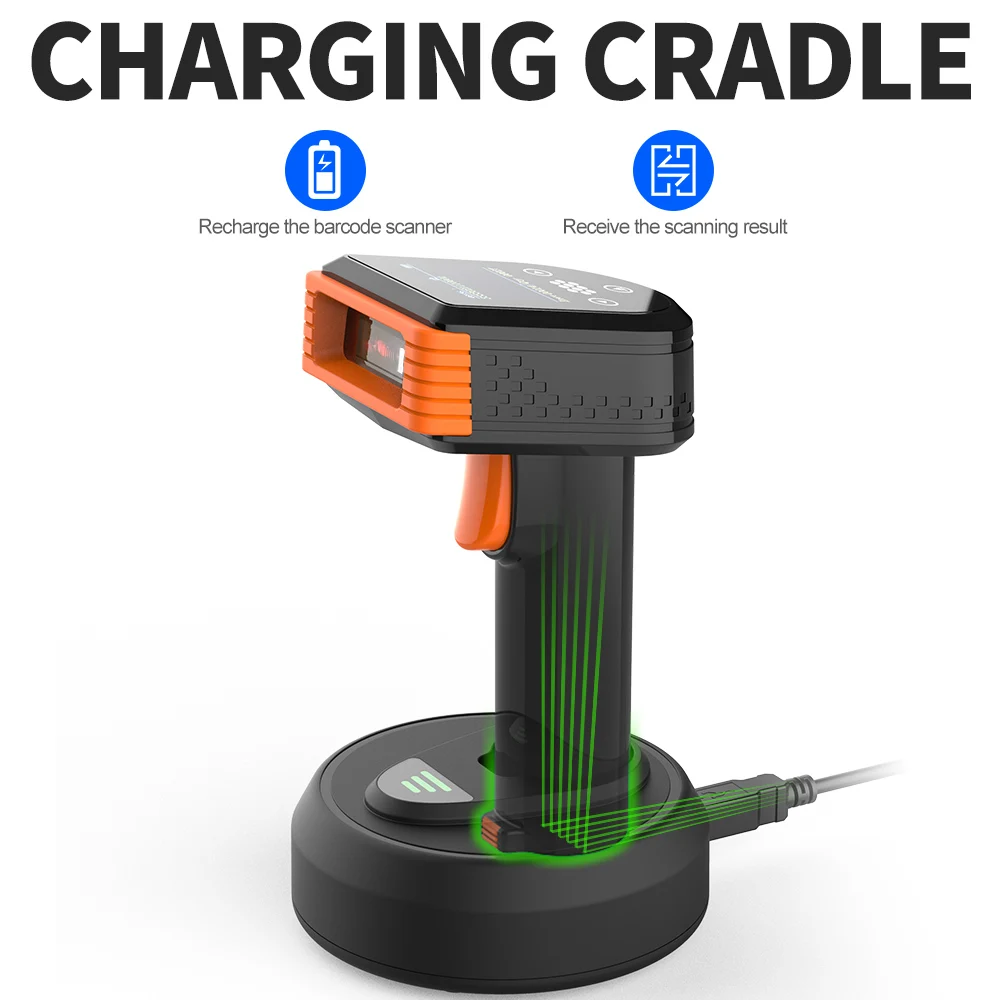

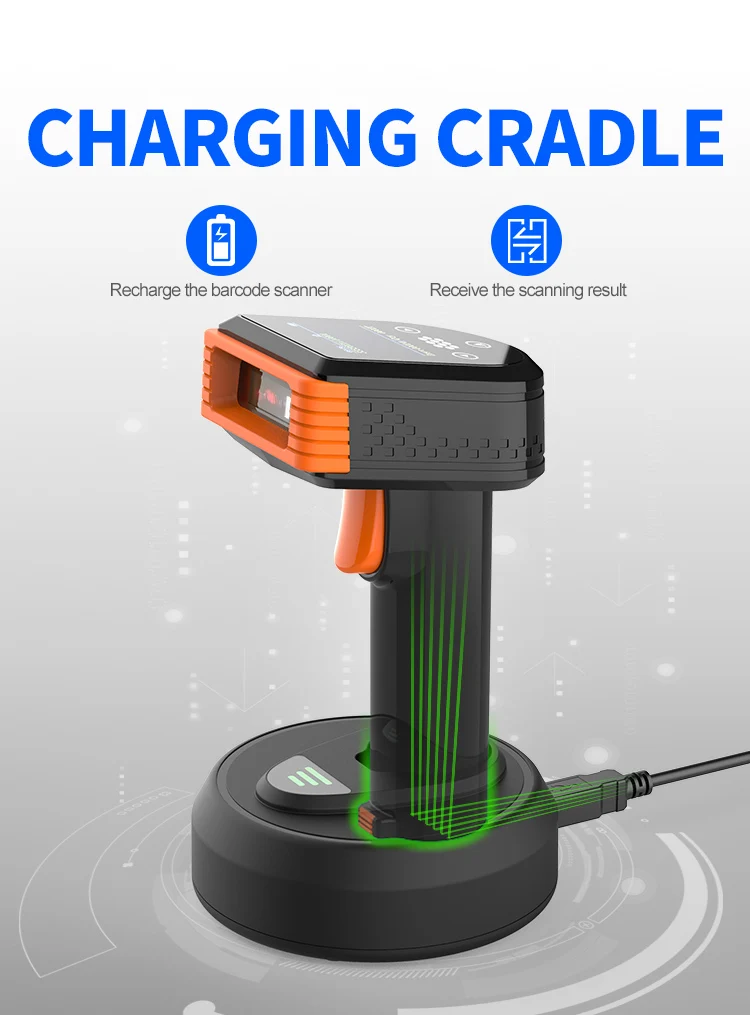

| Charging Base Size | L * W * H: 110.0 * 86.0 * 96.0(Unit/mm)[Optional] | ||||||

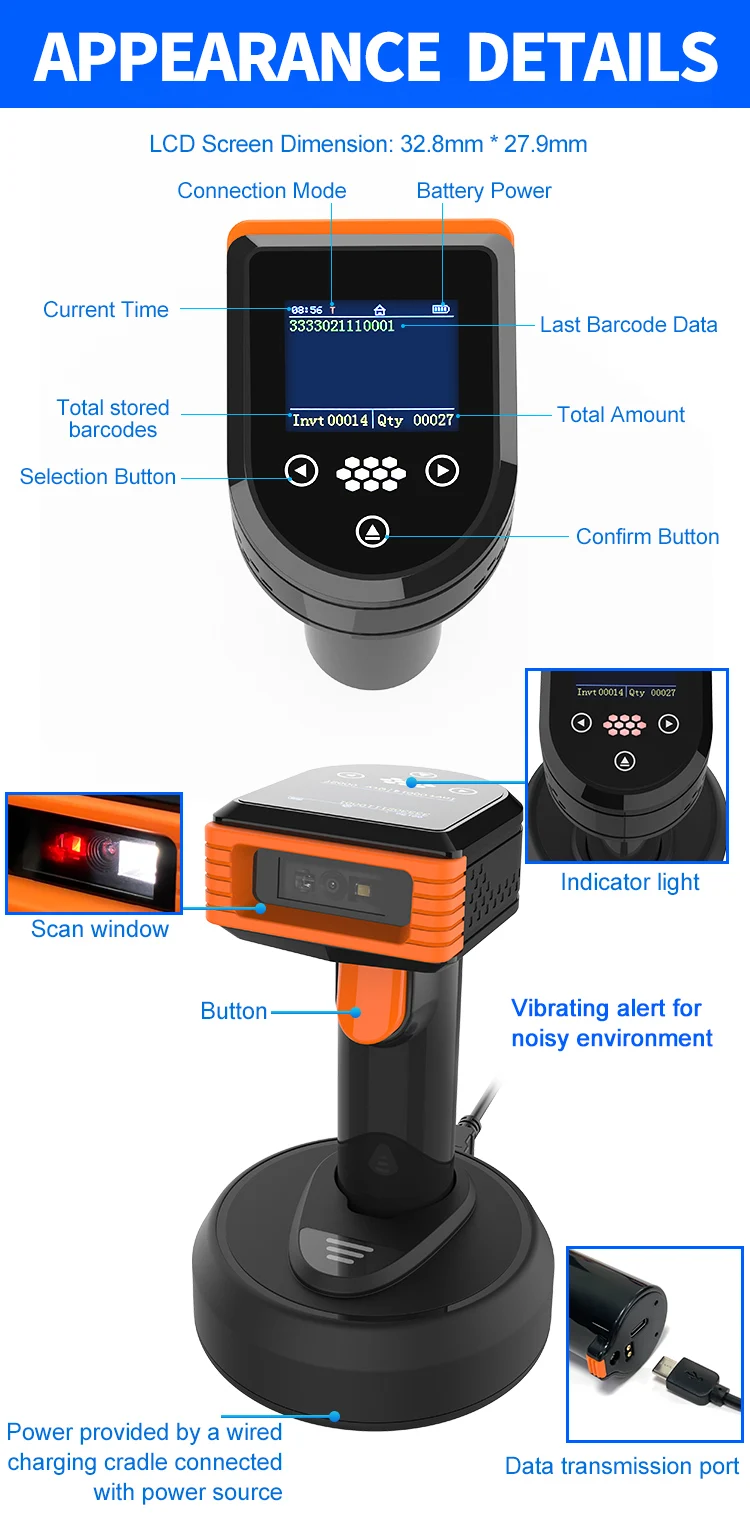

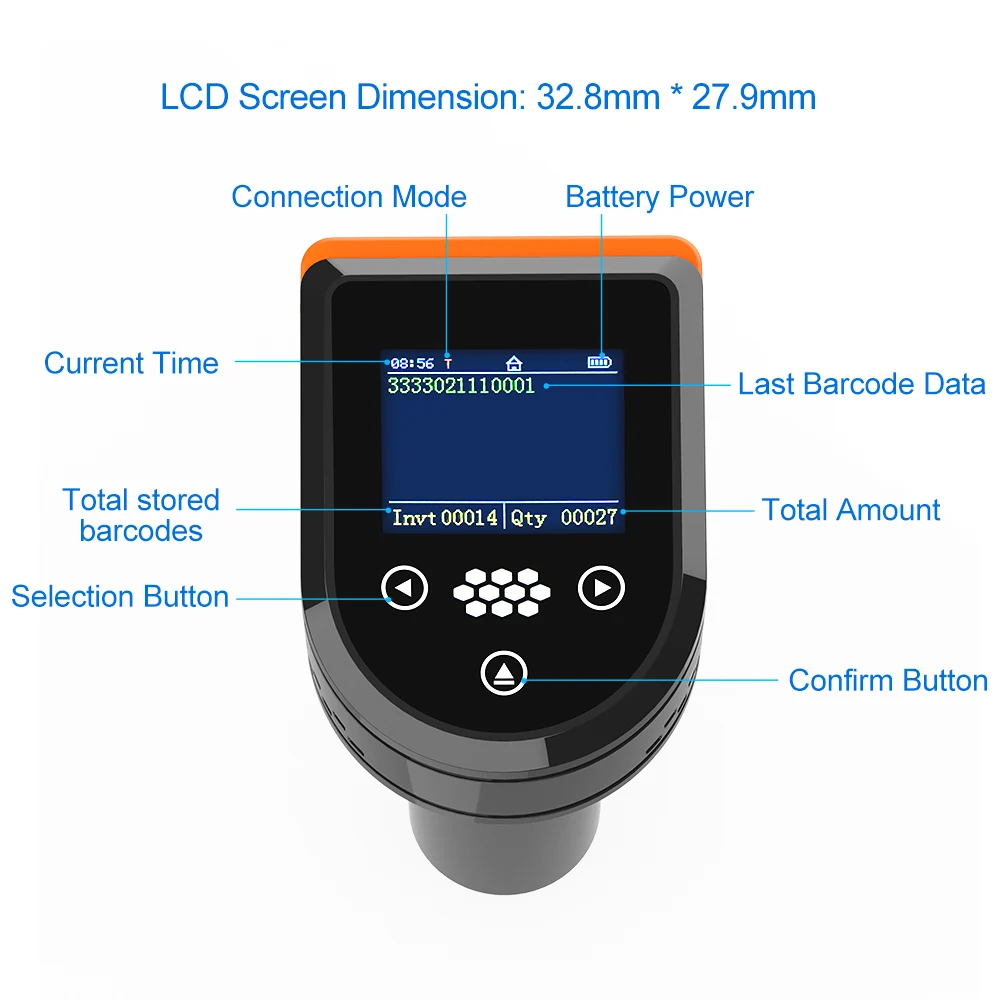

| screen | LCD | ||||||
| Color | Black;Off-White | ||||||
| Button life | >100,000 times | ||||||
| Performance Parameter | |||||||

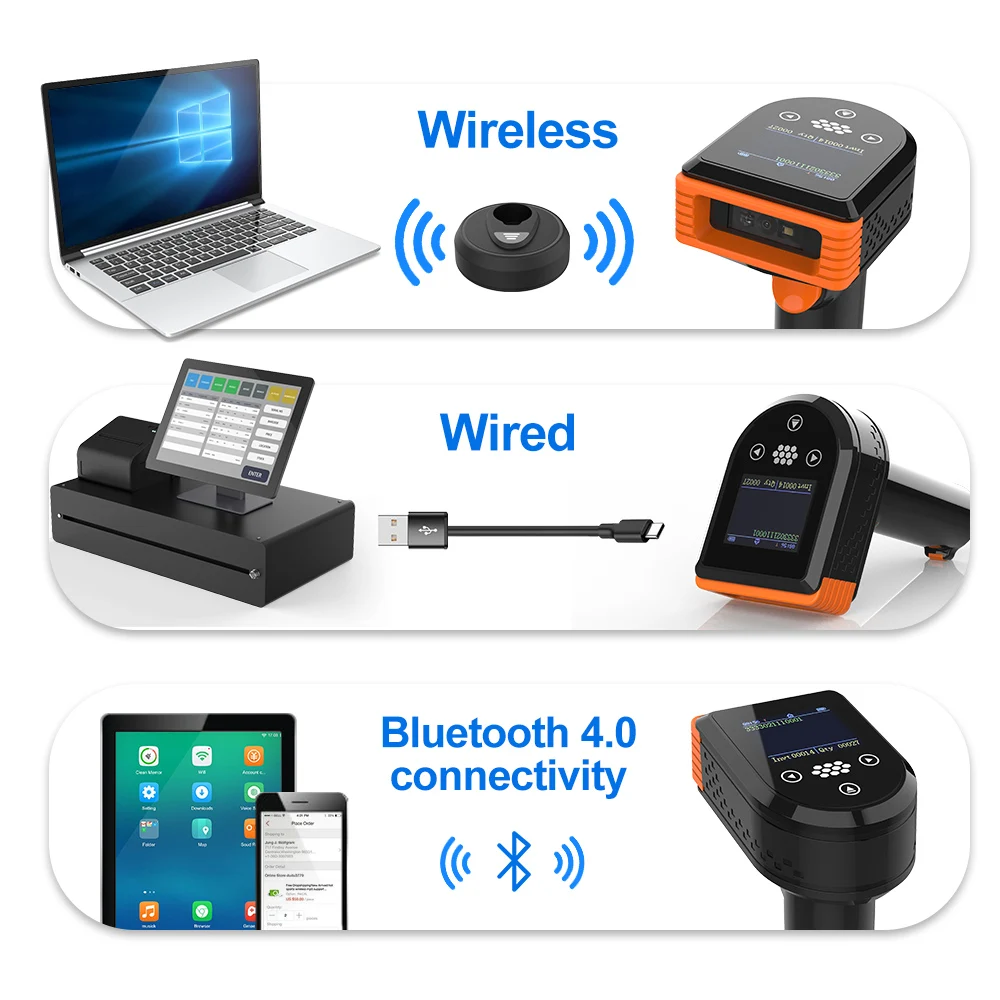

| Interface | USB;2.4G;Blue tooth | ||||||
| System Supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language Supported | English-United States; French-Canada; Dutch-Netherlands; Spanish-International; Latin American-Argentina; Portuguese-Brazil; Danish-Denmark; English-UK; Italian-Italy 142; French-France; German- Germany; Portuguese-Portugal; Finnish-Finland; Turkish-F; Japanese;Russian-Russia; Northern Sami-Norway [Support multi-country keyboard] | ||||||
| Sensor | Plane 640 × 480 CMOS sensor | ||||||
| Processor | 32-bit ARM MCU + BGA | ||||||

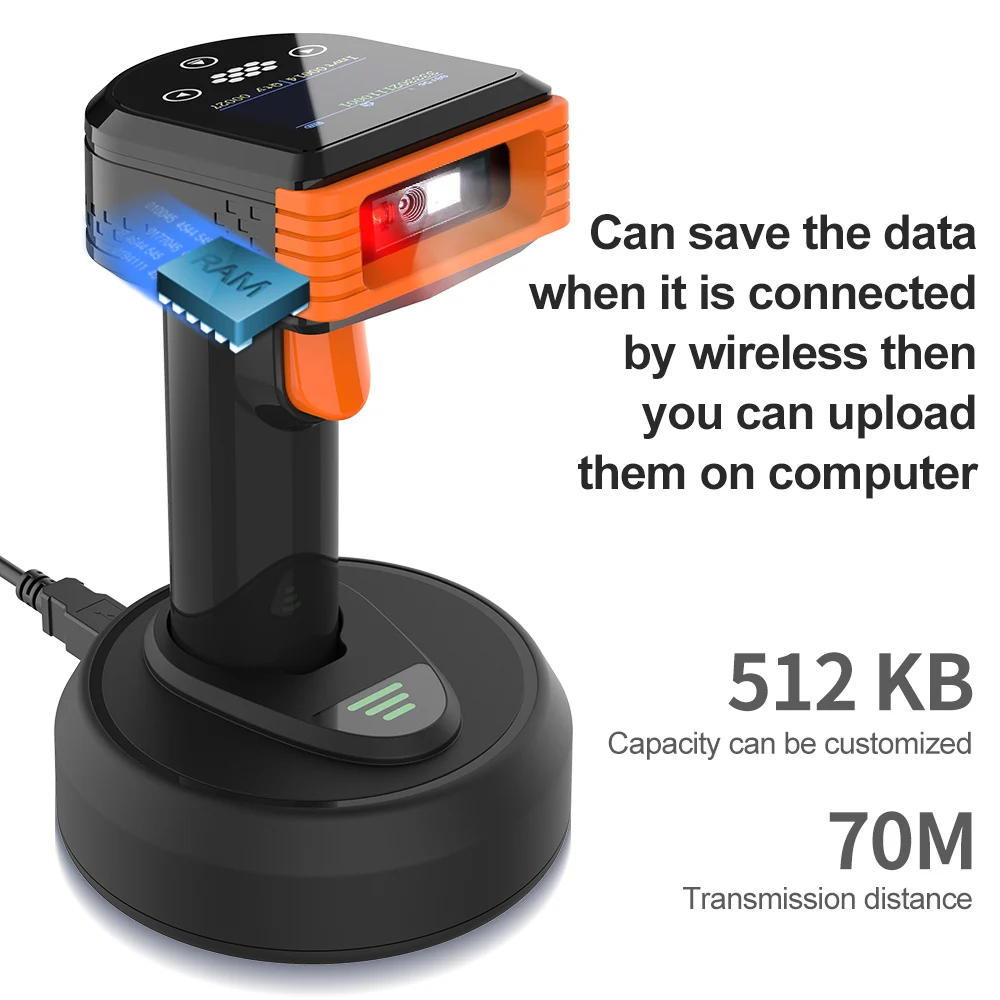

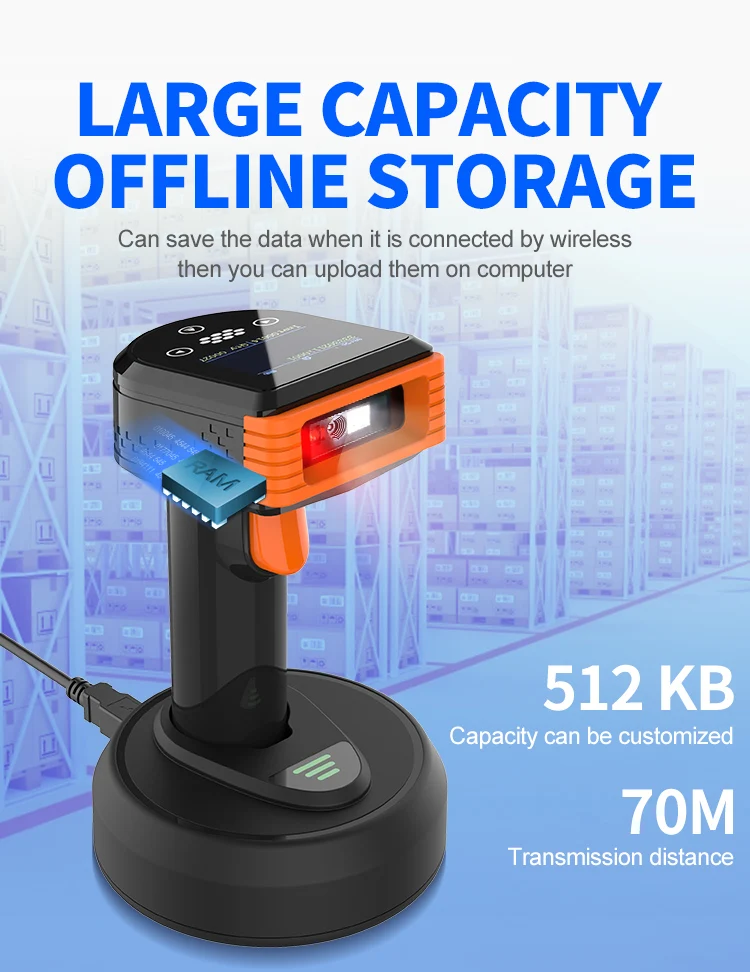

| Storage | 512 KB(Capacity can be customized) | ||||||
| Light Source | White light LED illumination + Red light LED Focus | ||||||
| Motion Tolerance | Code128: 35cm/sec QR: 45cm/sec | ||||||
| Wireless Transmission Distance | 2.4G≤60m(Visual range) Blue tooth≤10m(Visual range) | ||||||
| Reading Mod | Image | ||||||
| Resolution | ≥5mil | ||||||
| Bit error rate | 1/5 milion | ||||||
| Trigger Mode | Manual;Auto-Sensing;Continuous scanning | ||||||
| Prompt Mode | Buzzer, Indicator Light(LED),Shock(Settable) | ||||||
| Scaning Angle | Tilt ± 55°, deflection ± 55°, rotation 360° | ||||||
| Reading Distance | 10mm-600mm | ||||||
| Print Contrast | 25% | ||||||
| Charging Time | appr.8h | ||||||
| Working Time | appr.42h | ||||||
| Scan speed | 220 times/sec | ||||||

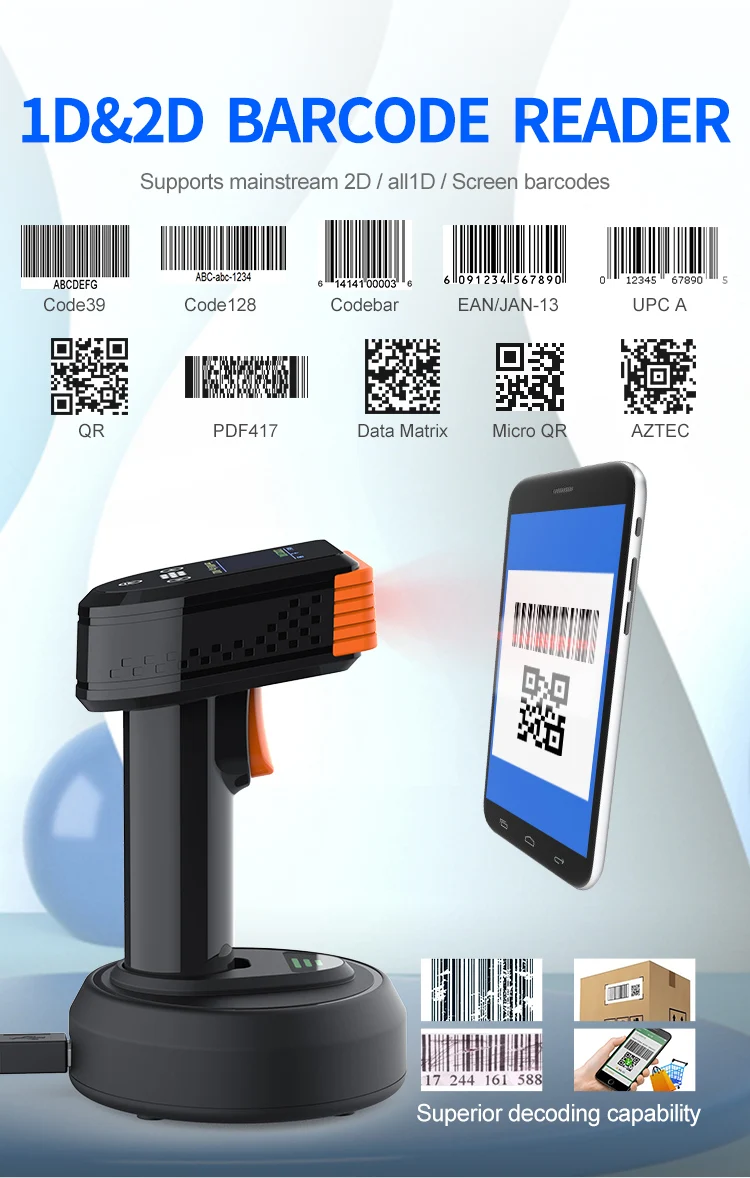

| Decoding Capability | 1D | Interleaved 2 of 5 ITF-6 ITF-14 ISBN Code 11 UCC/EAN-128 GS1 Databar Matrix 2 of 5 Industrial 2 of 5 Code 128 EAN-13 EAN-8 Code 39 UPC-A UPC-E Codabar Standard 2 of 5 Plessey MSI-Plessey Code 93 GS1 composite code | |||||
| 2D | PDF417 Data Matrix QR Code HanXin AZTEC Maxicode Micro QR Micro PDF417 | ||||||
| Scanning Depth | Code39 5mil:5cm - 8cm QR 20mil:4cm - 25cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No Condensation) | ||||||
| Storage Humidity | 20% to 85%(No Condensation) | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | Free Fall 1.5m(concrete surface) | ||||||
| Ambient light | 0→100000Lux | ||||||
