2U AI rack server Nettrix X620 G50 with A800 H800 GPU
- Category: Servers >>>
- Supplier: Combasst Industry Development (Shanghai) Co. Limited
Share on (1600907484438):
Product Overview
Description
Product Description
Artificial intelligence server X620 G50
Super AI Training Server
Super AI Training Server
Brief introduction
The X620 G50 is a high-end 2U rack server based on 4th generation Intel ® Xeon ® Scalable processors. Resources can be flexibly configured according to business needs to meet the application needs of various industries. It is perfectly suitable for machine learning, AI inference, cloud computing, high-performance computing, cloud storage, big data, virtualization, office systems and other application scenarios.
Main applications
Machine learning, AI inference, cloud computing, high-performance computing, cloud storage, big data, virtualization, office systems, etc
The X620 G50 is a high-end 2U rack server based on 4th generation Intel ® Xeon ® Scalable processors. Resources can be flexibly configured according to business needs to meet the application needs of various industries. It is perfectly suitable for machine learning, AI inference, cloud computing, high-performance computing, cloud storage, big data, virtualization, office systems and other application scenarios.
Main applications
Machine learning, AI inference, cloud computing, high-performance computing, cloud storage, big data, virtualization, office systems, etc

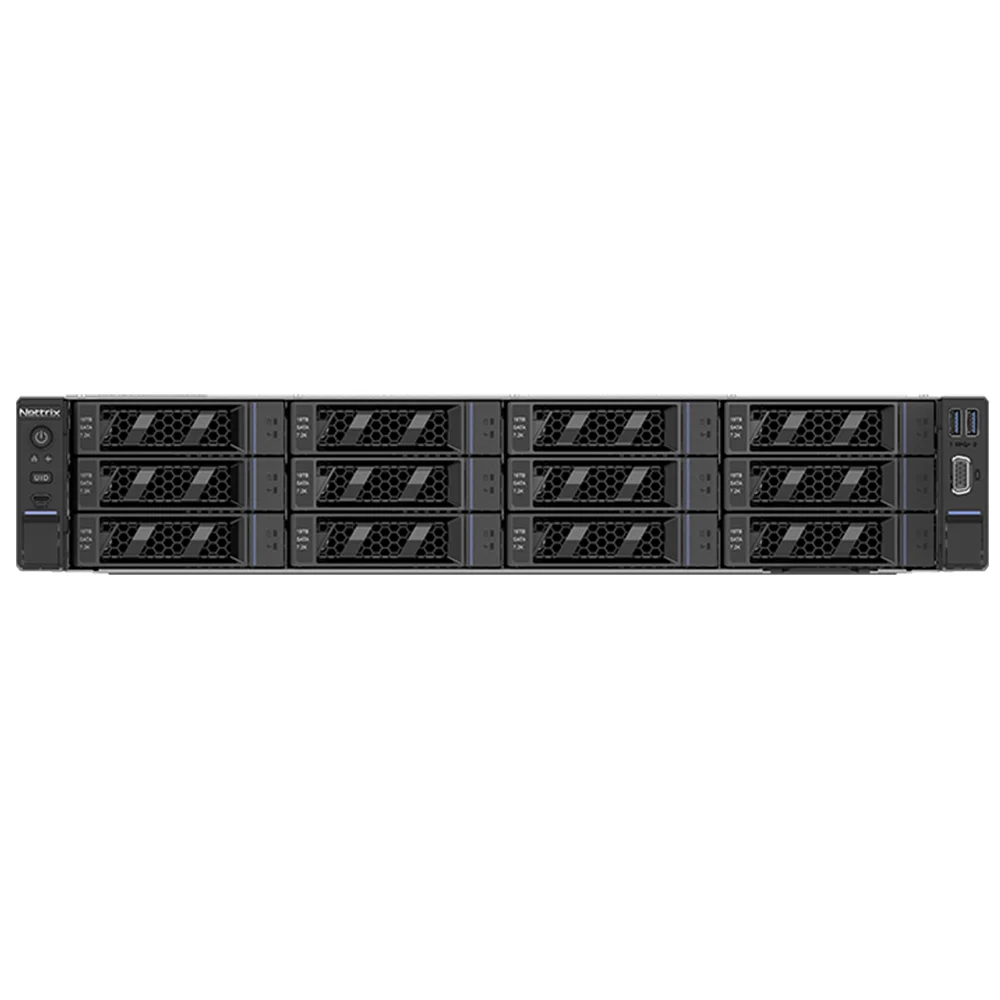

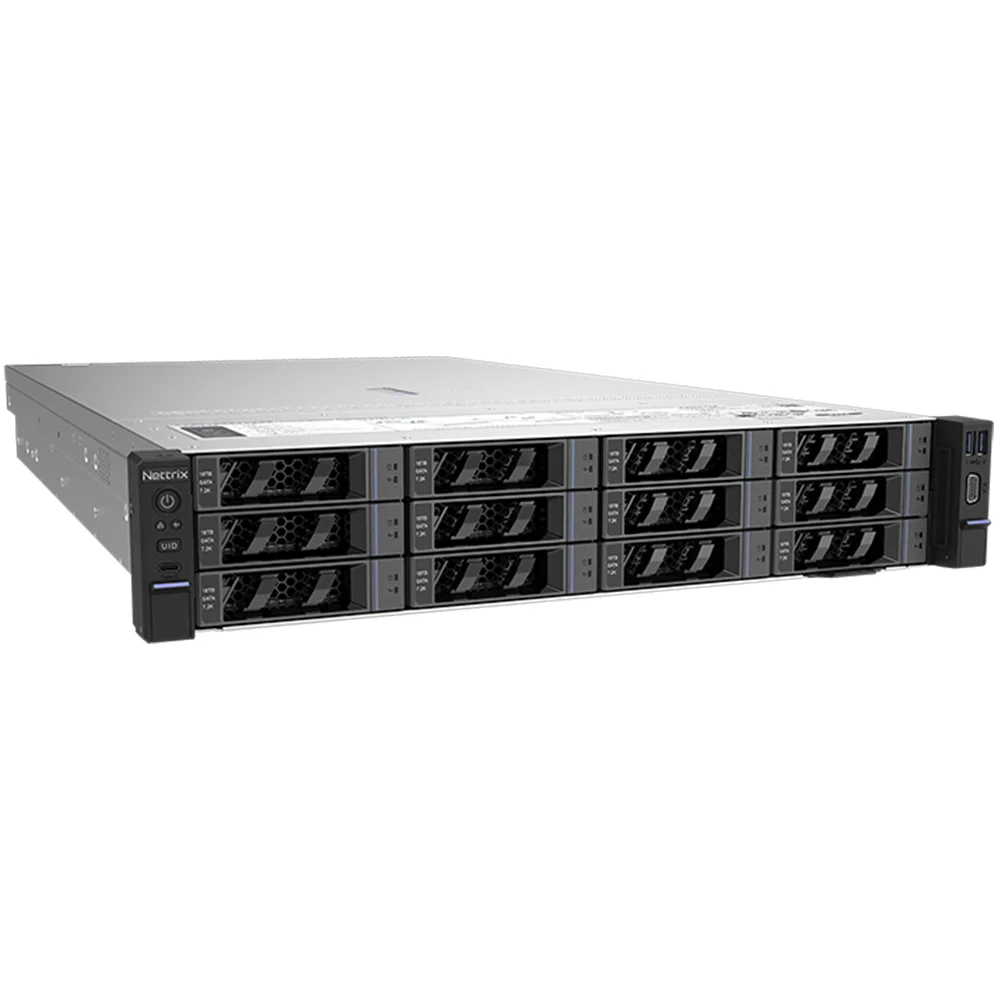

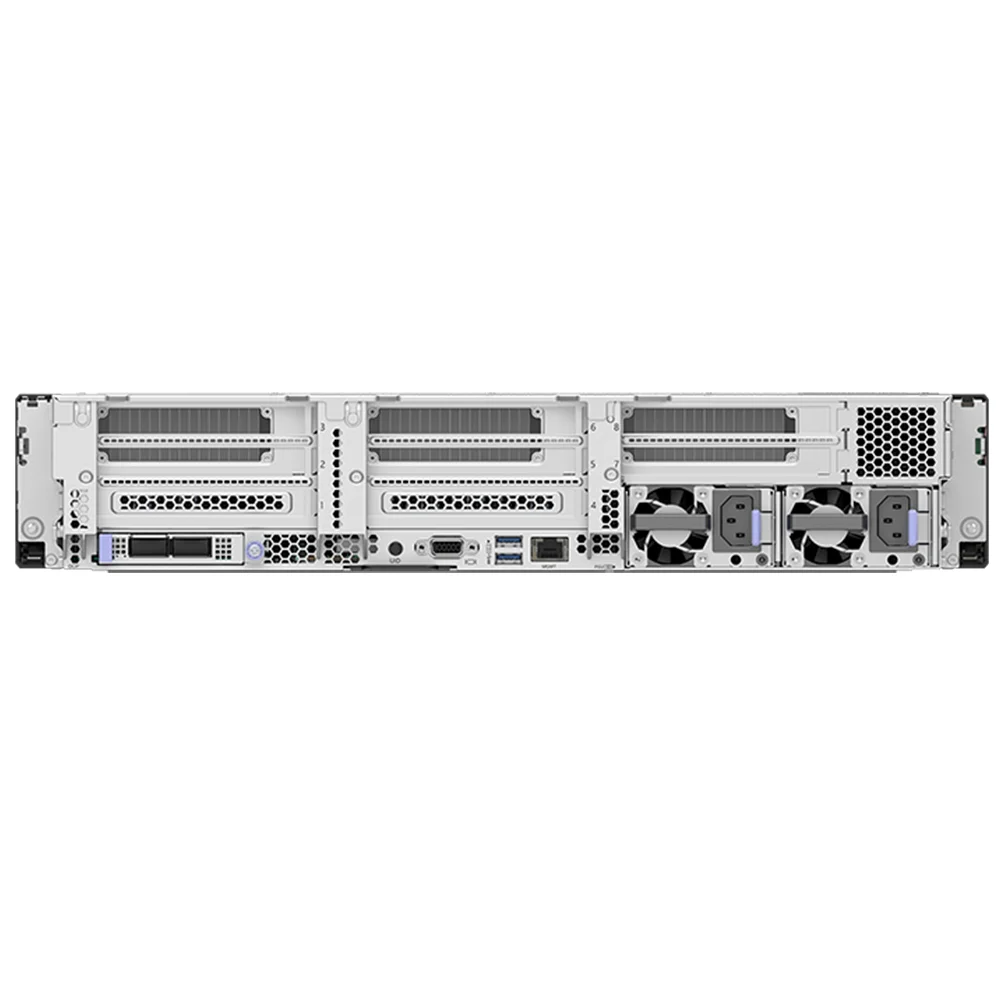

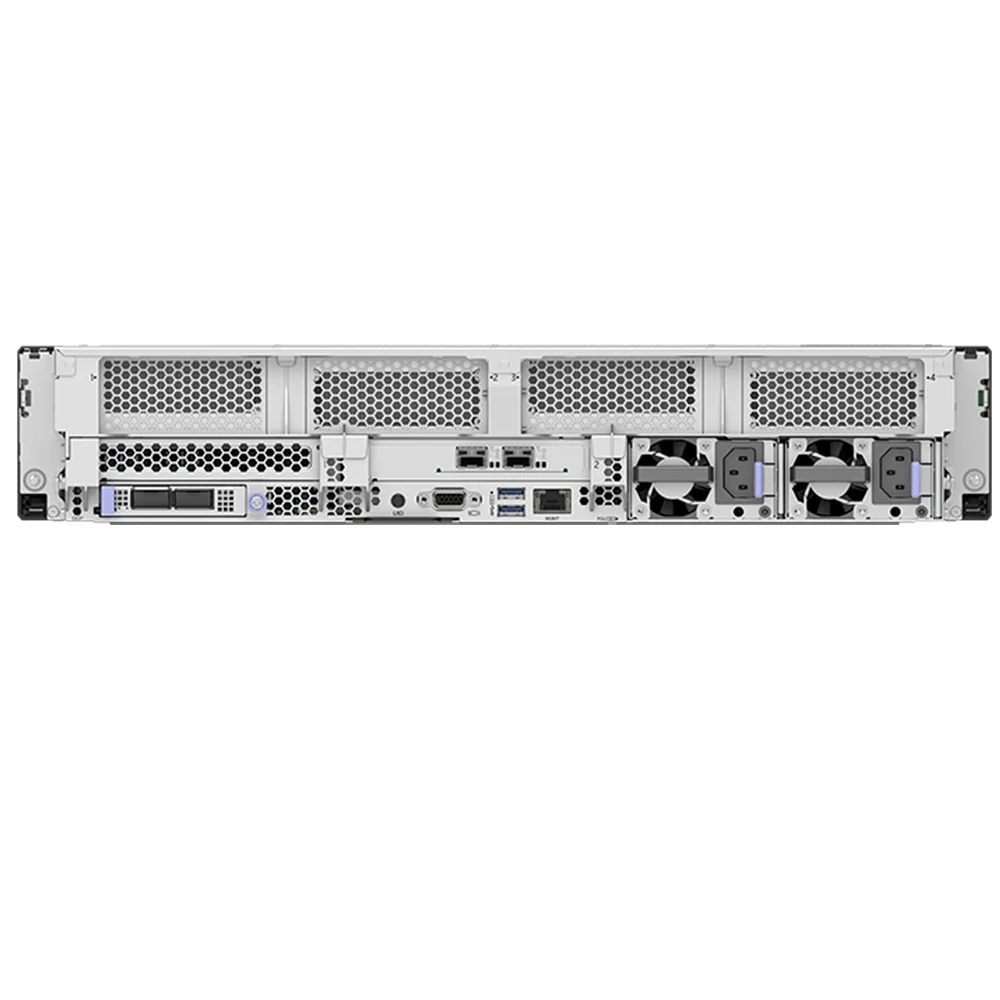

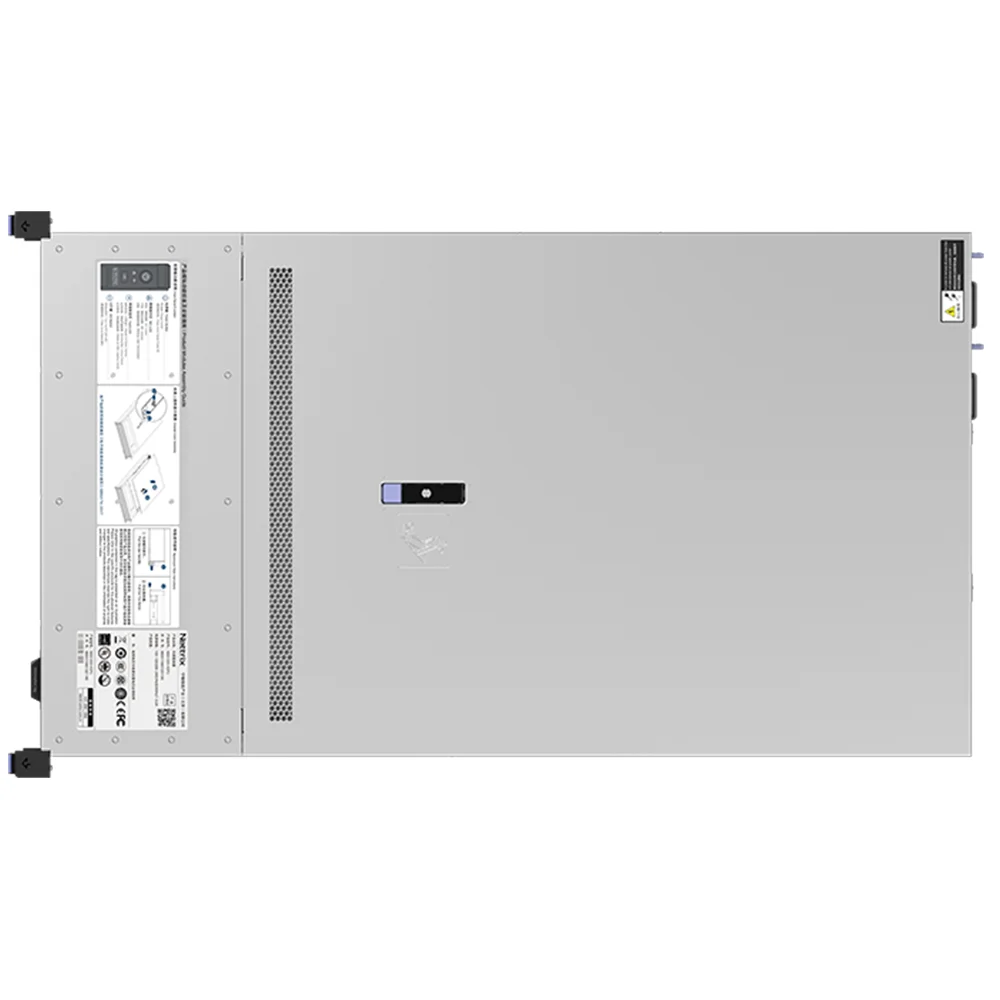

Details Images
Product Features
Extreme performance and flexible scaling
Supports 2 60th generation Intel ® Xeon ® Scalable processors, up to 32 cores per CPU, and powerful computing performance Supports 5 DDR4800 50MHz memory frequencies, increasing memory bandwidth by 12% Supports 3 x 5.24" or 2 x 5.5" HDDs, compatible with NVMe SSDs, and realizes personalized selection of storage resources Flexibly expand OCP network cards and PCI-E add-in cards, configure network resources on demand, fully support PCIe 0.100 protocol, and increase transmission rate by <>%.
Simple O&M intelligent management
Tool-free maintenance design, peripheral components to achieve quick disassembly and assembly, greatly shorten operation and maintenance time Out-of-band visual management can remotely and accurately locate the location information of physical devices to further optimize O&M efficiency Automatic recording of downtime, support online viewing and downloading of downtime logs, and accurately locate faults Provide health status monitoring and reporting functions of key components to realize intelligent services throughout the product life cycle
Extremely calm, green and energy-saving
New structural design, 15% increase in air inlet area and 8% increase in heat dissipation performance The dual-state triple speed regulation mechanism enables the heat dissipation of the whole machine to be dynamically adjusted according to the ambient temperature and the real condition of the load, so as to achieve the effect of green energy saving Patented custom fan increases air volume by 30%, reduces power consumption by 15%, and reduces noise by 10%, making air cooling more efficient and quiet
Supports 2 60th generation Intel ® Xeon ® Scalable processors, up to 32 cores per CPU, and powerful computing performance Supports 5 DDR4800 50MHz memory frequencies, increasing memory bandwidth by 12% Supports 3 x 5.24" or 2 x 5.5" HDDs, compatible with NVMe SSDs, and realizes personalized selection of storage resources Flexibly expand OCP network cards and PCI-E add-in cards, configure network resources on demand, fully support PCIe 0.100 protocol, and increase transmission rate by <>%.
Simple O&M intelligent management
Tool-free maintenance design, peripheral components to achieve quick disassembly and assembly, greatly shorten operation and maintenance time Out-of-band visual management can remotely and accurately locate the location information of physical devices to further optimize O&M efficiency Automatic recording of downtime, support online viewing and downloading of downtime logs, and accurately locate faults Provide health status monitoring and reporting functions of key components to realize intelligent services throughout the product life cycle
Extremely calm, green and energy-saving
New structural design, 15% increase in air inlet area and 8% increase in heat dissipation performance The dual-state triple speed regulation mechanism enables the heat dissipation of the whole machine to be dynamically adjusted according to the ambient temperature and the real condition of the load, so as to achieve the effect of green energy saving Patented custom fan increases air volume by 30%, reduces power consumption by 15%, and reduces noise by 10%, making air cooling more efficient and quiet
Product Paramenters
Technical specifications | ||
Form | 2U rack server chassis | |
Processor | Supports 2 4th generation Intel chips ® xeon ® Scalable processor, up to 350W | |
Chipset | IntelC621A series chipset | |
Memory | 32 DDR5 memory slots, up to 4800MHz, support memory ECC, memory mirroring, memory hot standby and other protection modes Supports up to 16 Intel ® Optane ® persistent memory PMem 300 series | |
Storage controller | Supports passthrough, RAID0, 1, 10, 5, 50, 6, 60 and other storage schemes When configuring the RAID controller, it can support Cache supercapacitor protection, provide RAID level migration, disk roaming, self-diagnosis, Web remote settings and other functions, and support RAID card safe boot | |
Local storage | Front-mounted: supports up to 12 3.5-inch hard disks, supports hot plugging; It supports up to 24 2.5-inch hard disks, compatible with 24 NVMe hard disks, and supports hot swapping Built-in: Up to 2 SATA/PCIe M.2, 1 on-board eMMC chip | |
Internet | NIC: 1 OCP 3.0 with NCSI function OCP 3.0 can be equipped with 2*1GE, 2*10GE, 2*25GE, 2*100GE, 2*200GE and other interfaces | |
PCI-E extension | Up to 9 PCIe 5.0 expansion slots, including 1 OCP slot Maximum support is double-width GPU*4, single-width GPU*5, and half-height GPU*6 | |
Other interface | Rear of the chassis: 1 RJ-45 management port, 2 USB 3.0 port, 1 VGA port Chassis front: Optional 2 x USB 3.0+VGA or USB 2.0 Inside the chassis: Built-in 1 USB 3.0 port | |
Power supply | Optional 2000W/2200W/2700W CRPS High Efficiency Platinum Hot Swappable Power Supply, Support 1+1 Redundancy, Voltage Range 100-240Vac (Please refer to the power input value on the host nameplate label) | |
Manage features | Integrated dual BMC chips, support IPMI2.0, SOL, KVMOverIP, virtual media and other advanced management functions, and provide one 1GbpsRJ1 management port, which can support NCSI functions | |
Graphics | Integrated display controller with resolution 1920x1080 | |
operating system | For the details of Microsof®WindowsServe, RedHatEnterpriseLinuX, SUSELinuxEnterpriseServe, Ubuntu, etc., | |
Operating temperature | Working time 5 °C ~ 35 °C (please consult Ningchang company for details) | |
Chassis specifications | 770mm(L)*446mm(W)(excluding ears)*87mm(H) 770mm(L)*482mm(W)(including lugs)*87mm(H) | |
Full weight | MAXIMUM 45KG (subject to actual configuration) | |
Product packaging and delivery
1. All products will be packed in carton, so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement.
Shipping
1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
2. Packaging according to customer requirement.
Shipping
1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
Company Profile
Combasst Industry Development Co.,Ltd.
Established in 2004, it is committed to providing customers with diversified, professional and customized ICT products, solution consulting design, and technology implementation services. At the same time, it combines the advantages of equipment from well-known global manufacturers to serve major operators and private network users as well as commercial customers.
The company has a strong technical service and project sales team to provide customers with competitive ICT solutions and services. It has formed a technical leader in the field of communication industry, which can provide solutions for customers' different needs.
The company has a strong technical service and project sales team to provide customers with competitive ICT solutions and services. It has formed a technical leader in the field of communication industry, which can provide solutions for customers' different needs.
Our service
1,Customes can contact us for any question by Telephone, Skype, Trademanager, E-mail, Whatsapp, QQ etc.
2,All products have been tested and packaged in good condition before dispatch.
3,COMBASST will be responsible for defects in workmanship & materials and product’s quality issue while the product is used
properly according to the manual and in warranty.
4,We provide 3-5 year warranty and life-long technical support for all our product.
5,Any part that upon COMBASST’s examination proves defective, return or other solutions per discussion.
6,Return and Freight:
1).Under Warranty: The customer is responsible for freight & insurance charges, includes custom charges
when the equipment and/or parts is shipped to Manufacturer/Supplier for service.
COMBASST is responsible for the freight & insurance charges to the customer.
2).Warranty period: The customer is responsible for any freight & insurance charges.
7,We can provide detail documents and remote technology support for device installation and configuration if needed
2,All products have been tested and packaged in good condition before dispatch.
3,COMBASST will be responsible for defects in workmanship & materials and product’s quality issue while the product is used
properly according to the manual and in warranty.
4,We provide 3-5 year warranty and life-long technical support for all our product.
5,Any part that upon COMBASST’s examination proves defective, return or other solutions per discussion.
6,Return and Freight:
1).Under Warranty: The customer is responsible for freight & insurance charges, includes custom charges
when the equipment and/or parts is shipped to Manufacturer/Supplier for service.
COMBASST is responsible for the freight & insurance charges to the customer.
2).Warranty period: The customer is responsible for any freight & insurance charges.
7,We can provide detail documents and remote technology support for device installation and configuration if needed
