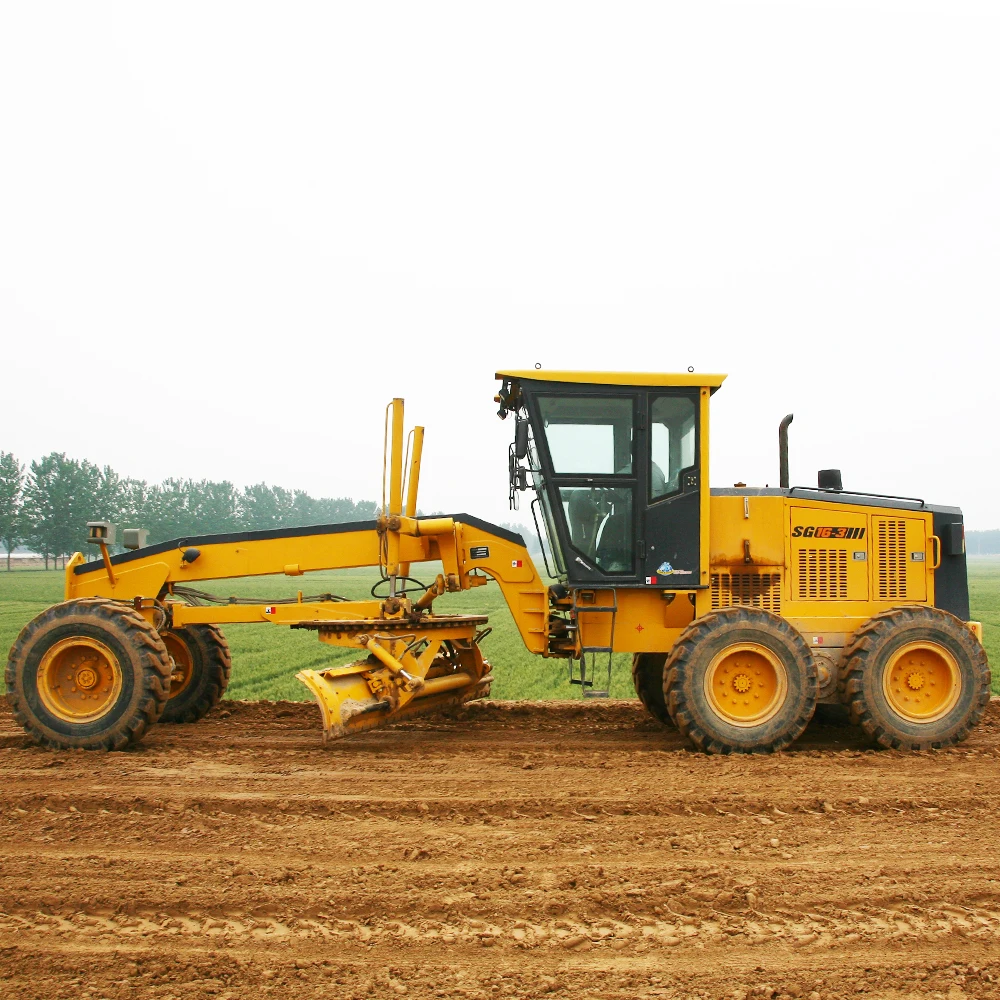

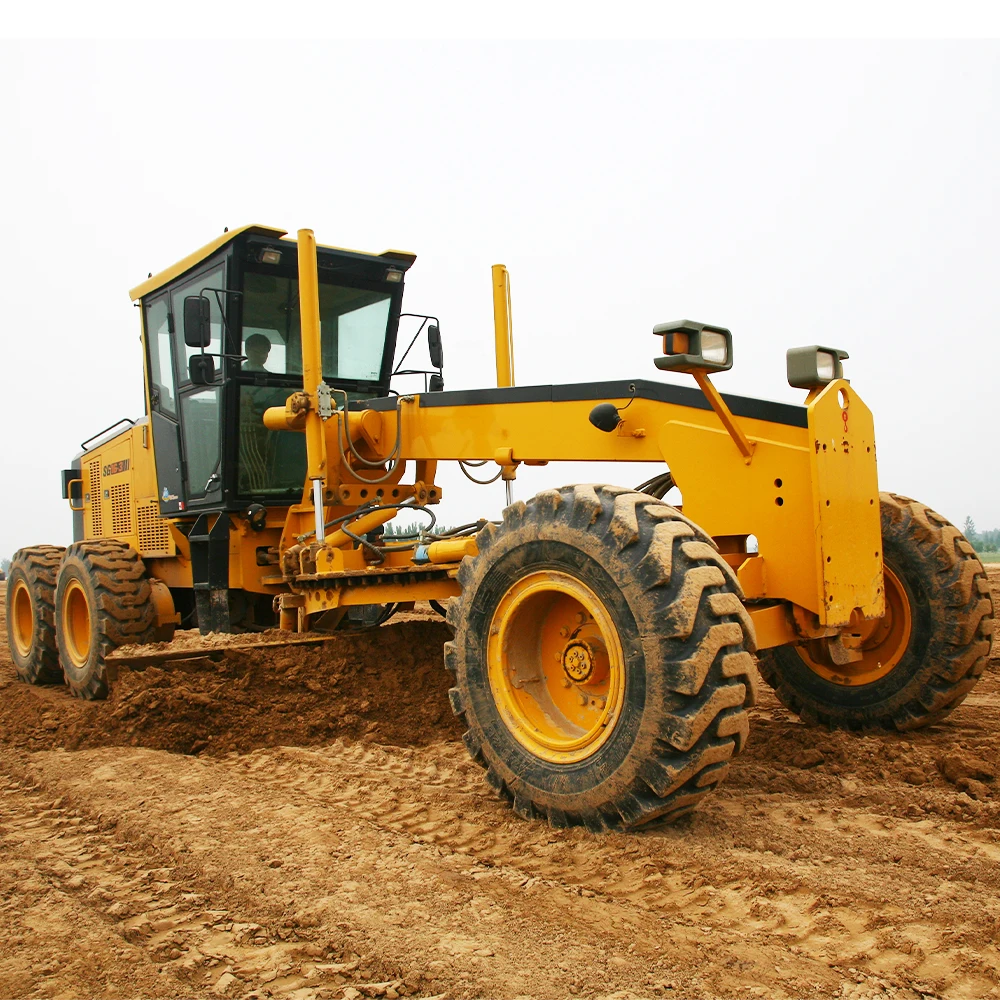

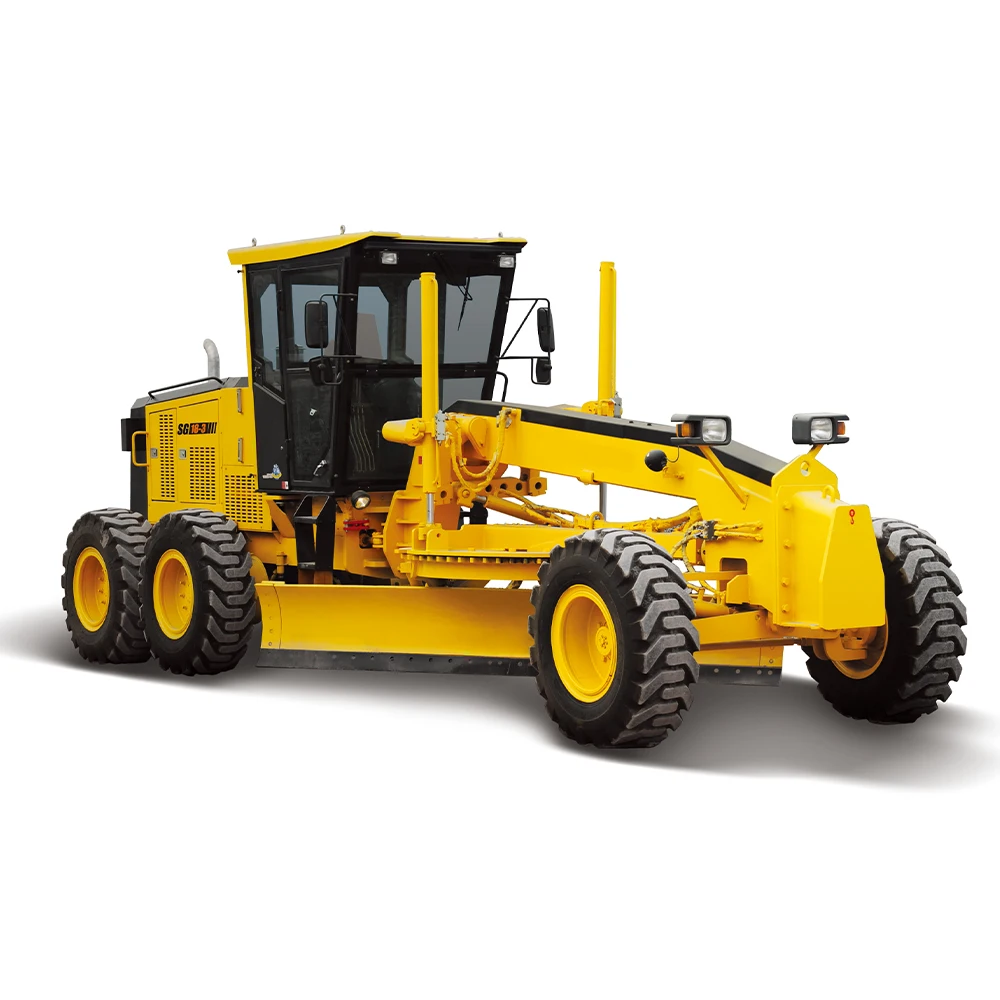

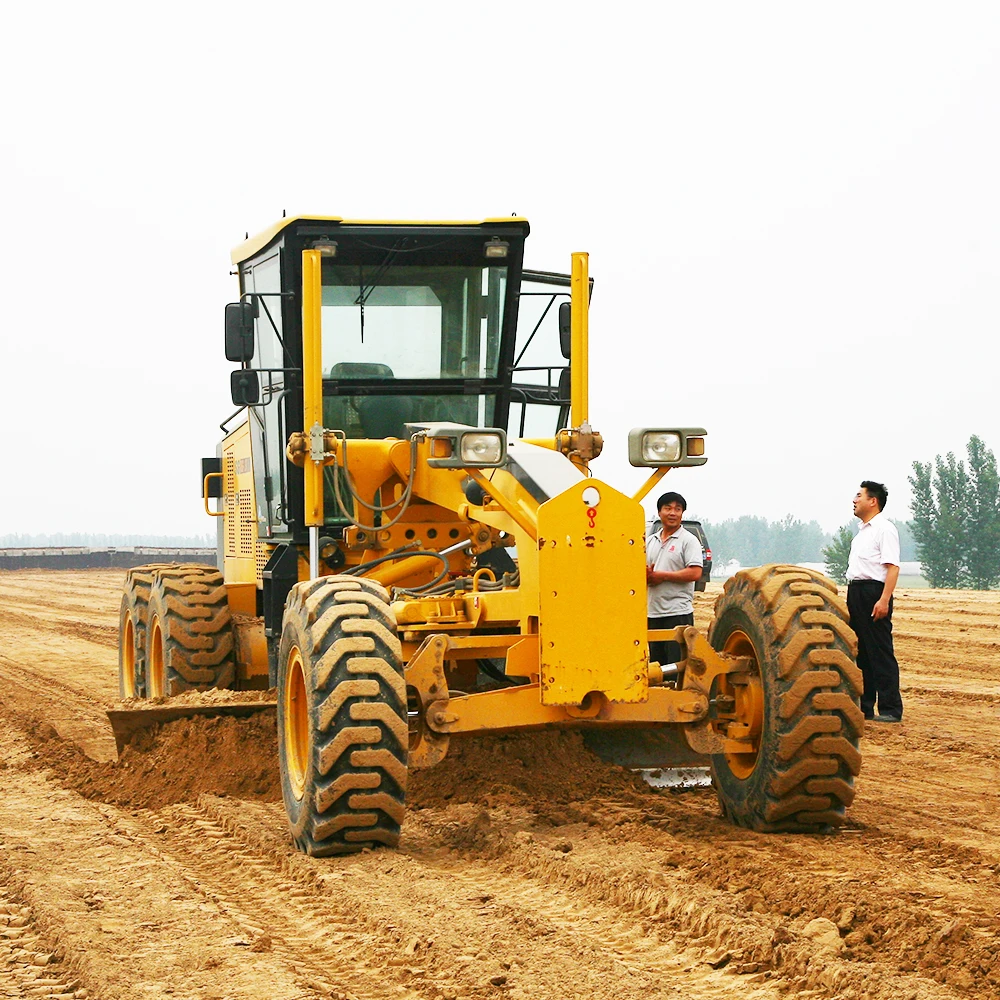

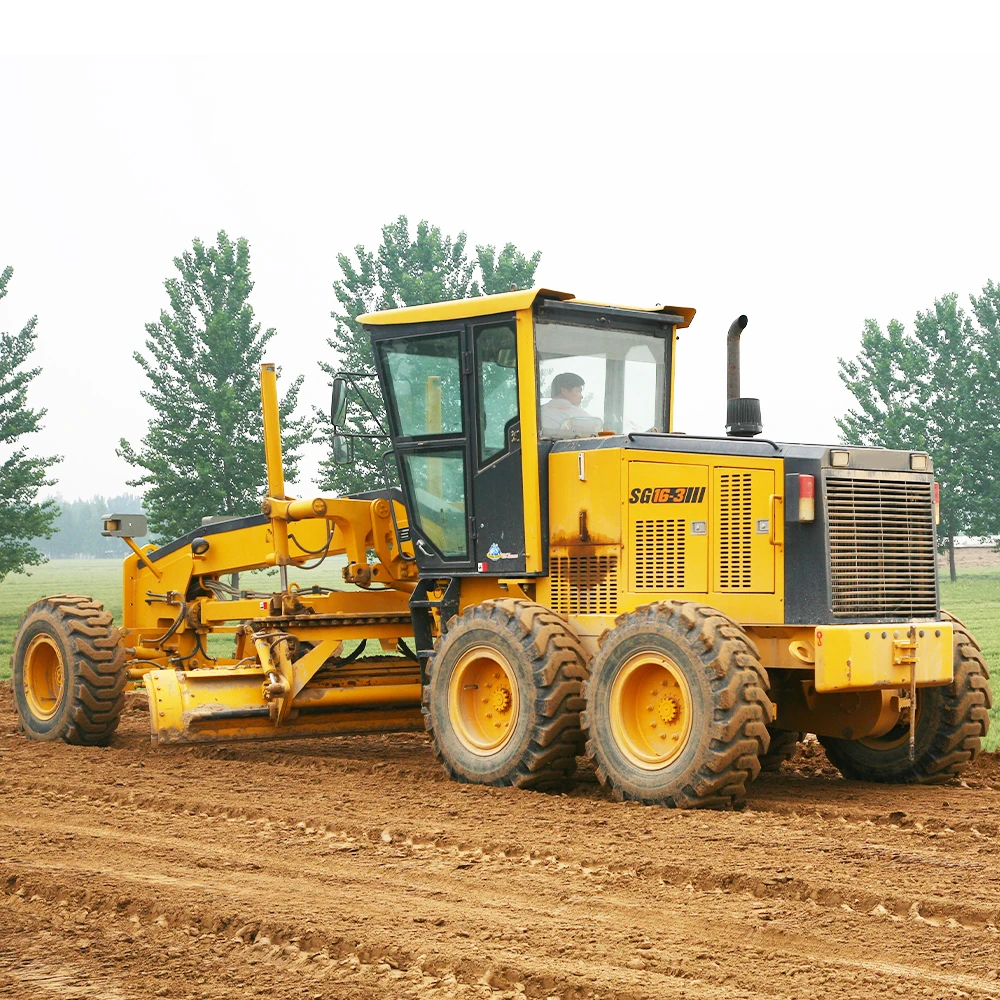

Chinese Top Brand 190HP Compact Hydraulic Motor Grader SG16 3 With Spare Parts
- Category: >>>
- Supplier: Jining Fangze Machinery Co. Ltd.
Share on (1600909192887):
Product Overview
Description

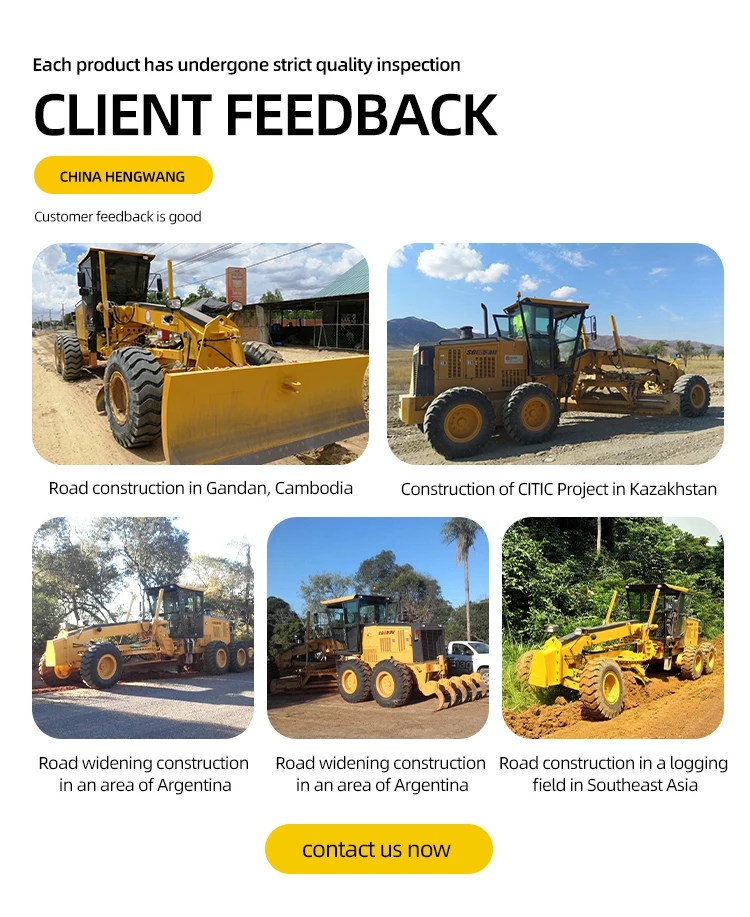

Client Feedback
Products Description
Hengwang SG16-3Motor Grader
Hengwang SG18 Motor Grader uses turbocharged diesel engine with large output torque, large power reserves and low fuel consumption, and high efficiency.

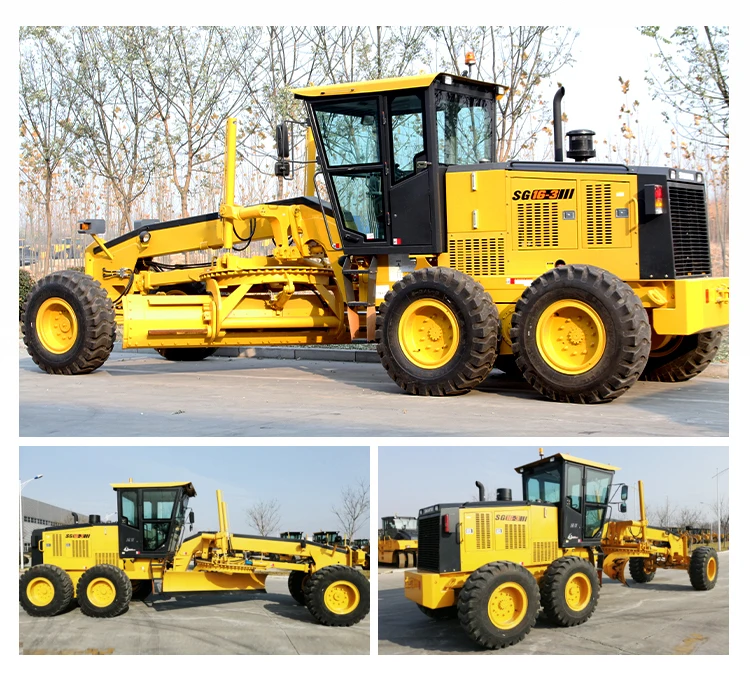

Product Display

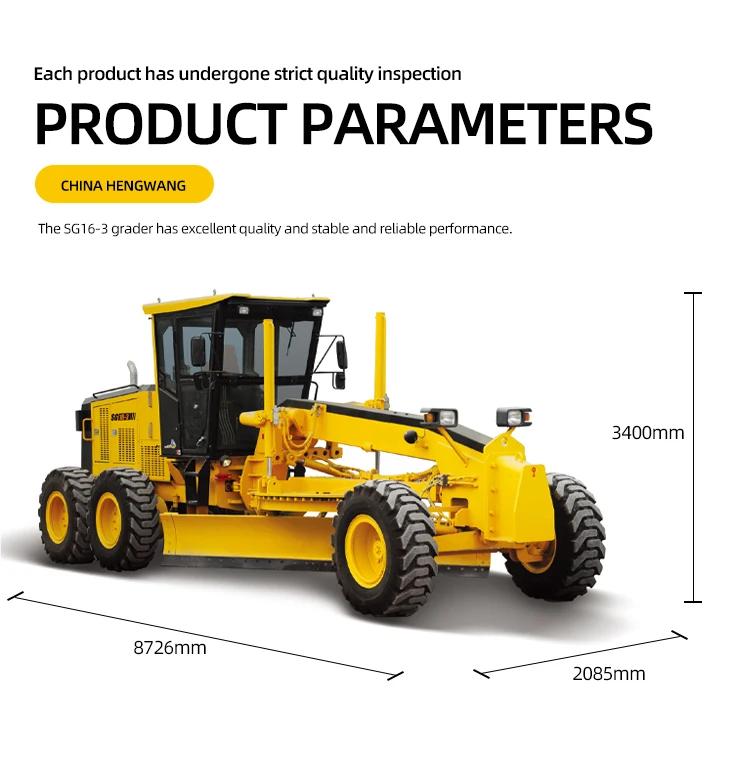

Product Paramenters
Model | SG14 | SG16-3 | SG18-3 |
Operating Weight | 11600kg | 15100kg | 15700kg |
Max. traction | 65kN | 79.3kN | 83.5kN |
Minimum ground clearance | 430mm | 430mm | 430mm |
Gradeability | 20° | 20° | 20° |
Min. Turning Radius | 6600mm | 7800mm | 7800mm |
Front wheel steering angle | ±45° | ±45° | ±45° |
Chassis steering angle | ±25° | ±25° | ±25° |
The front axle tilt angle | ±17° | ±17° | ±17° |
The front axle swing angle | ±15° | ±15° | ±15° |
Rear axle swing angle | ±15° | ±15° | ±15° |
Brake pressure | 10MPa | 10MPa | 10MPa |
Working pressure | 16MPa | 16MPa | 16MPa |
Front axle load | 3480kg | 4600kg | 4800kg |
Rear axle load | 8120kg | 10800kg | 11400kg |
Engine Model | 6BTAA5.9-C150 | 6BTAA5.9-C160 | 6BTAA5.9-C180/SC8D190.1G2 |
Rated Power | 112kW/2200rpm | 118kW/2200rpm | 132kW/2200rpm/ |
140kW/2300rpm | |||
Maximum torque | 670N.m/1400rpm | 690N.m/1300rpm | 770N.m/1500rpm/720N.m/1300rpm |
Displacement | 5.9L | 5.9L | 5.9L/8.3L |
Minimum fuel consumption | 202g/kW.h | 205g/kW.h | 206g/kW.h/ |
200g/kW.h |
Wide application
Product Details
Company Certificate And Exhibition
