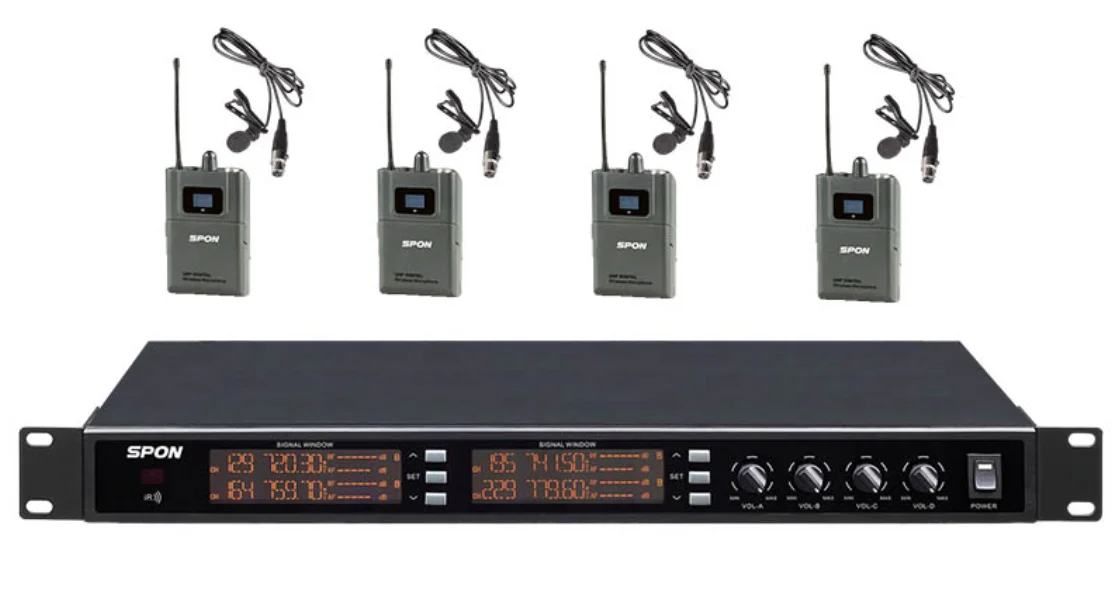

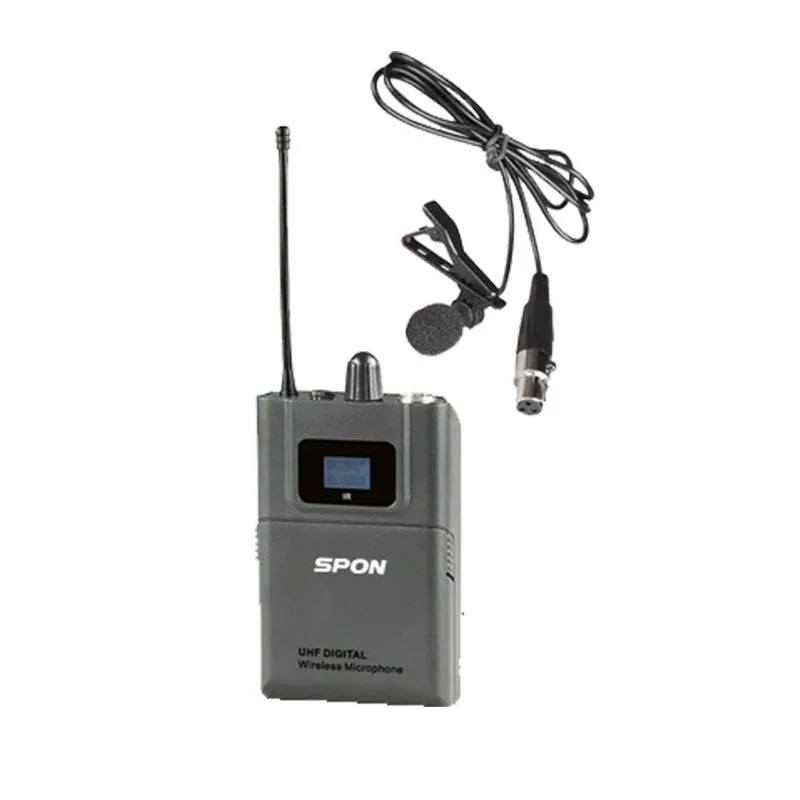

Wireless Microphone System Pro UHF 4 Channels with 4 Lavalier Bodypacks Crystal Clear Sound for professional sound PA
- Category: >>>
- Supplier: Spon Communications Co. Ltd.
Share on (1600909412706):
Product Overview
Description
Products Description
KEY FEATURES
●All-metal structure for the receiver, environmentally-friendly ABS plastic shell for the bodypack transmitters.
●Unimpeded and stable wireless coverage extends to 262 ft. (80 meters) without interference, dropout and cutoff.
●4-channel design with 4×100 selectable frequencies in 500MHz-900MHz UHF frequency band, each channel has 100 selectable
frequencies with 250KHz increment.
●Bodypack transmitters can be set to any of the 4×100 UHF frequencies and are powered by two AA alkaline batteries for 8 hours of
continuous operation.
●Maximum 10 receivers & 40 bodypack transmitters can be linked up simultaneously.
●Smooth IR synchronization enables hassle-free setup process and ensures that you can pair up the receiver and the bodypack
transmitters within seconds.
●Advanced auto-scan function serves as automatic frequency management by precisely scanning the entire RF environment and locating
the best available frequency nearby.
●Two XLR balanced outputs for every two channels and one 1/4” TS unbalanced mixed output for combined audio.
●Offering two types of microphones (lavalier lapel mic/headset mic) for different applications.
●Unimpeded and stable wireless coverage extends to 262 ft. (80 meters) without interference, dropout and cutoff.
●4-channel design with 4×100 selectable frequencies in 500MHz-900MHz UHF frequency band, each channel has 100 selectable
frequencies with 250KHz increment.
●Bodypack transmitters can be set to any of the 4×100 UHF frequencies and are powered by two AA alkaline batteries for 8 hours of
continuous operation.
●Maximum 10 receivers & 40 bodypack transmitters can be linked up simultaneously.
●Smooth IR synchronization enables hassle-free setup process and ensures that you can pair up the receiver and the bodypack
transmitters within seconds.
●Advanced auto-scan function serves as automatic frequency management by precisely scanning the entire RF environment and locating
the best available frequency nearby.
●Two XLR balanced outputs for every two channels and one 1/4” TS unbalanced mixed output for combined audio.
●Offering two types of microphones (lavalier lapel mic/headset mic) for different applications.
Product Parameters
Model No.: | LCS-2338B | XC-9508P26 | XC-9508P36 | XC-9508P50 | |||
Power Supply: | DC 12V/1A | ||||||
Oscillation Mode: | Phase Locked Loop (PLL) Synthesizer | ≤310W | ≤420W | ≤580W | |||
Modulation Mode: | FM | 260W | 360W | 500W | |||
Working Distance: | 262 ft. (80 meters) | ||||||
Frequency Stability: | 0.001% | ||||||
Frequency Range: | 500MHz-900MHz UHF | ||||||
Selectable Frequencies: | 4×100 Frequencies | ||||||
S/N (Signal-to-Noise) Ratio: | ≥60dB | ||||||
THD: | ≤0.5% (at 1KHz) | ||||||
Frequency Response: | 40Hz-20KHz | ||||||
Interface: | 2×Balanced Output (XLR Jack), 1×Unbalanced Mixed Output (1/4” TS Jack), 2×BNC Antenna Port, 1×Power Input | ||||||
Weight: | 7.5kg | ||||||
Dimensions: | 420×220×44mm | ||||||
Standard Accessories: | 1×4-Pin Terminal Block Connector, 2×5-Pin Terminal Block Connector, 2×Rack Ear, 4×Rubber Foot, 1×Installation Manual | ||||||
Optional Accessories: | DC 12V/1A Power Adapter (Optional Types: US/EU/UK/AU) | ||||||

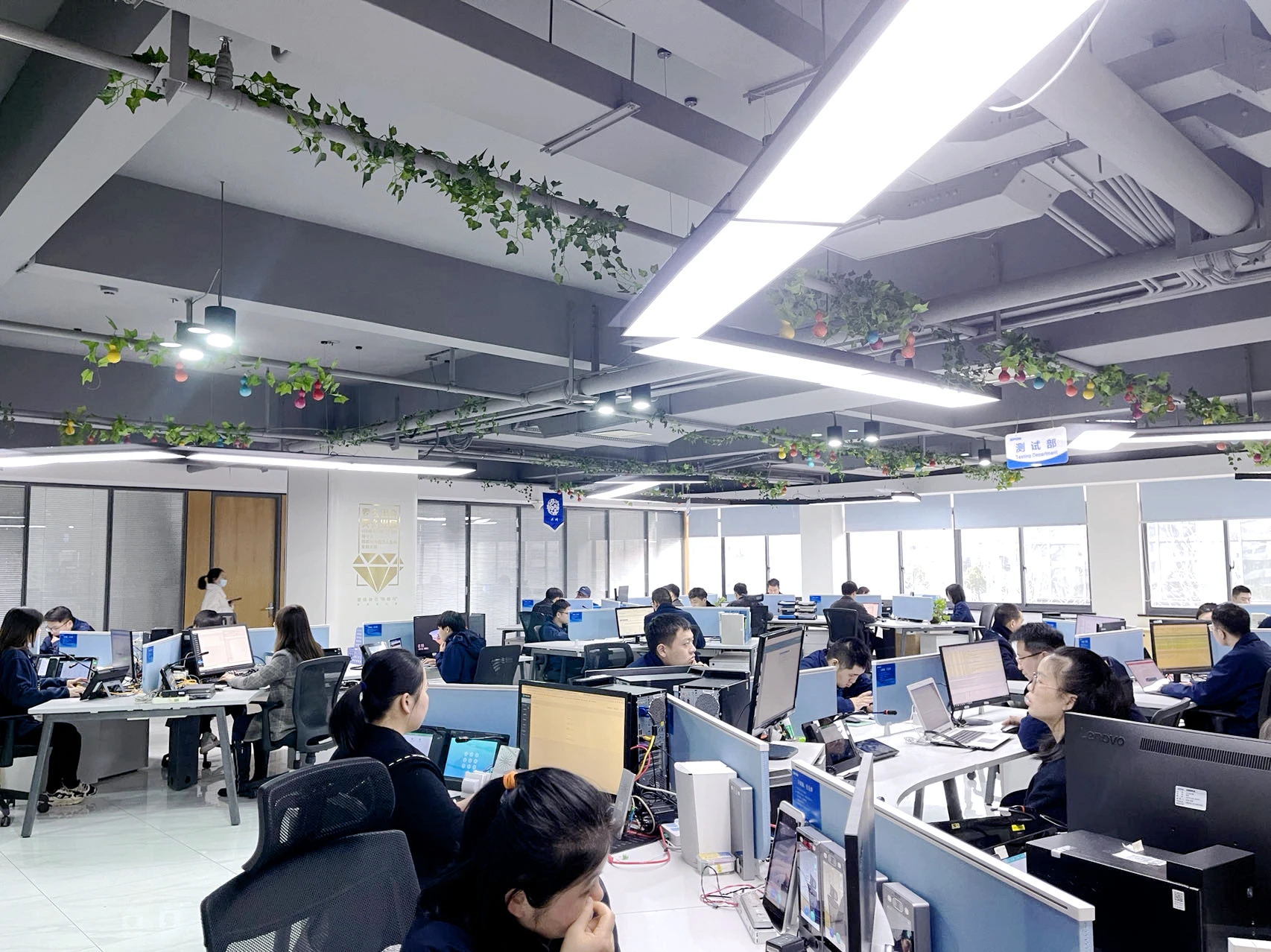

Company Profile

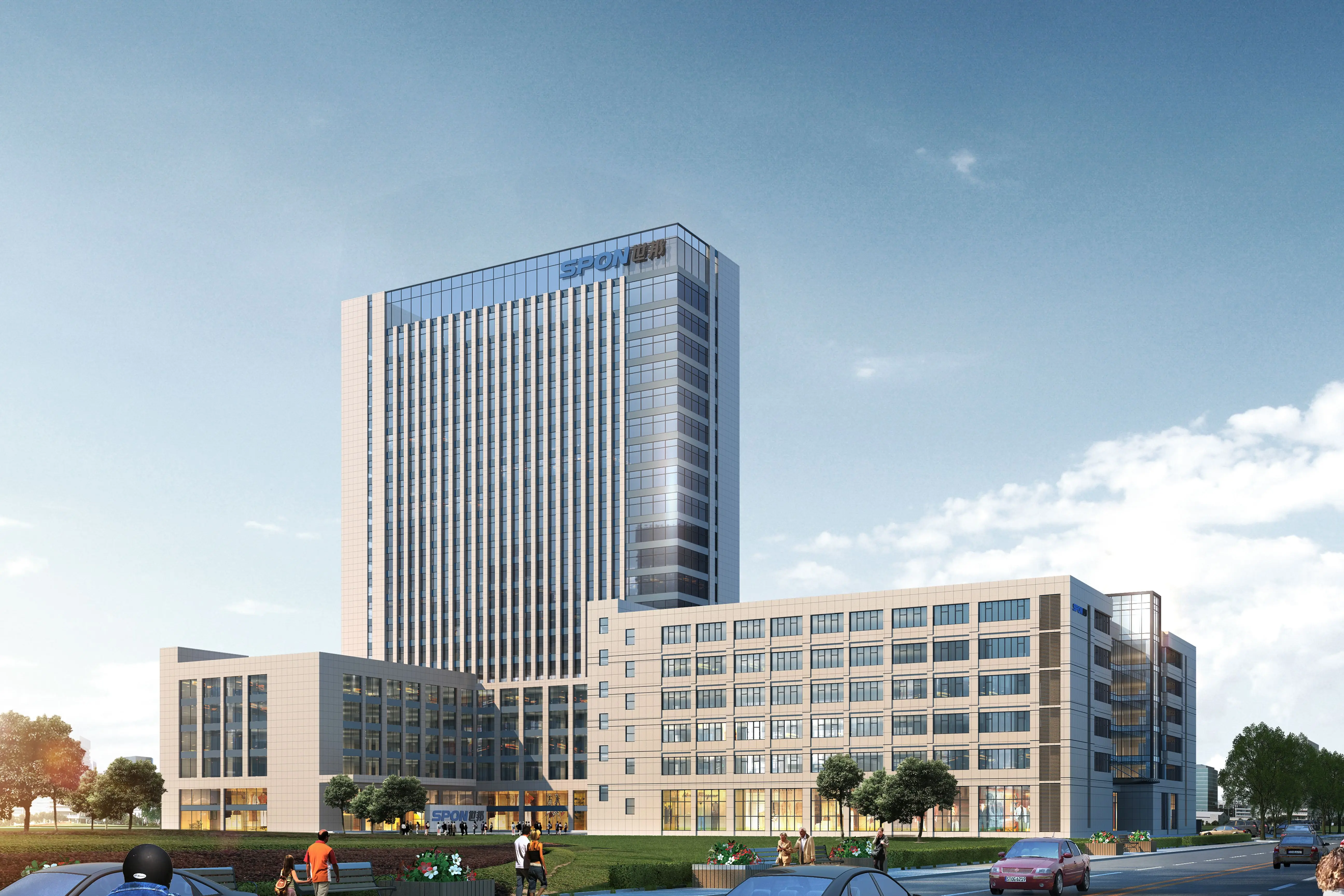

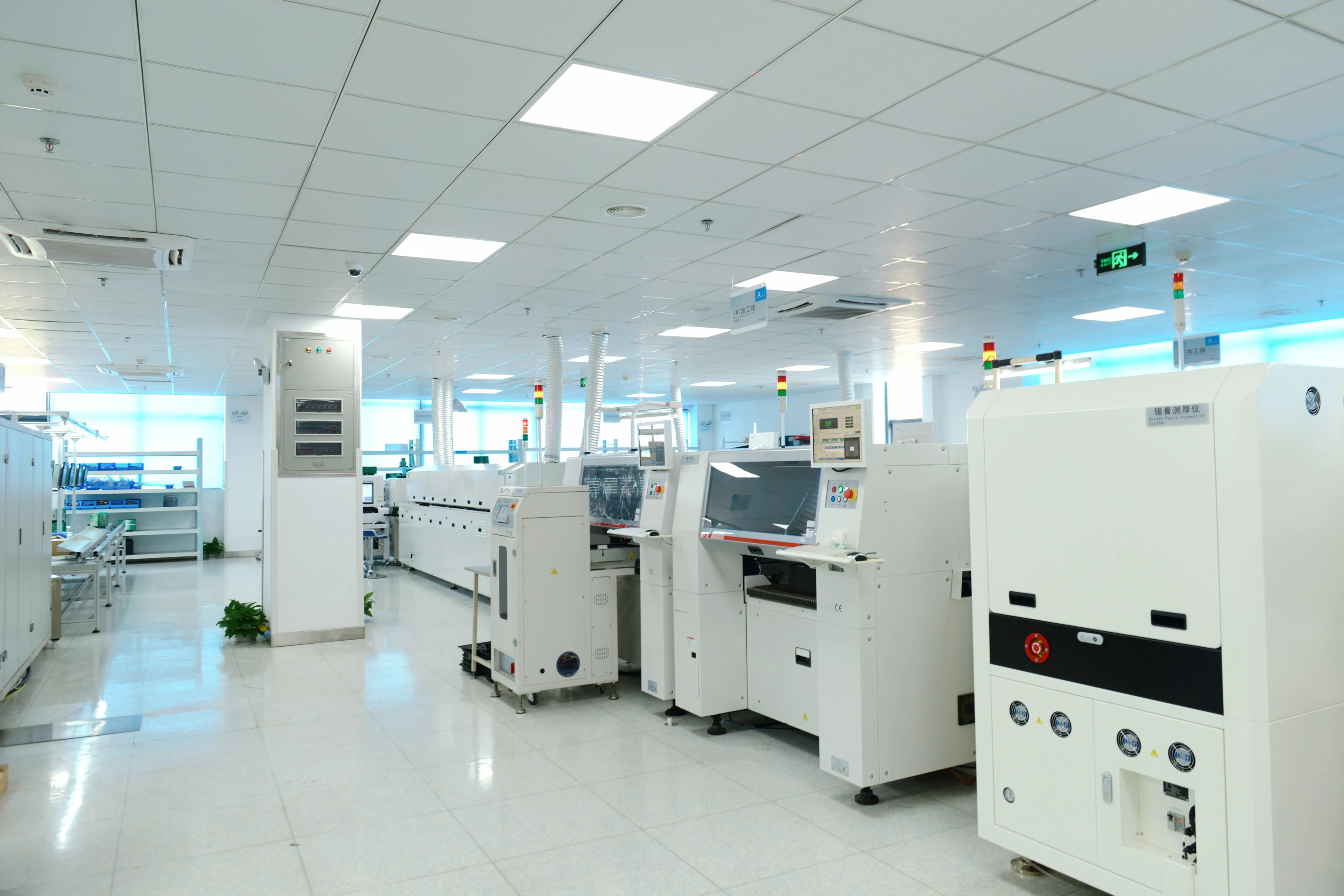

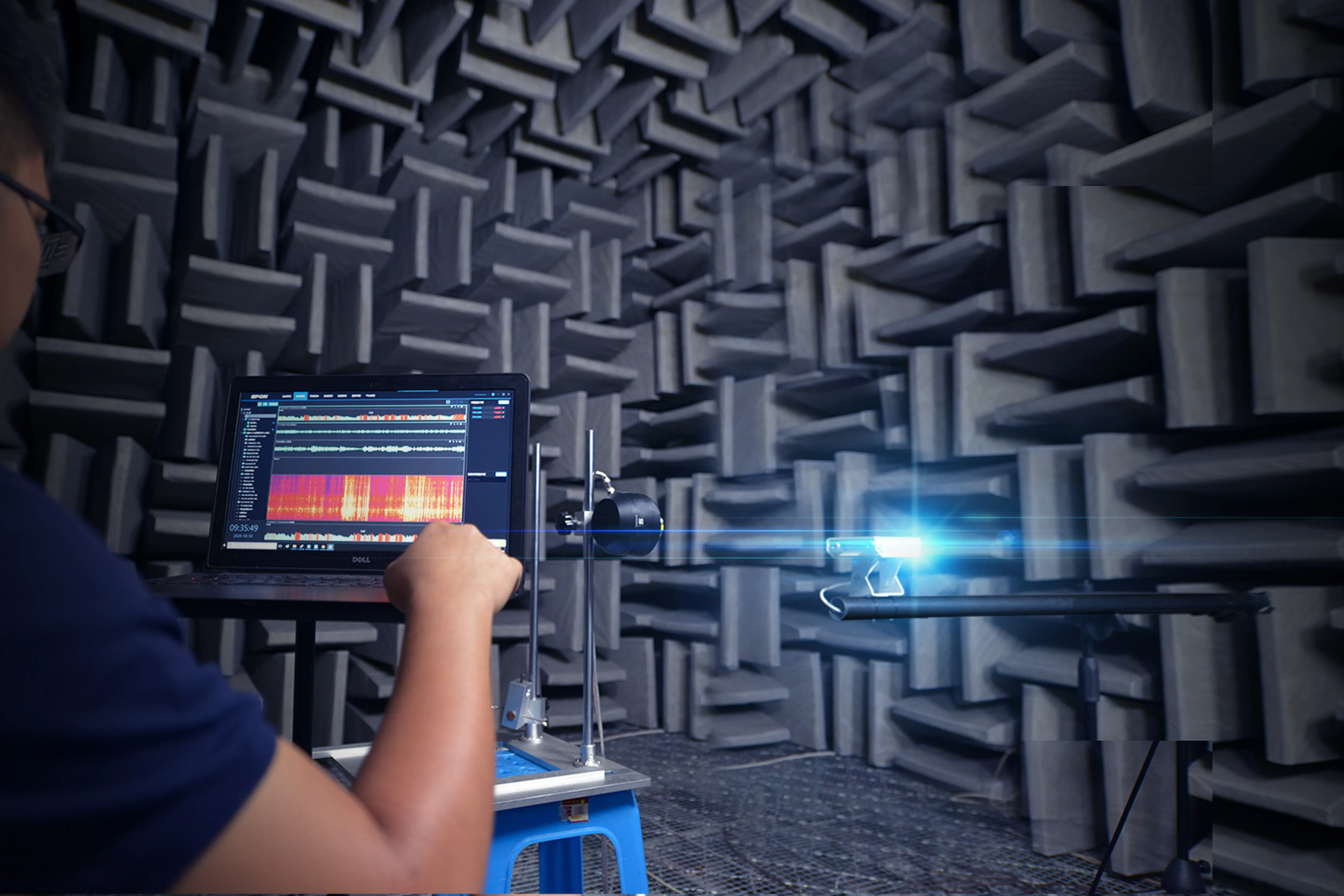

With over 20 years of experience in audio IoT research, development, and production, SPON stands at the forefront of the industry. Our state-of-the-art acoustic noise reduction laboratory, fully automated SMT factory, and spacious company premises spanning 57,000 square meters reflect our commitment to innovation and excellence.
Our Advantages
SPON's advantages lie in our technological expertise, customized approach, extensive experience, comprehensive support, state-of-the-art facilities, and unwavering commitment to quality. These factors set us apart and make us the preferred choice for audio technology solutions in the IoT industry.
SPON's Proud Team
FAQ
Q: How can I contact SPON's customer support team?
A: You can reach out to our customer support team through our hotline, email, or online support platform. Our dedicated team will promptly respond to your inquiries and provide the necessary technical supportand solutions.
Q: Does SPON offer OEM/ODM services?
A: Yes, SPON provides OEM/ODM services. We have extensive experience in working with clients to develop and manufacture customized products according to their specific requirements and branding needs.
Q: What are the benefits of choosing SPON for OEM/ODM services?
A: By choosing SPON for OEM/ODM services, you can benefit from our expertise in audio technology, extensive manufacturing capabilities, and dedicated team of professionals. We can help you bring your ideas to life, offering flexible customization options, quality assurance, and timely delivery of products. Our goal is to collaborate closely with you to create innovative and tailored solutions that meet your unique business needs.
