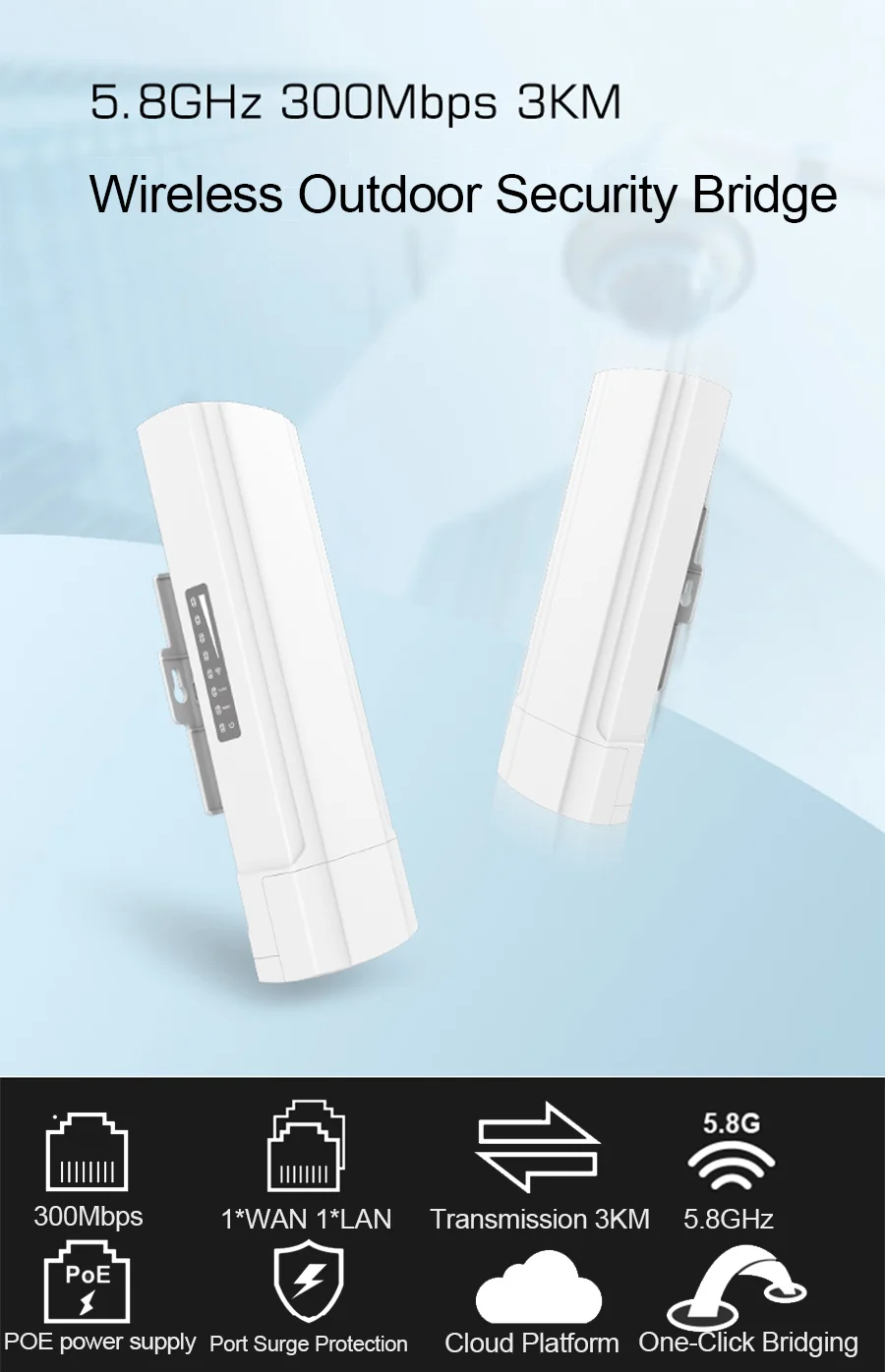

3Km Cpe Tdma 5.8Ghz Wi Fi Extender Long Range Rj45 White Outdoor Wireless Wifi Bridge For Outdoor Camera Office Building
- Category: Electronic Components, Accessories & Telecommunications >>>
- Supplier: Shenzhen Gzcom Communication Co. Ltd.
Share on (1600909446338):
Product Overview
Description
Product Description

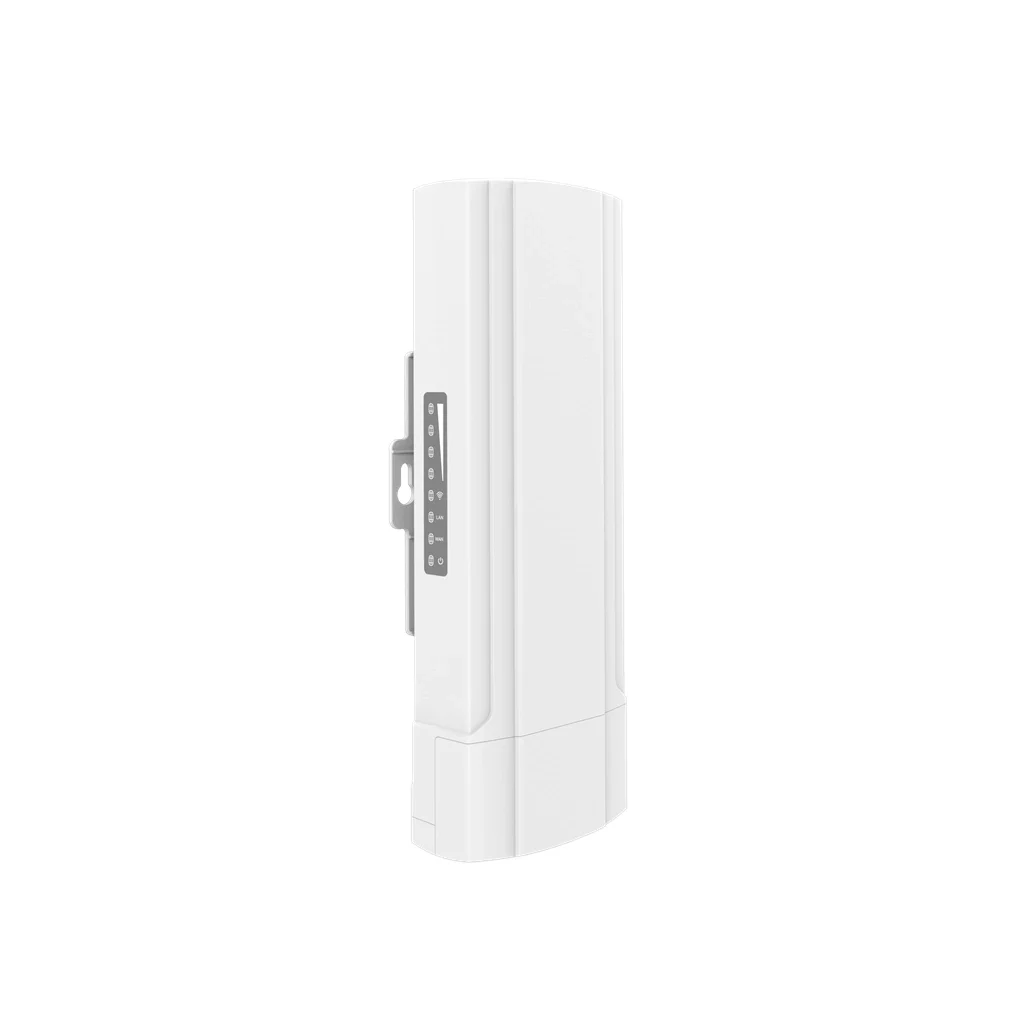

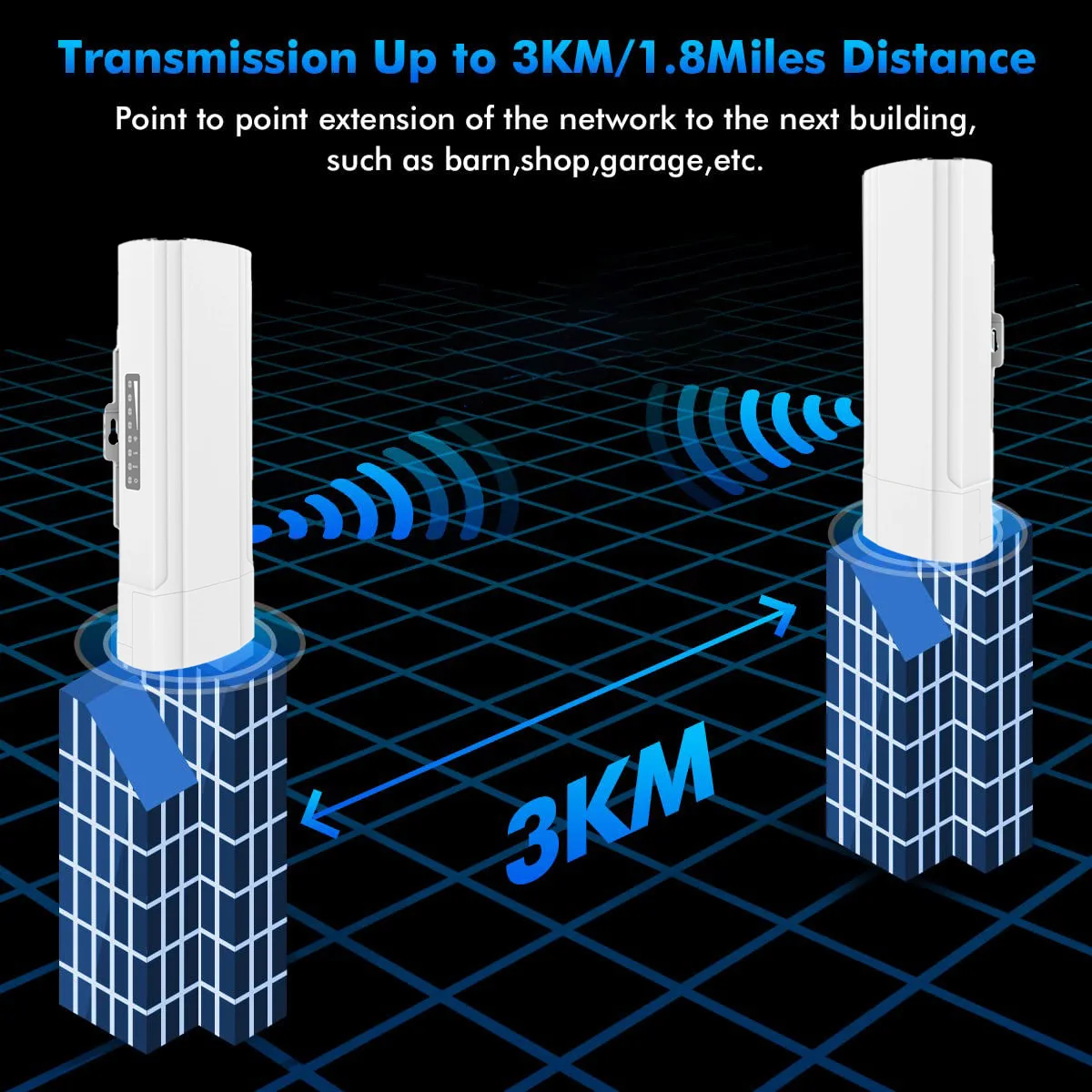

GZ-CPE300-L3 is a high-performance, high-speed outdoor long-distance wireless bridge with characteristics such as long transmission distance, strong penetration ability, and strong anti-interference ability.
Product Paramenters
Hardware: | |||||||||
Model | CPE300-L3 | ||||||||
CPU | AR9344 | ||||||||
Flash | 16MB | ||||||||
DDR | 64MB | ||||||||
5G frequency | 5.150GHz~5.850GHz | ||||||||
5G WIFI protocol | 802.11 a / n | ||||||||
Max rate | 300Mbps | ||||||||
5G EVM | 802.11a_54M: ≤-25 dB;802.11n_MCS7: ≤-28 dB | ||||||||
ppm | ±20ppm | ||||||||
WAN | 1*10/100M WAN, support 24V POE | ||||||||
LAN | 1*10/100M LAN | ||||||||

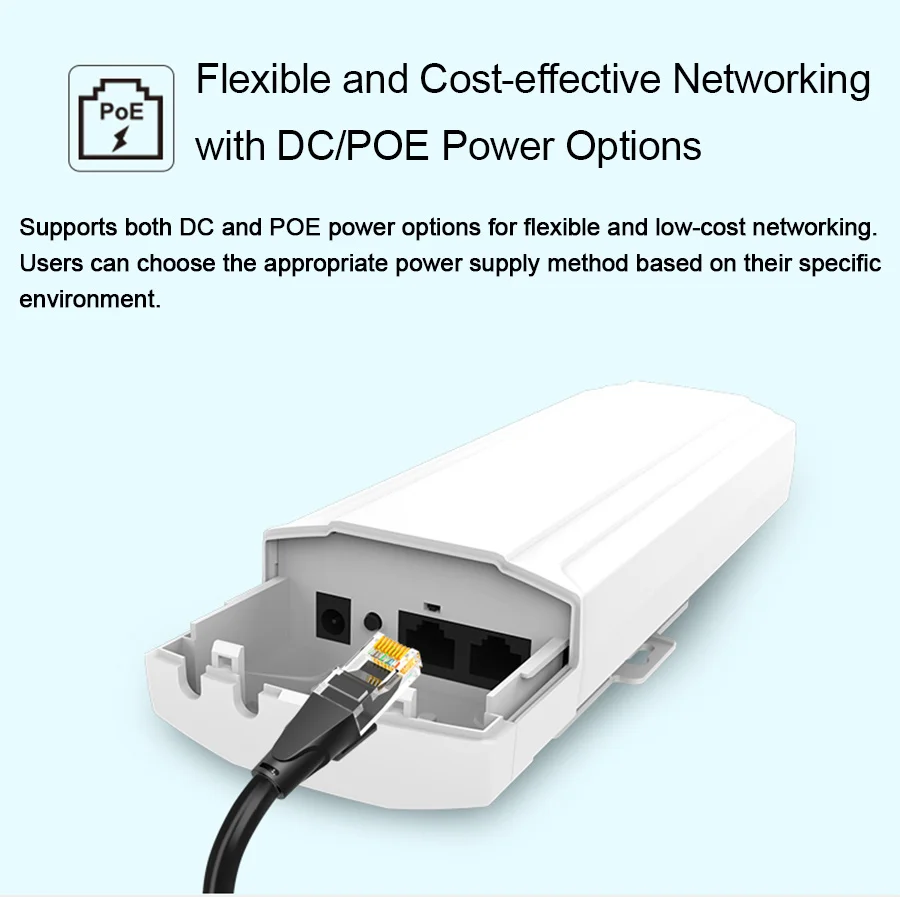

Power | PoE 24V/1A | ||||||||
Max Power Consumption | <8W | ||||||||
Reset | Press 6~10 seconds for factory resetting. | ||||||||

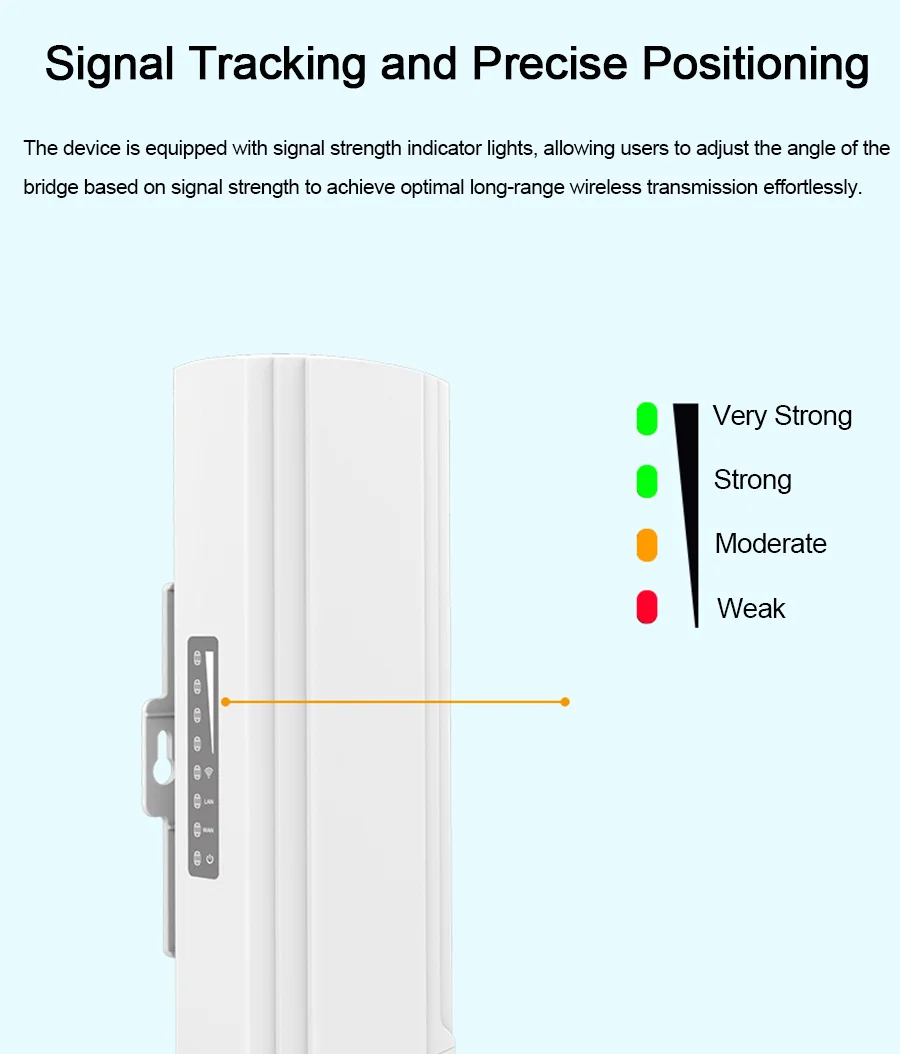

Indicators | SYS, WAN, LAN, 5G WIFI, Signal*4 | ||||||||
Dimension | 237mm×80mm×57mm | ||||||||
Weight | 0.24kg | ||||||||
Temperature | Working: -30°C to 55°C;Storage: -40°C to 70°C;Humidity: 5%~95%(Non-Condensing) | ||||||||
Surge Protection Standard | ±2KV | ||||||||

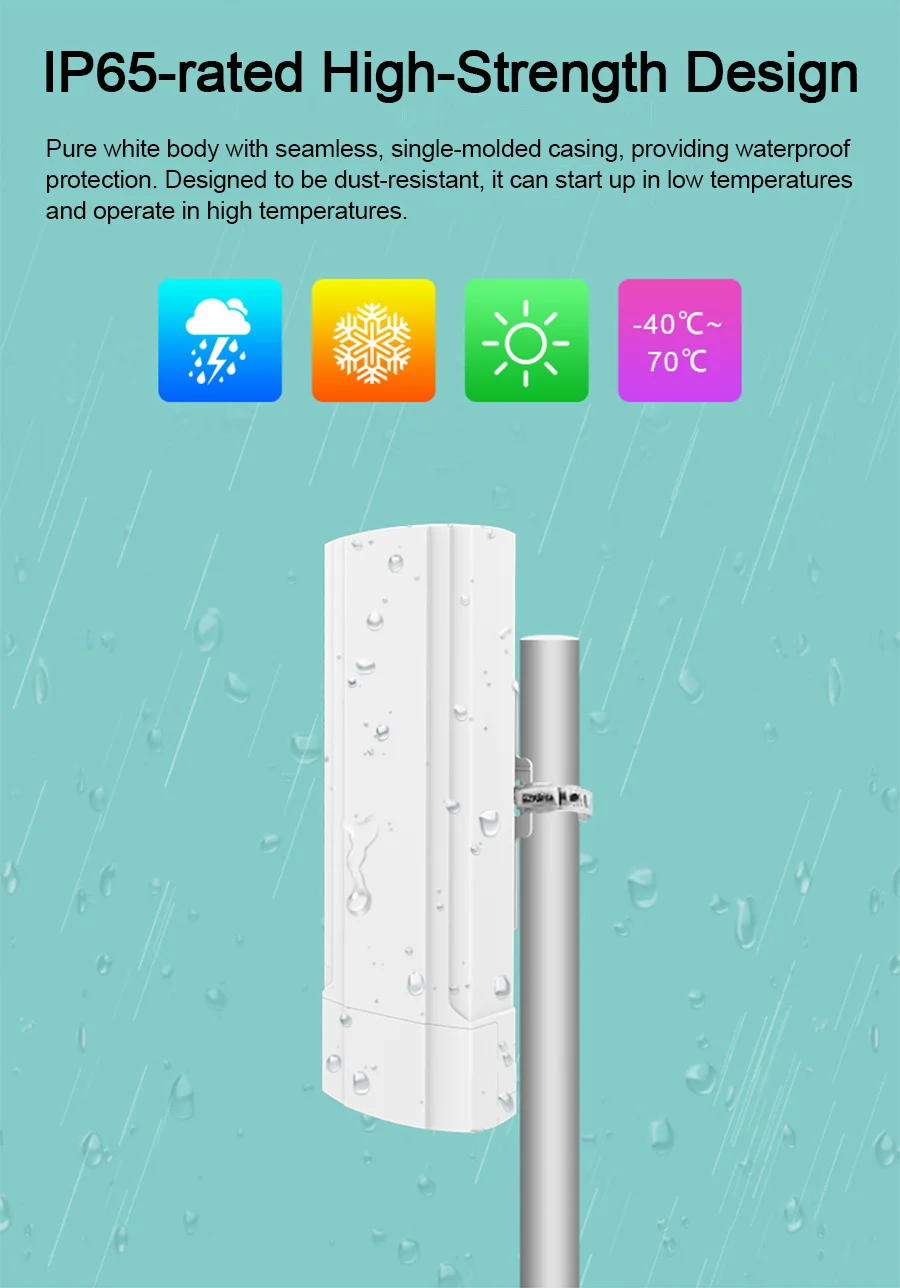

IP Grade | IP65 | ||||||||
ESD | Air:±8K, Touch:±6K | ||||||||
Electrical Surge | Common Mode: 2K, Differential Mode: 1K | ||||||||

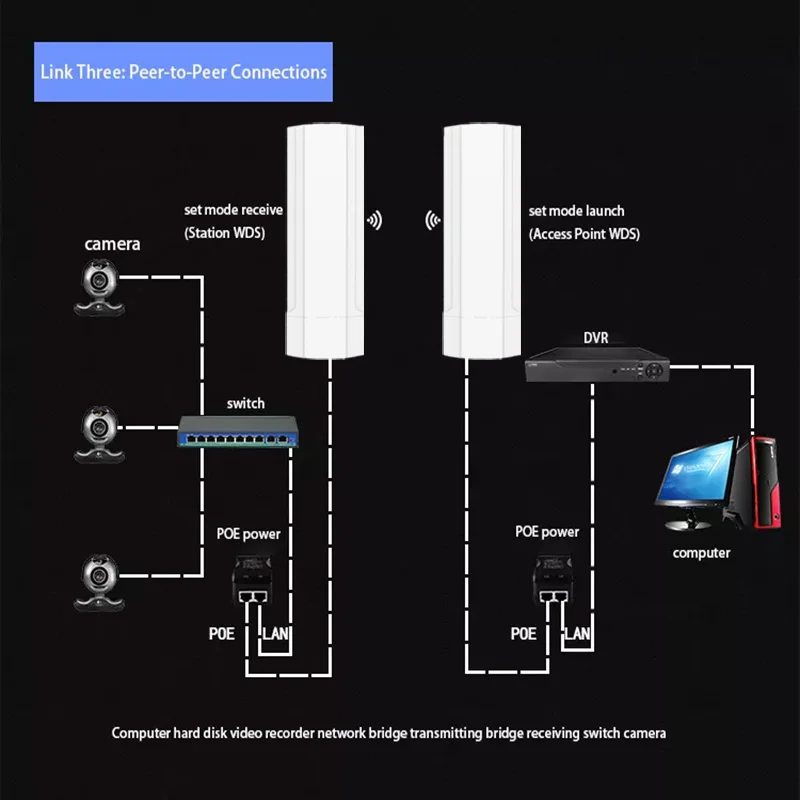

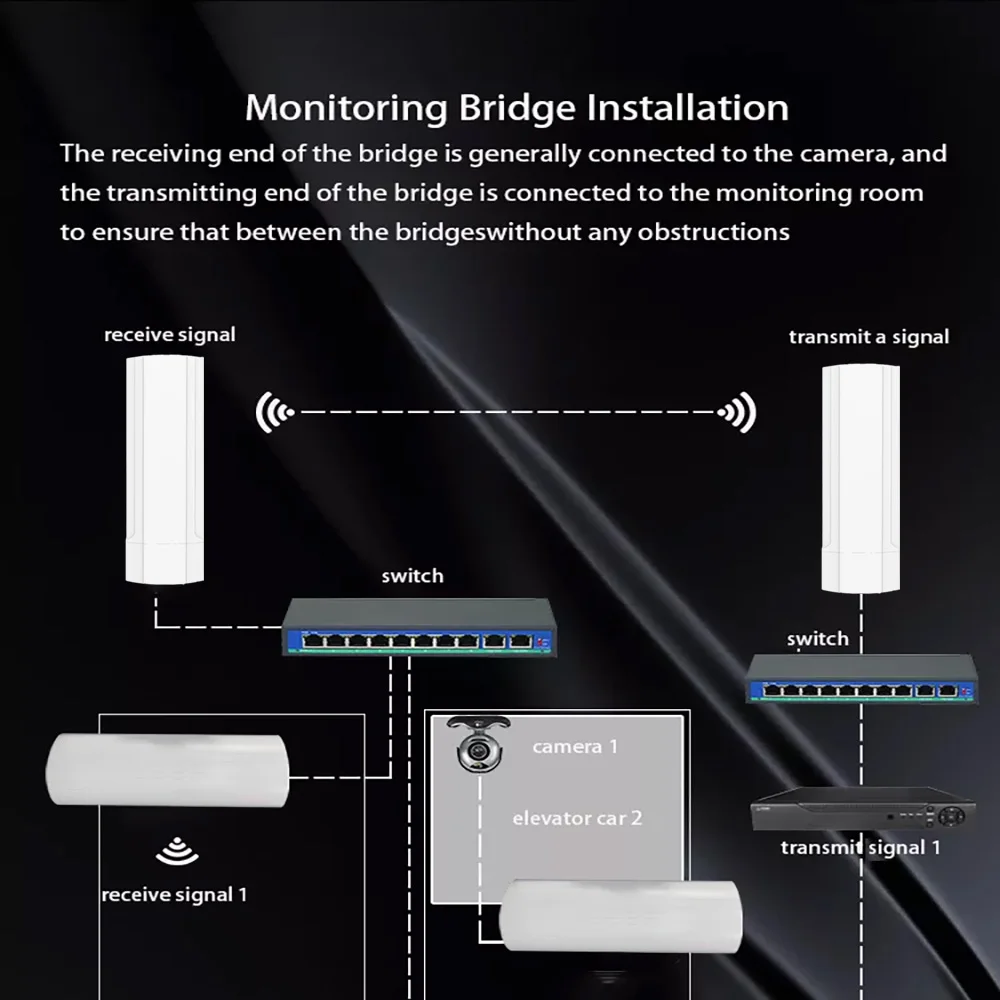

Working mode | Access Point (Automatic WDS), Access Point (TDMA3), Site (WDS/TDMA3), Site (ARPNAT) | ||||||||
Wireless | Intelligent dynamic polling, automatic channel selection, automatic modulation mode selection, automatic transmission power control (ATPC) | ||||||||
Wireless Safety | WPA/WPA2 personal encryption, WPA/WPA2 enterprise encryption, WACL, user isolation | ||||||||
Wireless QoS | TDMA implements 4 queue priority | ||||||||
Network mode | IPv4 IPv6 | ||||||||
VLAN | Support VLAN and VLAN transparent transmission | ||||||||
WAN protocol | Static IP,DHCP client | ||||||||
Service | DHCP service, SNMP service, NTP client, route tracking, ping watchdog | ||||||||
Management | HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet | ||||||||

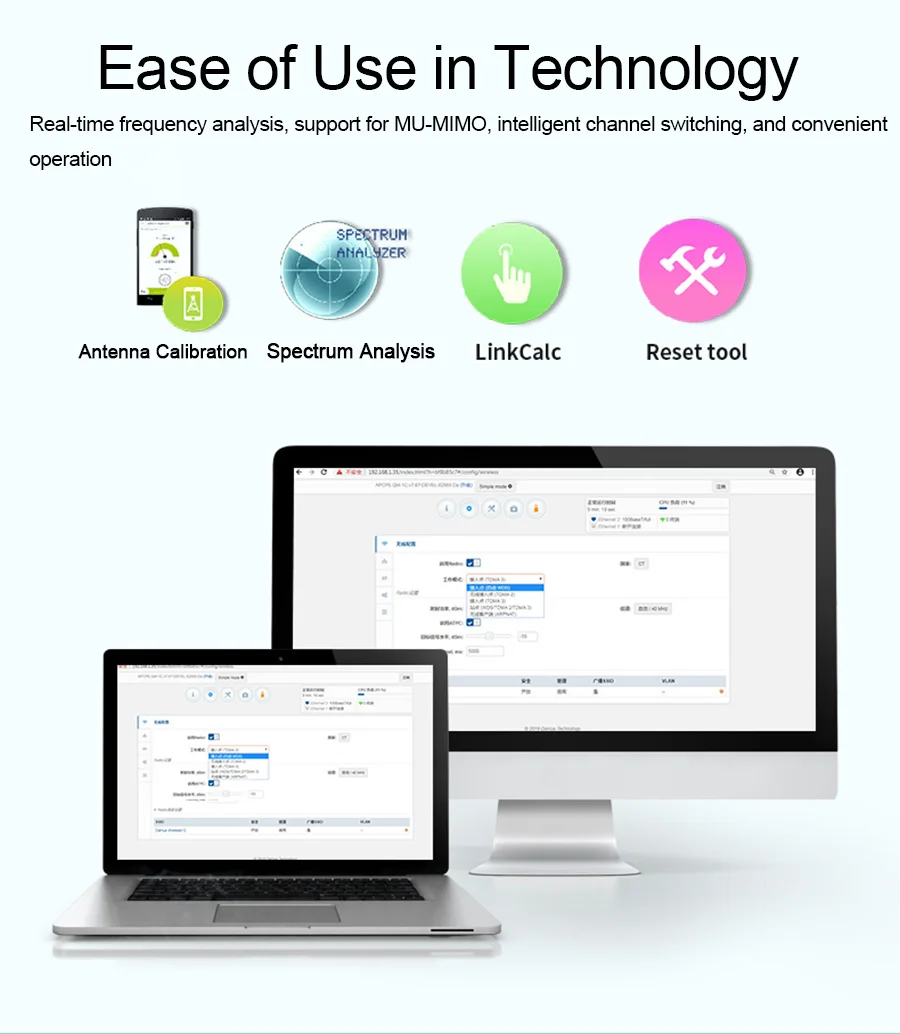

Built Tool | Site survey, connection testing, antenna calibration | ||||||||
