Autel MaxiIM IM608 PRO II Car Key Programming Code Reader IKey Programmer OBD 2 Scanner Vehicle Full System Diagnostic Tools
- Category: >>>
- Supplier: Autel Intelligent Technology Corp. Ltd.
Share on (1600913312978):
Product Overview
Description
Products Description
Autel MaxiIM IM608Pro II
Operating System | Android 10 |
Processor | Qualcomm SDM660 Octa-core Processor (2.2GHz ) |
Memory | 4GB RAM &128GB On-board Memory |
Display | 10.1-inch LED capacitive touchscreen with 1920x1200 resolution |
Connectivity | Wi-Fi（802.11a/b/g/n/ac） |
USB 2.0 | |
SD Card (Support up to 64GB) | |
Sensors | Light sensor for brightness auto adjust |
Power and Battery | 15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
Input Voltage | 12V (9-24 V) |
Power Consumption | 6.5W |
Operating Temp | 0 to 50°C (32 to 122°F) |
Storage Temp | -20 to 60°C (-4 to 140°F) |
Dimensions(WXHX D) | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
Weight | NW: 1.58 kg (3.48 lb.) |
Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |

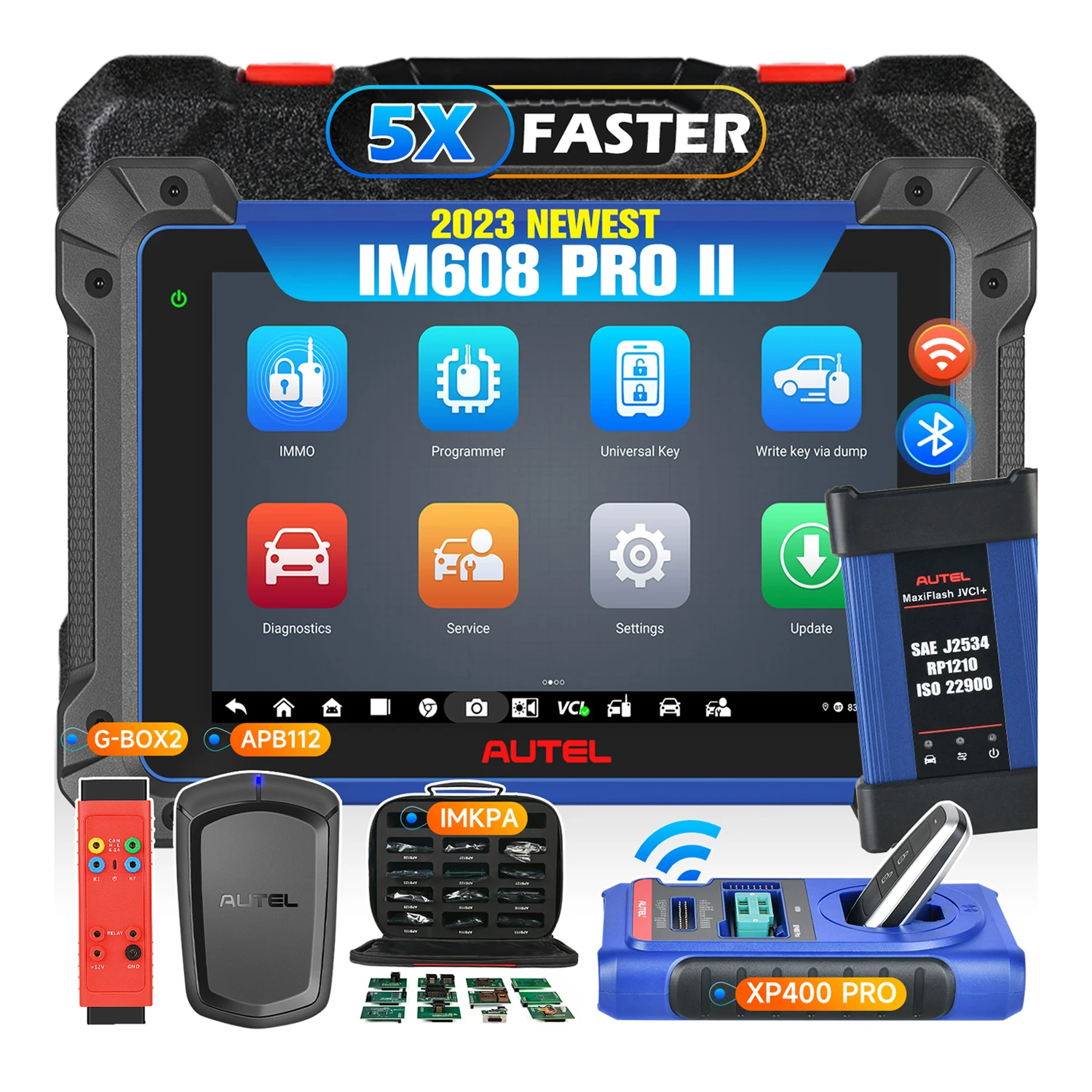

IM608ProⅡ is a 10.1-inch, Android-based touchscreen tablet with advanced key and immobilizer programming capabilities,comprehensive diagnostic features, functions and tests, and an extensive service menu.
The IM608PROII excels in key programming,supporting OBD key programming for 80% of the vehicles on the road today.
Equipped with Autel's Remote Expert feature, users can connect remotely with experienced experts ready to assist with any diagnostic problem directly from their tablet.
Additional key and immobilizer functions include Key generation, key and remote learning, immobilizer reset, refresh, and coding, and transponder and EEPROM/MCU read and write.
Installed with a fast octa-core processor, the IM608ProⅡ provides you with all special functions to quickly diagnose all system modules for the majority of vehicle makes and models.
The tablet offers an extensive service menu, including the 40 most common maintenance tasks and cloud-based report sharing.
Note:
1. Remote expert is not available in the North American region;
2. Specific models may vary by region.
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN/CS (all keys lost) , key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• Transpronder read/write, EEPROM/MCU read/write
• Advanced, OE-Level Diagnostics for U.S., Asian, and European vehicles.
• Extensive maintenance/services menu, including direct-access to EPB, DPF, SAS, Oil Reset, and BMS functions
• Equipped with Autel Remote Expert capbility. Connect remotely with experienced experts ready to assist you with any diagnostic problem.
• All maintenance reports stored in the cloud, allowing you to view device and test records anytime, anywhere
• Qualcomm Octa-core Processor (2.2GHz)
• 10.1-inch LCD touchscreen with 1920 x 1200 resolution
• 128GB Storage Memory
• Android 10 Operating System for fast boot-up and multitasking
• Expert Mode for advanced key learning
• Read PIN/CS (all keys lost) , key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• Transpronder read/write, EEPROM/MCU read/write
• Advanced, OE-Level Diagnostics for U.S., Asian, and European vehicles.
• Extensive maintenance/services menu, including direct-access to EPB, DPF, SAS, Oil Reset, and BMS functions
• Equipped with Autel Remote Expert capbility. Connect remotely with experienced experts ready to assist you with any diagnostic problem.
• All maintenance reports stored in the cloud, allowing you to view device and test records anytime, anywhere
• Qualcomm Octa-core Processor (2.2GHz)
• 10.1-inch LCD touchscreen with 1920 x 1200 resolution
• 128GB Storage Memory
• Android 10 Operating System for fast boot-up and multitasking
About Autel
FAQ
How long its warranty, if the purchase back to find a problem how to contact the buyer?
We are Autel Official Shop In Alibaba. All the products we are selling are genuine with a one-year warranty
and lifetime after-sales service starting from the date of the original purchase.
About Shipping?
1. We can ship from overseas warehouse in US/CA/UK/DE/RU/AU etc.
2. We can provide Fast shipping & Save customs tax for you !
3.We support DHL, UPS, FEDEX, TNT, EMS etc logistics methods as you need .
4. We support 10 day delivery guarantee,shipped in 3-7 workdays after payment.
Become our authorized reseller?
Welcome to negotiate with us.
About Payment?
We accept Paypal, T/T and Bank Transfer.
Bulk purchase / More discounts?
We will quote in real time for you.
What languages does the device support?
You can tell us the device model you want, and our technical staff will reply you in 2 hours.
In general, our device supports English, German, Spanish, French, Traditional Chinese, Japanese, Polish, Portuguese,Russian, Italian, Korean, Dutch, Swedish etc.
(some support Persian, Hebrew, Indonesian;MS906S and elite II support other minor languages)
Can it do ECU programming and program keys?
Some products support ECU programming and program keys function,please contact us,
we will patiently answer for you.
How can i know if my model is supported by the diagnostic device?
Please contact us and provide below information, then we can check the compatibility for you：
1.Car Makes, Model / 2.Year / 3.VIN
4.Engine Model / 5.Function of scanner you need most
4.Engine Model / 5.Function of scanner you need most
What vehicle brands do you support?
Our diagnostic tools support 104+ vehicle models, for which you can refer to the compatibility list below:
