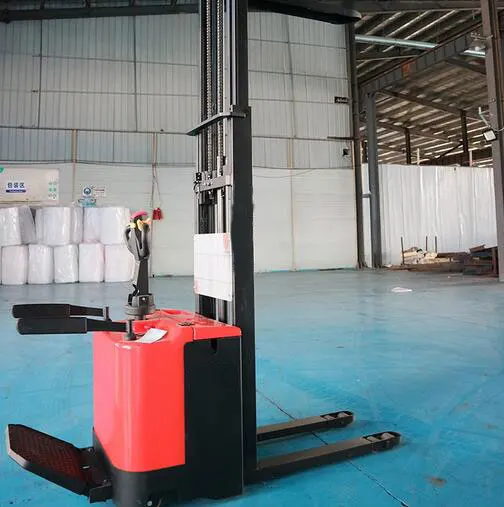

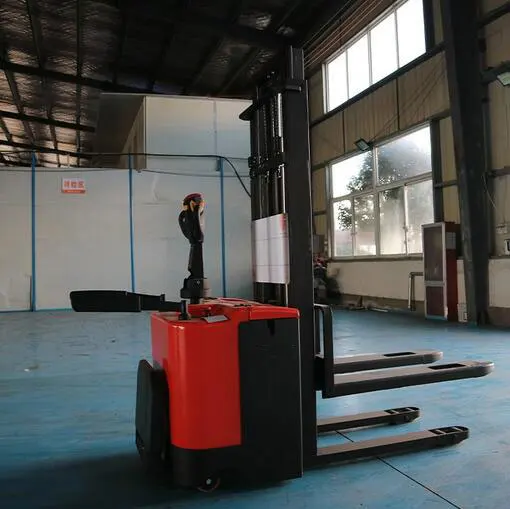

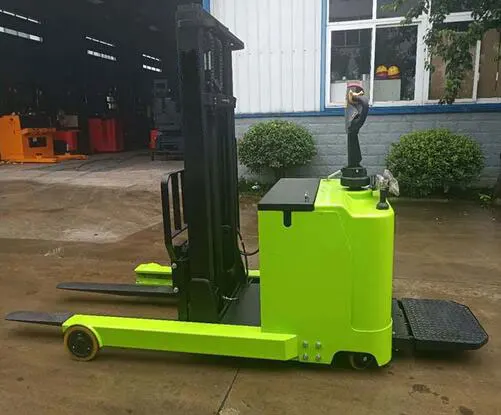

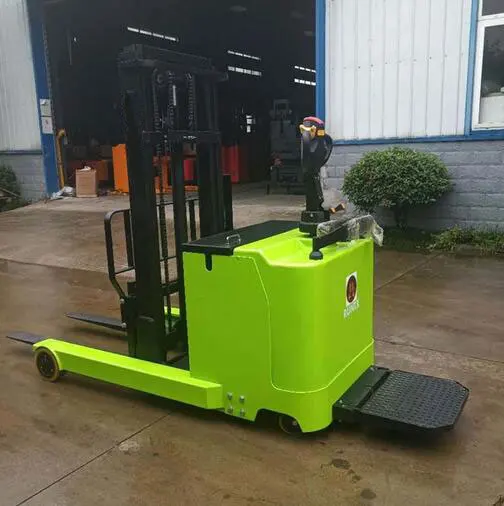

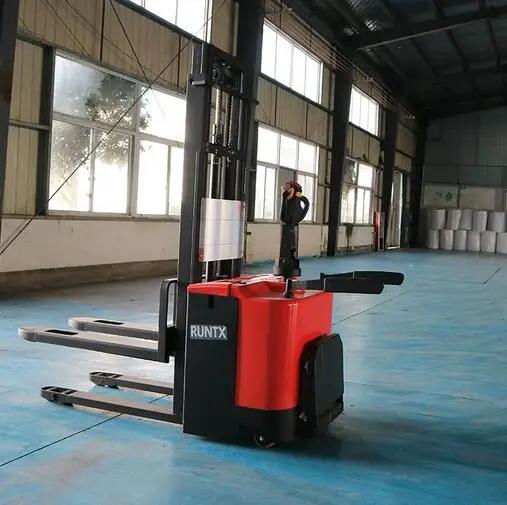

Lifting Electric Pallet Stacker Standing Type Electric Stacking Truck Forklift

Product Overview

Description

1.Safety device
2.German gearbox
3.The muti-function handle
4.Emergency stop switch
5.Curtis electronic control
6.Accurately display the power, convenient to charge and discharge
7.Apply to single-deck pallet
8.Battery optional



Name		Electric pallet stacker(CDD)(Standing type)
Model No.	Unit	CDD 10-25	CDD 10-30	CDD  15-16	CDD 15-25		CDD  15-30	CDD  20-25	CDD  20-30
Load capacity	Kg	1000	1000	1500	1500		1500	2000	2000
Max.lifting height	H(mm)	2500	3000	1600	2500		3000	2500	3000
Load center	C(mm)	500	500	500	500		500	500	500
Wheel type		Polyurethane solid tire
Pedal length	mm	470	470	470	470		470	470	470
Fork size	mm	1150*190
Free lift height	mm	0
Max.fork width	mm	680	680	680	680		680	680	680
Overall length	L(mm)	2110	2110	2110	2110		2110	2110	2110
Overall width	S(mm)	850	850	850	850		850	850	850
Mast lowered height	H1(mm)	1830	2080	2080	1830		2080	1830	2080
Mast extended height	H2(mm)	3038	3538	2080	3038		3538	3038	3538
Turning radius, pedal folded	Wa(mm)	1795	1795	1795	1795		1795	1795	1795
The distance from front wheel to fork end	mm	343	343	343	343		343	343	343
Min.stacking aisle 1000*1000pallet	mm	2530	2530	2530	2530		2530	2530	2530
Max.walking speed	Km/h	4.0/5.8			4.0/5.8
Grade ability	%	6	6	6	6		6	6	6
Total weight	Kg	1075	1075	995	1095		1115	1115	1135
Driving wheel	mm	Ø230*75
Front wheel	mm	Ø80*70
Balance wheel	mm	Ø125*50
Battery capacity	V/Ah	24/210
Charger-Intelligent	V/A	24/30
Driving motor	Kw	1.5	1.5	1.5		1.5	1.5	1.5	1.5
Lifting motor	Kw	2.2	2.2	2.2		2.2	2.2	2.2	2.2
Walking adjustable type		Holzer type accelerator
