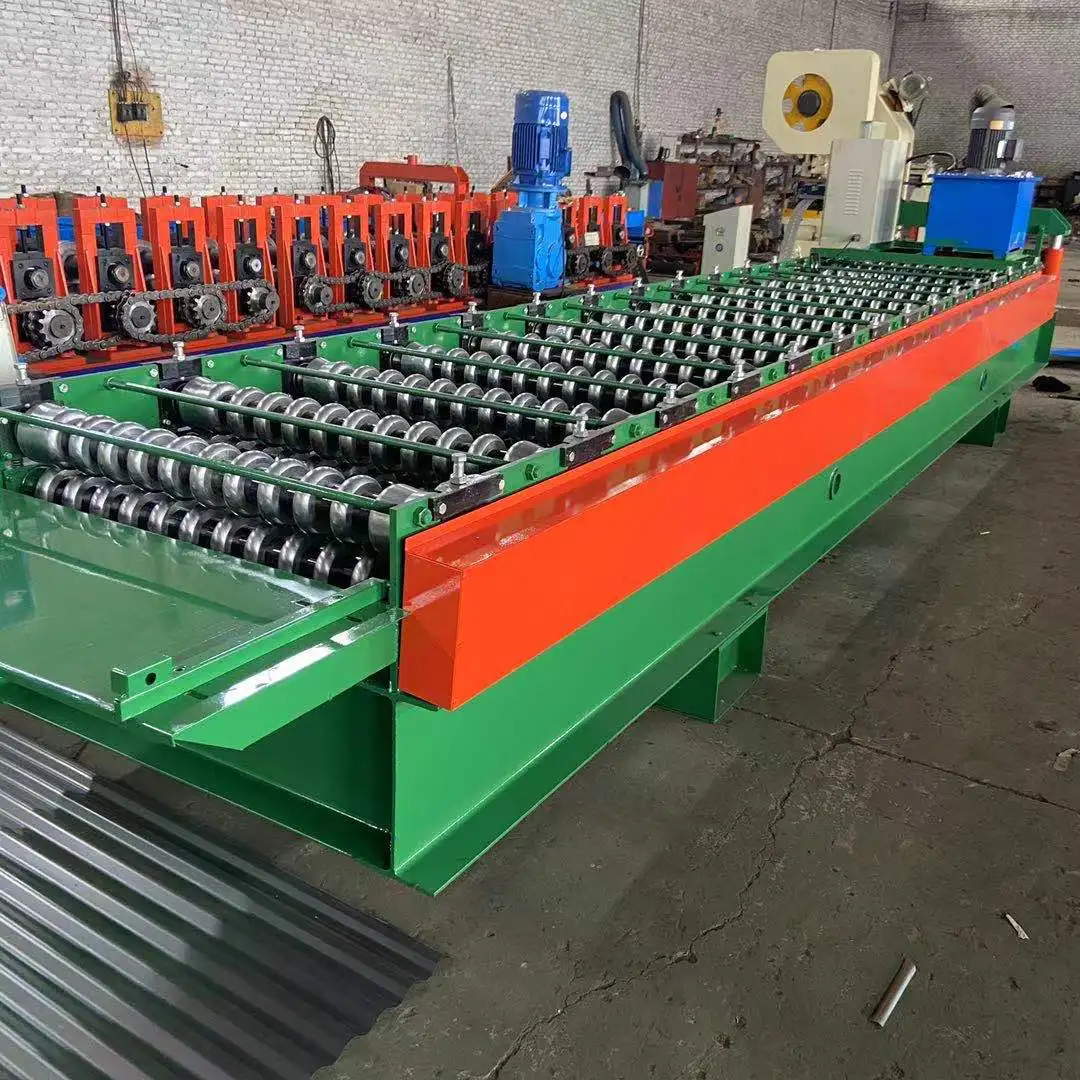

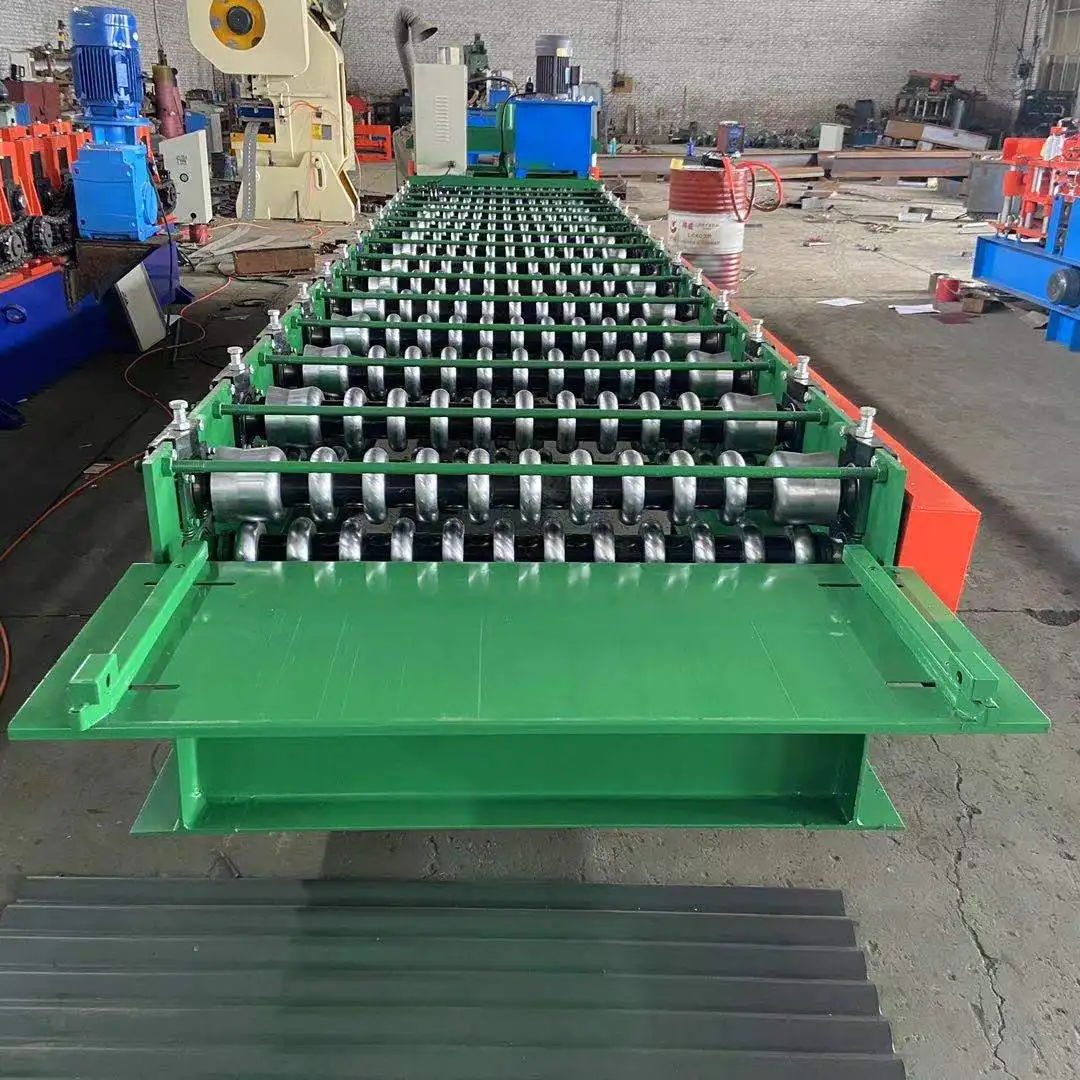

Africa Popular 0.3 0.8mm Thickness Cheap Price Economic Corrugated Roof Panel Roll Forming Machine
- Category: >>>
- Supplier: Sussman Modular House (wuxi) Co. Ltd.
Share on (1600919290982):
Product Overview
Description
Product Description
Rolling Speed: 0-12m/min(cutting time is not include)
Steel sheet Thickness: 0.3-0.8mm galvanized sheet, color painted coils
Steel sheet Thickness: 0.3-0.8mm galvanized sheet, color painted coils
Roller Stations: about 18 stations
Roller Material : 45#forge steel, coated with chrome
Shaft Material and DIA:￠75mm,material is 45# forge steel, Chrome with quenching
Maim Motor Power: 7.5kw
Hydraulic Station Power: 5.5kw
Hydraulic Station Power: 5.5kw
Hydraulic Pressure: 12Mpa
Material Of The Stations: Wall plate thickness 16mm
Tolerance: +1.5mm
Power supplier: 380V, 50HZ, 3 phases
Power supplier: 380V, 50HZ, 3 phases
Machine weight: about 5 tons
Specification
item | value |
Applicable Industries | Building Material Shops, Home Use, Retail, Construction works |
Showroom Location | Canada, United States, Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Spain, Kenya, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Nigeria, Malaysia, Australia |
Condition | New |
Type | Tile Forming Machine |
Tile Type | Steel |
Use | ROOF |
Production Capacity | 0-12 m/min |
Place of Origin | China |
Jiangsu | |
Brand Name | SUSSMAN |
Voltage | 220/380 or as request |
Weight | 8000kg |
Warranty | 1 Year |
Key Selling Points | Easy to Operate |
Rolling thinckness | 0.3-0.8mm |
Feeding width | 1220 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | New Product 2023 |
Warranty of core components | 1 Year |
Core Components | Pressure vessel, Motor, Bearing, Pump, Engine, PLC |
Product Name | Roof Panel Roll Forming Machine |
Material Thickness | 0.3-0.8mm galvanized steel |
Roller Material | 45# Steel |
Cutting Blade Material | Cr12Mov Steel |
Roller Station | About 27 stations |
Working Speed | 0-12m/min |
Main Motor | 7.5kw |
Hydraulic Power | 5.5kw |
Transmission | Chain |
Application | Roof |
Product Display

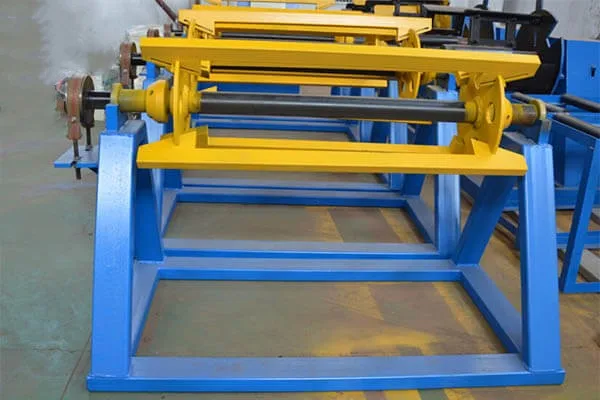

5 ton passive decoiler
Insider diameter of the un-coiler: 520-610mm
Weight:5 tons
Weight:5 tons

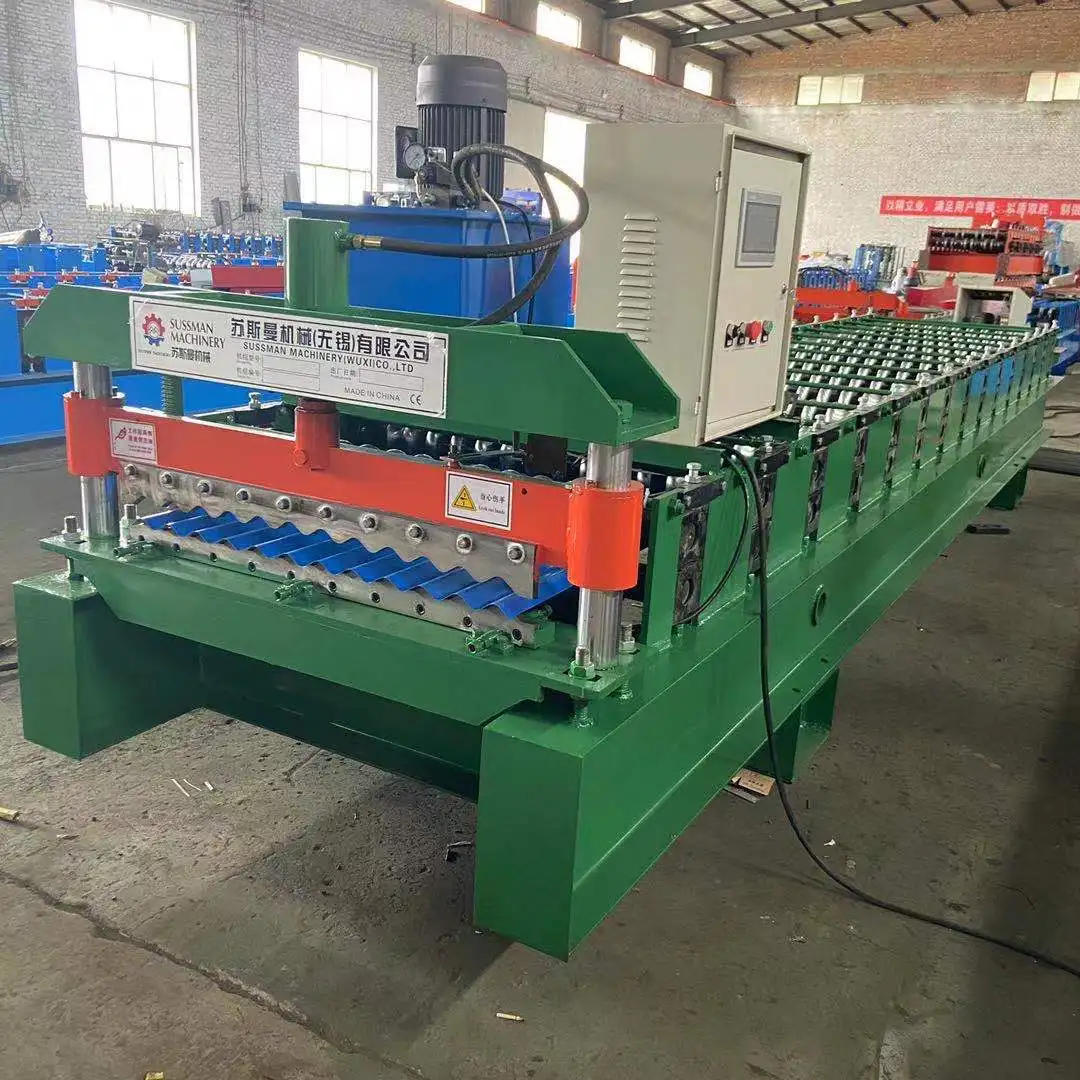

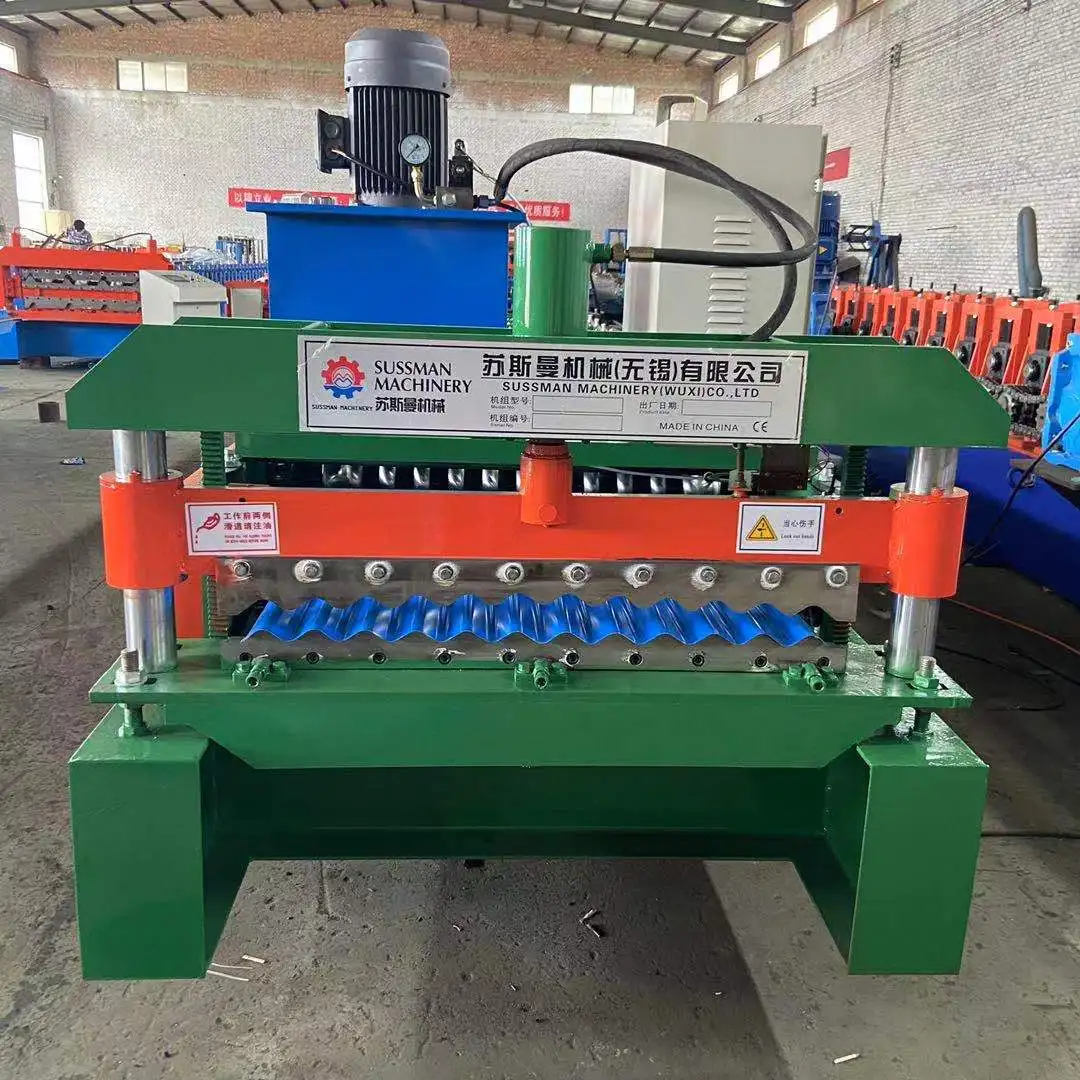

Hydraulic cutting
Hydraulic power: 5.5kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Tolerance: +-1.5mm

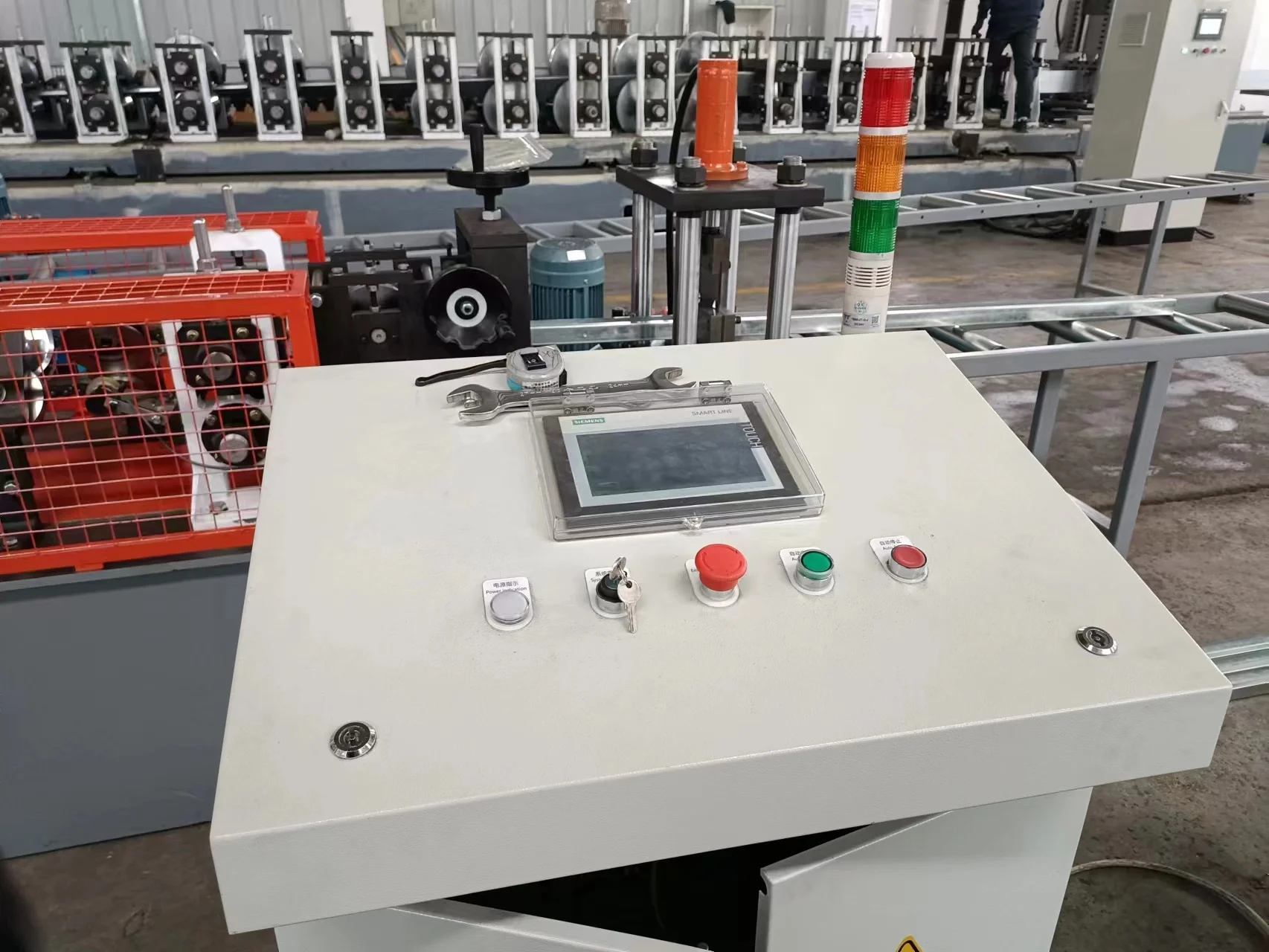

Control box
Power supplier: 380V, 50 Hz, Three Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese(as request)
Unit of length: millimeter (switched on the control panel)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese(as request)
Unit of length: millimeter (switched on the control panel)

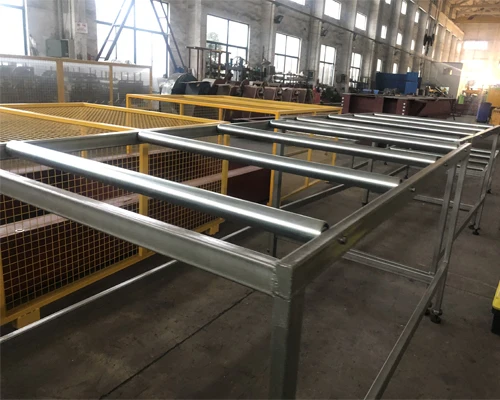

Passive outbale
It adopts welded steel and supported roller to transmit the products.
Size:6000*1000*1000mm
Size:6000*1000*1000mm

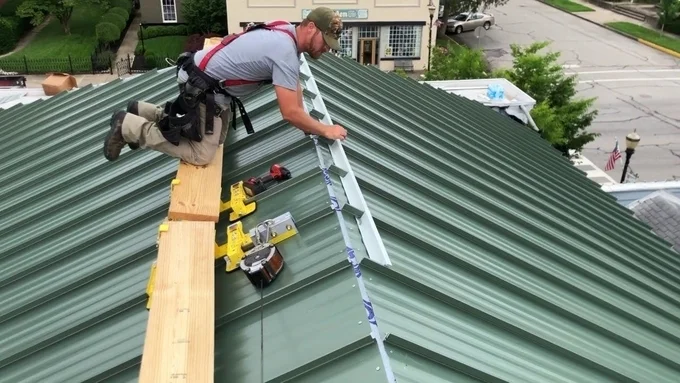

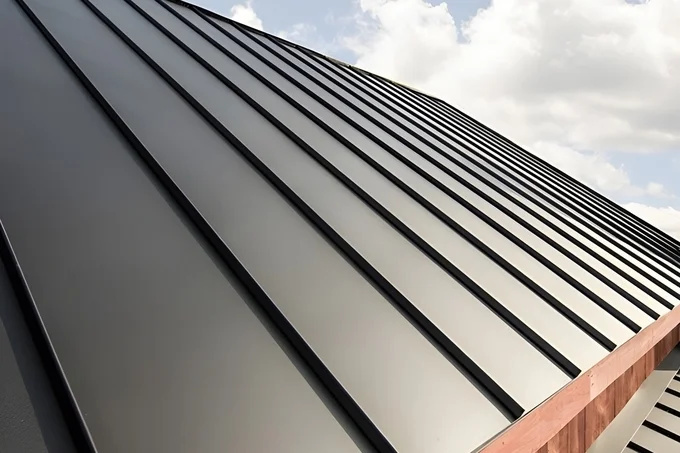

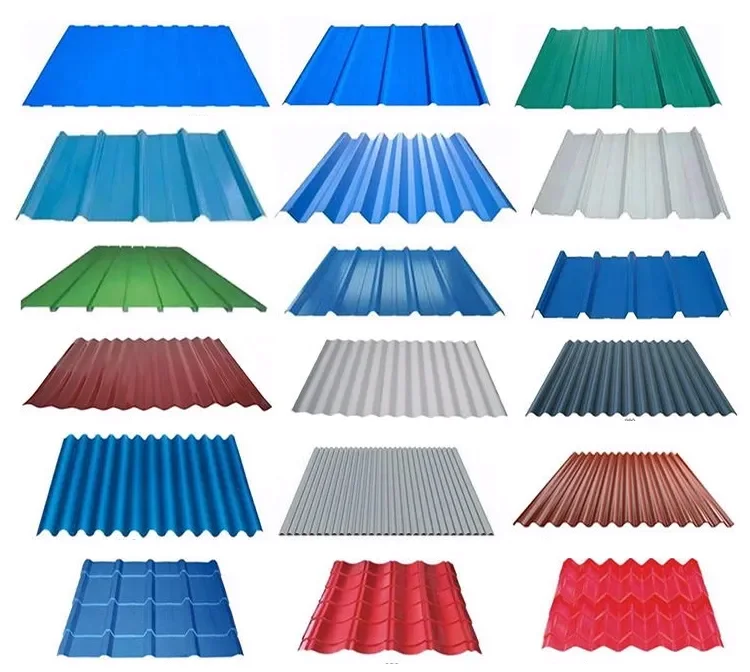

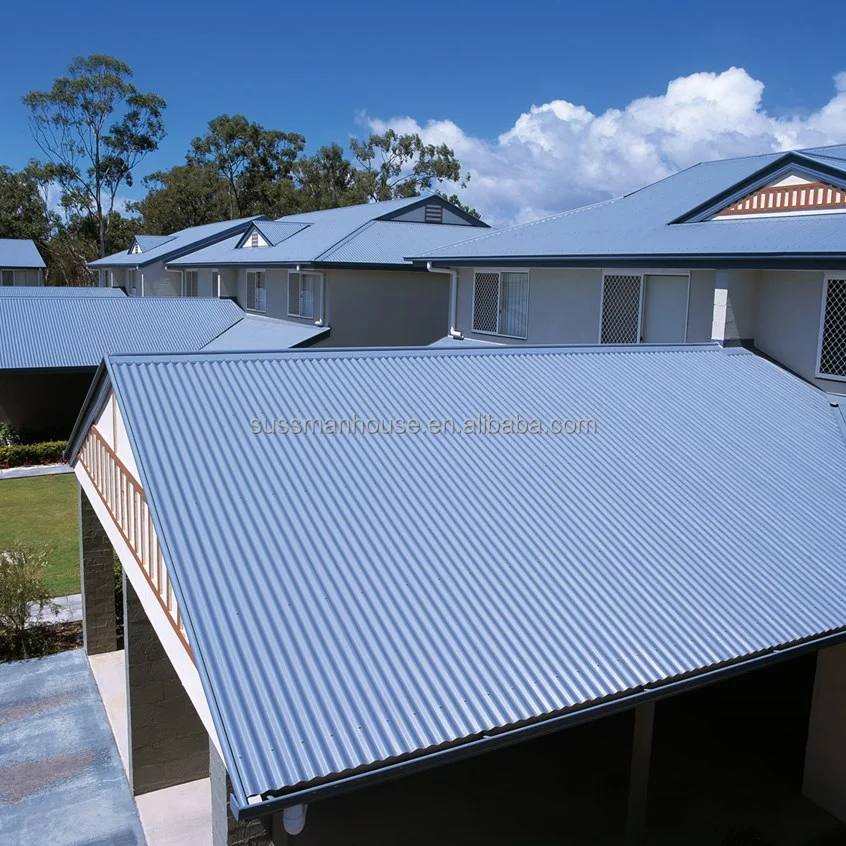

Application
Company Profile
We, Sussman Modular House(Wuxi)Co.,Ltd is one company who has more than 100 workers, and We ship to more than 80 countries, and our factory is about 5000m2, and We have more than 5 production lines, our main products are the modular house, light gauge steel house and container houses, roll forming machine,
