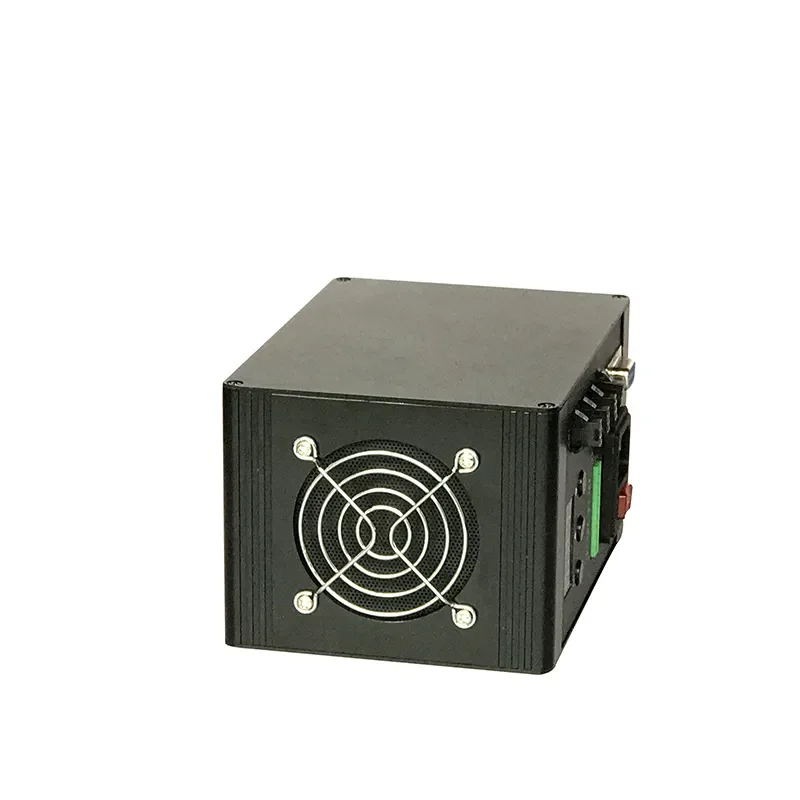

HIFLY Small DMX Led Light Control Professional 4 Channels Industrial Illumination Dimmer Console Controller
- Category: >>>
- Supplier: Shenzhen Hifly Technology Co. Limited
Share on (1600920047664):
Product Overview
Description
Product Description
About this item
● 4 Channels: Output 24VDC two channels standard LED dimmer controller. It operates on DC (constant Voltage) voltage, not for changing LED light colors.
● Wide Application: Widely used for LED brightness control, Channel switching is performed via the "CH" button on the panel. Pressing the“▼” or “▲”button to decrease or increase the brightness level.
● Remote Control: Clear and simple design, easy for use, remote control via Controller upper computer software (DPS.exe) is available. RS232 communication port connects the controller to upper computer. On the upper computer, the brightness levels of each channel can be easily set, and the present brightness levels can also be read and displayed.
● Auto memory: 8 seconds after adjusting the brightness level of each channel with the keys on controller panel or upper
computer application, the controller automatically starts to record the brightness level of each channel, and the record will not be lost even when power failure happens.
● Excellent capacity & experience: 0 - 100% full range dimming capability and smooth dimming experience, also works as ON/OFF switch. Very stable output and no flicker.
● Wide Application: Widely used for LED brightness control, Channel switching is performed via the "CH" button on the panel. Pressing the“▼” or “▲”button to decrease or increase the brightness level.
● Remote Control: Clear and simple design, easy for use, remote control via Controller upper computer software (DPS.exe) is available. RS232 communication port connects the controller to upper computer. On the upper computer, the brightness levels of each channel can be easily set, and the present brightness levels can also be read and displayed.
● Auto memory: 8 seconds after adjusting the brightness level of each channel with the keys on controller panel or upper
computer application, the controller automatically starts to record the brightness level of each channel, and the record will not be lost even when power failure happens.
● Excellent capacity & experience: 0 - 100% full range dimming capability and smooth dimming experience, also works as ON/OFF switch. Very stable output and no flicker.

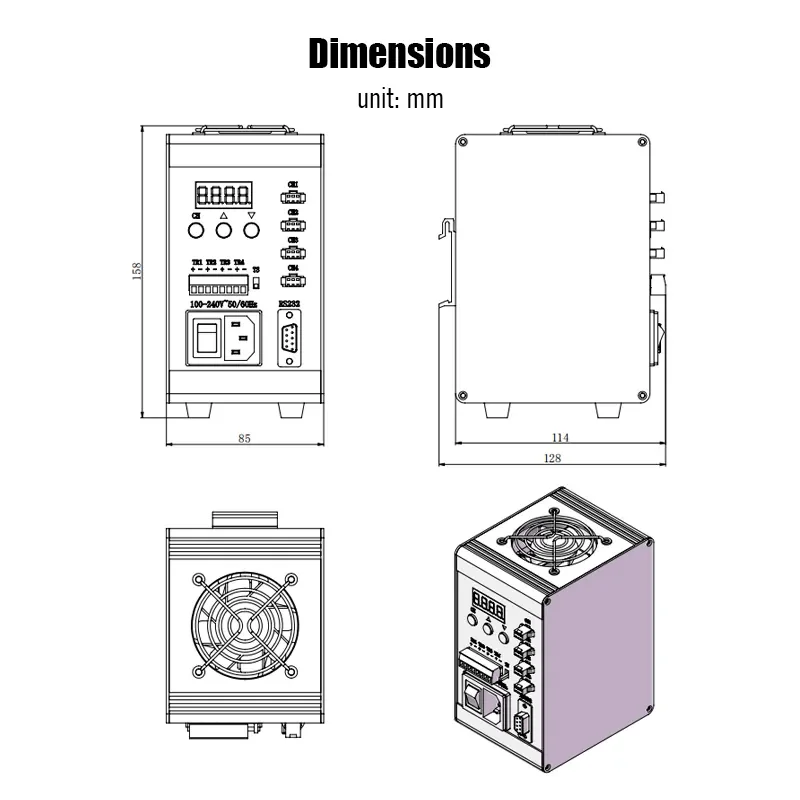

Specification
Model | Channel | Power | Output Volts | External Trigger |
DCS2.0-4C015W-24PS | 4 | 15W | 24V | Yes |
DCS2.0-4C030W-24PS | 4 | 30W | 24V | Yes |
Features:

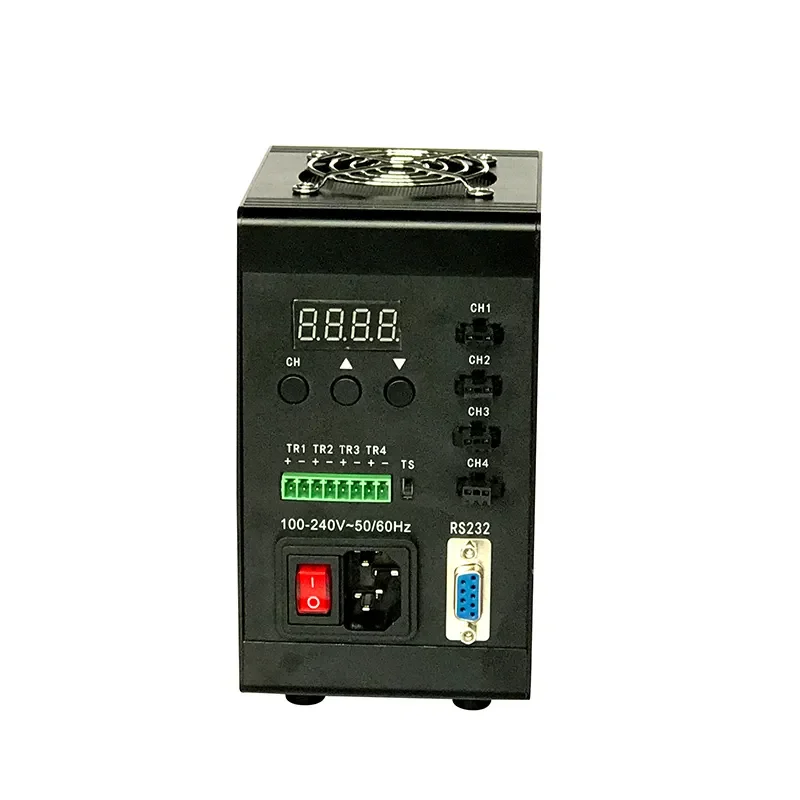

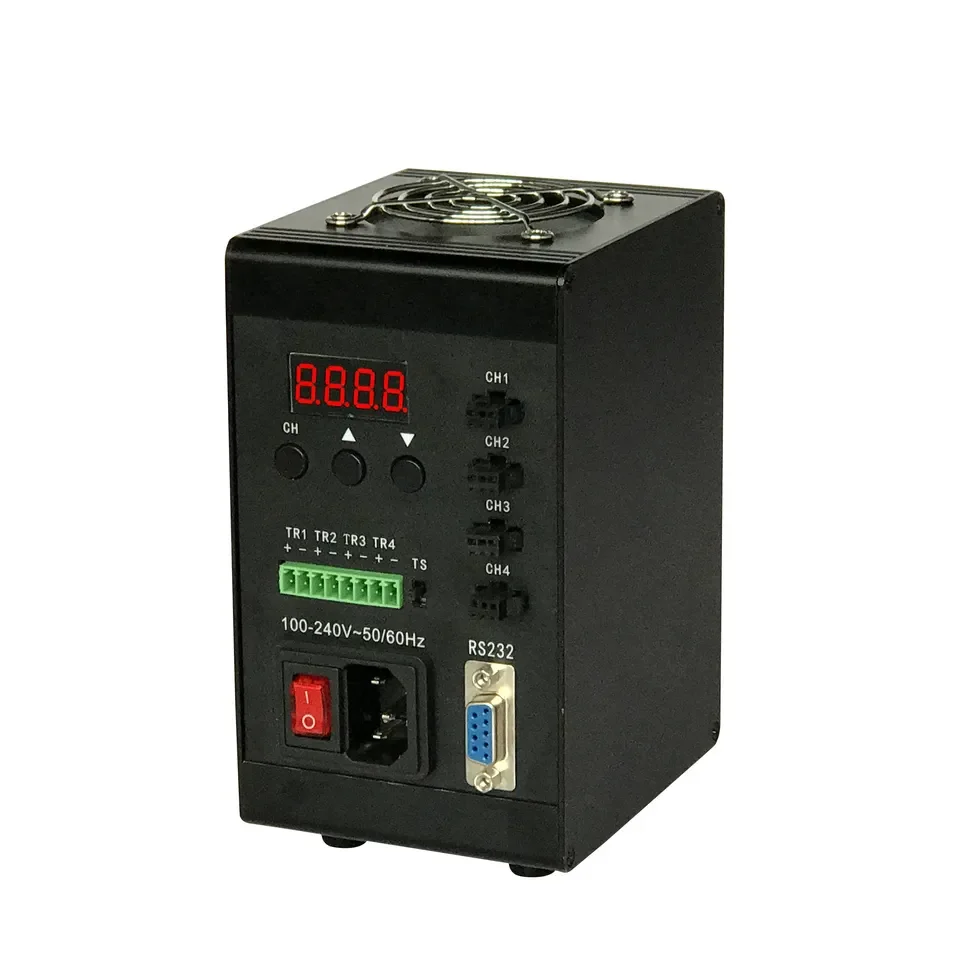

● “CH”: Channel switching button, simple and clear.
● Digital Display: 4-digit LED display shows the real-time brightness level from 0 - 255.

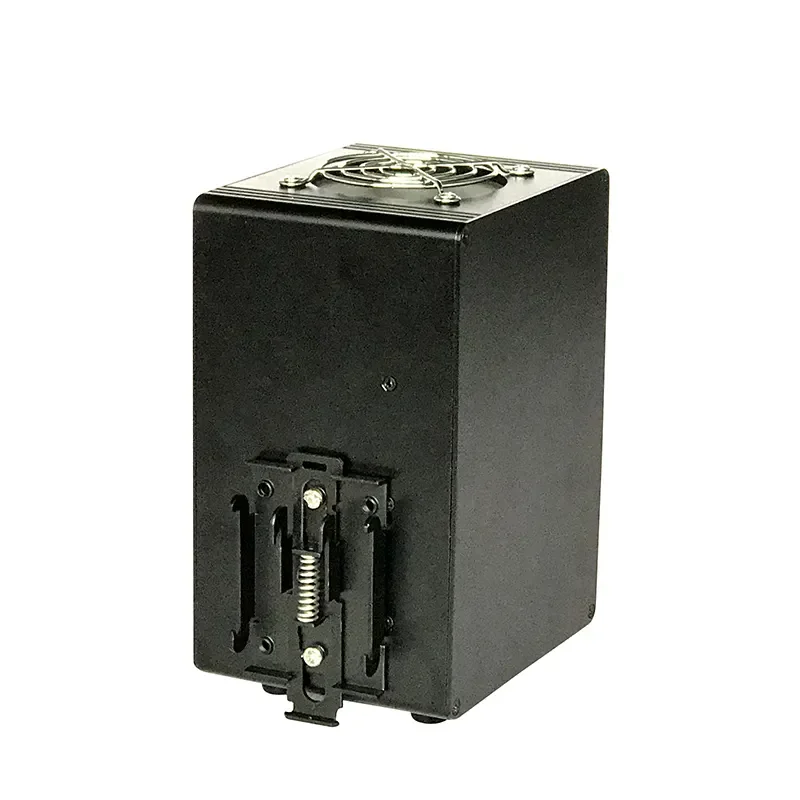

● Delicate design: Aluminum Alloy shell, elegant, durable and excellent for heat dissipation.
● Multiple Program Language Integrated: The upper computer software for remote control comes with most of the popular program languages, C, C++, Python, VB, etc.
● Short Press & Long Press: After selecting a channel, the brightness level of the channel can be adjusted continuously (decrease or increase) by short pressing the "▼" or "▲" button. If long pressing the "▼" or "▲" button, the brightness level of the channel will be roughly changed (10 brightness levels each long press).
● Digital Display: 4-digit LED display shows the real-time brightness level from 0 - 255.
● Delicate design: Aluminum Alloy shell, elegant, durable and excellent for heat dissipation.
● Multiple Program Language Integrated: The upper computer software for remote control comes with most of the popular program languages, C, C++, Python, VB, etc.
● Short Press & Long Press: After selecting a channel, the brightness level of the channel can be adjusted continuously (decrease or increase) by short pressing the "▼" or "▲" button. If long pressing the "▼" or "▲" button, the brightness level of the channel will be roughly changed (10 brightness levels each long press).
Certifications
Exhibitions
Company Profile
Shenzhen Haitianxiang Technology Co., Ltd. (HIFLY for short) is a high-tech corporation specializing in machine vision light sources, industrial cameras, industrial lenses and vision system solutions.
Our products have the following advantages:
Using machine instead of human eyes to do measurement and judgment, feature extraction and identification, color detection, blob detectionThe products applied to Automatic optical inspection, face recognition, driverless car, product quality classification, automatic printing quality detection, character recognition, texture recognition, tracking and positioning.Now, All products have gained CE Certificate.
since the founding of the company,we have won the trust of the customers relying on the spirits of our enterprise:Sincerity,customers first,keeping improving and better service.
We sincerely hope to cooperation with you,and your business negotiation is absolutely welcome.
since the founding of the company,we have won the trust of the customers relying on the spirits of our enterprise:Sincerity,customers first,keeping improving and better service.
We sincerely hope to cooperation with you,and your business negotiation is absolutely welcome.
FAQ
Shipping:
1).Within 2 weeks after order confirmation Customized with DHL/Fed Express/UPS:
2).Customer provide account, arrange directly for small batch goods.
3).Arranged by us, freight charged depends on the weight or volume.
4).Transport by Sea: FOB for large QTY.
Payment terms:
1). Payment Terms:50% Deposit, 50% T/T Cash before Delivery Western Union is welcomed.
2). Delivery:FOB Shenzhen, Ex Work
3). Lead Time: Within 2 weeks after order confirmation and payments.
4). Discounts are offered based on order quantities.
1).Within 2 weeks after order confirmation Customized with DHL/Fed Express/UPS:
2).Customer provide account, arrange directly for small batch goods.
3).Arranged by us, freight charged depends on the weight or volume.
4).Transport by Sea: FOB for large QTY.
Payment terms:
1). Payment Terms:50% Deposit, 50% T/T Cash before Delivery Western Union is welcomed.
2). Delivery:FOB Shenzhen, Ex Work
3). Lead Time: Within 2 weeks after order confirmation and payments.
4). Discounts are offered based on order quantities.
