custom thin slim flicker free high PFC led driver 96W power supply IP67 aluminium 24V ultra thin lighting transformer dimmer
- Category: >>>
- Supplier: Shenzhen Keysun Technology Limited
Share on (1600924601197):
Product Overview
Description
Products Description
custom thin slim flicker free high PFC led driver 96W power supply IP67 aluminium 24V ultra-thin lighting transformer dimmer
The KSPOWER - LP series 5 in 1 dimmable led driver 96 Watt is one constant voltage solution, single channel, accept universal AC input voltage range from 100V to 277V, output voltage 24Volt with greater operating efficiency and higher PFC function. The class 2 dimming power supply use low profile metal aluminum case, dry and damp, makes the dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and IP67 waterproof environment protection rated for indoor or outdoor use, the 0/1-10V and triac dimmable drivers provide 5 years warranty and outstanding led dimming performance.
Input Voltage | 100~277V AC 47~63Hz | ||||||
Power Factor | PF≧0 .98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, 80% with load | ||||||
NO. | KSLP-96W24 | ||||||
Output Voltage | 24V | ||||||
Rated Current | 4A | ||||||
Rated Power | 96W | ||||||
Ripple & Noise (max.) | 250mVp-p | ||||||
Certificate | UL/cUL Class2 FCC CE GS ENEC ROHS CLASS P etc. | ||||||
Dimension(L*W*H) | 355*32*24.5mm / 13.98*1.26*0.97in | ||||||
Features:
* Height to 24.5 mm
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 24Volt
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: 10V PWM, TRIAC, 0/1-10V or MLV / ELV Resistor Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 24Volt
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: 10V PWM, TRIAC, 0/1-10V or MLV / ELV Resistor Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note：Any custom label/package/case is acceptable, provide OEM and ODM service
Show Details

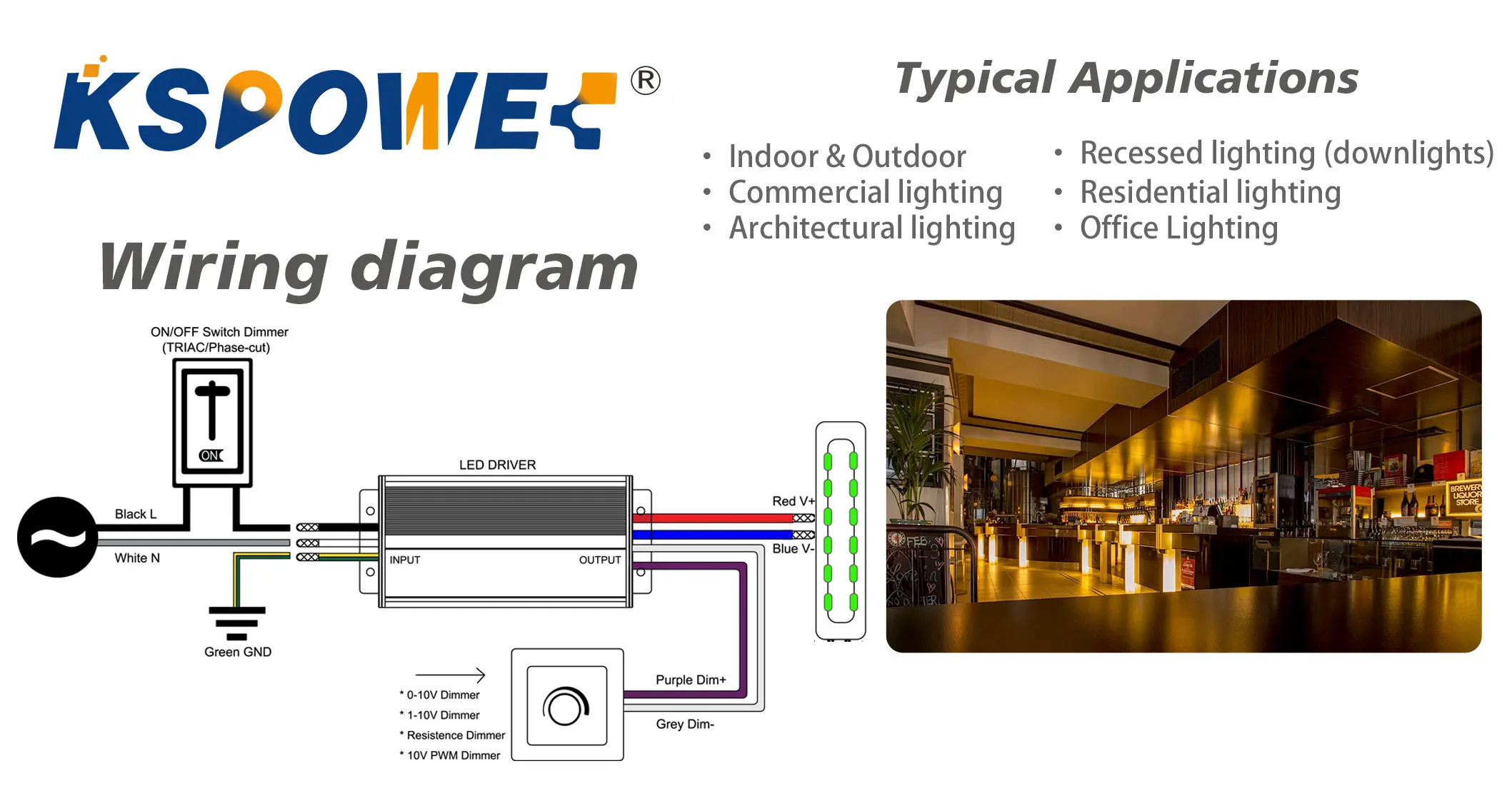

Dimming Connect Drawing

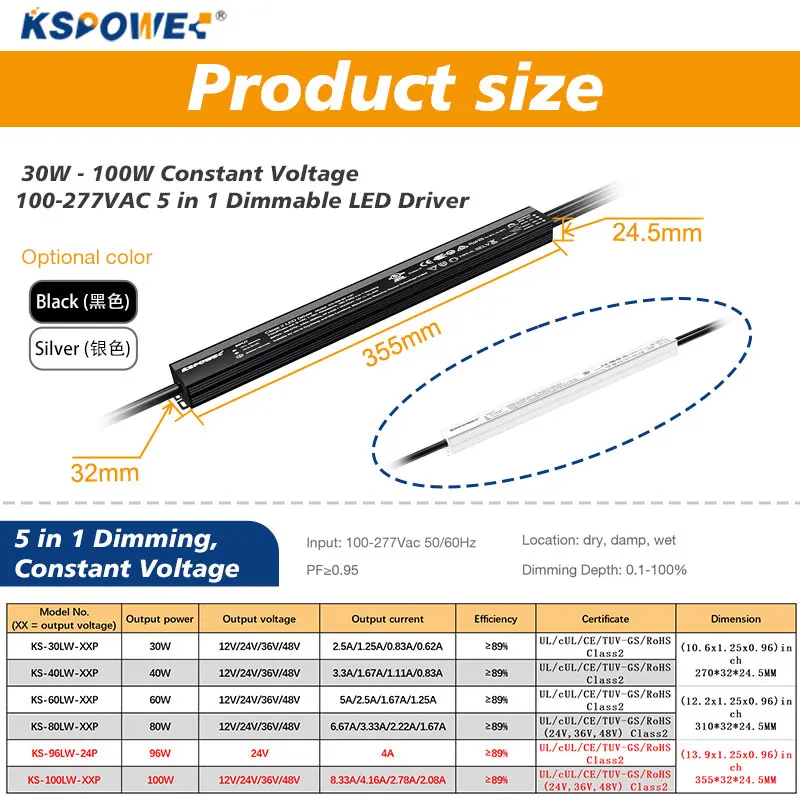

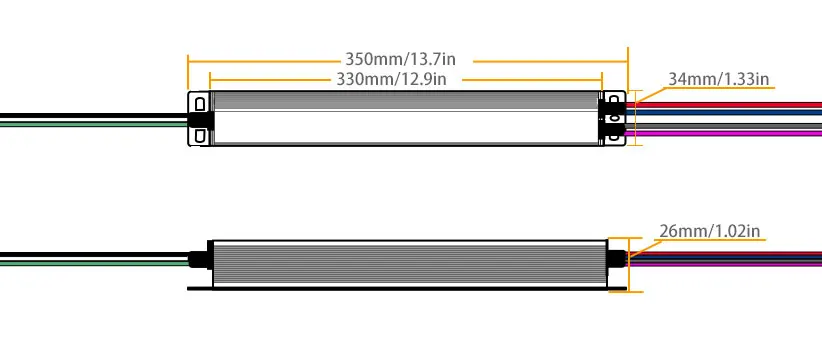

Dimension Drawing
Applications

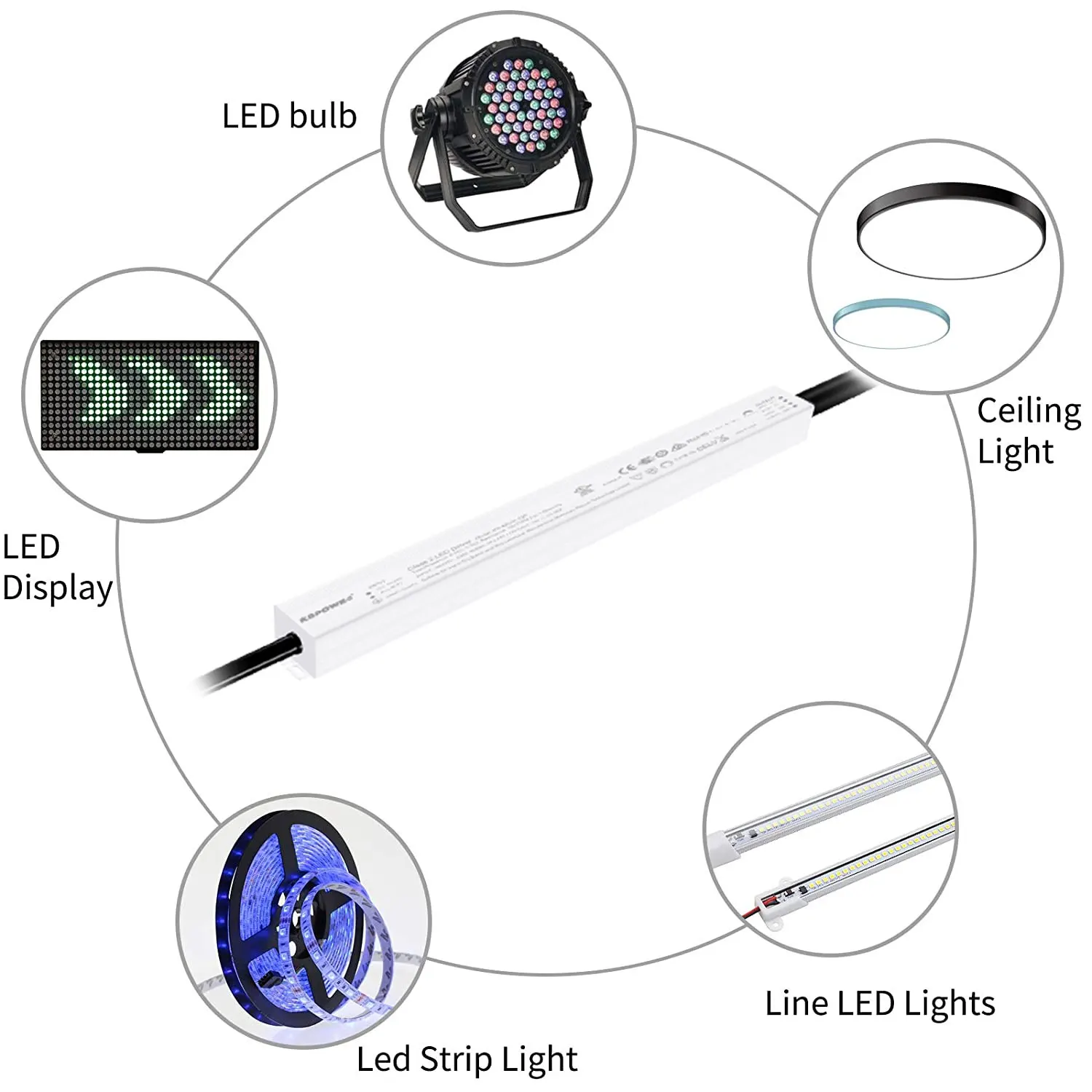

The ultra slim class 2 led driver use low profile metal aluminum case with junction box makes the led dimming driver power solutions for LED strips, LED sign and landscape lighting.
