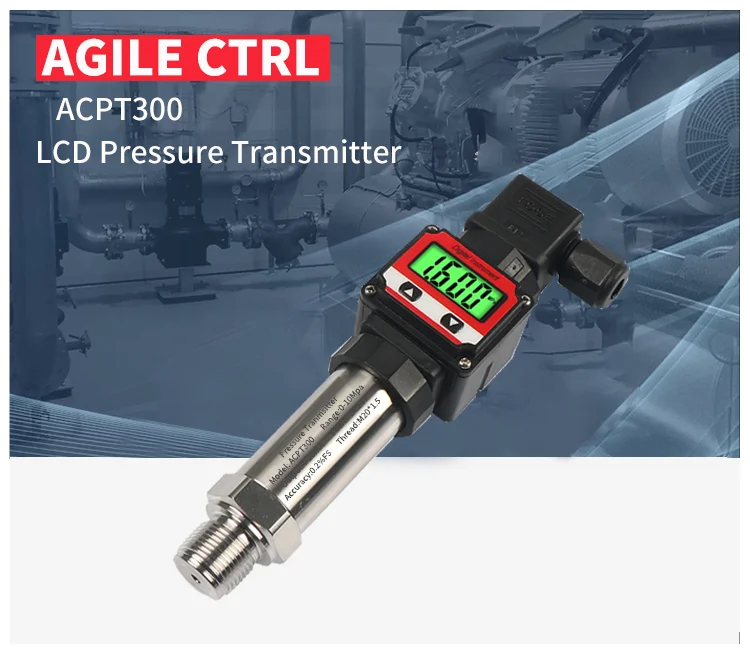

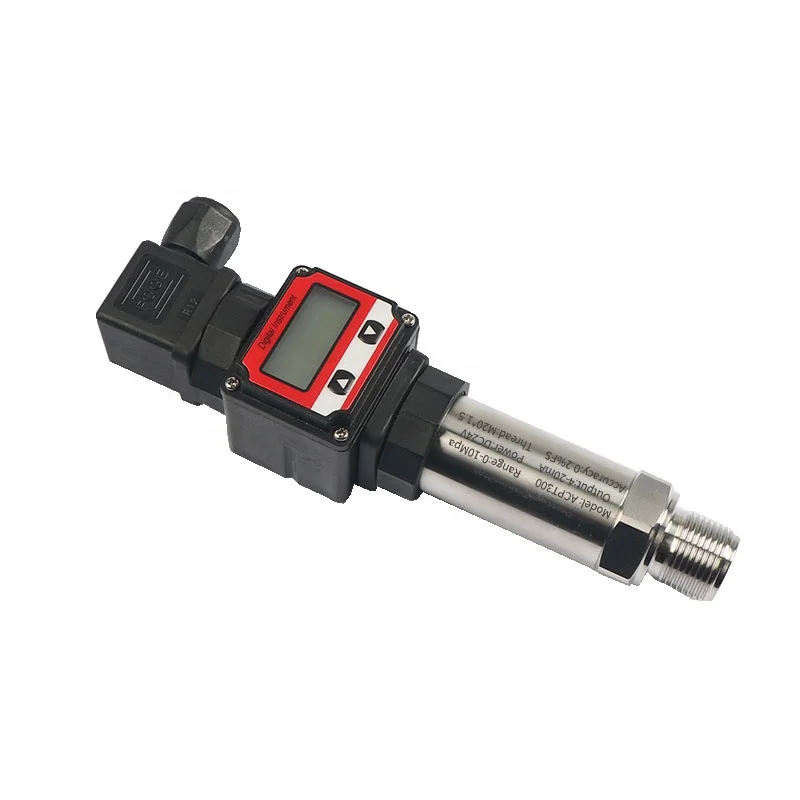

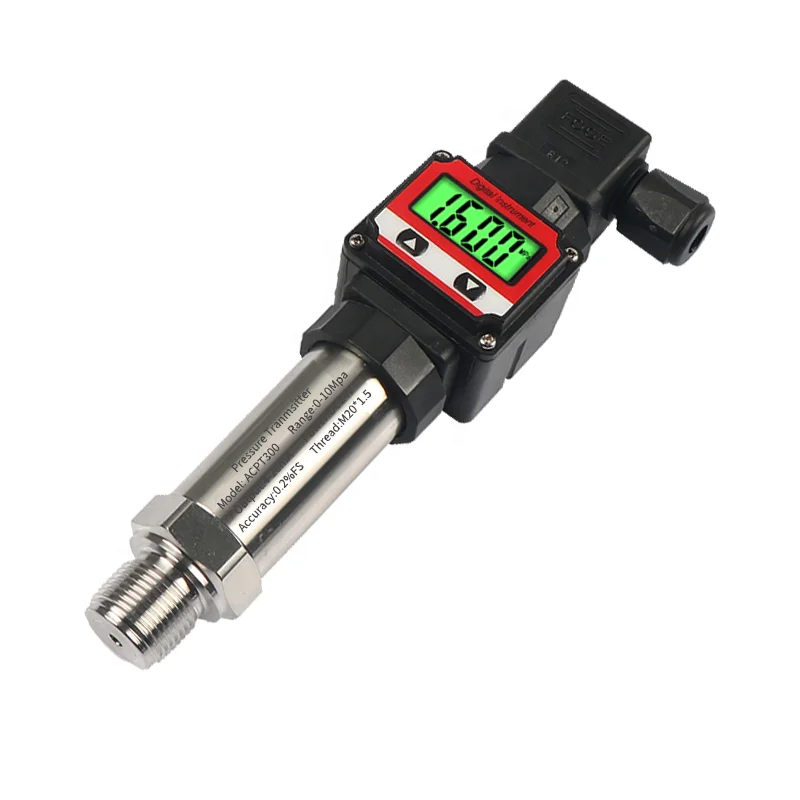

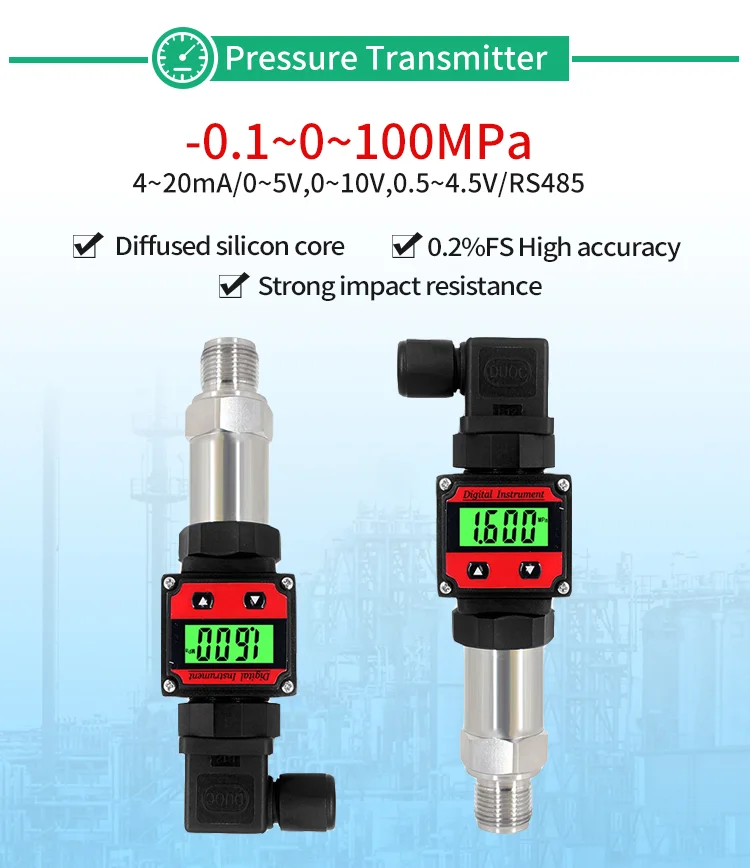

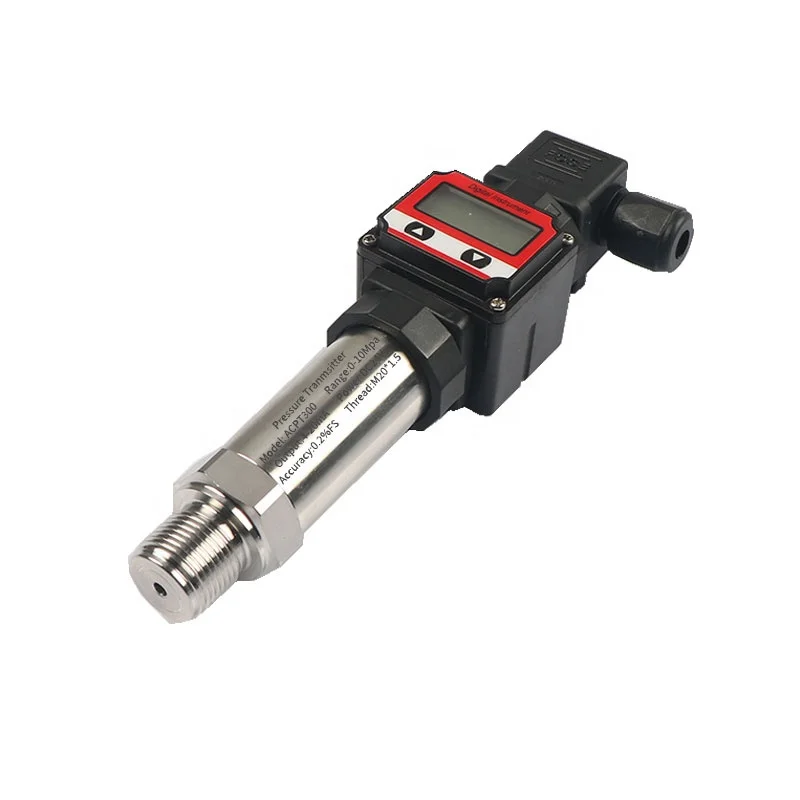

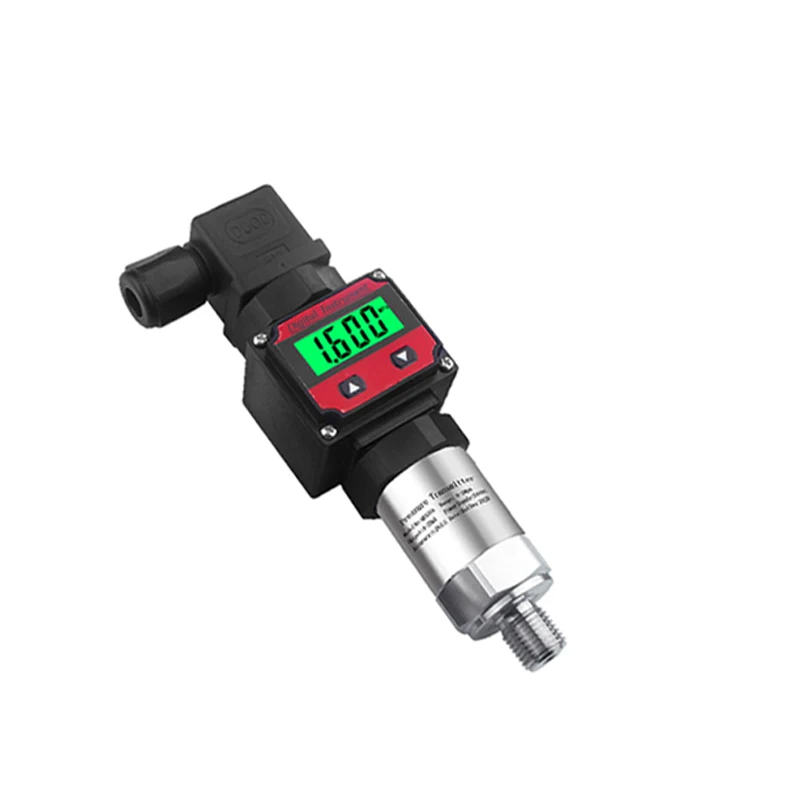

0.5 4.5v gas wind air pump pressure sensor with lcd display water tank level pressure transmitter

Share on (1600927835419):


Price:$29.50 - $33.50

Quantity:


Product Overview

Description



Product Description

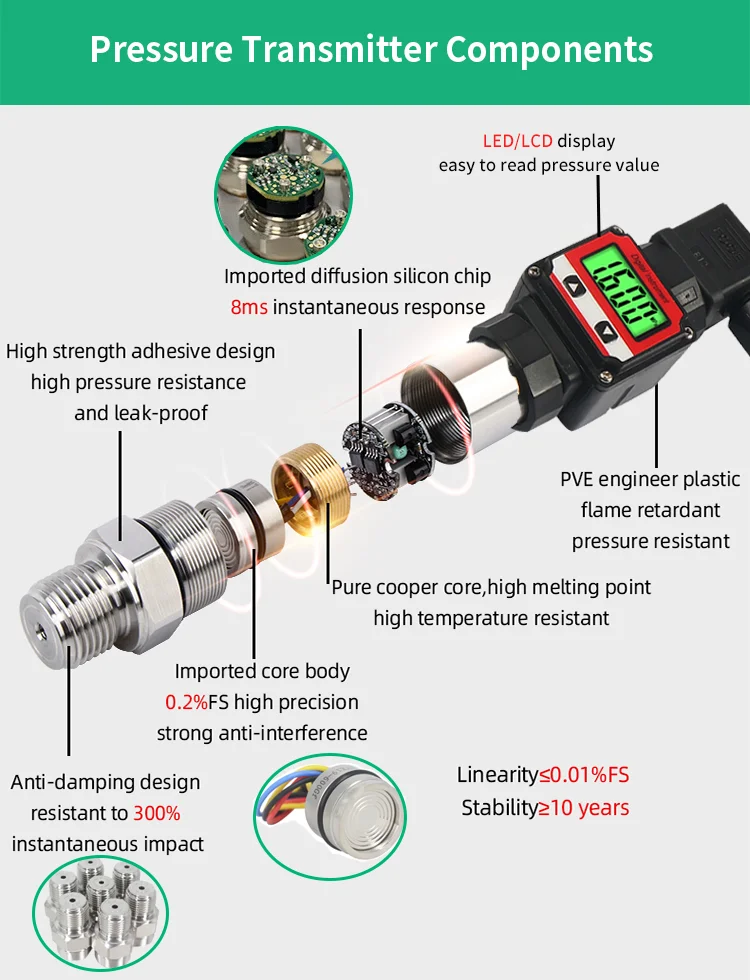

1>>. ACPT300 pressure transmitter uses sensitive & high performance diffusion silicon piezoresistive chip.


2>>. ACPT300 pressure transmitter internal circuit board converts the pressure signal into standard analog signal,users can directly connect the transmitter with computer interface card,control instrument,intelligent instrument or PLC.


3>>. ACPT300 pressure transmitter has many good features,small volume,light weight,easy to install,all stainless steel sealing structure,high anti-vibration and anti-impact performance.


4>>. ACPT300 pressure transmitter is widely used in process control, aviation, aerospace, automobile, medical equipment and many other fields.

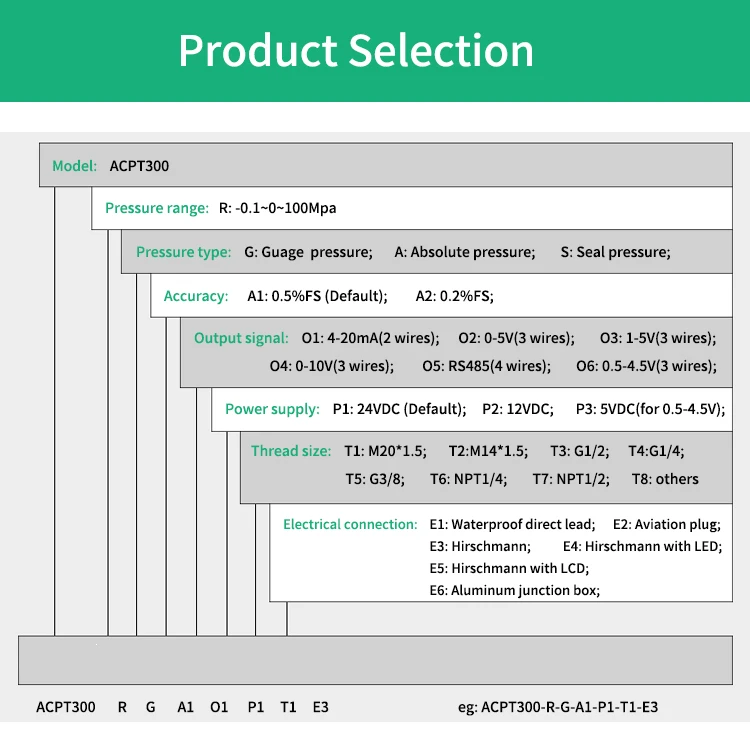

Product model


ACPT300


Measuring range


-0.1MPa~0~100MPa


Output signal


4~20mA,0~5V,0~10V,RS485


Power supply


12~36VDC (24VDC)


Measurement accuracy


0.2%FS


Response time


≤10mS


Overload capacity


150%FS


Compensation temerature


-10~70℃


Ambient temperature


-40~200℃


Long term stability


±0.2%FS/year


Zero temperature drift


±0.5%FS/℃


Sensitivity temperature drift


±0.5%FS


Mechanical vibration


20g(20~5000Hz)


Sampling time


20 times/second


Insulation


≤500MΩ


Protection grade


IP65


Compatible media


Various media compatible with SS316

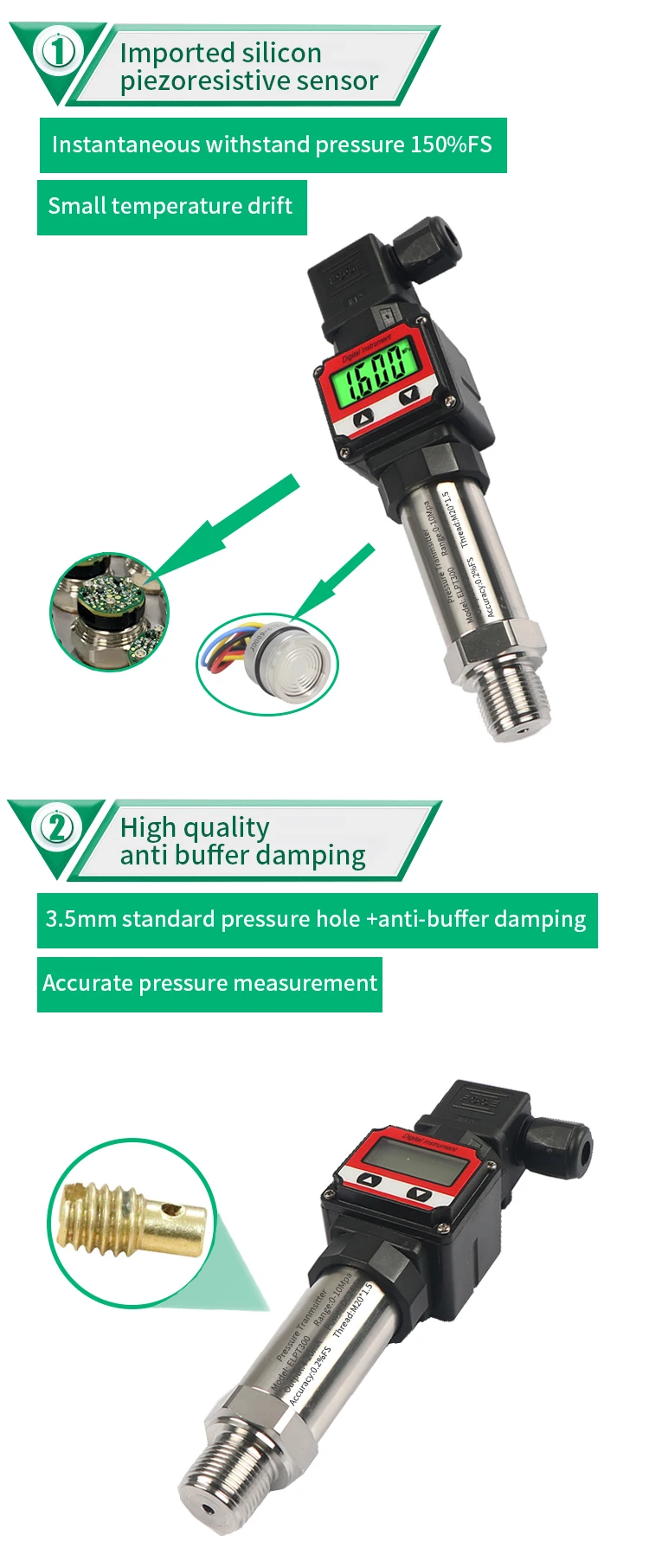

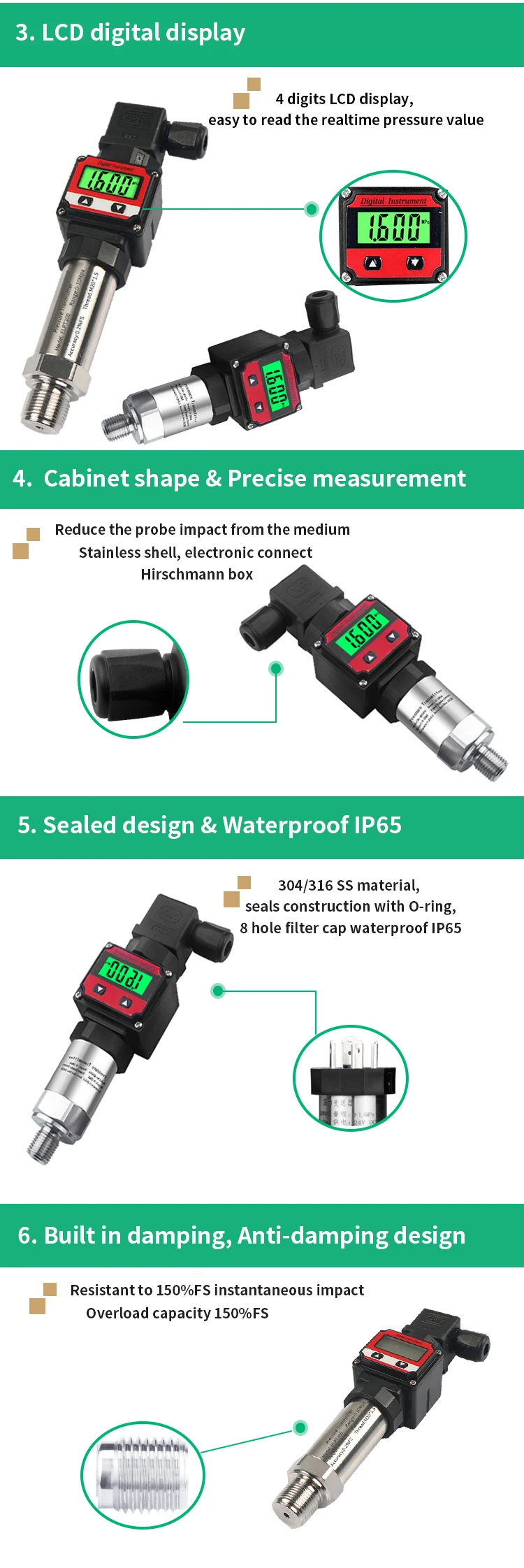

Product Features

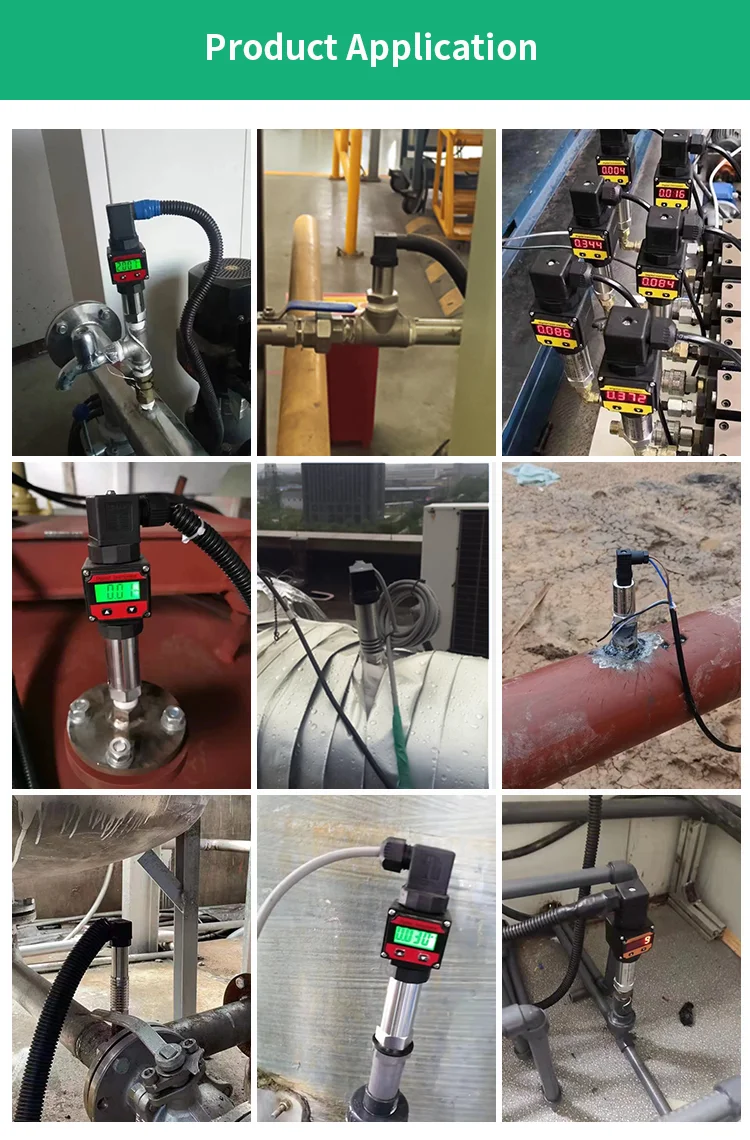

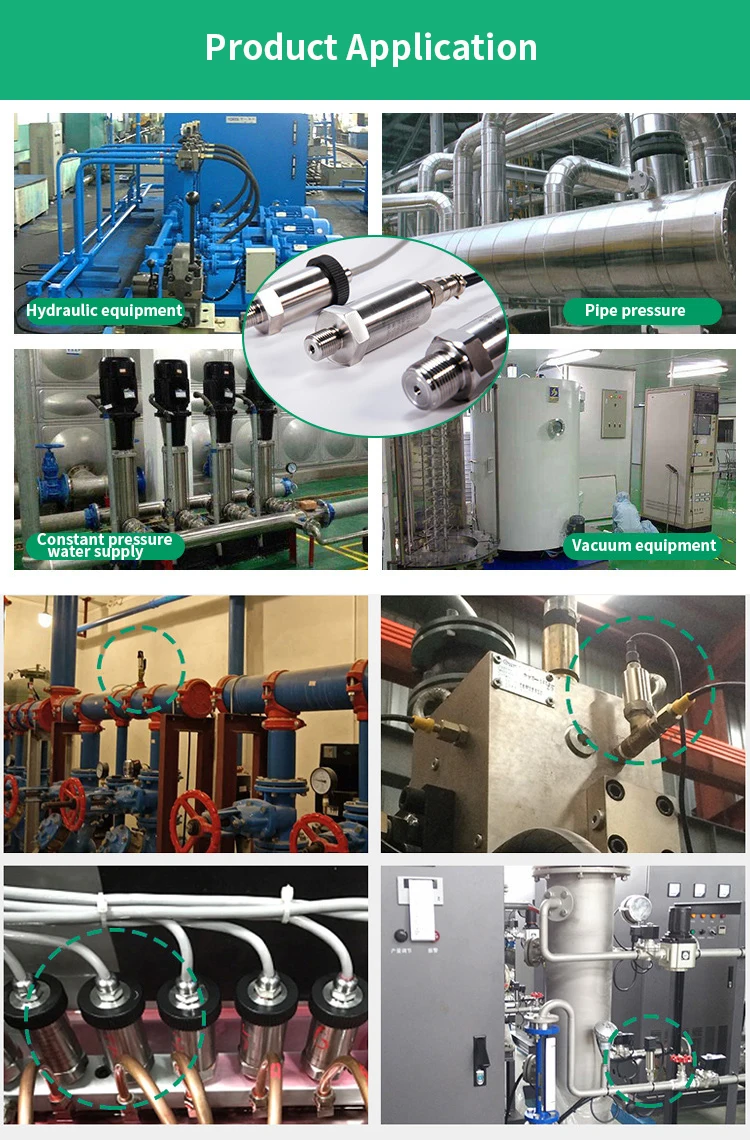

Product Application


 .png

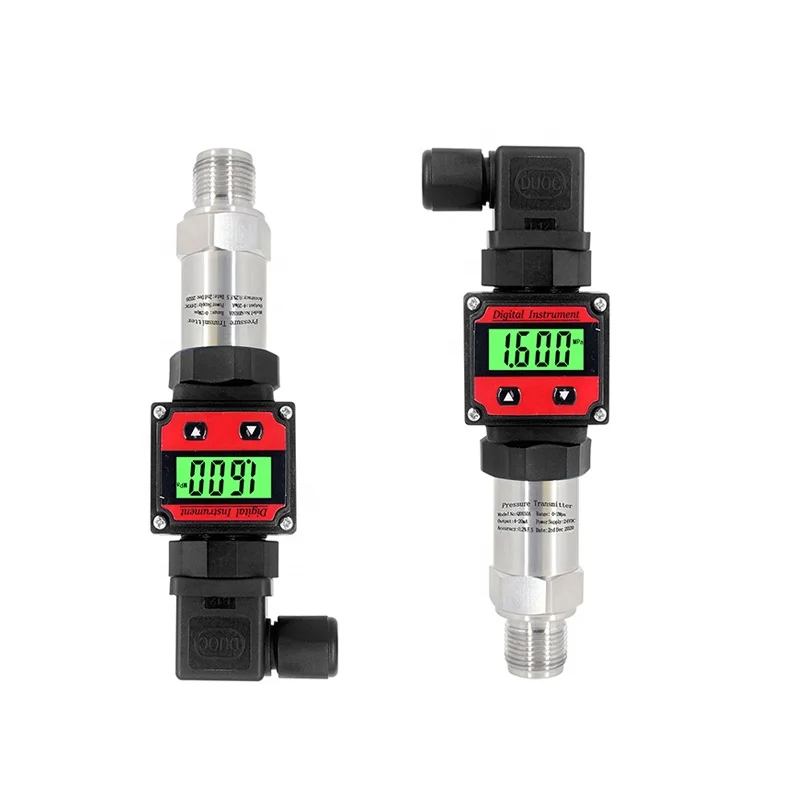

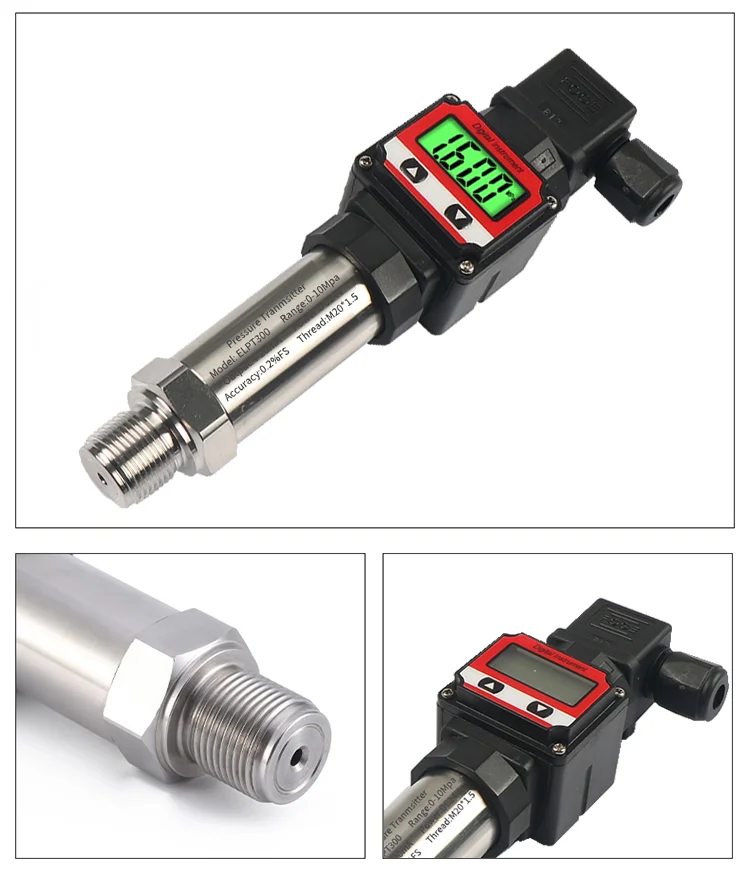

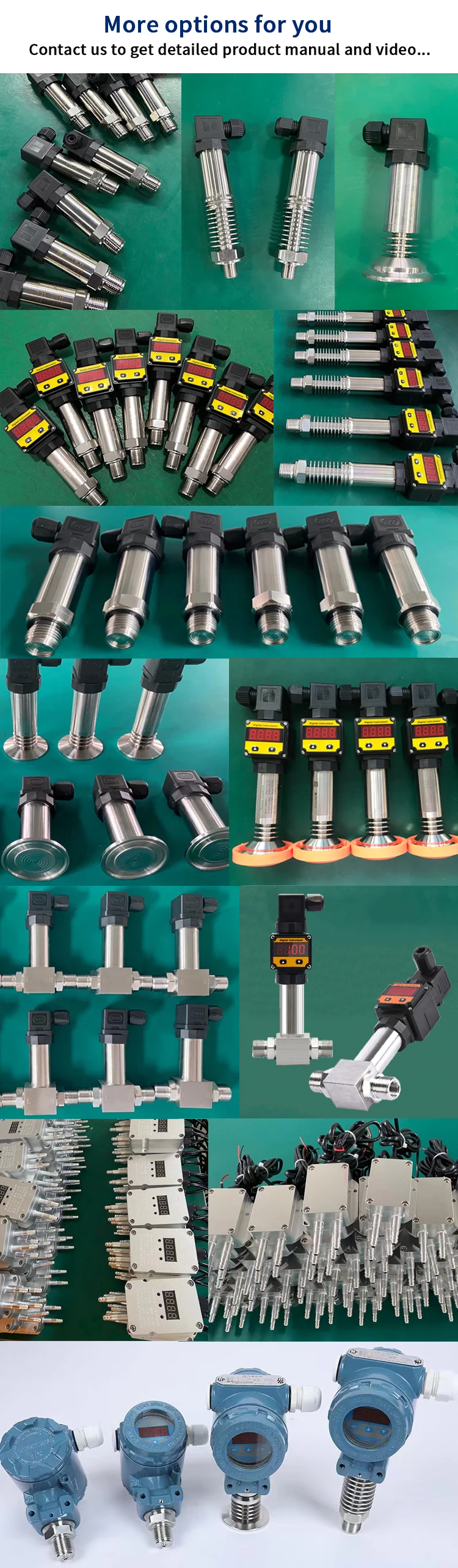

Product Display
