Trapezoidal tile making machinery Ibr roof glazed tile corrugated roofing sheet making machine
- Category: >>>
- Supplier: Henan Fantai Machinery Equipment Co. Ltd.
Share on (1600935716260):
Product Overview
Description
Products Description
The roof tile making machine is mainly used for construction buildings. Such as the roof roll forming , wall forming, and fence forming , car panel forming...It can be made different shape of that, so that have different outlooks, and made your house more beauty.
Introduction of the roof tile making machine for roof and wall
1. Function: Used to make roof/wall by different design
2. Usage: Used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance.
3. Used Raw materials: 0.3-0.8mm PPGI GI PPGL GL Coil.
4. Speed: Around 15m/min.
5. Design: Various shapes or sizes, can be choice, so that we can customized for you.
Introduction of the roof tile making machine for roof and wall
1. Function: Used to make roof/wall by different design
2. Usage: Used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance.
3. Used Raw materials: 0.3-0.8mm PPGI GI PPGL GL Coil.
4. Speed: Around 15m/min.
5. Design: Various shapes or sizes, can be choice, so that we can customized for you.
DETAILS IMAGES

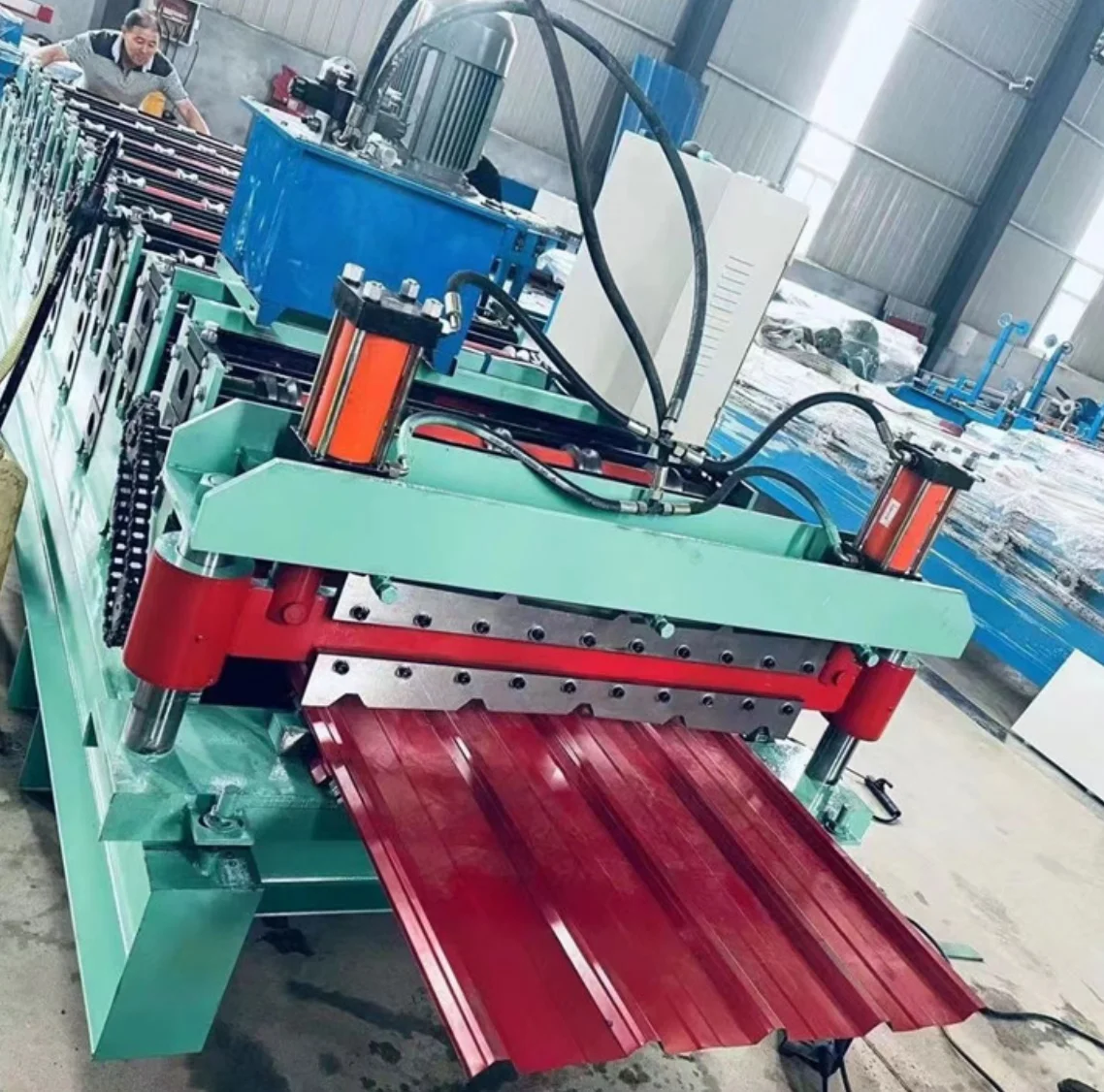

Product Display
Layout design of roof tile making machine

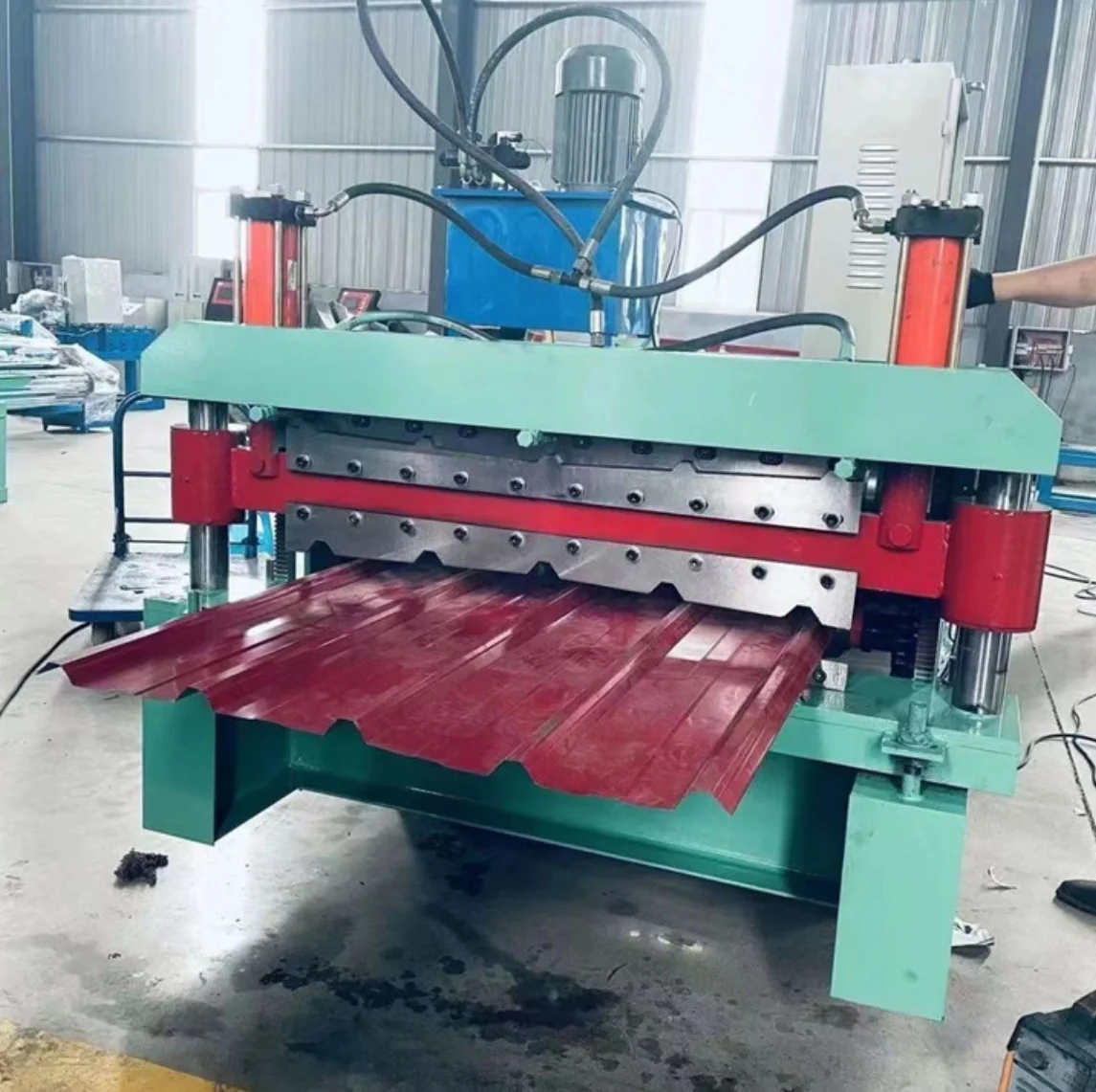

Finished panel of roof tile making machine

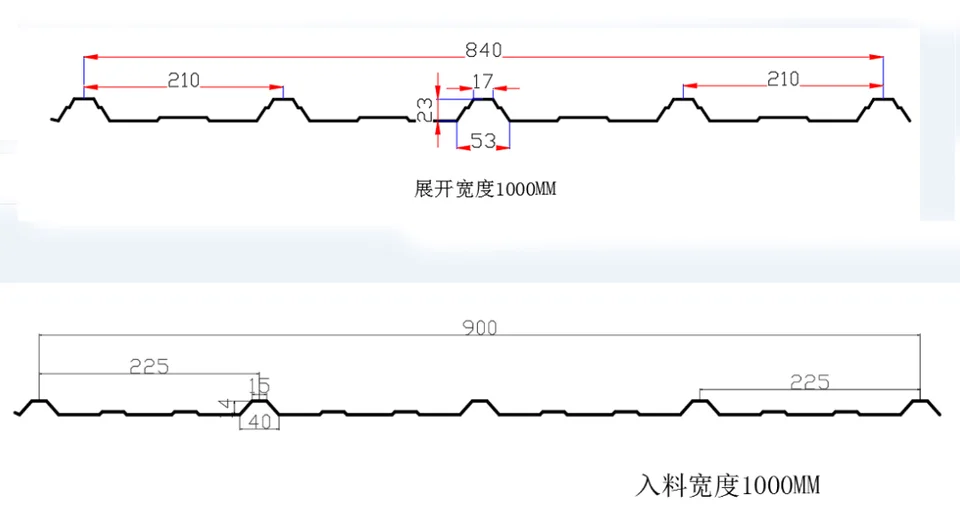

840 finished design
900 finished design
Other design for common using
If you need other design of tile making machine, we can also made for you, just share with us which one you prefer is ok, we may try our best to satisfied.
Specification
No. | Main parameter of 840 glazed tile machine | ||||||
1 | Suitable to process | Color steel plate | |||||
2 | Width of the plate | 1000mm | |||||
3 | Thickness of the plate | 0.3-0.8mm | |||||
4 | De-coiler | Manual one, can load 5 tons raw material | |||||
5 | Rollers for forming | 11/9 rows | |||||
6 | Diameter of the roller | 72mm | |||||
7 | Rolling material | Carbon Steel 45# | |||||
8 | Main motor power | 4kw | |||||
9 | Productivity | 15m/min | |||||
10 | Cutting method | Hydraulic mould cutting | |||||
11 | Material of the cutting blade | Cr12 | |||||
12 | Hydraulic cutting power | 3kw | |||||
13 | Processing precision | Within 1.00mm | |||||
14 | Control system | Delta PLC control | |||||
15 | Side panel of machine | 14mm | |||||
16 | Main structure of the machine | 250 H steel | |||||
17 | Weight | About 3.0T | |||||
18 | Dimensions | 5.0*1.5*1.55m | |||||
19 | Voltage | 380V 50Hz 3phases(changeable as needs) | |||||
20 | Certificate | CE/ISO | |||||
21 | Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. | |||||
22 | Custom | According to customer's requirements | |||||
