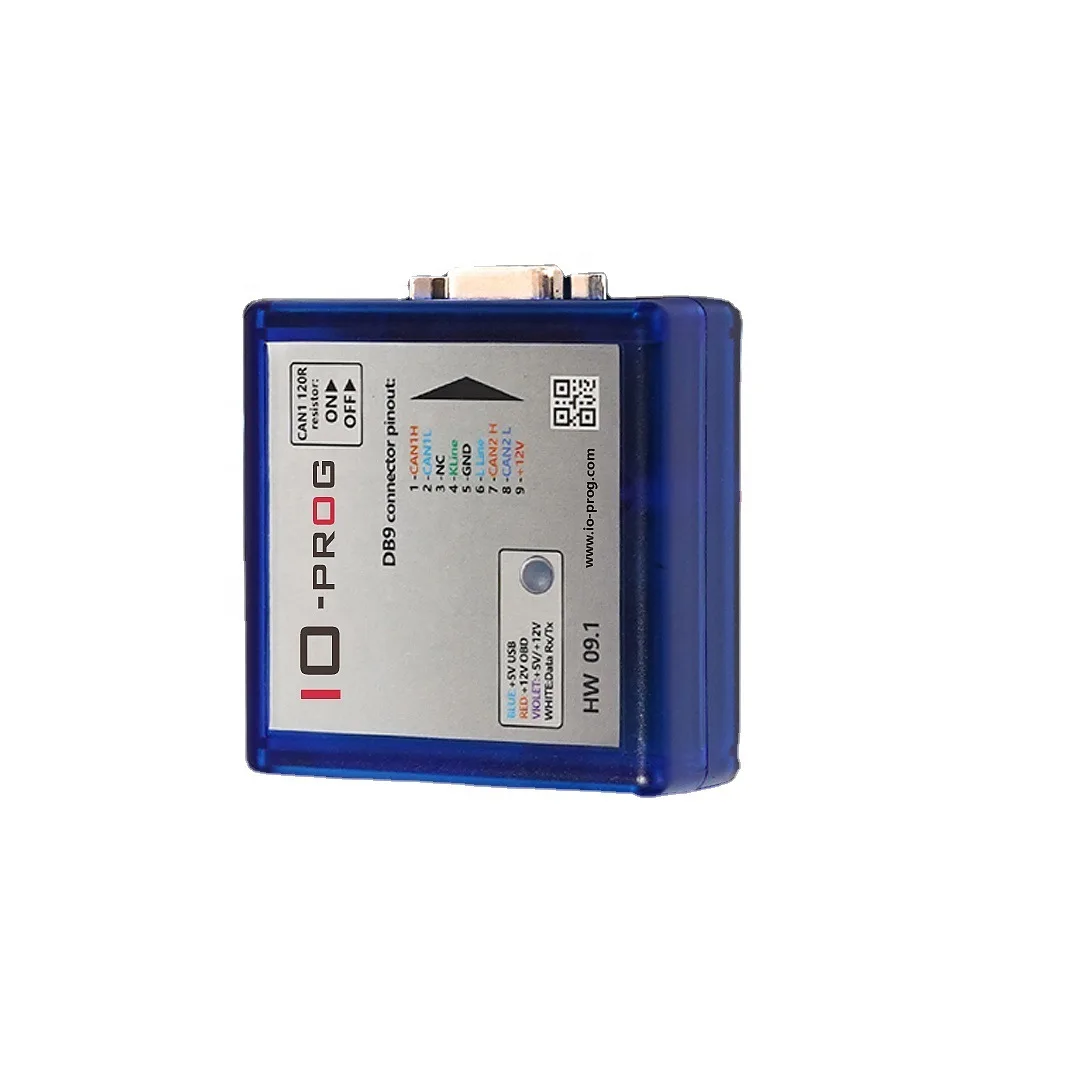

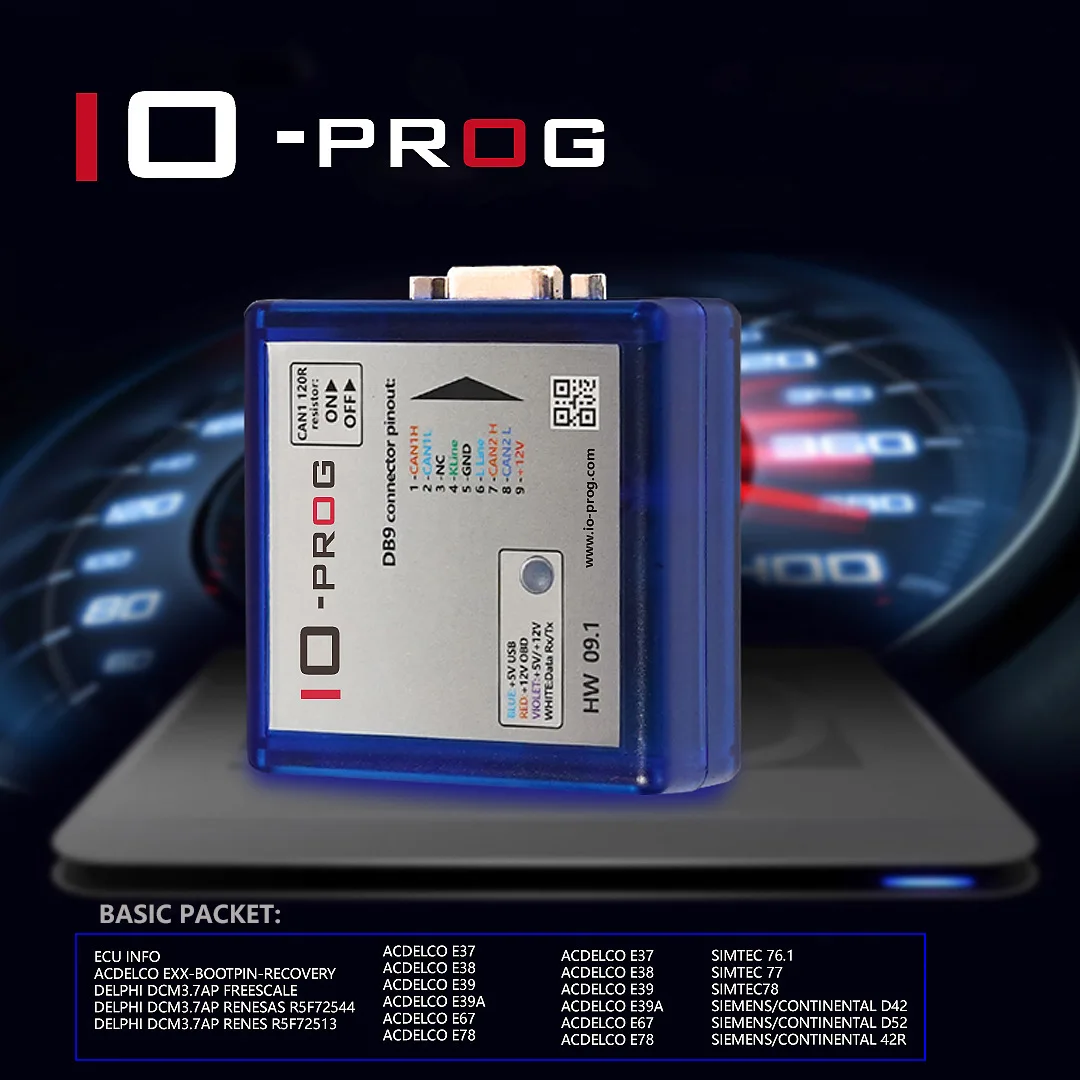

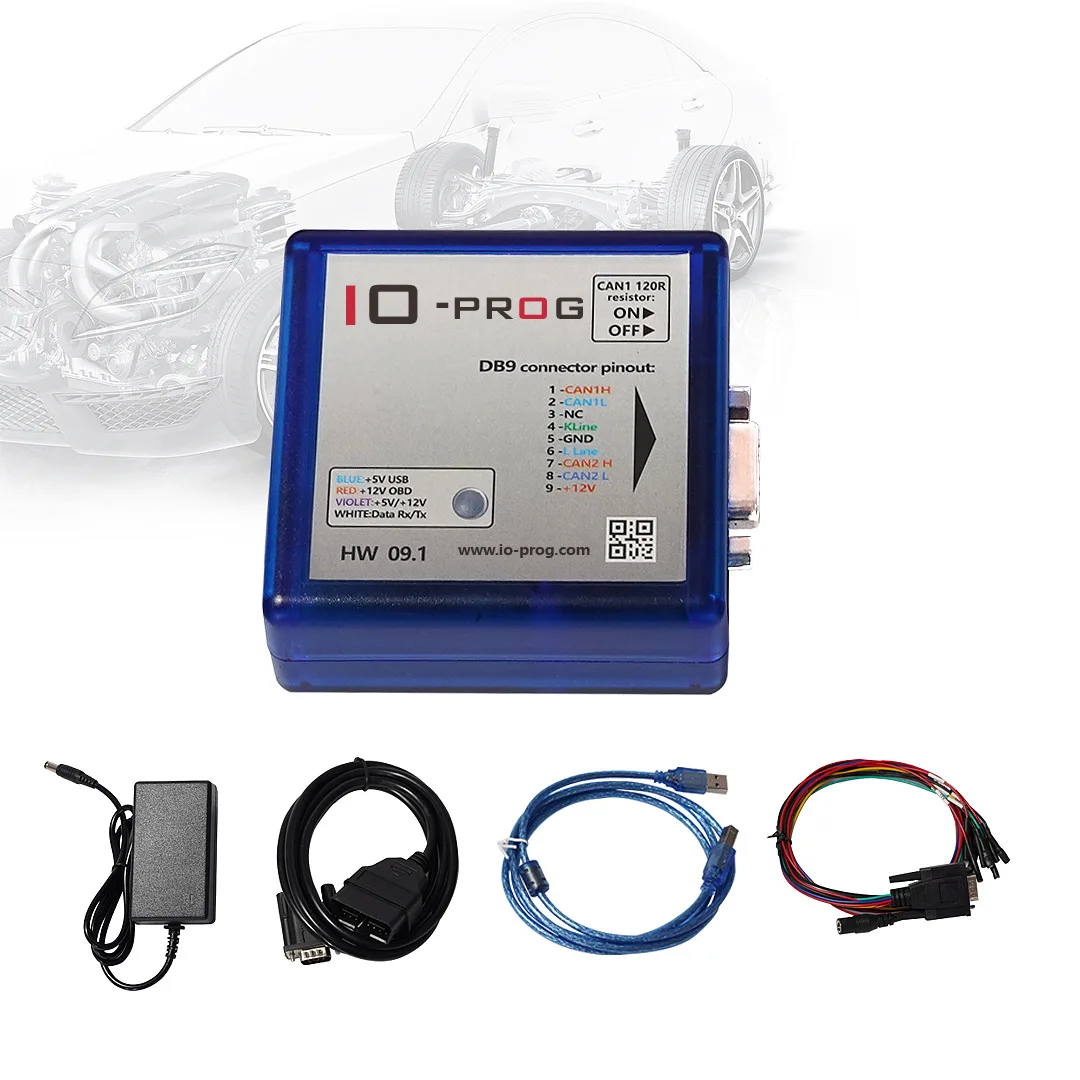

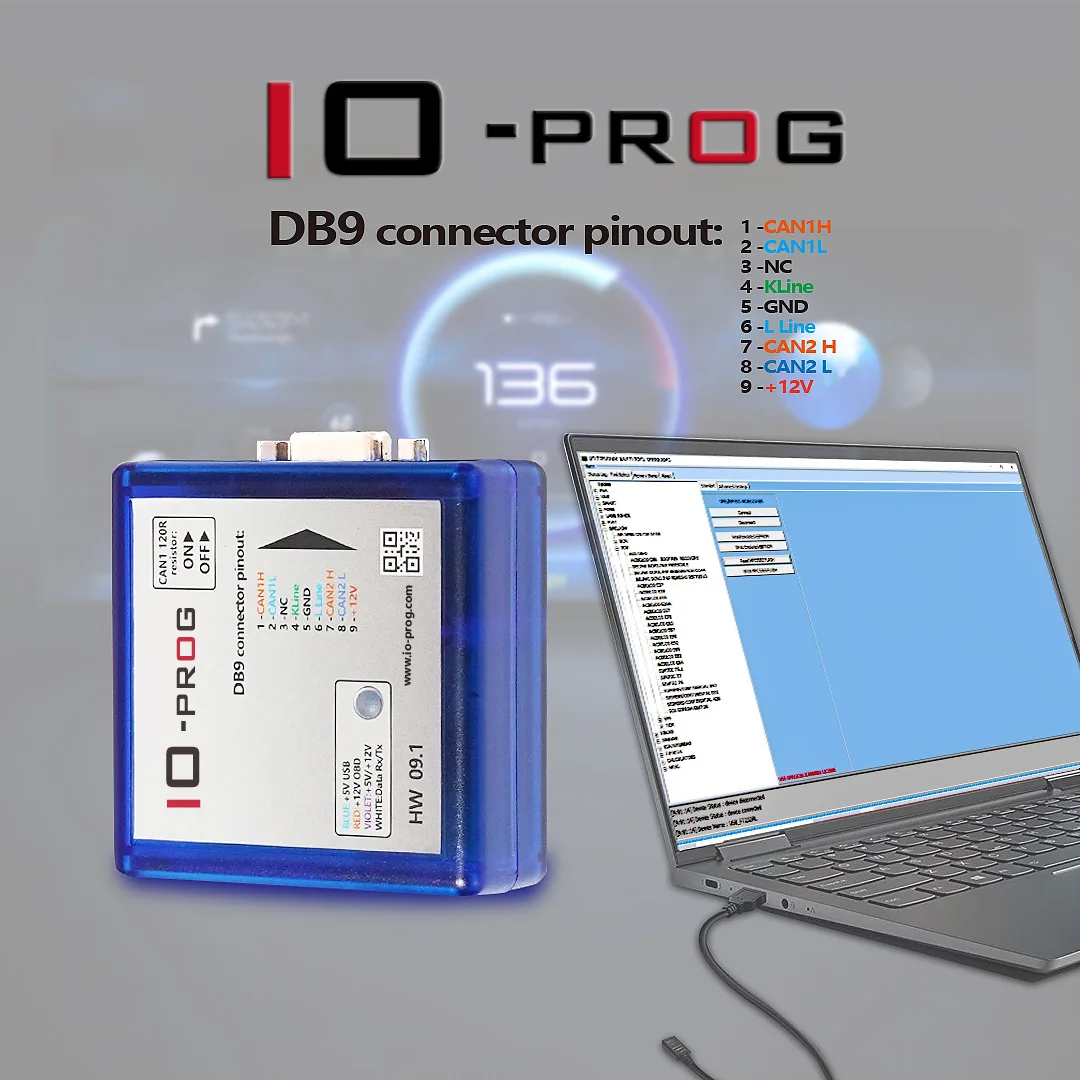

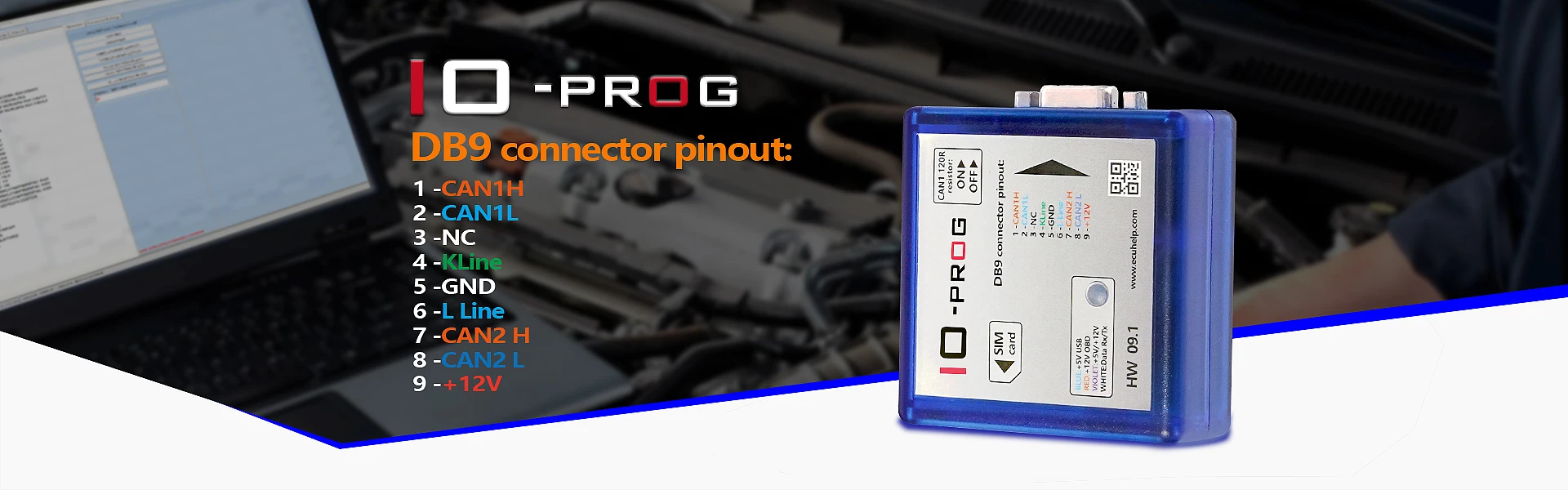

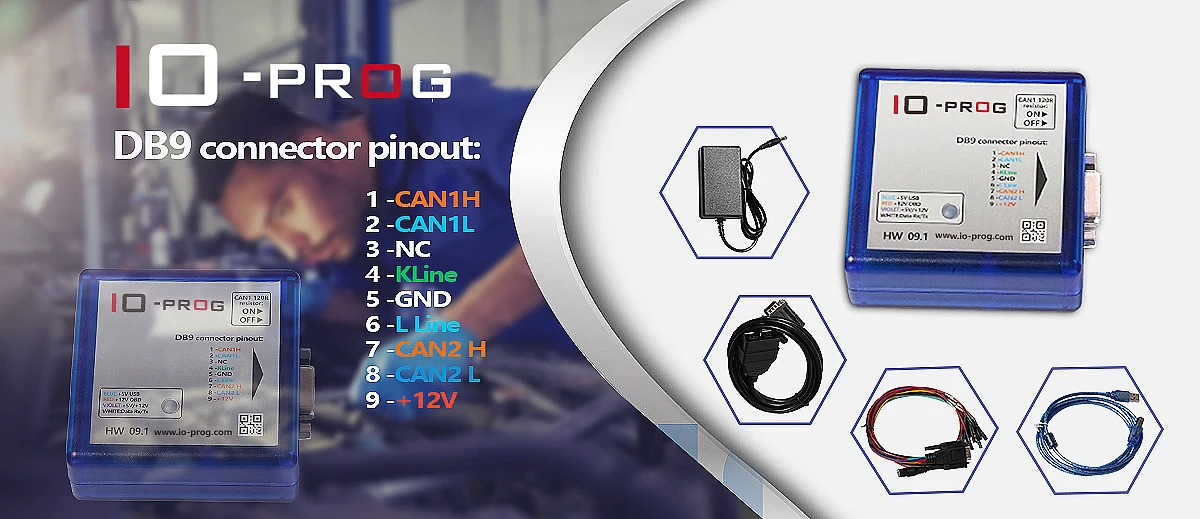

IO prog with PSA BSI Opel ECU TCM BCM &EPS Ecu tuning chiptuning tools Combination of K line and CAN programmer BD9 connector

Store Comment&Buyer Tips:

New product ecu programmer IO-Prog I/O Terminal Combination of K-line and CAN interfaces provides ideal software compatibility

I/O Terminal is a software and hardware solution designed for work with a great number of ECUs, automatic transmissions,BSI installed in VAG, Mitsubishi, Mazda, Ford, Nissan, Subaru, Suzuki, Opel, Volvo, Alfa Romeo, Fiat, Jaguar,Land Rover, Lancia, Maseratti, Hyundai, Kia, Daewoo and other vehicles using the OBD-II data link connector.

I/O Terminal Advantages
Combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device Reading and flashing of FLASH and EEPROM memory image using the diagnostic connector link.
Checksums testing and correction. Safe reading and flashing

Licensing
The software is marketed on a module basis. Each module is a separate program which functions independently with one joint adapter. You can download and use only the software you have licenses on. Licenses are stored on special cards which are to be inserted in the special adapter slot before the software use. Some license can be recorded on one card, others require separate recording.

Newly added license as below:
MULTITOOL PSA BSI
Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00); EEPROM 95160 R/W, show PIN;

Siemens 1L00M+95128/95256 CAN (BSI-S0X-00); EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASHR/W;

Continental SC667050+95256 CAN (BSI-Q0X-00); EEPROM 95256 R/W, show PIN, SC667050 FLASH R/W;

Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00); EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W;

Valeo 2M48H+24C128 CAN (BSIEV-X0X-00); EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W;

Valeo SC667152+95256 CAN (BSI-N0X-00); EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W;

Johnson Controls easy CAN4+29LV400+95128 CAN (BSI2004-H0X); EEPROM 95128 R/W, show PIN,29LV400BB FLASH R/W;

Johnson Controls easy CAN4F1M-32+95128 CAN (BSI04EV-K0X); EEPROM 95128 R/W, show PIN,

Johnson Controls easy CAN4F1M-32 FLASH R/W; SPC560B60+95128 Support list as below:CAN (BSI04EV2-KEX); EEPROM 95128 R/W, show PIN, SPC560B60 FLASH R/W

MULTITOOL FORD/BCM
FORD LEAR BCM MC9S12XEP768. MC9S12XEP768
ln addition, fixed the bug that opel/qm Delphi BCM could not read.
OPEL BCM DELPHI 70F3238 + 93C86
OPEL BCM DELPHI 70F3379 + 93C86
OPEL BCM DELPHI 70F3533/70F3634:
also this set now can calculate seed key for Opel BCM that the seed is 5 bytes

BASIC PACKET:MULTITOOL +OPEL/GM ECU LICENSE

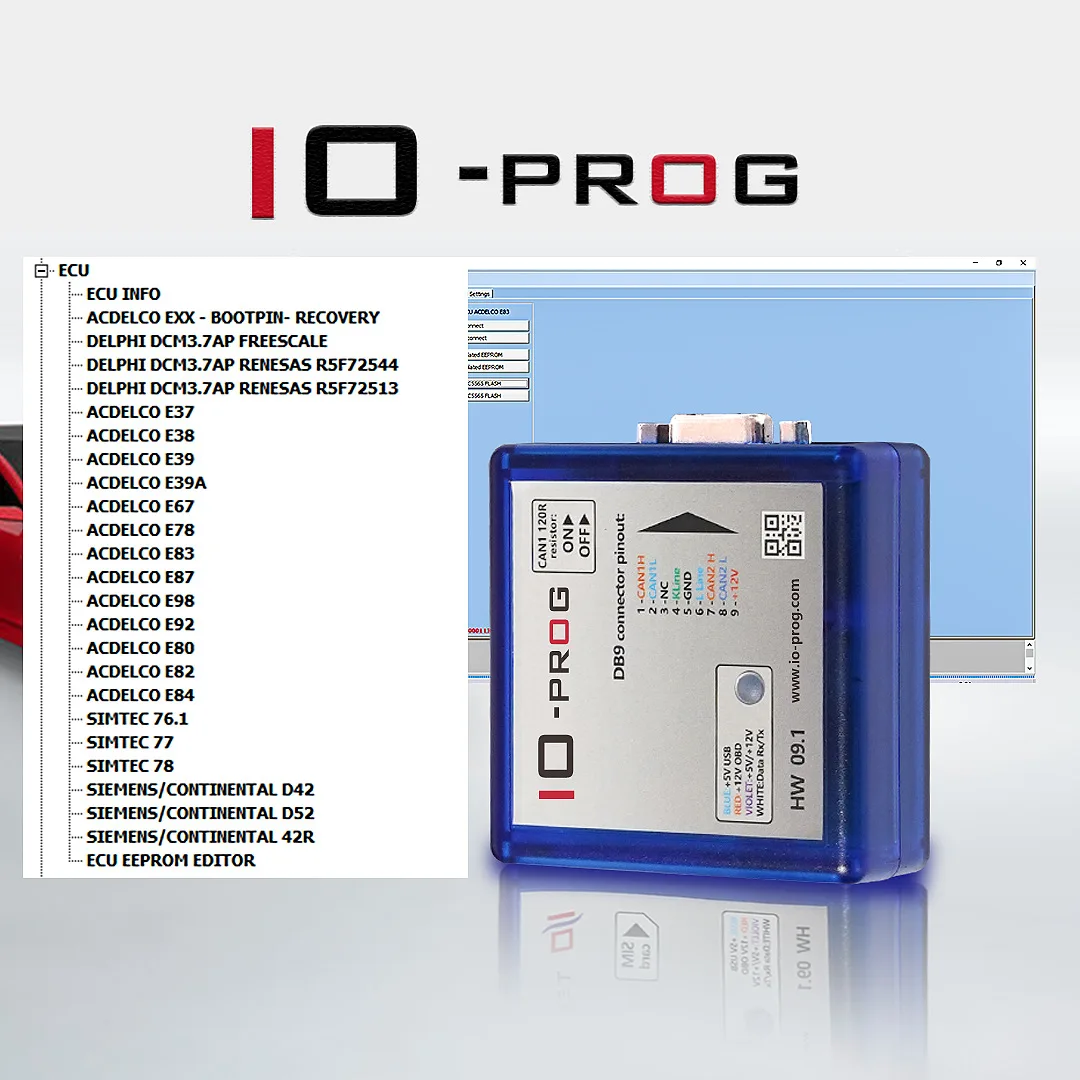

MULTITOOL OPEL/GM ECUReading/writing of OPEL/GM ECUs by CAN (OBD
or wired on the bench) . Also software has bootpin recovery mode.

Supported OPEL/GM ECU types:
* ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

* ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

* ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

* ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;

* ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

* ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

* DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);

* DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);

* DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD)

* ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);

* ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);

* ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

* ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

* ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;

* ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);

* ACDELCO (BOSCH)E84MPC5676 FLASH R/W.CAN (OBD);

* EEPROM DUMP VIEWER, EDITOR.


New liecense added full Opel license version as below:

MULTITOOL OPEL BCMSupported BCM/BSI types OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3238 FLASH R/W; OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3379 FLASH R/W; OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show PIN, reset PIN; OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN, reset, change odometer, change VIN; OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16 R/W show PIN ,reset, change odometer, change VIN; OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN, reset,change odometer, change VIN; OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN; OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN. ============================================================================================= MULTITOOL OPEL/GM TCMReading/writing of OPEL/GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench). Supported OPEL/GM TCM types: TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD); TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90 FULL M58BW016DB FLASH R/W. CAN (OBD). ============================================================================================ MULTITOOL OPEL/GM EPSReading/writing of OPEL/GM EPS modules via CAN (OBD or wired on the bench). Supported OPEL/GM EPS types: EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).
