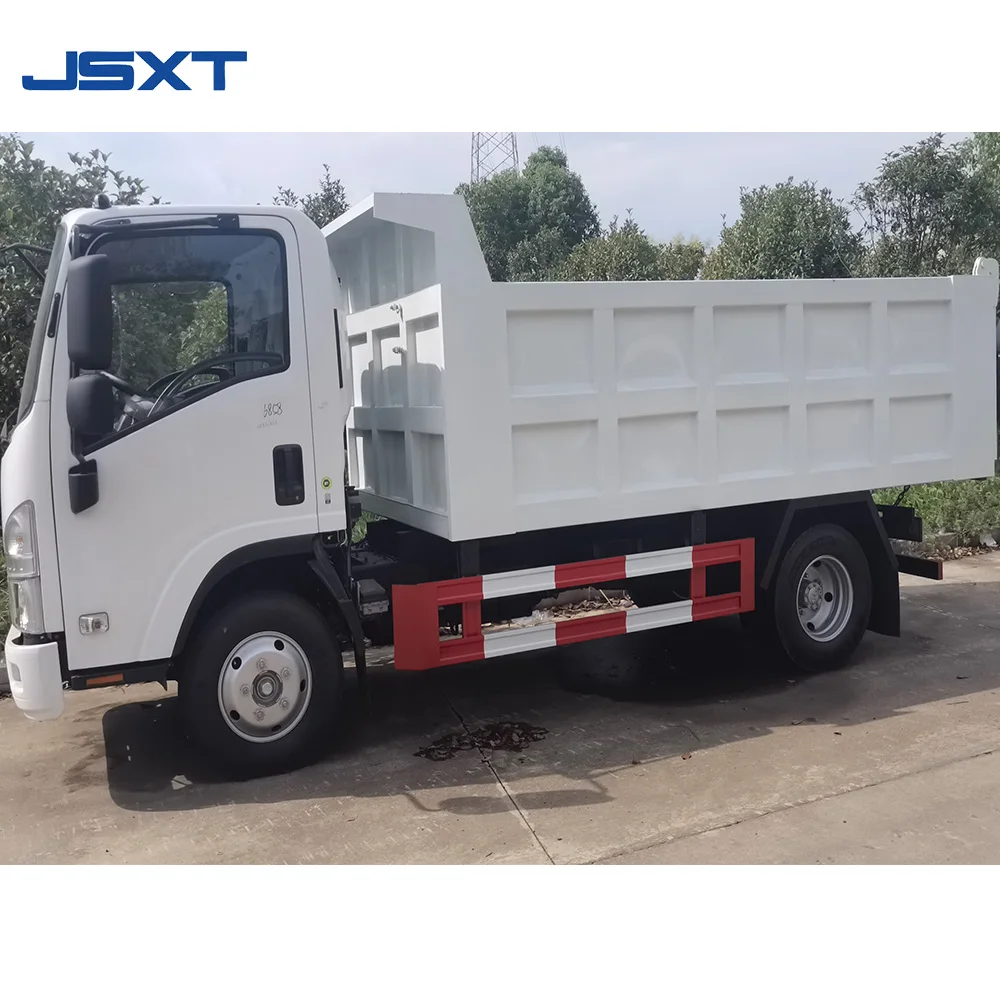

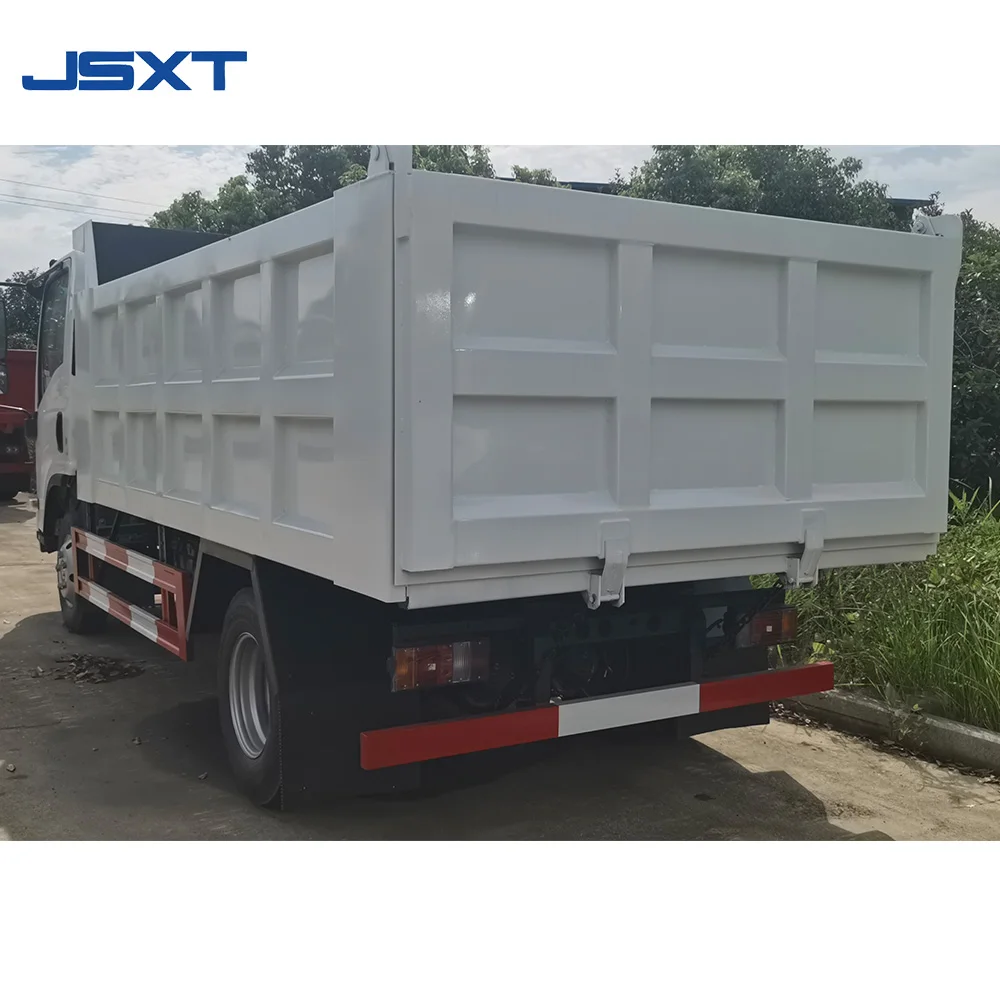

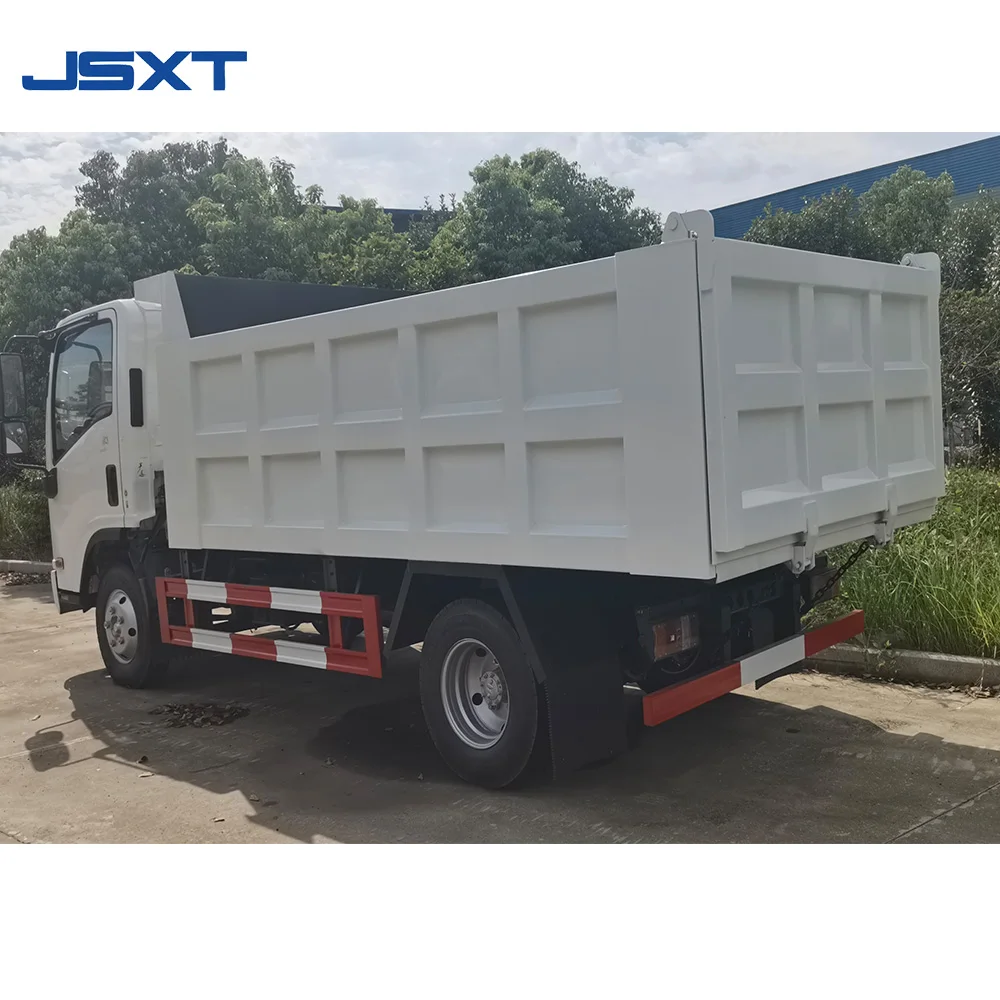

Dump Truck 4*4 600P 5 Tons Isuzu Dump Truck Small Tipper Light Trucks
- Category: >>>
- Supplier: Henan Jushixin Transportation Equipment Co. Ltd.
Share on (1600938675754):
Product Overview
Description
4*4 600P 5 tons Isuzu Euro III left-hand drive dump truck small tipper light trucks
Small dump truck description:
Since the loading carriage can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used special transportation vehicle.
1. Classified by appearance: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck
2. Classified by purpose: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck
3. According to the different driving modes, it is also divided into 6x4, 8x4 for unloading and semi-trailer dump trucks.
4. According to different uses, it is also divided into mining dump trucks, used to transport coal, sand and gravel; environmental sanitation and green dump trucks, used to transport garbage, etc.
5. According to the direction of the car rollover, there are also front lift and rollover dump trucks. There are also two-way side dump trucks, which are mainly used in construction projects.

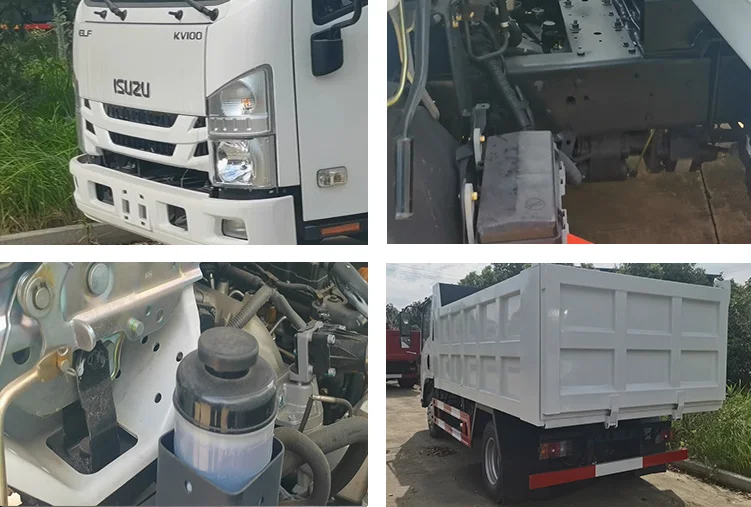

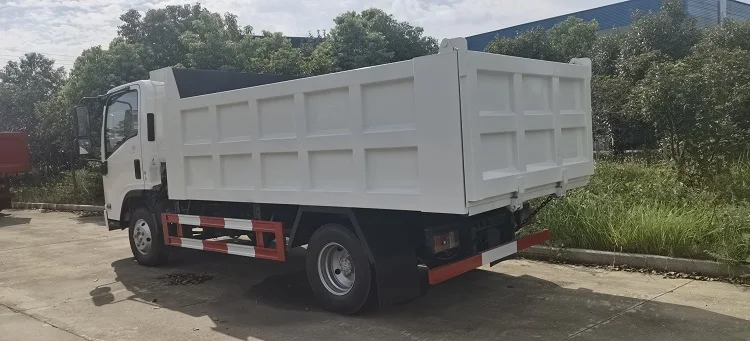

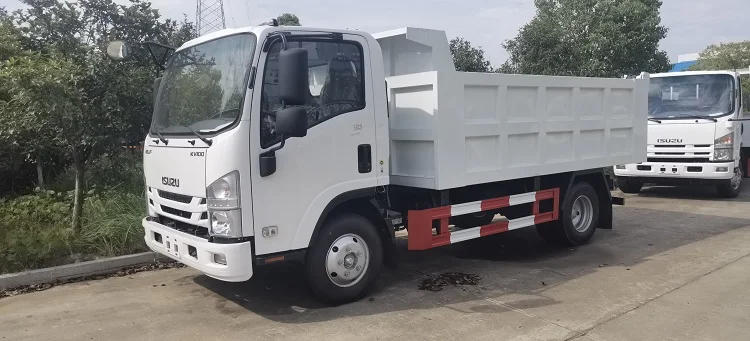

Detailed Images
Technical Parameter
product name | 5 tons Isuzu Euro III left-hand drive dump truck | model | JSXT3090 |
transport medium | sandy soil | engine horsepower | 130 hp |
Dimensions (mm) | 5990×1840×2300 | Box size (mm) | 4200×1800×500 |
Weight(kg) | 4000 | load(kg) | 5000 |
Cabinet material | Side Q235B/3.0mm, Bottom Q235B/4.0mm | ||
Girder material | Q235B | ||
shape | rectangle | ||
Loading mass(kg) | 5000 | ||
curb weight(kg) | 4000 | ||
Total mass(kg) | 9000 | ||
engine | 4KH1-TC | ||
emission | Euro 3 | ||
gearbox | Dongfeng 5 gear | ||
frame | Through the girder | ||
Front/rear overhang (mm) | Front: 1015, Rear: 1615 | ||
departure angle | Front: 23, Rear: 18 | ||
suspension | Leaf spring 8/6+5 | ||
leaf spring | 8 in the front, 6+5 in the back | ||
axle | Front axle 2.5 tons, rear axle 5 tons | ||
Wheelbase (mm) | 3360 | ||
Number of tires | 6+1 | ||
Wheel base (mm) | 1504/1425 | ||
drive form | 4×4 | ||
Tire specifications | 7.00R16 | ||
air conditioner | have | ||
sleeper | have one | ||
suspension | leaf spring | ||
hydraulic cylinder | Center top, 2 | ||
brake | Drum | ||
Braking System | oil brake | ||
spare tire rack | have | ||
light | have | ||
Voltage | 24V | ||
rear door locking device | have | ||
driving form | Steering Wheel / Left Drive | ||
color | According to user requirements | ||

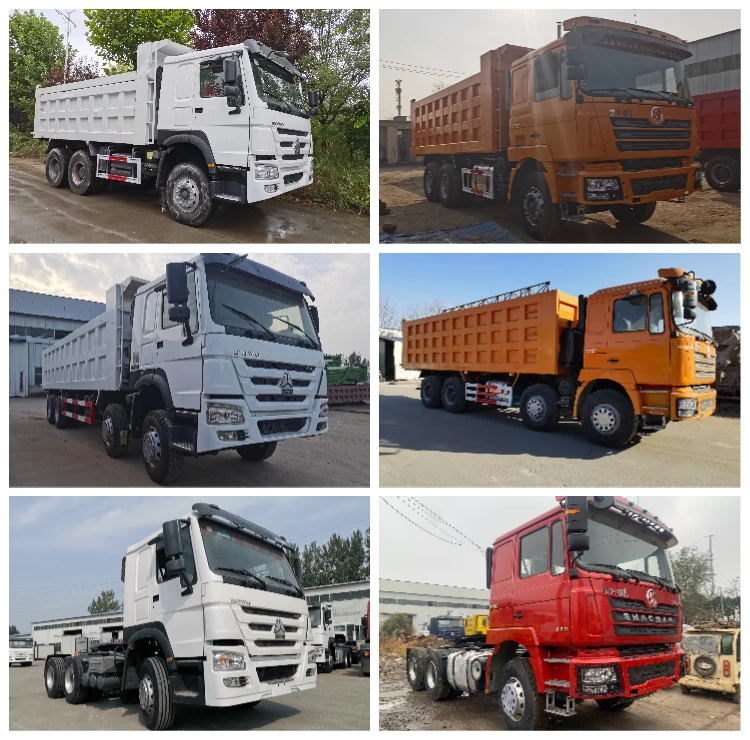

used product related
Our Company

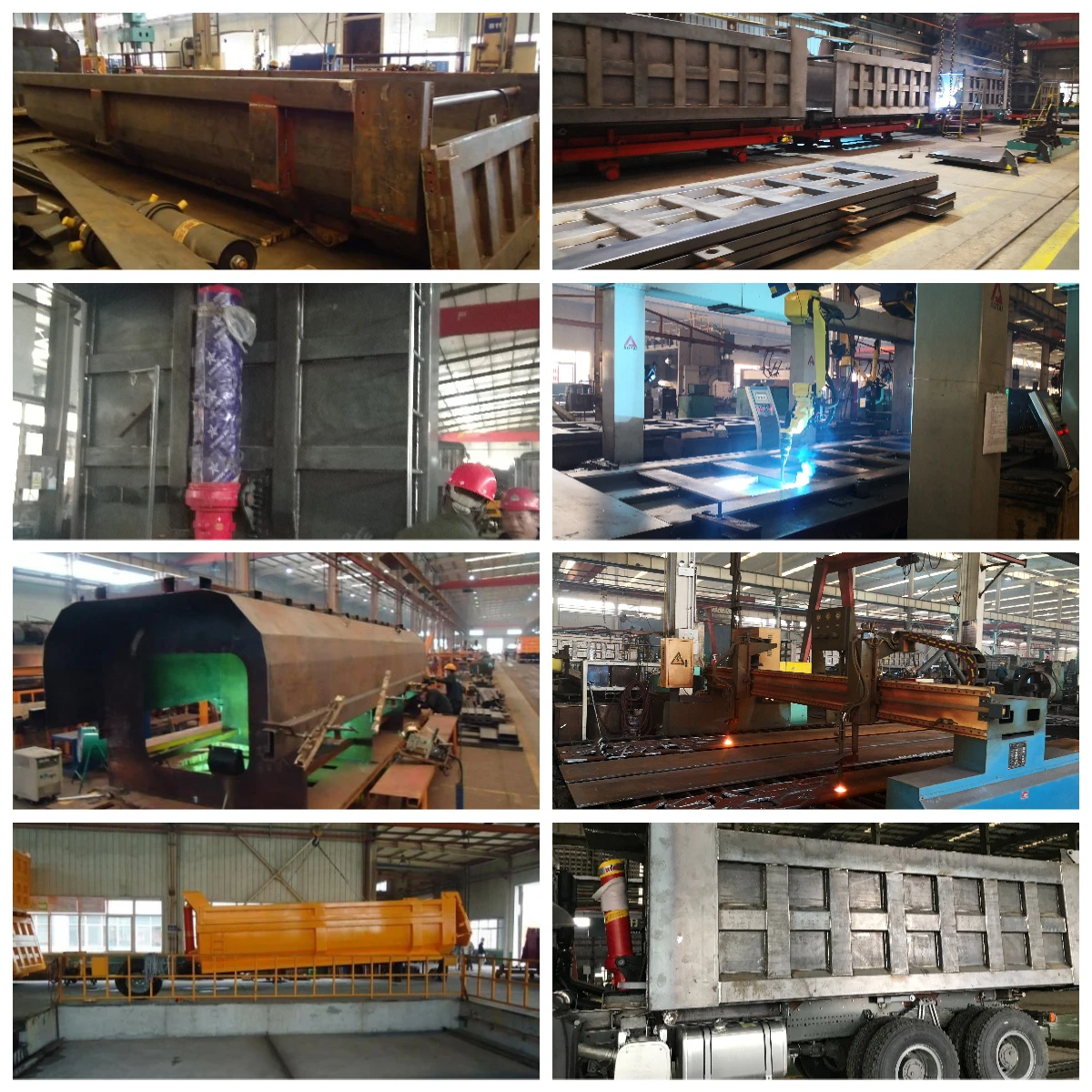

Production Equipment
Customer visits the factory

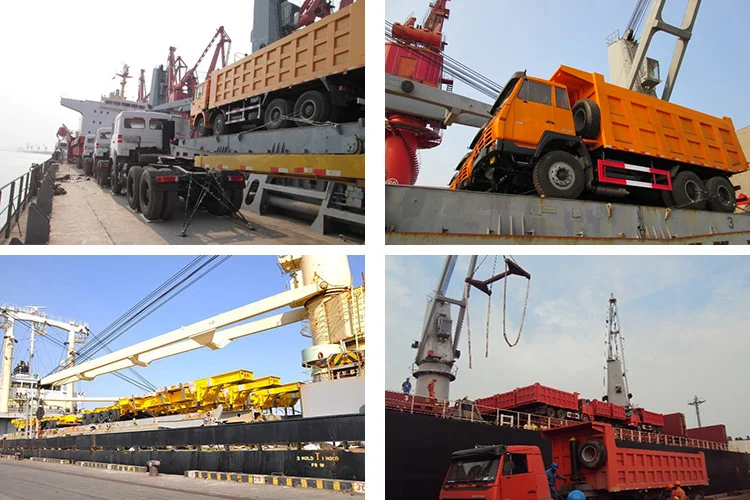

Transport
FAQ
Q1. What's your MOQ?
One unit trailer or truck.
Q2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3.How about your product quality?
High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.Established a procedure to check products at all stages of the manufacturing process,raw materials,process materials,validated or tested materials finished goods ect.
Q4. How can I get the price of your vehicle?
You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
Q 6: What's the delivery time?
A: The delivery time is within 30-50 working days after receiving your advance payment.
Q 7:How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Bulk or container.
Q8: Can you supply some quick-wear truck or semi trailer parts?
Yes, we can supply truck and semi trailer parts as your request, such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.
Purchase Notes
1.Payment term: T/T & L/C
2.Warranty : 12 months (normal situation)
3.Delivery time: 25 working days (big quatity need negotiate)
4.MOQ: 1 unit
5.Specification: as your request or refer to the quotation sheet for different product parameters.
6.color: factory recommend or as your needs.
7.Quality control: 1)Various production line processes.2)QA & QC quality control and inspection
3)welcome visit our factory at anytime.
8. 24 hours online for your services.
