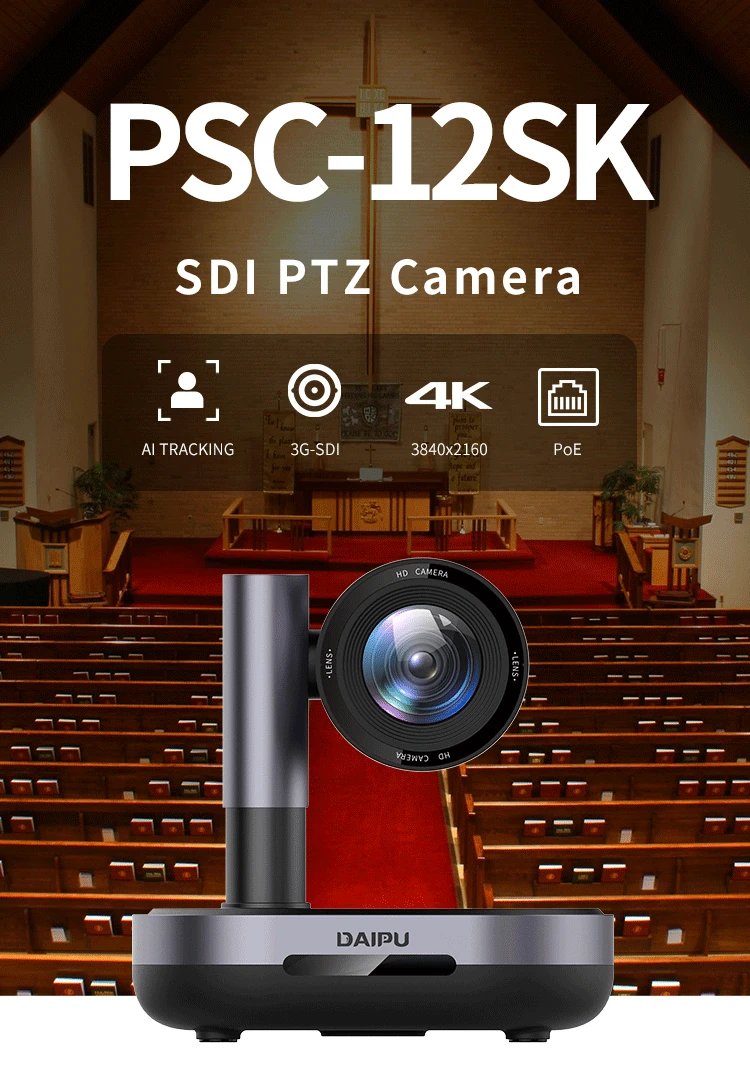

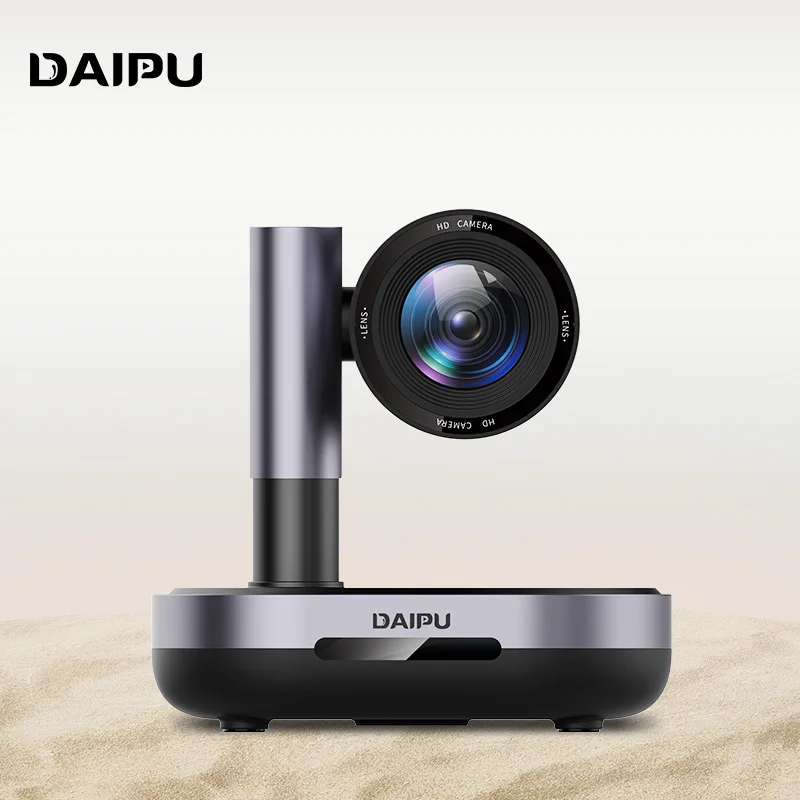

DAIPU PSC 12SK OEM ODM 4k 12X Optic HD Zoom 3G SDI PTZ HD MI Conference Camera
- Category: >>>
- Supplier: Beijing Daipu Technology Co. Ltd.
Share on (1600940419086):
Product Overview
Description
Specification
Camera Parameter | ||||||
Model | PSC-12SK | |||||
FOV | 5.2° (N)~62°(W) | |||||
Optial Zoom | 12X | |||||
Effective Pixels | 8million, 1/2.8-inch CMOS sensor | |||||
Video Format | HDMI/USB: 4KP30、1080P60 | |||||
Interface | ||||||
Product Interface | HDMI,3G-SDI,LAN(POE),USB3.0,RS232-IN,RS232-OUT | |||||
Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT | |||||
Control Interface | RS232-IN,RS232-OUT,RS422 compatible with RS485 | |||||

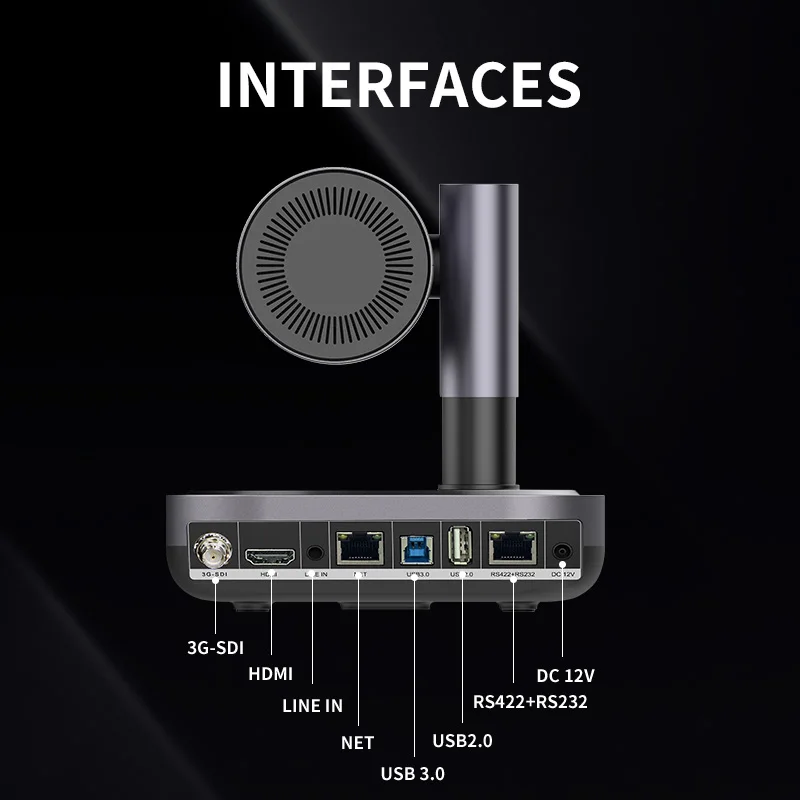

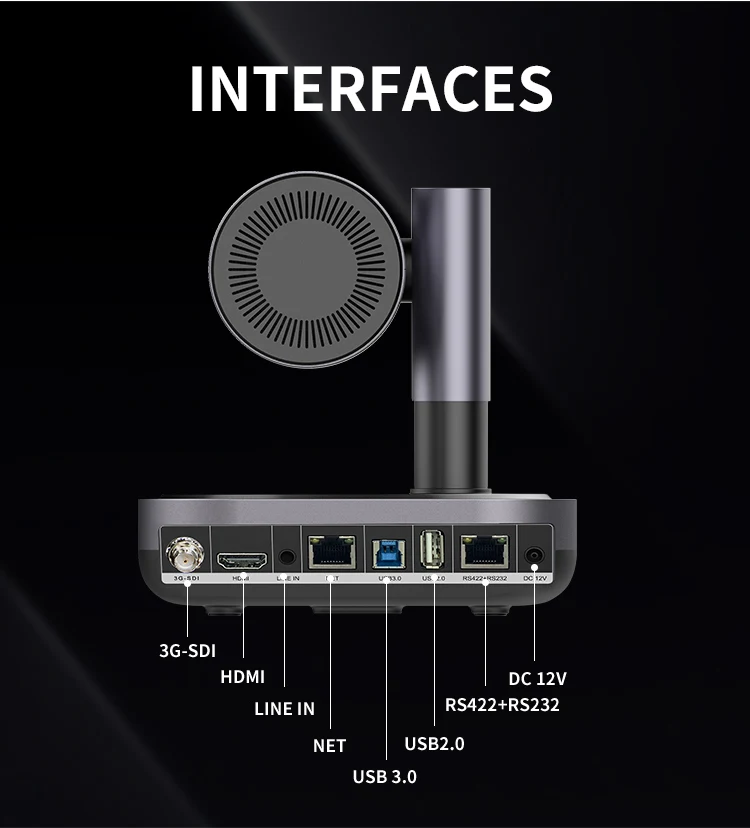

Product Description
3G-SDI
Connect to an SDI device up to 330ft such as a video production switcher or a video display at resolutions up to 3G(1080P@60Hz) over SDI cabling.
HDMI
Connect to an HDMI device such as a video production switcher or a video display up to 1080@60Hz.
USB 3.0
Connect USB 3.0 type B cable to a PC for plug &play connectivity for any conferencing service like Skype or Zoom,supporting resolution up to 1080p@60Hz.
LINE IN
Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
RS232,RS422/485
Connect cascading RS-232 or RS-422/485 to control the camera(s) with a joystick controller.
LAN-NDI|HX 2
Connect to a network switch via CAT6 cable to supply power (PoE), control (TCP/IP or webGUI) and stream (NDI|HX 2).
DC12V
Connect supplied 12V power adapter.
HDMI
Connect to an HDMI device such as a video production switcher or a video display up to 1080@60Hz.
USB 3.0
Connect USB 3.0 type B cable to a PC for plug &play connectivity for any conferencing service like Skype or Zoom,supporting resolution up to 1080p@60Hz.
LINE IN
Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.
RS232,RS422/485
Connect cascading RS-232 or RS-422/485 to control the camera(s) with a joystick controller.
LAN-NDI|HX 2
Connect to a network switch via CAT6 cable to supply power (PoE), control (TCP/IP or webGUI) and stream (NDI|HX 2).
DC12V
Connect supplied 12V power adapter.
