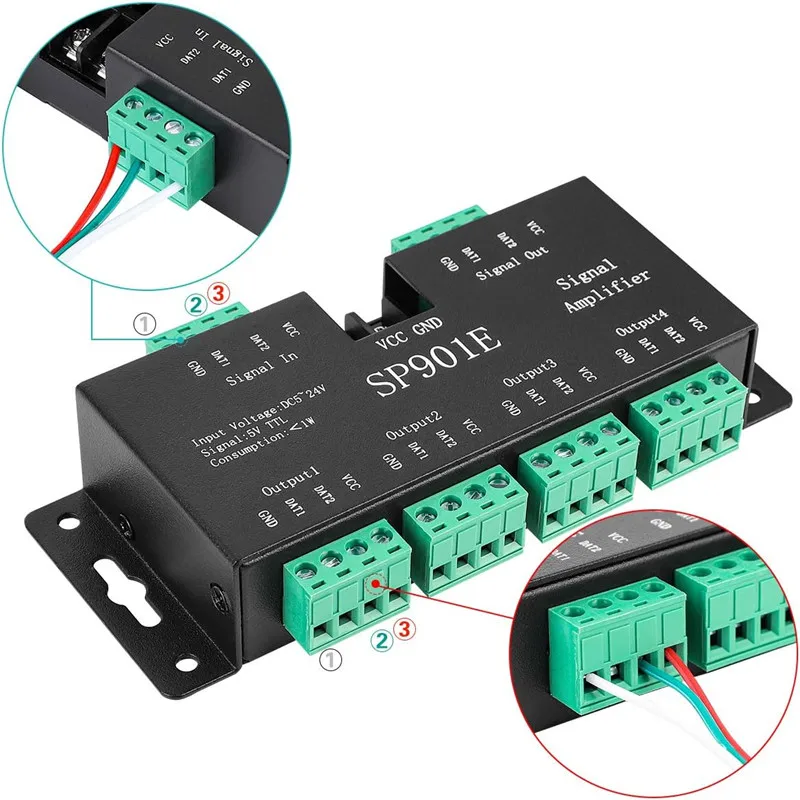

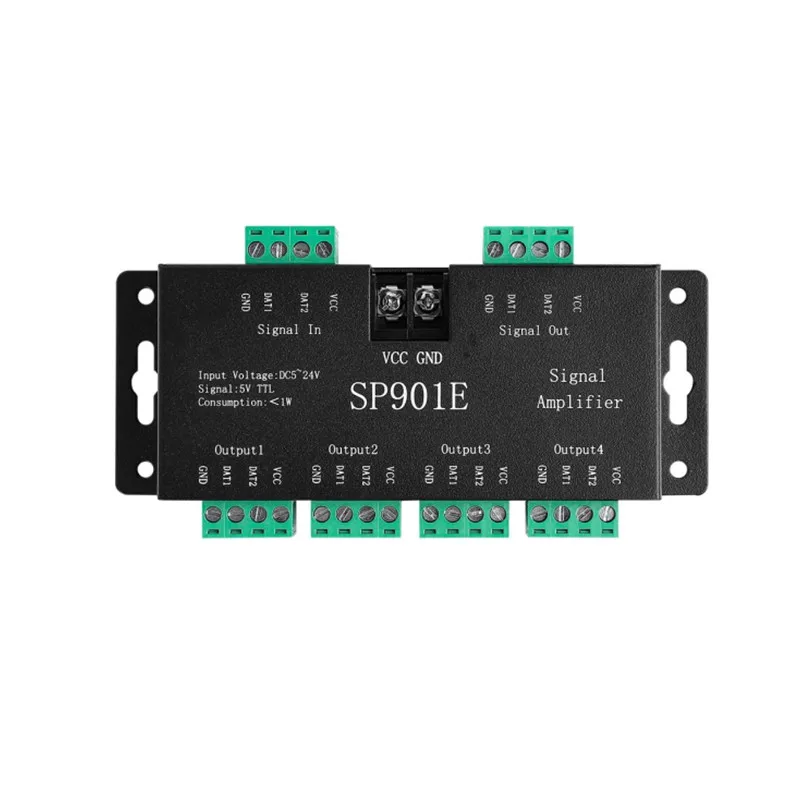

SP901E WS2812B WS2811 WS2813 SK6812 WS2815 WS2801 SK9822 RGB Addressable LED Pixel Strip Matrix Panel SPI Signal Amplifier

Product Overview

Description

SP901E WS2812B WS2811 WS2813 SK6812 WS2815 WS2801 SK9822 RGB Addressable LED Pixel Strip Matrix Panel SPI Signal Amplifier



Description:

• Working voltage: DC5V~24V


• Output:8 channels / 4 channels


• Static power consumption: <1W


• Compatibale IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,UCS1903, LPD6803, LPD8806, APA102

 Features:

• The amplifier cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be as same as the working voltage of LED lights.


• If the lights need 5V input, please use a 5V power supply, don't use higher than 5V power supply.

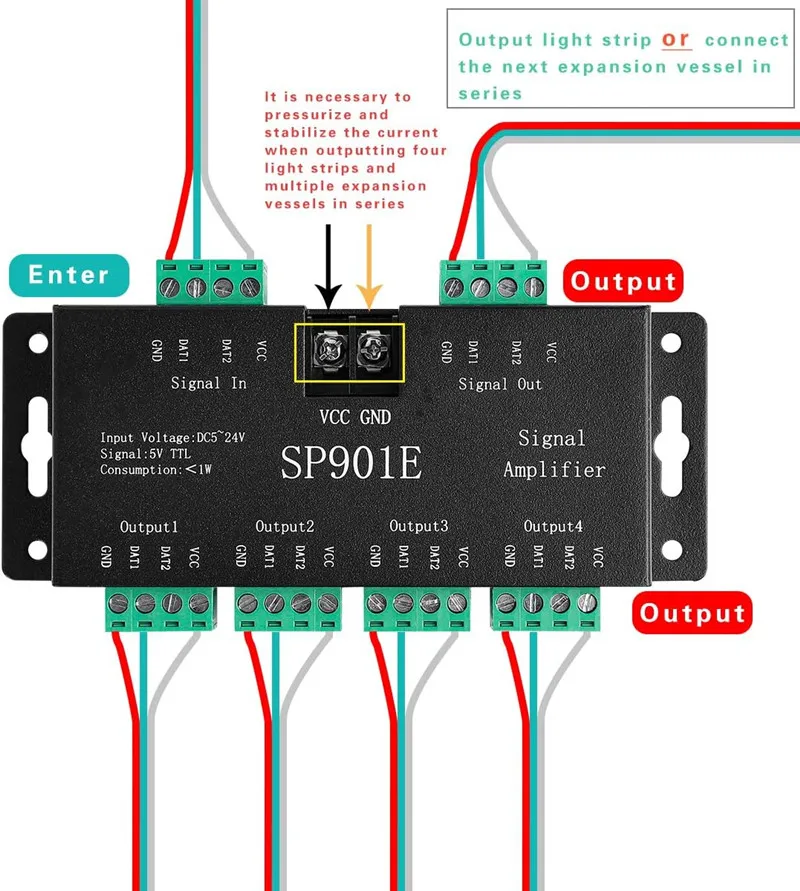

• The current through the amplifier is limited, when the consumption current is higher, you need to add power supply of the corresponding voltage additionally.

Package:

1x SP901E Signal Amplifier
