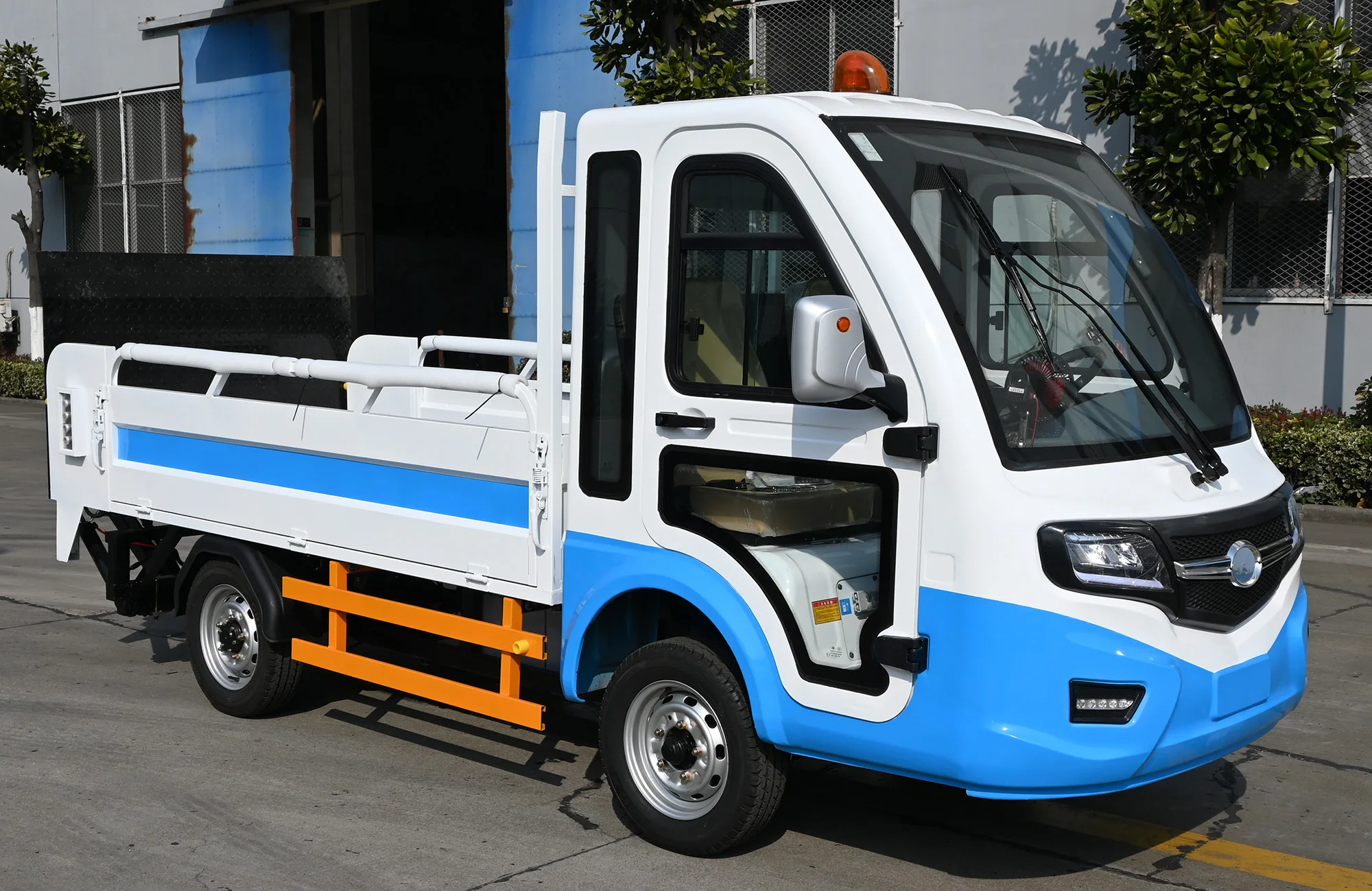

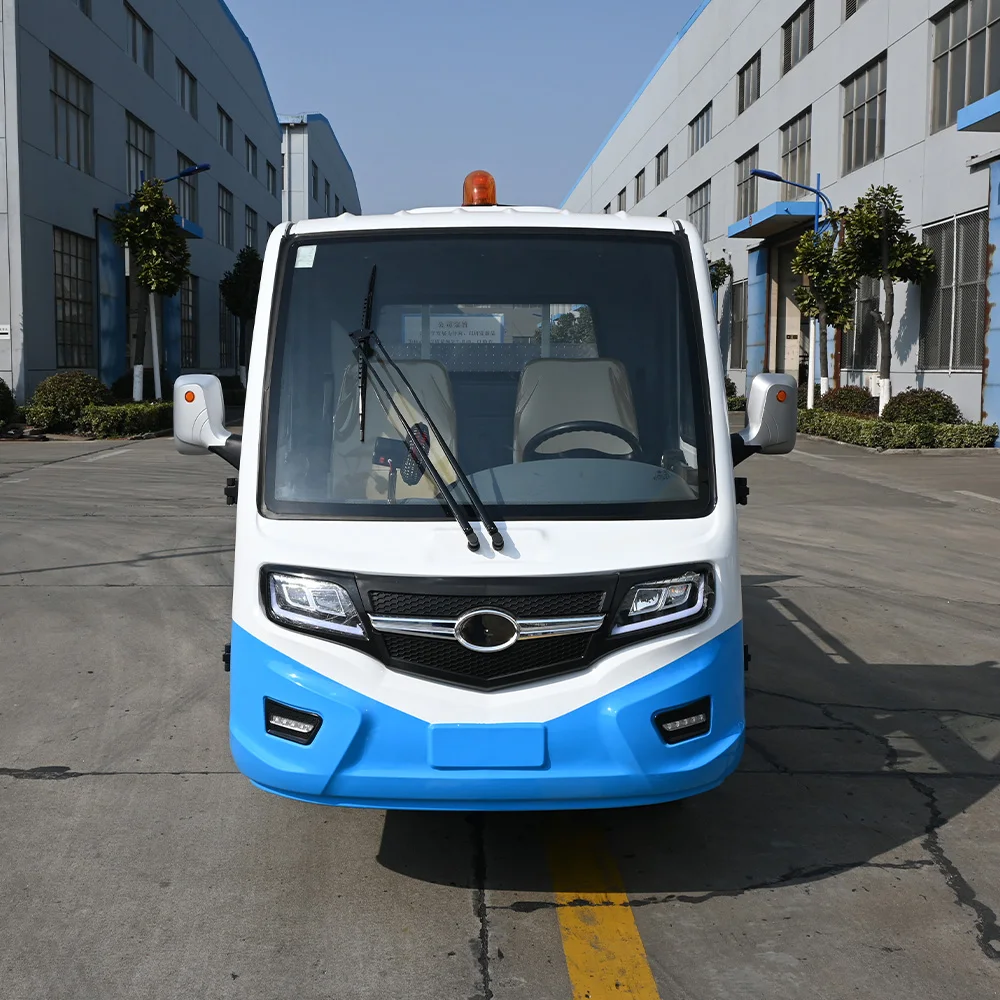

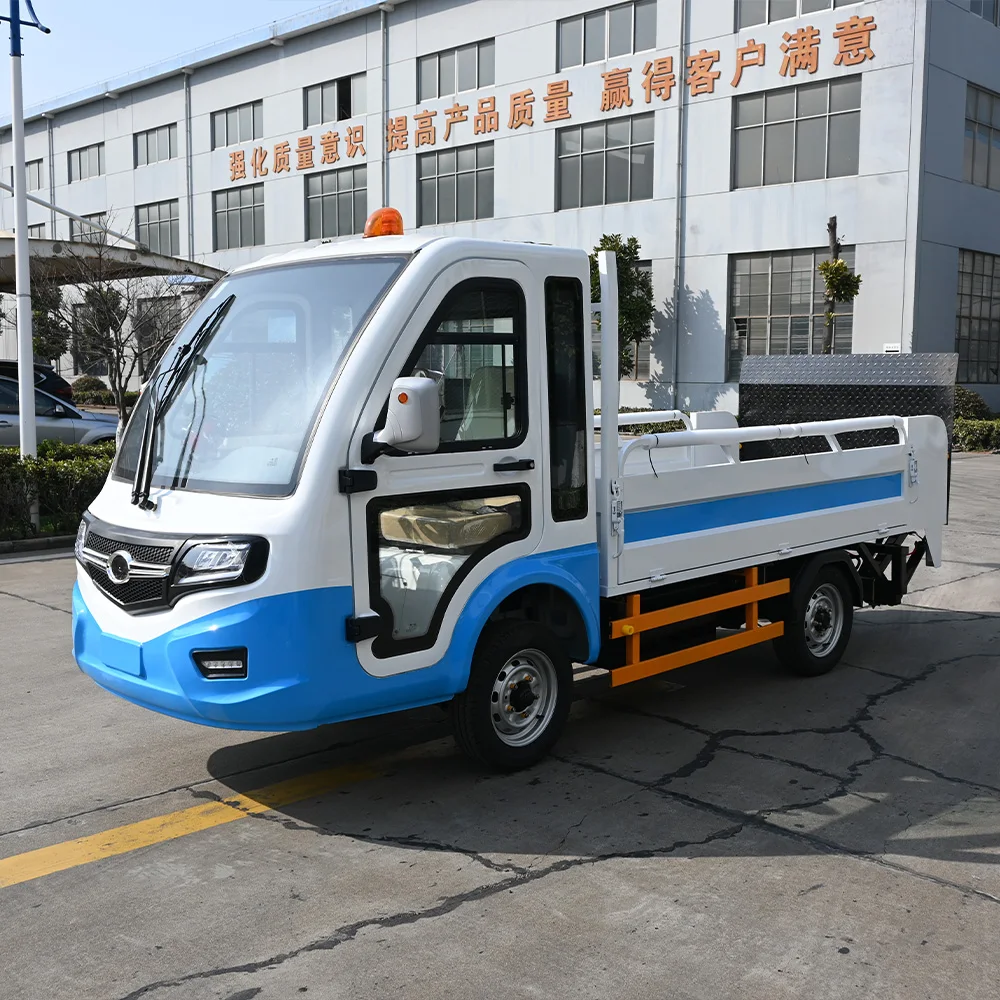

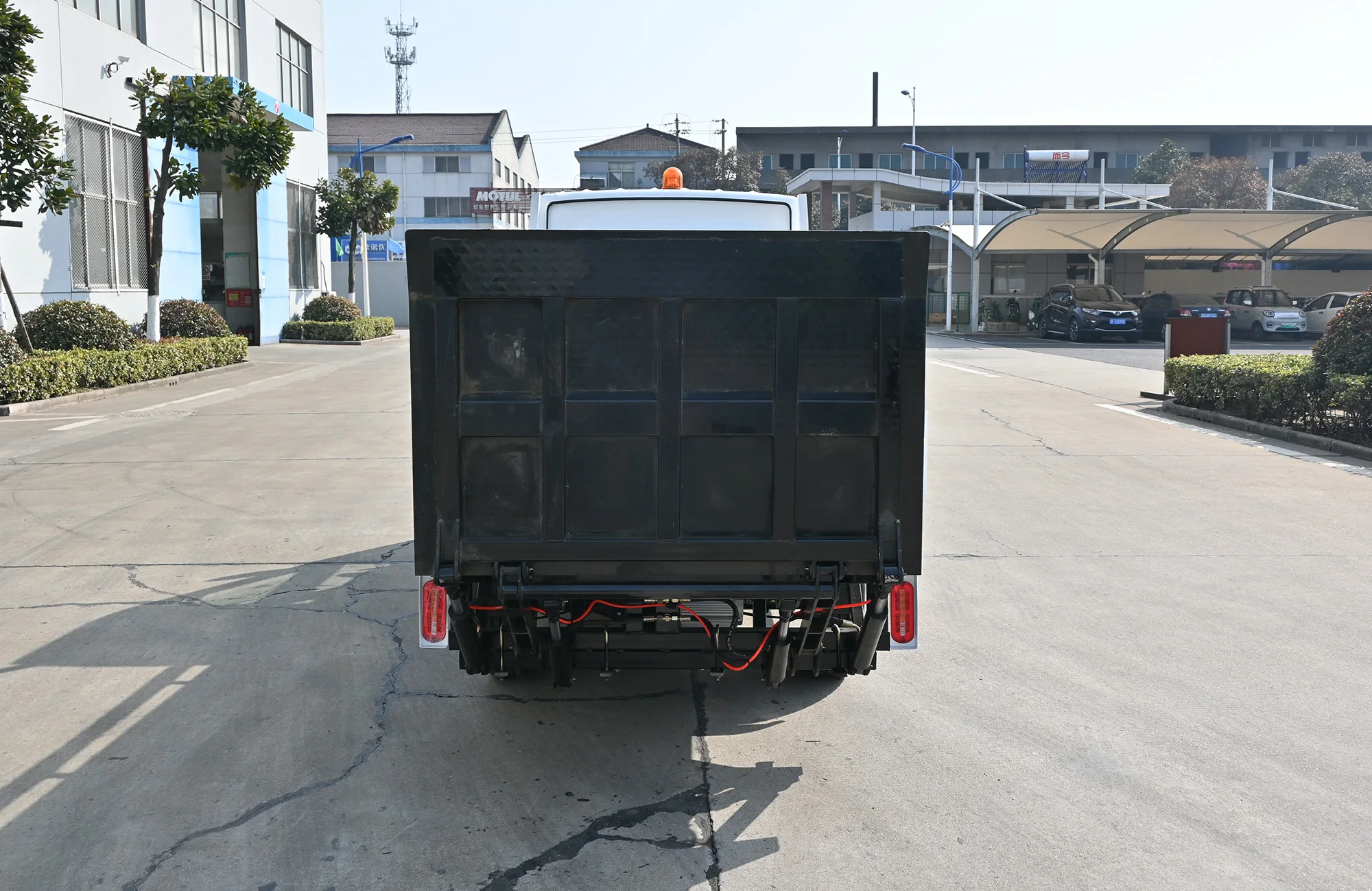

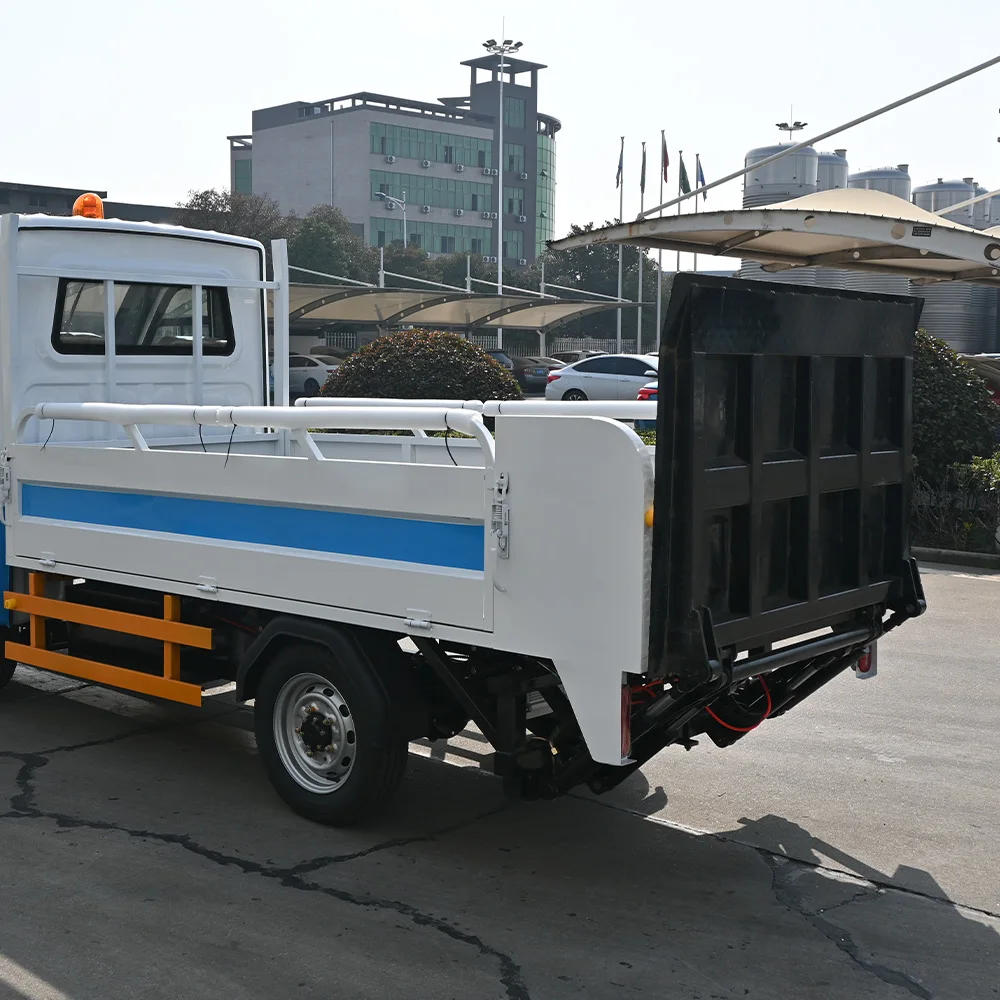

LB 4YT008 Electric Garbage Truck Tail Gate Lift Kit Hydraulic Power Tail Lift Garbage Truck
- Category: >>>
- Supplier: Changzhou Lvbao Electric Technology Co. Ltd.Changzhou Ltd.
Share on (1600946355601):
Product Overview
Description
Product Paramenters
Model | LB-4YT008 | Rated Passengers | 2 persons | ||

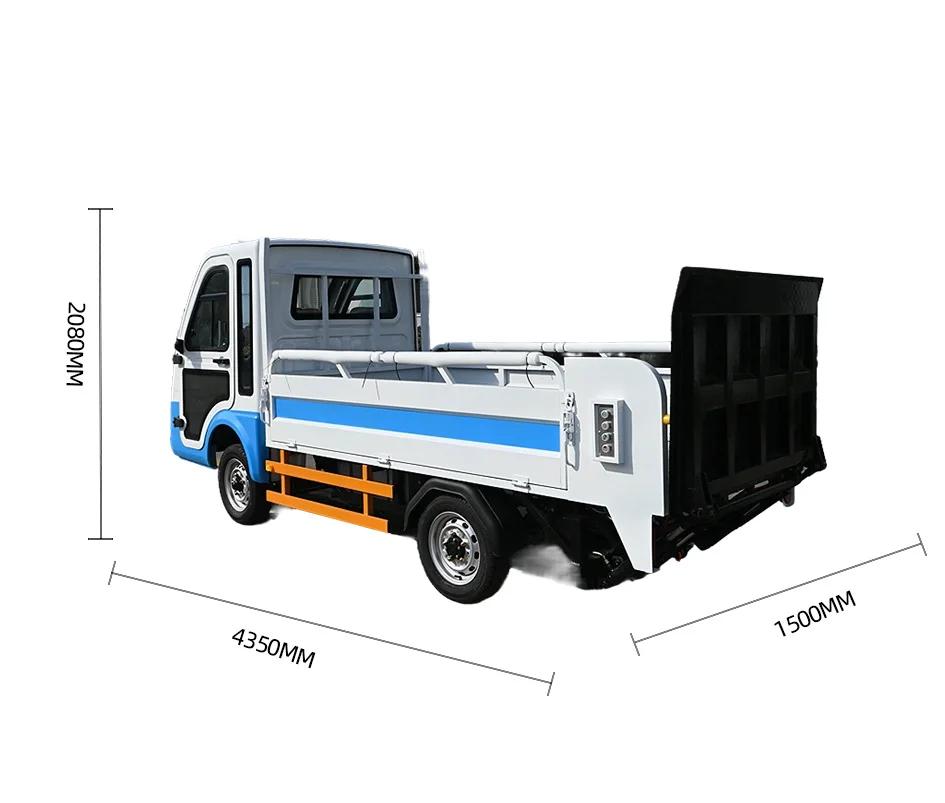

Vehicle Dimensions | 4350×1500×2080mm | Maximum Gradient | 10% | ||
Box Dimensions | 2800×1400×560mm | Curb Weight | 1200kg | ||
Wheelbase | 2090mm | Rated Load Capacity | 1500kg | ||
Wheel Track (Front/Rear) | 1220/1200mm | Range | 80km | ||
Minimum Ground Clearance | 140mm | Charging Time | 6-8 hours (80% discharge rate) | ||
Minimum Turning Radius | 5m | Motor | 48V 5KW AC Motor | ||
Maximum Operating Speed | 30km/h | Controller | 48V 5KW AC Controller | ||
Hydraulic Motor Power | 0.8kw | Battery | 48V 200AH Dry Battery | ||
Full Load Lifting Time | 6 seconds | Load Capacity | 500kg | ||
Charger | Portable Intelligent Fully Automatic Charger | ||||
Lighting and Signals | Combination Front Lights, Side Turn Signals, Combination Rear Taillights, Electric Horn, Reverse Voice Alarm | ||||
Frame | Integral Welded Frame + Phosphating Electrophoretic Paint | ||||
Power Transmission | Rear Drive, Stepless Variable Speed System, Equipped with Forward and Reverse Gears | ||||
Steering | Recirculating Ball Type Steering | ||||
Front Axle and Suspension | Micro Car Front Axle, Leaf Spring Non-independent Suspension, Tube-type Hydraulic Shock Absorber | ||||
Rear Axle and Suspension | Micro Car Rear Axle, Leaf Spring Non-independent Suspension, Tube-type Hydraulic Shock Absorber | ||||
Brakes | Vacuum-assisted Hydraulic Drum Brakes, Dual-circuit Hydraulic Brakes, Parking Brake Device | ||||
Tires | Steel Hub, 165/70R13C Radial Tires | ||||
Paint | High-grade Automotive Special Paint | ||||
Body | Steel Frame + Bent Steel Plate Welded Body, Beautiful Appearance, Novel Style | ||||
Dashboard | Vacuum-formed Dashboard, LCD Combination Instrument (Including Current, Voltage, Speed, Mileage, Lighting Signals, etc.) | ||||
Seats | Integrated Seats (Leather Fabric + High Rebound PU, with Armrest) | ||||
Rearview Mirrors | One Manual External Rearview Mirror on Each Side | ||||
Warning Lights | Snail-type Warning Lights | ||||
Switches | Ignition Switch, Lighting and Wiper Combination Switch, Front and Rear Direction Indicator Switch, Warning Light Switch | ||||
Steering Column | With Power Steering Column | ||||
Steering Wheel | Polyurethane Foam Steering Wheel | ||||
Box Body | The box body is made of bent steel plate welded as a whole, with a beautiful appearance and a novel style. | ||||
DRIVER'S CABIN
GEAR SHIFT LEVER
DASHBOARD
WARNING LIGHT
CAB GUARD
SIDE MARKER GUARDRAIL
VACUUM TIRE

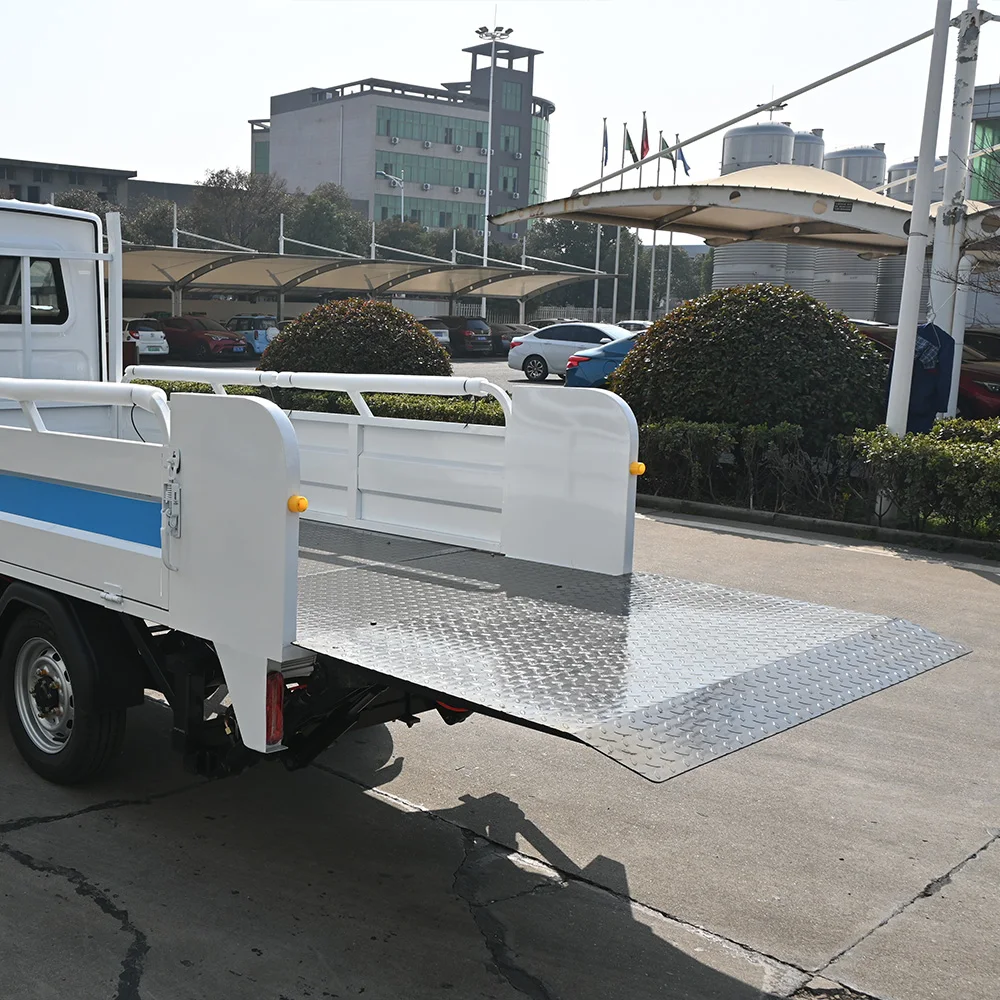

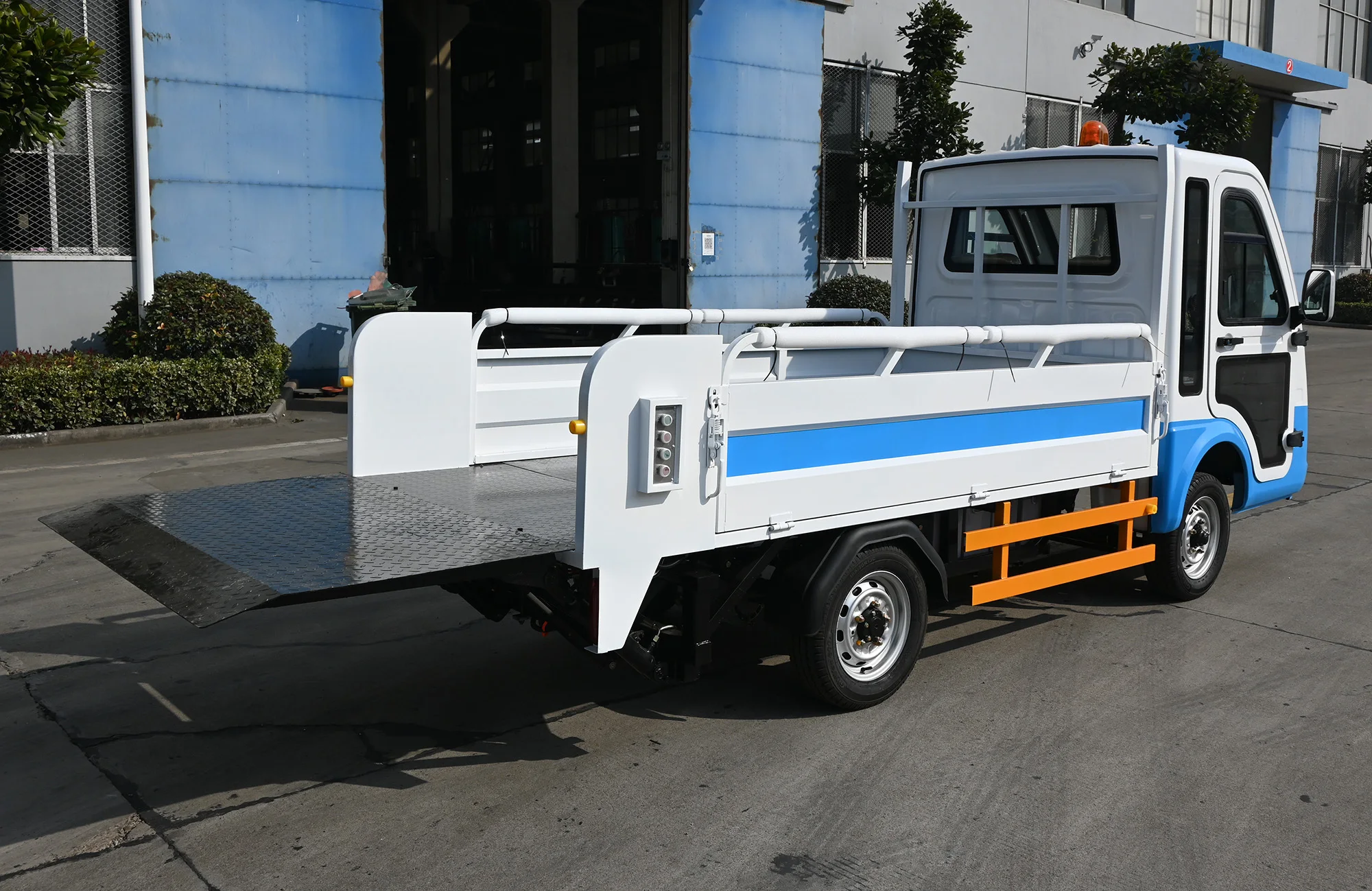

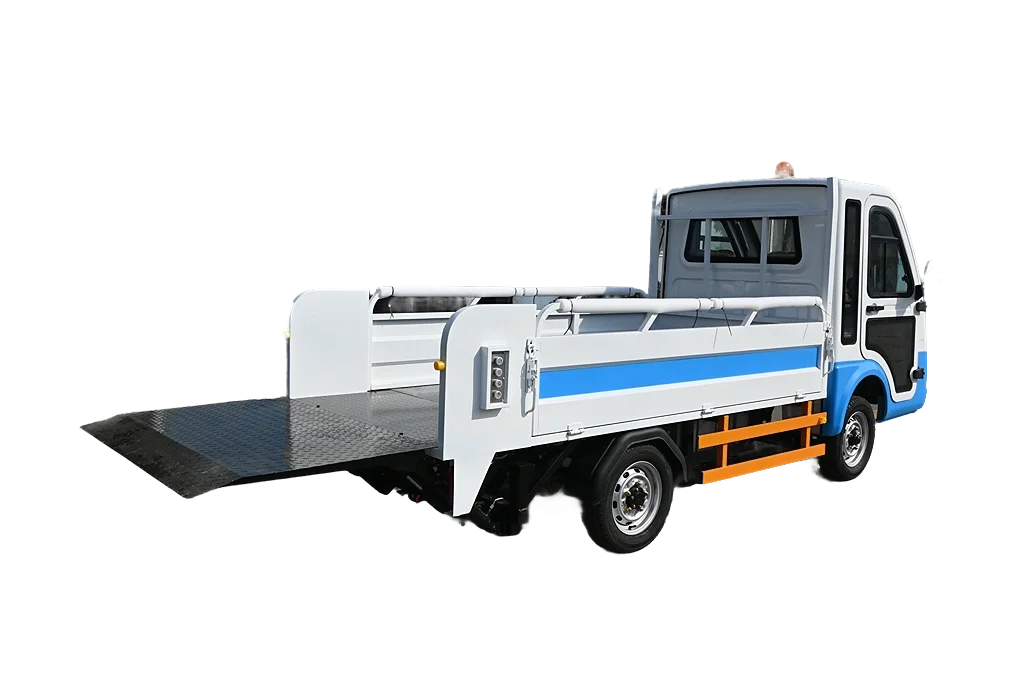

HYDRAULIC TAILGATE LEVELING

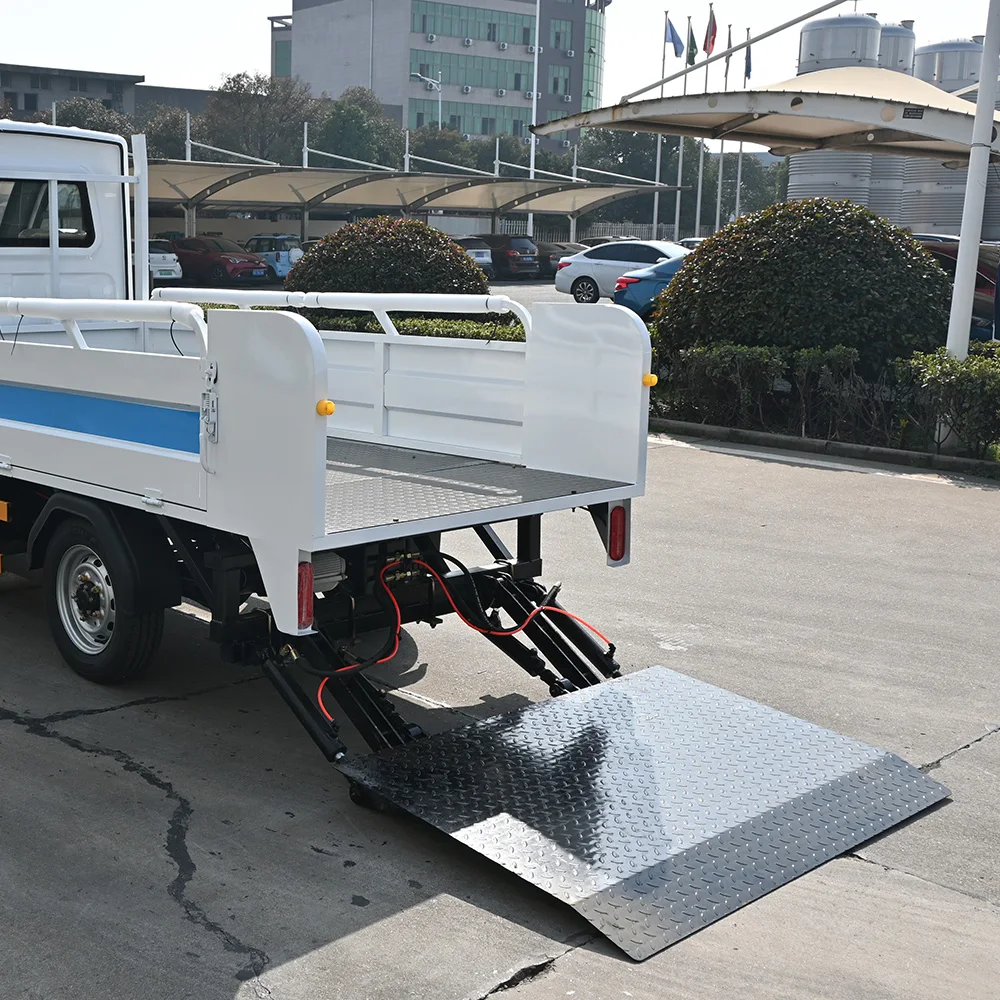

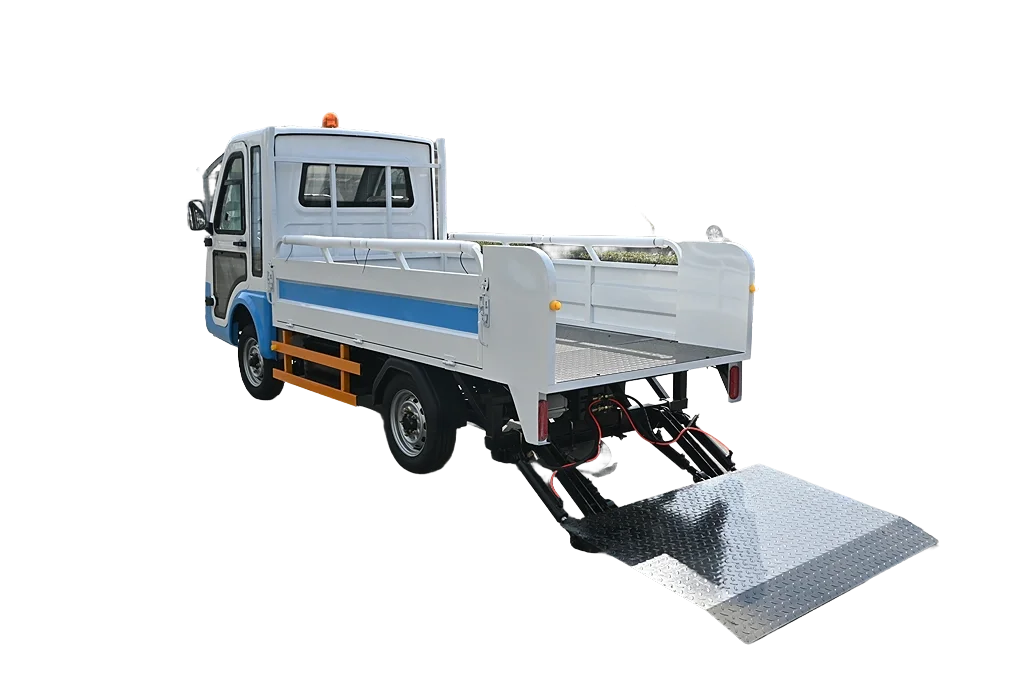

HYDRAULIC TAILGATE LOWERED
