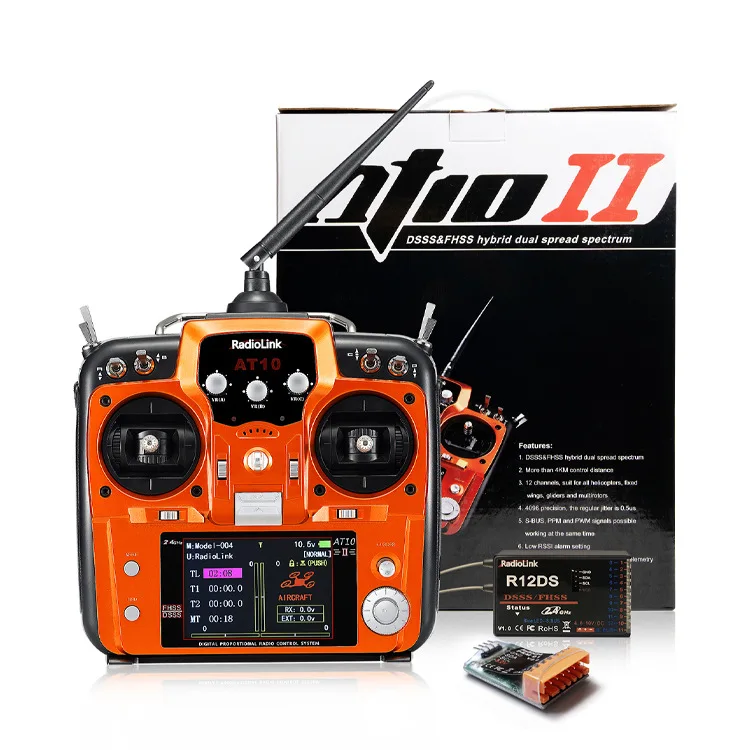

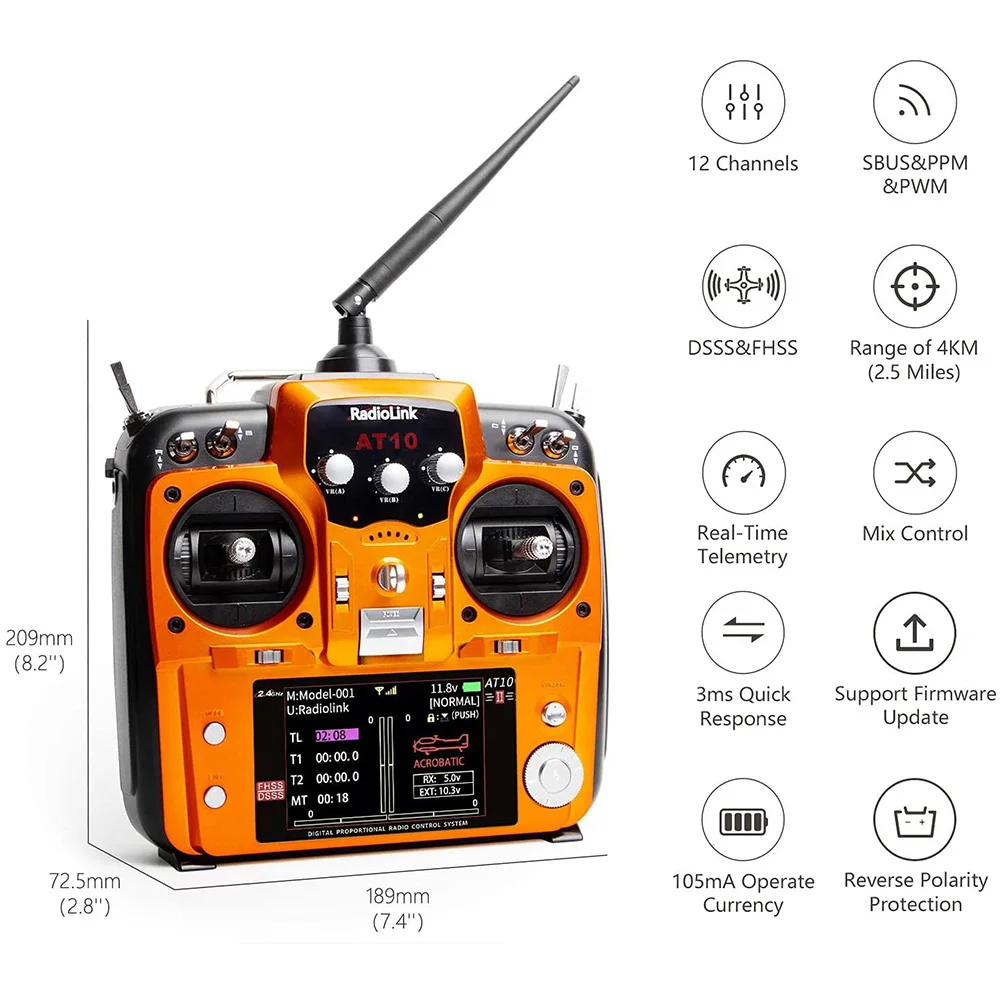

Radiolink AT10II R12DS Receiver 2.4G 12CH Transmitter DSSS FHSS Radio Remote Controller For RC Drone Airplane

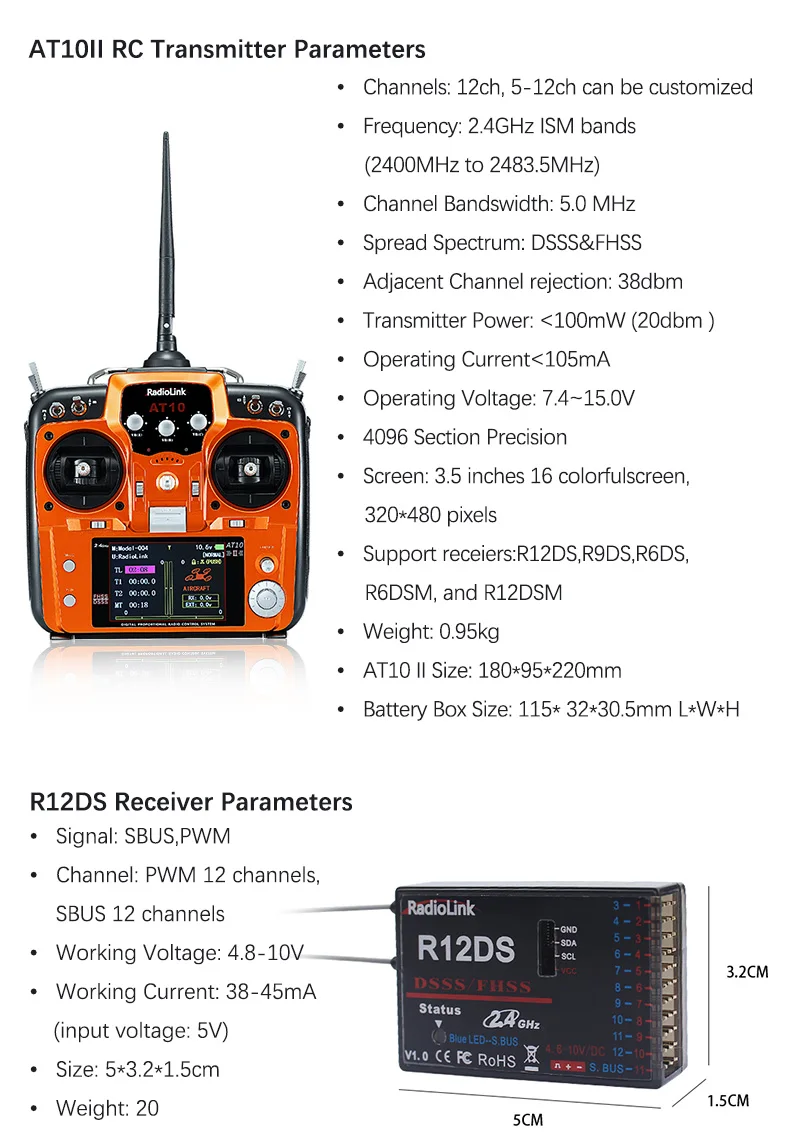

AT10II RC Transmitter Specifications:
* Channels: 12CH
* Control Distance: Up to 4000 meters in the air
* Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)
* Channel Bandswidth: 5.0 MHz
* Spread Spectrum: DSSS&FHSS
* Adjacent Channel rejection: 38dbm
* Transmitter Power: <100mW (20dbm )
* Operating Current: <90mA

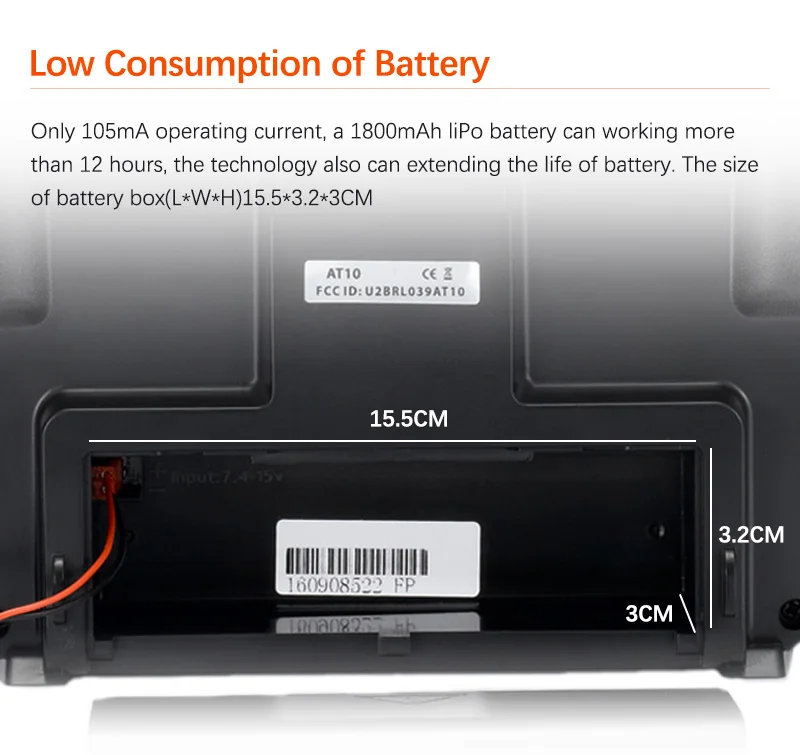

* Operating Voltage: 7.4~15.0V
* Section Precision: 4096

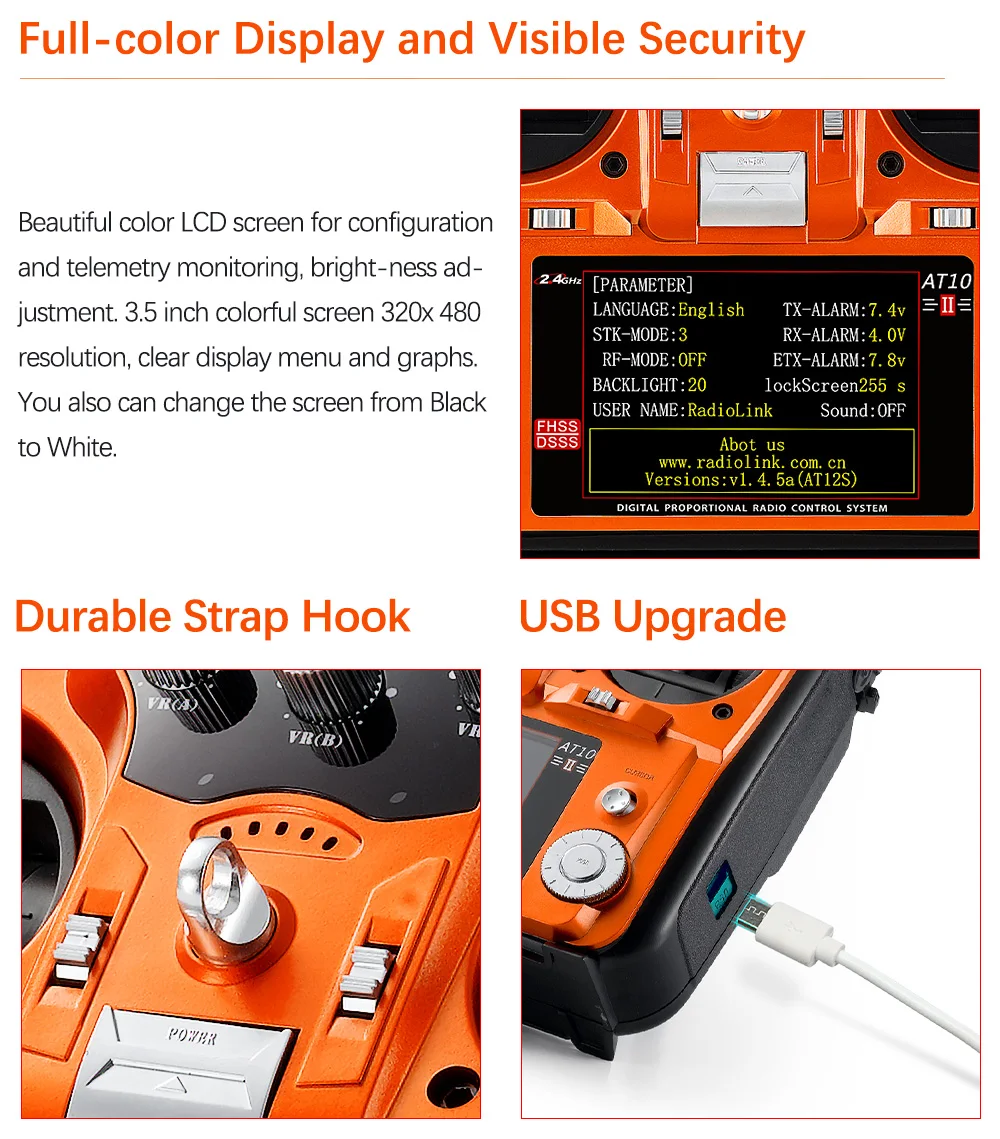

* Screen: 3.5 inches 16 colorful screen, 320*480 pixels

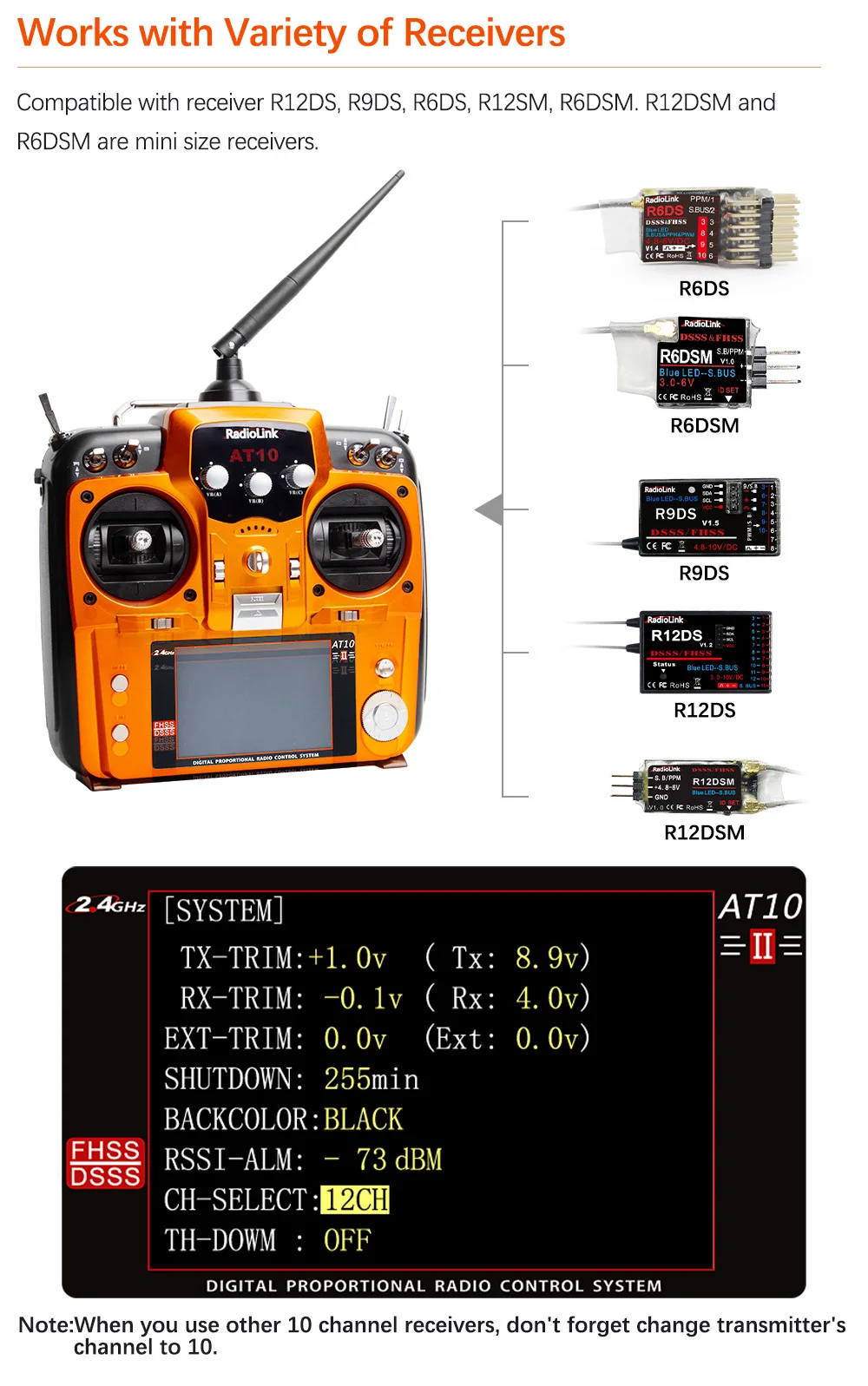

* Support receivers: R12DS, R9DS, R6DS, R6DSM, and R12DSM

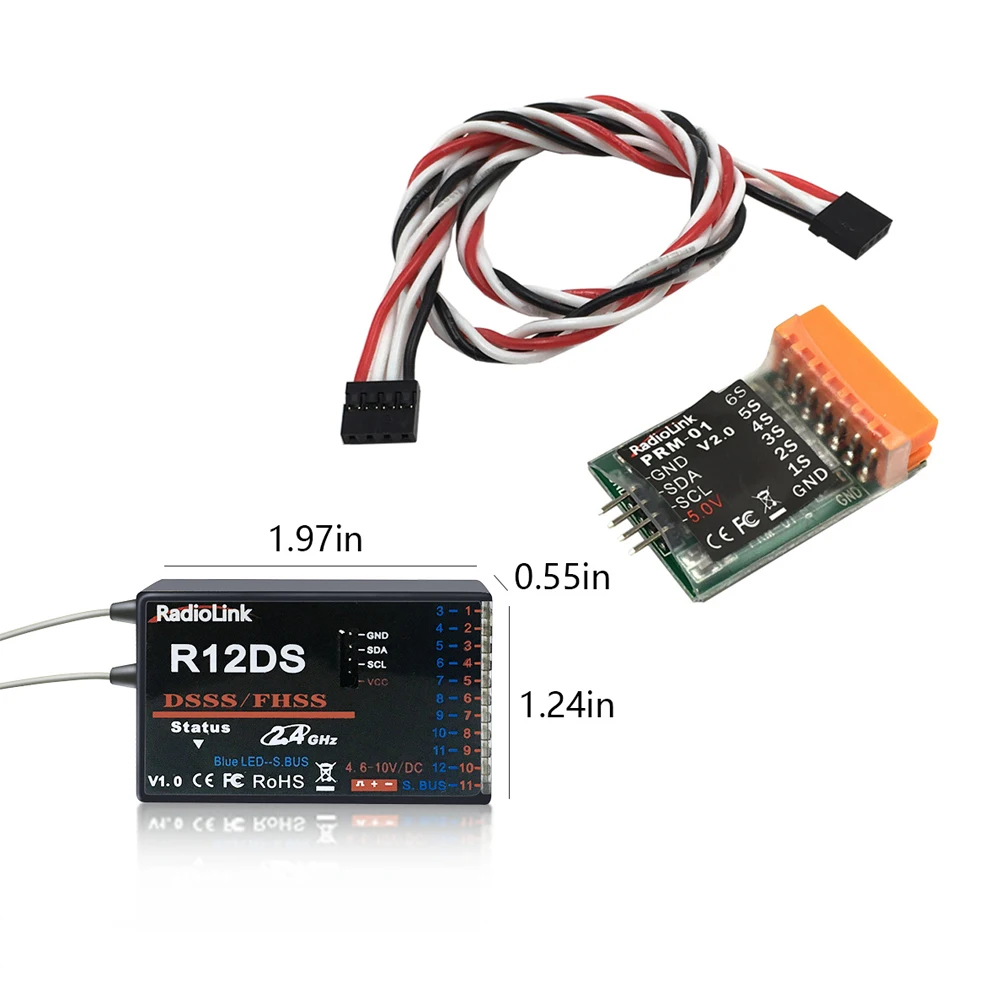

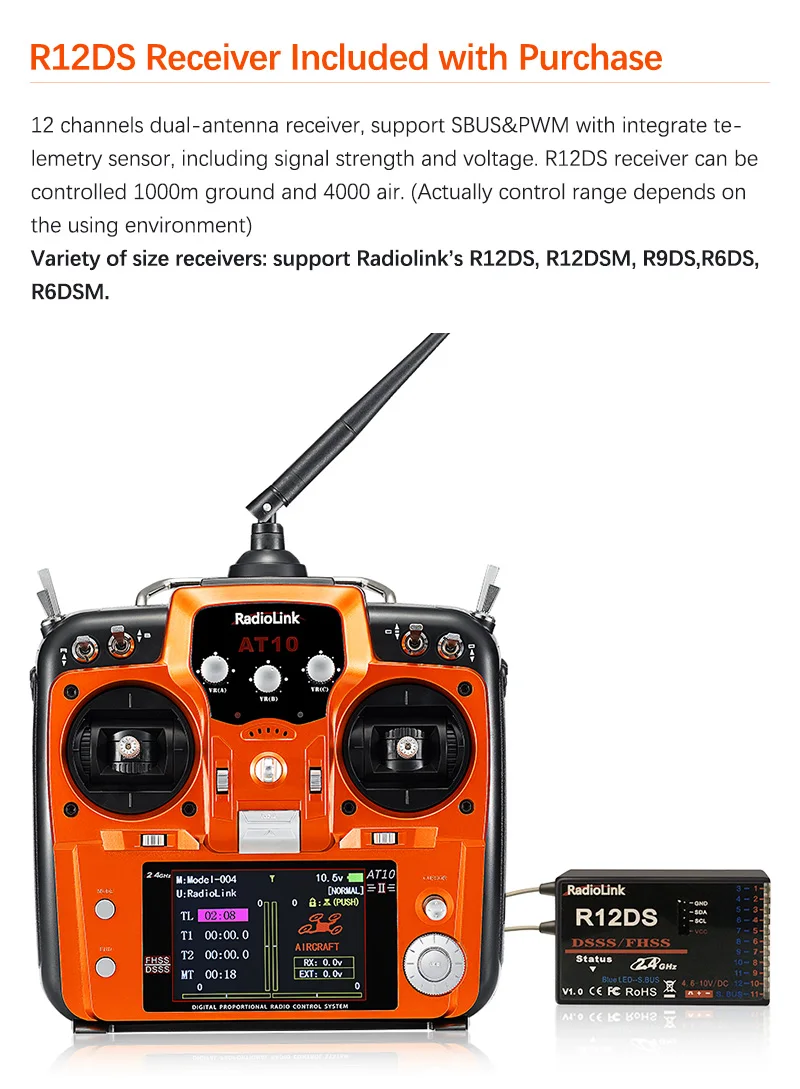

R12DS Receiver Specifications
* Signal: SBUS,PWM
* Channel: PWM 12 channels, SBUS 12 channels
* Working Voltage: 4.8-10V
* Working Current: 38-45mA(input voltage: 5V)
* Size: 5*3.2*1.5cm
* Weight: 20g

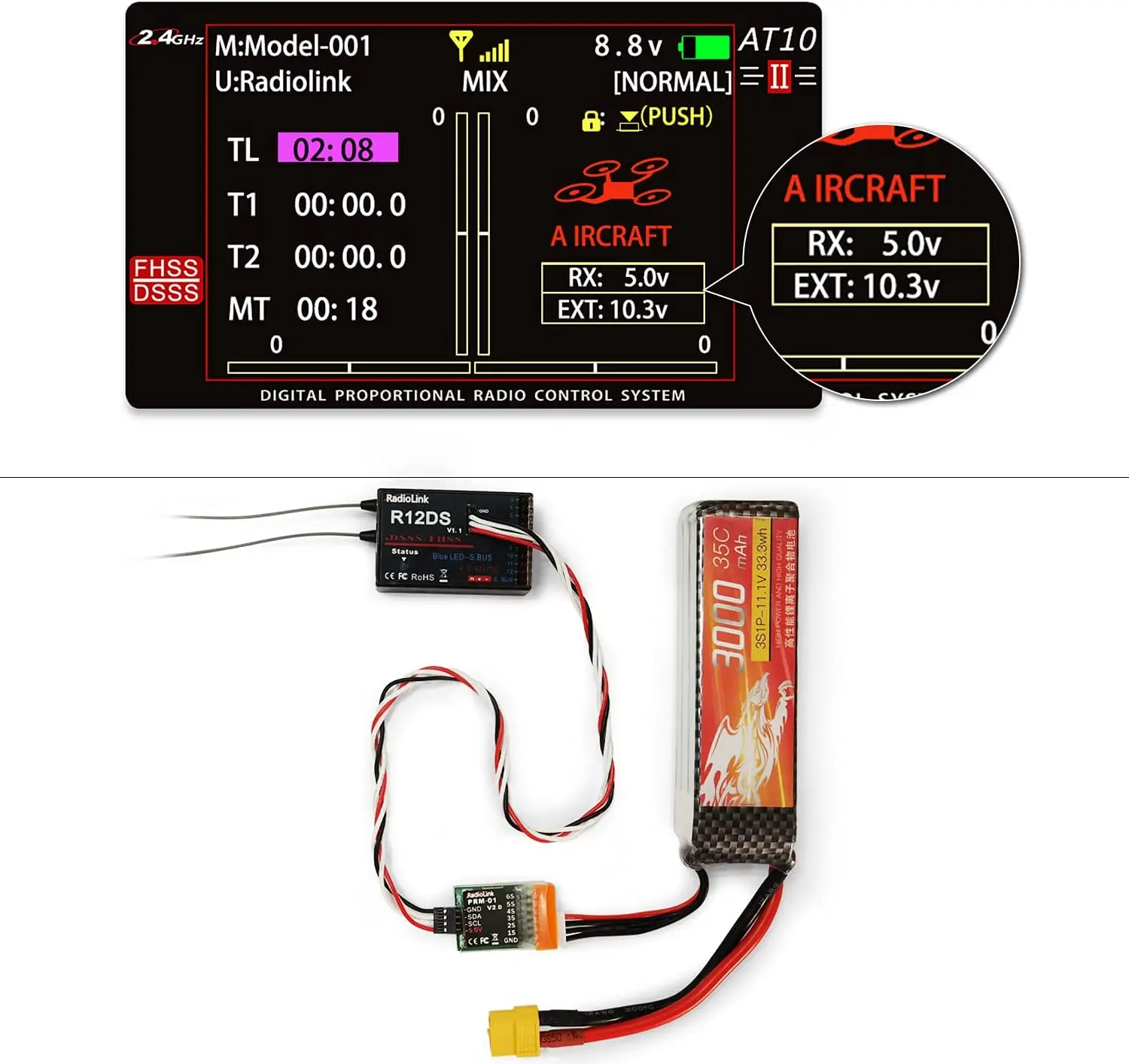

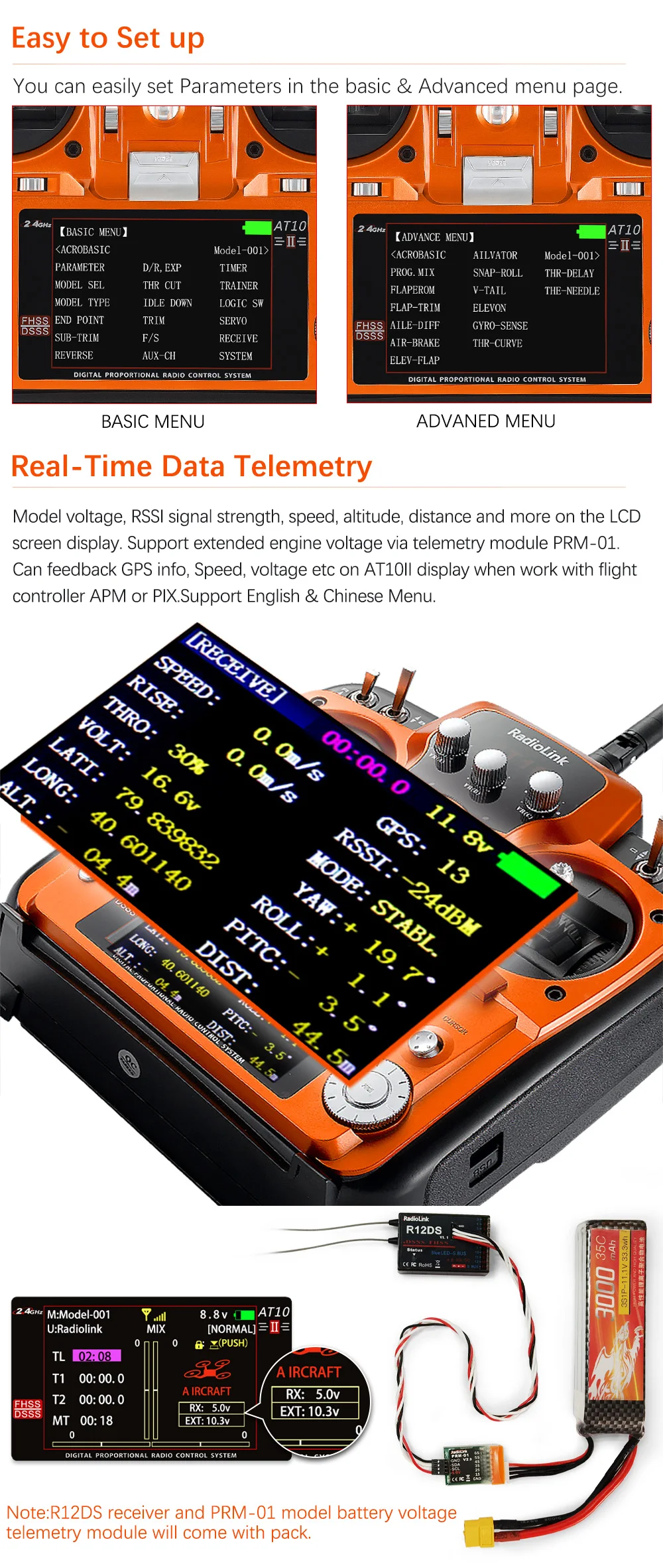

Prm-01 Voltage Telemetry Module Specifications:
* Size: 33*22*11mm (1.3"*0.87"*0.43)
* Weight (with wire): 7g (0.25oz)
* Voltage Input Range: 1S~6S LiPo Battery
* Compatible receiver: R12DS, R9DS (Old version receiver: R10DS, R10D, R9D)
* Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9

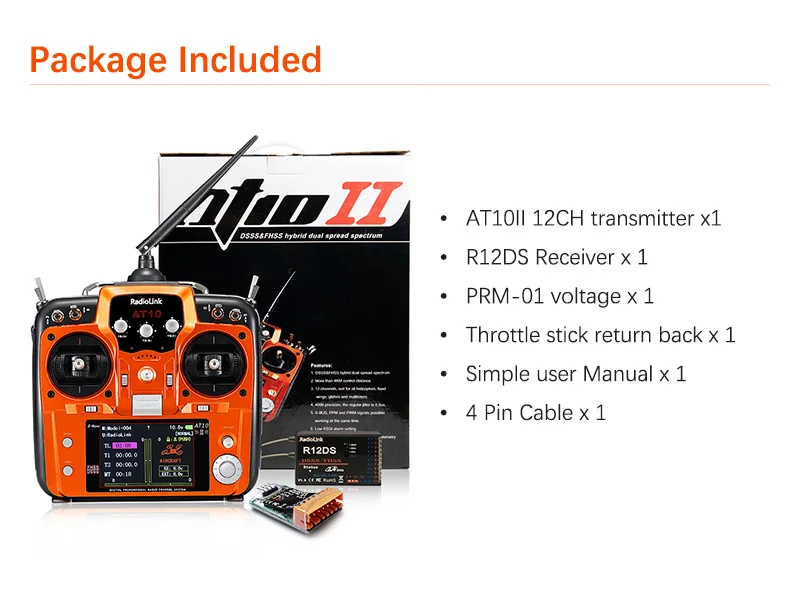

Package List with Receiver:
* AT10II Transmitter Mode 2 x1
* Radiolink R12DS Receiver x 1
* Radiolink PRM-01 module x1
* Mode 1/2 changing parts x 1
* Simple user Manual x 1
