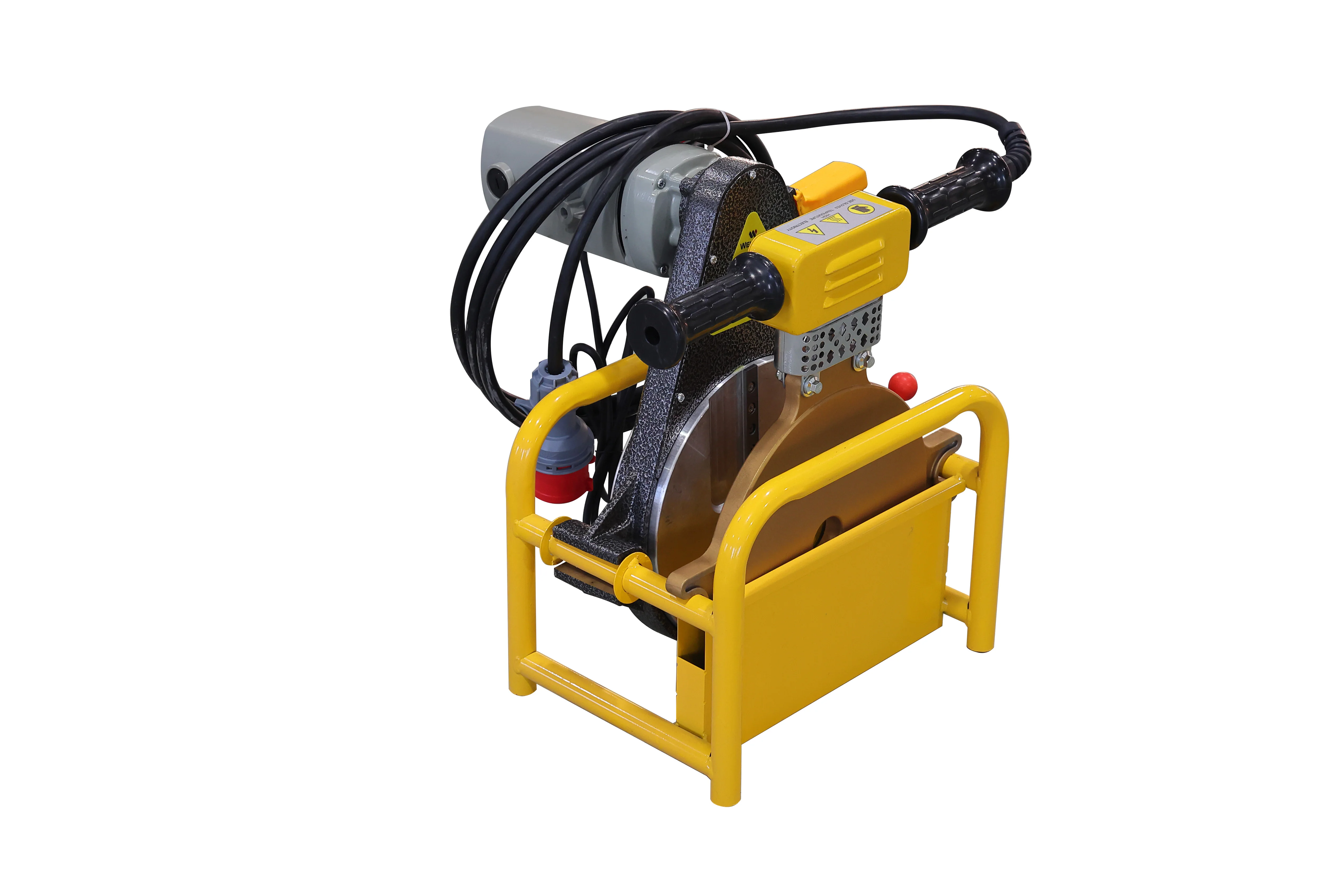

Welping 63 250mm Butt Welding Machine Hydraulic Butt Fusion welder HDPE Pipe Fusion machine
- Category: >>>
- Supplier: Hangzhou Welping Machinery Equipment Co. Ltd.
Share on (1600950223712):
Product Overview
Description
Model | WP250A | ||||||
Suitable materials | PE,PP, PB. PVDF | ||||||
Range | 90-110-125-140-160-180-00-225-250 mm | ||||||
Power supply | 110V/220V | ||||||
Frequency | 50HZ | ||||||
Total power | 5.05 KW | ||||||
Heating plate | 2.3 KW | ||||||
Planing tool | 2.0KW | ||||||

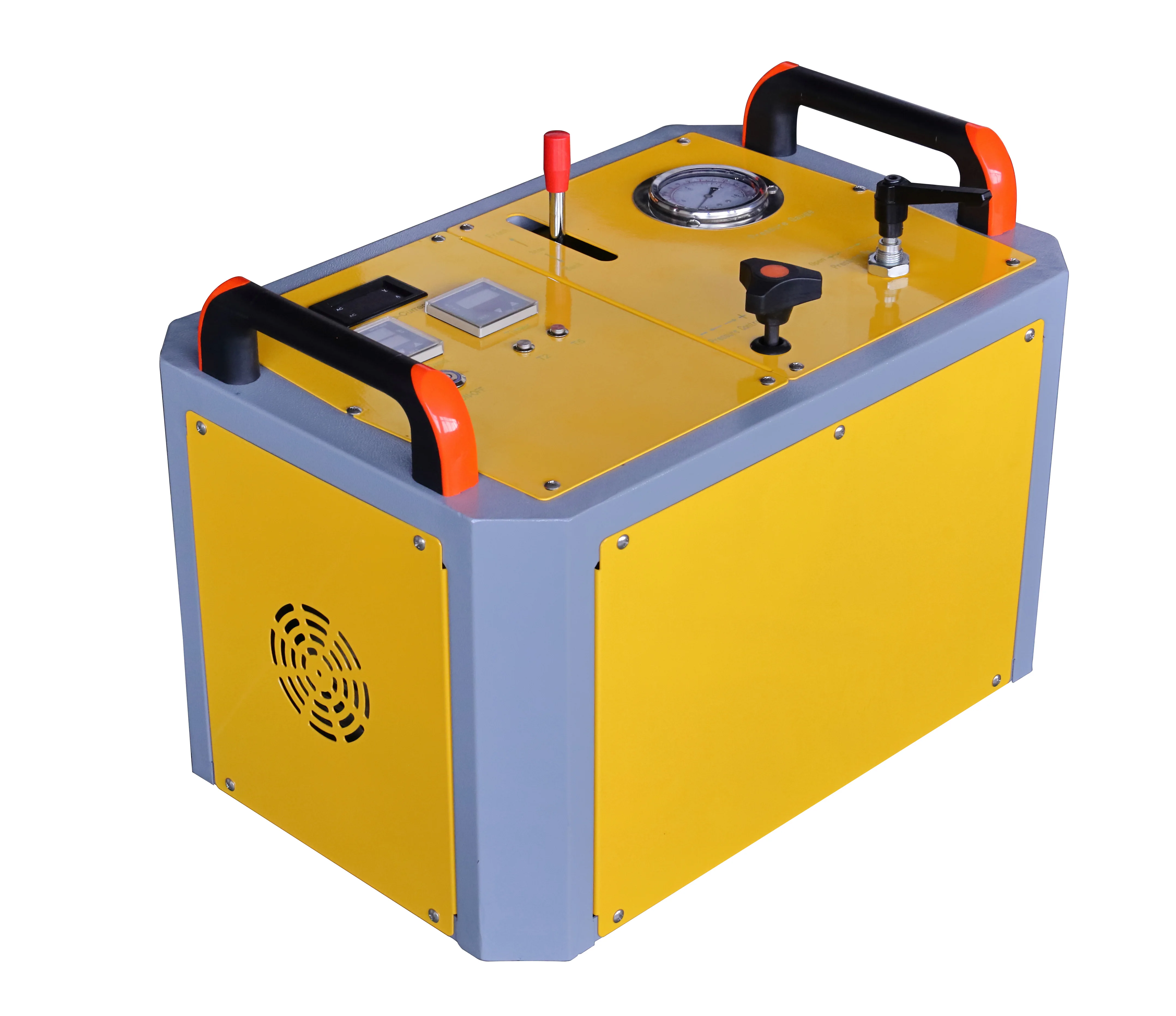

Hydraulic station | 0.75 KW | ||||||
Pressure adjusting range | 0-16 Mpa | ||||||
Hydraulic oil | L-HM46 | ||||||
Max.Temperature of heating plate | 270ºC | ||||||
Temp.Deviation in Surface | ±5ºC | ||||||
Total Weight | 145kg | ||||||
Net weight | 122kg | ||||||
Basic Frame & planing tool & heating plate (plywood case) | 83*57*54cm | ||||||
Hydraulic Unit (plywood case) | 77*60*63cm | ||||||

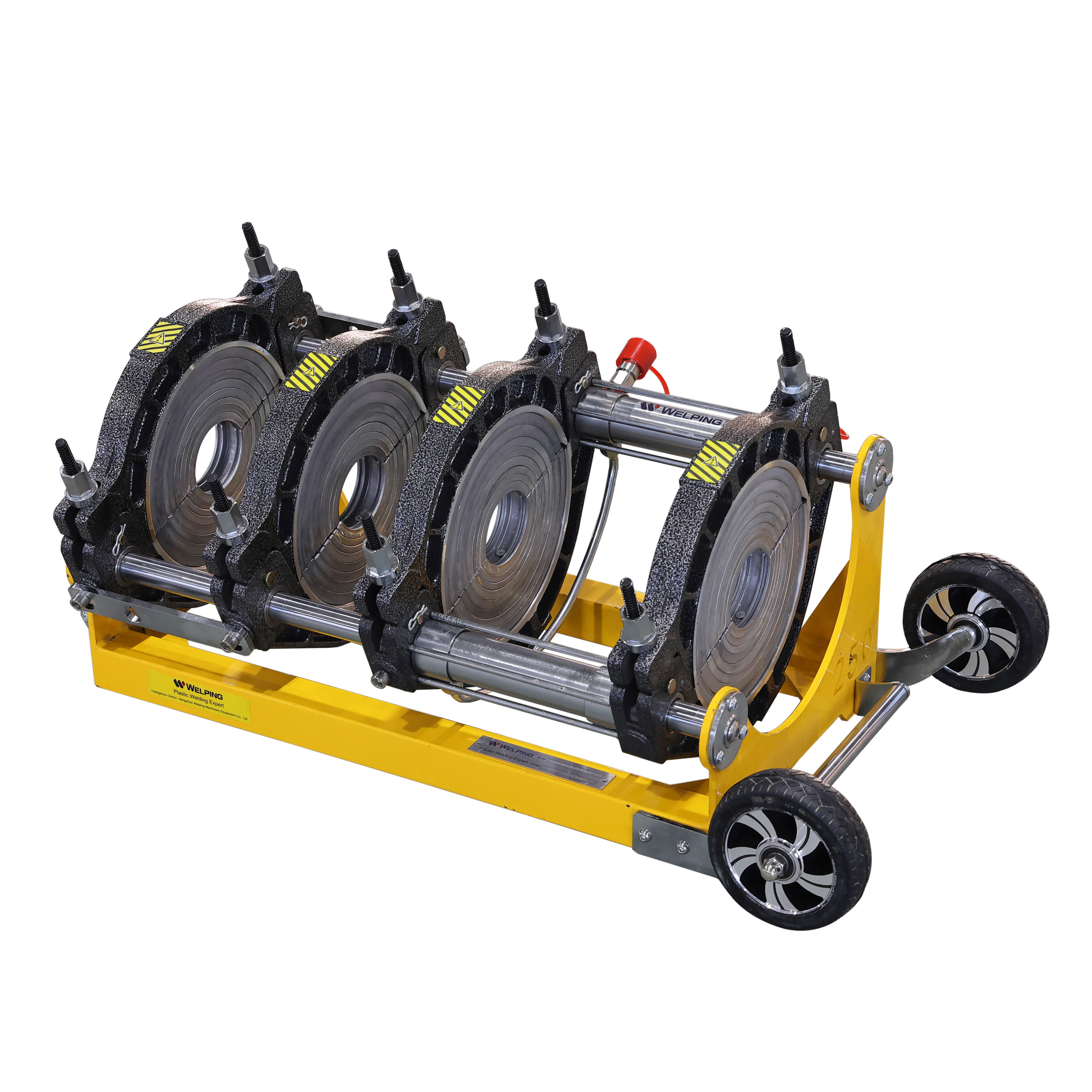

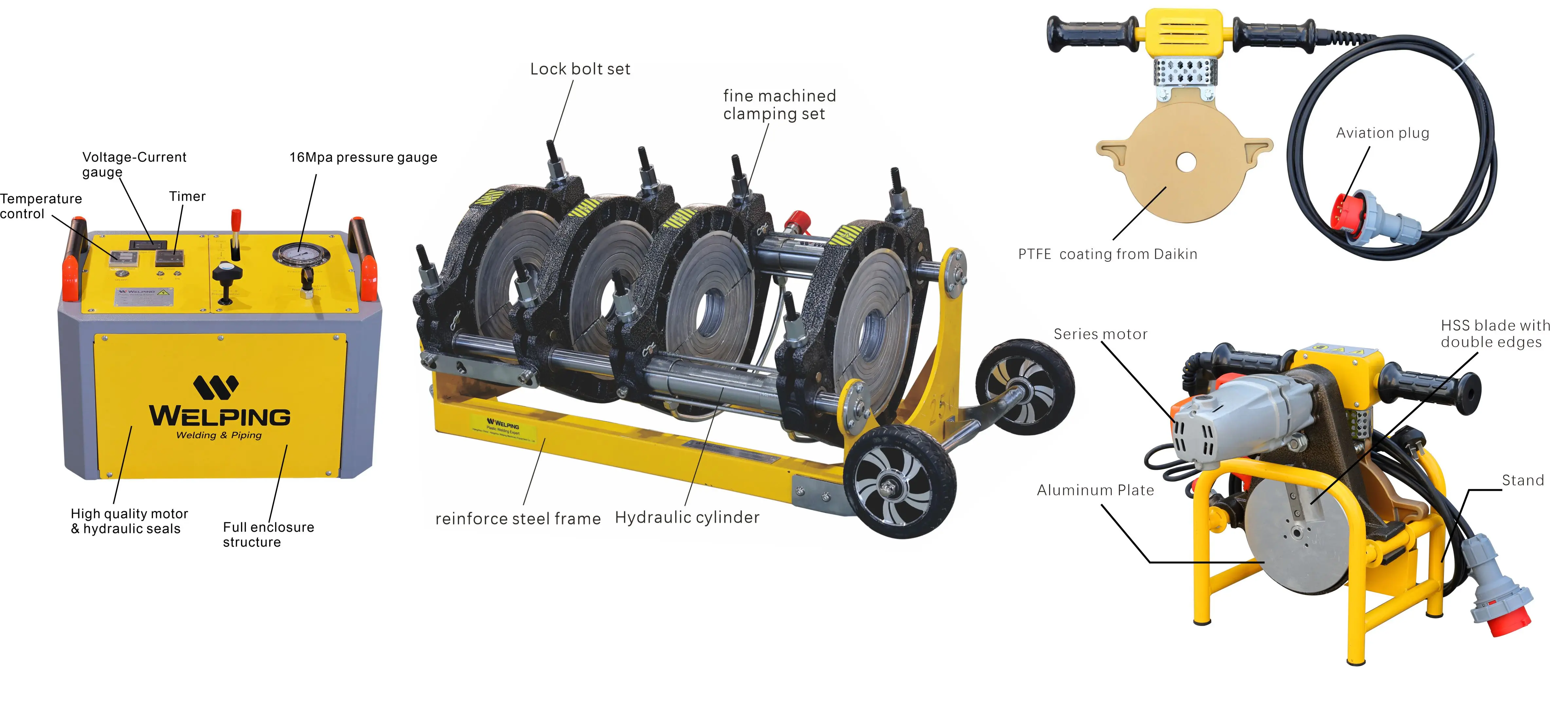

◊Robust steel plate welded frame,strong&Light-weight
◊Reinforced upper and lower cast Aluminum clamping pieces
◊Standard equipping carrying handle for easy transportation
◊Built-in hydraulic cylinder with qualified quick connecting joints
◊Consolidate hydraulic system and electrical system together for easy operation
◊Color LCD screen for time and temperature setting and display◊Enclosing design shielding splash and dirt
◊Data logging device optional

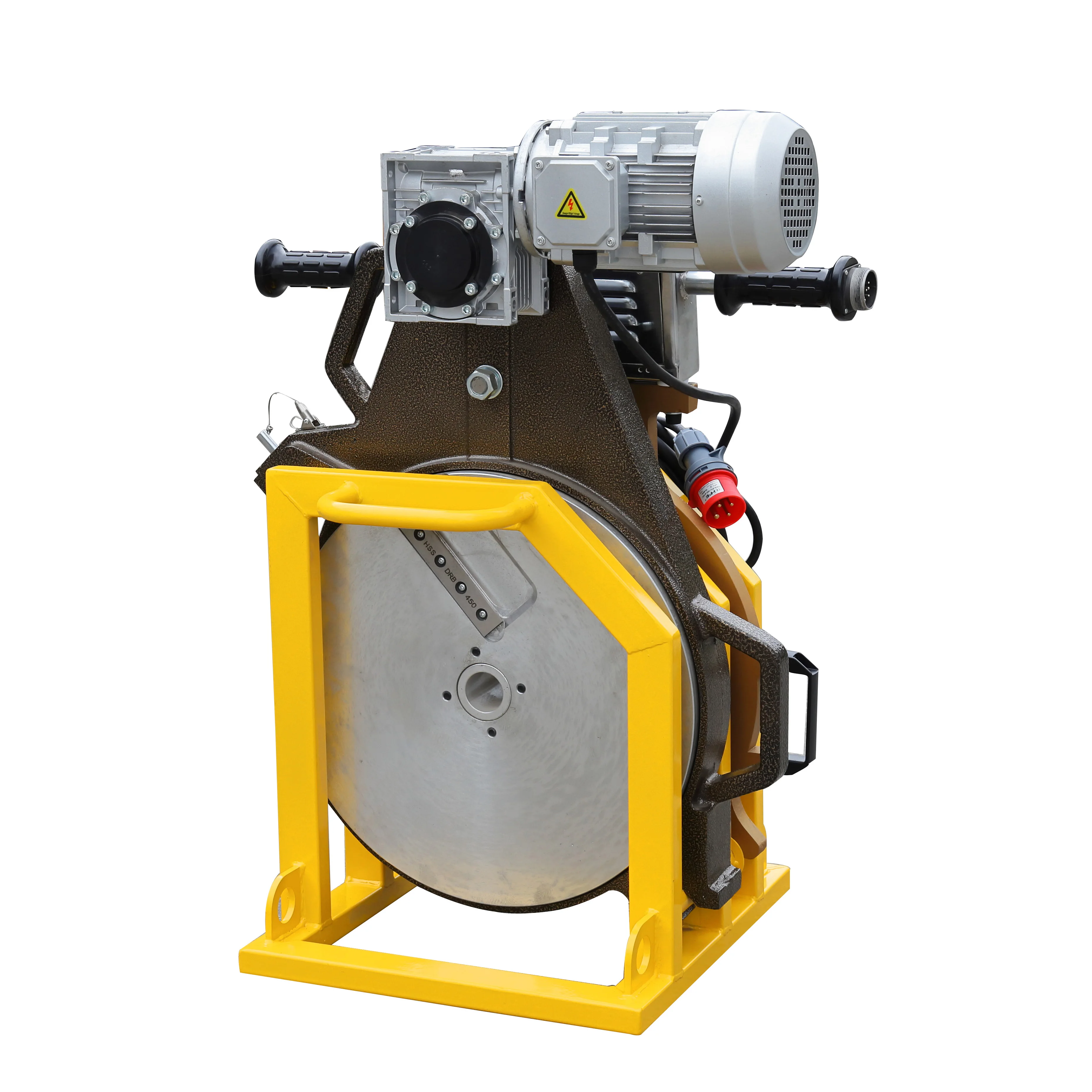

◊Gear transmission,efficient,reliable and maintenance-free
◊HSS blade with double edges
◊Carrying handle,separate switch preventing mis-operation
◊Built-in qualifier heating element
◊Reliable aviation plug,link to hydraulic station
◊Non-stick PTFE coating from Daikin
Q1.Payment
A:Generally,Usual payment term Is Of T/T remittance before shipment or against B/lL copy. we can also accept other terms according
to the clients and order amount
Q2.Terms of delivery
A:EXW,FOB,CFR,CIF
Q3. Delivery time
A:10-30 days after receiving your advance payment. The exact delivery time depends on the items and the quantity of your order.
Q4.Package
A: Goods will be packed in Carton, plywood case and in pallet if required.
Q5.OEM
A: lf you can provide your samples or technical drawings. We can open the mold and produce accordingly
Q6.Quality test
A: we test 100% bulk before delivery
Q7: Product Warranty
We Provide Standard 18 Months Warranty For Complete Machines And Tools,And Still Provide Service After Warranty.
A:Generally,Usual payment term Is Of T/T remittance before shipment or against B/lL copy. we can also accept other terms according
to the clients and order amount
Q2.Terms of delivery
A:EXW,FOB,CFR,CIF
Q3. Delivery time
A:10-30 days after receiving your advance payment. The exact delivery time depends on the items and the quantity of your order.
Q4.Package
A: Goods will be packed in Carton, plywood case and in pallet if required.
Q5.OEM
A: lf you can provide your samples or technical drawings. We can open the mold and produce accordingly
Q6.Quality test
A: we test 100% bulk before delivery
Q7: Product Warranty
We Provide Standard 18 Months Warranty For Complete Machines And Tools,And Still Provide Service After Warranty.
