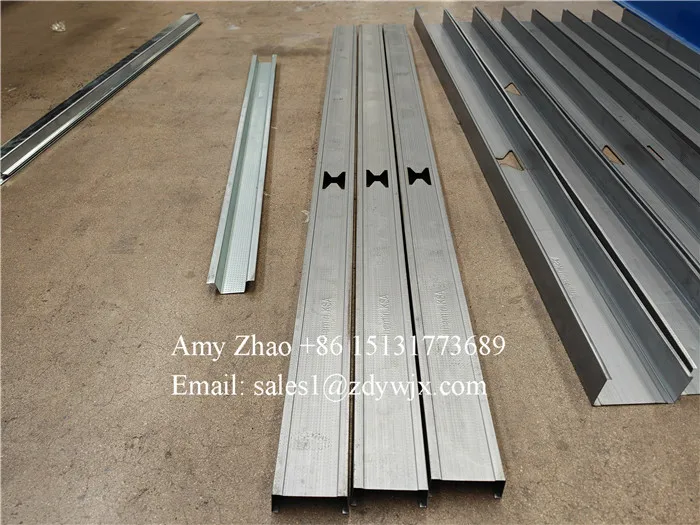

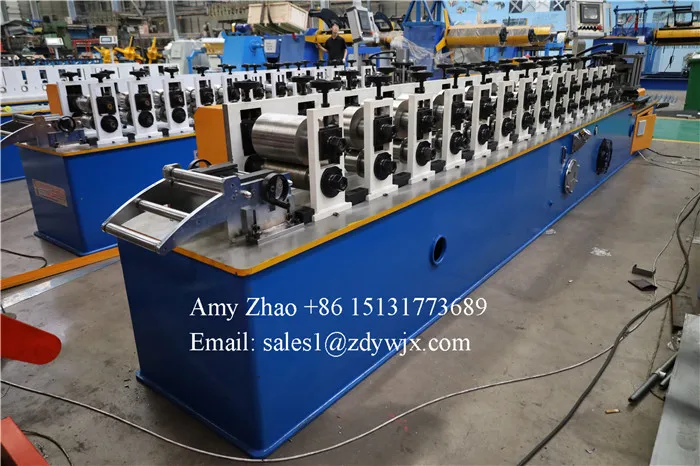

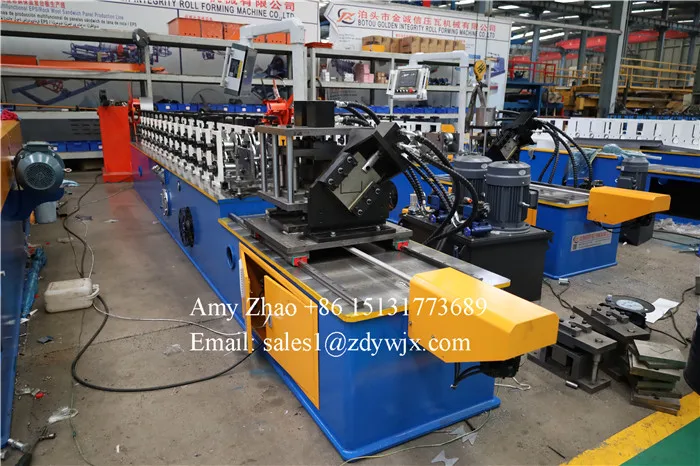

JCX Light steel CD stud UD track C U channel roll forming machine for drywall
- Category: >>>
- Supplier: Cangzhou Zhongde Machinery Co. Ltd.
Share on (1600965677270):
Product Overview
Description
Product Description

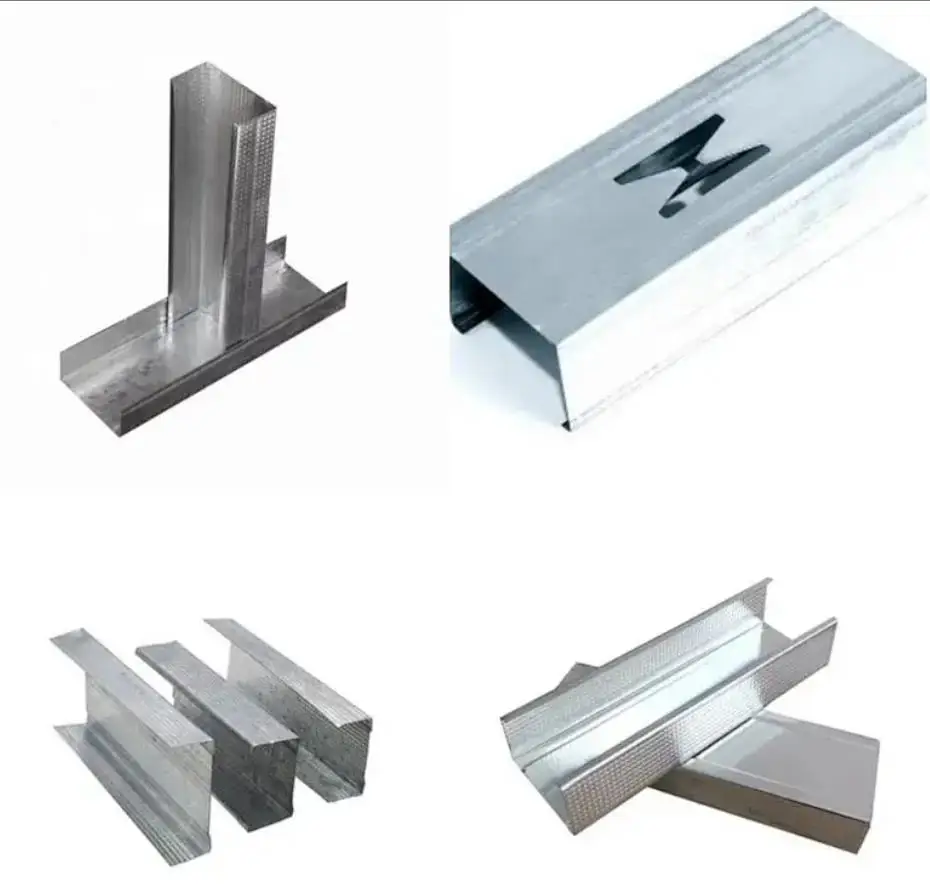

Whether you are after metal stud wall or ceiling products, we provide a variety of lightweight metal studs and ceiling systems roll forming machines, including U-track and studs for simple connection of your ceiling channels, Furring channel, omega profile, L angle/corner and other many type of ceiling or drywall partition channel roll forming machines.
Profile drawing and workflow
Specification
Applicable Industries | Building Material Shops, Construction works |
Type | Lightgage steel joist roll forming machine |
Tile Type | PPGI, PPGL |
Use | Suspended Gypsum Ceiling |
Production Capacity | 40-50m/min |
Voltage | 380V,50HZ Three-phase or you need |
Dimension(L*W*H) | 5500*800*1100 |
Weight | 3000kg |
Rolling thinckness | 0.3-0.8mm |
After-sales Service Provided | Engineers available to service machinery overseas |
Raw material | Steel, Galvanized Steel |

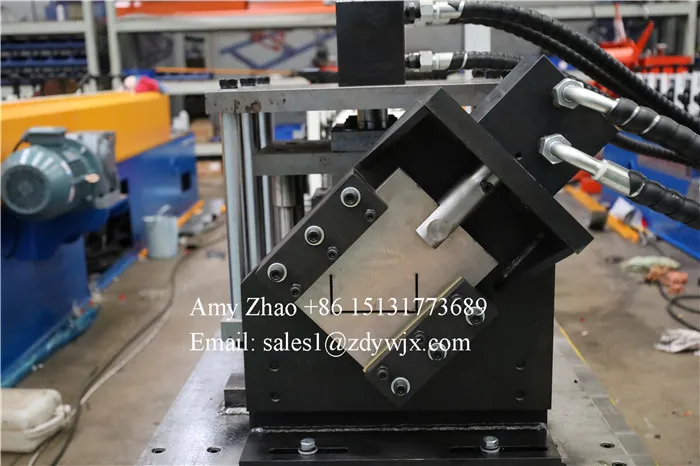

Cutting system | Servo motor flying cutting |
Main motor power | 7.5kw Servo Motor |

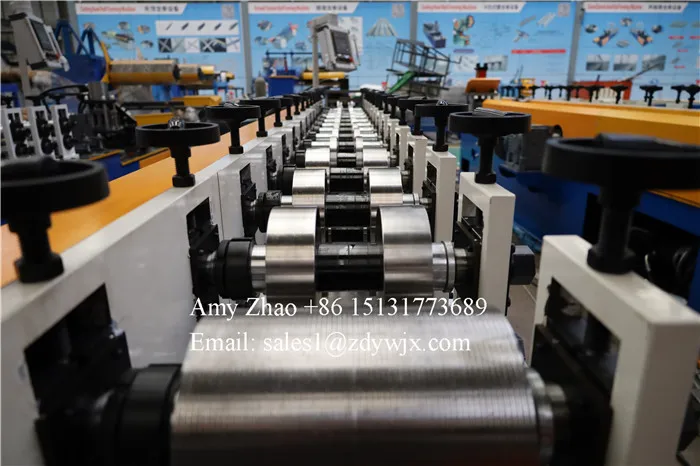

Roller material | Cr12 |
Shaft material | 45# Steel Outer Diameter: 50mm |
Cutting blade material | GCr12MoV Frequency Quenching |
Number Of Rollers | 12-16 |
After Warranty Service | Video technical support |
Other Products

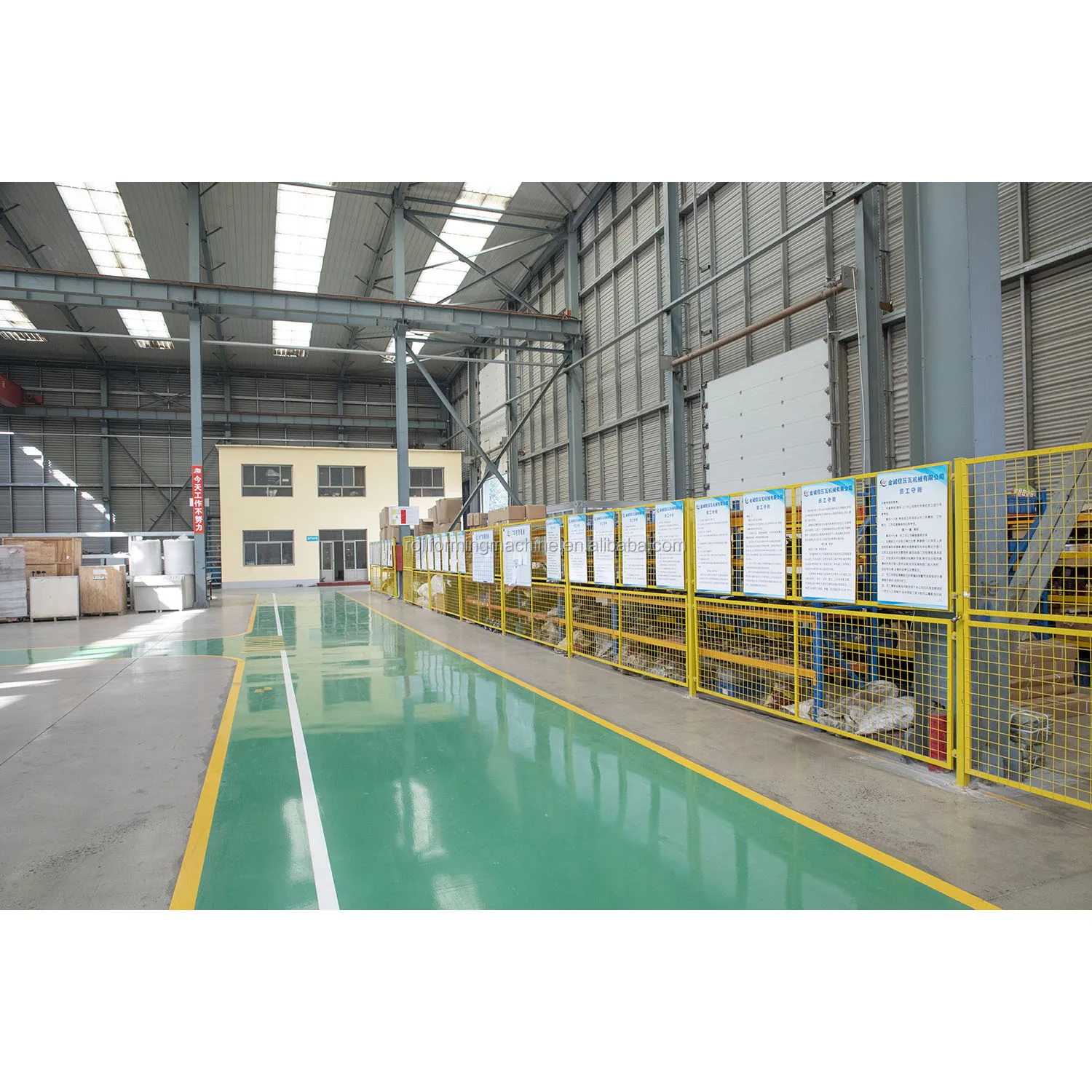

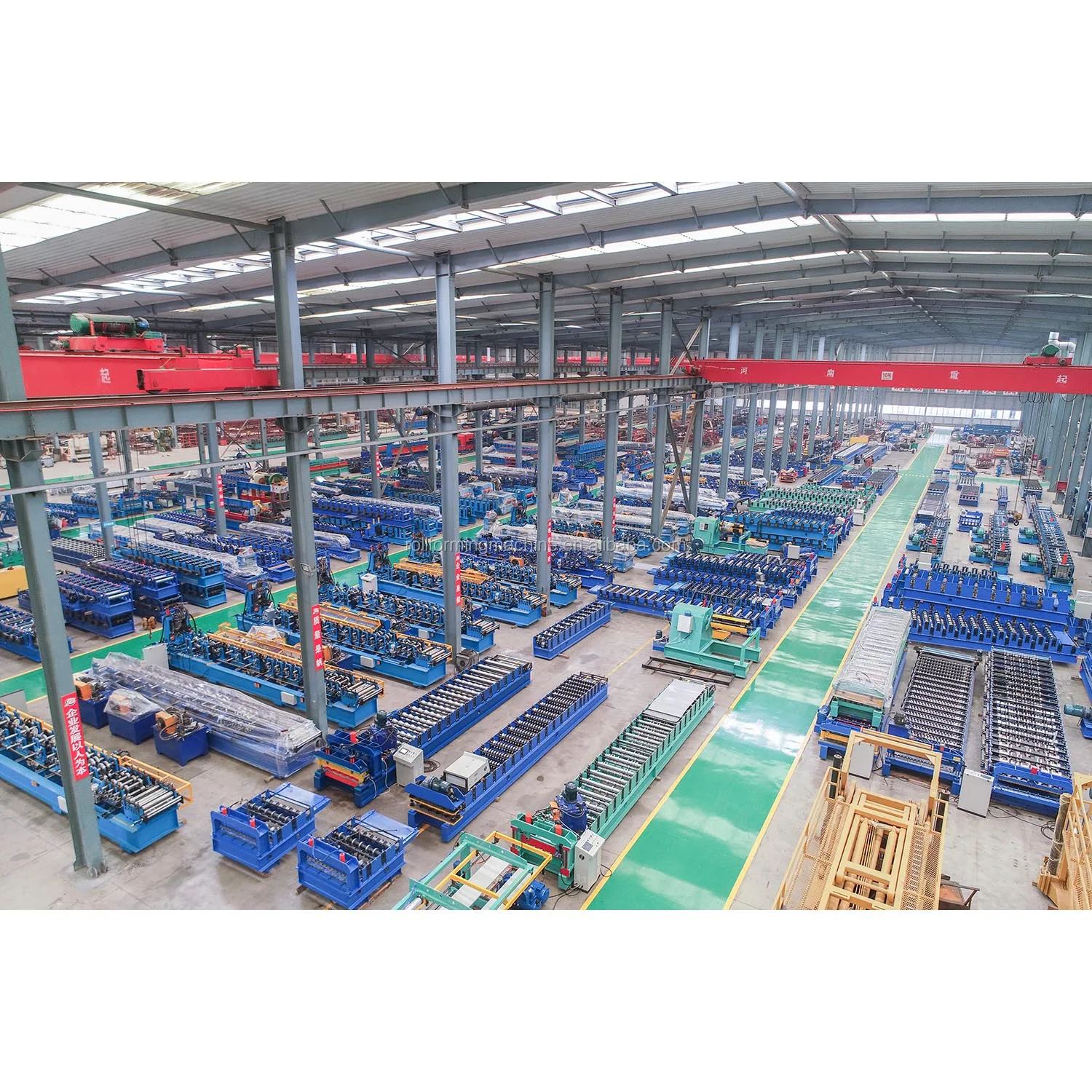

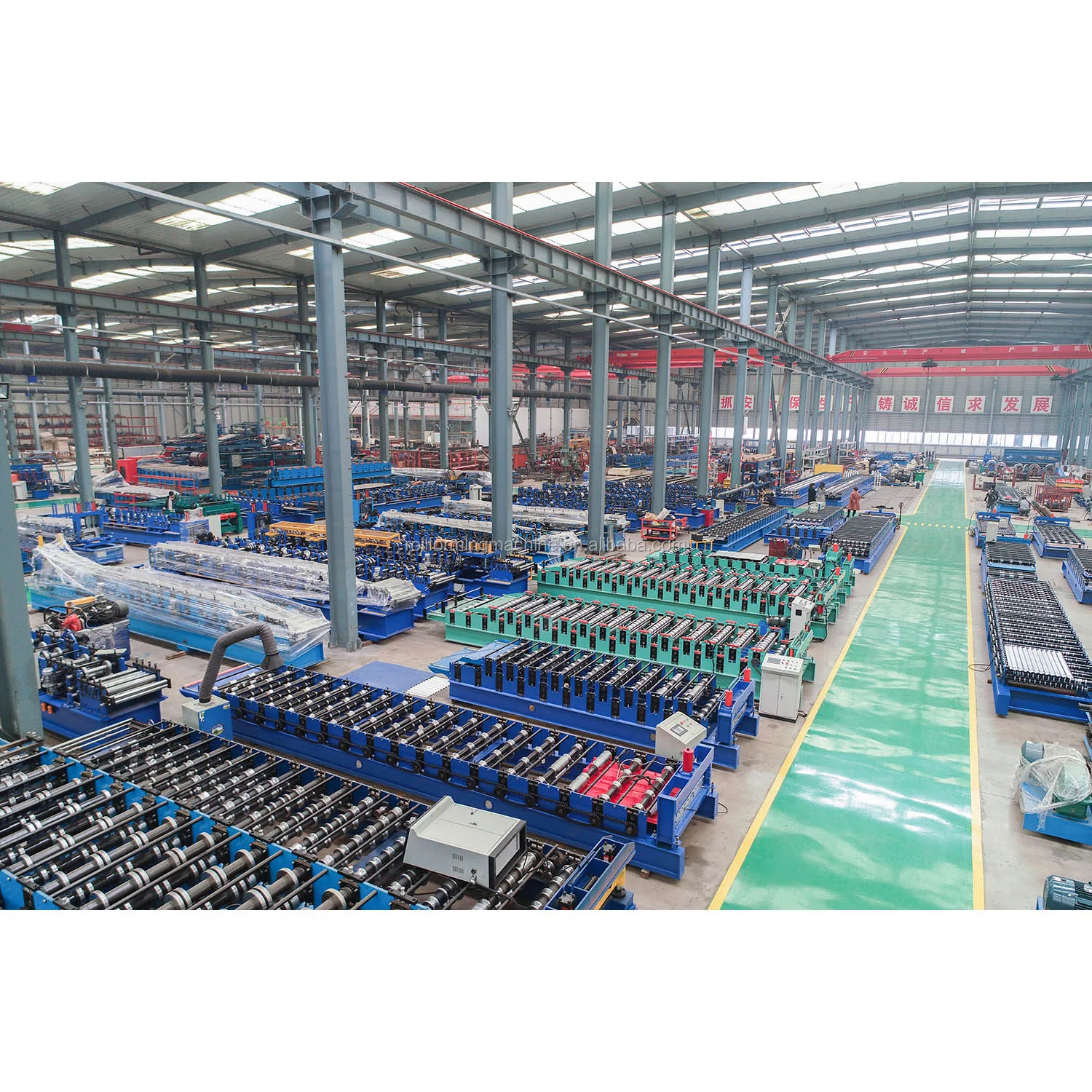

Company Profile
