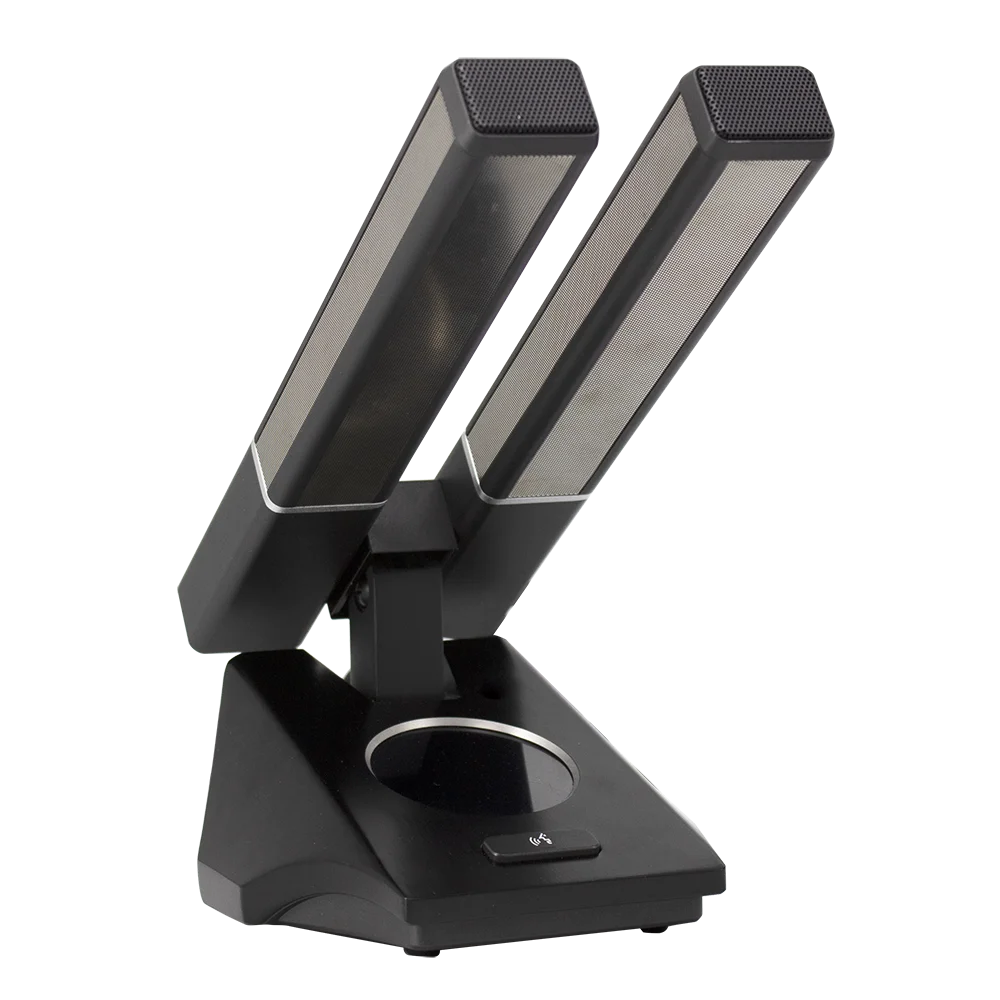

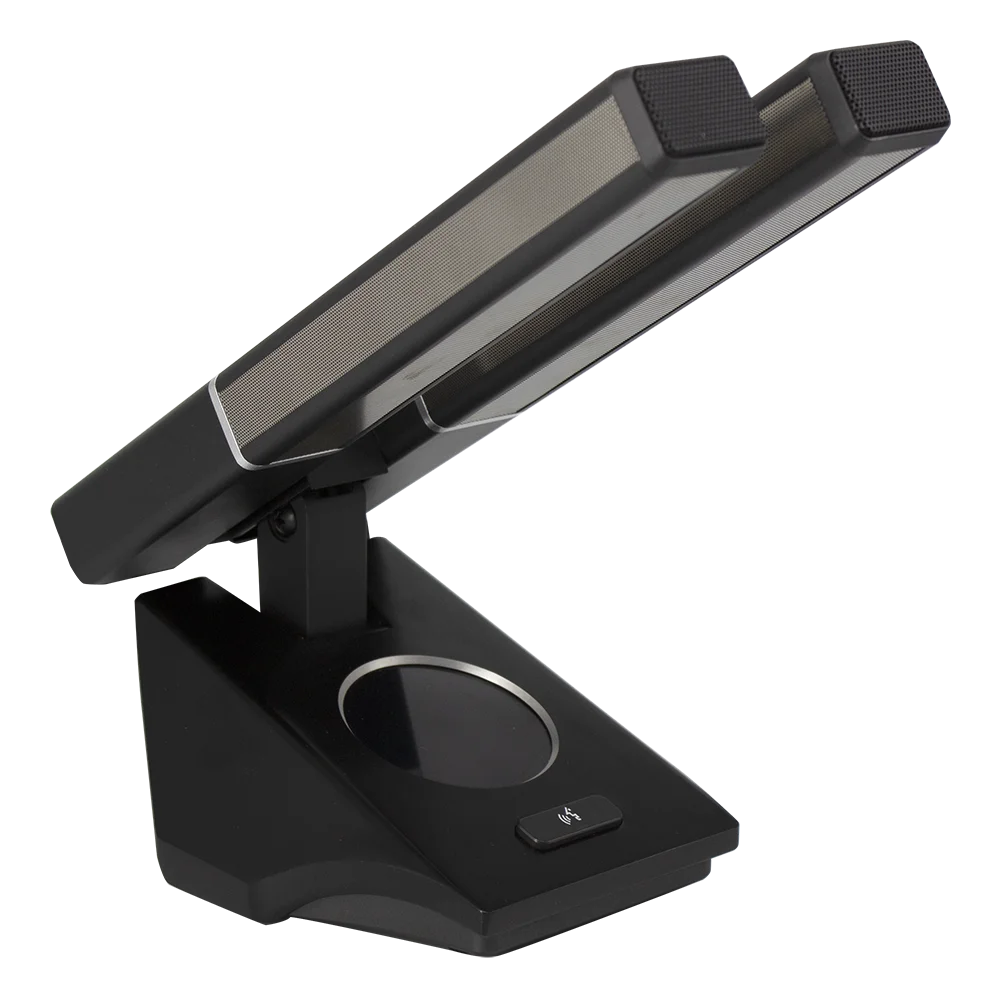

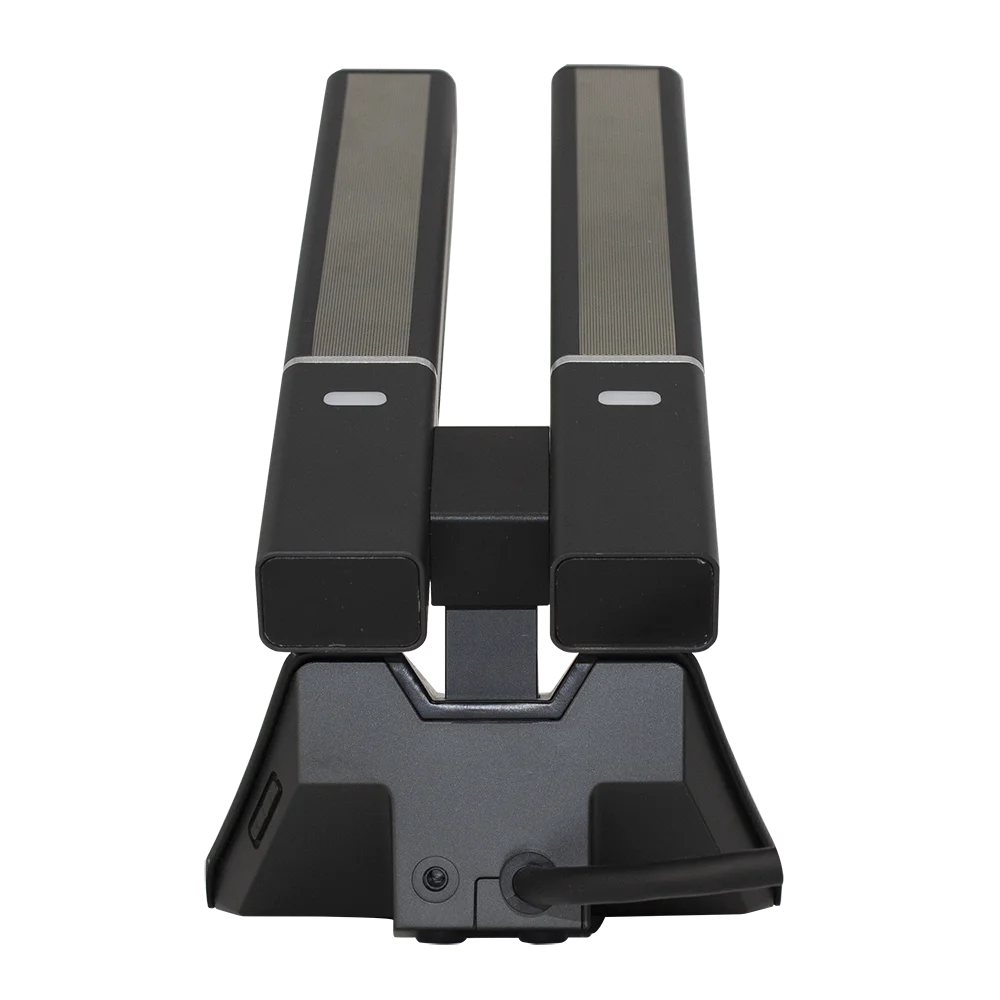

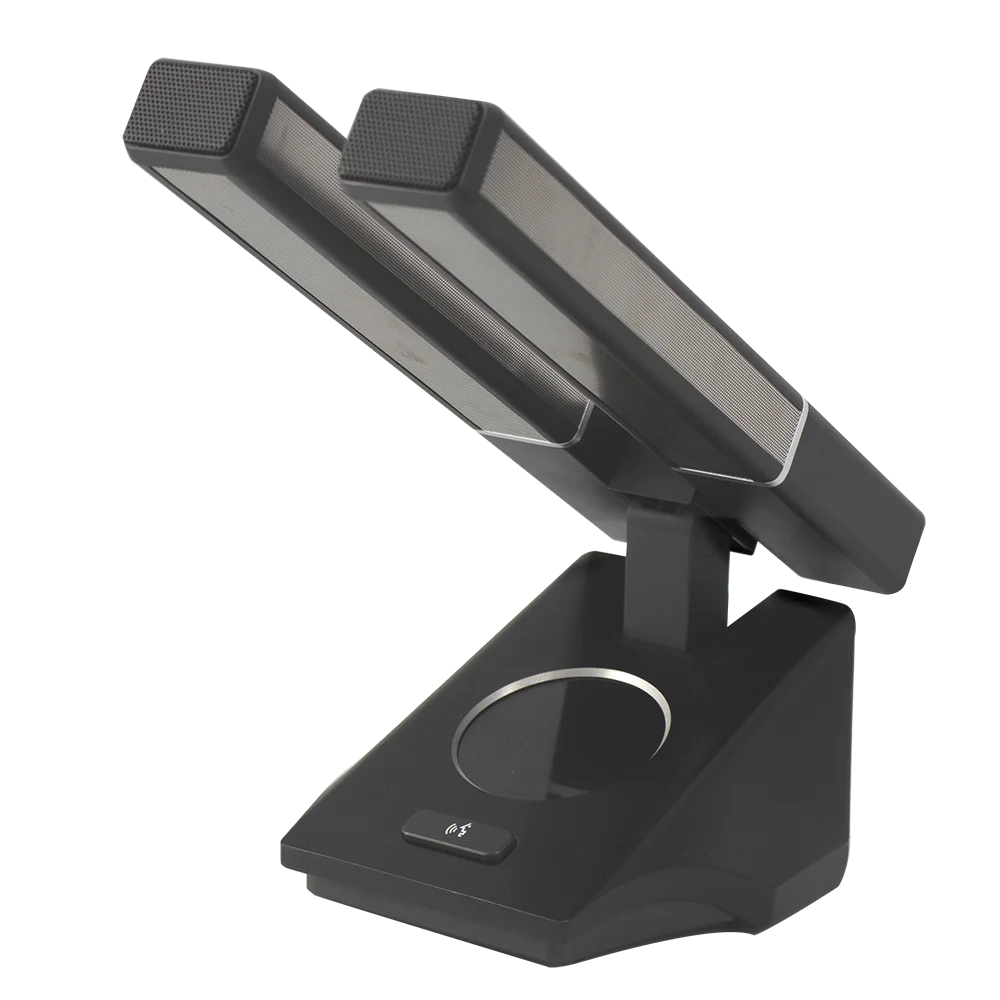

LCD display touch screen Dual Rods Desktop discussion Voting microphone for conference room audio system
- Category: >>>
- Supplier: Guangzhou DSPPA Audio Co. Ltd.
Share on (1600966754668):
Product Overview
Description
Details Images
meeting room conference system、gooseneck conference microphone、discussion conference system、digital conference system、conference room microphone、conference room audio system、conference microphone
Features
●A speech conference unit integrating speech, sign-in and voting functions.
●With 2m dedicated 8-pin DIN high-density cable, and an aviation male connector.

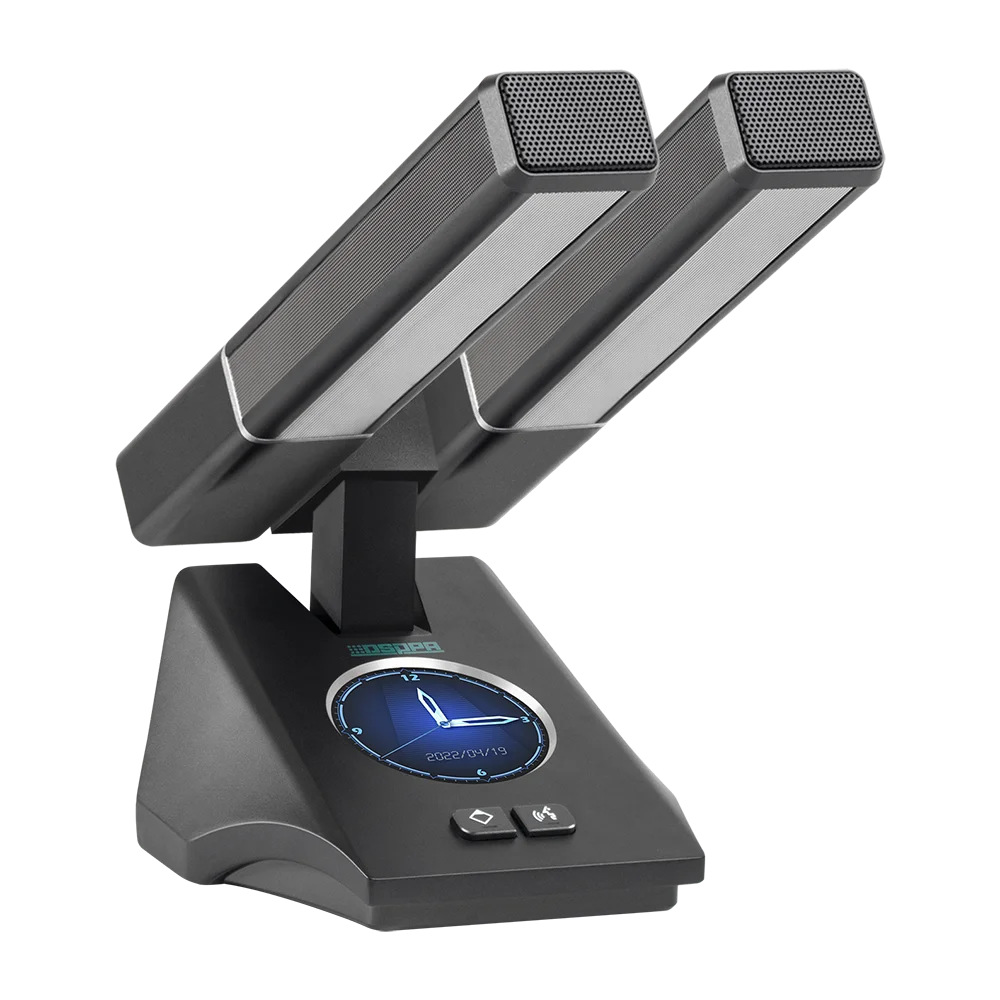

●Adopt 2.1" circular LCD display touch screen to display the working status of the unit in real time.
●With 3.5mm stereo headphone jack for headphone connection to monitor the speech of other units.
●Can adjust the microphone volume and headphone monitoring volume independently.
●With microphone on/off button, with a chairman priority button for the chairman unit.
●With a unique ID for each conference unit.
●Come with 3 sets of theme UI, which can be switched freely through the theme interface.
●Used with a camera to realize automatic camera tracking after setting by the digital conference system host or PC control software.
●With self-test function. The items to be tested include: buttons, MIC, LED indicator, and LCD screen.
●Through the host settings, the chairman unit has the priority function
●The chairman unit has the function of approving the application for speaking from the delegate unit.
●Support “hand-in-hand”, “T-type” and “+-type” connection modes.
●With 2m dedicated 8-pin DIN high-density cable, and an aviation male connector.
●Adopt 2.1" circular LCD display touch screen to display the working status of the unit in real time.
●With 3.5mm stereo headphone jack for headphone connection to monitor the speech of other units.
●Can adjust the microphone volume and headphone monitoring volume independently.
●With microphone on/off button, with a chairman priority button for the chairman unit.
●With a unique ID for each conference unit.
●Come with 3 sets of theme UI, which can be switched freely through the theme interface.
●Used with a camera to realize automatic camera tracking after setting by the digital conference system host or PC control software.
●With self-test function. The items to be tested include: buttons, MIC, LED indicator, and LCD screen.
●Through the host settings, the chairman unit has the priority function
●The chairman unit has the function of approving the application for speaking from the delegate unit.
●Support “hand-in-hand”, “T-type” and “+-type” connection modes.
Product Paramenters
Model | D6271D/D6272D | ||
Structure and Type | Desktop | ||
Microphone Type | Electret cardioid condenser | ||
Sensitivity | -45dBV/pa | ||
Static power consumption | <1W | ||
Max. power consumption | <2W | ||
SNR | >80dB | ||
Crosstalk Attenuation | >80dB | ||
Harmonic distortion | <0.3% | ||
Headphone Output | 9dBu, 8-32Ω, 3.5mm | ||
Working Power Supply | DC 24V power supply | ||
Unit Interface | 8-pin DIN dedicated interface | ||
Input impedance | 2kΩ | ||
Equivalent Noise | 20dB (SPL) | ||
Max SPL | 125dB (THD<3%) | ||
