CTL501P LoRa Water proof Energy metering High quality Water proof Street Light Controller
- Category: >>>
- Supplier: Guangzhou Shuwang Technology Co. Ltd.
Share on (1600972503057):
Product Overview
Description
Product Description

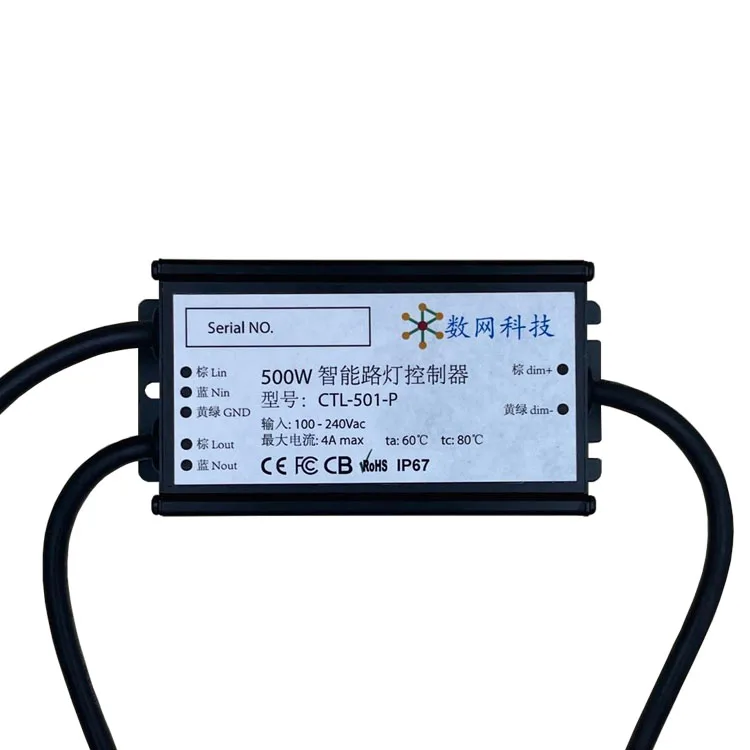

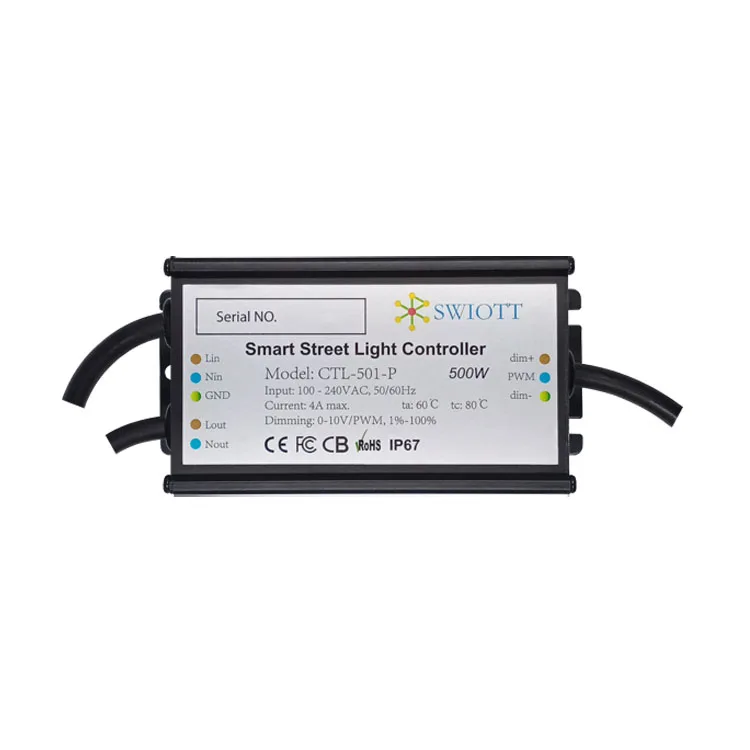

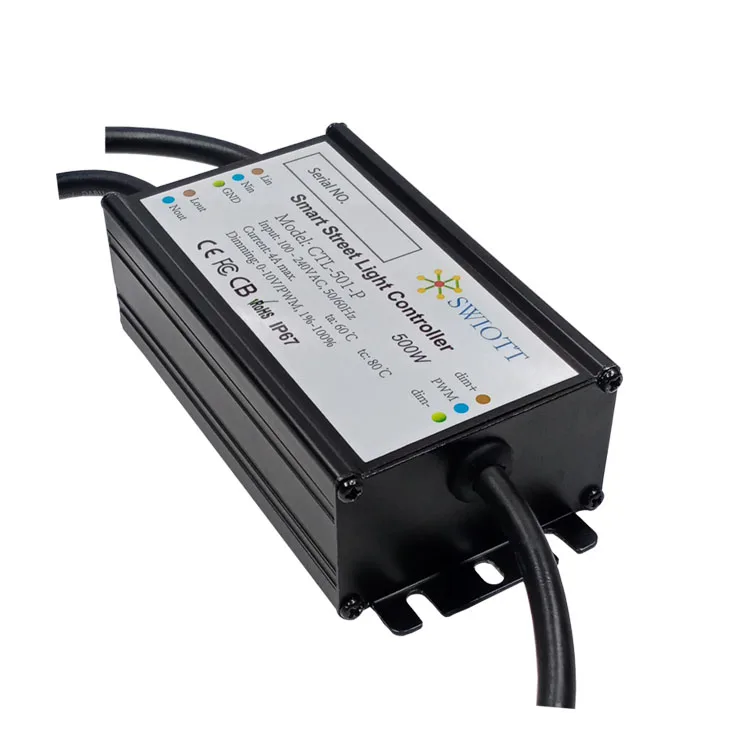

CTL-501-P
PLC Smart Street
Light Controller
Light Controller
Small size with rubber leads for easy deployment and construction
Built-in SON PLC communication module to achieve long-distance transmission, low-power operation, large-capacity networking, and high-reliability communication.

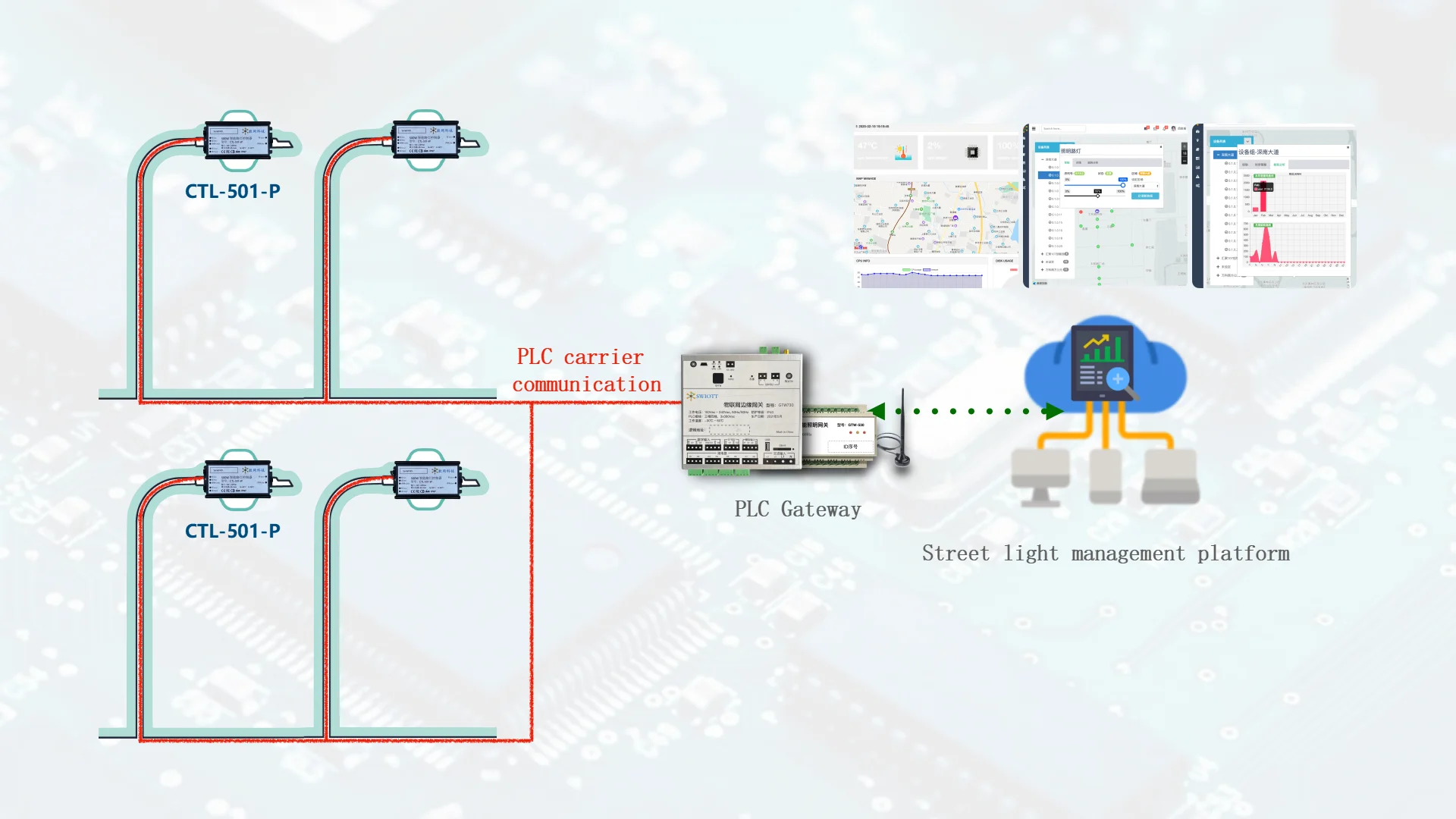

It can be connected to GTW-720 smart street light gateway, and also supports remote control of street light system, such as on/off, dimming, reading street light status, etc.
Built-in SON PLC communication module to achieve long-distance transmission, low-power operation, large-capacity networking, and high-reliability communication.
It can be connected to GTW-720 smart street light gateway, and also supports remote control of street light system, such as on/off, dimming, reading street light status, etc.
Built-in power acquisition chip, measurement accuracy of 2%. The acquisition range includes: voltage, power, current, energy consumption, power factor, temperature and frequency, etc.
With the radar vehicle sensor, the street light linkage control can be realized (optional).
Built-in motion sensing, easy for street lights to achieve adaptive lighting function (optional).
Built-in advanced data synchronization mechanism and communication mechanism
Support OTA firmware upgrade function.
Service life of more than 5 years.
With the radar vehicle sensor, the street light linkage control can be realized (optional).
Built-in motion sensing, easy for street lights to achieve adaptive lighting function (optional).
Built-in advanced data synchronization mechanism and communication mechanism
Support OTA firmware upgrade function.
Service life of more than 5 years.
Specification
Input voltage | 100Vac~240Vac | Short circuit protection | No |
Rated voltage | 220Vac | Overheating protection | Yes |
input frequency | 47Hz to 63Hz | waterproof level | IP66 |
Max power | 500W | MTBF | >200khours |
Max current | 4A | Operating temperature | -40℃ to +60℃ |
Standby power | <2W | Storage temperature | -40℃ to +85℃ |
PLC frequency | 50kHz~500kHz | size packaging（L*W*H） | 110mm*63mm*40mm |
Dimming output | 0V-10V @ 27mA(max) | Weight | 0.5kg |
Measurement accuracy | <2% | case max temperature | 80℃ |
Harmonic content | <10% | Safety standards | CE、FCC、CB |
Overload protection | Yes | EMC | EN55015、EN55022 |
Smart function | Function description | |||
Dimming | Adjust the 0-10V voltage output and PWM duty cycle output of the controller through PLC communication, the dimming range is 0%~100%, and the stepless dimming. Adjustment accuracy <2%. | |||
Energy metering | The built-in electric energy measurement function can report electric energy data to the concentrator through the PLC. The measurable electric energy includes: input voltage, input current, power, power factor and temperature, and the measurement accuracy can reach 1%. | |||
fault report | Actively report the running status of the controller in real time through PLC, including: temperature, short circuit, open circuit, overvoltage, undervoltage, normal, dimming, etc. |
Fault type | fault condition | perform action | Remark |
temperatur too high | ＞95℃±2℃ | Report fault, shutdown, temperature <90℃±2℃ return to the state before shutdown | Inside temperature, not ambient temperature |
temperature too low | ＜-25℃±2℃ | Report a fault, do not shut down, the temperature is >-25℃±2℃ to remove the fault state | Inside temperature, not ambient temperature |
output open | power＜5W±1W | Report a fault, do not shut down, the power is less than 5W±1W in the power-on state, and the power is less than 5W±1W to remove the fault state | |
Power too high | ＞520W±5W or ＞4.2A±200mA | Report a fault, shut down, restart after recovery | |
Voltage too high | ＞285V±3V | Report failure, shutdown, <280V±3V return to the state | |
Voltage too low | ＜95V±3V | Report failure, shutdown, <100V±3V return to the state |
Company Profile
Guangzhou SWIOTT Technology Co., Ltd. is a company integrating the Internet of Things, communications, large-scale Data and other technological means are applied to enterprises in the field of lighting, and the team has many years of experience in the development and research of smart lighting solutions, dedicated to provide scientific overall solutions for customer lighting application scenarios.
At present, the company's urban smart lighting and industrial IoT related products have been widely used. It is distributed in dozens of countries around the world and a few provinces in China, and the products mainly include Including PLC (power line carrier communication) module, wireless LoRa self-organized network mode block, intelligent street light controller, intelligent LED power supply, multi-color temperature intelligence LED power supply, centralized controller and intelligent street light management system.
Our philosophy is to create a low-carbon life with the power of science and technology.
At present, the company's urban smart lighting and industrial IoT related products have been widely used. It is distributed in dozens of countries around the world and a few provinces in China, and the products mainly include Including PLC (power line carrier communication) module, wireless LoRa self-organized network mode block, intelligent street light controller, intelligent LED power supply, multi-color temperature intelligence LED power supply, centralized controller and intelligent street light management system.
Our philosophy is to create a low-carbon life with the power of science and technology.

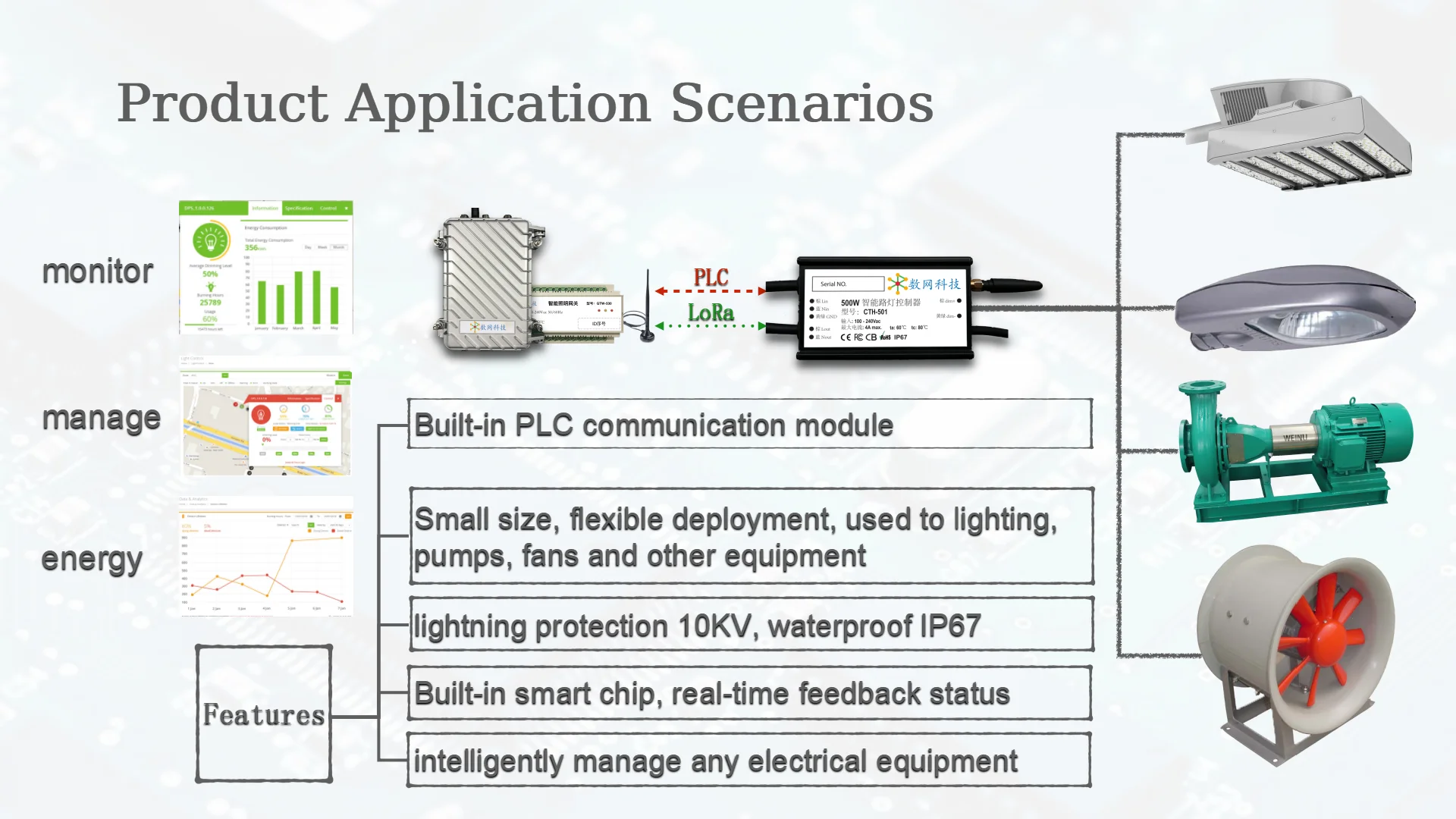

Practical Application
Production Process

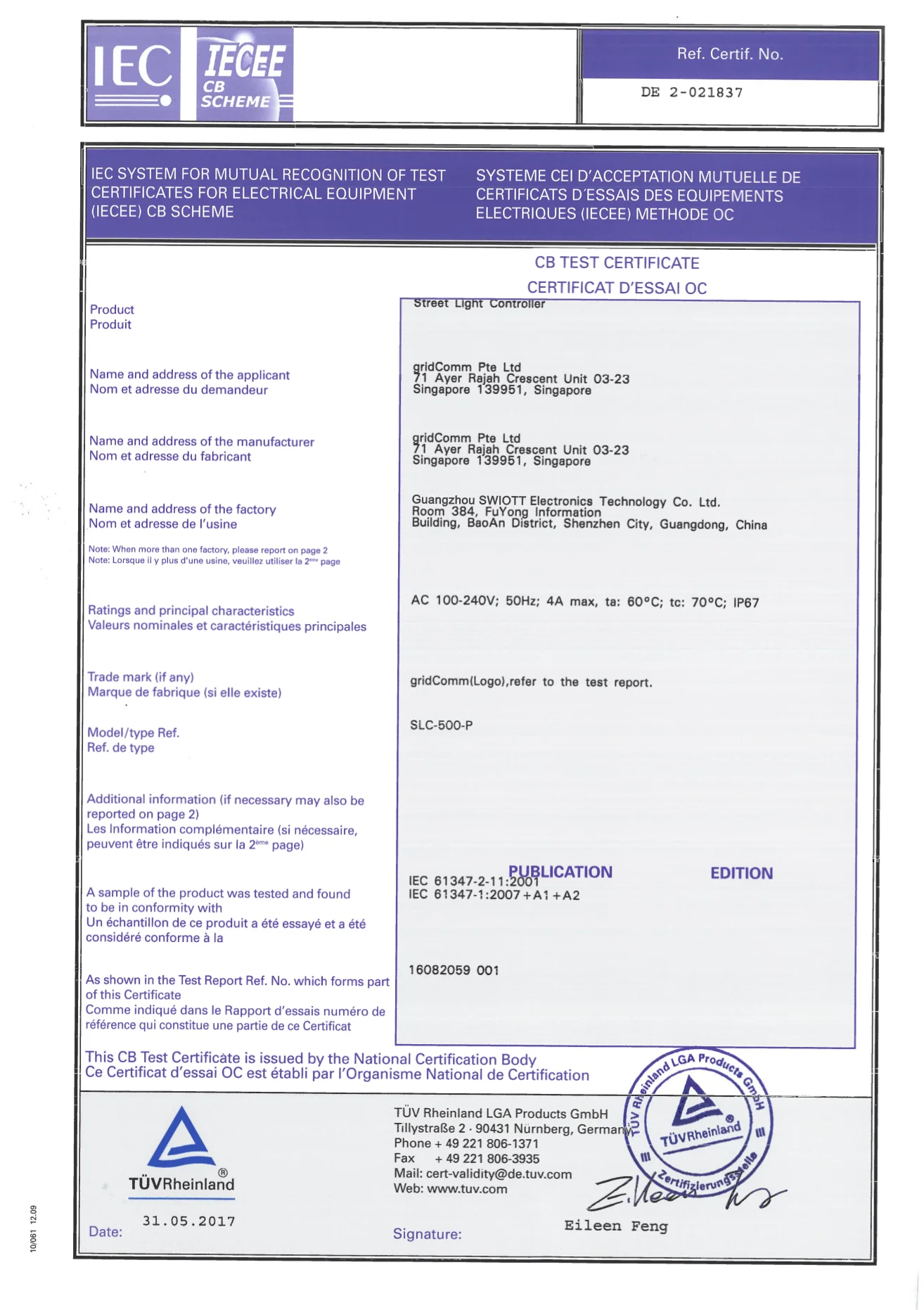

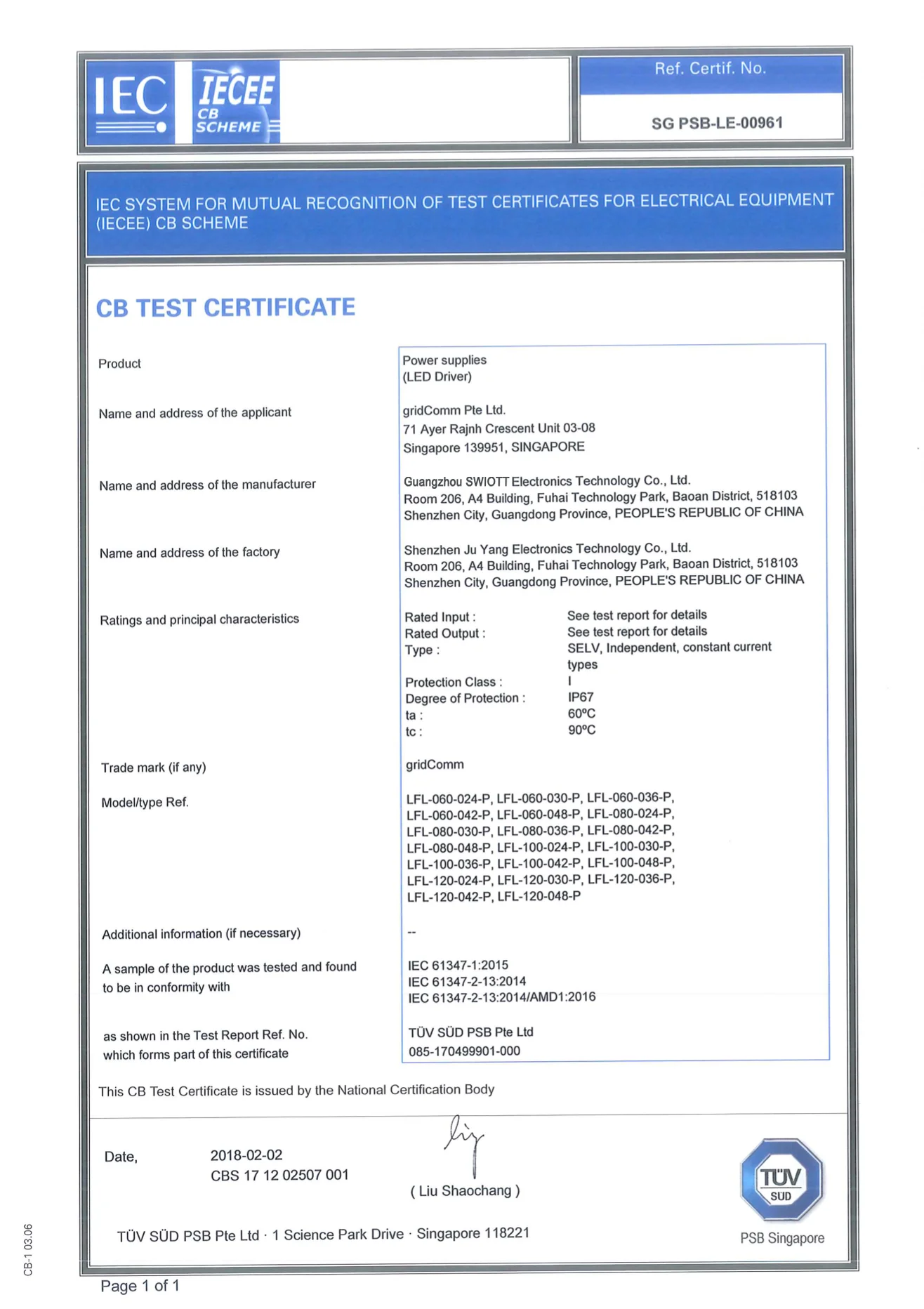

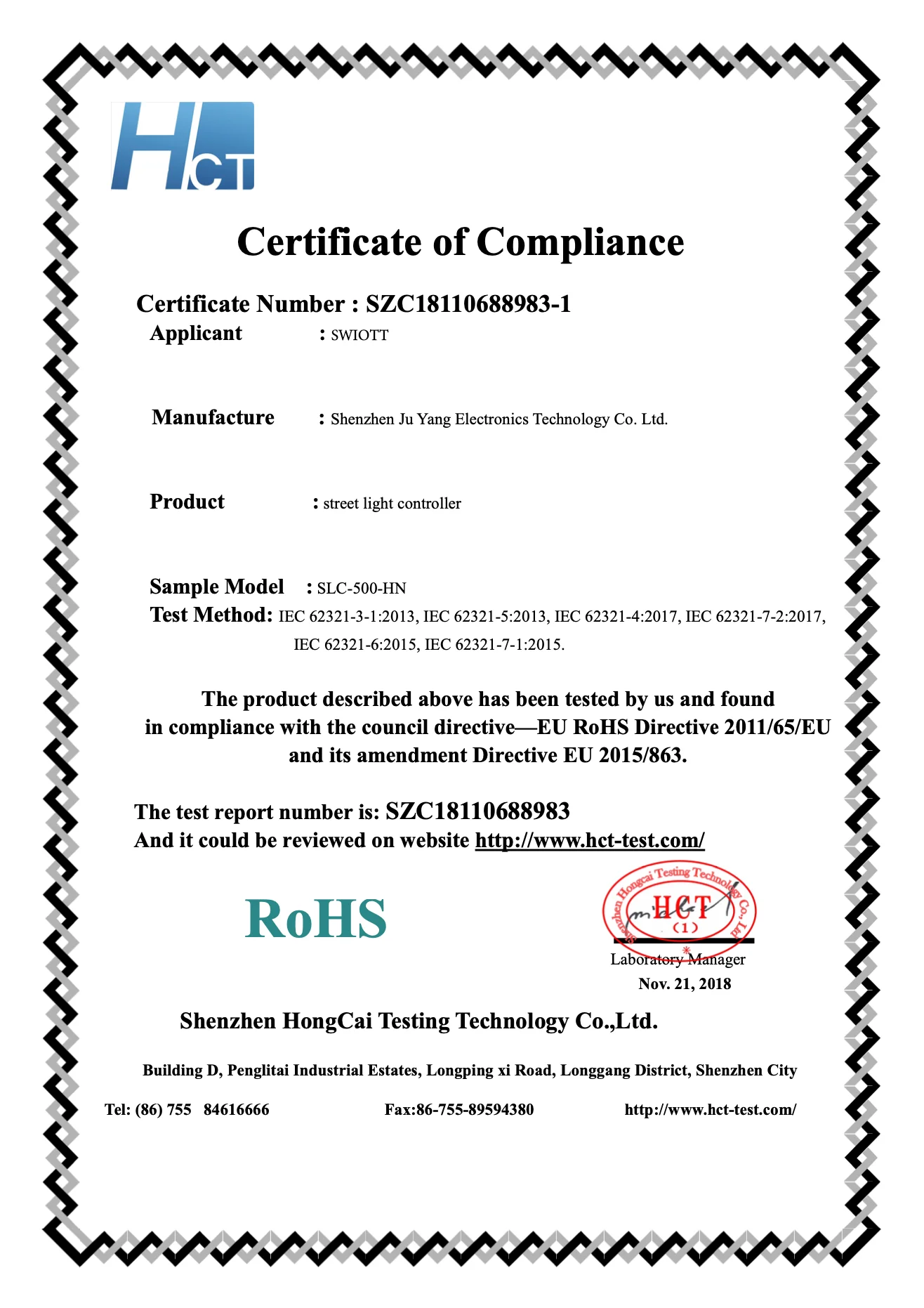

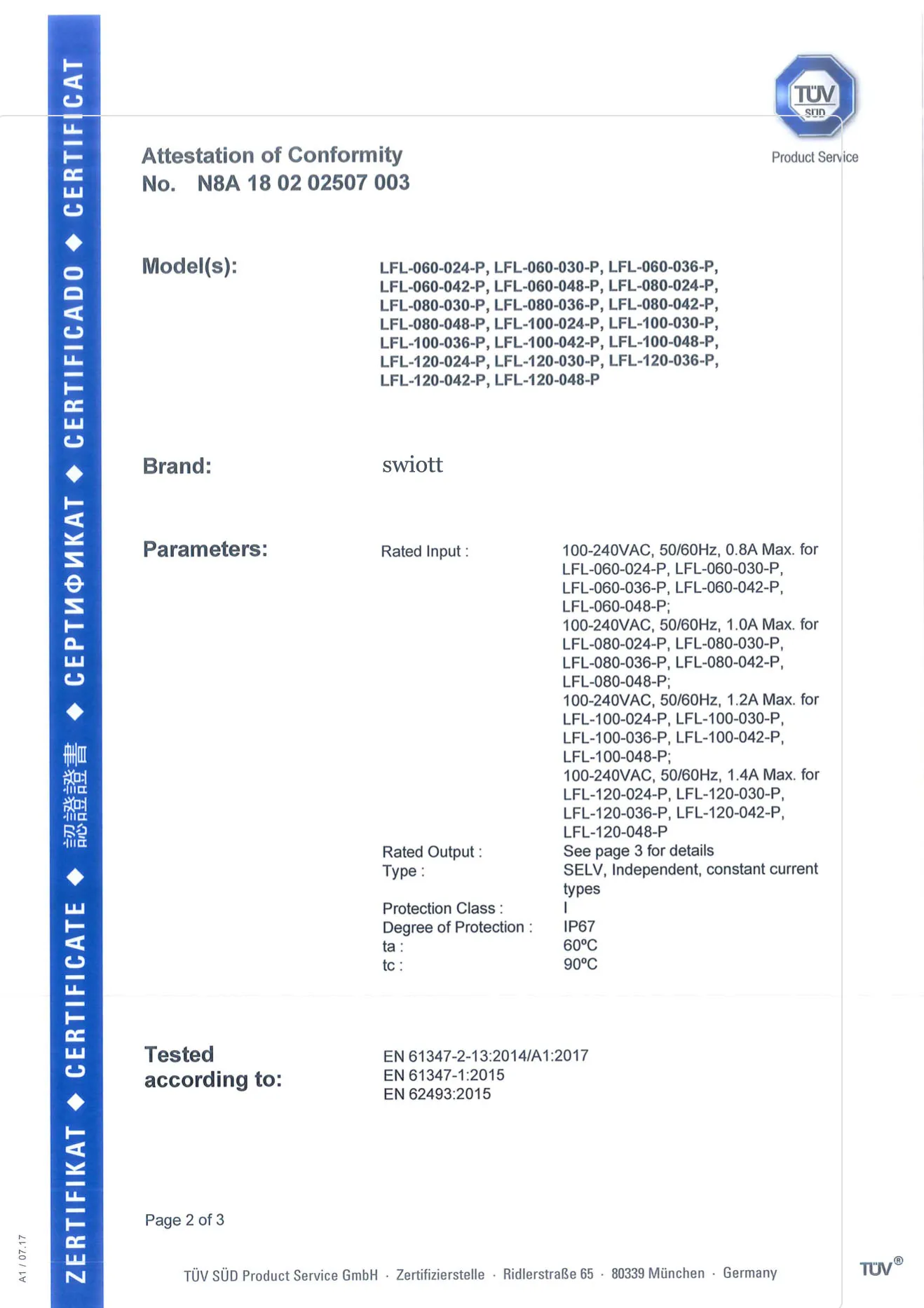

Certifications
Packing & Delivery
FAQ
Q1. Can the light controller be ordered as a sample?
Yes, we accept sample orders, welcome to order samples to test and check the quality
Q2. Are you a trader or a manufacturer?
A: We are manufacturer, We can guarantee product quality.
Q3.Do your products come with a guarantee?
Yes, we provide 3 years warranty on our products.
Q4. How many lighting controllers can a gateway usually control?
A: A gateway can control 200 pcs lighting controller.
Q5.How to order?
A. Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book
Space → Balance/Deliver → Further.
Yes, we accept sample orders, welcome to order samples to test and check the quality
Q2. Are you a trader or a manufacturer?
A: We are manufacturer, We can guarantee product quality.
Q3.Do your products come with a guarantee?
Yes, we provide 3 years warranty on our products.
Q4. How many lighting controllers can a gateway usually control?
A: A gateway can control 200 pcs lighting controller.
Q5.How to order?
A. Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book
Space → Balance/Deliver → Further.
