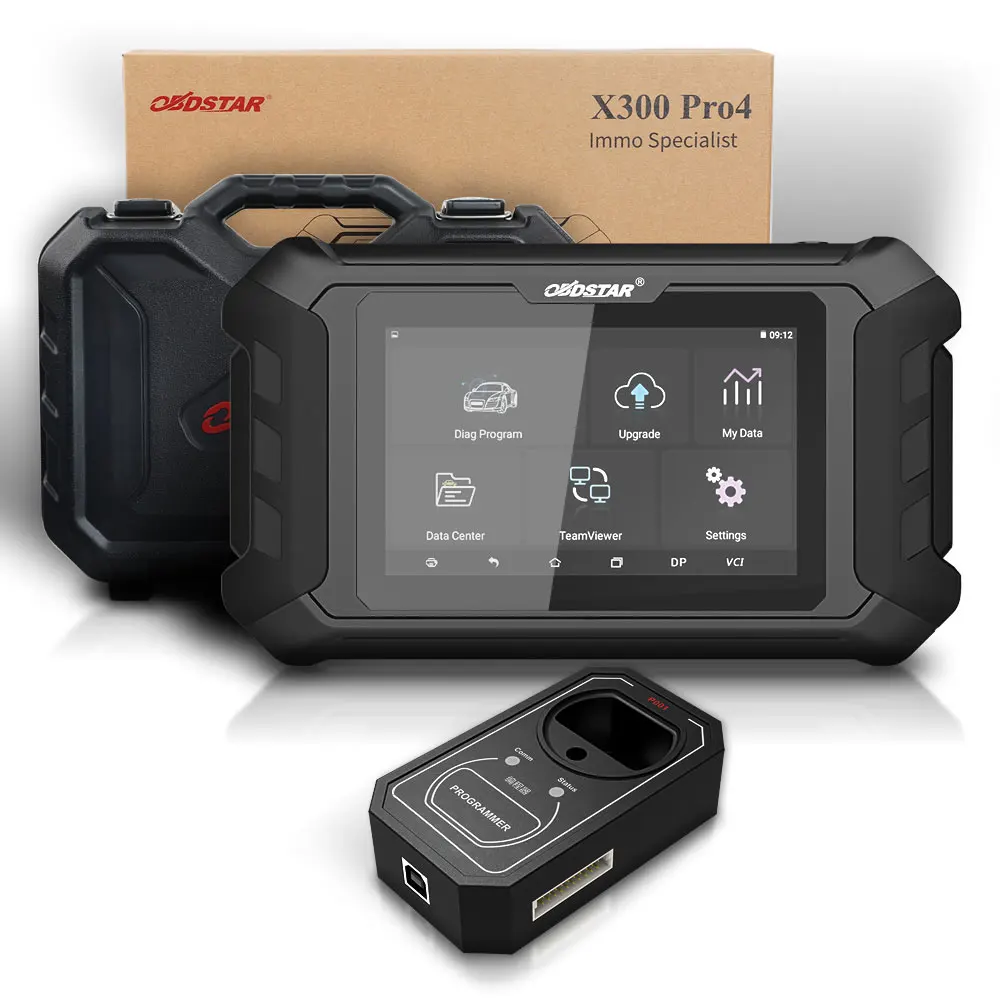

OBDSTAR X300 DP Plus A C full function OBDSTAR X300 Pro4 Pro 4 Key Master Auto Key Programmer
- Category: >>>
- Supplier: Shenzhen chezhihui Trade Co. Ltd
Share on (1600974288403):
Product Overview
Description
Products Description
OBDSTAR X300 Pro4 Pro 4 Key Master Auto Key Programmer
OBDSTAR X300 Pro4 is an all-purpose immobiliser programming device meticulously designed by OBDSTAR for locksmith. The device
inherits the automobile immobiliser programming technology from OBDSTAR with a lot of advantages of early start, wide model
coverage, fast programming speed and special features All-in-one machine structure, more convenient to use full optimization
hardware, running more stable, faster and smoother.
OBDSTAR X300 Pro4 Highlights:
1. OBDSTAR X300 Pro4 covers same immo function as OBDSTAR X300 DP Plus.
2. The update cycle is short and fast (updated every 2-3 days)
3. Free Update Online for One Year, after one year it will cost $249 per year.
4. Strong competitiveness and industry advantage
5. Some models can support 18/19 years of car (such as GM/Mazda/Renault)
6. Add a new help function as shown below: (Applicable to some models, R & D information is being update)
Notice:
If you had an OBDSTAR device and registered before, when you register a new OBDSTAR machine, please change another email.

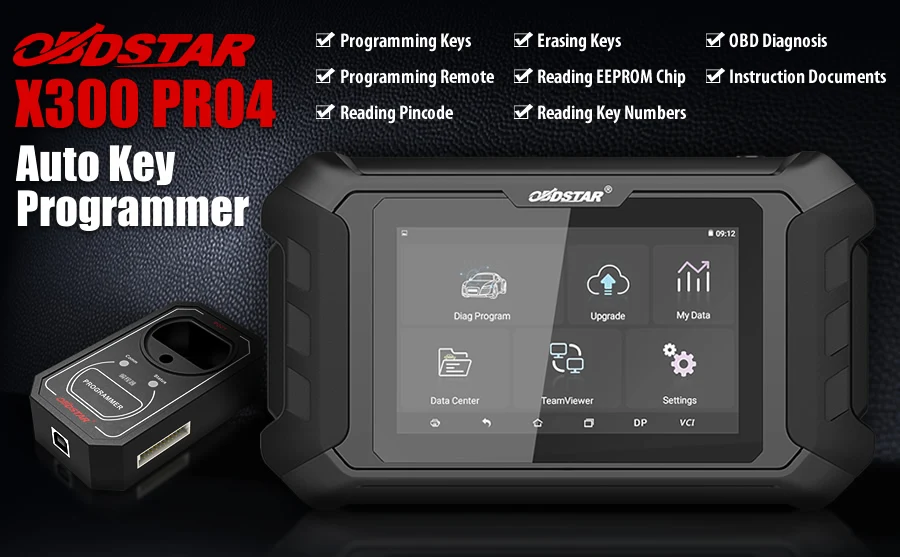

OBDSTAR X300 Pro 4 Programmer Function List:
Programming Keys
Erase Keys
Programming Remote
Read Key Numbers
Pincode Reading
EEPROM Chip Read
OBDII Diagnosis
OBDSTAR X300 Pro 4 Update Note:

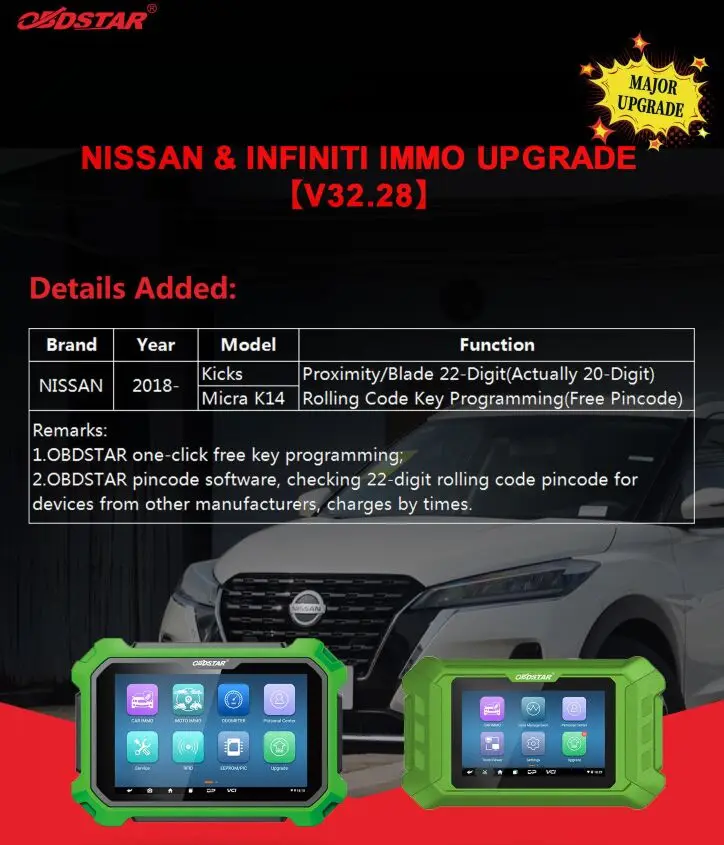

For NISSAN & INFINITI IMMO UPGRADE [V32.28] (2022-04)
Support for Nissan Kicks/Micra K14 proximity/Blade 22-Digit(Actually 20-Digit) Rolling Code Key Programming(Free Pincode)

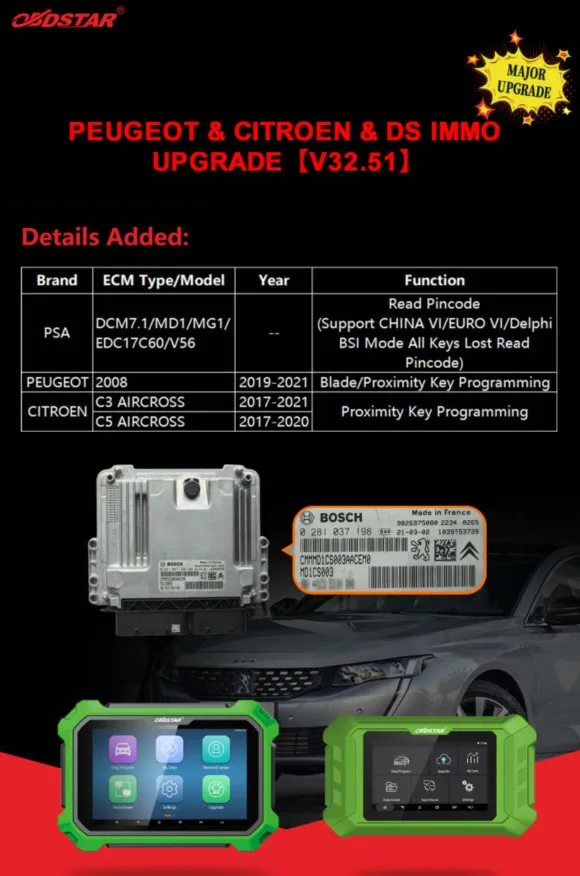

(2022-03) For Peugeot & Citroen & DS IMMO Upgrade to V32.51. Add PSA DCM7.1, MD1, MG1, EDC17C60, V56 Read pin code,Supports China VI,
European VI, Delphi BSI mode all keys lost read pin code
For Peugeot 2008 2019-2021 blade/proximity key programming
For Citroen C3 Aircross 2017-2021 proximity key programming
For Citroen C5 Aircross 2018-2020 proximity key programming
European VI, Delphi BSI mode all keys lost read pin code
For Peugeot 2008 2019-2021 blade/proximity key programming
For Citroen C3 Aircross 2017-2021 proximity key programming
For Citroen C5 Aircross 2018-2020 proximity key programming
For Peugeot & Citroen IMMO V32.46 Update (June,2021): Add Delphin BSI All keys lost pin code read (OBD)
OBDSTAR For Toyota IMMO V32.45 Upgrade( June,2021)
OBDSTAR for Toyota IMMO Upgrade to V32.45, Support 8A H non-smart transponder no need to disassemble or replace the immo box all keys
lost programmming for RAV4, HILUX, CROWN, KLUGER, COROLLA, CAMRY, LEVIN, PRADO, REIZ.
Need to work with P002 Adapter,Key SIM, Toyota-1/2 Cable,multi-functional cable.

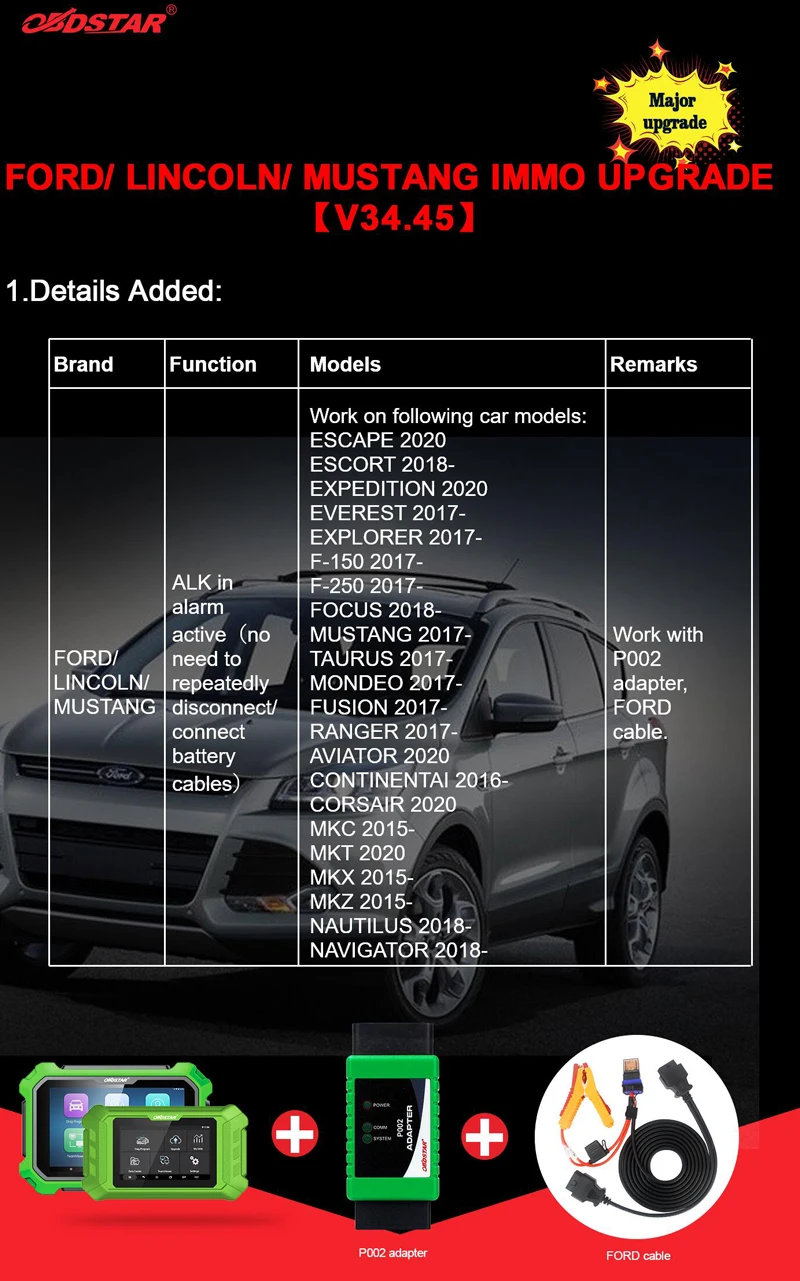

For Ford/Lincoln/Mustang IMMO V34.45 Update ( June,2021)
OBDSTAR for Toyota IMMO Upgrade to V32.45, Support 8A H non-smart transponder no need to disassemble or replace the immo box all keys
lost programmming for RAV4, HILUX, CROWN, KLUGER, COROLLA, CAMRY, LEVIN, PRADO, REIZ.
Need to work with P002 Adapter,Key SIM, Toyota-1/2 Cable,multi-functional cable.
For Ford/Lincoln/Mustang IMMO V34.45 Update ( June,2021)

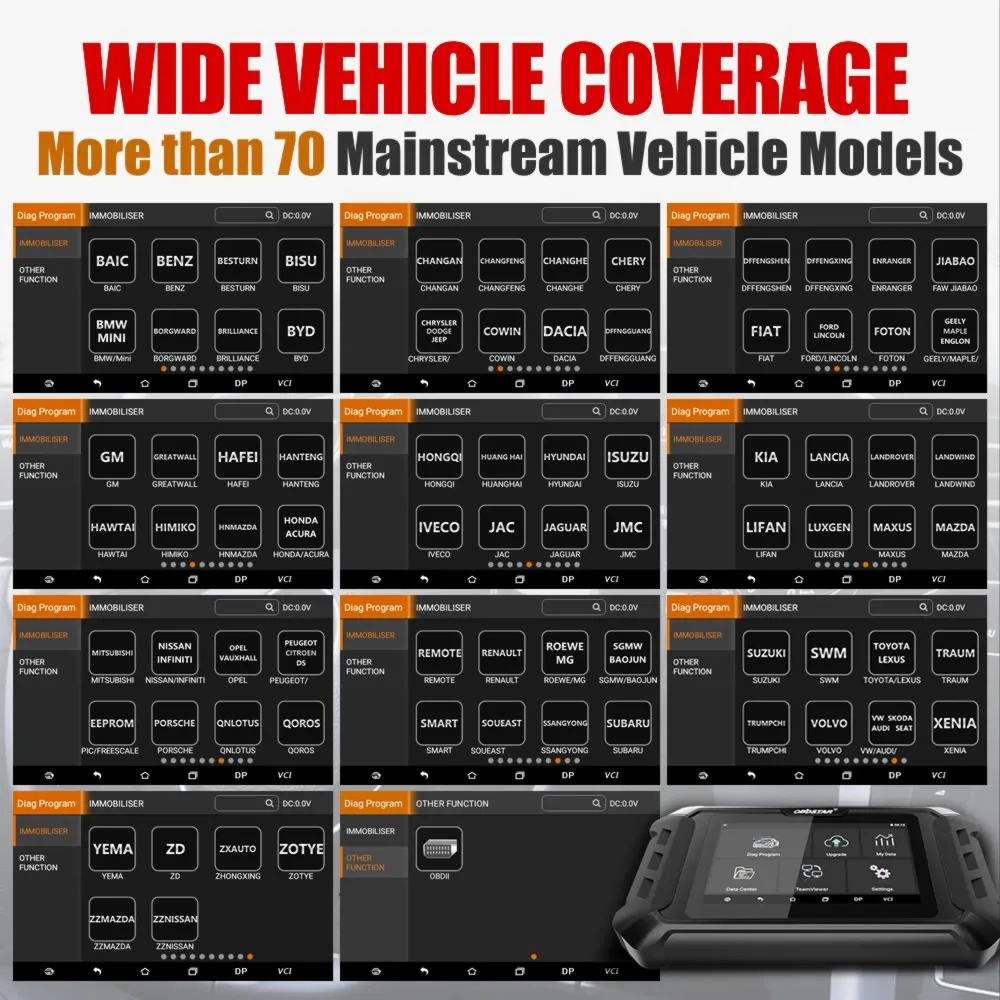

OBDSTAR X300 Pro 4 Programmer Support Car Models List:
OBDSTAR X300 Pro 4 Programmer Support Car Models List:
Europe:
For BMW,for Benz, for Borgward,for Peugeot,for Citroen,for DS,for Dacia,for Fiat,for Jaguar,for Lancia,for Land Rover,for Opel,for Porsche,for Renault,for Smart, for Volvo,for Iveco,for VW/Audi/Skoda/Seat
Japan:
for Honda,for ISUZU,for Mazda,for Mitsubishi,for Nissan,for Subaru,for Suzuki,for Toyota,for Lexus
Korea:
for Hyundai,for KIA,for Ssangyong
America:
for Ford,for Chrysler,for GM
China:
Baic,Besturn,Bisu,Brilliance,BYD,Changan,Changhe,Chery,Cowin,DFFengshen,DFFG,Dfliuzhou,Enranger,Foton,Geely,Greatwall,Hafei,Hanteng,Hawtai,Himiko
Hongqi,Huanghai,JAC,Jiabao,JMC,Lifan,Lufeng,Luxgen,Maxus,Qnlotus,Qoros,Roewe,Sgmw,SWN,SoUEAST,TJFAW,Traum,Trumpchi,Xenia,Yema,ZD,Zhongxing,Zotye,Changfeng
Comparision between X300 PRO 4 and X300 DP PAD PLUS:
Europe:
For BMW,for Benz, for Borgward,for Peugeot,for Citroen,for DS,for Dacia,for Fiat,for Jaguar,for Lancia,for Land Rover,for Opel,for Porsche,for Renault,for Smart, for Volvo,for Iveco,for VW/Audi/Skoda/Seat
Japan:
for Honda,for ISUZU,for Mazda,for Mitsubishi,for Nissan,for Subaru,for Suzuki,for Toyota,for Lexus
Korea:
for Hyundai,for KIA,for Ssangyong
America:
for Ford,for Chrysler,for GM
China:
Baic,Besturn,Bisu,Brilliance,BYD,Changan,Changhe,Chery,Cowin,DFFengshen,DFFG,Dfliuzhou,Enranger,Foton,Geely,Greatwall,Hafei,Hanteng,Hawtai,Himiko
Hongqi,Huanghai,JAC,Jiabao,JMC,Lifan,Lufeng,Luxgen,Maxus,Qnlotus,Qoros,Roewe,Sgmw,SWN,SoUEAST,TJFAW,Traum,Trumpchi,Xenia,Yema,ZD,Zhongxing,Zotye,Changfeng
Comparision between X300 PRO 4 and X300 DP PAD PLUS:
Function | Prouduct Photo | |||
X300DP Plus | X300 Pro 4 | |||
Software (Immo) | Programming Keys | √ | √ | |
Erase Keys | √ | √ | ||
Programming Remote | √ | √ | ||
Read Key Numbers | √ | √ | ||
Pincode Reading | √ | √ | ||
EEPROM Chip Read | √ | √ | ||
OBDII Diagnosis | √ | √ | ||
Cluster Calibration | √ | × | ||
Diagnosis | √ | × | ||
ECU Clone | √ | × | ||
ECU Programming | √ | × | ||
Oil Service Reset | √ | × | ||
Other Special Functions | √ | × | ||
RT100 Remote | √ | × | ||
Luxury Models Coverage | √ | × | ||
Specification | Opration System | Android5.1.1 | Android5.1.1 | |
Camera | supported | × | ||
CPU | Exynos4418 Dual Core ARM Cortex A9 1.4GHz | RK3128 quad-core, ARM Cortex A7@1.2Ghz | ||
Battery | 3700mA, rechargeable polymer lithium battery | 2600Ma lithium ion | ||
Extension Memory Card | 32G Micro SD(TF) card supported | 32G Micro SD(TF) card supported | ||
Storage Capacity | 32GB | 16GB | ||
LCD | 8.0 inch | 5.0 inch | ||
LCD resolution | 1280*800 | 800*600 | ||
Touch screen | Capacitive touch screen | Capacitive touch screen | ||
Wi-Fi | supported | supported | ||
Working Temperature | -10℃~55℃（14℉~131℉） | -20℃~55℃（14℉~131℉） | ||
Storage Temperature | -20℃~70℃（-4℉~158℉） | -20℃~70℃（-4℉~158℉） | ||
Weight | about 1.0kg | about 700g | ||
Dimension | 254mm*174mm*35mm | 140mm*89mm*18mm | ||

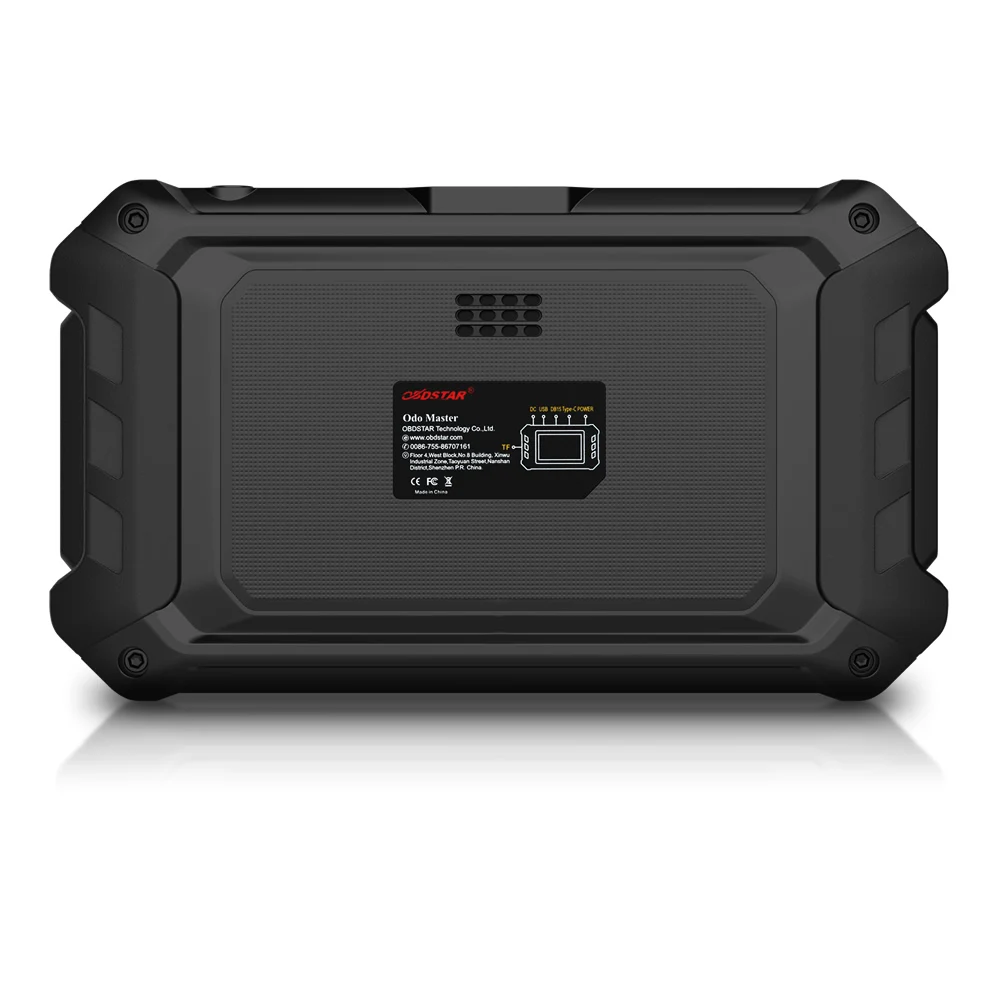

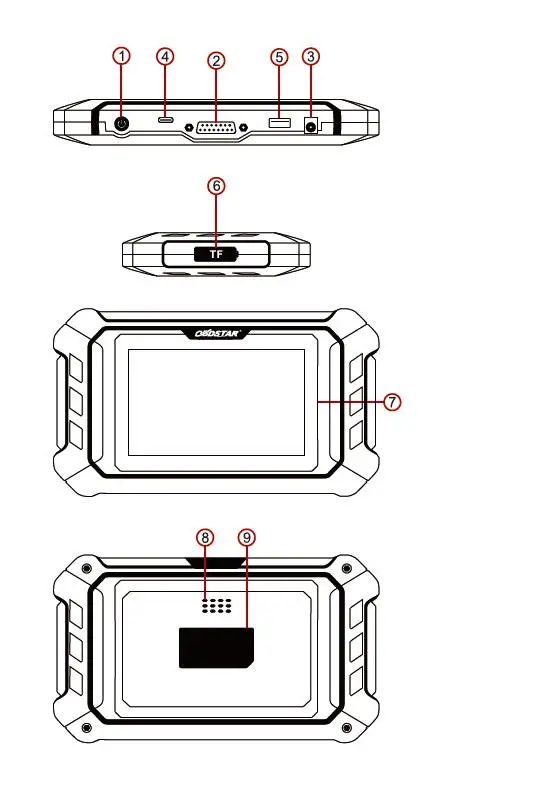

OBDSTAR X300 Pro4 Overview:
① Power/Lock
② Main Cable Port
③ Charging Port
④ TYPE-C Interface
⑤ USB Interface
⑥ TF Card Slot
⑦ Touchscreen/Display Screen
⑧ Speaker
⑨ Serial Number Sticker
How to Register Activation and Update?
Power on
Long press Power button for 5 seconds

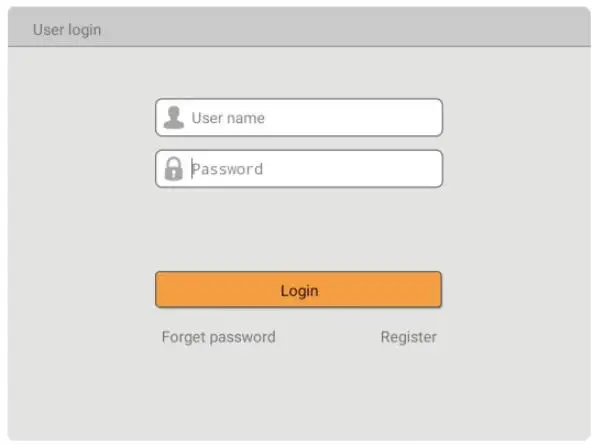

Register Activation

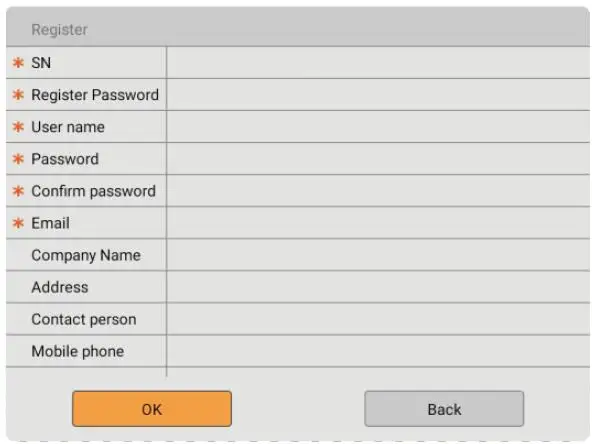

Click on the VCI function on the screen-->User information-->Register-->fill in information
② Main Cable Port
③ Charging Port
④ TYPE-C Interface
⑤ USB Interface
⑥ TF Card Slot
⑦ Touchscreen/Display Screen
⑧ Speaker
⑨ Serial Number Sticker
How to Register Activation and Update?
Power on
Long press Power button for 5 seconds
Register Activation
Click on the VCI function on the screen-->User information-->Register-->fill in information
OBDSTAR X300 Pro 4 Programmer Specifications:
Operation System: Android5.1.1
CPU: RK3128 quad-core,ARM Cortex A7@1.2Ghz
Battery: 2600Ma lithium ion
Extension Memory Card: 32G Micro SD(TF) card supported
Storage Capacity: 16GB
LCD: 5.0 inch
LCD Resolution: 800*600
Touch Screen: Capacitive touch screen
WiFi: Supported
Working Temperatures: -20℃~55℃（14℉~131℉）
Storage Temperature: -20℃~70℃（-4℉~158℉）
Weight: About 700g
Dimension: 140mm*89mm*18mm

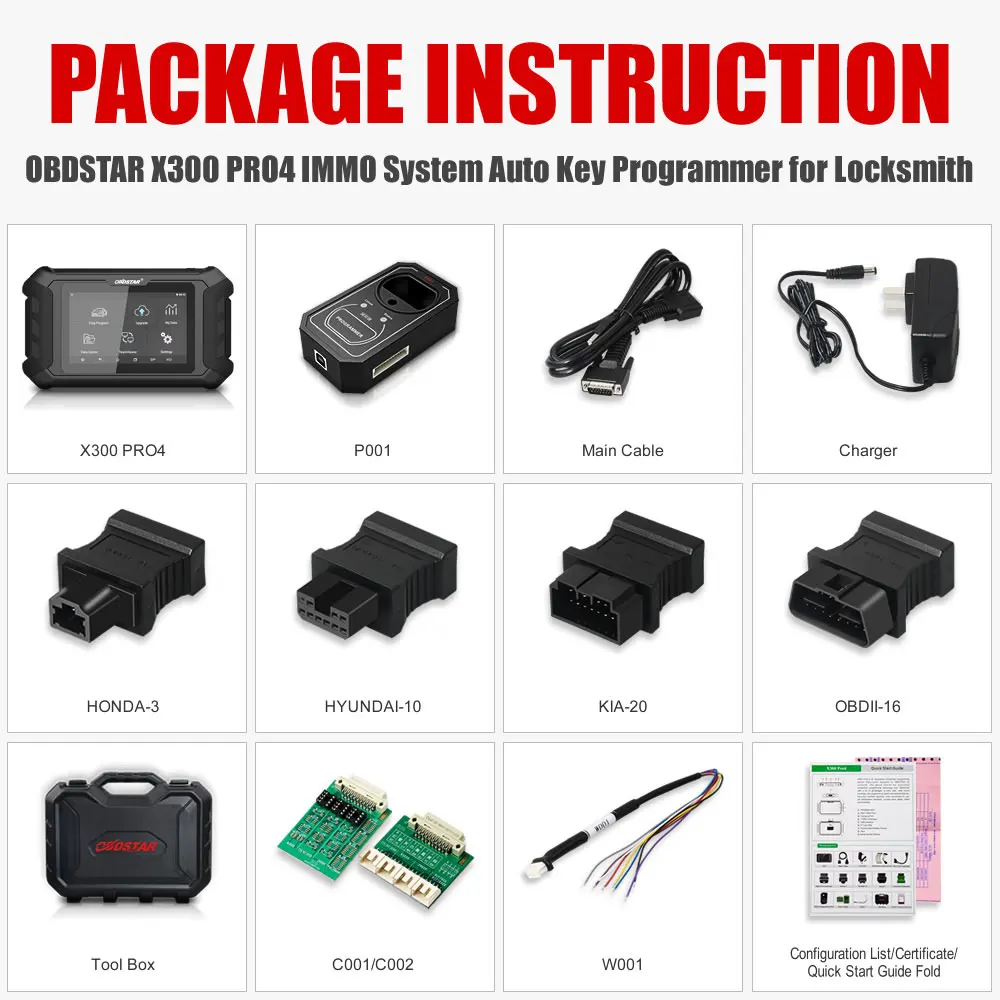

OBDSTAR X300 Pro 4 Programmer Package list:
1pc x X300 Pro 4 Unit
1pc x Main cable
1pc x Charger
1pc x OBDII-16
1pc x for HYUNDA-10
1pc x for KIA-20
1pc x for HONDA-3

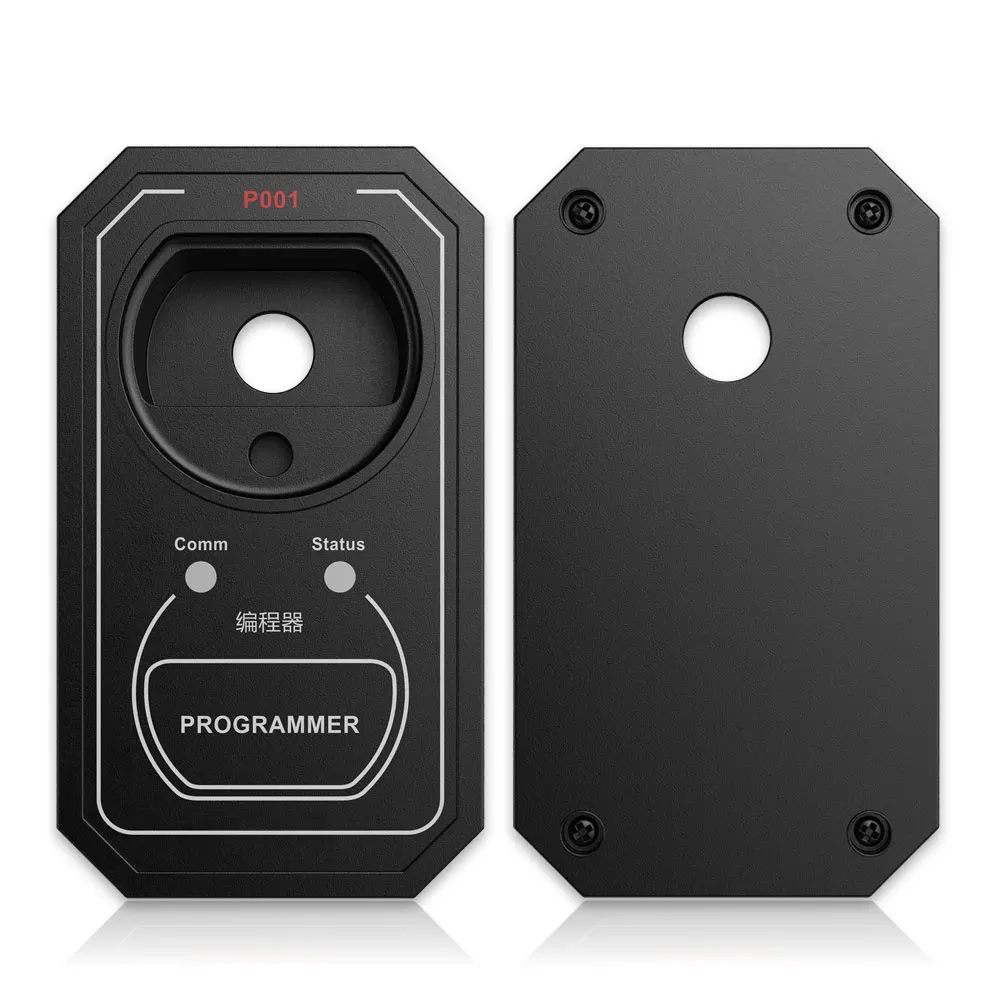

1pc x P001 Programmer
1pc x C001 Board
1pc x C002 Board
1pc x W001
1pc x Tool Box
1pc x OBDSTAR Certificate
1pc x X300 Pro 4 Fast Guide Manual
1pc x Packing List
1pc x Multifunctional Jumper (Optional)
1pc x Renault Converter (Optional)
1pc x FCA 12+8 (Optional)
