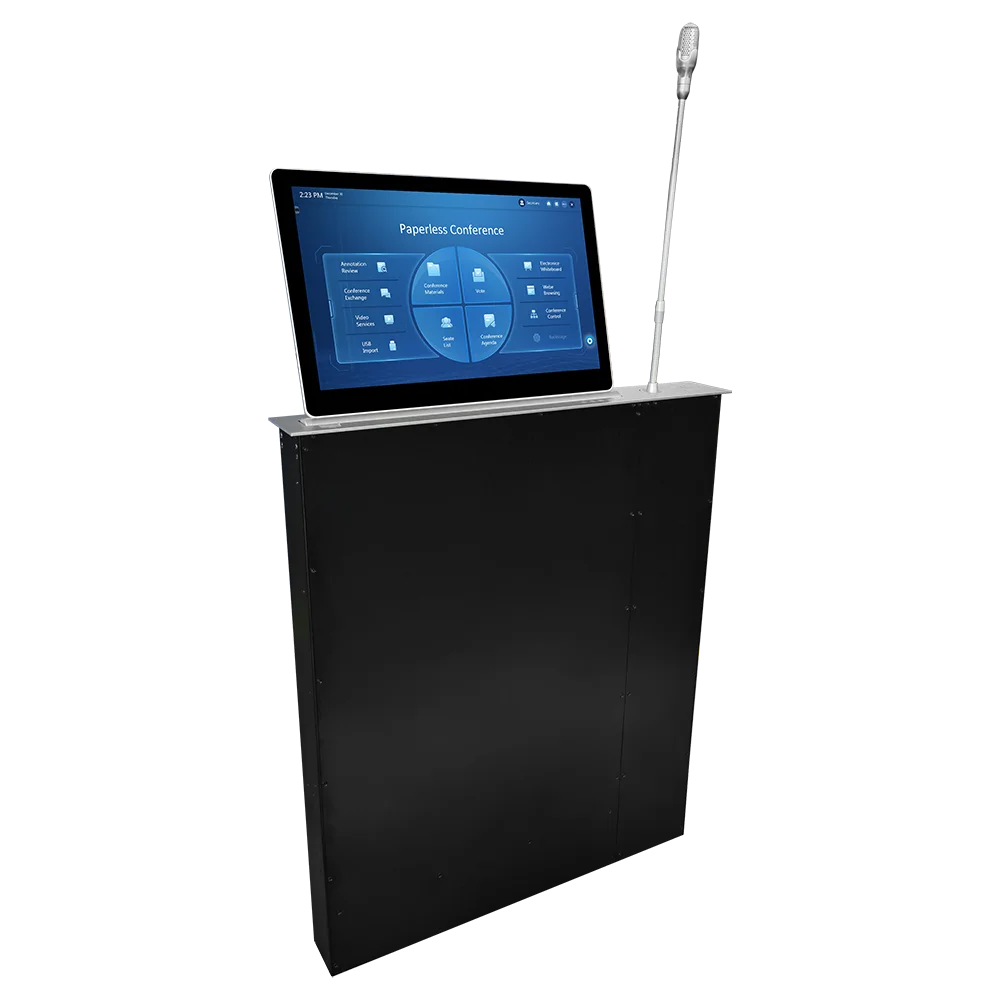

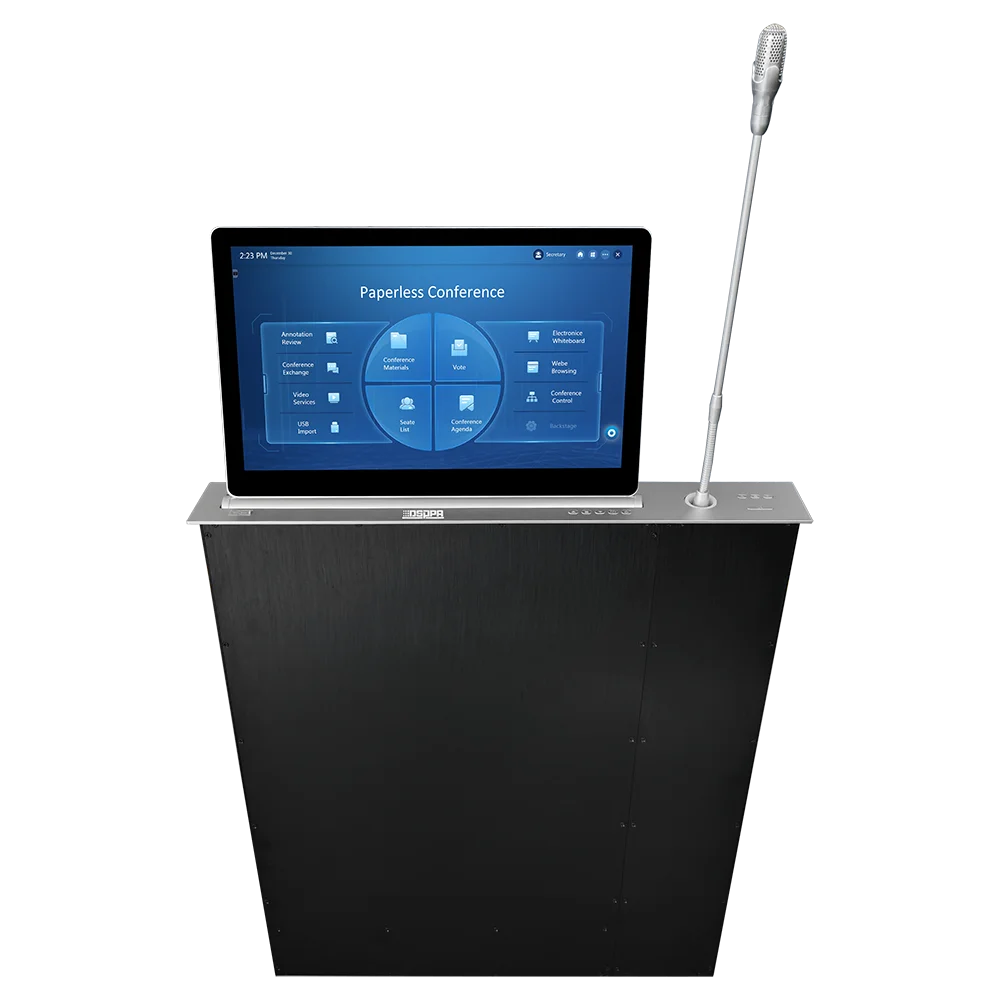

Waterproof Paperless Conference System 17.3 Inch HD Touch Screen hidden lcd electric monitor lift with microphone
- Category: >>>
- Supplier: Guangzhou DSPPA Audio Co. Ltd.
Share on (1600977656236):
Product Overview
Description
Details Images
Features
● The lifting microphone has an automatic straightening function. When the microphone rod is bent, the machine can automatically straighten the rod when turned off, without damaging the rod.
● The lifting display screen and the microphone have a separate lift system, and they can be lifted as needed.
● The equipment adopts all-aluminum structure, high-quality aluminum material and CNC precision processing, the display screen frame is made of a whole aluminum alloy and whole CNC formed at one time, with the thinness not more than 4mm, and the chassis is made of aluminum alloy, making the overall equipment exquisite, light, beautiful and elegant.
● It adopts anodized oxidation treatment for the surface treatment of the equipment, with bright color, and it can support sandblasting, wire drawing and other processes, and customize various colors.
● The thickness of the product panel is only 3mm and the width is only 70mm. Compared with the traditional lifting terminal, it is lighter and takes up less space. The product weight is only one-third of the weight of the conventional lifting terminal, which puts less pressure on the conference table and reduces transportation costs.
● The transmission structure is specially treated to minimize the noise, and the internal structure is treated in a waterproof manner. In general, the tea spilling in the meeting will not affect the use of the machine.
● The high-definition screen is a well-known brand in China, and the A-standard display screen is adopted, with high resolution and bright and transparent colors, with resolution of 1920*1080P, and aspect ratio of 16:9.
● The product uses imported steel wire to cooperate with high-precision guide rail and linear bearing, and uses AC geared motor as the driving power; the central control protocol has strong compatibility, compatible with all control hosts and control equipment.
● After lifting up, the screen automatically powers up, and after falling down, the screen automatically cuts off power, saving power.
● Support HDMI and VGA
● The lifting display screen and the microphone have a separate lift system, and they can be lifted as needed.
● The equipment adopts all-aluminum structure, high-quality aluminum material and CNC precision processing, the display screen frame is made of a whole aluminum alloy and whole CNC formed at one time, with the thinness not more than 4mm, and the chassis is made of aluminum alloy, making the overall equipment exquisite, light, beautiful and elegant.
● It adopts anodized oxidation treatment for the surface treatment of the equipment, with bright color, and it can support sandblasting, wire drawing and other processes, and customize various colors.
● The thickness of the product panel is only 3mm and the width is only 70mm. Compared with the traditional lifting terminal, it is lighter and takes up less space. The product weight is only one-third of the weight of the conventional lifting terminal, which puts less pressure on the conference table and reduces transportation costs.
● The transmission structure is specially treated to minimize the noise, and the internal structure is treated in a waterproof manner. In general, the tea spilling in the meeting will not affect the use of the machine.
● The high-definition screen is a well-known brand in China, and the A-standard display screen is adopted, with high resolution and bright and transparent colors, with resolution of 1920*1080P, and aspect ratio of 16:9.
● The product uses imported steel wire to cooperate with high-precision guide rail and linear bearing, and uses AC geared motor as the driving power; the central control protocol has strong compatibility, compatible with all control hosts and control equipment.
● After lifting up, the screen automatically powers up, and after falling down, the screen automatically cuts off power, saving power.
● Support HDMI and VGA
Product Paramenters
Model | D7615PT | D7617PT | D7618PT | ||
Terminal Display Screen Size | 15.6" HD Screen | 17.3" HD Screen | 18.5" HD Screen | ||
Horizontal FOV (°) | 0~176° | ||||
Vertical FOV (°) | 30~150° | ||||
Screen Ratio | 16:9 | ||||
LCD Screen Resolution | 1920*1080 | ||||
Touch Technology/Surface Hardness | Condenser/Moh’s level 7 | ||||
Touch Points/Sensing Force | 10 points/< 7g | ||||
Touch Response Time | 5ms | ||||
Display Lifting Angle | Auto mechanical adjustment 30° | ||||
Input Interface | VGA*1, HDMI*1, central control interface*1, USB*2, switch interface*1 | ||||
Output Interface | Central control interface*1, power output interface*1, microphone output | ||||
Lifting Microphone | Asynchronous lifting | ||||
Frequency Response | 100~20K | ||||
THD | ＜0.5% | ||||
Input Sensitivity | 35mv | ||||
Lifting Terminal Panel Interface | With USB*1 and USB dust cover | ||||
Enclosure Material | Aluminum alloy | ||||
Color | Black/Silver | ||||
Power Requirement | AC220/50Hz | ||||
Power Consumption | 100W | ||||
Working Temperature | -10℃～45℃ | ||||
Working Humidity | 10%~95% | ||||
Installation Method | Embedded electric lifting installation | ||||
Package Dimensions | 608×132×745mm | 660×132×745mm | 690×132×815mm | ||
Machine Dimensions (L×D×H) | 555×70×650mm | 601×70×650mm | 630×70×720mm | ||
Panel Size | 555×70×3mm | 601×70×3mm | 630×70×3mm | ||
Panel Hole Size | 556×71×3mm | 602×71×3mm | 631×71×3mm | ||
Chassis Size | 538×60×647mm | 584×60×647mm | 613×60×720mm | ||
Chassis Hole Size | 542×62mm | 586×62mm | 615×62mm | ||
Gross Weight | 14.7Kg | 15.1Kg | 16.6Kg | ||
Net Weight | 12.7Kg | 13.1Kg | 14.6Kg | ||
Related Products
DSPPA Solutions

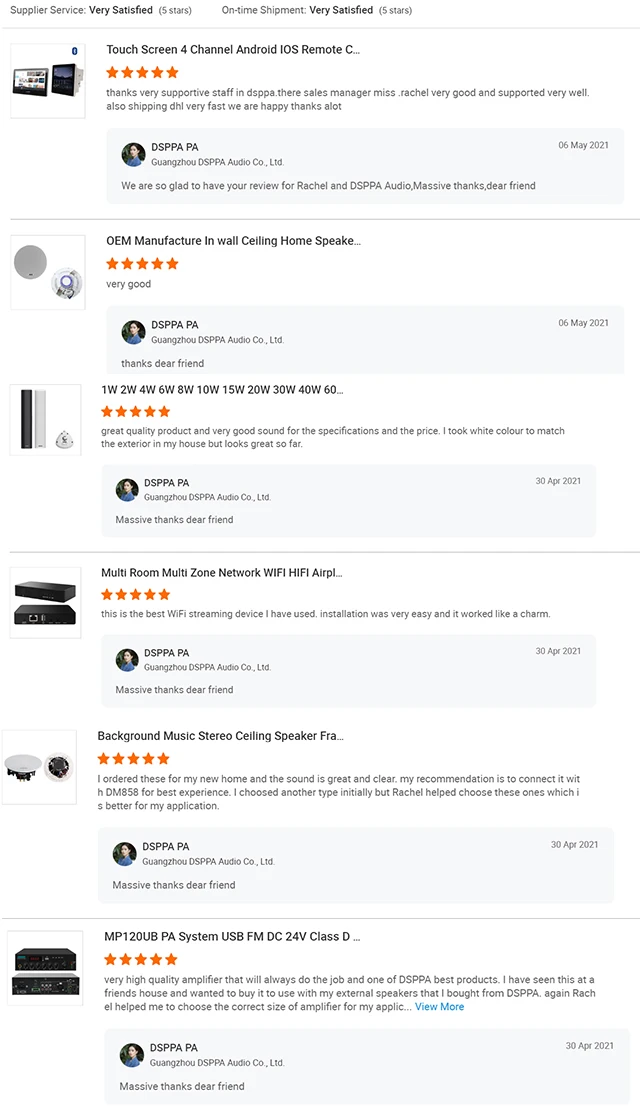

Customer Reviews
