Product Overview

Description



Products Description


L Angle profile roll forming machine






Application:

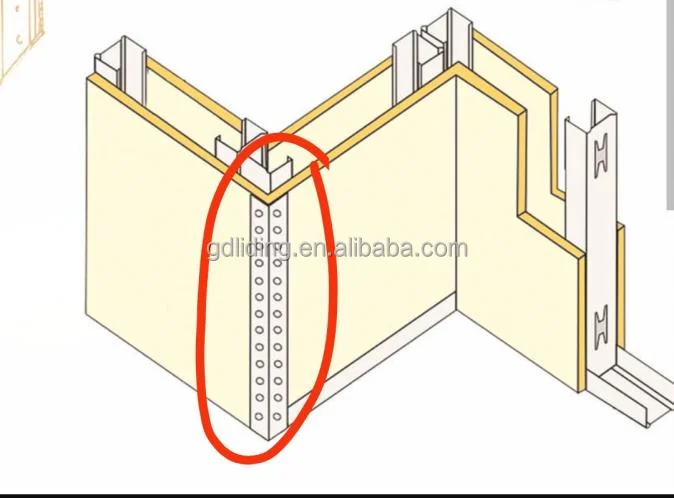

Angle steel can be used in blower frames or suspended metal and drywall ceiling or drywall partition systems.




Product Specifications


L Profile roll forming machine details:





Workflow
Decoiling - Roll Forming - (Servo) Punching 45° Angle - Punching Vertical Edge Hole - Punching Flat Edge Hole - Cutting (Outer Flange Cutting) - Finish




Composition of the machine:
* Decoiler,1 set
* Forming machine,1 set
* Mold stations,4 set
* Angle-cutting mold,1 set
* Punching molds (combination of interchangeable cores),2 sets
* Cutting mold,1 set
* Hydraulic cutting system, 1 set
* PLC control 1 set

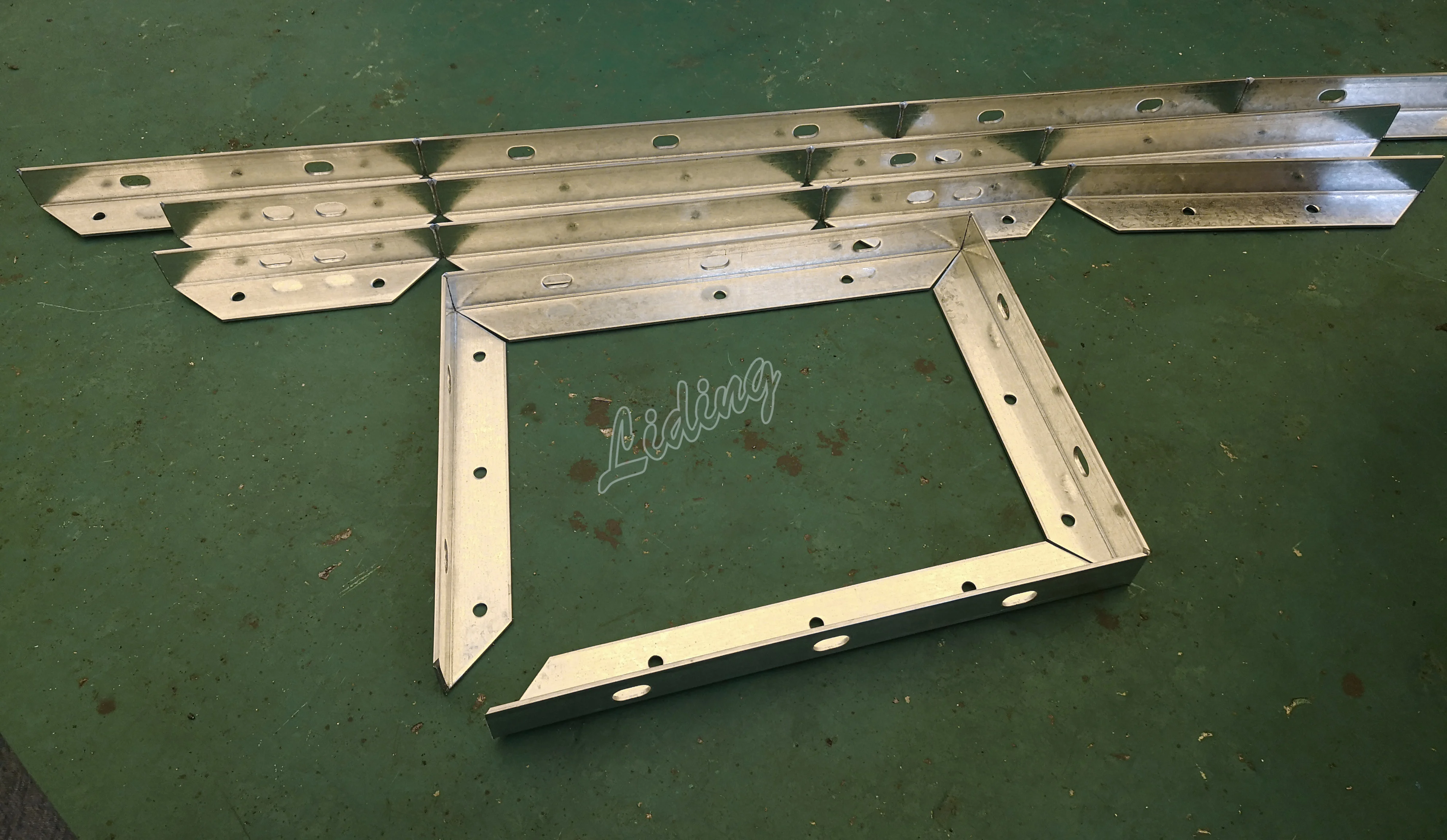

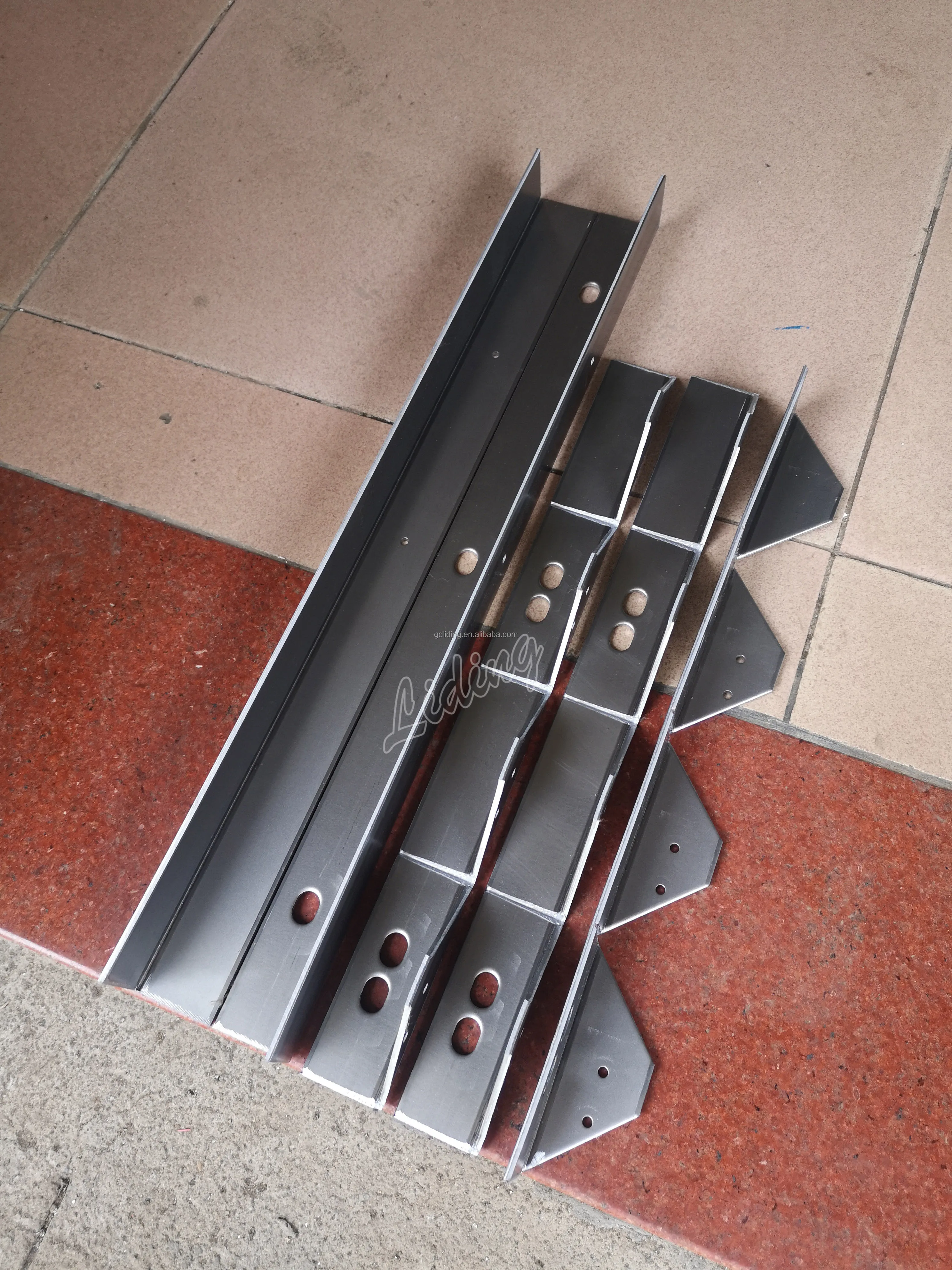

Profile




Details Images


25 years of production experience to provide customers with solutions

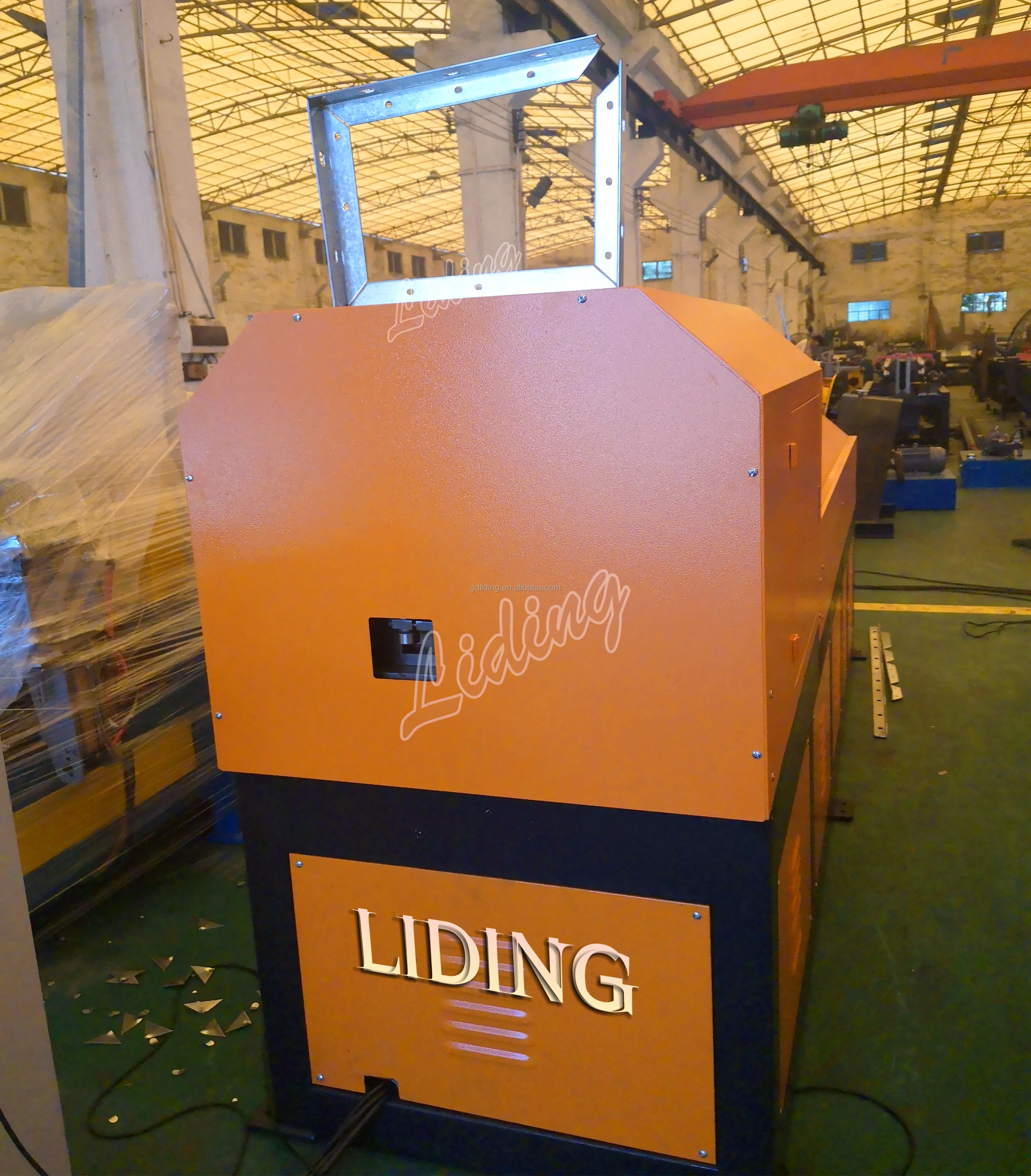

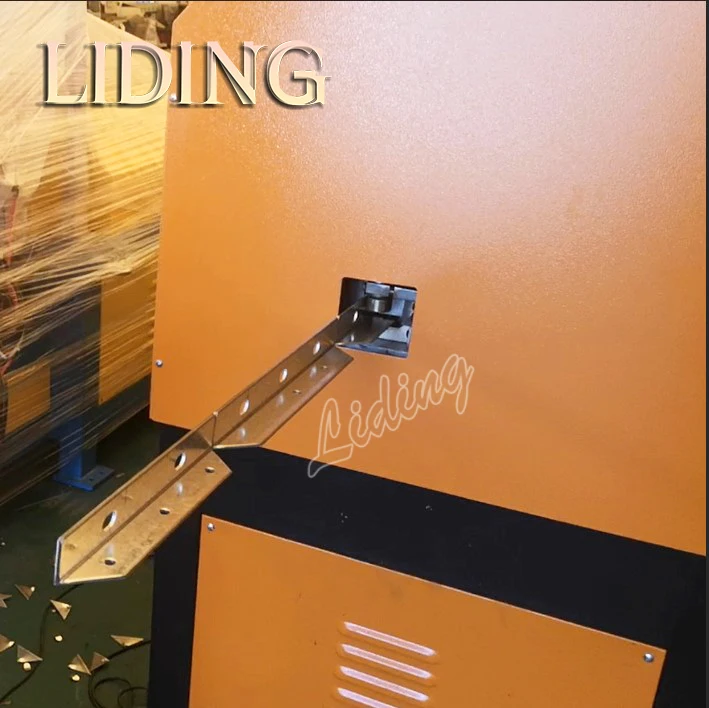

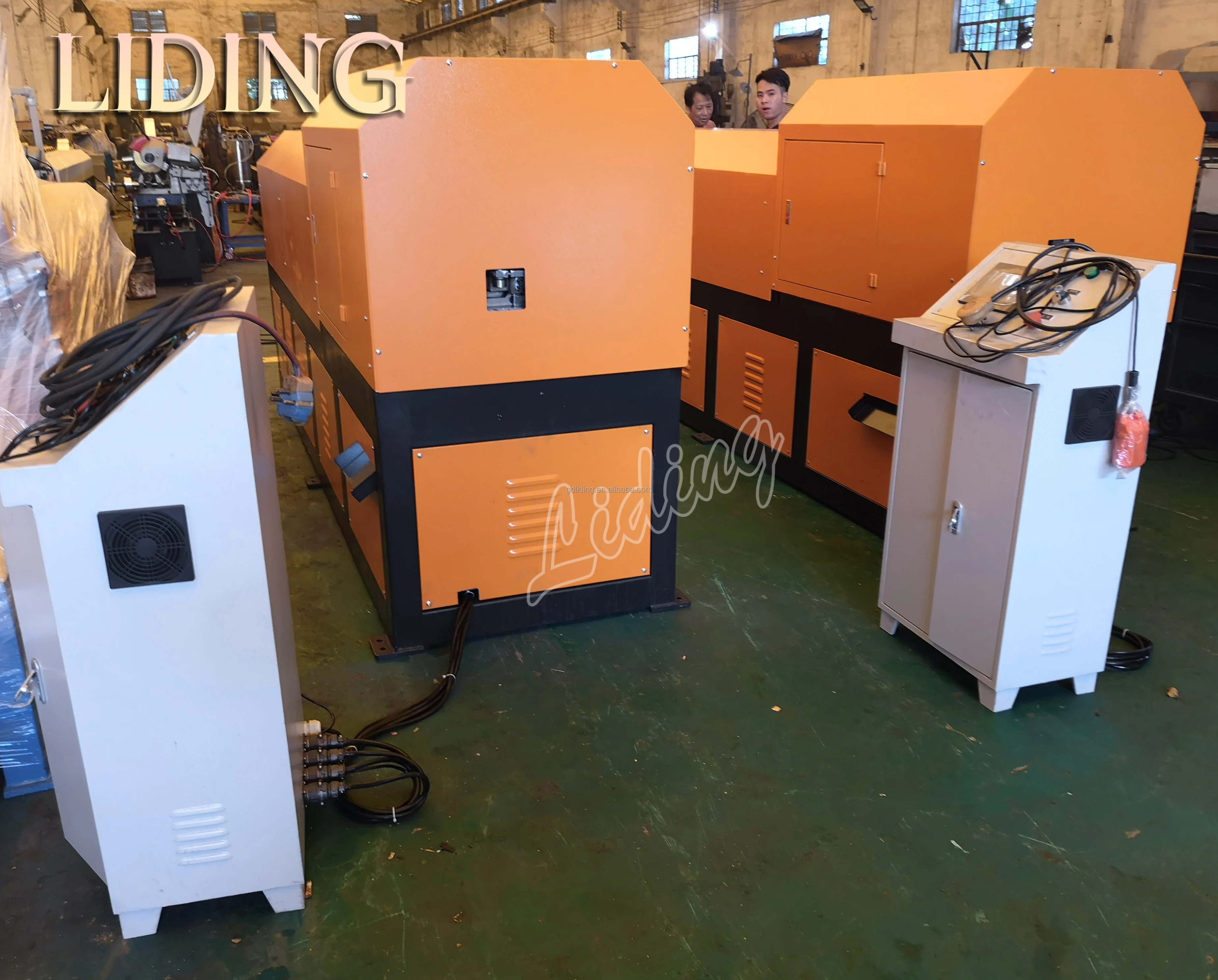

L angle roll forming machine

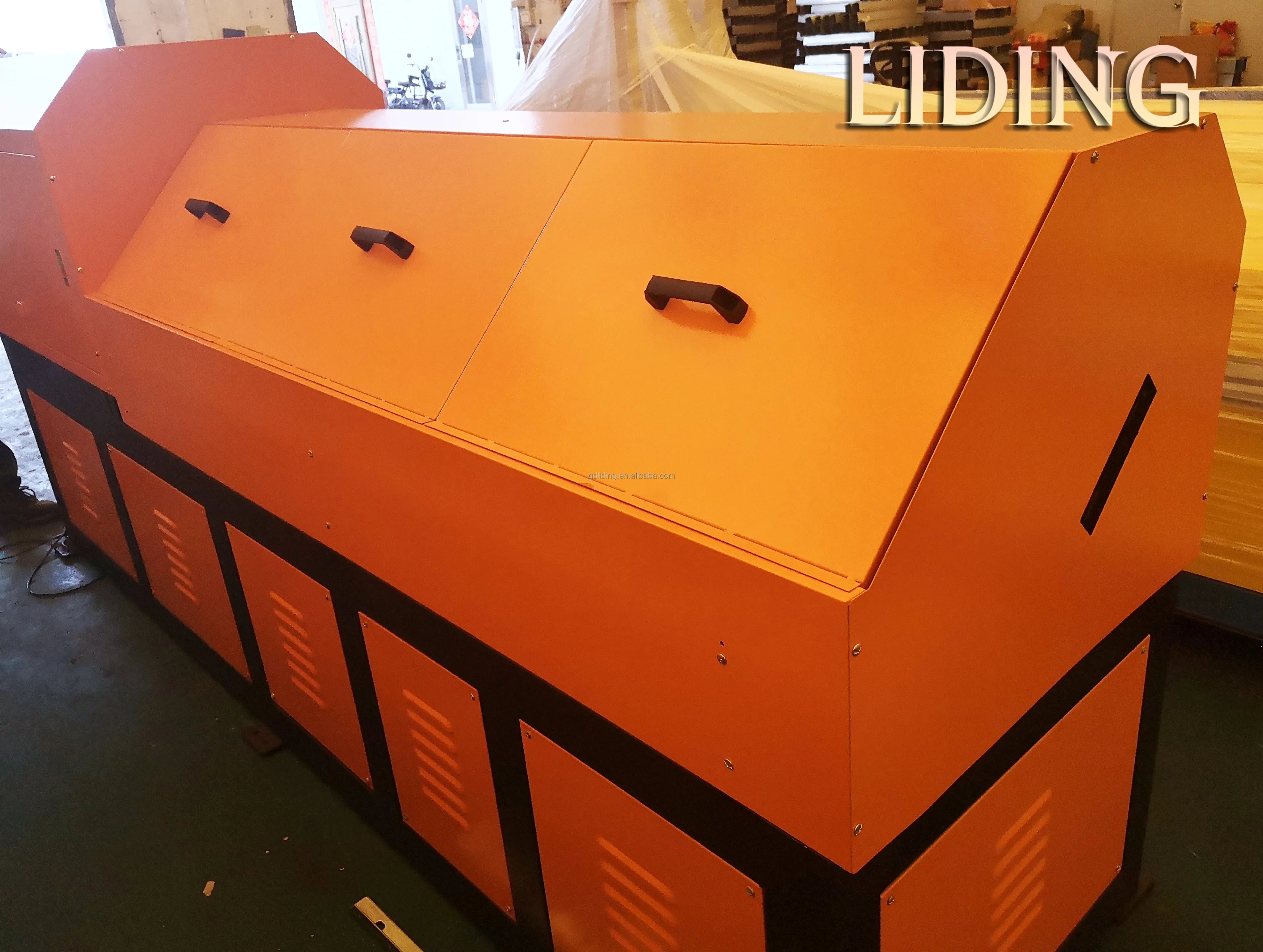

Forming machine
*Applicable materials: Cold or galvanized sheet metal
* Material thickness: 2.0mm
* Main motor power: 7.5kw
* Forming speed: 0-6m/min
* Shaft diameter and material:¢ 56mm, 45# steel
* Great wall type plywood: plate thickness 30mm
* Transmission: gear transmission.
* Control system: PLC control
* Machine net weight: about 3tons
* Voltage: 380V/ 3phase/ 50 Hz
* Dimensions of molding machine: L*W*H 4m*0.8m*1.5m
*Forming roll material: Cr12MoV

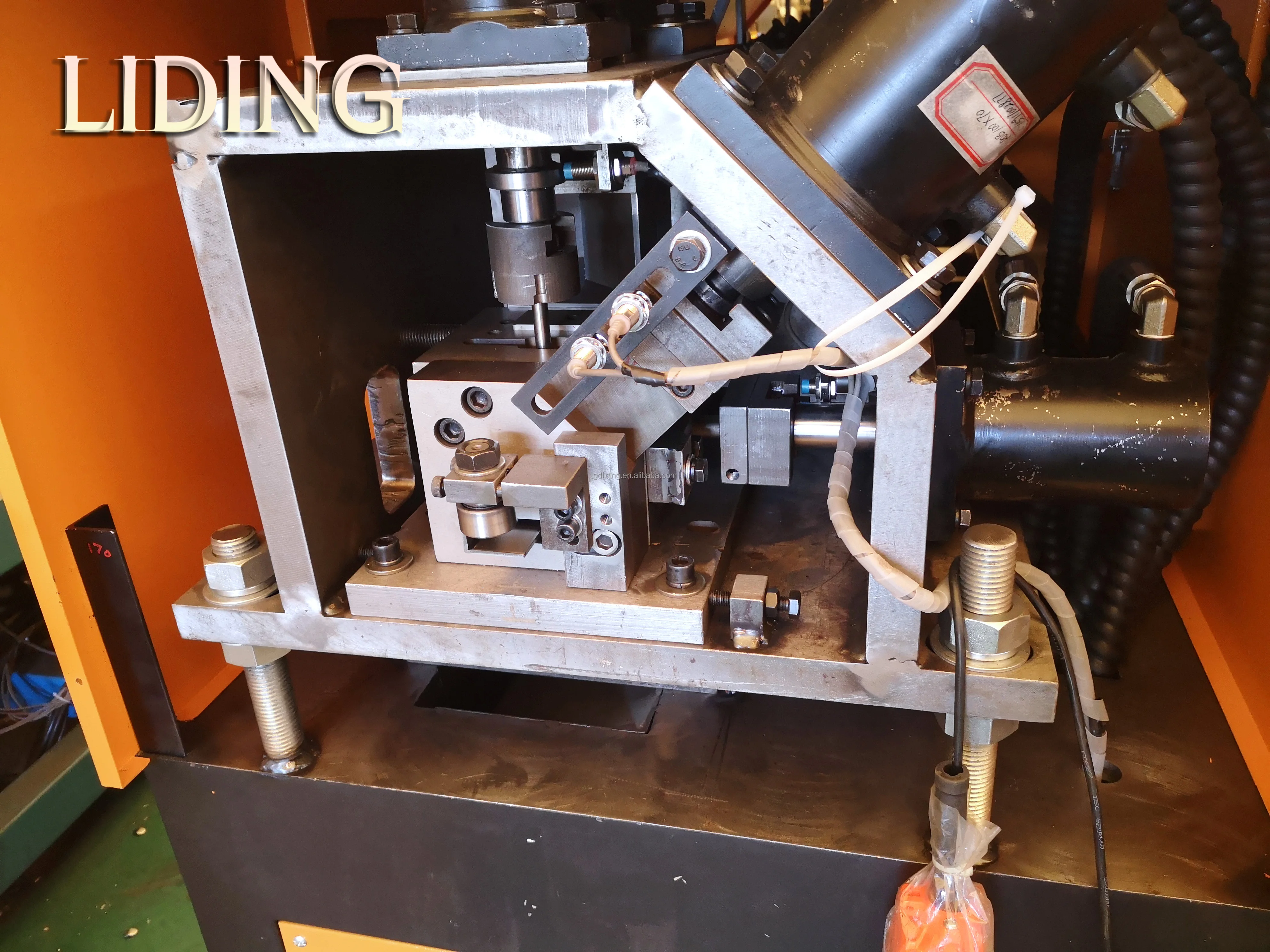

Cutting off parts
* One set of hydraulic system, hydraulic motor 7.5KW, pressure 15Pa, four stations oil cylinder
* 3 sets of punching molds, 1 set of non-cutting molds
* Mold material: CR12MOV
* Processing hardness HRC60°-62°.
* Adopt online encoder to detect the stopping cutoff


Company Profile




Foshan Liding Machinery Technology Co., Ltd.

Foshan Liding Machinery Technology Co., Ltd. was established in 2014,specializing in the design and manufacture of cold-forming equipment automatic production lines,such as TDC flange machine, elliptical pipe machine, spiral duct machine, C/Z-shaped steel machine, color tile machine, highway guardrail machine, cold cabinet accessories machine,shelf column machinery, doors and windows frame machinery, shaped pipe machine, etc.






Liding provides the most professional and precise cold-forming machine machinery equipment,which has reliable quality and stable performance. A team of experienced engineers is working with PROE design software system and skilled technicians for machine production and inspection.
Liding customises stable, efficient roll forming machinery to satisfy customer requirements, aiming to developing business relations with customers from all over the world, strengthening mutual benefits and cooperation.






Company Advantages

Percentage of 100 technical service support
More than 10 professional R&D team
20 years of professional manufacturing experience in cold roll forming machines
Focus on quality and Quick response to clients











CUSTOMER VISIT
Operation-speed regulation-maintenance-type change. overseas trainer service package teachingspackage meeting 100% Welcome new and old customers to visit the factory and learn more.






Certifications




FAQ


Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.

Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB, CFR, CIF and so on. Please kindly tell the detailed port name for
competitive ocean freight.

Q4. What's your payment terms ?
A4: 30% as the deposit in advance, 70% as the balance payment after your inspect the machine well and before delivery. After we get down payment, we will arrange production.

Q5. How to get a quotation?
A5: 1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance. 3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.

Q6. What is the after- sale service?
A6: 1. The warranty is 12 months after the client receives the machine.
2.Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free.
3. We offer technical support for the entire life of our machines.
4. We can send our technicians to install and train the workers in the clients' factories with extra cost.
5.After the quality guarantee period, only charge the production cost of the spare parts.

Q7. Can you provide some spare parts?
A7: Yes, of course you can. Fast wearing parts will be sent to you together with the machine.
