Price:$59,800.00 - $68,800.00

Quantity:


Product Overview

Description





Please Contact


ABOVE is our full line machinery and truck catalog.
We can provide any other model you need, please feel free to contact me for enquiry!

Jalynn Xia
Sales Director
Email: Jalynn@oriemac.com
Phone number/Whatsapp/Wechat: +86 13166426286.

Please leave a message at the bottom of the details page.

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Add: Suite 2808, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Website: www.oriemac.com


FEATURES AT A GLANCE

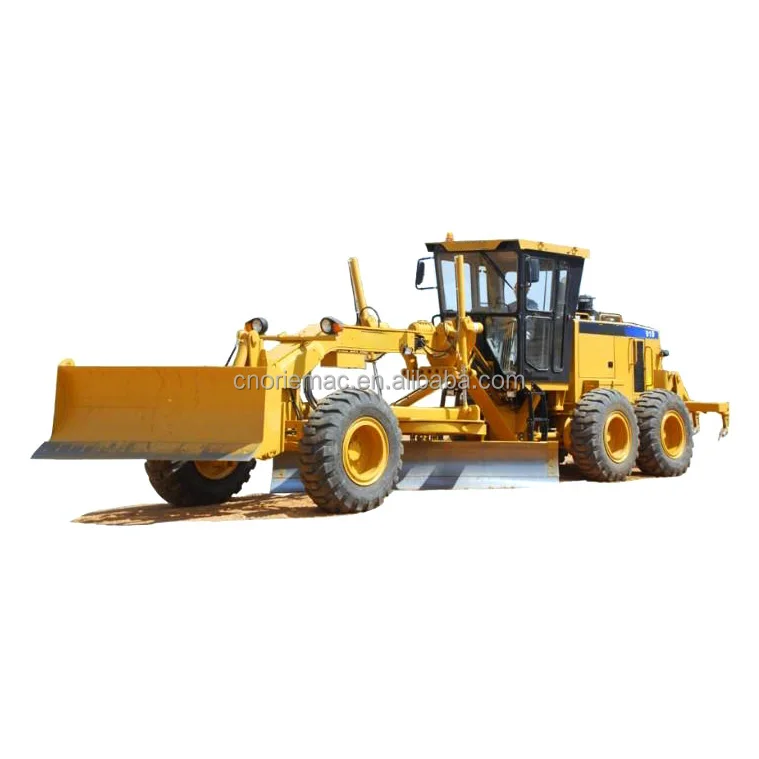

China New 220HP Motor Grader With High Efficiency
SEM921
SEM Tandem Axle
-Leveraging designing and experience on MG tandem axle
-Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
-Less down time and reduced labor and service cost for maintenance and repairing
-Longer service interval for lubrication oil change
-Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line

Control System
-7 position link bar with electric over hydraulic control allows ease of operation from within the cab
-Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
-The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
-Replaceable bushings reduce service time and cost

Blade Float
-Standard blade float function allows SEM919 motor grader's blade to lower without hydraulic pressure for increased versatility
-Blade float is engaged by pushing the left and right lift cylinder controls all the way forward past the detent
-Provides protection for SEM919 motor grader and pavement during snow removal and snow plowing

Hydraulic System
-Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications,
continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing
working efficiency
-World-class variable displacement piston pump, efficiently reduces SEM919 motor grader power consumption and hydraulic system
heat, improving fuel efficiency
-Load-sensing hydraulic system provides SEM919 motor grader consistent and precise blade movement, improving finishing performance
-Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks

Drawbar
-A-frame tubular design drawbar provides SEM919 motor grader maximum strength and durability
-Replaceable drawbar draft ball (bolted – not welded) for less service time and cost
-Easy removal of wear shims to adjust drawbar

Front Frame
-Flanged box section design removes welds from high stress areas, improving reliability and durability
-Continuous top and bottom plate construction provides SEM919 motor grader consistency and strength, improving front frame
durability
-Hydraulic hose routing minimizes exposure to damage and provides quick access for service
-Maintenance-free bushings improve durability and reduce overall service cost

Control Layout
-Short throw levers are efficiently spaced, allowing ease of multi-function control
-Short lever travel (40mm) with low lever effort reduces operator fatigue

Large Cab
-High performance dashboard with 3 levels alarming monition system
-Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation
-Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional comfort



PRODUCT SPECIFICATIONS


Items
SEM919
SEM921
SEM922AWD
Operation Weight(Base Machine)
15070KG
15930KG
18120KG
Overall Dimensions(L*W*H)
8703*2630*3360mm
8854*2630*3360mm
10324*2728*3360mm
Blade Length(L*W*H)
3974*25*607mm
4279*25*607mm
4279*25*607mm
Max.Lifting Height
475mm
475mm
475mm
Max.Depth of Cut
715mm
715mm
715mm
Max.Drawbar
≥78KN
≥85KN
Front≥26KN
Rear Axle≥86KN
Wheelbase
6140mm
6140mm
6140mm
Frame Articulation Angle
20°
20°
20°
Min.Turning Radius
7.8mm
7.8mm
7.8mm
Engine Brand
SDEC SC8D190.1G2
SDEC SC9D220G2
SDEC SC9D220G2
Rated Power
140KW
162KW
162KW
Transmission Type
Hangchi 6WG180
Hangchi 6WG180
Hangchi 6WG180
Travel Speed(Forward/Rear)
40/25km/h
40/25km/h
40/25km/h
Rear Axle/Tandem
SEM ST22
SEM ST22
SEM ST22
Service Brake
Outboard disc with brake
Air to oil control
Outboard disc with brake
Air to oil control
Outboard disc with brake
Air to oil control
Oscillation(Front up/Rear up)
15/25°
15/25°
15/25°
Max.Oscillation Angle
±16°
±16°
±16°
Steering Angle (Left/Right)
47.5°
47.5°
47.5°
Max.Lean Angle of Front Wheels
18°
18°
18°
Hydraulic System
Load Sensing,PPPC
Load Sensing,PPPC
Load Sensing,PPPC
Optional Accessories
Specification
SEM919
SEM921
SEM922AWD
Shanghai Diesel D9-Stage II
S
S
S
Hangchi 6WG180
S
S
S
Circle drive with slip cluth
O
O
O
SEM Tandem/Axle
S
S
S
Rim & Tire Group(14.0-24 12PR)
O
O
O
Rim & Tire Group(17.5-25 12PR)
S
S
S
Rim & Tire Group(17.5-25 16PR)
O
S
S
Rim & Tire Group(17.5R25 G2)
O
O
O
Rim & Tire Group(17.5-25 16PR L3)
O
O
O
Blade Group(12")
O
O
O
Blade Group(13")
S
O
O
Blade Group(14")
O
S
S
ROPS Cab Group
O
O
O
Load Sensing
(Variable Piston Pump+PPPC Valve
S
S
S
Non ROPS Cab Group
(Cab Accessories GP-STD)
S
S
S
Non ROPS Cab Group
(Cab Accessories GP-Premium)
O
O
O
Cab Heater only
S
S
S
Headlight
O
O
O
Beacon
O
O
O
Start GP-Normal
S
S
S
Start GP-Cold
O
O
O
Start GP-Arctic
O
O
O
Rear Ripper/Scarifier
Front Blade
O
O
O
Snow Wing Assembly
O
O
O
Snow Wing Mount
O
O
O
Tool Box
O
O
O
Guard- underneath cab
O
O
O
Guard- transmission
S
S
S
Rear Fenders
O
O
O
HVAC(Heating Ventilation
and Air Conditioner)
O
O
O
Roading arrangement- license plate
mount and light
O
O
O
Arctic Oils
O
O
O




Why Choose Us


Company Profile
Oriemac Machinery & Equipment (Shanghai) Co., Ltd. is a top package equipment solution provider in Shanghai, China, especially for construction machinery, heavy industrial equipment and vehicle. We are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly and on schedule.
With over 8 years experience in the field of engineering industry and accompanying to fulfill strictly ISO 9001:2008 standard, Oriemac had established and have been consistently keeping good business relationship with many general
contractors, civil engineering companies and construction companies throughout the world. We participated as package equipment provider previousiv include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present.
