WS2812B WS2811 Led Strip Controller Bluetooth SP105E SP110E Wifi SP108E SP511E Music SP107E SP601E Addressable Led Controller
Pay Attention:
What Voltage Of The Power Supply Used is Determined by the Voltage of Led Strip

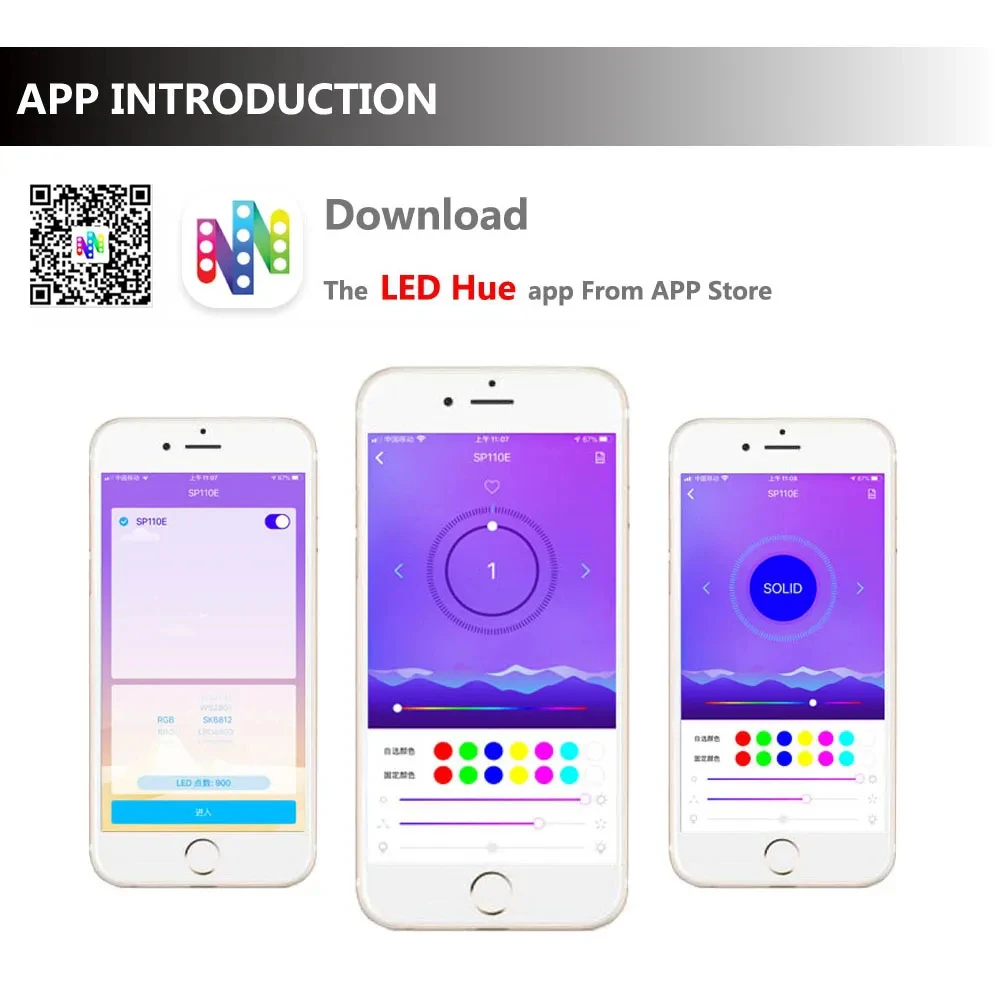

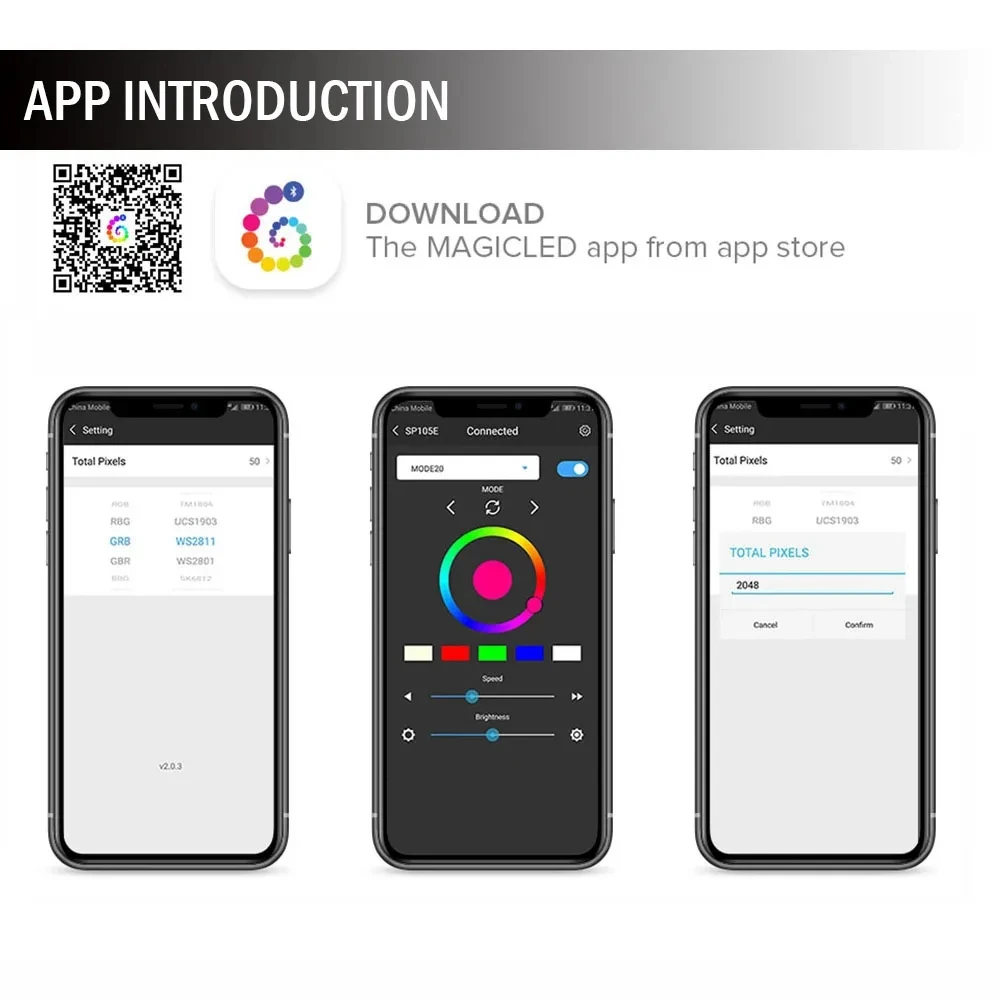

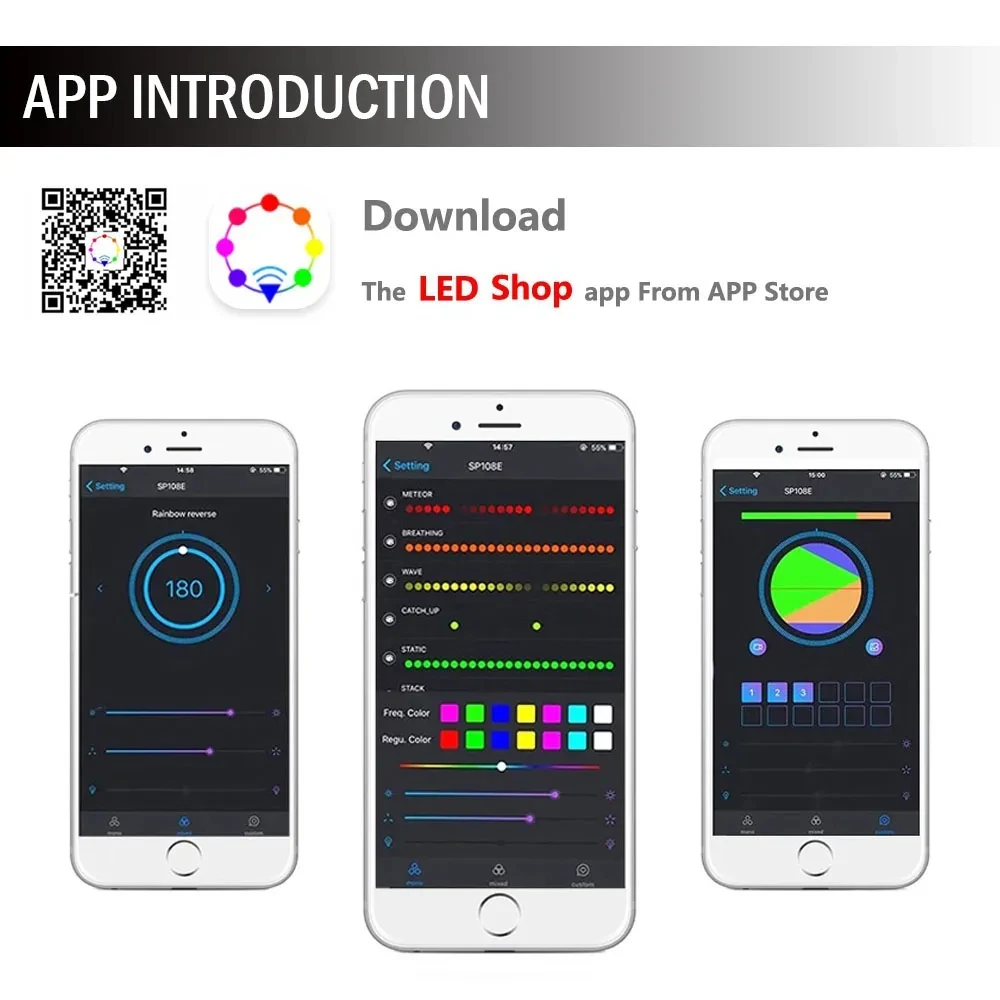

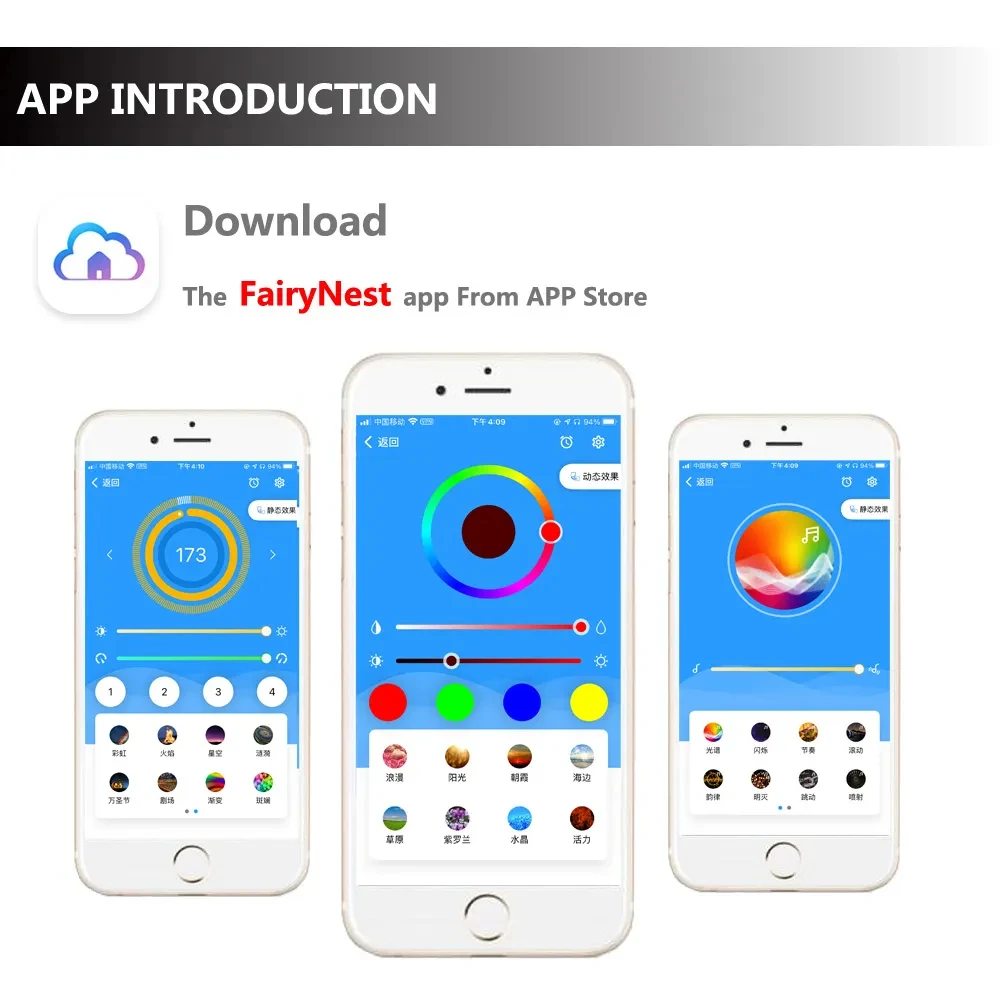

About the bluetooth led controller bluetooth connection ways:
1.You only open the phone Bluetooth Button is ok,do not need search the controller bluetooth and connection.
2.Then you open your Download APP,The APP will search the bluetooth automatically,then you can find your controller model,please click it to connection.
3.If when you open the APP it can not search the bluetooth automatically,please Refresh the first page of the opened APP.

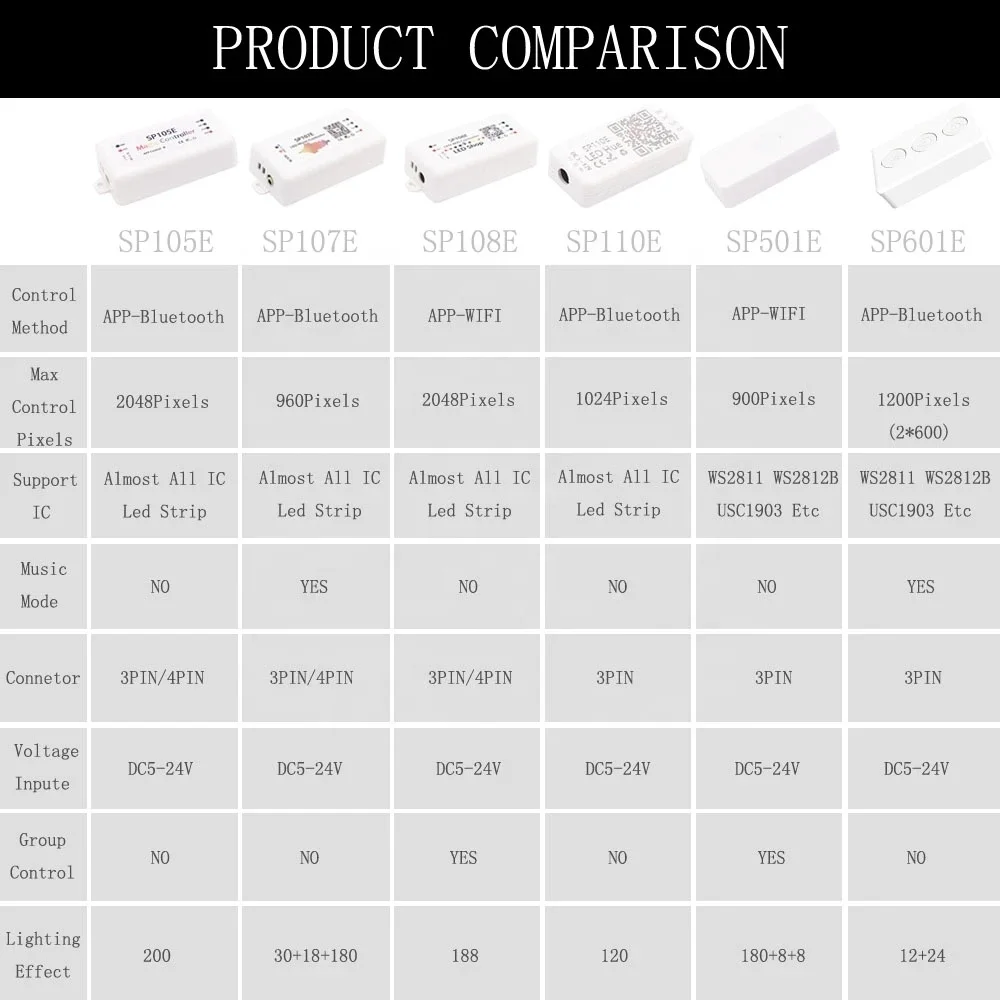

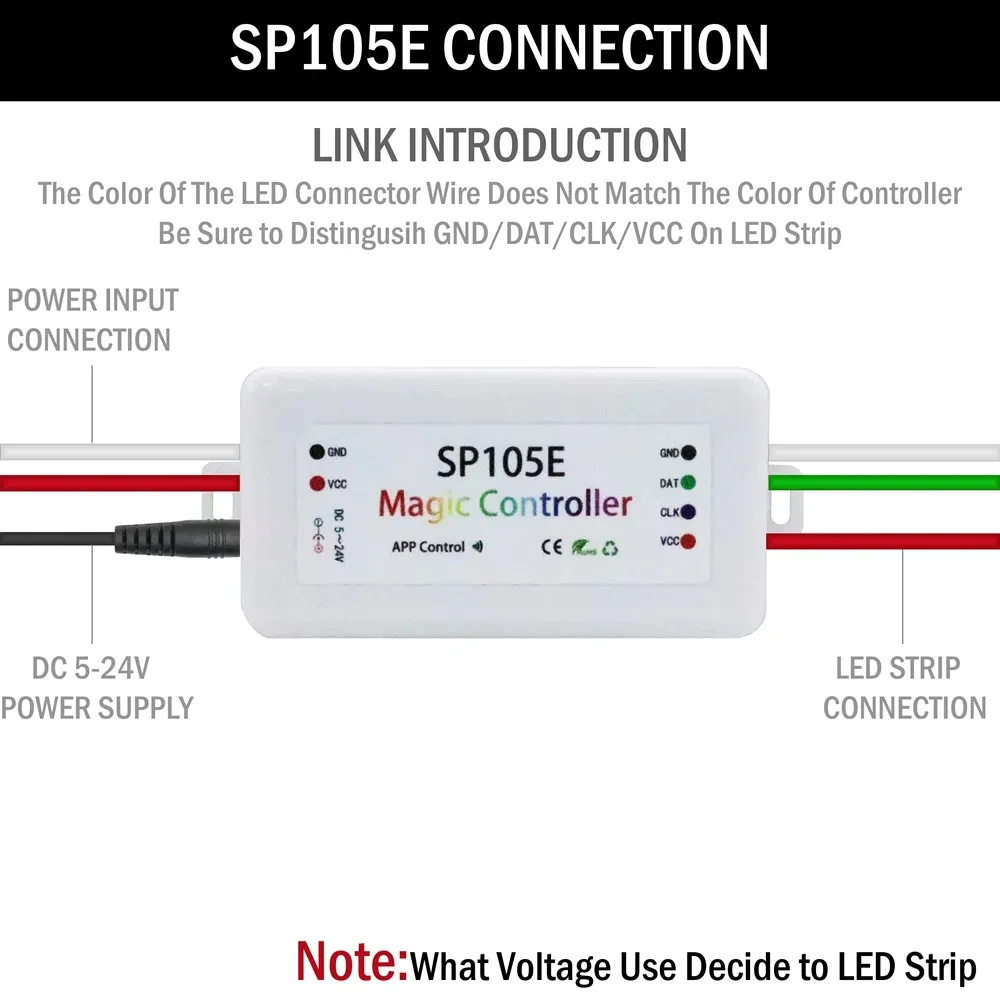

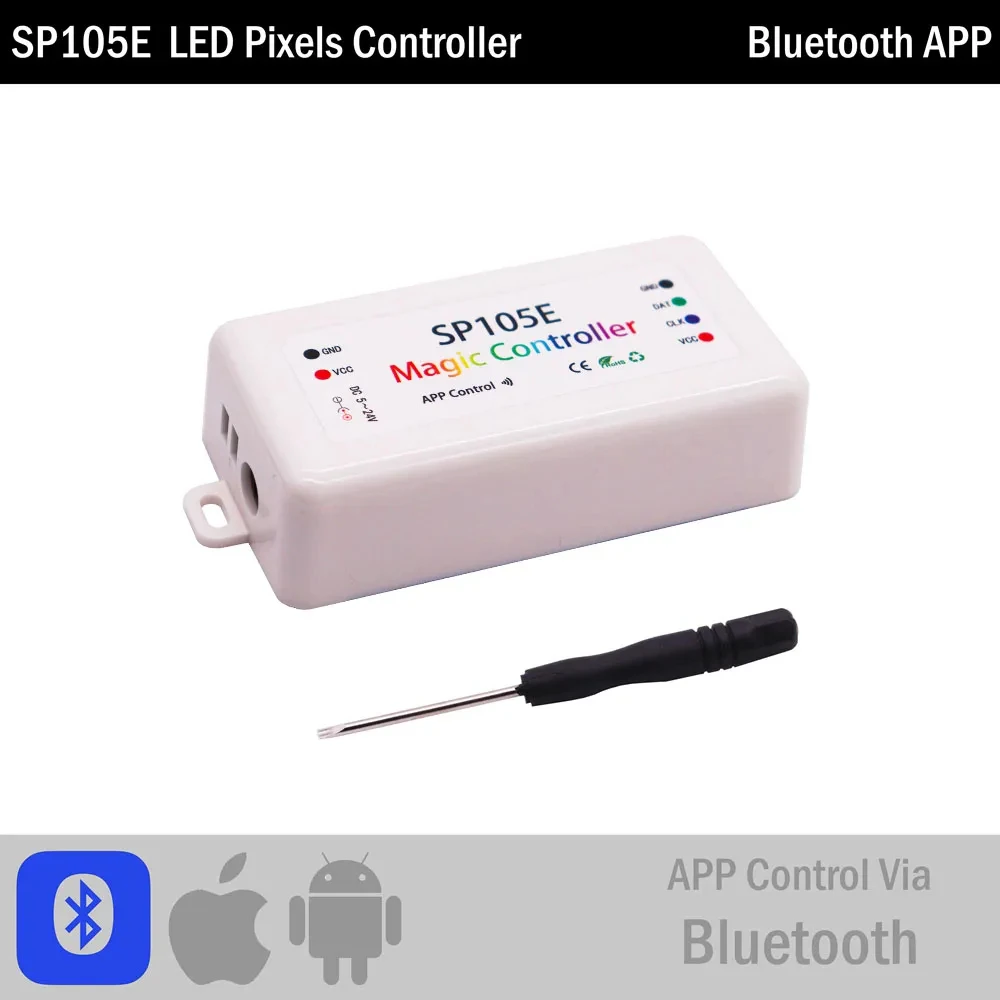

SP105E Pixels LED Controller:
Control Method: APP (Bluetooth)
Input Port: DC Female Connector
Input Voltage: DC5-24V
Maximum Current: 5.5A
Pixel: 2048
Music activated mode: No
Magical colour effect mode: 200
Connector: 3Pin/4Pin
Support IC: WS2811 WS2812B WS2813 WS2815 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412

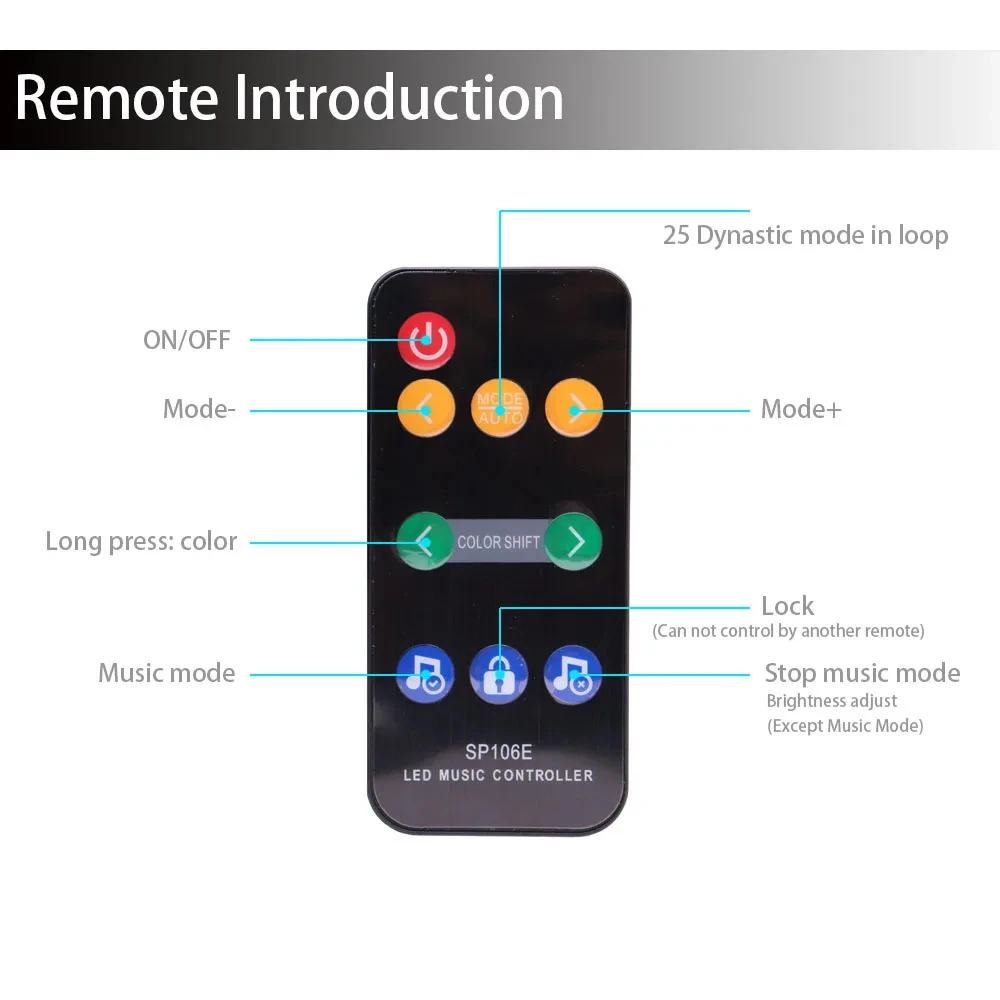

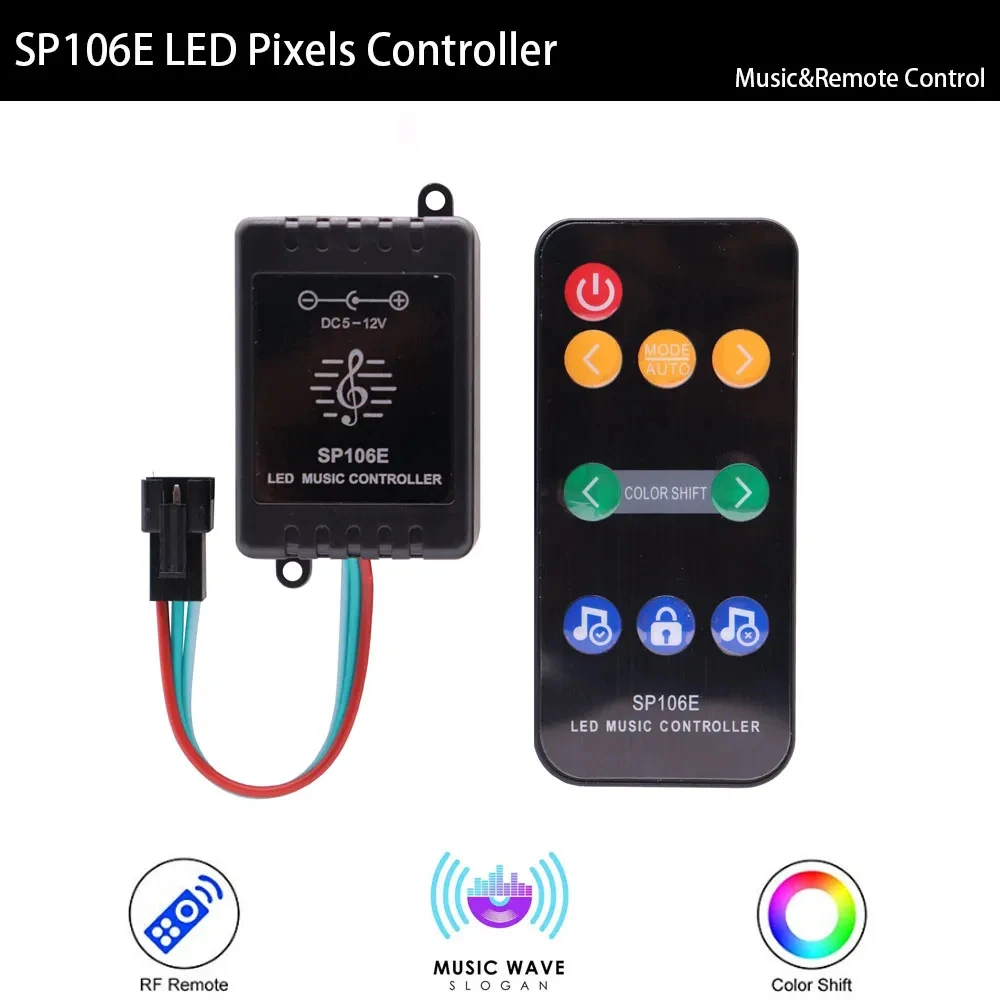

SP106E Pixels LED Controller:
Control Method: RF Remote Control
Input Port: DC Female Connector
Input Voltage: DC5-12V Maximum Current: 8.0A
Pixel: 600
Music Activated Mode: Built-in Microphone
Musical Effect Mode: 5 Magical Colour Effect Mode: 20
Output Port: 1
Connector: 3Pin
Connection mode: common anode
Support IC: WS2811 / WS2812B / WS2813 / USC1903 etc

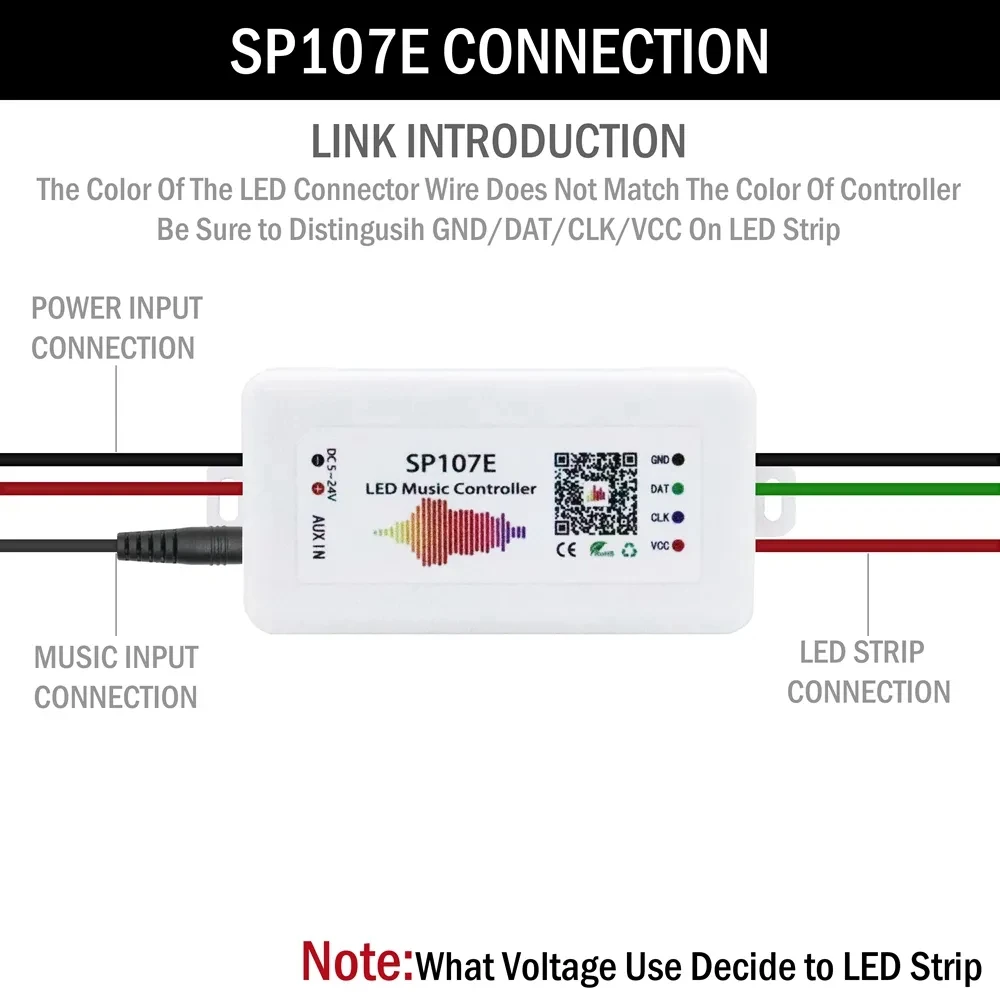

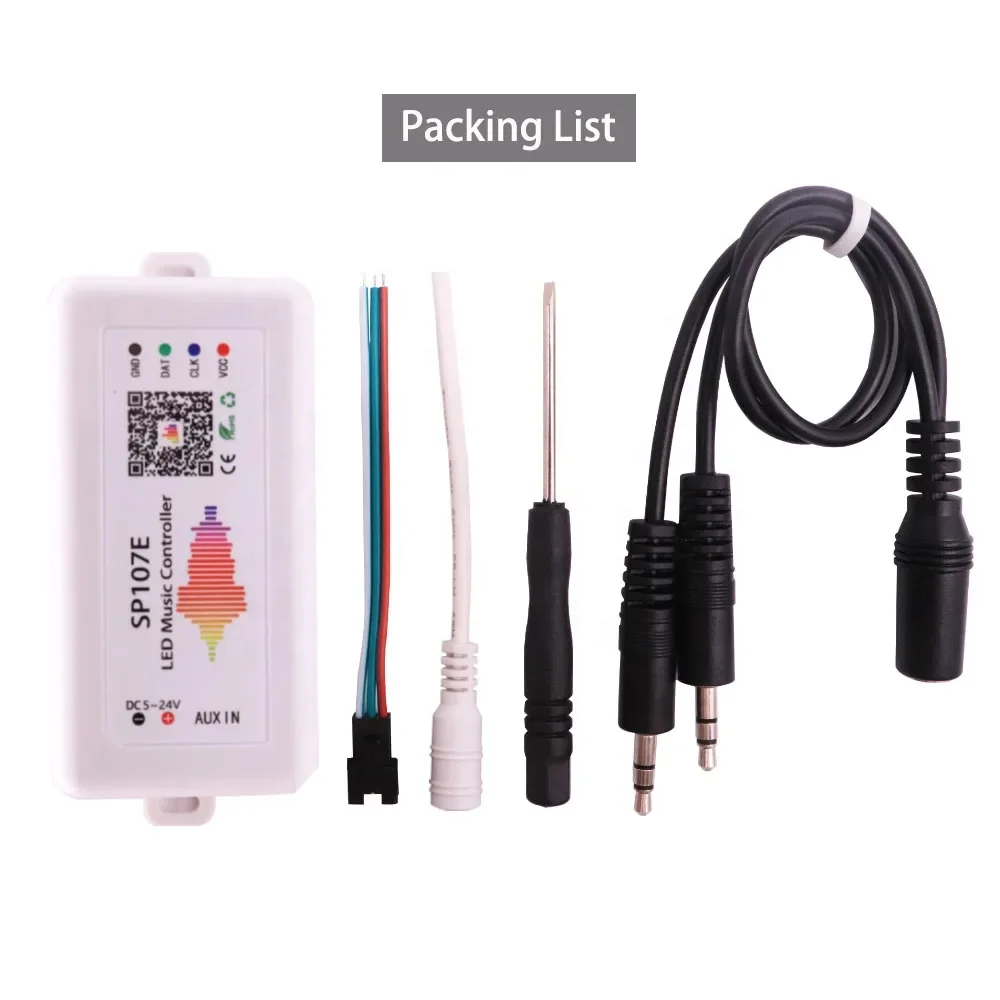

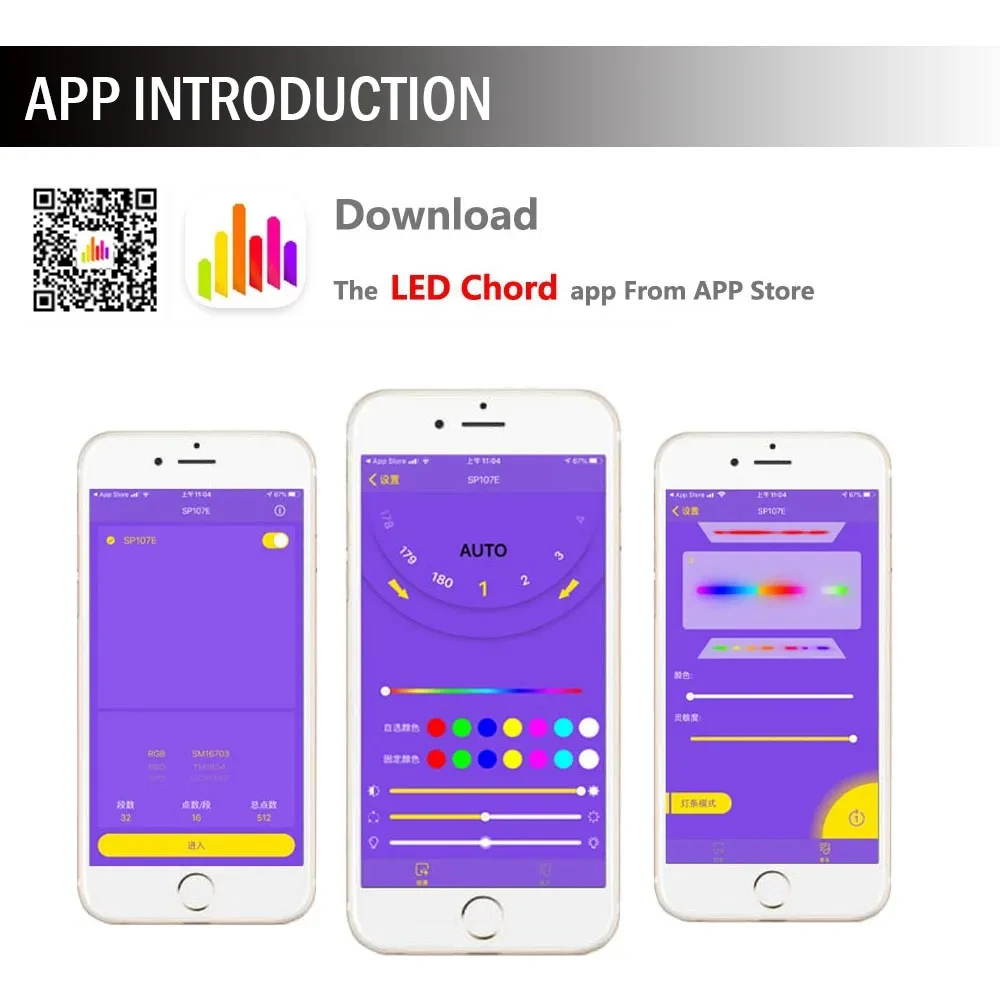

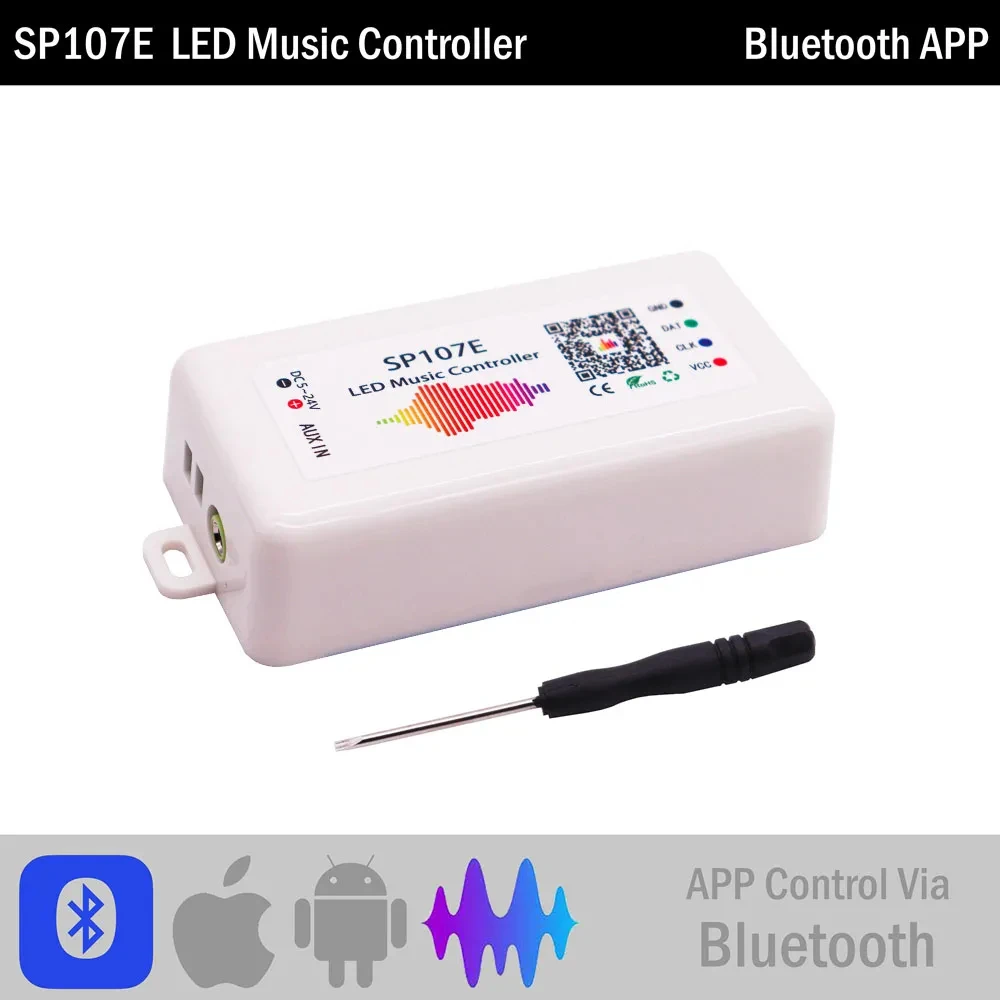

SP107E Pixels LED Controller:
Control Method: APP (Bluetooth)
Input Port: DC female connector Input
Voltage: DC5-24V
Maximum current: 9.0A
Pixel: 960
Music activated mode: Built-in microphone and AUX IN
Musical effect mode: 15+10
Magical colour effect mode: 180
Connector: 3Pin/4Pin
Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412 TM1814 TM1913 P9813 APA105

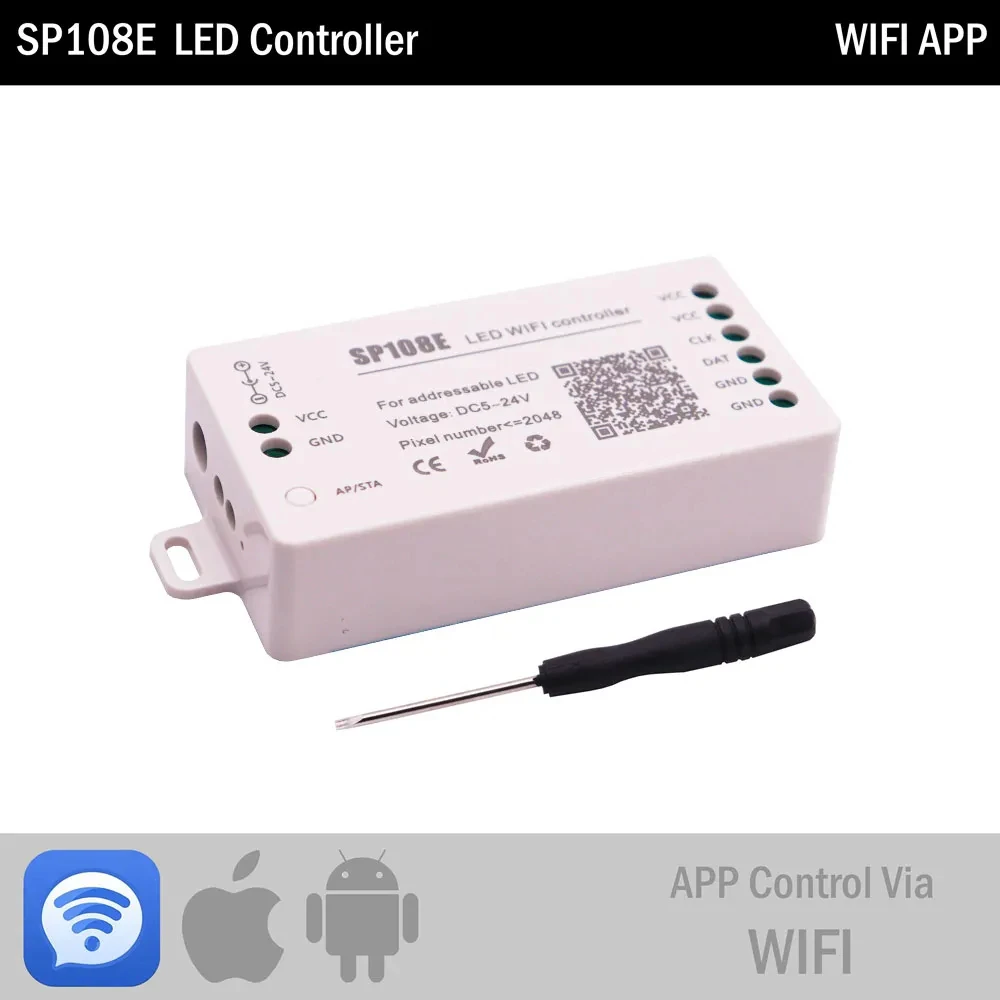

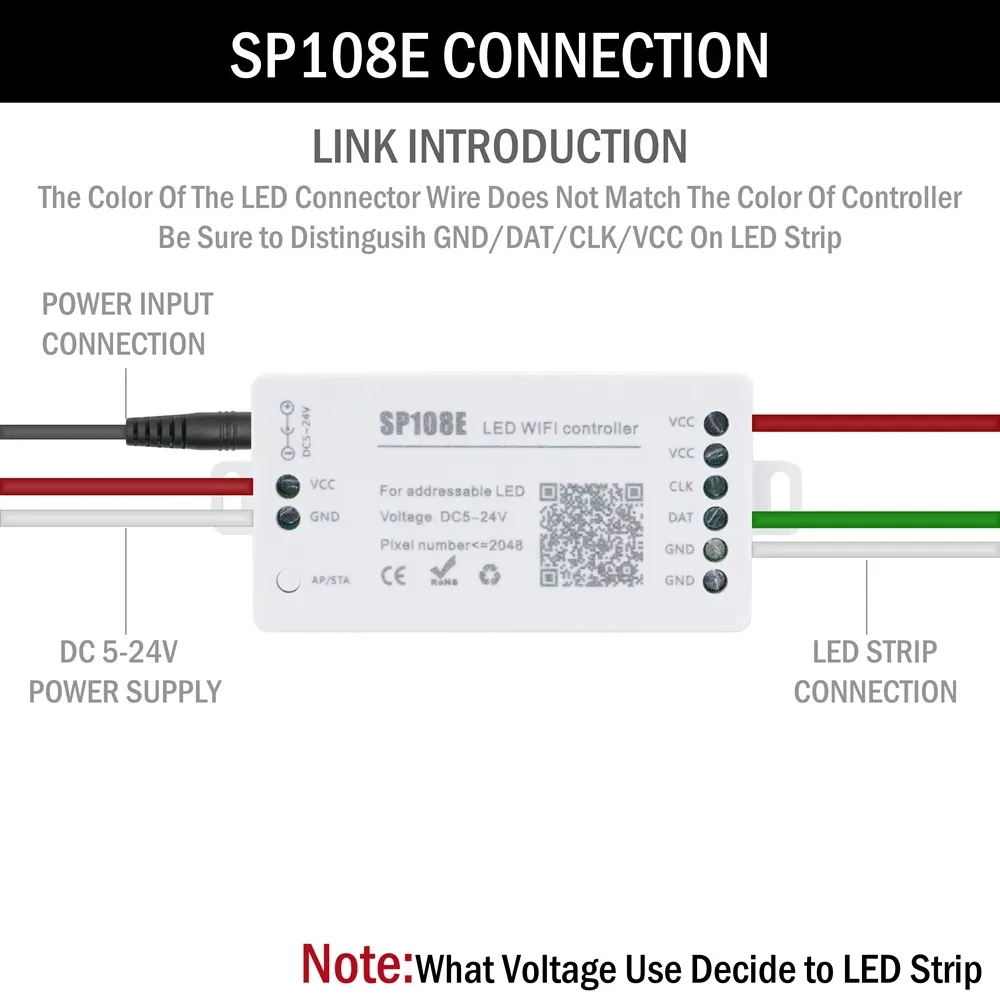

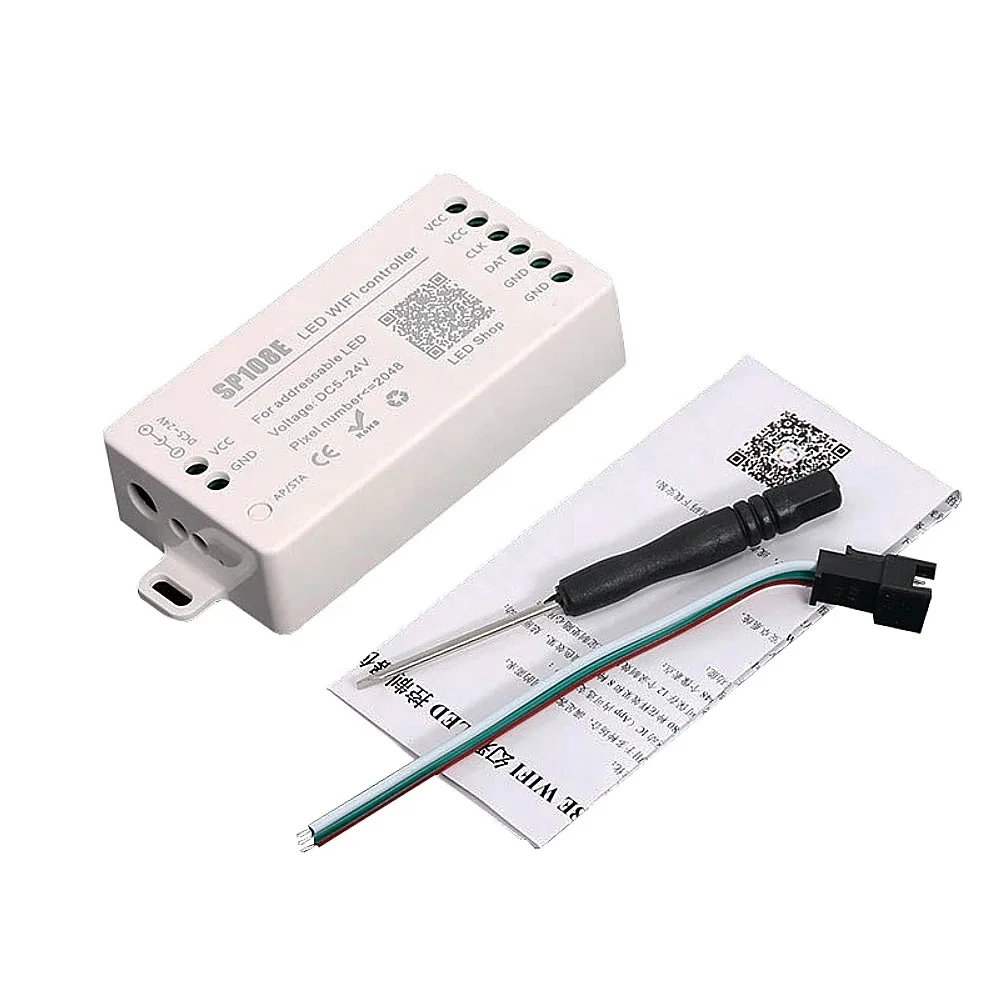

SP108E Pixels LED Controller:
Control Method: APP (WiFi)
Input port: DC female connector
Input Voltage: DC5-24V
Maximum current: 4.0A
Pixel: 2048
Music activated mode: No
Magical colour effect mode: 180 +DIY
Connector: 3Pin/4Pin
Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 WS2801 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 APA102 GS8206 GS8208 SK9822 P9414 P9412 TM1814 TM1913 P9813 APA105

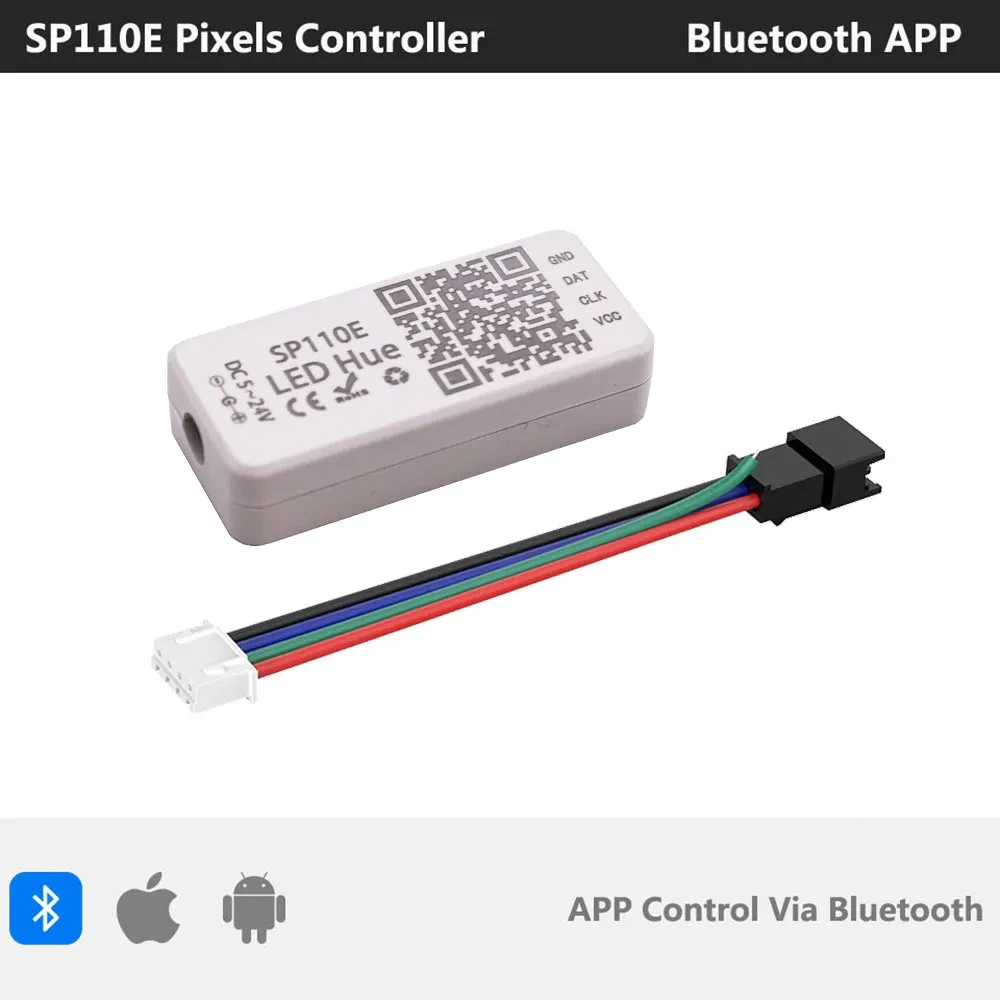

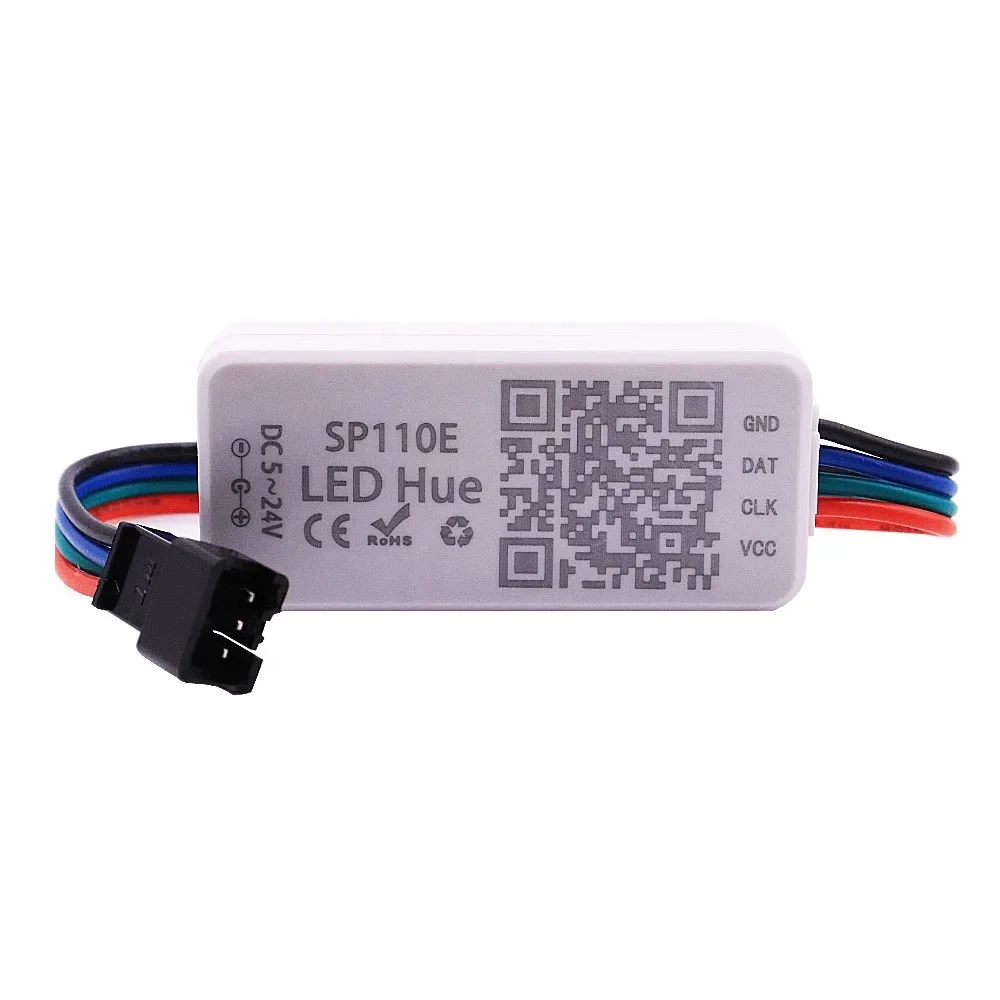

SP110E Pixels LED Controller:
Control Method: APP (Bluetooth)
Input port: DC female connector
Input Voltage: DC5-24V
Maximumcurrent: 4.0A
Pixel: 1024
Music activated mode:No
Magical colour effect mode: 120
Connector: 3Pin
Support IC: WS2811 WS2812B SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 P9414 P9412 TM1814 TM1913 P9813

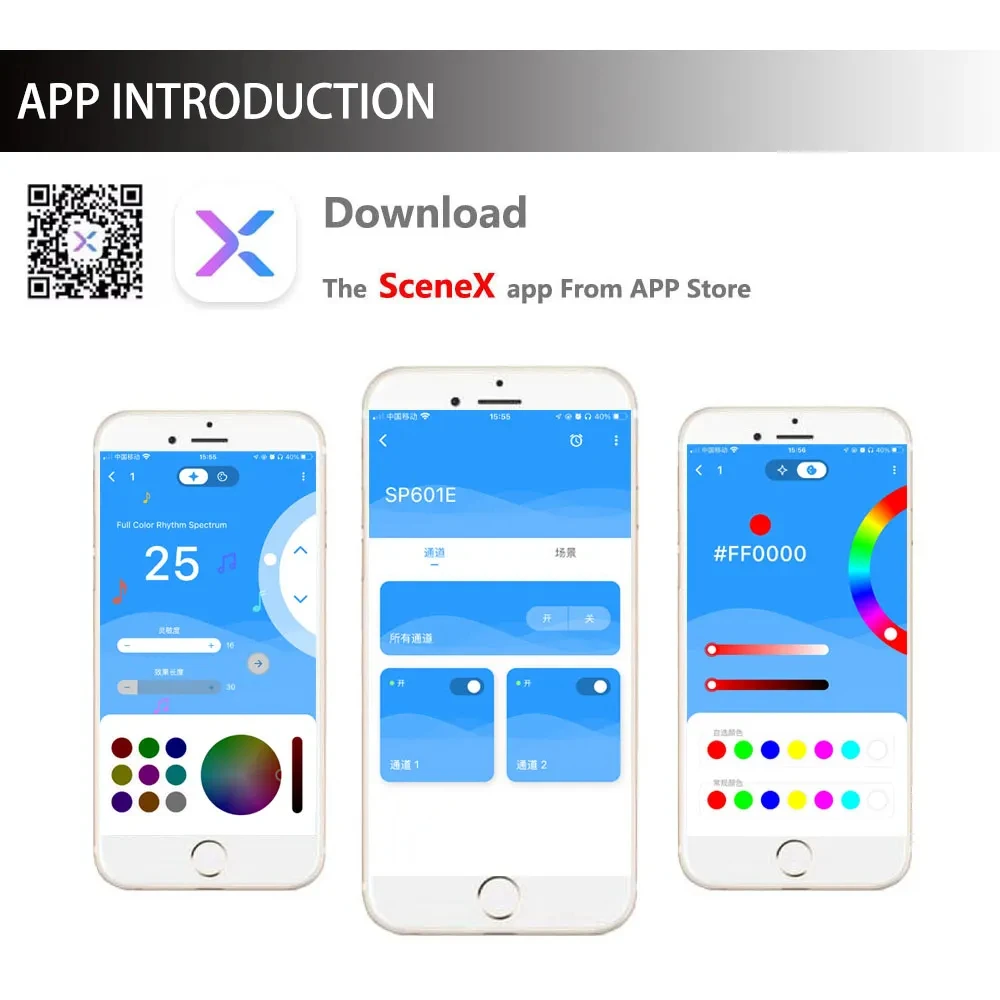

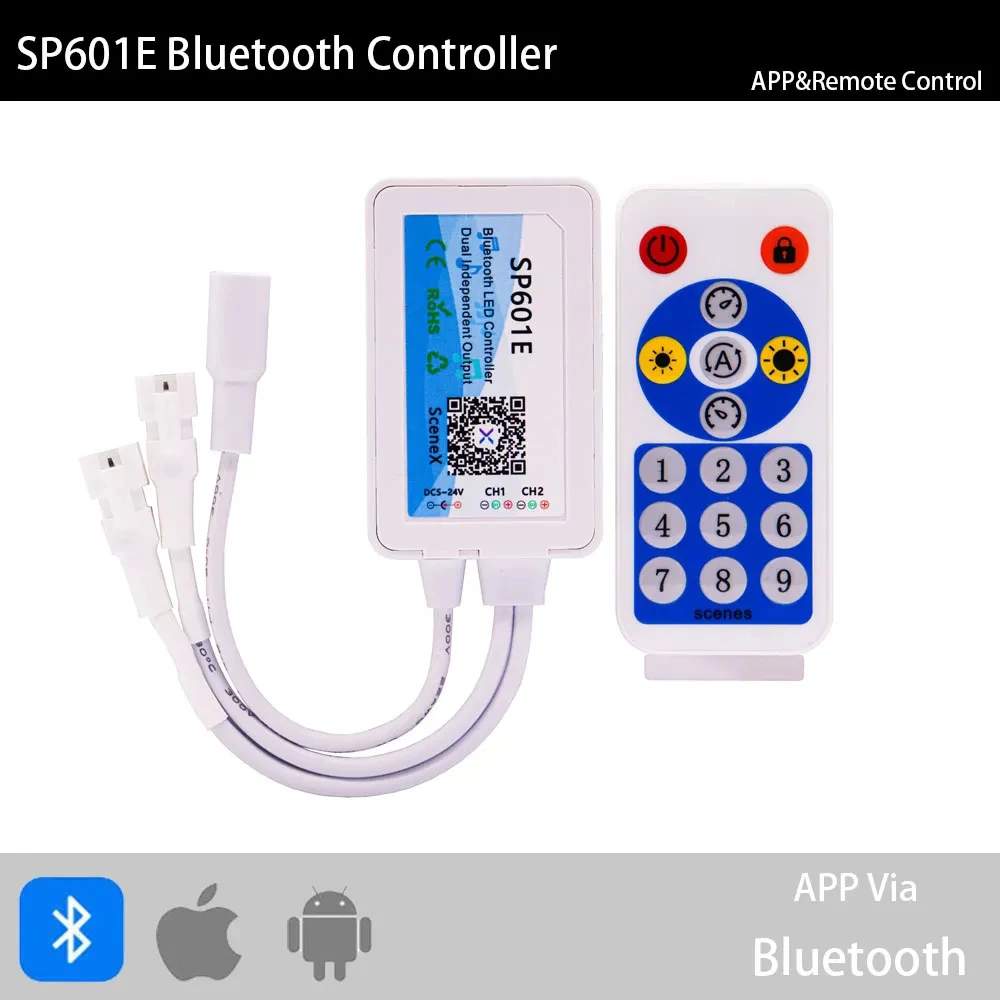

SP601E Pixels LED Controller:
Control Method: RF Remote / APP (Bluetooth)
Input port: DC female connector
Input Voltage: DC5-24V
Maximum current: 4.5A
Pixel: 600*2
Music activated mode: Built-in microphone
Magical colour effect mode: 12+24
Output port: 2 (Standalone 2 ways, Can independently control the color of each way.) Connector: 3Pin
Support IC: WS2811 WS2812B WS2818 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 P9414 P9412 TM1814 TM1913 P9813

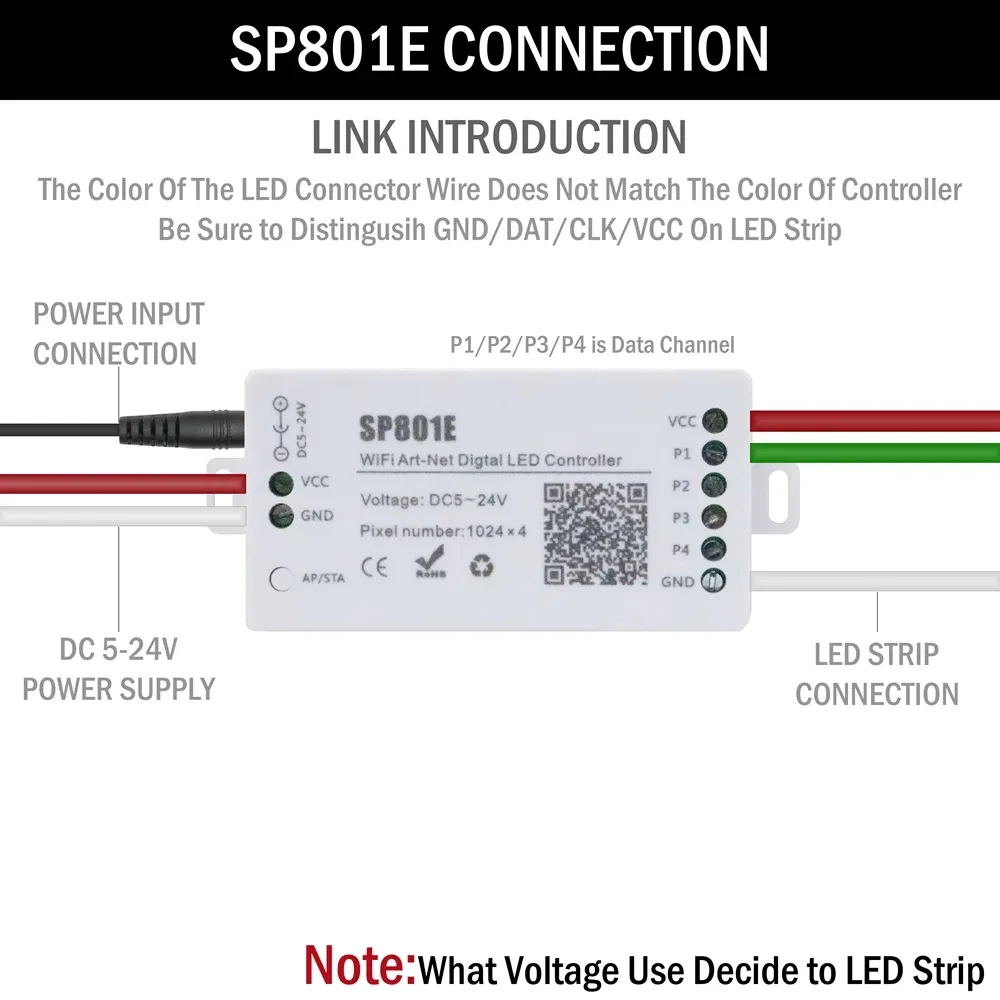

SP801E Pixels LED Controller:
1. APP controlled via WiFi, compatible with multiple Art-Net computer software ;
2. BluFi configuration using dual mode chip(WIFI&BT);
3. Support AP mode and STA mode;
4. Two layout setting method: regular rectangle layout setting and importing DXF files ;
5. Support two layers overlay, built-in multiple types of effect layers: text layer, music effect layer...;
6. The effect layers support a variety of custom parameters: direction, width, color, length, shape...;
7. Real-time preview, support recording the current scene to the controller storage;
8. Support change device name ,reorder the RGB order, and OTA update.
Specifications:
Working temperature : -20℃~60℃;
Working Voltage : DC5V~24V;
Working Current : 25mA~130mA;
Flash Capacity : 128M;
Output signal: 4-port TTL signals;
Maximum pixel number : 1024 / port;
LED driver IC: Normal one-wire RZ code LED driver IC.
Control Method: APP (Bluetooth)
Connector: 3Pin
Support IC: WS2811 WS2812B WS2813 WS2815 WS2818 SK6812 P943S P9411 P9413 TX1812 TX1813 SK6812-RGBW SM16703 UCS1903 TM1804 LPD6803 LPD8806 P9414 P9412 TM1814 TM1913 P9813
