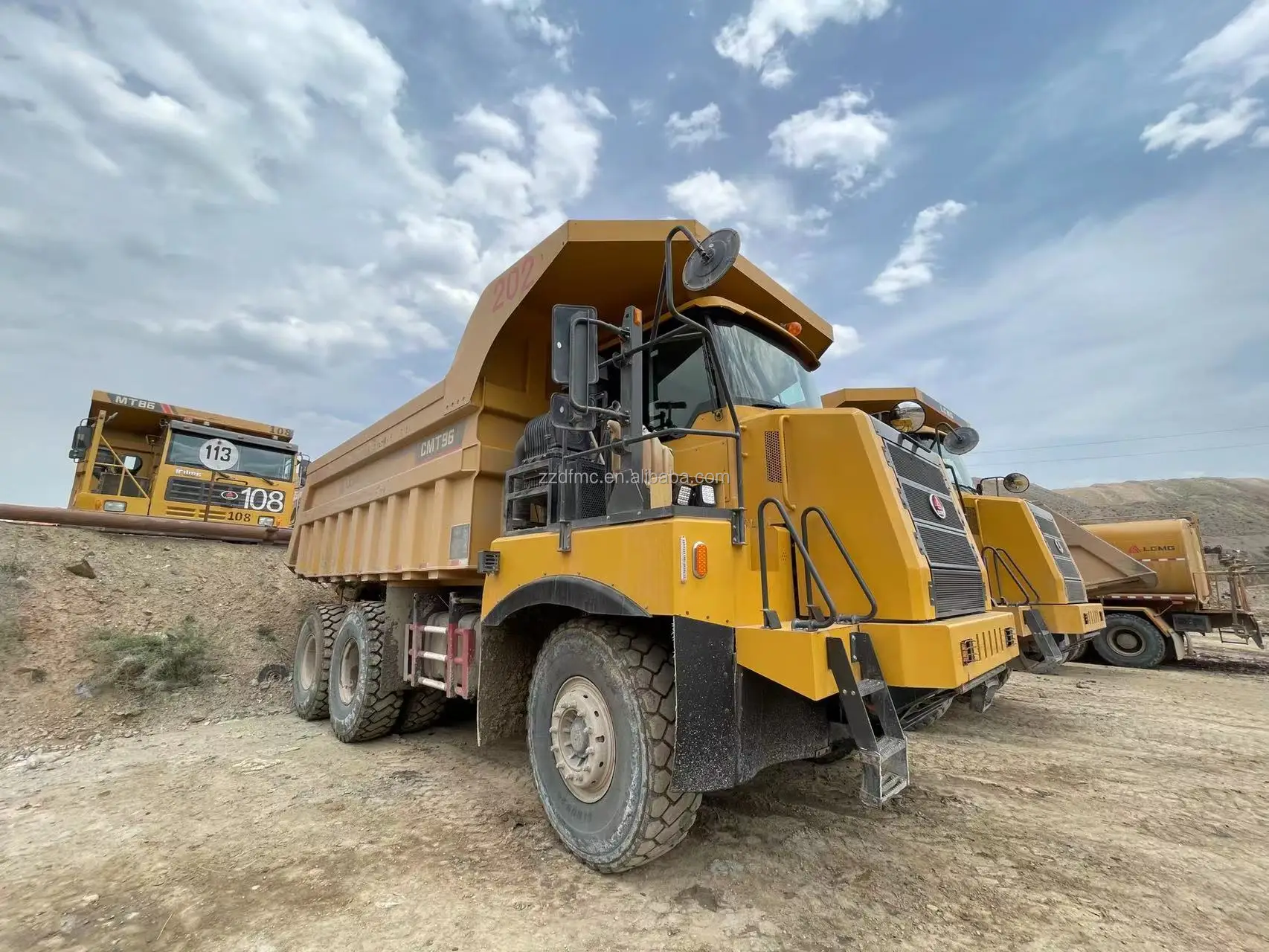

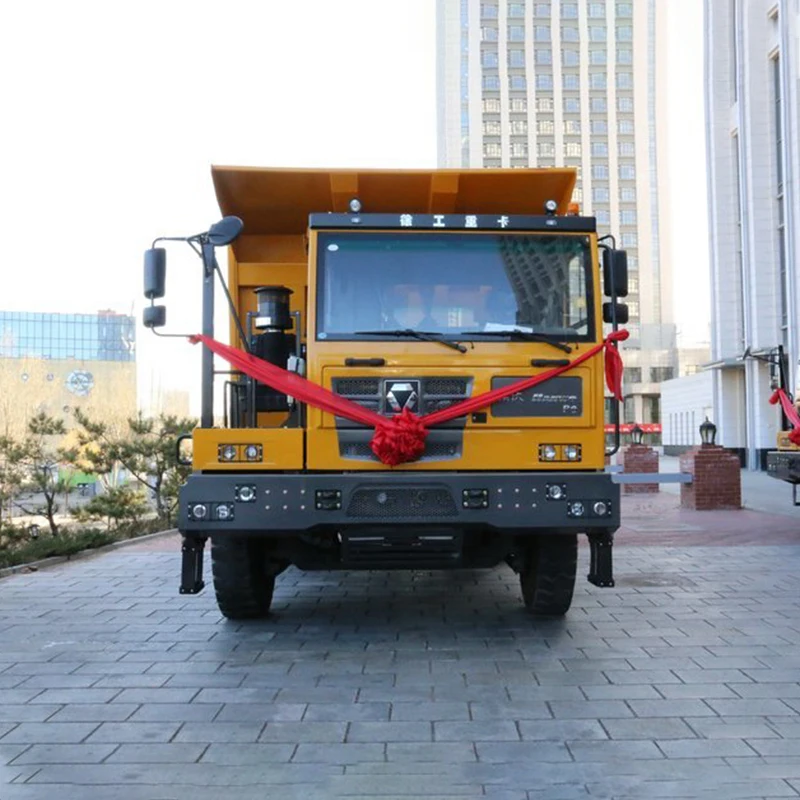

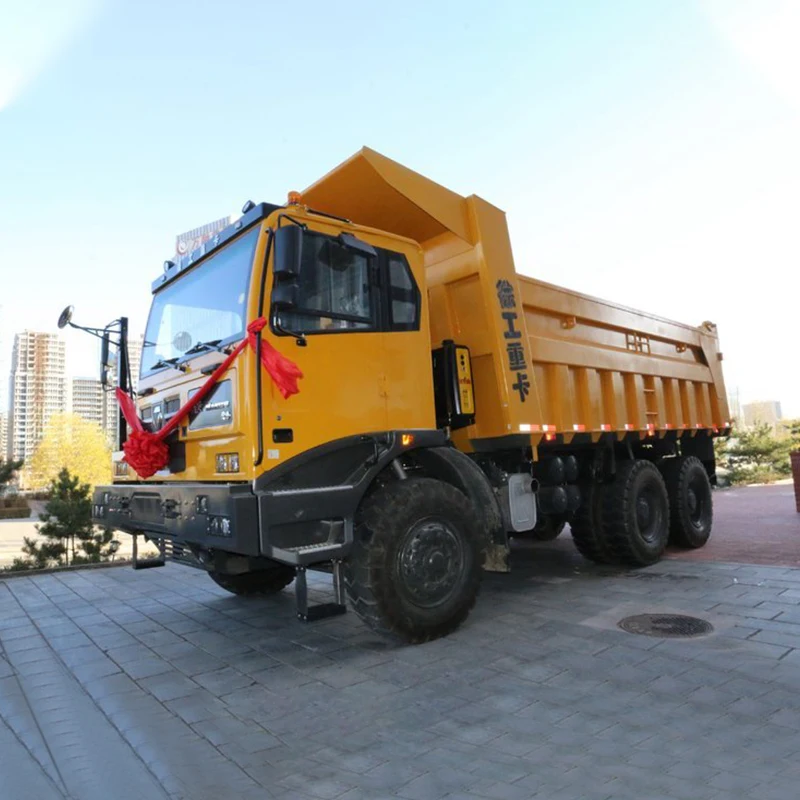

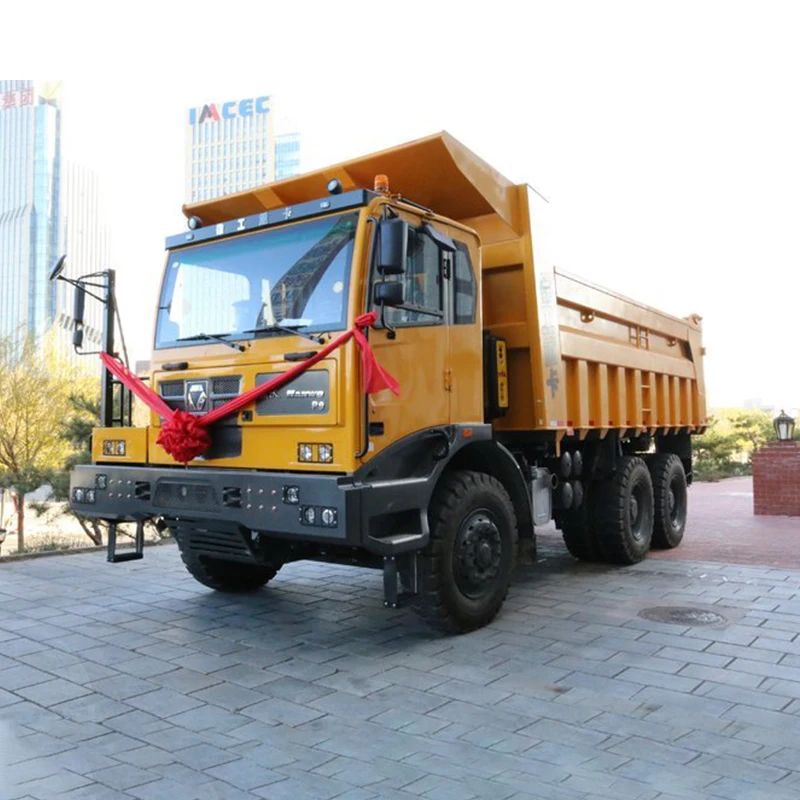

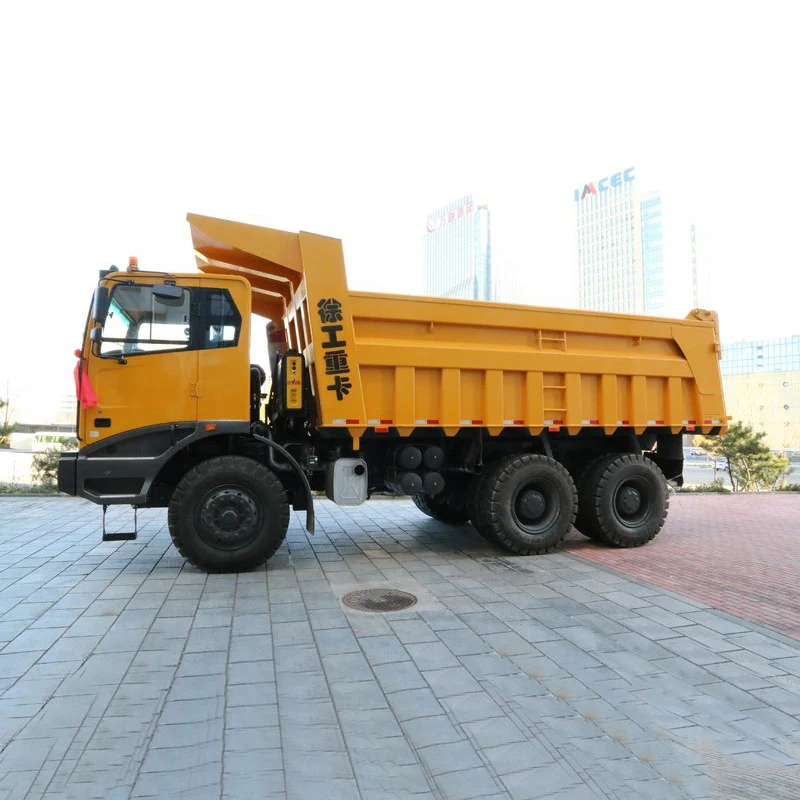

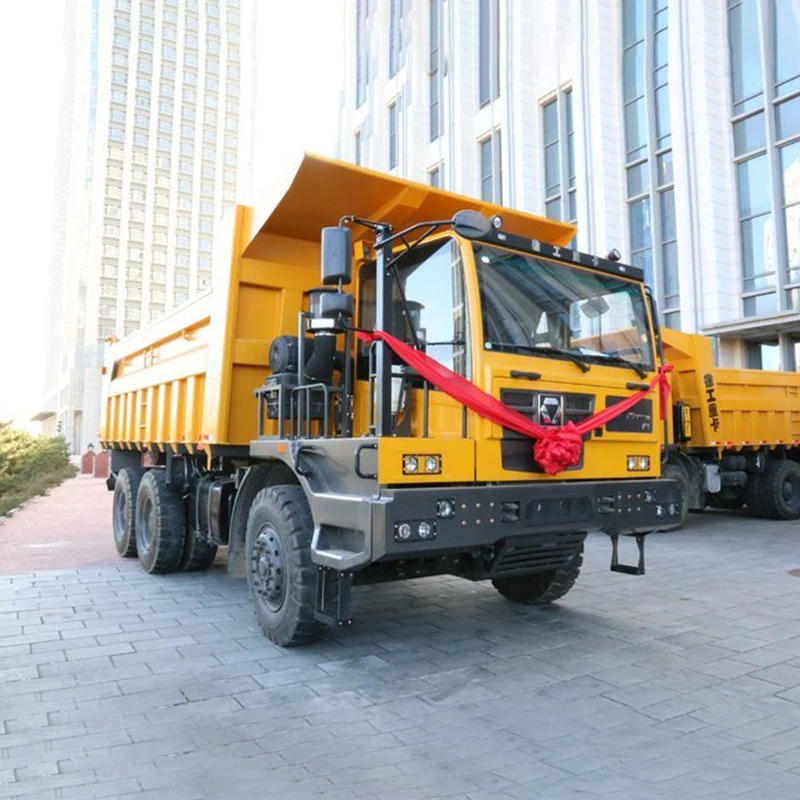

New Chinese Large XDE400 400 ton Mining Machine Heavy Dump Truck for cheap Sale
- Category: >>>
- Supplier: Zhengzhou Dongfeng Mid-South Enterprise Co. Ltd.
Share on (1600997601103):
Product Overview
Description
Product Video
Products Description

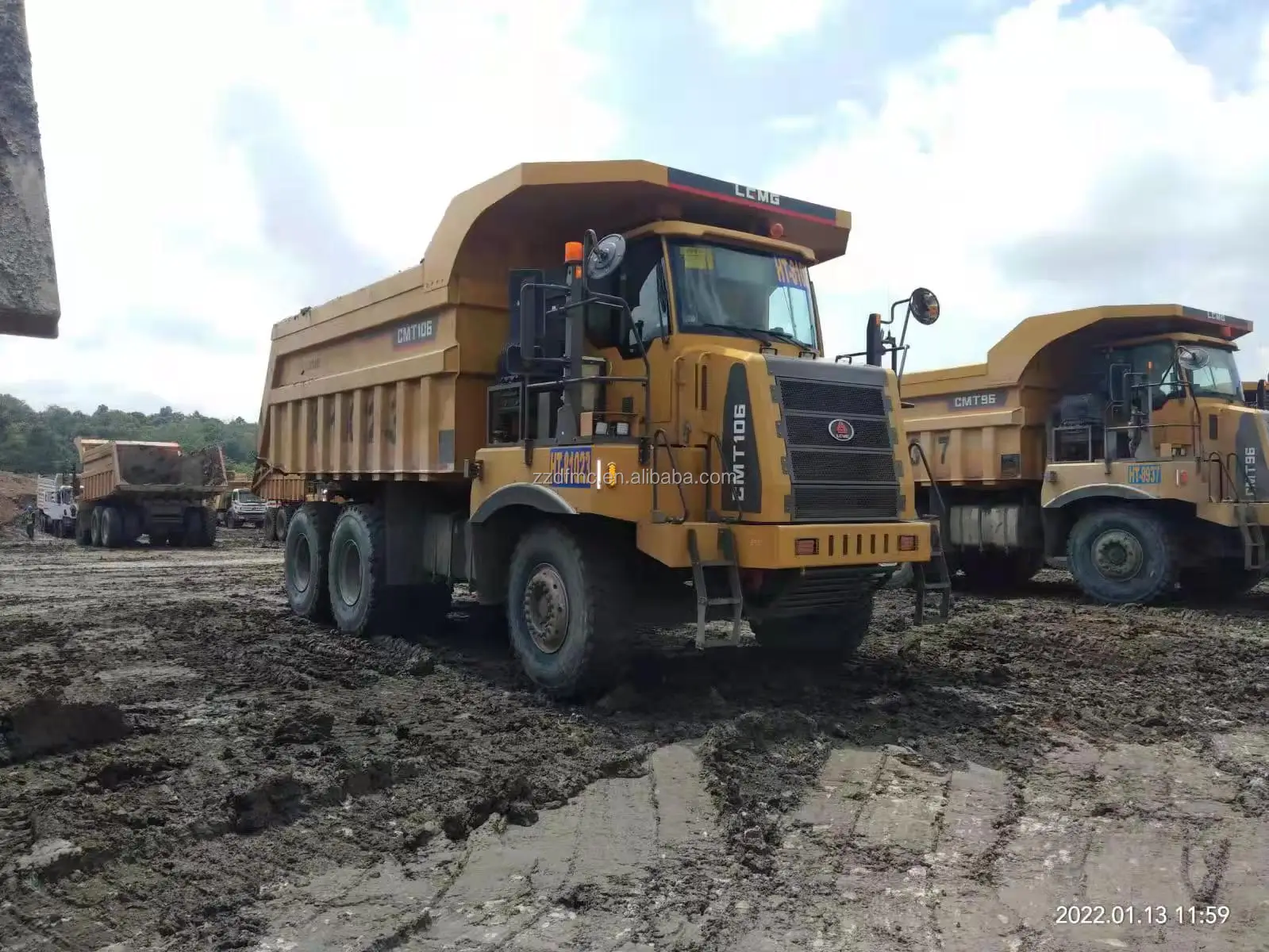

CMT106 Automatic Gear Mining DUMP TRUCK

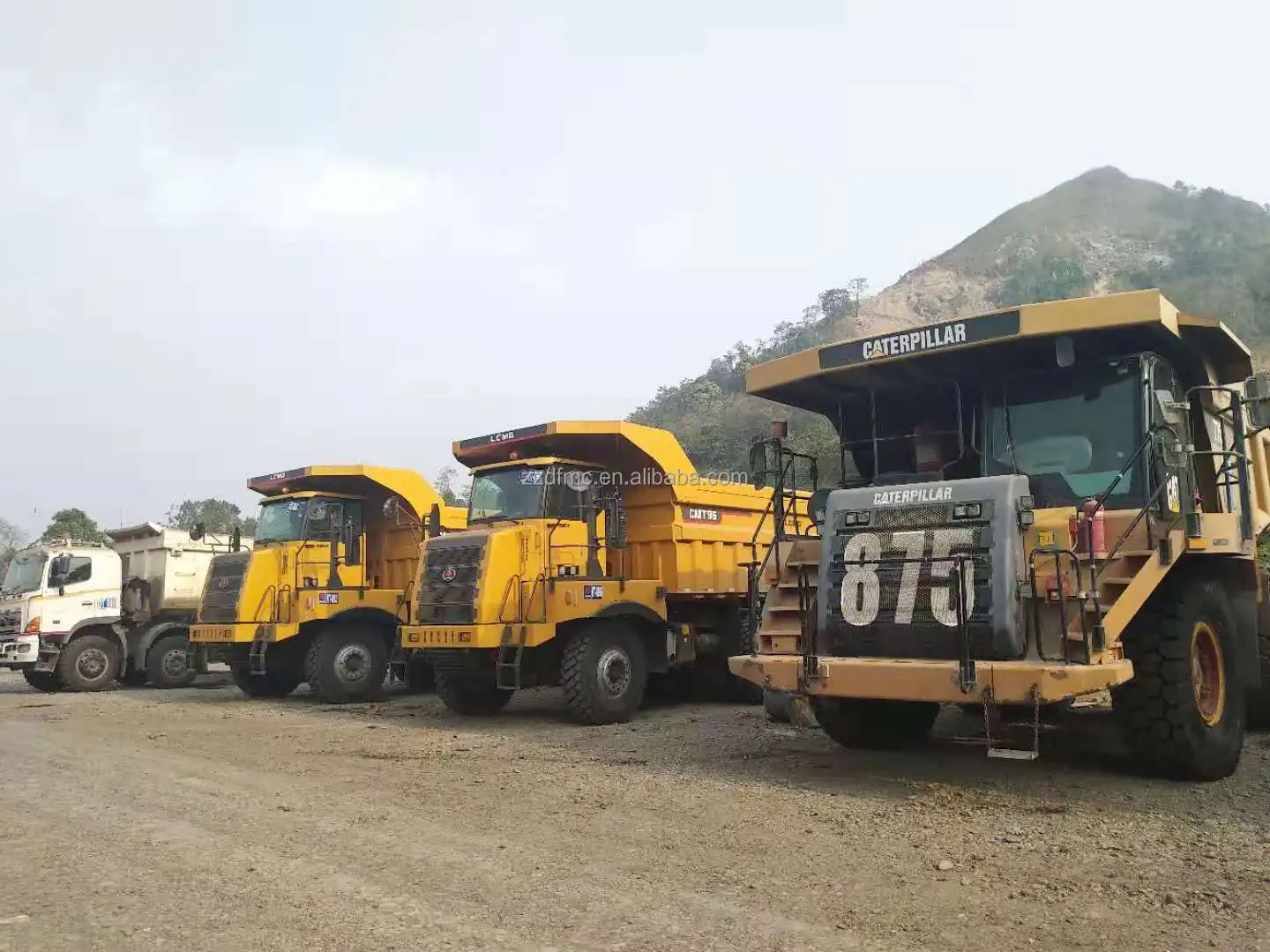

Best competitor of Caterpillar
Efficient, reliable, economic, safe, comfortable, SMART
● The front and rear suspension adopt multi-stage shock absorption, which effectively prolongs the service life of the leaf spring and has strong impact resistance.
● Full hydraulic steering, better comfort than mechanical steering
● Adopt all-wheel dry-type caliper brake, cylinder and exhaust assist brake, improving the safety of the whole machine.

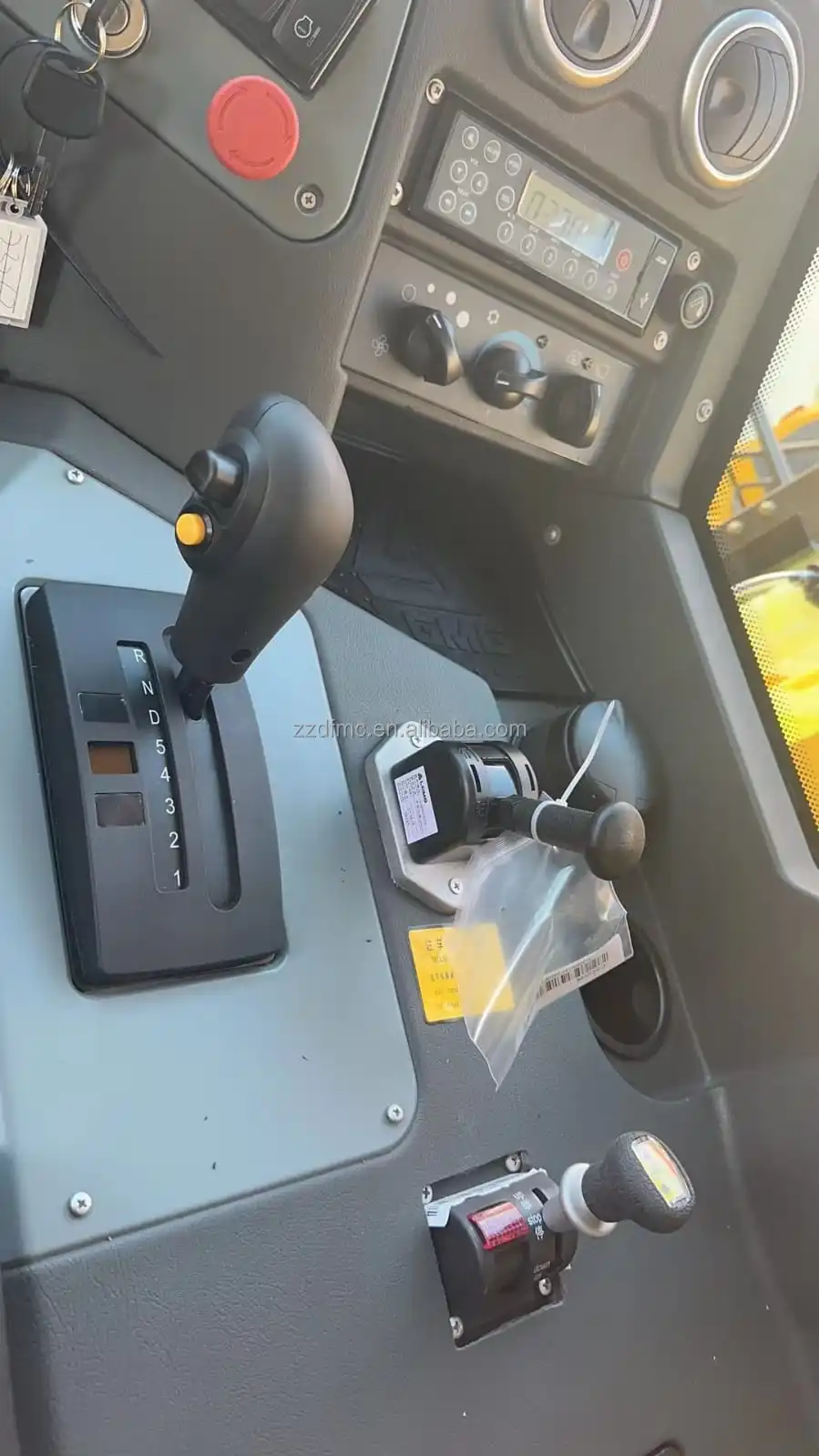

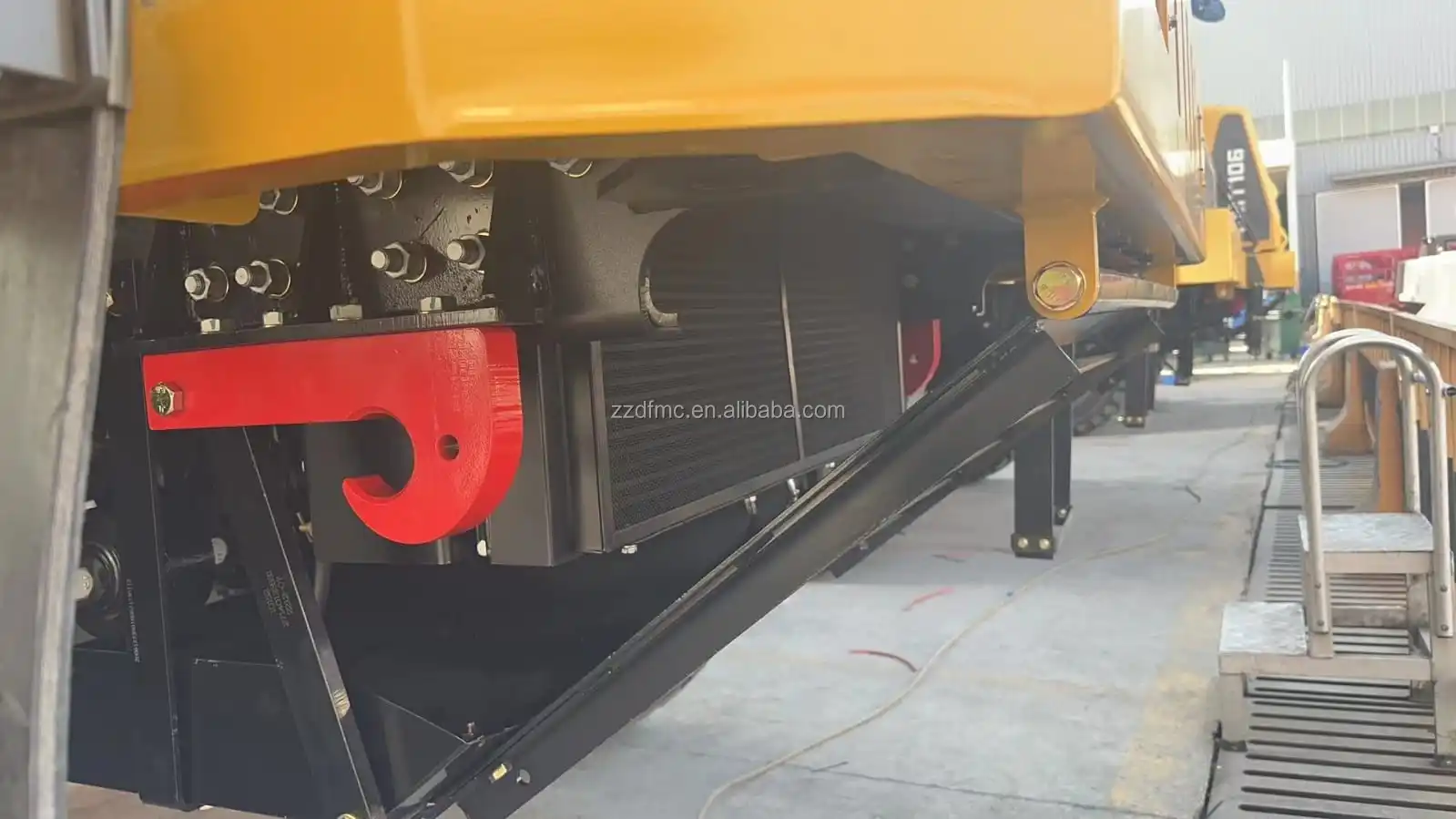

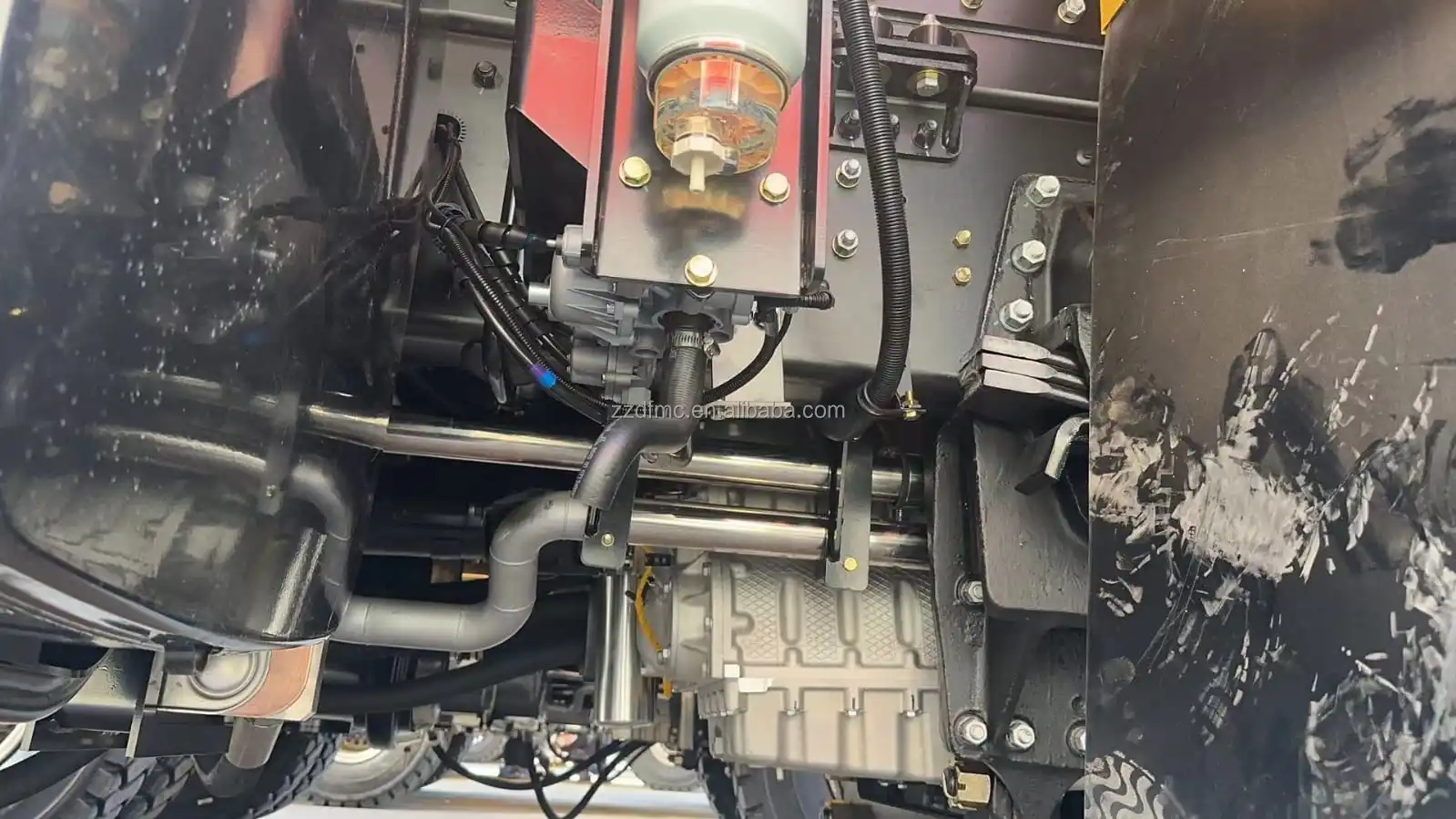

Details Images
Product Paramenters
Item | Data | Item | Data | |
Max.Design Weight（kg） | 108000 | Overall Dimension（LxWxH）（mm） | 9770x4230x4560 | |
Unladen/Laden Max.Speed（km/h) | 48/41 | Unladen/Laden Max.Gradeability（°） | 36.7 | |
Struck Capacity (flat/ heaped)m³ | 38/44 | Min.Turning Diameter(m) | ≤24 | |
Curb Weight（kg） | 39000 | Payload(kg) | 70000 | |
Wheel Tread（mm） | Front Axle：3120；Middle-Rear Axle：2910 | Wheelbase（mm） | 3910（Front-Middle）1800（Middle-Rear） | |
Approaching Angle(°） | 31 | Departure Angle（°） | 60 | |
Ground Clearance（mm） | ≥466 /406 | Number of Axles | 3 | |

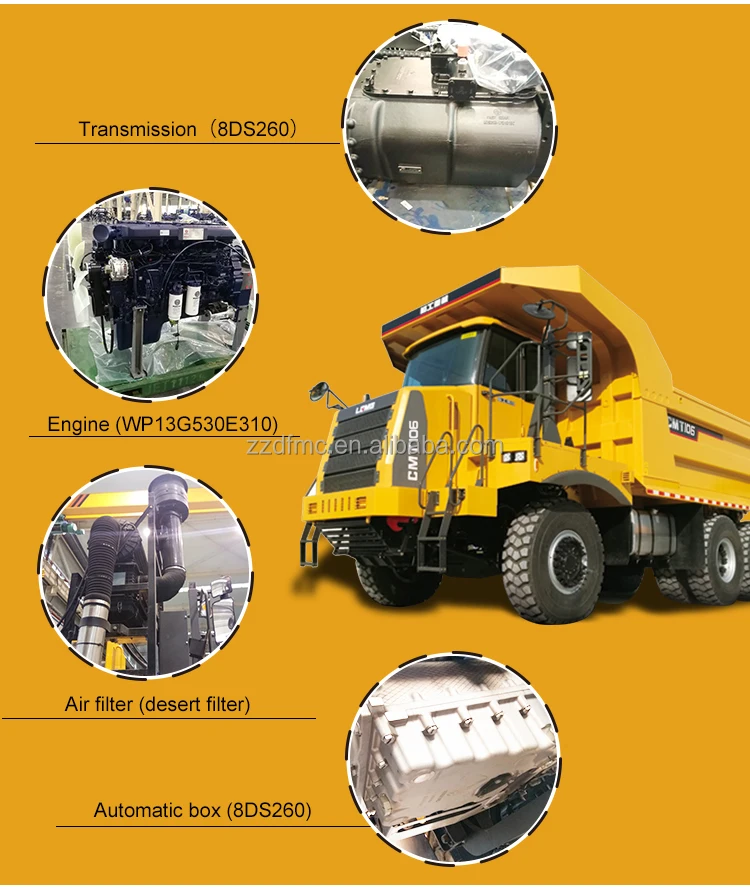

Make | Weichai WP13G530E310 | Number of Cylinder | 6 | |
Type | Line, Direct Injection, Water-cooling, Inter-cooling, Electric-controlled | Bore/Stroke（mm） | 127/165 | |
Rated Power(kW) | 390 | Min. Fuel Consumption（g/kW.h) | 195.9 | |
Rated Speed(r/min) | 2100 | Max. Torque（N.m) | 2300 | |
Emission load (ml) | 12540 | Emission Standard | StageIII GB20891-2014 | |
Auto Gearbox FC6A250PRT | Type | planetary | ||
Speed Ratio | 1st | 4.4 | ||
2nd | 2.33 | |||
3rd | 1.53 | |||
4th | 1.00 | |||
5th | 0.72 | |||
6th | 0.61 | |||
R1 | 3.97 | |||
Front Axle | Steering Axle | Welded Axle Housing | ||
Middle-Rear Axle | Main Reduction Ratio | 4.11 | ||
Wheel Edge Reduction Ratio | 4.952 | |||
Total Reduction Ratio | 20.357 | |||

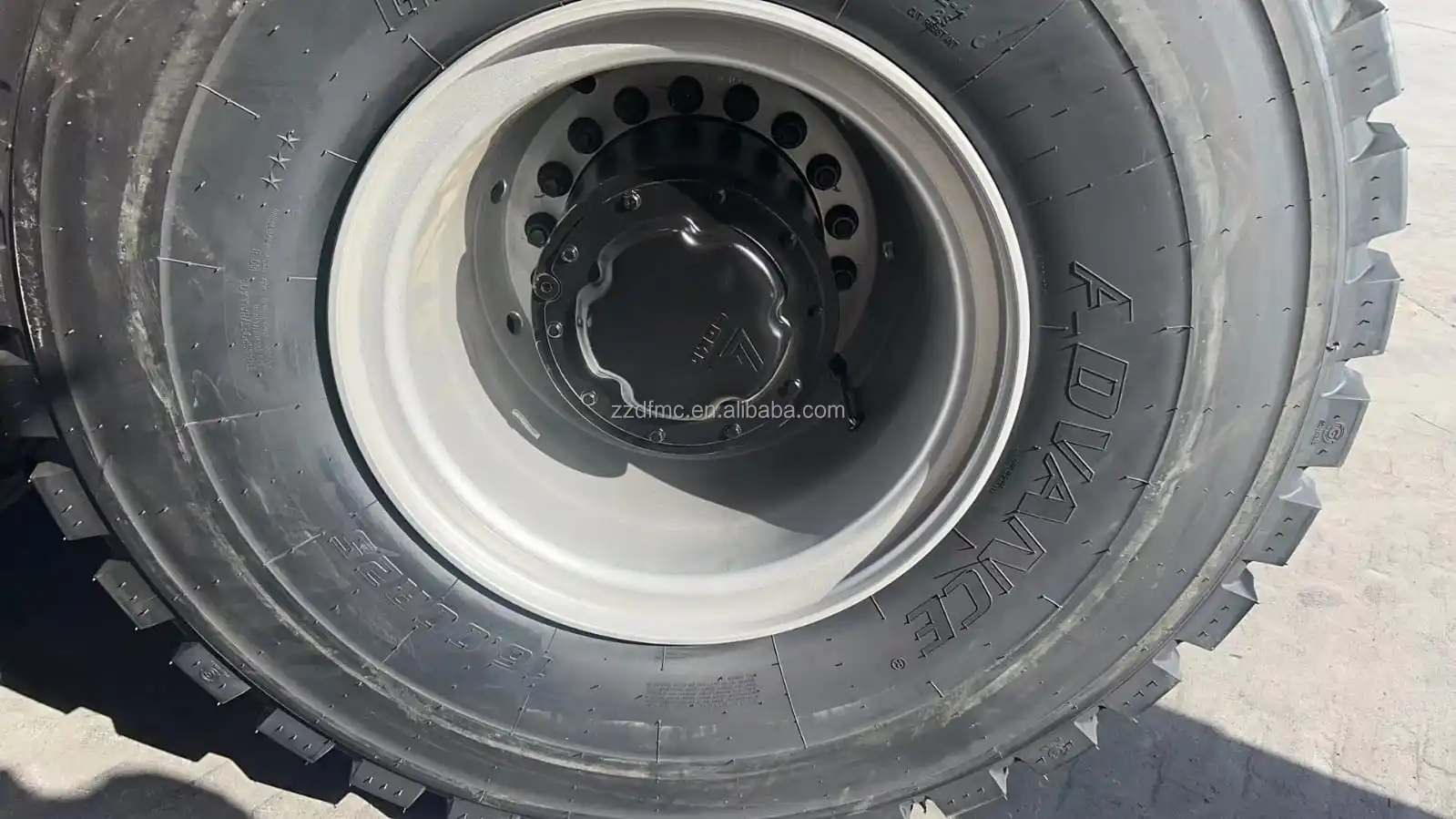

Wheel | Rim | 13.00/2.0-25 | ||
Tyre | 18.00R25 | |||
Tyre Pressure（MPa） | 0.8 | |||
Suspension System | Front Suspension | Leaf spring + double-acting cylinder shock absorber | ||
Rear Suspension | Spring + Rubber balance suspension | |||
