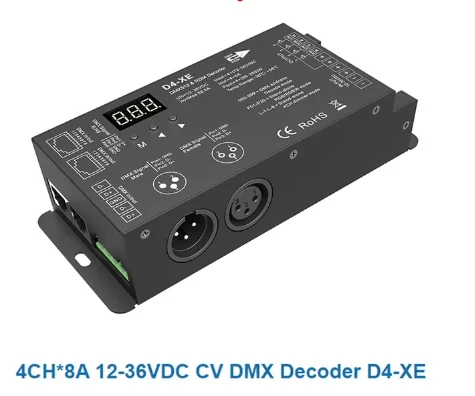

D4 XE 4 Channel DC12V 24V 36V DMX512 Controller Stage DJ Light DMX 512 LED Controller

Product Overview

Description

D4-XE:

1. Comply with the DMX512 standard protocols.
2. Digital numeric display, set DMX decode start address by buttons.
3.RDM function can realize intercommunication between DMX master and decoder. For example,
DMX decoder address can be set by DMX master console.
4. 1/2/4 DMX channel output selectable.
5. 16bit (65536 levels) /8bit (256 levels) grey level selectable.
6. PWM frequency 250/500/1000/2000/4000/8000/16000Hz selectable.
7. Logarithmic or linear dimming curve selectable.
8. Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.
9.Green terminal, XLR3 and RJ45 port DMX signal input.
10.Over-heat / Short circuit protection, recover automatically

D4-XE:
