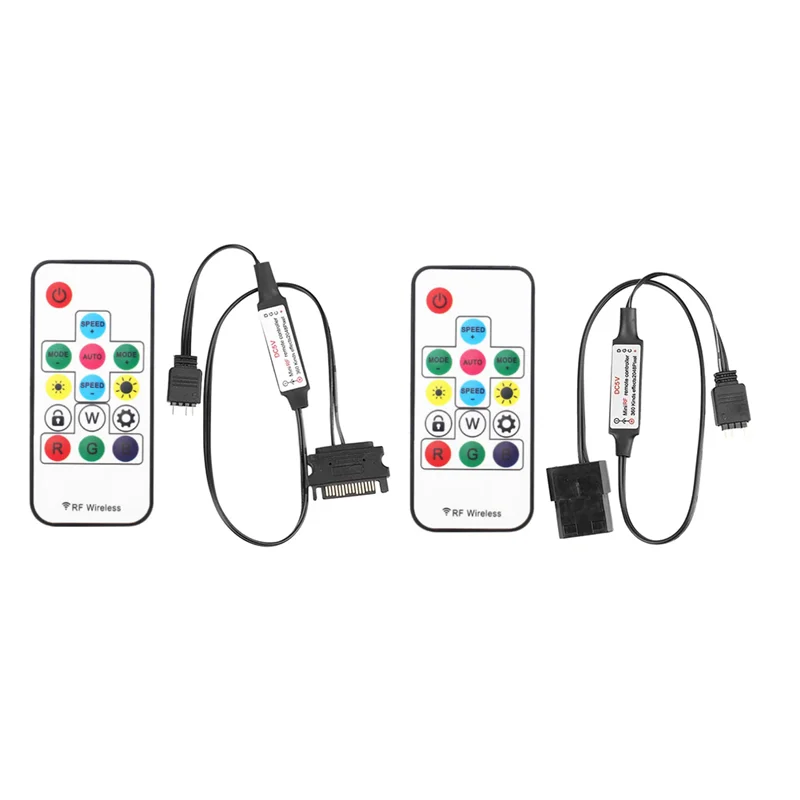

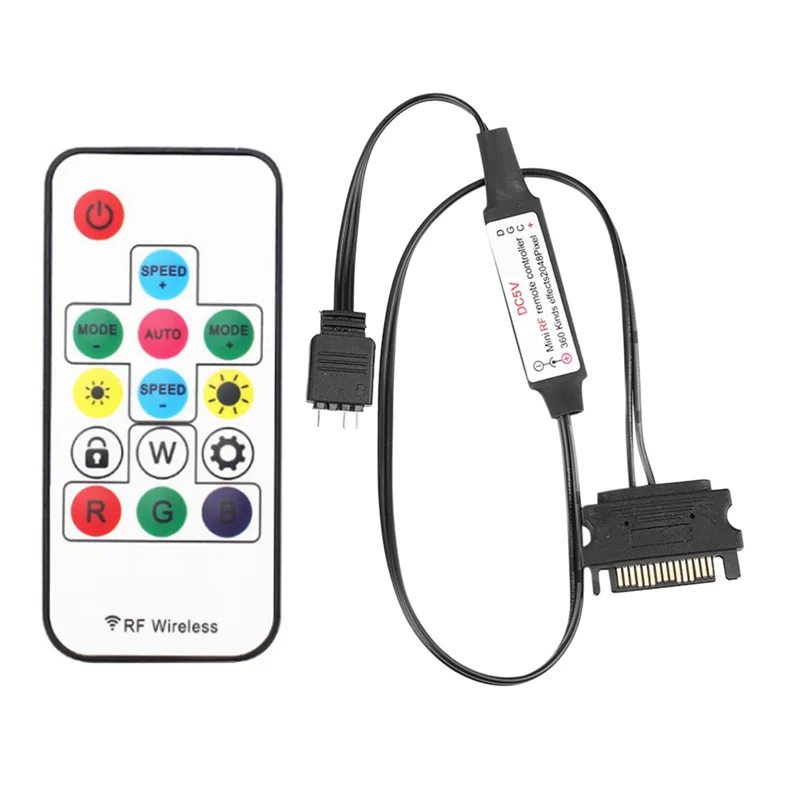

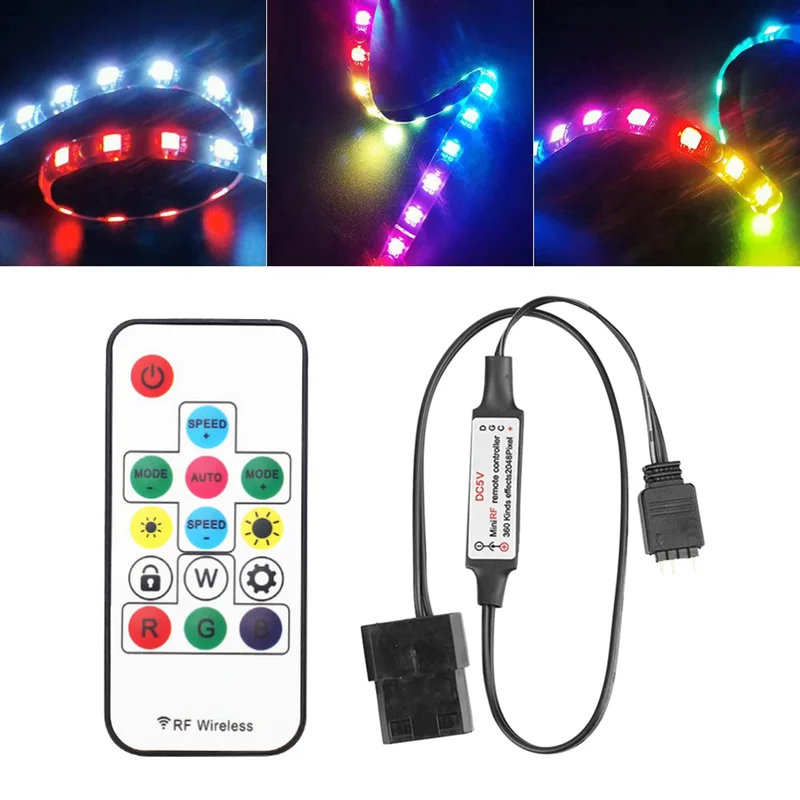

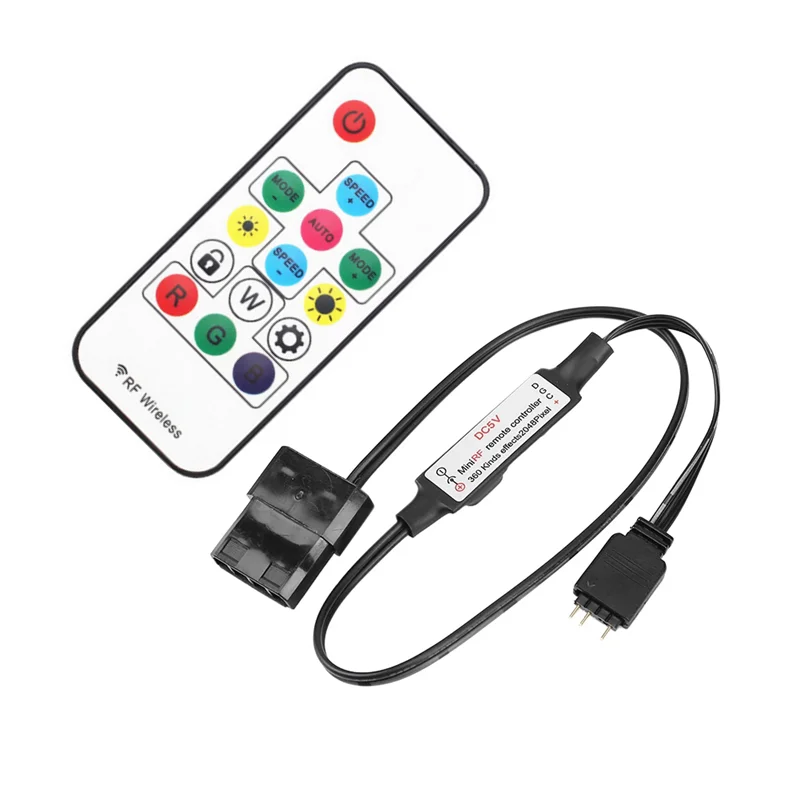

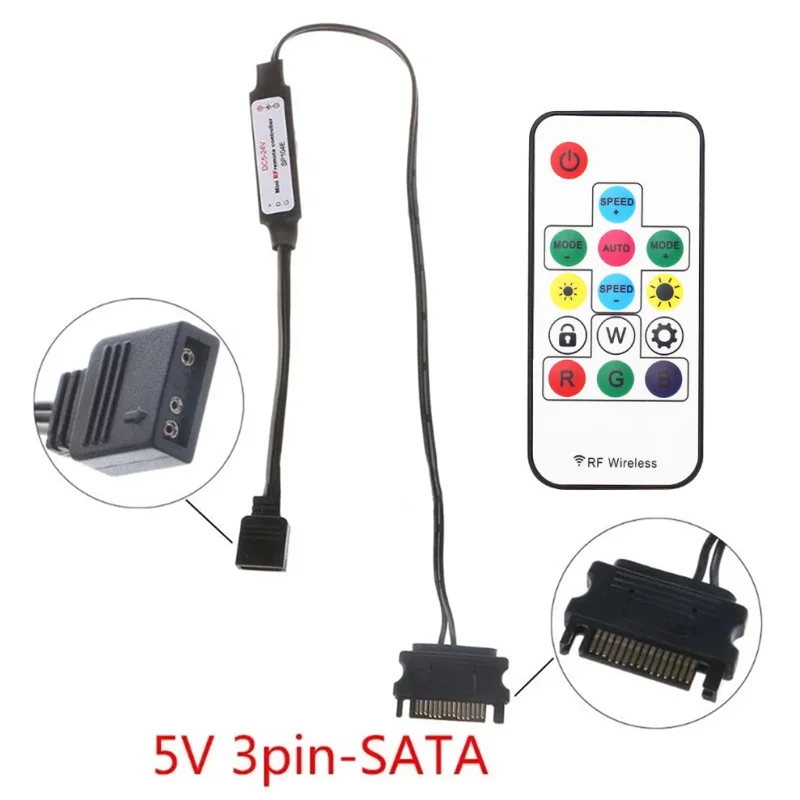

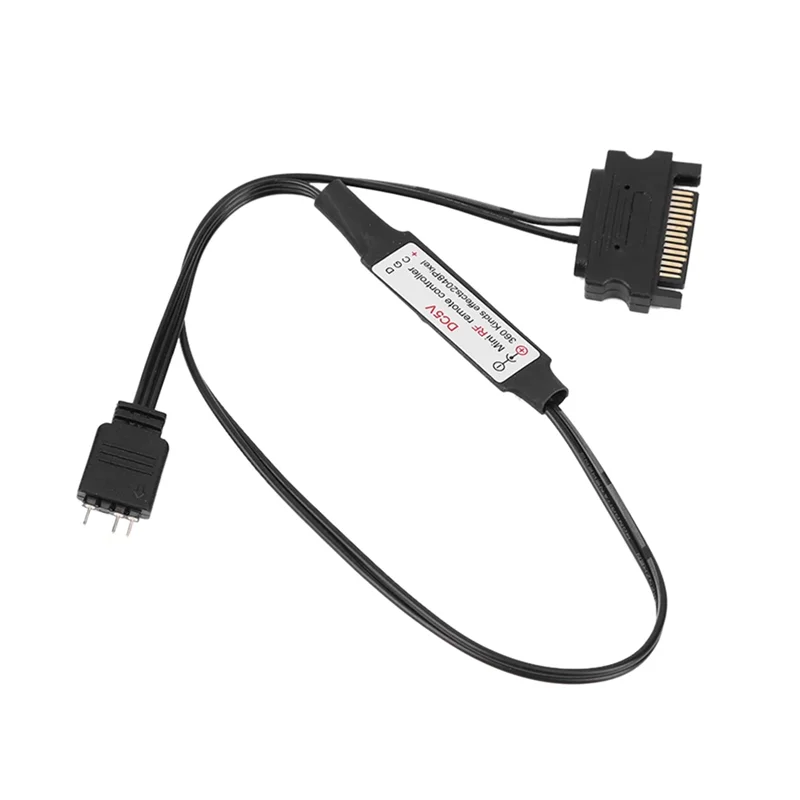

SATA Controller DC 5V 3Pin RF 14 Keys Molex Large 4Pin Pixel PC Controller for WS2812B SK6812 Addressable RGB LED Light Strips

3PIN 14 key remote control RGB controller:

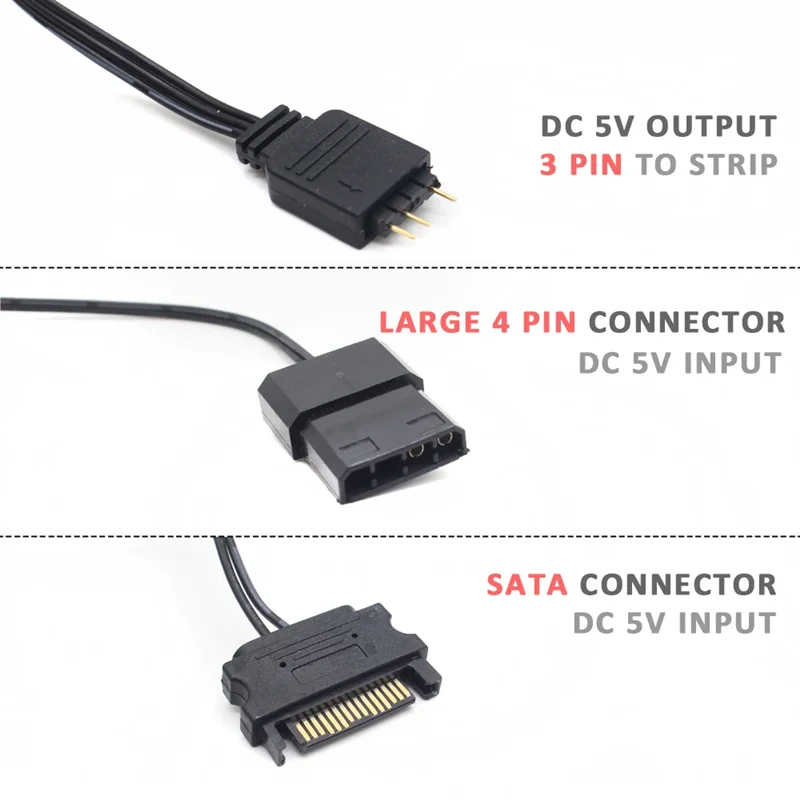

** It adopts Molex 4Pin 3PIN interface, compatible with computer motherboard plug, input interface line sequence +5v, DA, GND, input power terminal adopts Molex 4pin interface universal, RF remote control, distance up to 8-25 meters, operation is sensitive and user-friendly, wiring is simple and convenient Support for custom single- and double-line LED driver ICs on the market; with more than 300 kinds of pattern effects, colorful.

** 3PIN Controller working voltage: DC 5V.

** Current: up to 6A, to control Max 2048 pixels, power input with reverse connection.

** The controller will automatically save the user's key settings every time. After the breakpoint, the next time the power-on controller will run according to the original settings.

Note:

1. When switched to dynamic mode, the brightness rises to speed plus, the brightness decreases to speed minus, there are 100 speed files;

2. when the last state is press FADE or SMOOTH, press FLASH and STROBE The key is invalid. Only when the last state is static mode, FLASH and STROBE are valid.

3. When FADE is used as the three-color gradient, press FADE again to change to seven-color gradient. When pressing SMOOTH for three-color transition, press SMOOTH again. It becomes a seven-color jump.

Features:

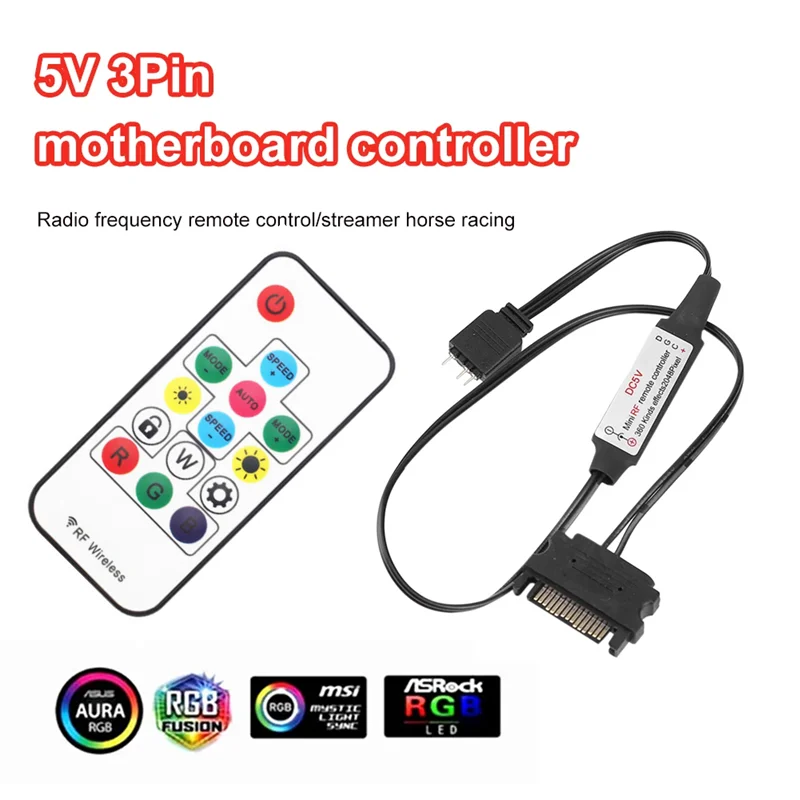

1. Support ASUS / MSI / ASRock / other motherboards, the line is quite plug-in function

2. The line is RGB split line, not a fan split line, and does not support the motherboard fan (FAN) interface! ! !

3. If use for RGB fan is, please make sure the interface is consistent or can be connected.

Product Specifications:

** Working temperature: -20-60 °C

** Supply voltage: DC 5V

** Output: 3 loop

** Connection method: Anode

** Maximum load current: 2A per way

** Output power: 5V<30W

** Compatiable IC: WS2812B,SK6812,WS2811
