Product Overview
Description
Product Description
- Hose Pump Features:
1.Industrial Hose Pump And Mixer with no valve operation, no back flow, stable pumping flow, low fault rate.
2.High Efficiency Concrete Peristaltic Pump And Mixer with free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
3.High vacuum, strong self-suction capacity.
4.Convenient maintenance, less wearable parts (except extruded hose).
- Hose Pump Application:
1.Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage...
2.Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate ...
3.Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge...
4.Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...
5.Oil industry: drilling fluid,crude oil...
6.Ceramic industry: ceramic germ plasma, slip glaze, glaze materials...
7.Paper industry: paper pulp, liquid sulfur...
8.Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil...
9.Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate...
- Hose Pump Technical Parameters:
model rated output m3/h rated pressure MPa rated power kw max.aggregate size mm max.suction dist. m KH-15 0.3 0.6 0.55 2 2 KH-25 0.8-1.3 1.5 1.1/1.5 3 3 KH-32 1.3-1.8 1.5 2.2 3 4 KH-40 2.0-3.5 1.5 2.2/4 4 4 KH-50 4.0-8.0 1.5 4/5.5 7.5 5 5 KH-65 9.0-15.0 1.0 7.5/11 6 5 KH-75 15.0-30.0 1.0 11/15 6 5 KH-90 30.0-40.0 1.0 15/18 8 5 KH-100 40.0-50.0 1.0 15/18 8 5 KH-130 50.0-70.0 1.0 18/22 10 5 KH-150 70.0-80.0 1.0 22/30 10 5 *KH Hose Pump is equipped with different motor (size, weight, connection methods etc.).
*Diesel drive hose pump,variable-frequency hose pump or other customized pump is also available.
*Customers can make some specific requirements according to the basic technical parameters.
- Hose Pump Working principle:

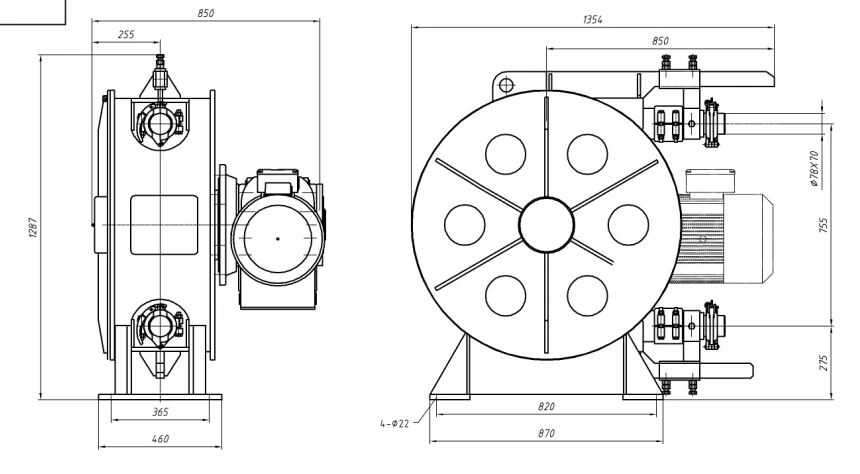

- Hose Pump Structure:

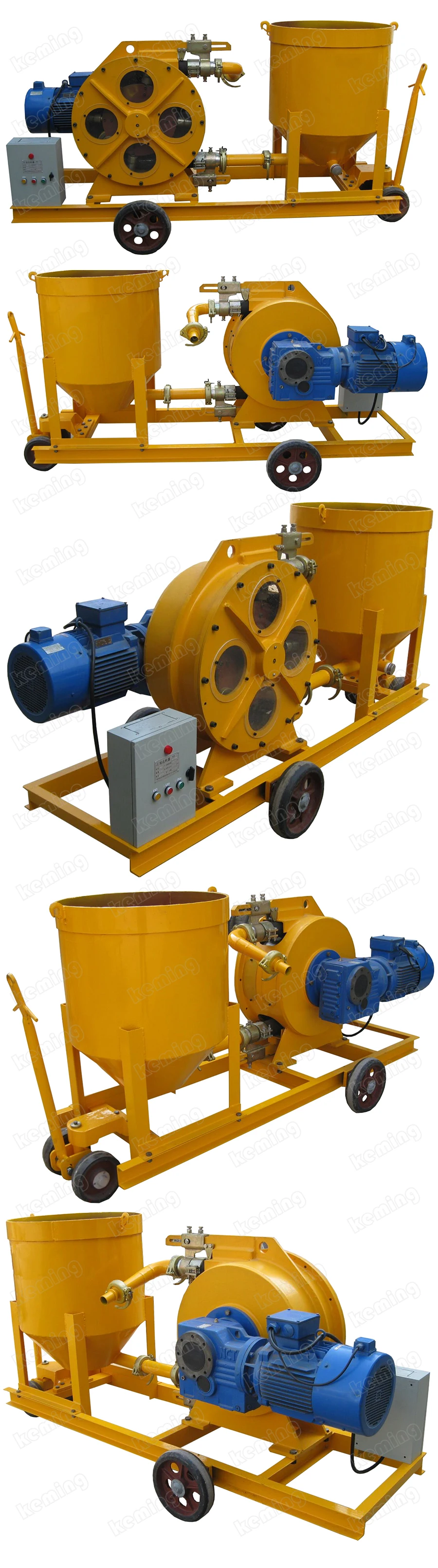

- Hose Pump Details:
Company Information
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements:
Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Main Products:
wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump,mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.
Certifications
FAQ
--- Hose Pump, Peristaltic Pump, Squeeze Pump
1. Q: Which hose pump should we choose?
A: To recommend the most suitable model, please let us know your requirements about the hose pump, then will give you some professional suggestions.
2. Q: What is the vulnerable part? How many spares should we prepare?
A: Squeeze hose is the only vulnerable part.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
