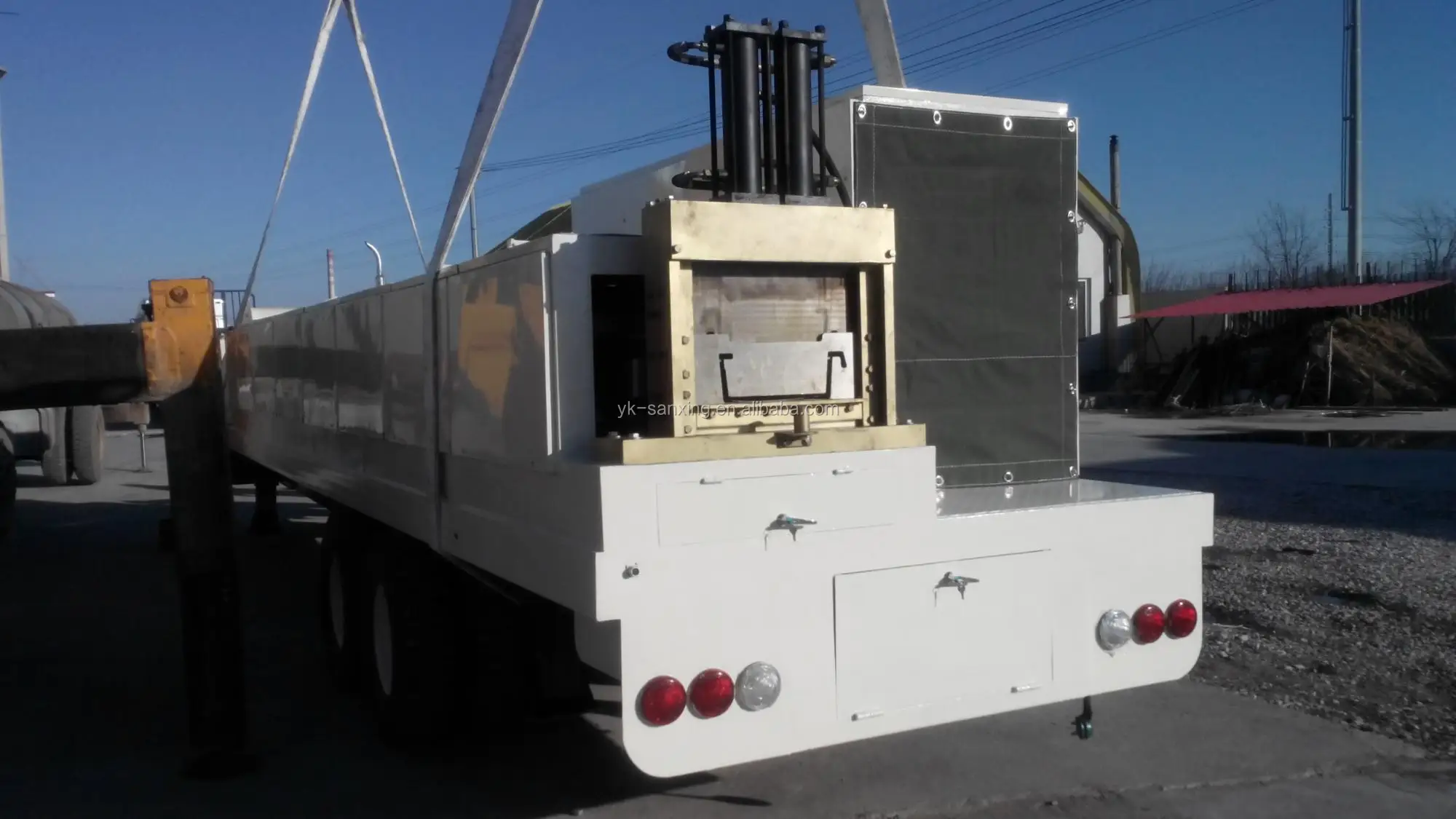

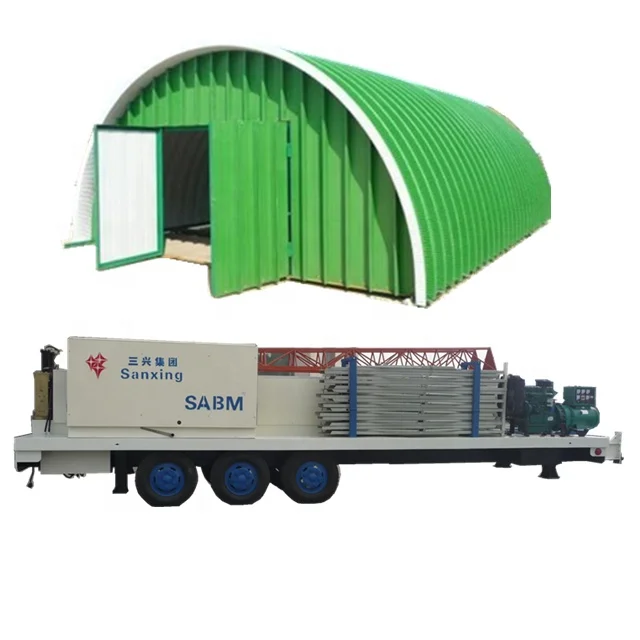

SX 120 SABM 600 305 K Q Span Curve Roof Rolling Forming Machine Building Material Manufacturing Plant Building Material Shops
- Category: >>>
- Supplier: Yingkou Sanxing Roll Forming Machine Co. Ltd.
Share on (1601002453685):
Product Overview
Description
Product Description

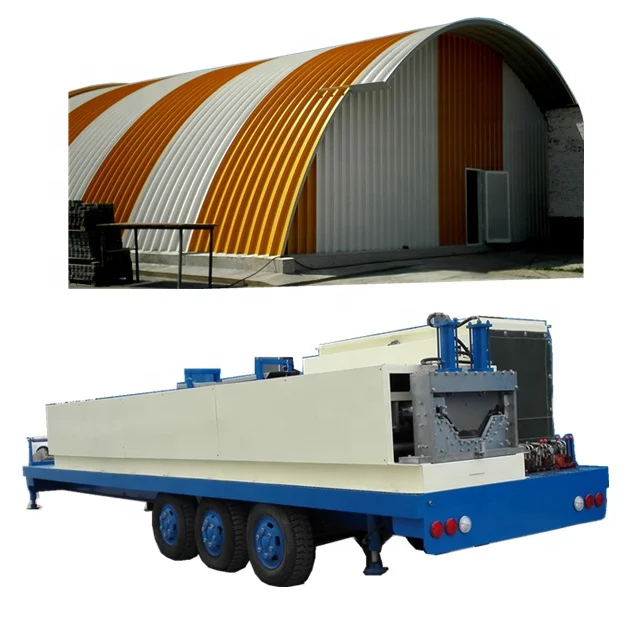

Note: A crane and a truck can be installed.
| The size of the machine | 9000mm × 2230mm × 2300mm |
| Electrical standard | 380V/50HZ/3PHASE |
| Material utilization | 51% |
| Suitable for long span | ≤26M |
| Total Weight | 9000KG |
| Total power | 16.5 KW |
| Main motor of forming | 5.5 KW*1 |
| Motor for curving | 4.0 KW*1 |
| Motor of cutting | 4.0KW*1 |
| Motor with reducer for arch sheet | 1.5KW*2 |
| Material of rollers | 45# steel and 60# steel, quenched HRC 58-62 |
| Material of roller shafts | 45# steel, quenched HRC 58-62 |
| Material of cutting blade | Cr12 1 Mov steel |
| Material of steel leaves | stainless steel |
| Step of rollers | 13 steps vertical type |
| Working Speed: straight part | 13m/min; bending: 6-8m/min;seaming:6m/min |
| Feeding width | 600 mm |
| Effective width | 305 mm |
| Thickness of the coil | 0.5-1.5mm |
| Control System | The Omron PLC and CNC system |

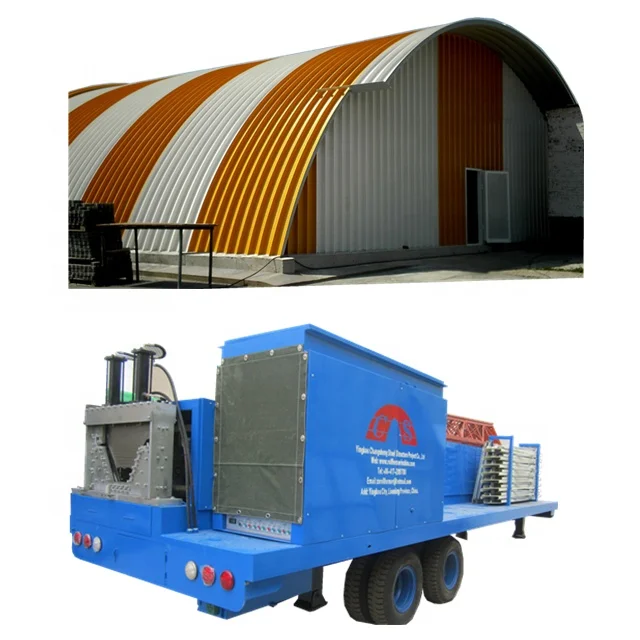

Other Alternative Model
Free Accessories
Packaging & Shipping
We can put the machine in a 40 feet high container, and transport to the port which you designated by sea.
Our Services
About Guarantee
We provide 10 years guarantee for some parts of machine.
About Design
We can design projects for free according to your requirements, and provide drawings.
About Training
If you send the technicians to our factory to study, we will provide training, accommodation, meals and local traffic expense.
If you need technicians we send to your country to train, you should provide expenses of visa, accommodation, meals, round-trip tickets, local traffic and 100 dollars wages per day for everyone.

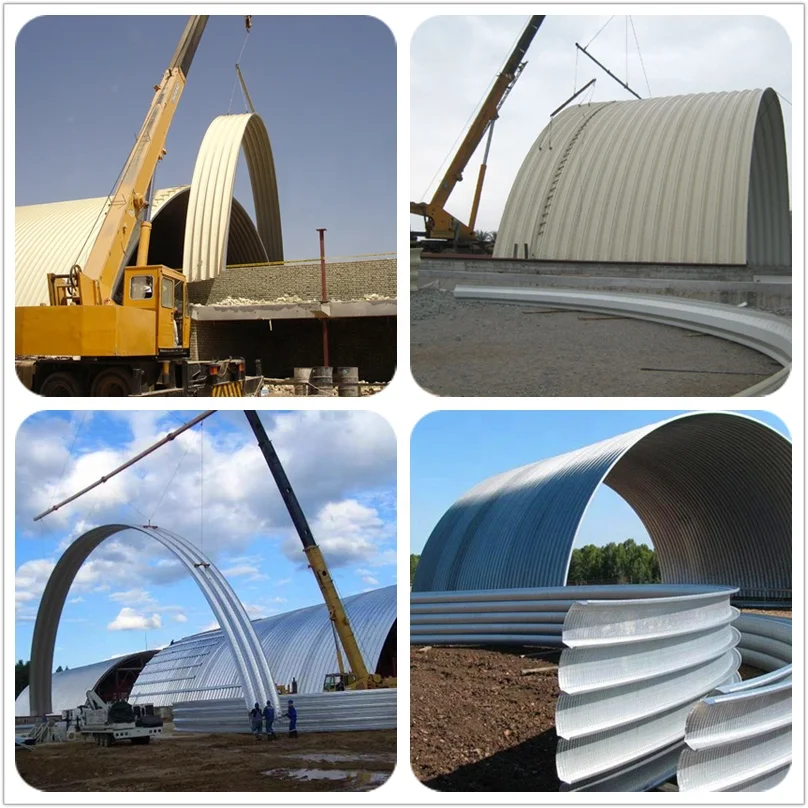

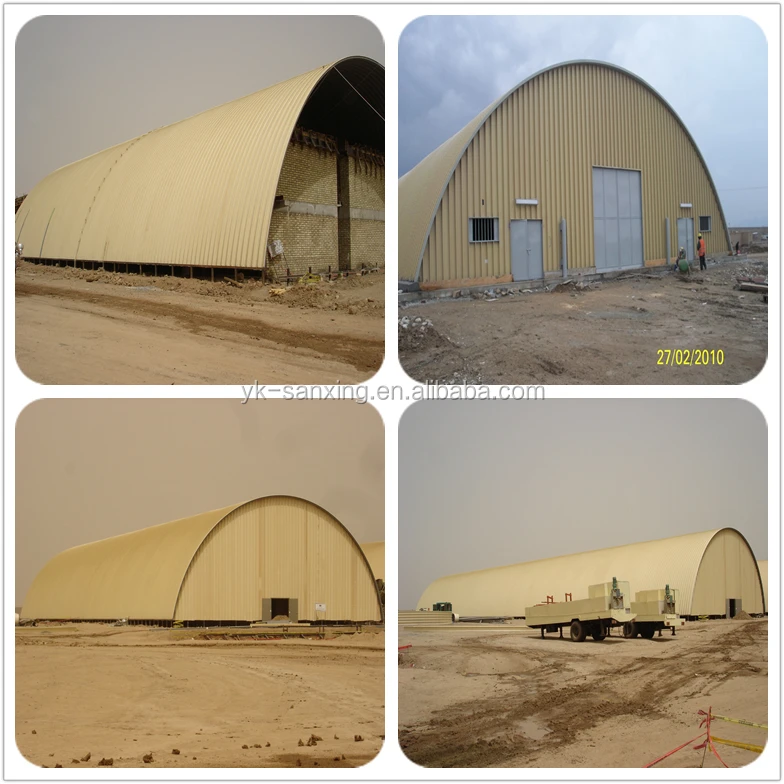

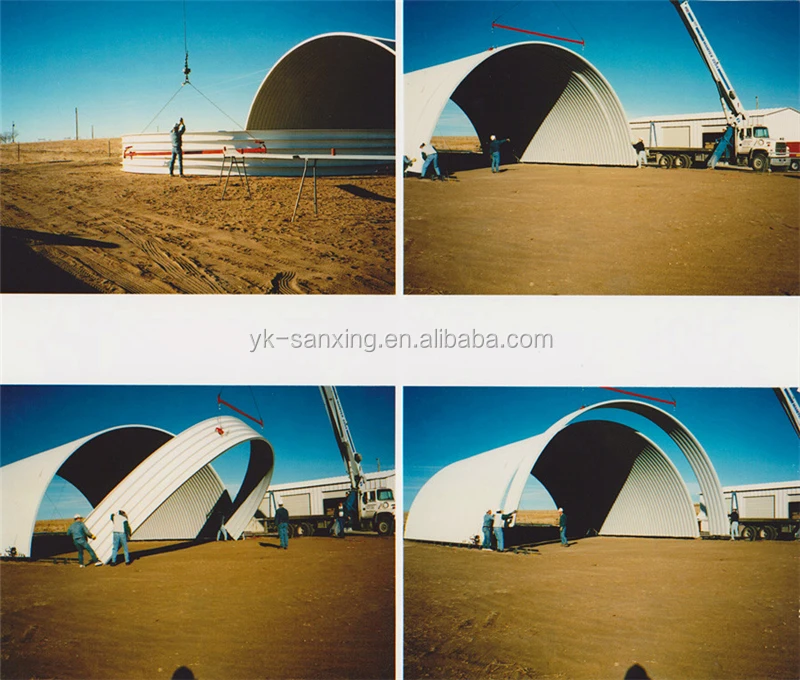

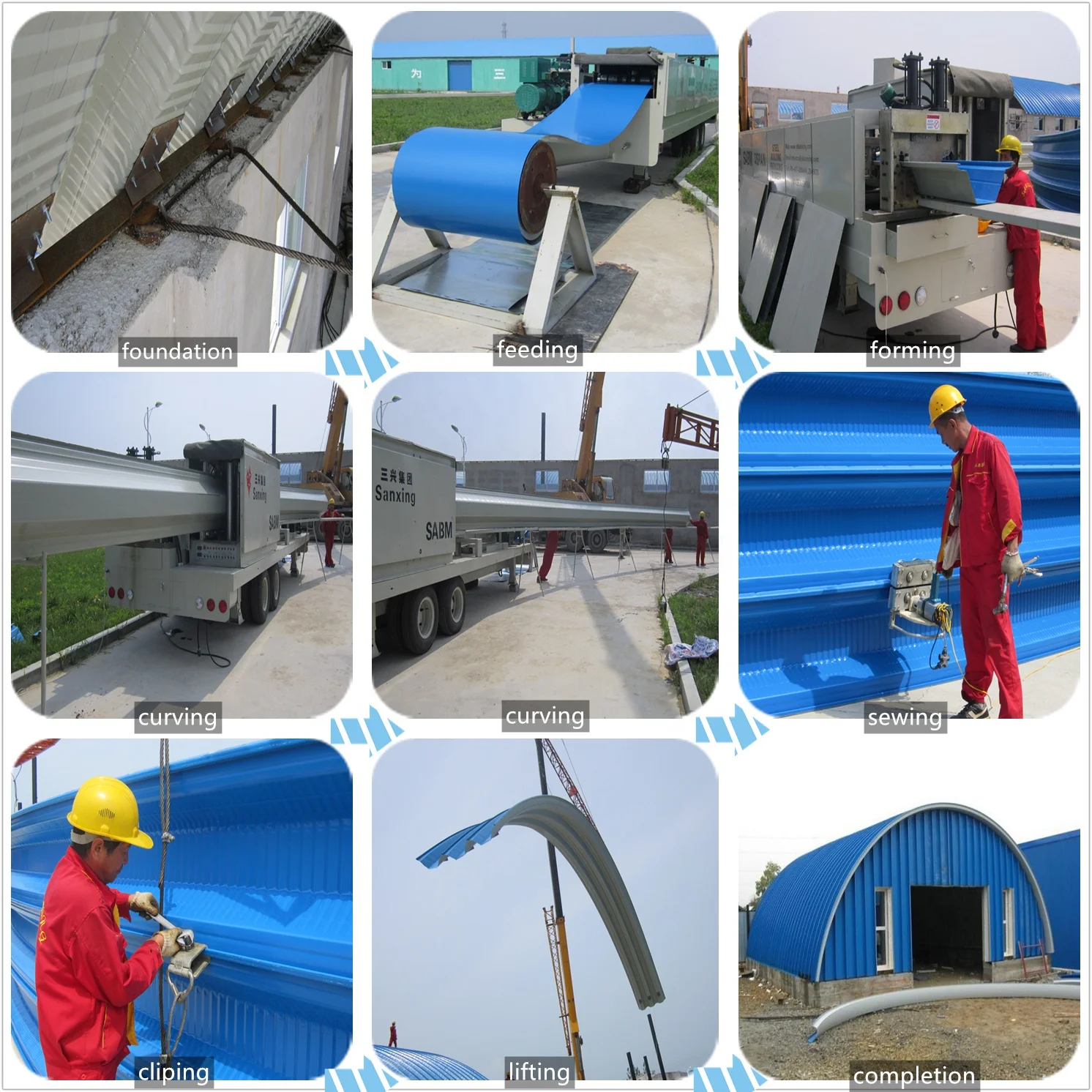

Engineering Cases
Recent Customers
Company Information
Yingkou Sanxing Group is located in Yingkou city, Liaoning province, China since 1992. We are a manufacturer which design and manufacture various kinds of cold roll forming machine, we are also a supplier for lots of Chinese trading company and manufacturer.

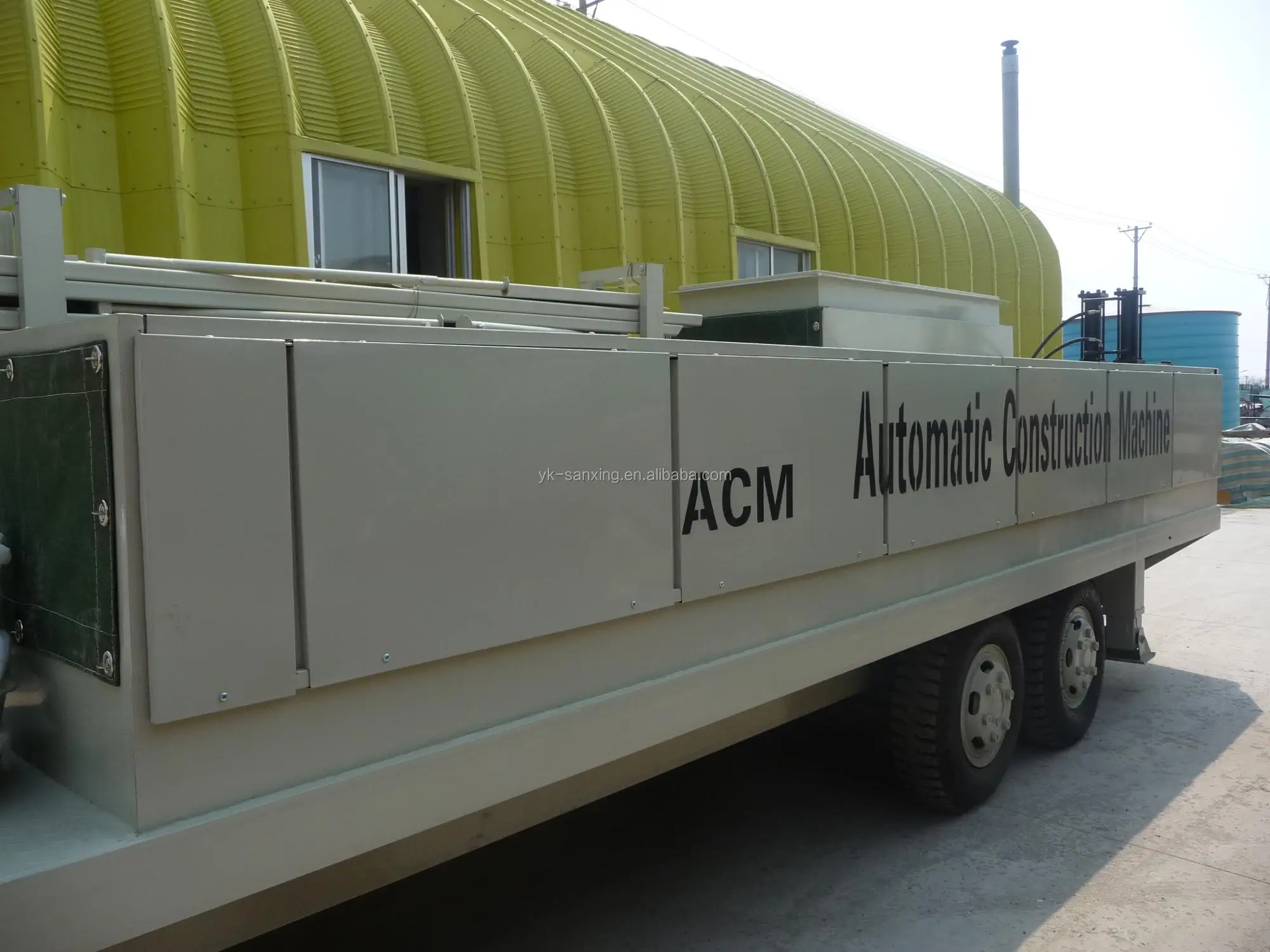

Our main products include ultimate construction machine, automatic construction machine, screw joint roll forming machine, spiral steel silo roll forming machine, KR standing seam roll forming machine, flat steel sheet roll forming machine, deck floor roll forming machine, sandwich panel roll forming machine, C/Z shape steel purlin roll forming machine, light steel frame roll forming machine, rolling door roll forming machine, etc.
Our products have sold to various countries in the world. We warm welcome customers from all over the world to visit our company.
