long tunnel usage shotcrete machine 11 kw 8 m height spraying Concrete Spray shotcrete arm Robot
- Category: >>>
- Supplier: Henan Coal Scientific Research Institute Co. Ltd.
Share on (1601005923356):
Product Overview
Description
Products Description
Shotcrete Robot Introduction:
1. KPC-80 Robotic Telescopic Arm With Automatic Shotcrete robot is suitable for spraying dry concrete, wet concrete or wet and dry mixture.
2. It adopts independent hydraulic drive and 4 hydraulic legs, which greatly improves the stability of the equipment during the spray process.
3. It adopts explosion-proof electrical design, which makes it acceptable in underground coal mine.
4, It is equipped with unique protective cover, which can protect the robot arm.
Shotcrete Robot Application:
1. KPC-80 Robotic Telescopic Arm In PhilippinesShotcrete robot is an ideal equipment for any working space, even in narrow tunnel construction.
2. It is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.
3. Robotic Telescopic Arm For Tunnel Construction Concrete Spray,which can be used for slope stability (slope stability), excavation and support, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.
Shotcrete Robot Parameters:
| basic items | unit | parameter | |
| whole machine | total weight | kg | 4000 |
| dimension in transport mode | mm | 4500x1080x2200 | |
| required width for shotcrete arm retraction | m | 4.1 | |
| outrigger expansion width | m | 2.5 | |
| boom and spraying nozzle | equiped shotcrete machine capacity | m3/h | 5-15 |
| maximum spraying height | m | 8 | |
| maximum spraying width | m | 11 | |
| maximum working height | m | 7.1 | |
| maximum boom expansion length(with spraying nozzle) | m | 6.1 | |
| boom frame telescopic distance | m | 2.6 | |
| boom rotation angle | ° | lift 90, right 270 | |
| boom elevation angle | ° | 60°/30° | |
| working angle of vertical swing cylinder | ° | 360° | |
| working angle of axle swing cylinder | ° | 240° | |
| spraying hose ID | mm | 51,57,64 | |
| travelling mechanism | walking mode | crawler type, hydraulic motor+reducer | |
| walking speed | km/h | 0.7-1.5 | |
| maximum gradient of walking | % | 20 | |
| width of crawler | mm | 250 | |
| wheel base | mm | 1317 | |
| ground clearance | mm | 390mm | |
| ground pressure | MPa | 0.006 | |
| hydraulic system | hydraulic oil pump type | load sensing plunger pump | |
| hydraulic oil pump capacity | ml/r | 28 | |
| maximum walking pressure | MPa | 21 | |
| boom multi-way valve type | anti-explosion electrical hydraulic preportional multi-way valve | ||
| oil tank volume | 200 L | ||
| electrical system | motor type | YBK3-160M-4,11 KW | |
| rated voltage | 660/1140 | ||
| mining explosion proof and intrinsically safe vehicle-mounted wireless recover | FWS40 | ||
| mining intrinsically safe remote transmitter | FYF40 | ||

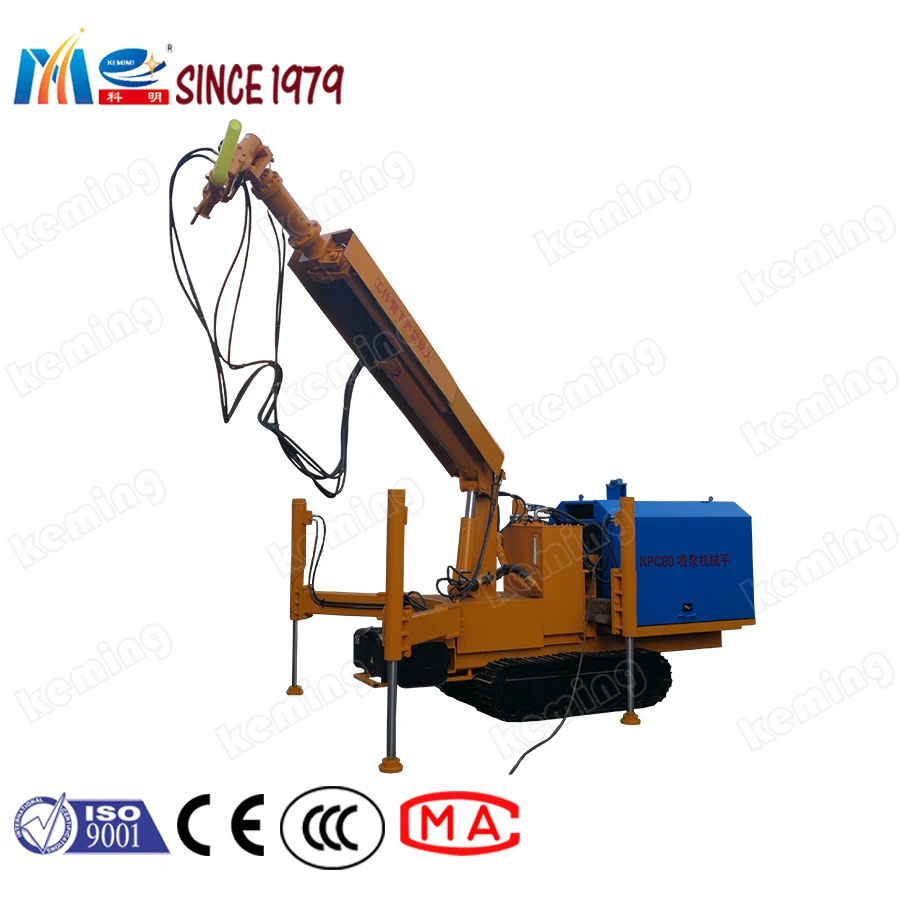

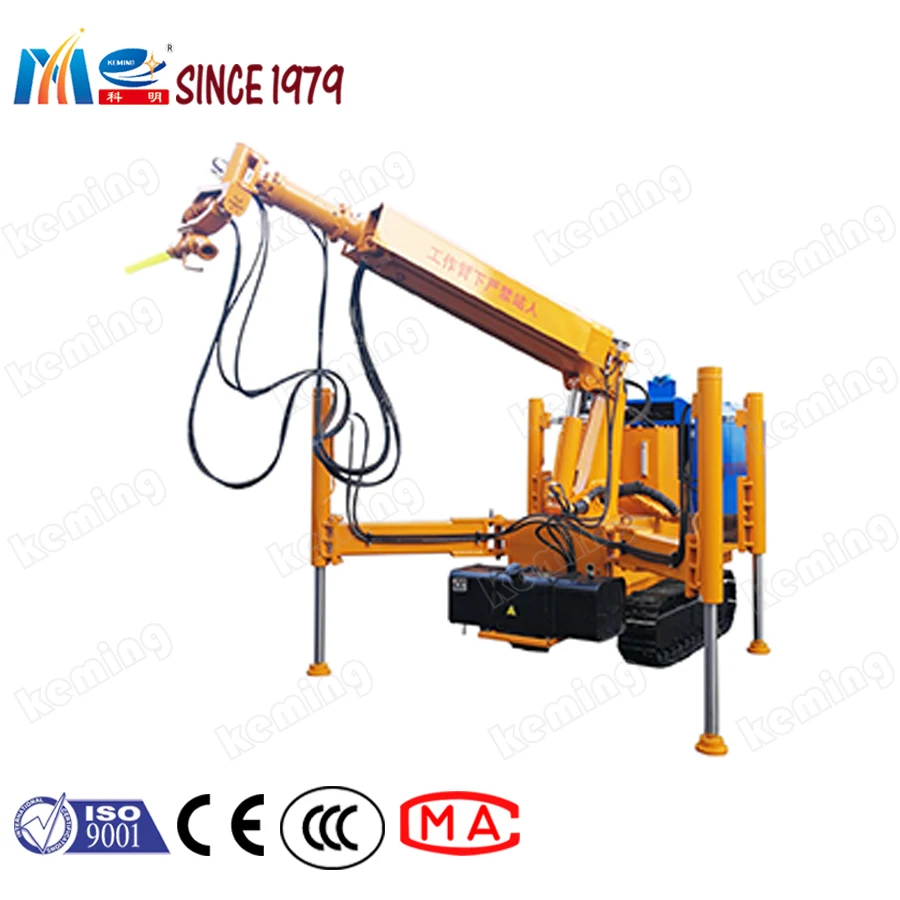

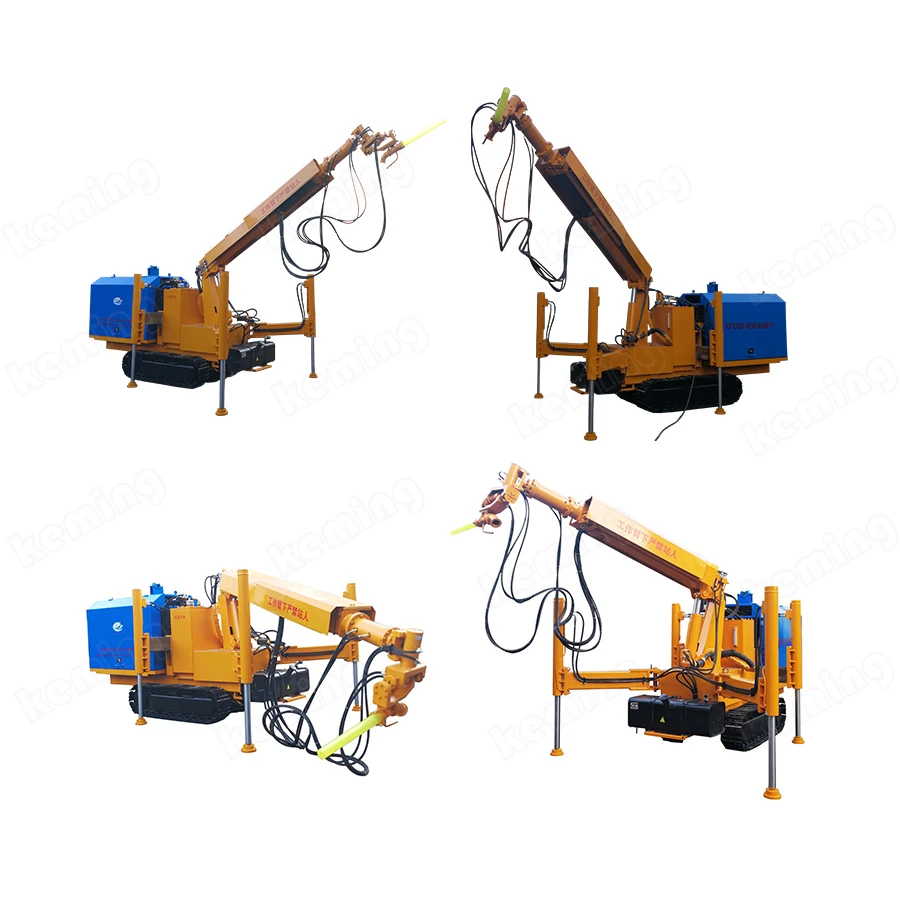

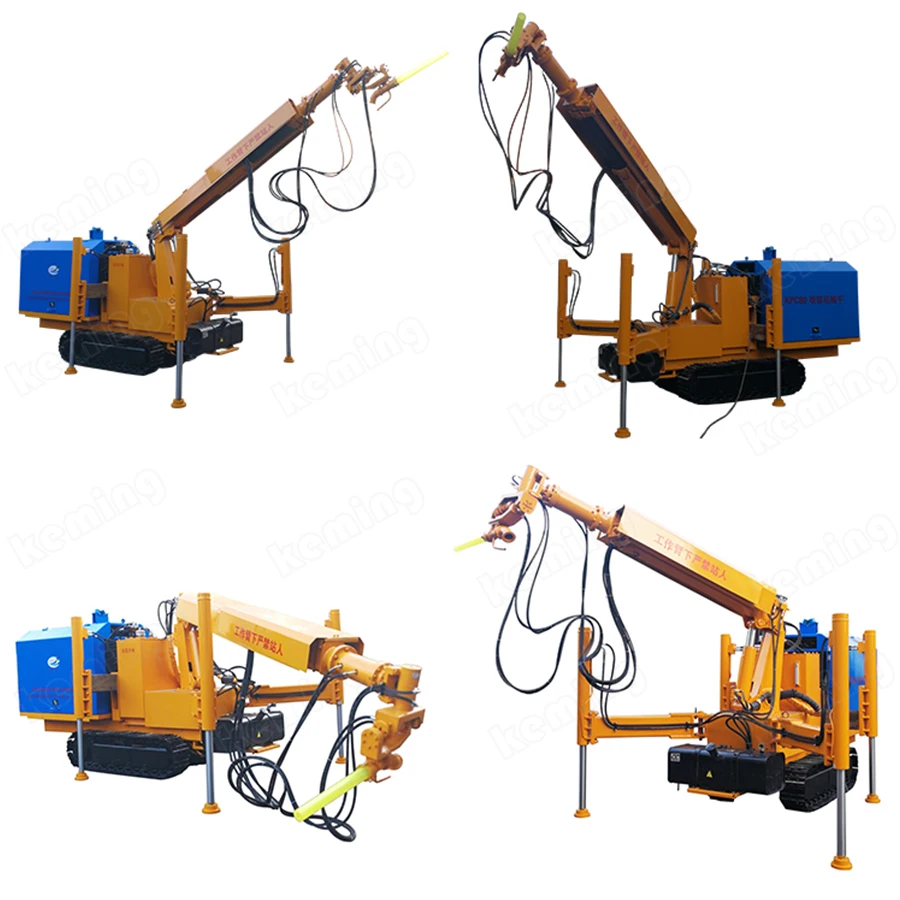

Shotcrete Robot Detailed Images:
Related Products
Company Information
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements:
Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
In 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”. In 2018, our company was awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
Business Scope:
As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Application:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
Main Products:
wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump,mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.
Certifications
FAQ
1. Q: Which shotcrete machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: dry / damp mixture, or ready mixed wet mixture
- Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, pneumatic motor, diesel engine
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
