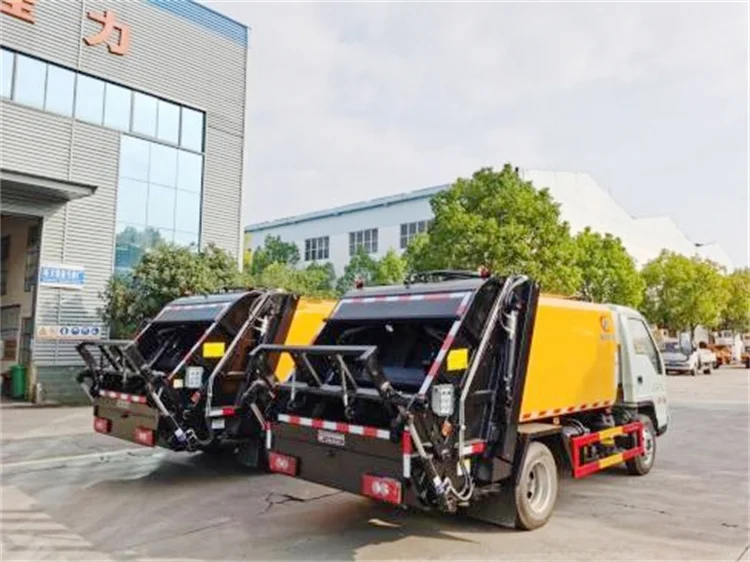

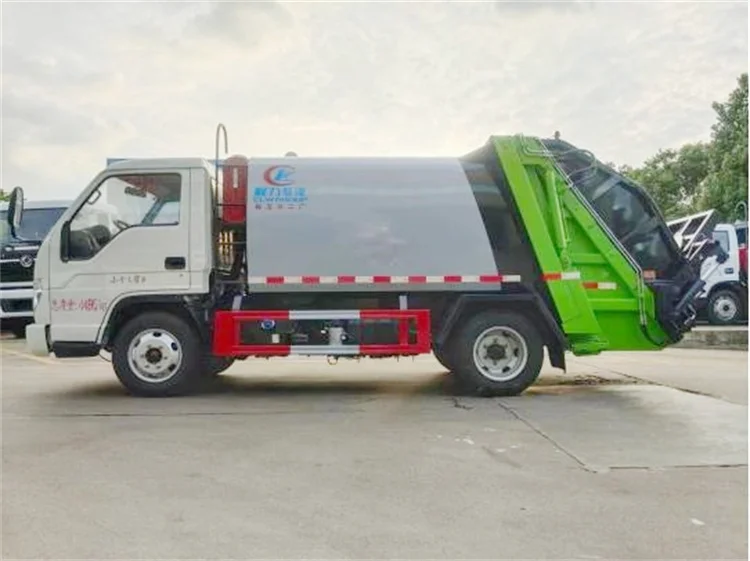

Factory Direct Sale Foton ethiopia waste garbage truck price vehicle waste disposal garbage truck

Product name

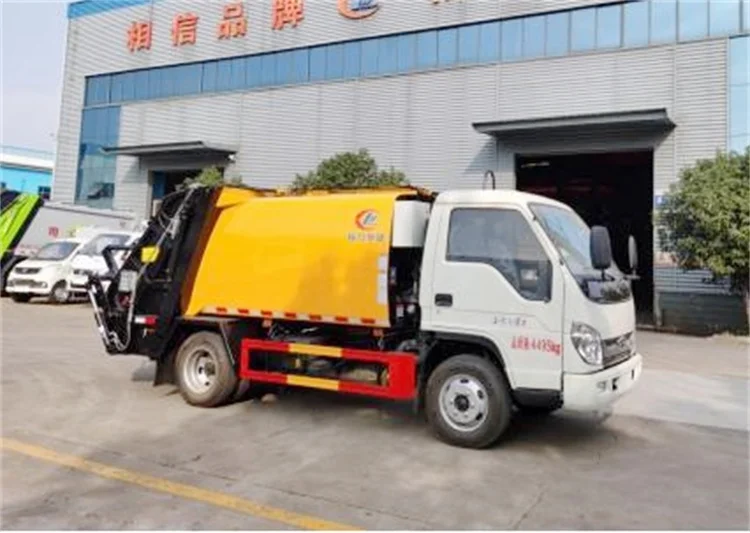

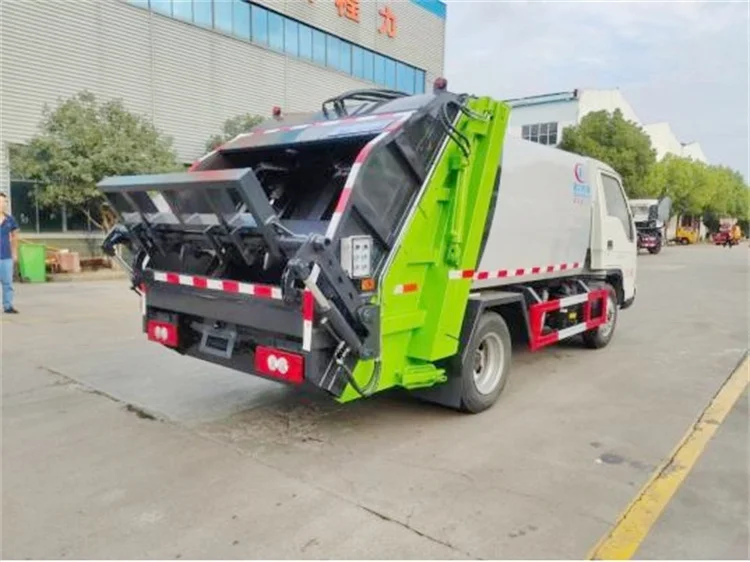

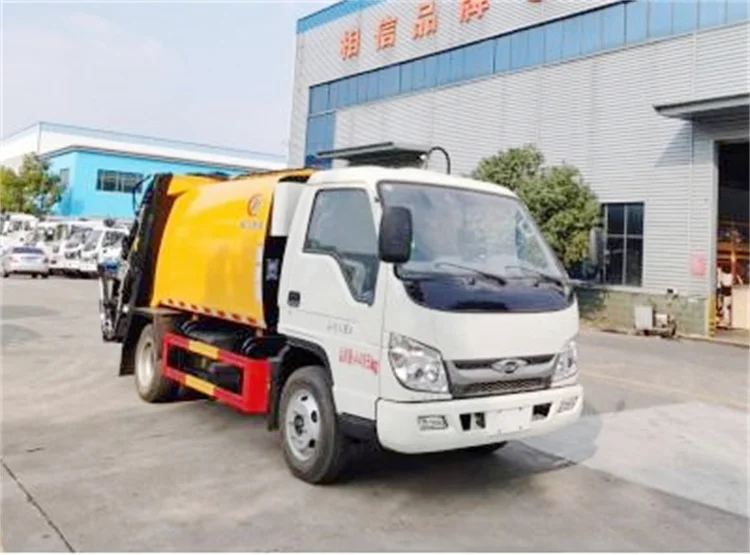

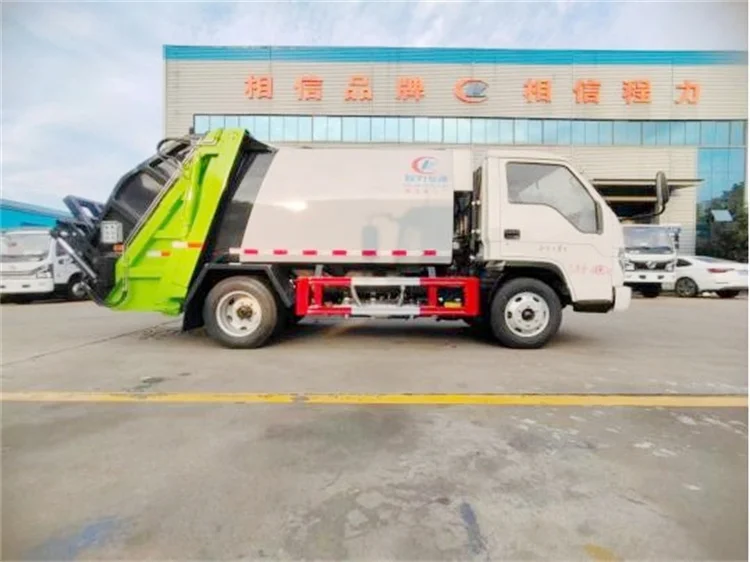

Foton 3~6cbm garbage compactor truck

Dustin volume(m³)

3~6

Chassis model

BJ1045

Overall dimension(mm)

5995×2000×2450

Brand name

Foton

Gross weight(Kg)

4495

Wheelbase(mm)

2850

Payload(Kg)

455

Drive type

4*2

Curb weight(Kg)

3910

Fuel type

Diesel

Axle No.

2

Emission standard

Euro 2/Euro 3/Euro 4/Euro 5/Euro 6

Cab seats(person)

2

Transmission

5-speed

Approach/departure angle(°)

20/14

Tires No.

6+1

Axle load (Kg)

1617/2878

Tire specification

6.50R16

Front/rear hang(mm)

1130/1670

Max speed(km/h)

105

Front/Rear track(mm)

1495/1435

Steel spring number

7/7+5

Engine parameters

Engine model

Engine  manufacturer

Displacement (ml)

power(kw)

4A2-68C50
QC485
Q23-95C60
Q23-115E60

Anhui QuanChai power co ., LTD
Anhui QuanChai power co ., LTD
Anhui QuanChai power co ., LTD
Anhui QuanChai power co ., LTD

2270
2270
2300
2300

68
88
95
115

 Chassis Description

1.Foton 4x2 chassis,flat cab with left/right hand drive optional.
2.2.85m wheelbase,68~115HP Engine,5-speed transmission, front brige 1.5T/ rear brige 2.5T,185R14 tire.
3.Oil brake and Power steering.

Standard Equipment

1. Dustbin volume: 3~6m³, it is made of carbon steel plate.

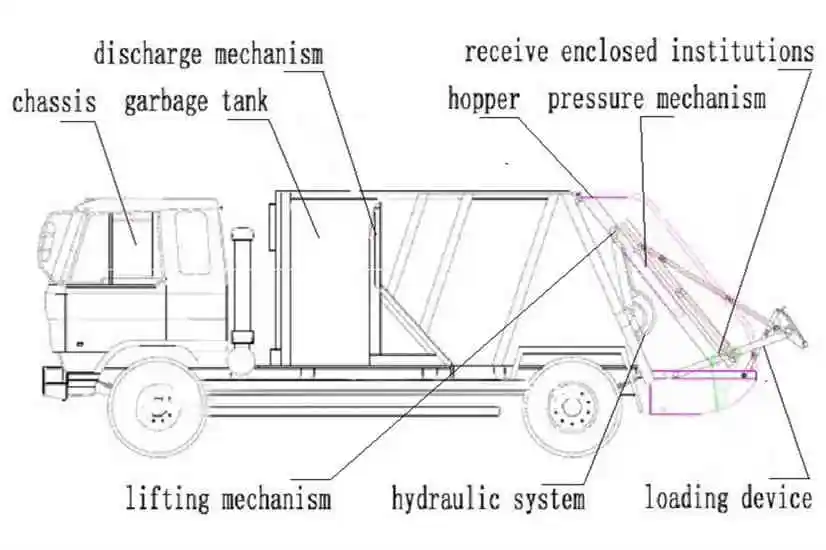

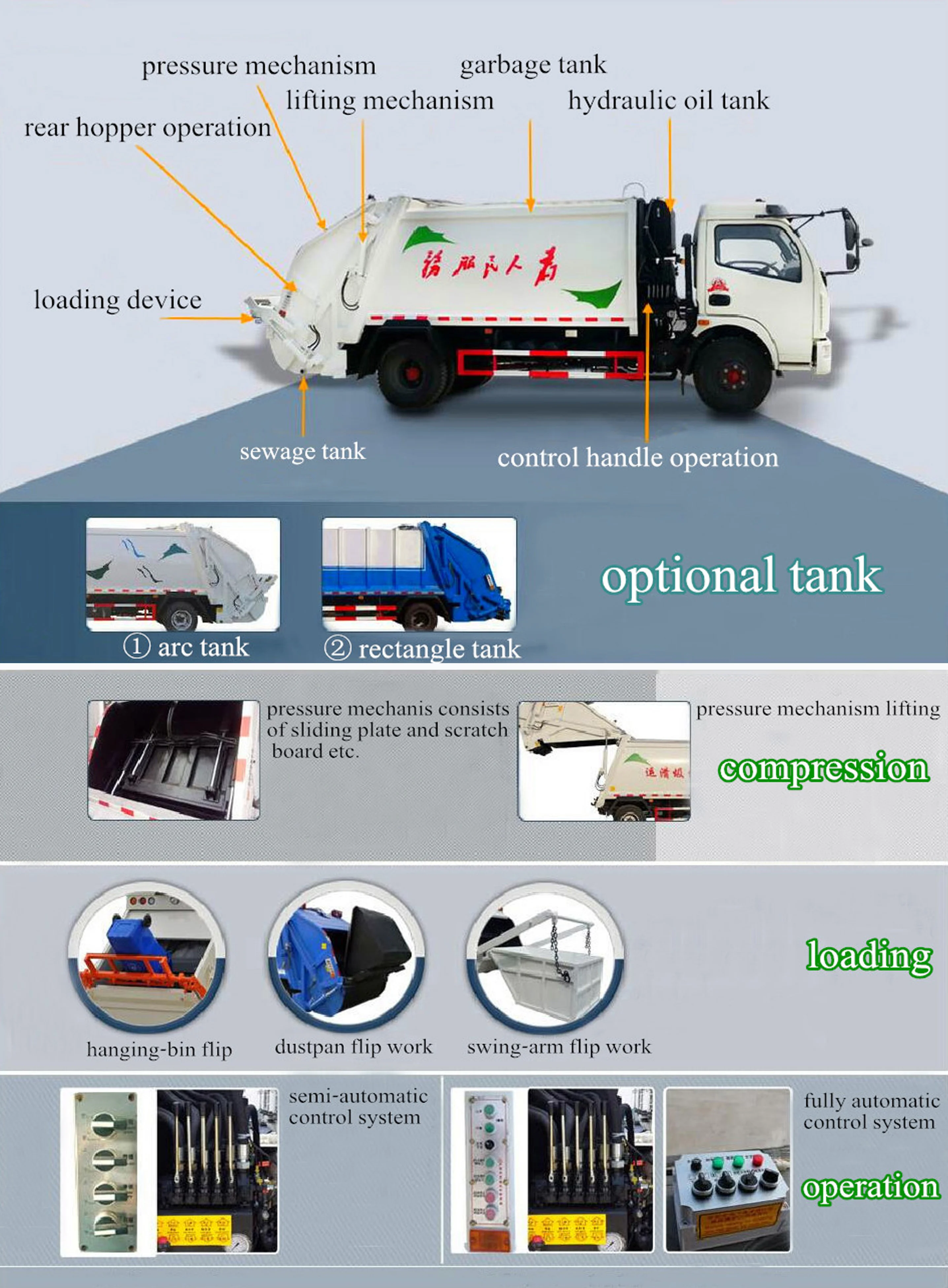

2. Equipped with  front push back pressure, vice press plate, sewage box, electric control operation. Compressed dustbin is couplet body type, external power source work, overturn feedstock,  compression push board in dustbin, rear lock door and tipping bucket, hydraulic electric system and etc.

3.Garbage compactor truck adopt machine,electricity,liquid linkage control system, computer control and manual operation system, realize rubbish into,crush or press flat through loading device and push shovel, and then squeeze garbage into the dustbin, compaction and push unloading.

4.The garbage compactor truck is constructed with 12# low alloy steel and 5mm,4mm,10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed .All the waste water can go directly into the sewage tank,so as not to corrode the body and the chassis.Morever,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.The garbage tank compacts the waste by a hydraulically powered mechanism,which employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall.

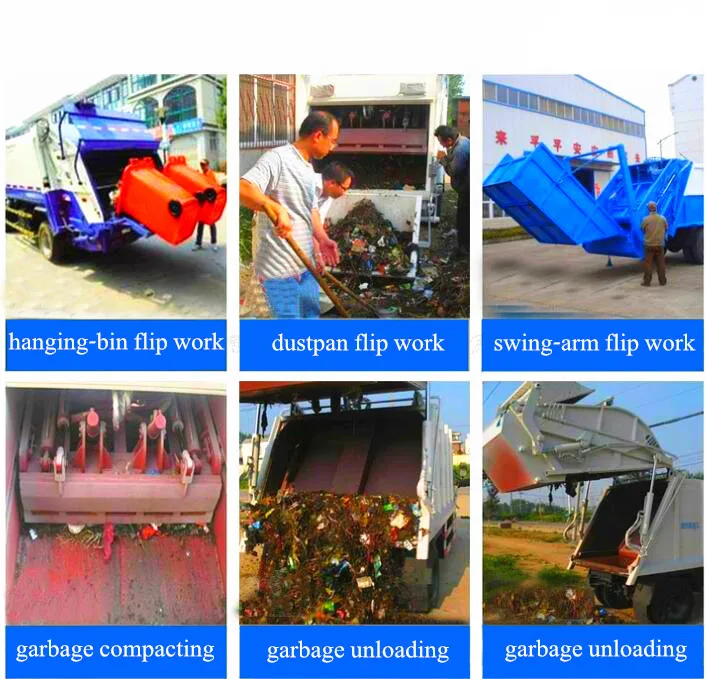

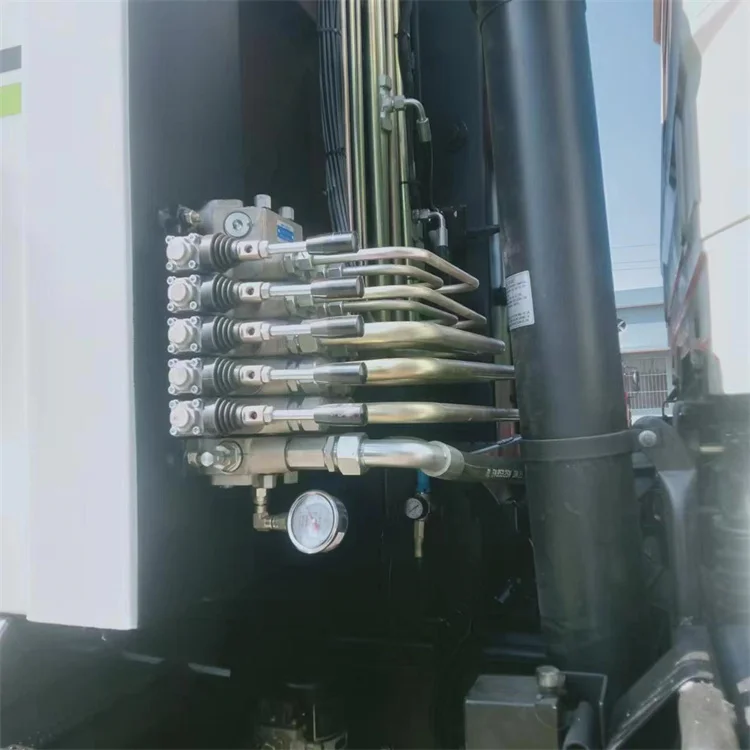

5. Equipped with two sets of hydraulic operation systems.Types of collect garbage: barrel collecting,bucket collecting,box collecting.
