Railcar Railway Inspection Vehicle Rail Locomotive Tram Maintenance and Inspection Vehicle Electric Rail Transporter
- Category: >>>
- Supplier: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.Shandong Ltd.
Share on (1601010449731):
Product Overview
Description
Products Description
Introduction Of Railroad Inspection Vehicle Rail Monitoring Flat Car Loading Inspection Equipment Rail Inspection Vehicle

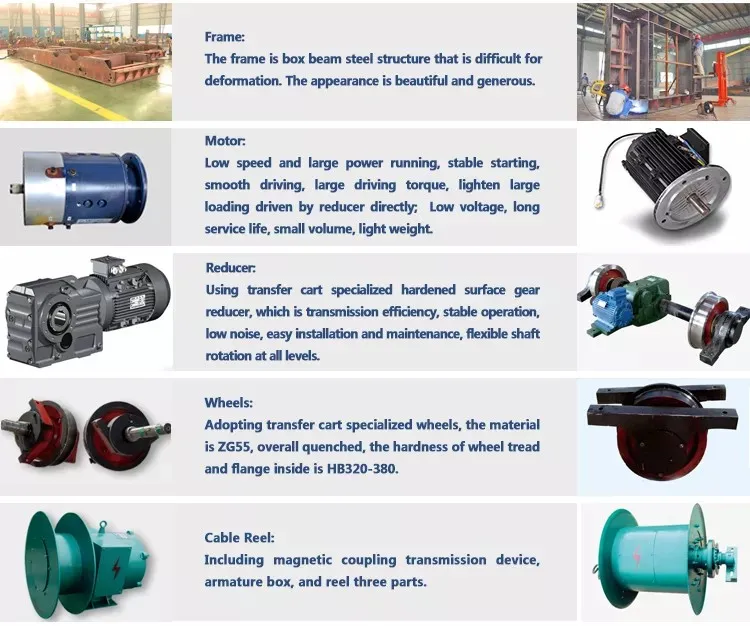

The motor of the track oriented mobile track detection vehicle is XQ series DC brush motor with rated voltage of 48V, which is specially used for metallurgy. The insulation grade is F and the protection grade is IP44.
The bearings of the track inspection vehicle are high-quality products.
The wheels of the track oriented mobile track inspection vehicle are crane wheels made of full duralumin alloy. The hardness of wheel tread and inner side of rim is HB320-380. The wheel is a single flange with two bearing pedestals.
The wheels of the track oriented mobile track inspection vehicle are crane wheels made of full duralumin alloy. The hardness of wheel tread and inner side of rim is HB320-380. The wheel is a single flange with two bearing pedestals.
The material is 45 # steel with good mechanical properties.
The coupling is a drum gear coupling made of 45 # or 40Cr forged materials. The gear surface is quenched in a salt bath furnace. The coupling is characterized by efficient transmission, easy installation and maintenance. The straightness between the two shafts can be adjusted to ensure the stable operation of the trolley.
The coupling is a drum gear coupling made of 45 # or 40Cr forged materials. The gear surface is quenched in a salt bath furnace. The coupling is characterized by efficient transmission, easy installation and maintenance. The straightness between the two shafts can be adjusted to ensure the stable operation of the trolley.
The electrical equipment adopts DC overload protection device and smooth acceleration starting device, both of which are controlled by modules. Compared with the past contact conduction, this makes the cart start strong and stable, and greatly reduces the spark generated by the load.zmwm17
Product Paramenters
Item | Property | Index |
1 | Name | Rail Maintenance Cart |
2 | Load Capacity(kg) | 400-500 |
3 | Self-weight(kg) | 50-70 |
4 | Speed(km/h) | 0-20 |
5 | Material | Aluminum Alloy |
6 | Seat (pcs.) | 4-6 |
7 | Power Mode | Lithium Battery |
8 | Table Size(mm) | 1600*1600 |
9 | Wheels | Insulated |
10 | Parts | Searchlight, Radar Detector etc. |
Details Images
Company Profile
Our Advantages
FAQ
1. You are a manufacturing factory or trading company?
China Coal Group is a manufacturing factory base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment and other products.
2. Where is your factory located?
Currently we have one factories in China. One located in Jining, Shandong Province, China . You are warmly welcome to visit us at any time.
3. What are your main products?
We mainly produce mining machinery, road machinery and railway equipment. We can provide you with any machinery you need!
4. How long is the production leadtime?
Generally it is 15-20 days for goods in stock. In the case of out of stock or large orders, it will take 20-30 days. QTY of the orders will be taken into consideration.
5. What payment terms do you accept?
Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment), bank transfer, Paypal, L/C etc.
6. How do your quality control systems operate?
We have professional designer team, and employ experienced engineers to strictly guarantee the production. Meanwhile our factory owns ISO9001 and is CE and SGS certified.
China Coal Group is a manufacturing factory base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment and other products.
2. Where is your factory located?
Currently we have one factories in China. One located in Jining, Shandong Province, China . You are warmly welcome to visit us at any time.
3. What are your main products?
We mainly produce mining machinery, road machinery and railway equipment. We can provide you with any machinery you need!
4. How long is the production leadtime?
Generally it is 15-20 days for goods in stock. In the case of out of stock or large orders, it will take 20-30 days. QTY of the orders will be taken into consideration.
5. What payment terms do you accept?
Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment), bank transfer, Paypal, L/C etc.
6. How do your quality control systems operate?
We have professional designer team, and employ experienced engineers to strictly guarantee the production. Meanwhile our factory owns ISO9001 and is CE and SGS certified.
