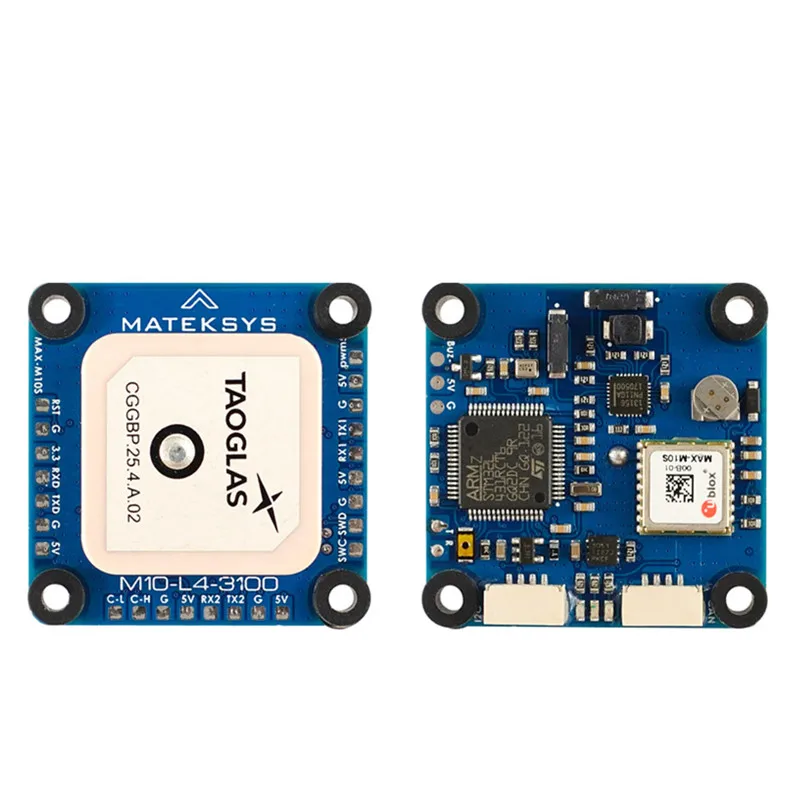

Matek Systems AP PERIPH GNSS M10 L4 3100 GPS Compass Module for RC Multirotor FPV Racing Drone
Matek Systems AP PERIPH GNSS M10-L4-3100 GPS Compass Module for RC Multirotor FPV Racing Drone
Matek Systems AP PERIPH GNSS M10-L4-3100 GPS Compass Module for RC Multirotor FPV Racing Drone
Matek Systems AP PERIPH GNSS M10-L4-3100 GPS Compass Module for RC Multirotor FPV Racing Drone

Matek Systems AP PERIPH GNSS M10 L4 3100 GPS Compass Module for RC Multirotor FPV Racing Drone

Share on (1601012802824):


Price:$73.93 - $83.99

Quantity:


Product Overview

Description




Product Description

Product Description

























Specification

Specification


















































FC Specifications


GNSS u-blox MAX-M10S (GPS, GLONASS, Galileo and BeiDou)
Magnetic Compass RM3100

Barometer SPL06-001

Patch GNSS Antenna 25*25*4mm
MCU STM32L431RCT6

UART3, onboard MAX-M10S

UART2(TX2 RX2), MSP Protocol

CAN, DroneCAN Protocol

I2C JST-GH connector for external AirSpeed sensor

CAN bootloader LED, Blue

Fast blinking, Booting

Slow blinking, working

GNSS PPS LED, Green

solid on after powering on

blinking(1Hz) when GNSS has 3D fixed

3.3V LED, Red



FC Firmware


ArduPilot AP_Periph: MatekL431-Periph


Input voltage range:


4.5~5.3V (5V pad/pin)


Power consumption:


60mA


Operating Temperatures:


-20~80 °C

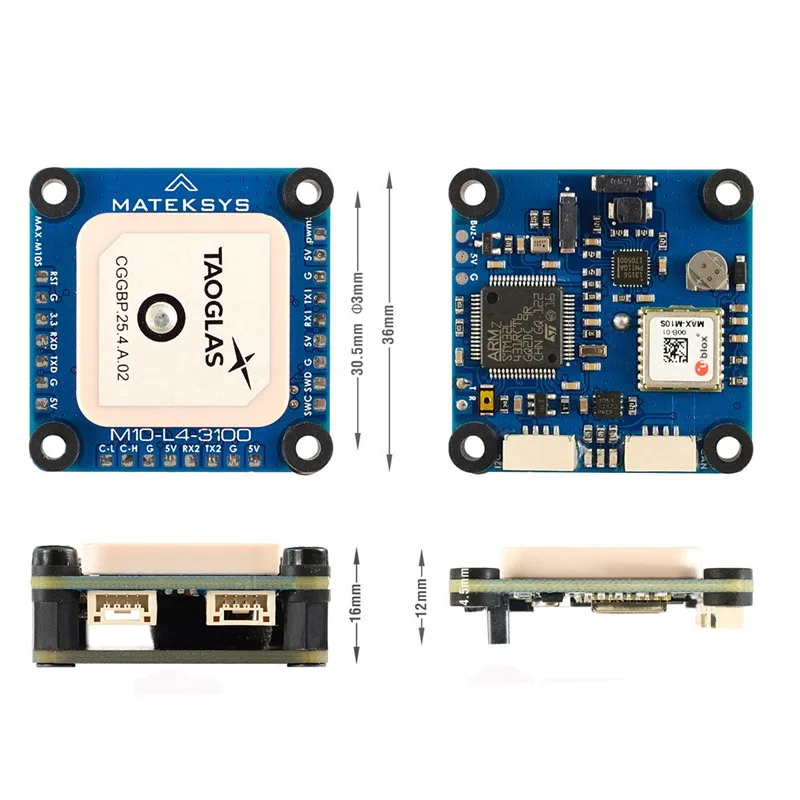

Size:


36mm*36mm*12mm


weight:


16g
