Product Overview

Description

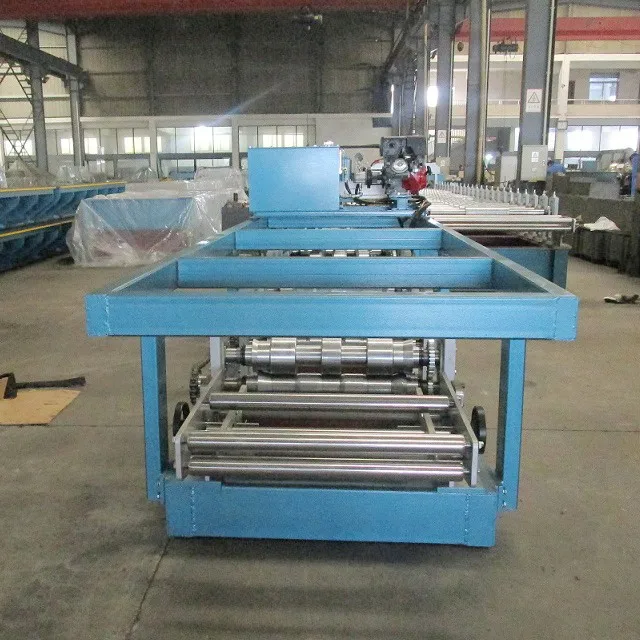

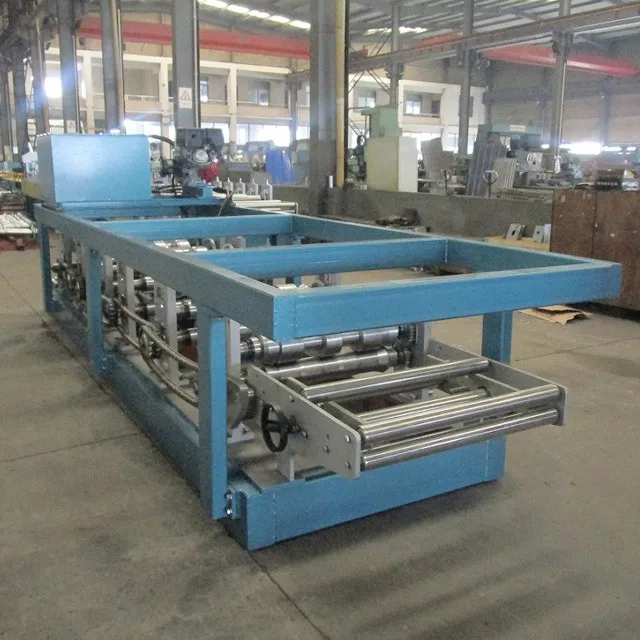

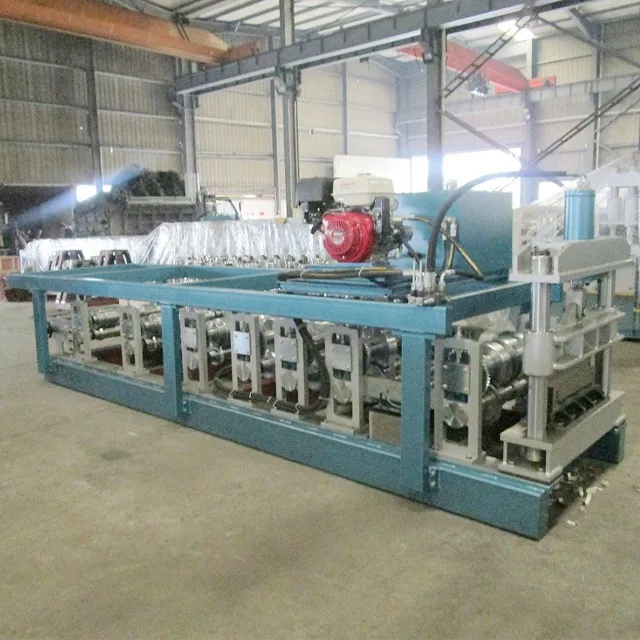

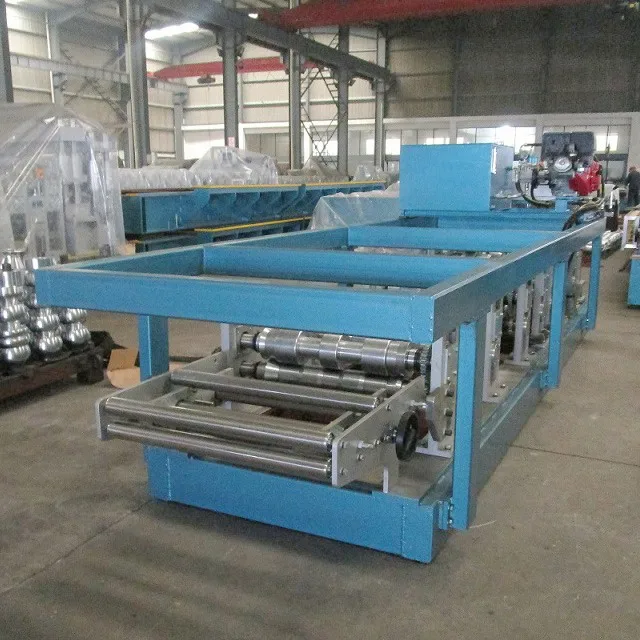

Good Chinese supplier sheet metal roof KR18 seaming roll forming machine China



Product Description

1.Technical parameter of Stand Seam Roofing Sheet Roll Forming Machine:



































































Item



Specification






Material



Type



                               PPGI coils



Thickness



0.5-0.7mm



Yield strength



235-345Mpa



Roller material



High grade No.45 forged steel, with digital-controlled procession,


Plated with hard chrome with thickness of 0.05mm



Forming speed



about 15-20m/min (excluding in cutting time)



Speed adjusting mode



AC Frequency



Roller drive



Decelerating motor + Chain drive



Diameter of shaft



72mm



Cutter material



Cr12 mould steel with quenched treatment



Length measurement



Encoder



Control mode



hand controller



Operating mode



Button + Mitsubishi Touch screen



Machine weight



3500KGS



Machine size



4.8*1.5*1.55m(L*W*H)






2. Components of standing seam roll forming machine:


























Manual decoiler



1 set(Capacity: 3 tons)



Guiding Equipment



1set



Roll-Forming M/C



1set

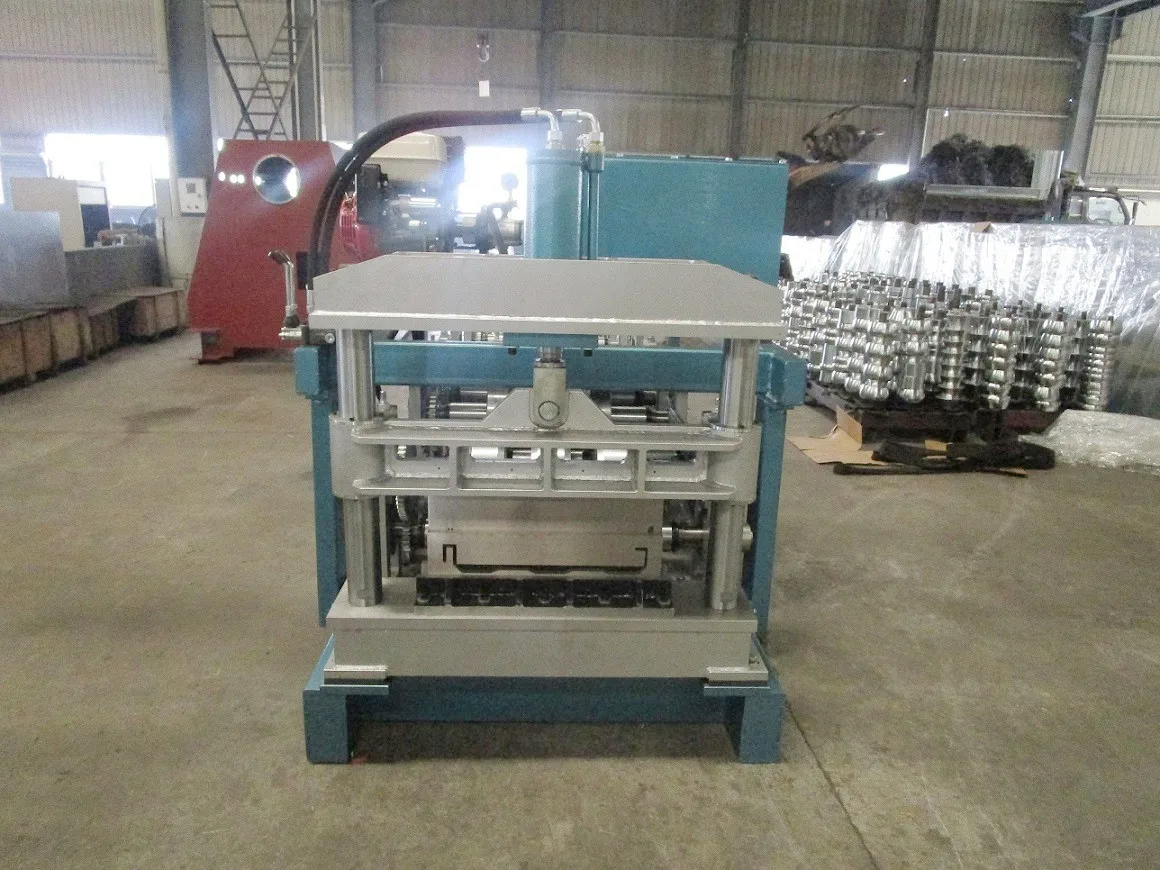

Cutting Device



1set



Tool Box



1set

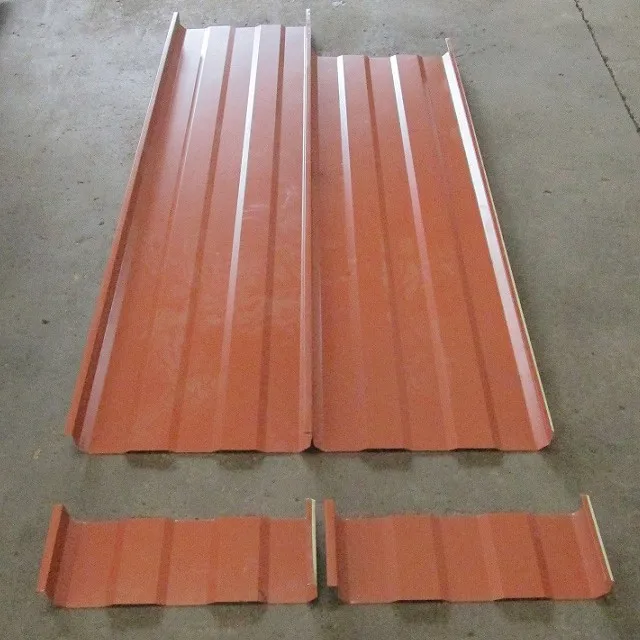

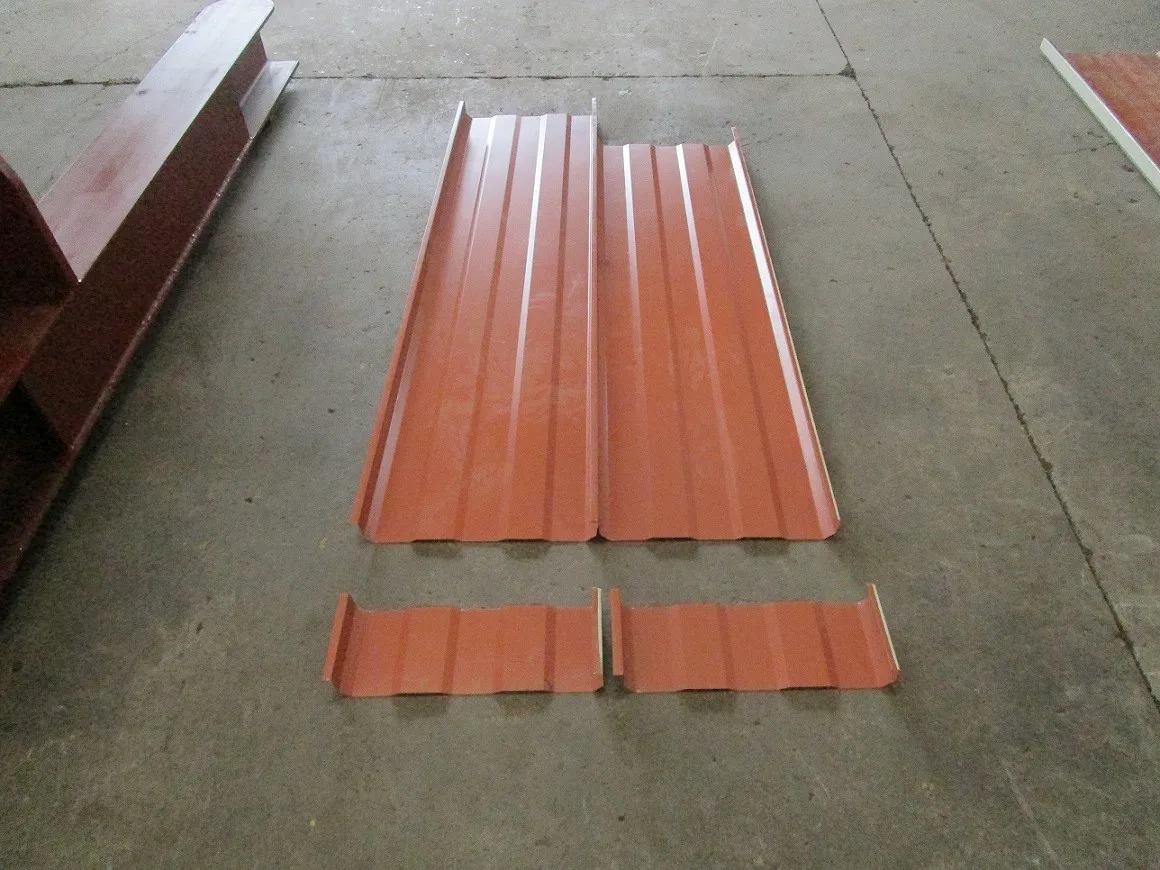

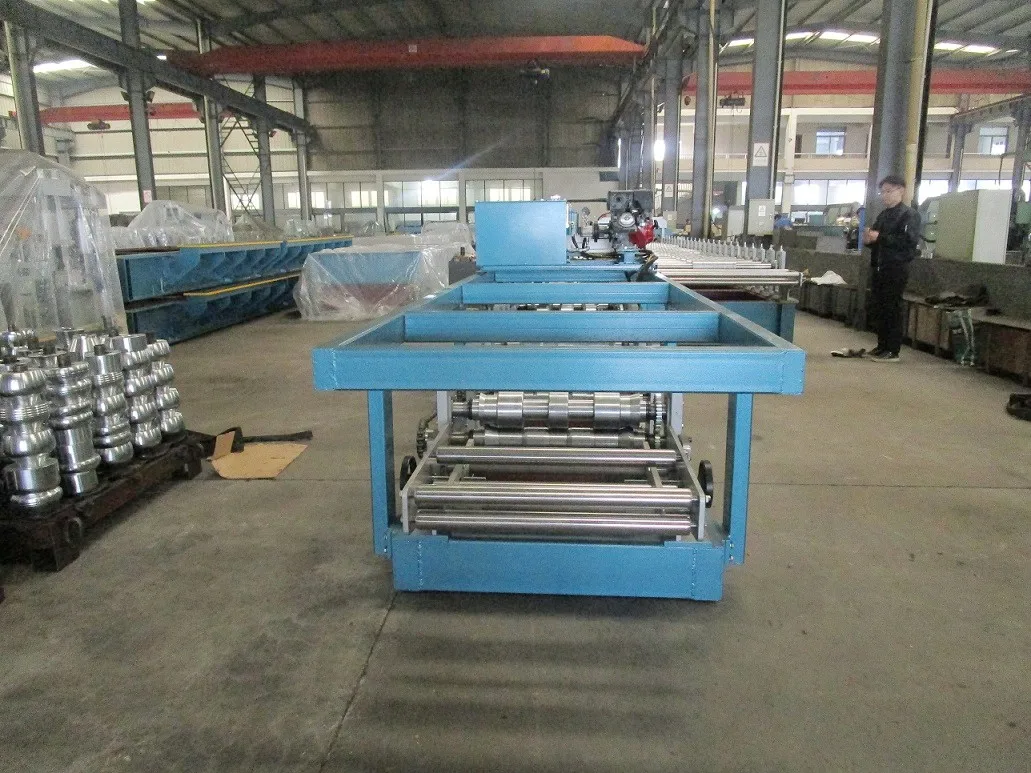

Products view















Related Products


roof roll forming machine.jpg    tile roll forming machine.jpg    purlin roll forming machine.jpg


 Roof roll forming machine       Tile roll forming machine     Purlin roll forming mahcine


  deck roll forming machine.jpg   guardrail roll forming machine.jpg   double layer roll forming machine.jpg


Deck roll forming machine    Guardrail roll forming machine       Double layer machine


 line roll forming machine.JPG cut to length.jpg     stud and track.jpg


   Line roll forming machine             Cut to length         Stud and track roll forming machine








Company



 company profile.png.png


.png


.png

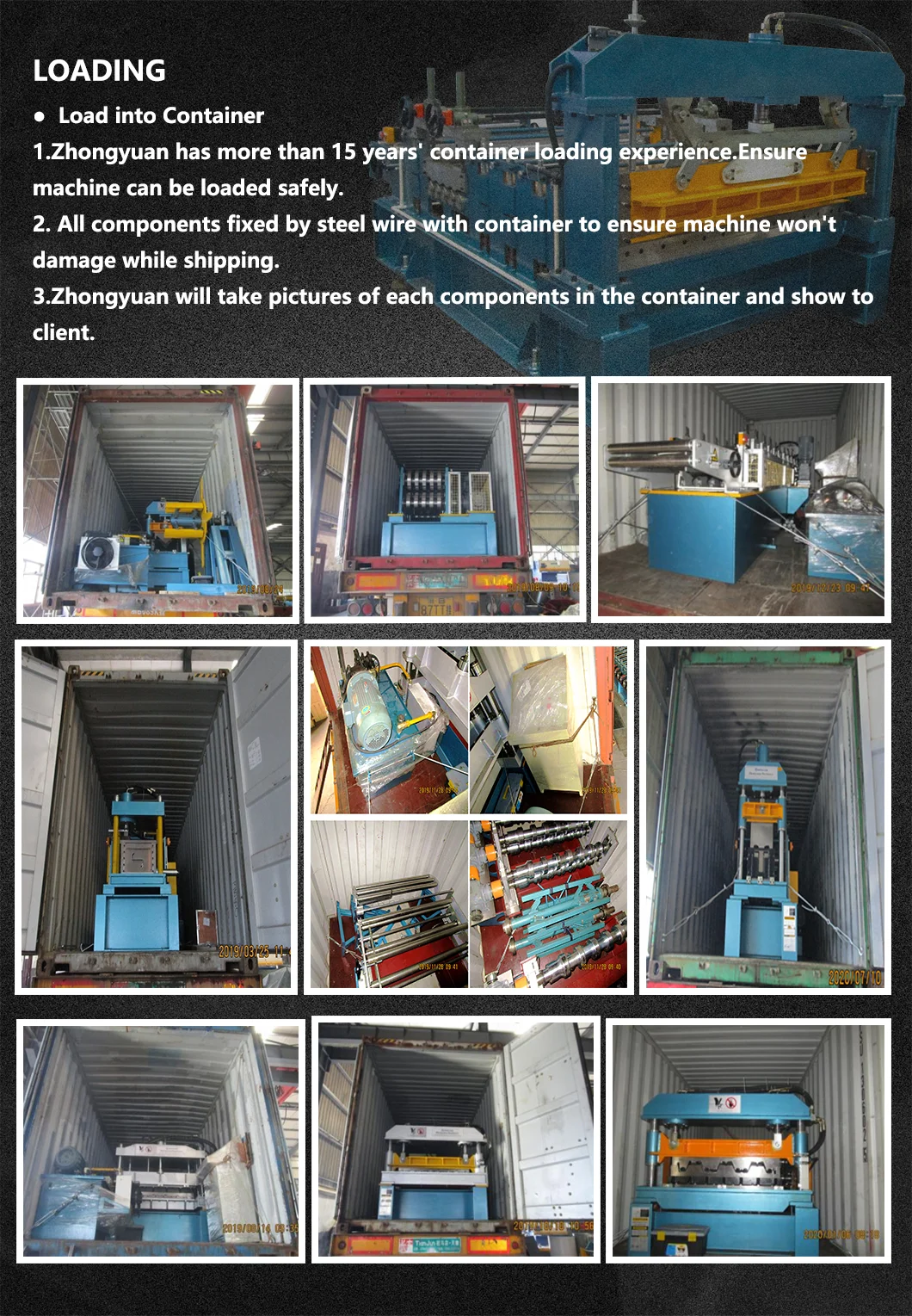

LOADING AND STACKING 1.pngLOADING AND STACKING 2.pngLOADING AND STACKING 3.png









Packaging & Shipping




PACKAGE:


1. need about 1*20gp container for loading one set standing seam roofing panel roll forming machine completely;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.


DELIVERY TIME:


within 70 days after getting advance payment.



fire resistance used pu sandwich panels





FAQ




FAQ





1. Are you manufacturer or trading company?


We are manufacturer and trading company .




2. Do you provide installing and training overseas?


Overseas machine install and worker training services are optional.




3. How is your after sales support?


We provide technical support on line as well as overseas services by skillful technicians.




4. How does your factory do regarding quality control?


There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.




5. How can I trust you that machines pasted testing running before shipping?


1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
