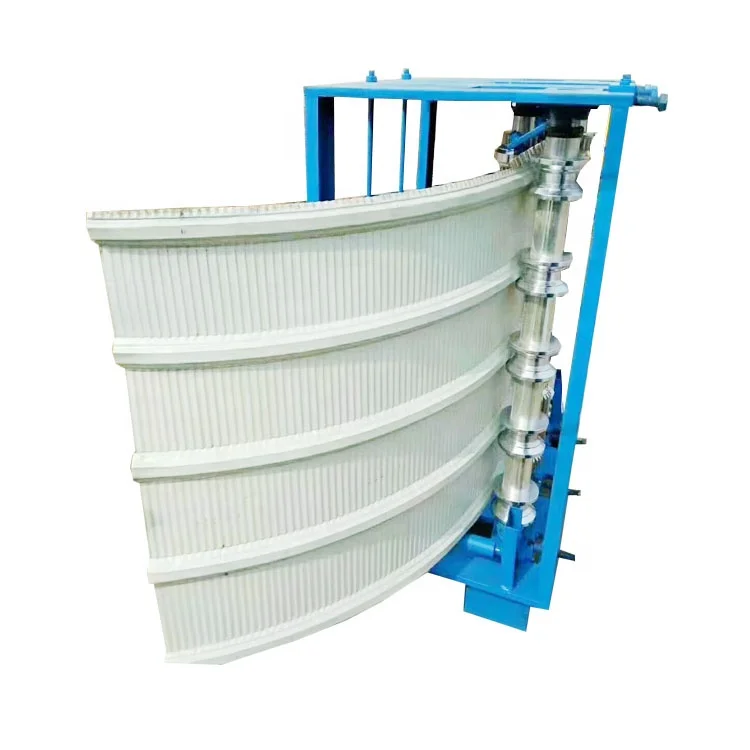

Horizontal Vertical 800 Arching Machine
- Category: >>>
- Supplier: Cangzhou Huanuo Cold Bending Machine Co. Ltd.
Share on (1601014929439):
Product Overview
Description
Specification
item | value |
Applicable Industries | Manufacturing Plant, Home Use, Construction works |
Showroom Location | Indonesia |
Condition | New |
Type | Tile Forming Machine |
Tile Type | Steel |
Use | ROOF |
Production Capacity | 10--18 m/min |
Place of Origin | HEB |
Brand Name | HUA NUO |
Voltage | 380V 50HZ OR CUSTOMIZED |
Dimension(L*W*H) | 6200*1300*1200mm |
Weight | 3500kg |
Warranty | 1.5 years |
Key Selling Points | Long Service Life |
Rolling thinckness | 0.3-0.8mm |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | New Product 2023 |
Warranty of core components | 1.5 years |
Core Components | PLC |
Usage | Roof building |
Control system | PLC(imported Brand) |
Cutting type | Hydraulic Cutting |
Power | 5.5kw |

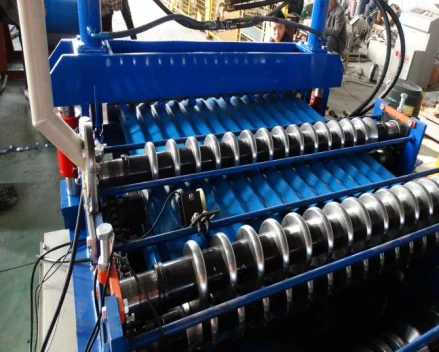

1.For all of our rollers, spacers and shafts, we all mark numbers on it, it’s very convenient for you to maintenance the machine in the future.
2.There is ball bearings inside the main rollers, to make all the rollers run at same speed when machine is run.
3.Because the rollers inside with ball bearings, our rollers is bigger than others, so work speed is faster.
4.All rollers and spacers, we do 0.03mm thickness chrome coating, to increase hardness and anti-rust. Some factories maybe use 0.01-0.02mm chrome coating.
5.We make grooves to inset two nuts and cushion on the shaft. To avoid shafts loosing when machine works. Due to
this design, shafts will be fixed more and more firm when it is working.
2.There is ball bearings inside the main rollers, to make all the rollers run at same speed when machine is run.
3.Because the rollers inside with ball bearings, our rollers is bigger than others, so work speed is faster.
4.All rollers and spacers, we do 0.03mm thickness chrome coating, to increase hardness and anti-rust. Some factories maybe use 0.01-0.02mm chrome coating.
5.We make grooves to inset two nuts and cushion on the shaft. To avoid shafts loosing when machine works. Due to
this design, shafts will be fixed more and more firm when it is working.

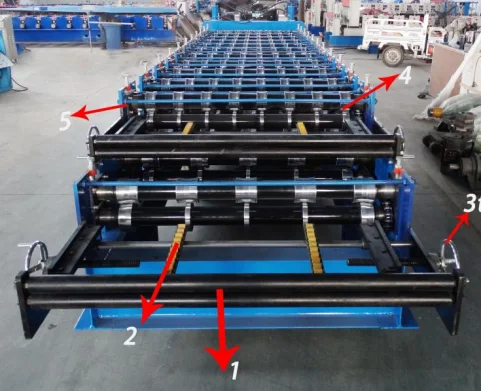

Usage:
1.With supporting rollers, to feed material more smoothly
2.Feeding width is adjustable with the handle wheels
3.With manual cutter to cut the feeding material more easily.
4.Equipped 2-3 stripes in the middle of the platform to feed material, prevent the material surface damaged
5.With two gears outside, to make the up shaft run from passively to actively, with more
2.Feeding width is adjustable with the handle wheels
3.With manual cutter to cut the feeding material more easily.
4.Equipped 2-3 stripes in the middle of the platform to feed material, prevent the material surface damaged
5.With two gears outside, to make the up shaft run from passively to actively, with more

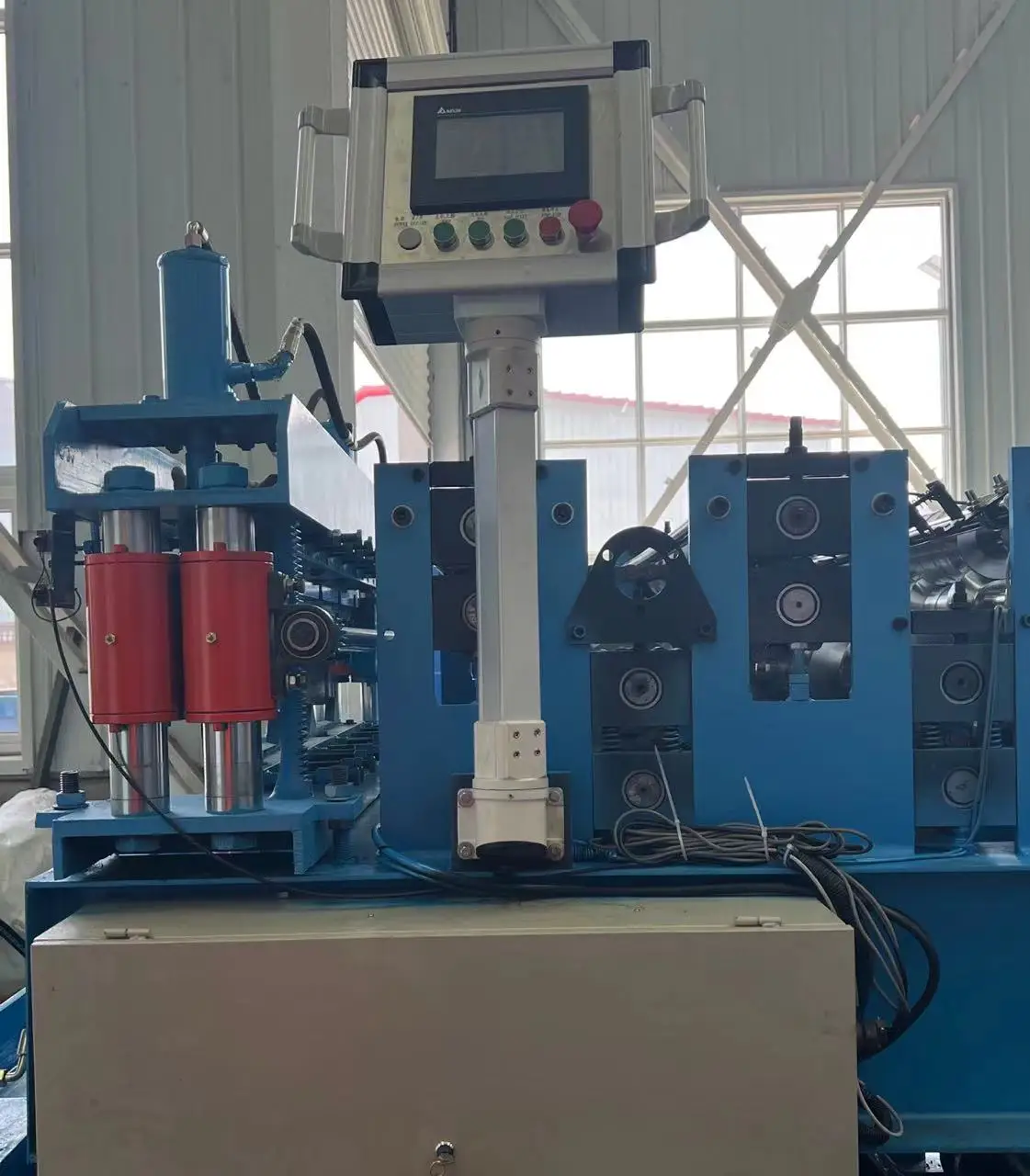

Control systemFrequency brand
Delta
PLC brand
PLC brand
Delta
Screen type\tTouch screen & buttons
Screen language
Screen type\tTouch screen & buttons
Screen language
English/Chinese/Spanish
Function
Function
Cutting length and quantity control, speed adjustment
Remark\tSupport multi orders input,ensure the machine can work continuously
according to different request without stop.
All the electrical parts are branded with a high quality, it can be fixed easily if damaged. Because you can find these again in any area of the country and it’s a standard parts.
Two models control box for you choose, big one or small one
Remark\tSupport multi orders input,ensure the machine can work continuously
according to different request without stop.
All the electrical parts are branded with a high quality, it can be fixed easily if damaged. Because you can find these again in any area of the country and it’s a standard parts.
Two models control box for you choose, big one or small one
Hua Nuo Presure Tile Machinery Manutacturing Flant is located in Boha Rim Economic Park near to the beautiful coast bohai sea Which is located the botou city named the foundry township the automobile mold township.
Our factory has been engaged in the producion of roofing and pressure plate equipment of stell structure for many years. At the same time and committed to the develpment of various products, with advanced production equipment and develpment and design personnel products with high efficiency, high precision, low processing consumption characteristics of the industry leading level.To help you get the most ideal equipment.
Qur factory has perect alle sales service Make sure to solve all problems in time and get our considerate service！
Our factory has been engaged in the producion of roofing and pressure plate equipment of stell structure for many years. At the same time and committed to the develpment of various products, with advanced production equipment and develpment and design personnel products with high efficiency, high precision, low processing consumption characteristics of the industry leading level.To help you get the most ideal equipment.
Qur factory has perect alle sales service Make sure to solve all problems in time and get our considerate service！
Q1.If I want a custom machine, what should I provide?
A:It is necessary to provide the outline, material, thickness, voltage and your special requirements.
Q2.What are your payment terms and delivery?
A:After confirming the required model, 30% down payment is made and theremaining 70% is delivered to balance payment after the control machine beforedelivery. Production will be arranged after deposit is received.
Q3.When is the warranty?
A:The machine will be repaired free of charge for 12 months from the date of shipment. We will also send you a set of CD and specifications (Chinese and English) with the machine.
Q4.What can you do if the car breaks down?
A:The warranty period of our machine is 12 months. lf the broken parts can not be repaired, we will send new parts to replace for free. But if the warranty period is over, you need to pay the express fee. We are able to solve problems through negotiation and provide the technical support for the whole life equipment.
lf you need us to send engineers to your factory, you need to pay for travel expenses, such as Visa, round trip air ticket, hotels (from our factory until return to our factory).
