HKY RFM 2024 High quality Machine de tole bac Machine de tuile double layer speed 15 30M/Min
- Category: >>>
- Supplier: Botou Huikeyuan Engineering Control Co. Ltd.
Share on (1601015380484):
Product Overview
Description
Product Overview

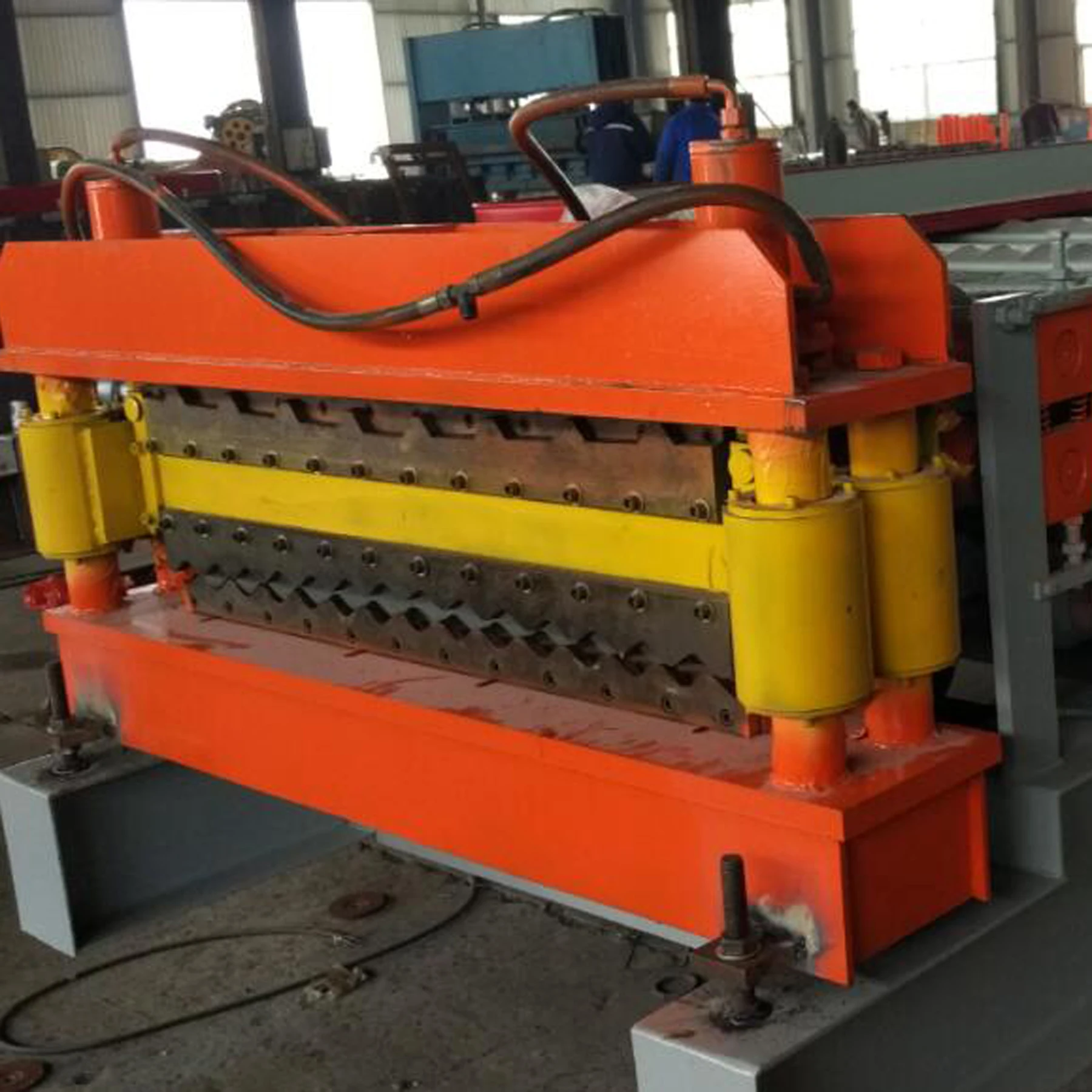

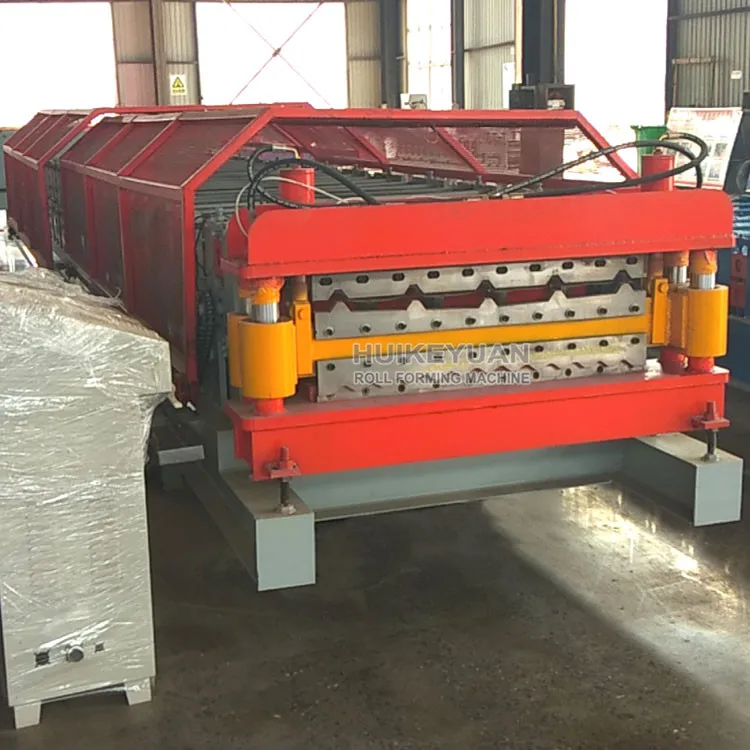

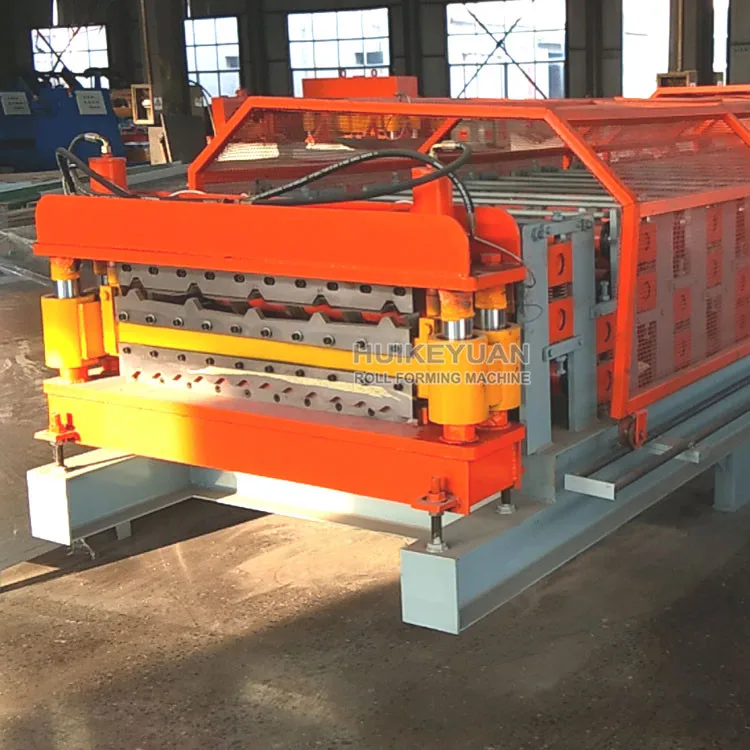

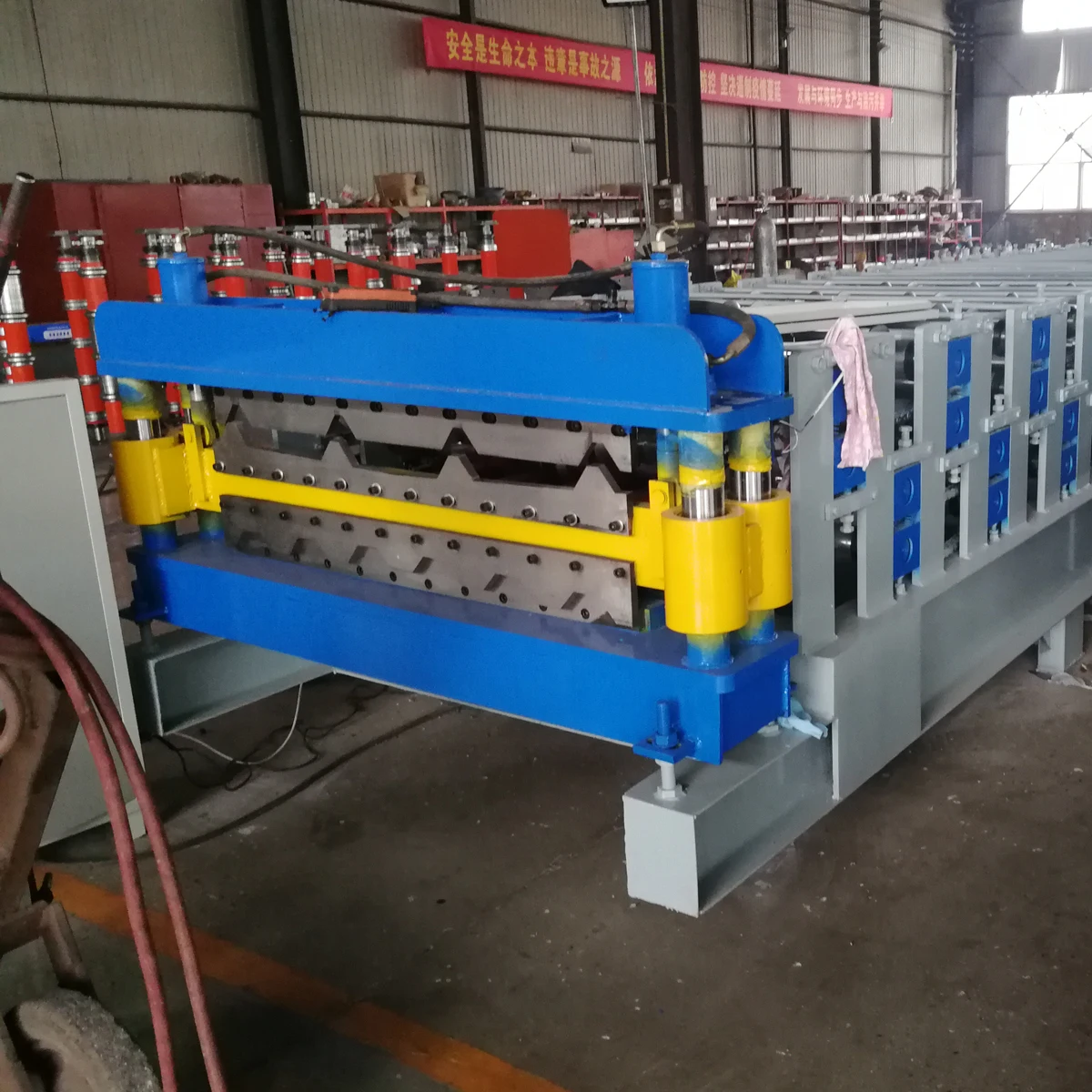

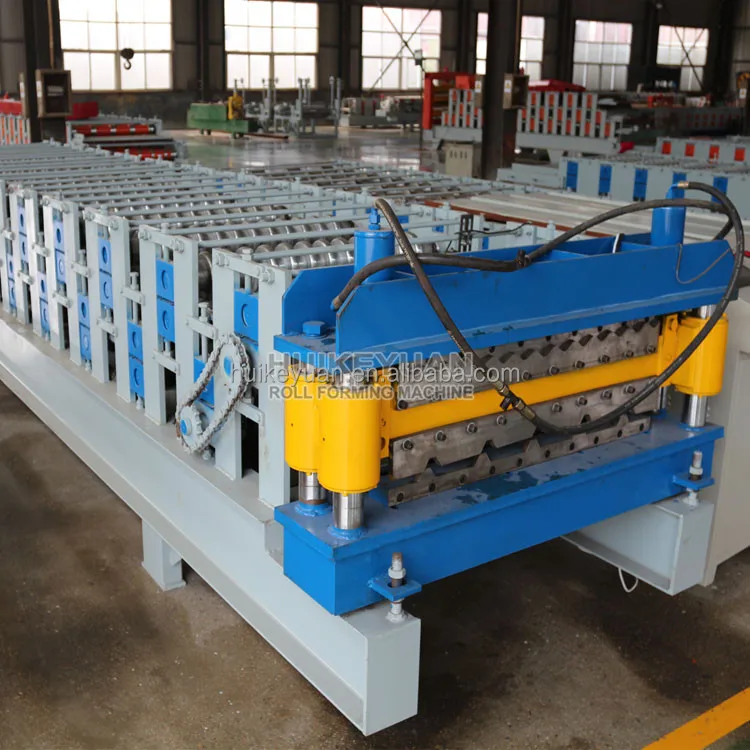

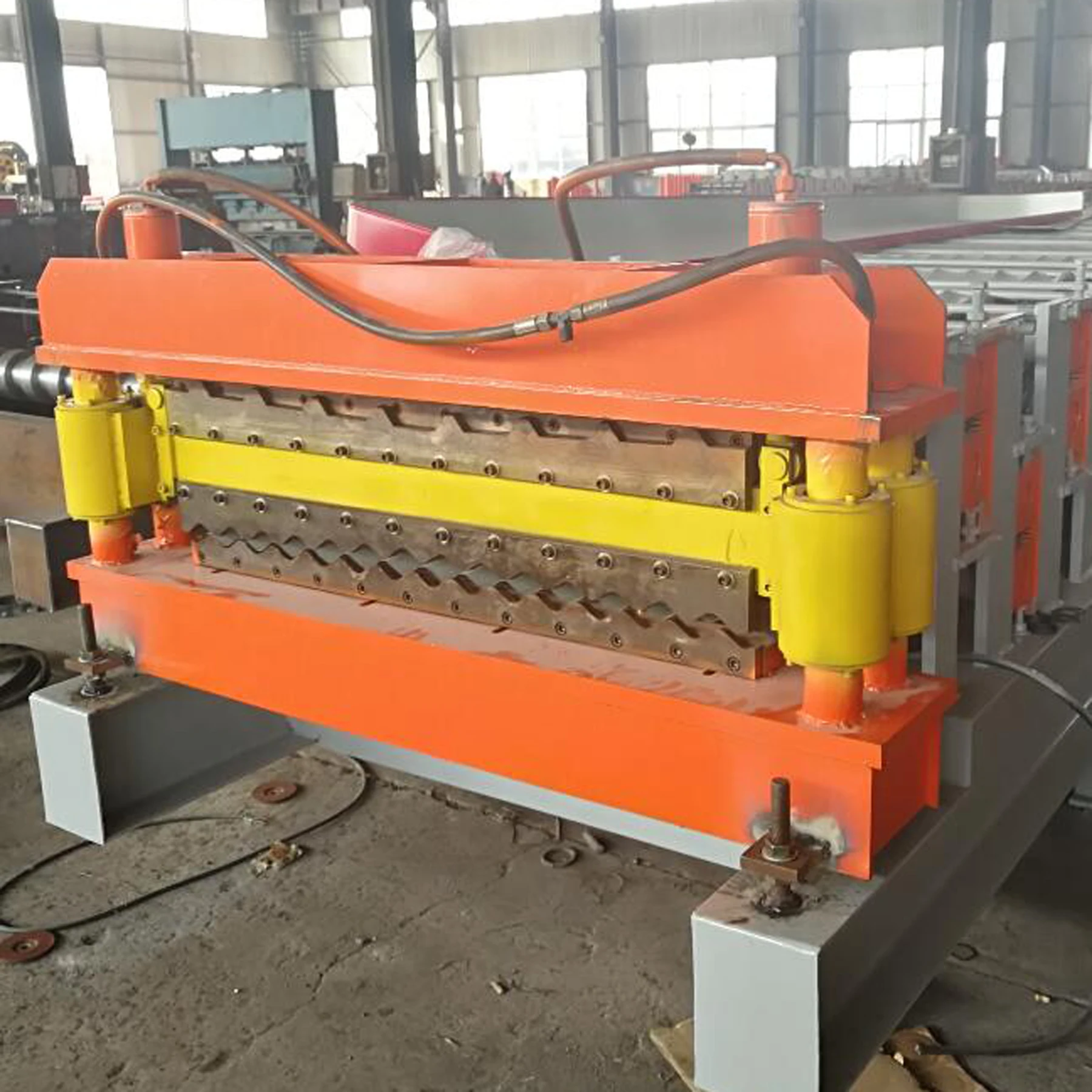

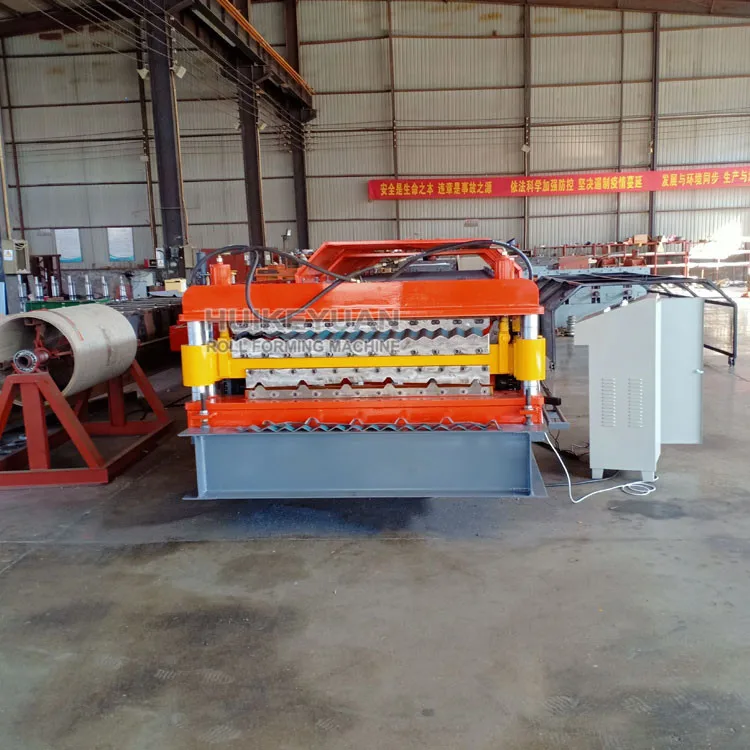

Double Layers Roll Forming Machine
This machinery is used widely in all over the world.It contains two layers,up layer for one style tile,down layer for other style,meet more your needs.
such as one layer for roof ,glazed tile,the other layer for wall.
It also features the best design.
Technical Parameter
NO. | Item | content |
1 | Main power | 5.5kw |
2 | Hydraulic Station Power | 4KW |
3 | Hydraulic Oil Pump | CB-E310 |
4 | Sprocket | P-25.4 |
5 | Roller Station | According to design |
6 | Diameter of Principal Axis | 80mm/100mm |
7 | Material of Roller | 45#steel hard chrome plating |
8 | Processing Speed | 10-30m/min |
9 | Thickness of panel | 0.2-1mm |
10 | Installation Dimension | 6.6m*1.6m*1.4m |
11 | Material of Blade | Cr12 |
12 | Coil Width | 600/900mm/1220mm/1250mm and so on |
13 | Total Weight | 6000kg |

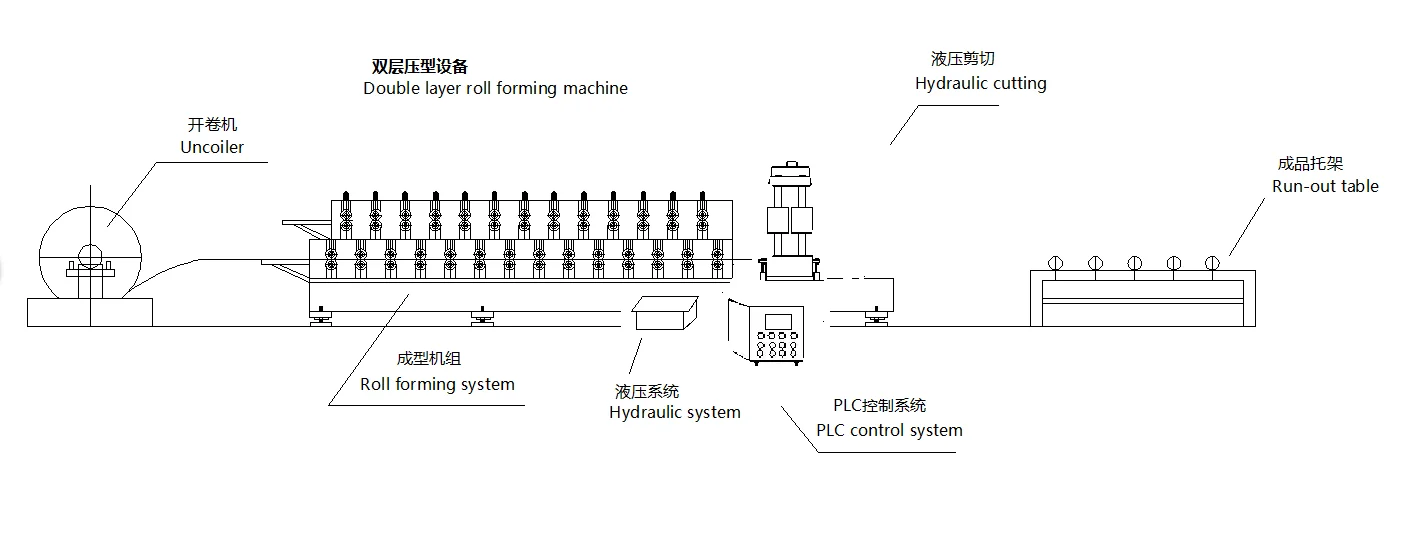

Process
Decoiler→Flating→Feeding →Forming→Cut to length→Colletion
Details Images
Oil Pump Station
Hydraulic oil pump :CB-E310
Main Power
Main power :7.5KW
Hydraulic Cutter
Hydraulic cutter:Cr12 Mov

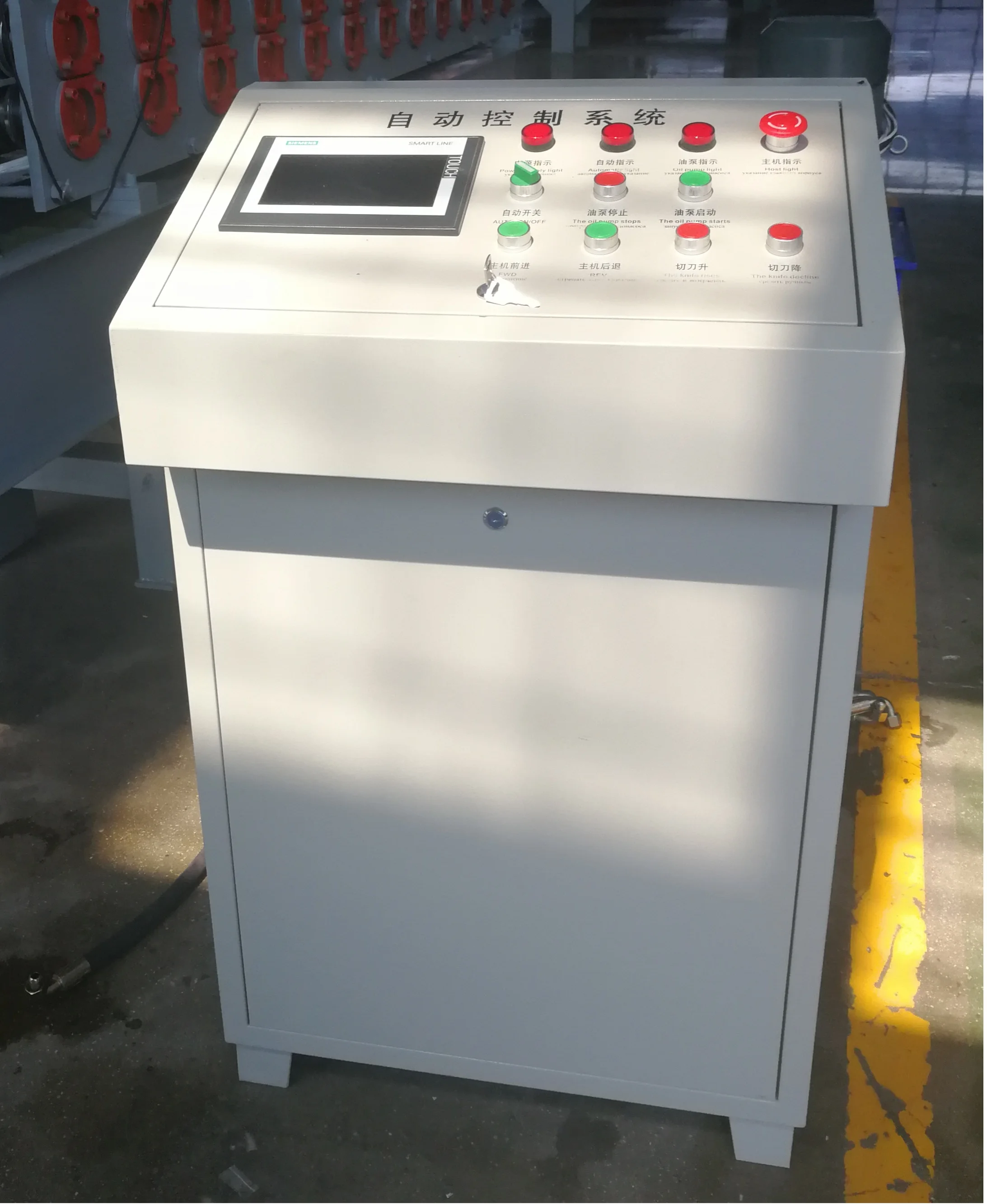

PLC control system
PLC and HMI touch screen
Power Supply:380V,50Hz,3Phase(or design as local requirement)
Chain 25.4mm/1 inch

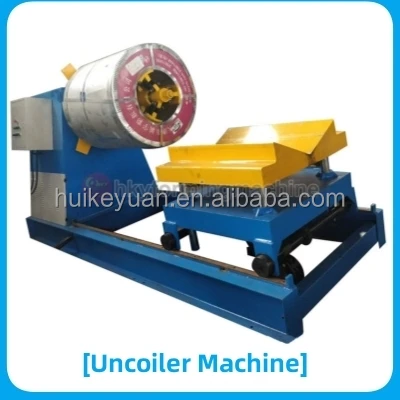

Un-coiler
Manual Un-coiler(or change to auto )

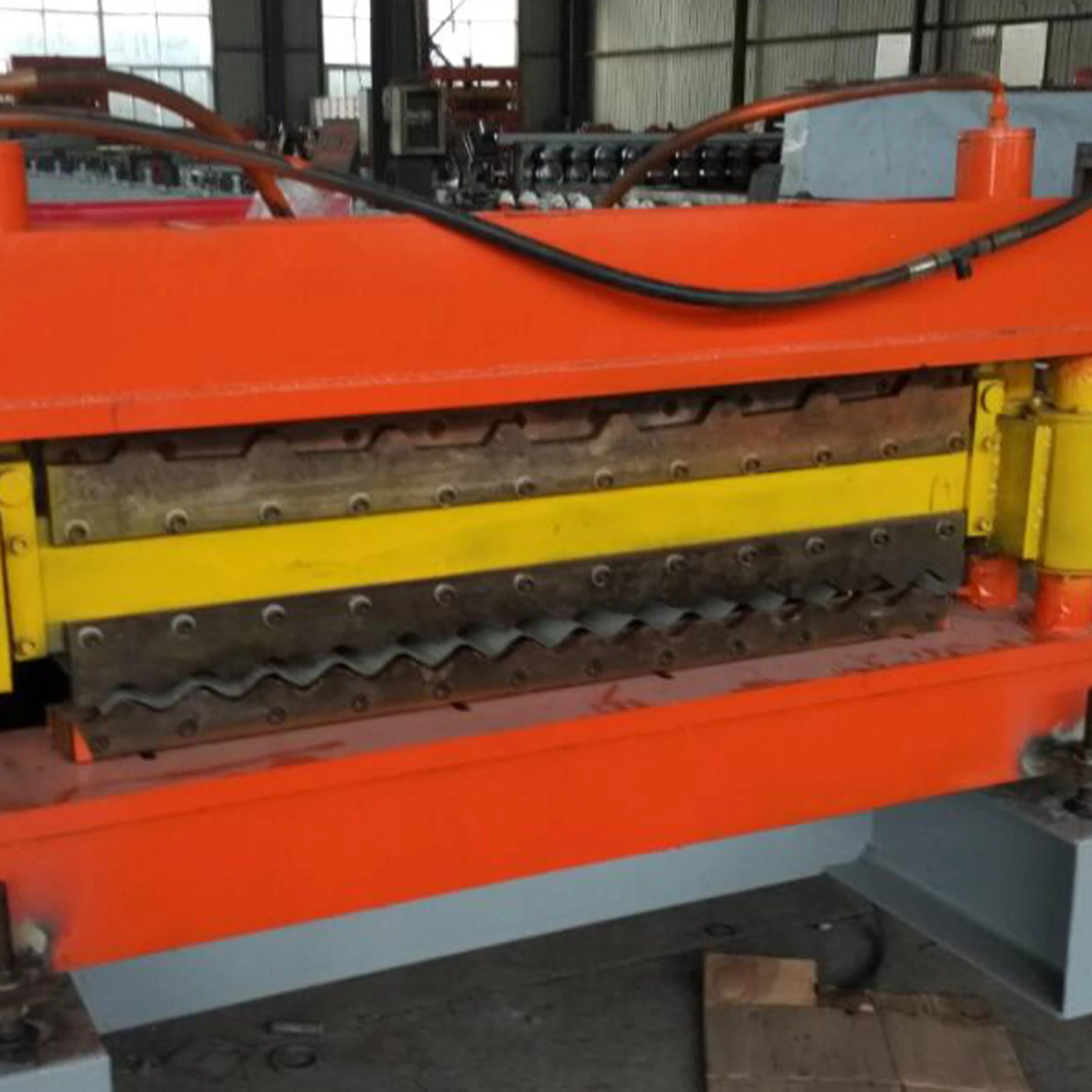

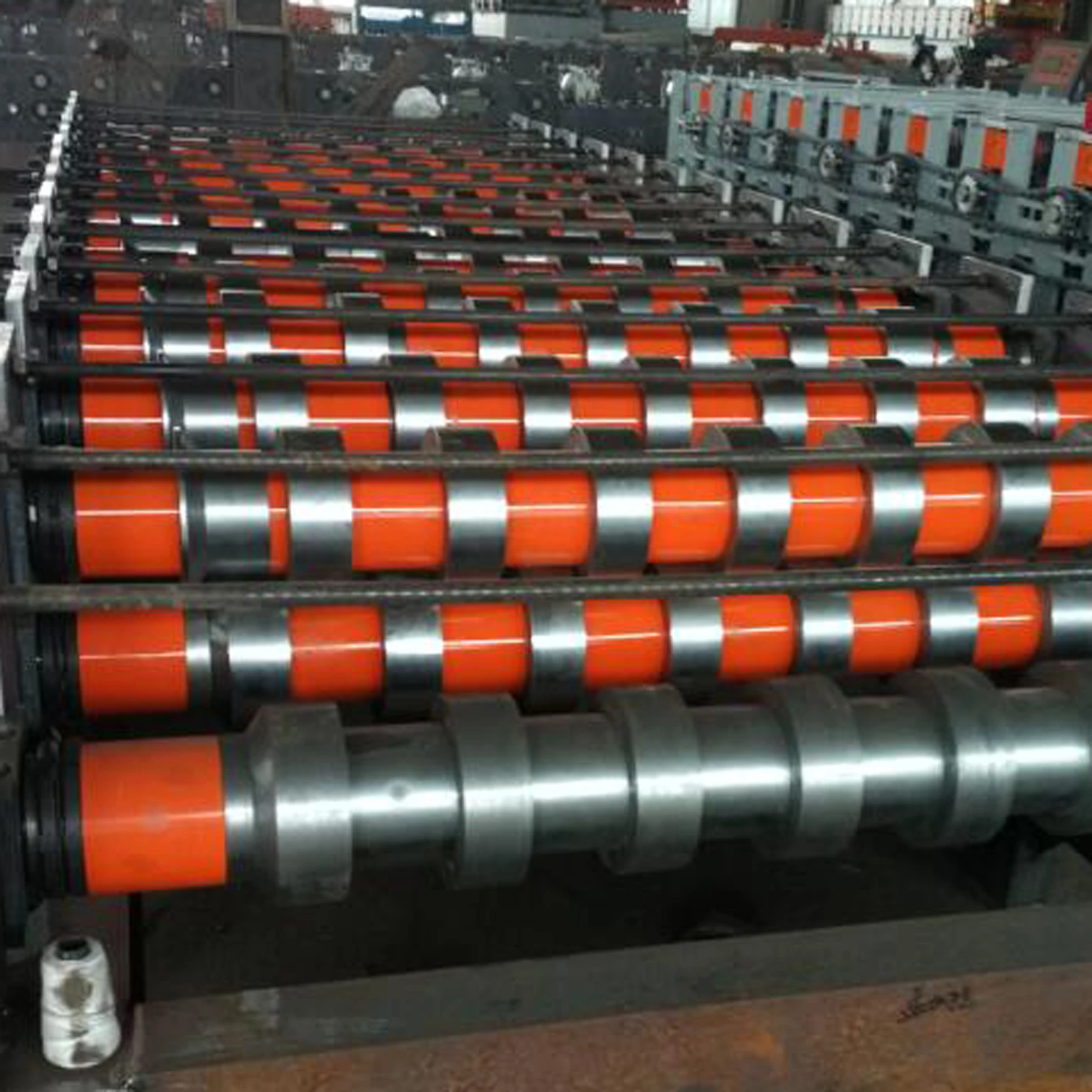

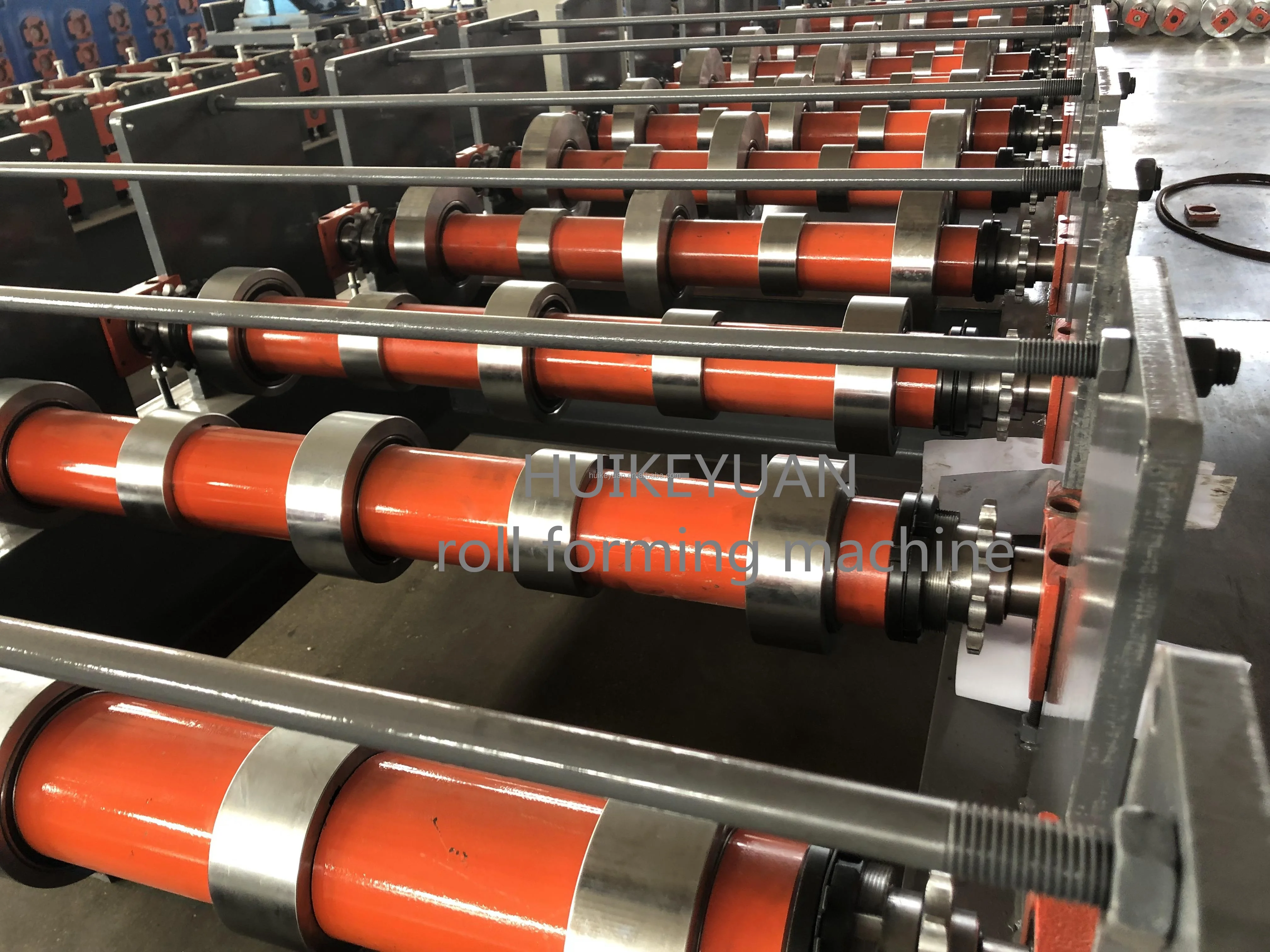

Main Forming System
Diamete of main shaft:80-100mm
Rollers station:9-14+
Unique craftsmanship creates perfect molding, which comes from the persistent pursuit of technology and perfectly embodies the spirit of craftsman

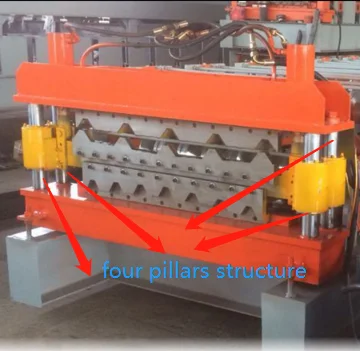

Hydraulic Cutting System
Control system:Hydraulic control
Blade Material:CR12 with heat treatment HRC60-62
The blade adopts a unique technology, which increases its use time. The beautiful shape design and the matching of lines make the perfect combination of strength and technology.
Hydraulic Control System
Imported plc control system is adopted to achieve more precise control, easy switching between manual and automatic, making production more convenient, and the color matches the machine perfectly

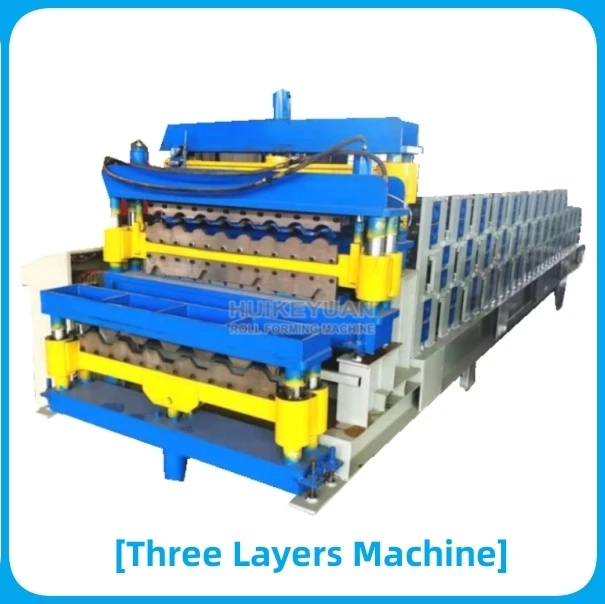

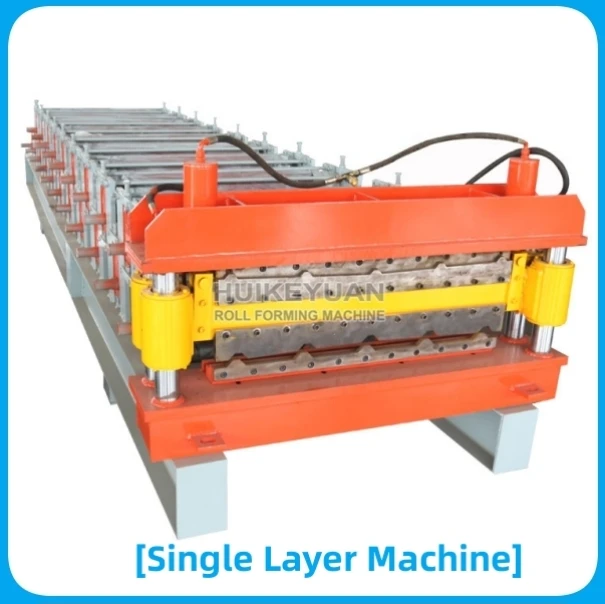

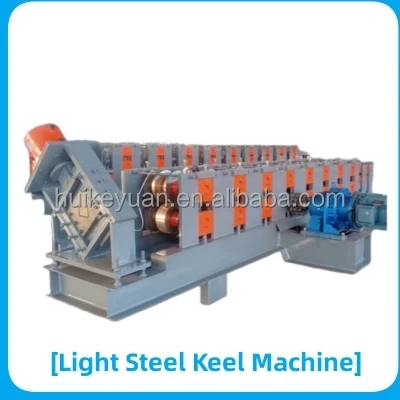

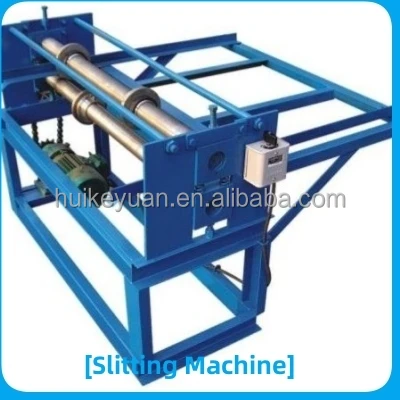

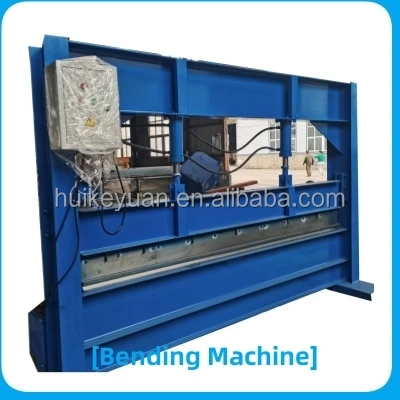

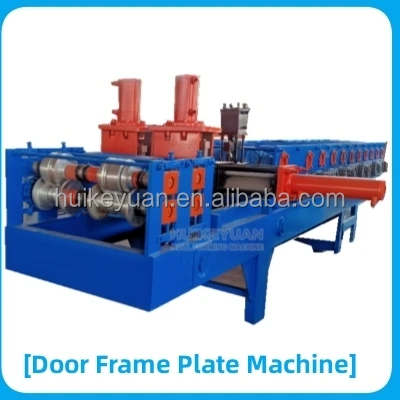

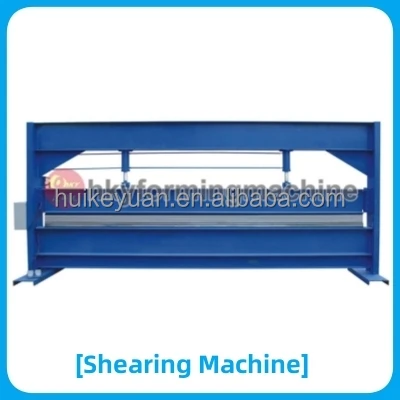

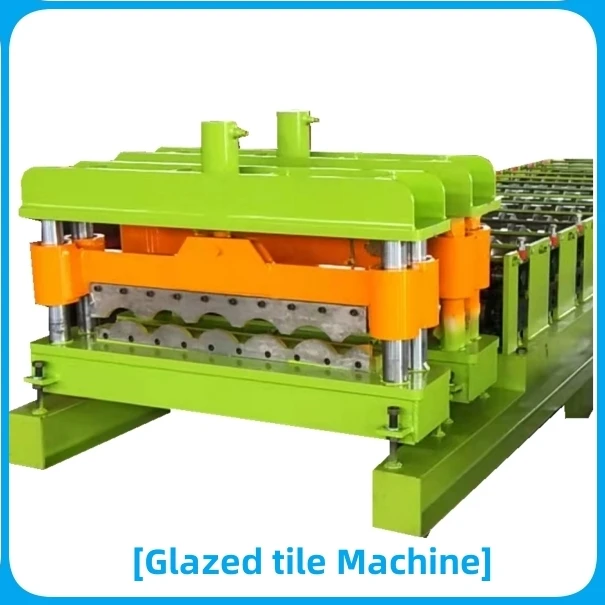

Other production
Certifications
FAQ
Q: How can I contact you?
A: Please look at my contact card. You can talk to me anytime. Or send me inquiry email, I will reply you in 24 hours and offer the optimum solution to you
Q: What is the status of After-sale Services for customers and machines?
A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.
Q: How to visit our company?
A: Fly to Beijing/Shanghai/Guangzhou airport: By high speed train From Beijing/Shanghai/Guangzhou to Cangzhou Xi (1 hour),then we can pick up you.
Q: About the payment term?
A: 30% of the contract amount as down payment,70% of the contract amount is to be paid by T/T before shipment.Q: About guarantee period?
A: 12 months limited warranty starting from date of installation at customer's factory,excluding wear parts.
A: Please look at my contact card. You can talk to me anytime. Or send me inquiry email, I will reply you in 24 hours and offer the optimum solution to you
Q: What is the status of After-sale Services for customers and machines?
A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.
Q: How to visit our company?
A: Fly to Beijing/Shanghai/Guangzhou airport: By high speed train From Beijing/Shanghai/Guangzhou to Cangzhou Xi (1 hour),then we can pick up you.
Q: About the payment term?
A: 30% of the contract amount as down payment,70% of the contract amount is to be paid by T/T before shipment.Q: About guarantee period?
A: 12 months limited warranty starting from date of installation at customer's factory,excluding wear parts.
