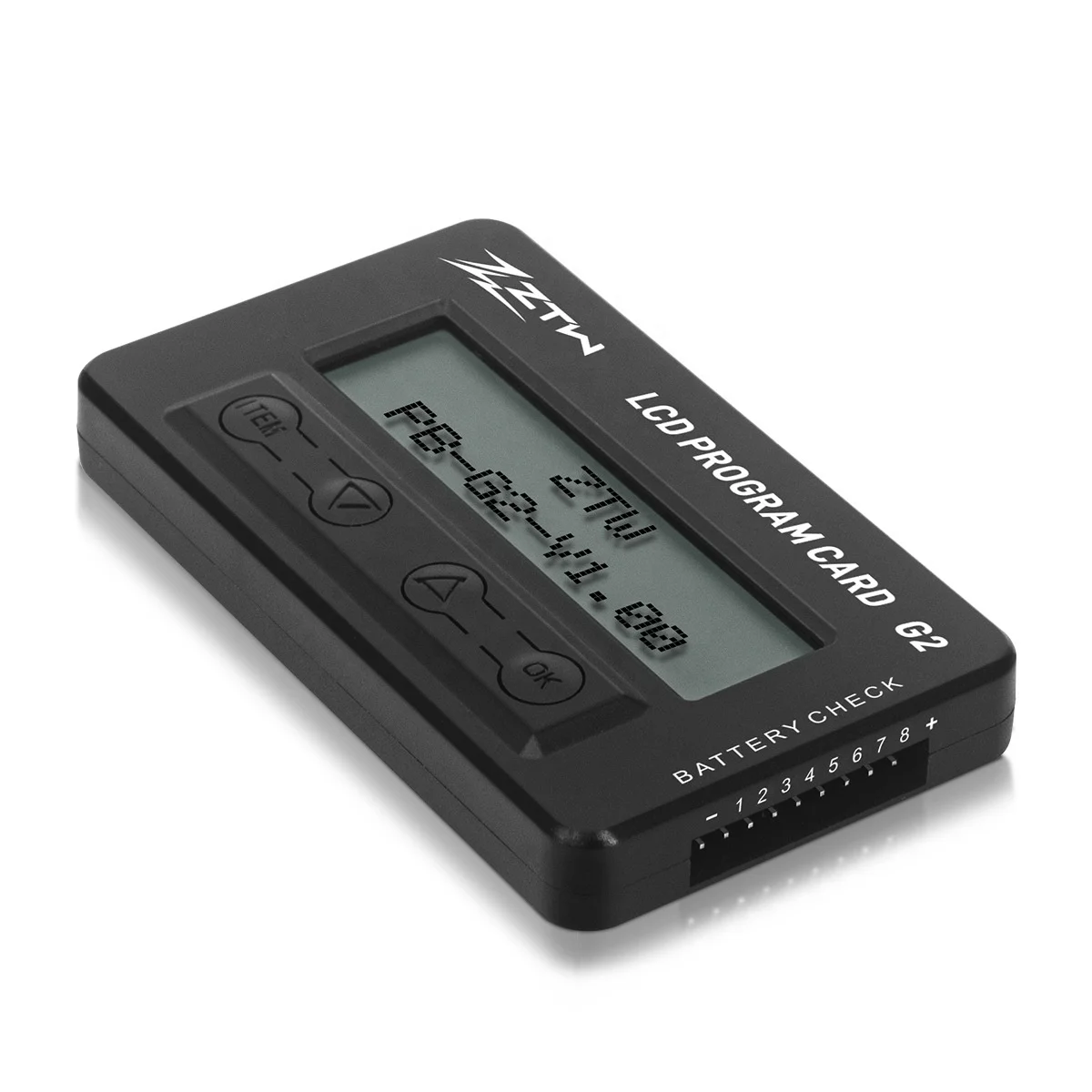

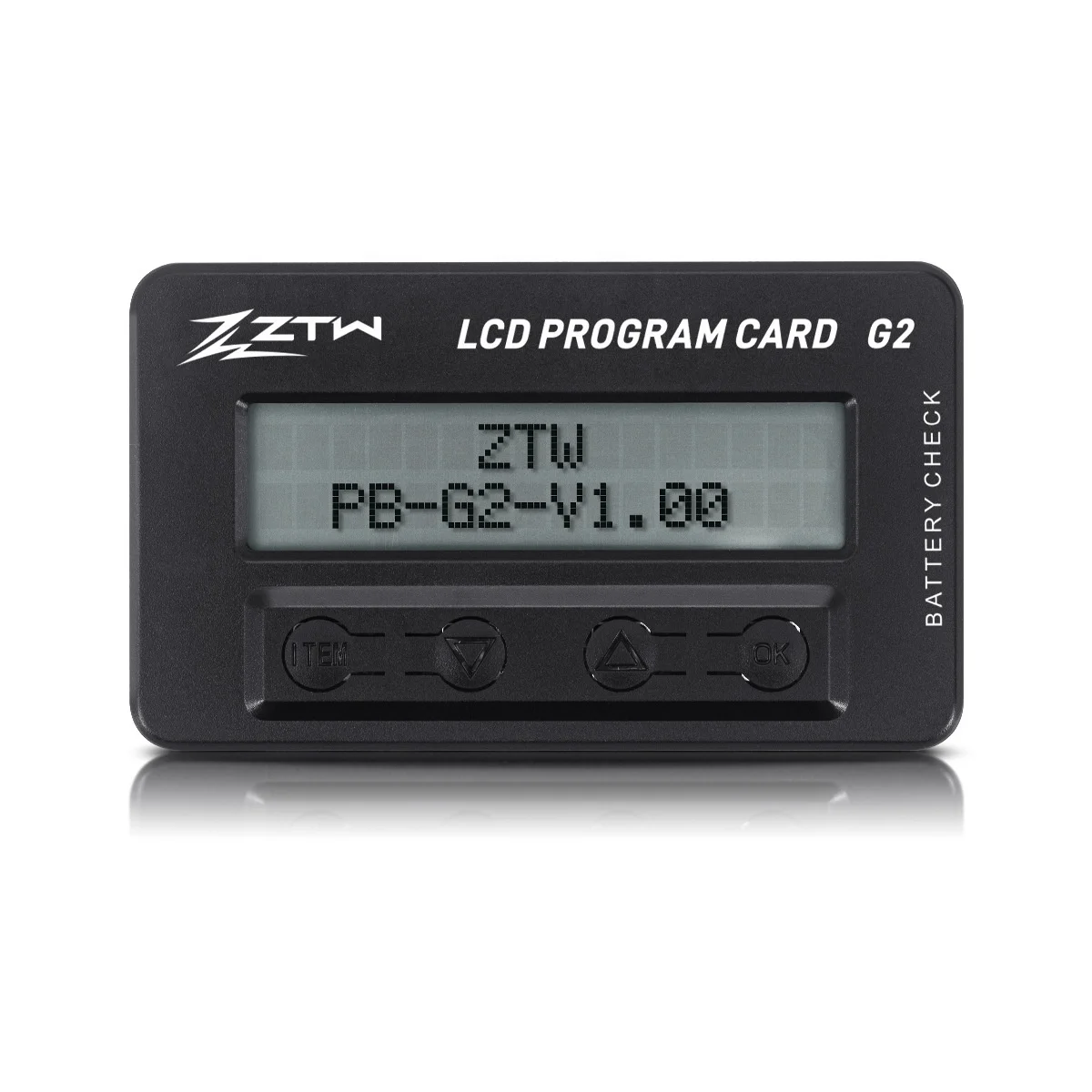

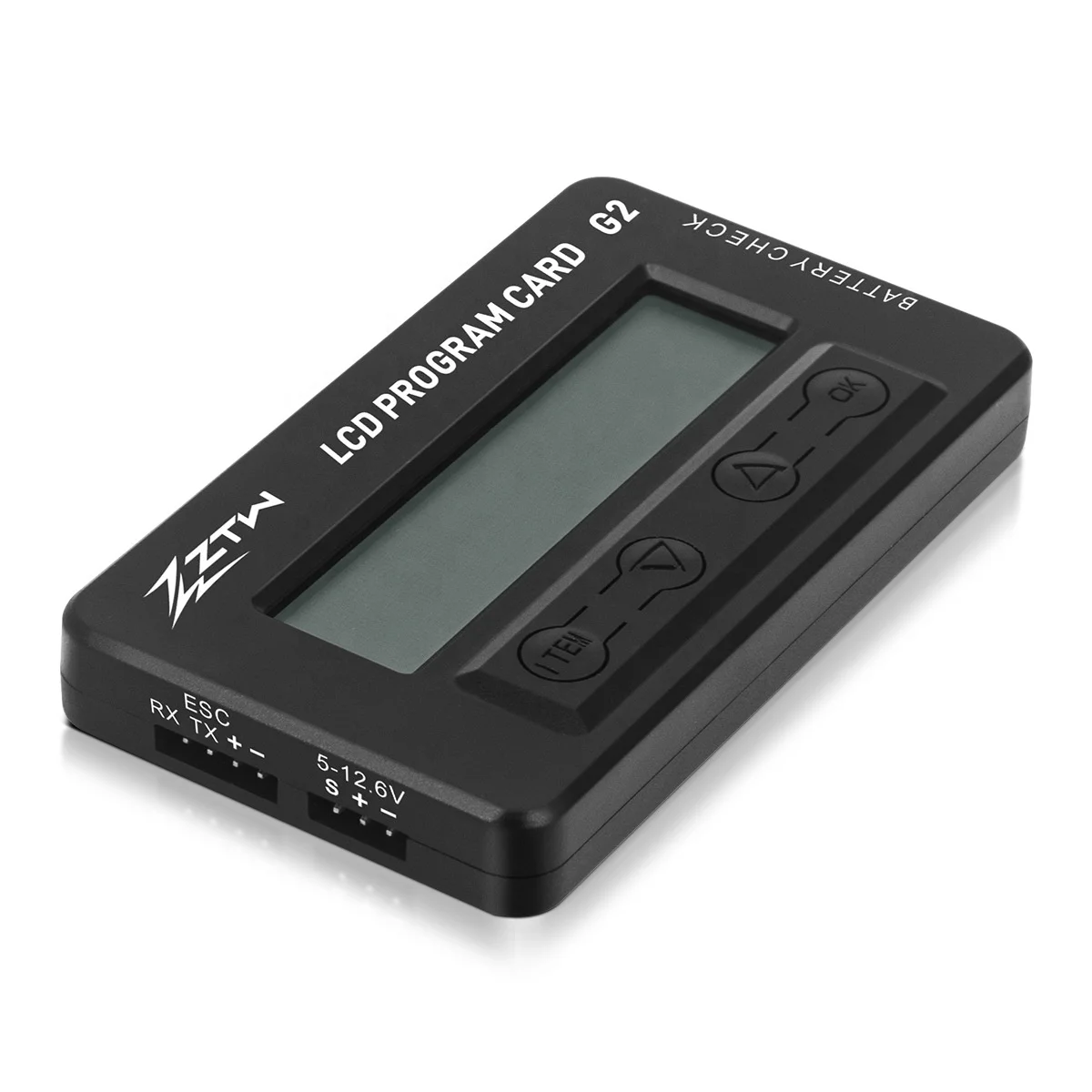

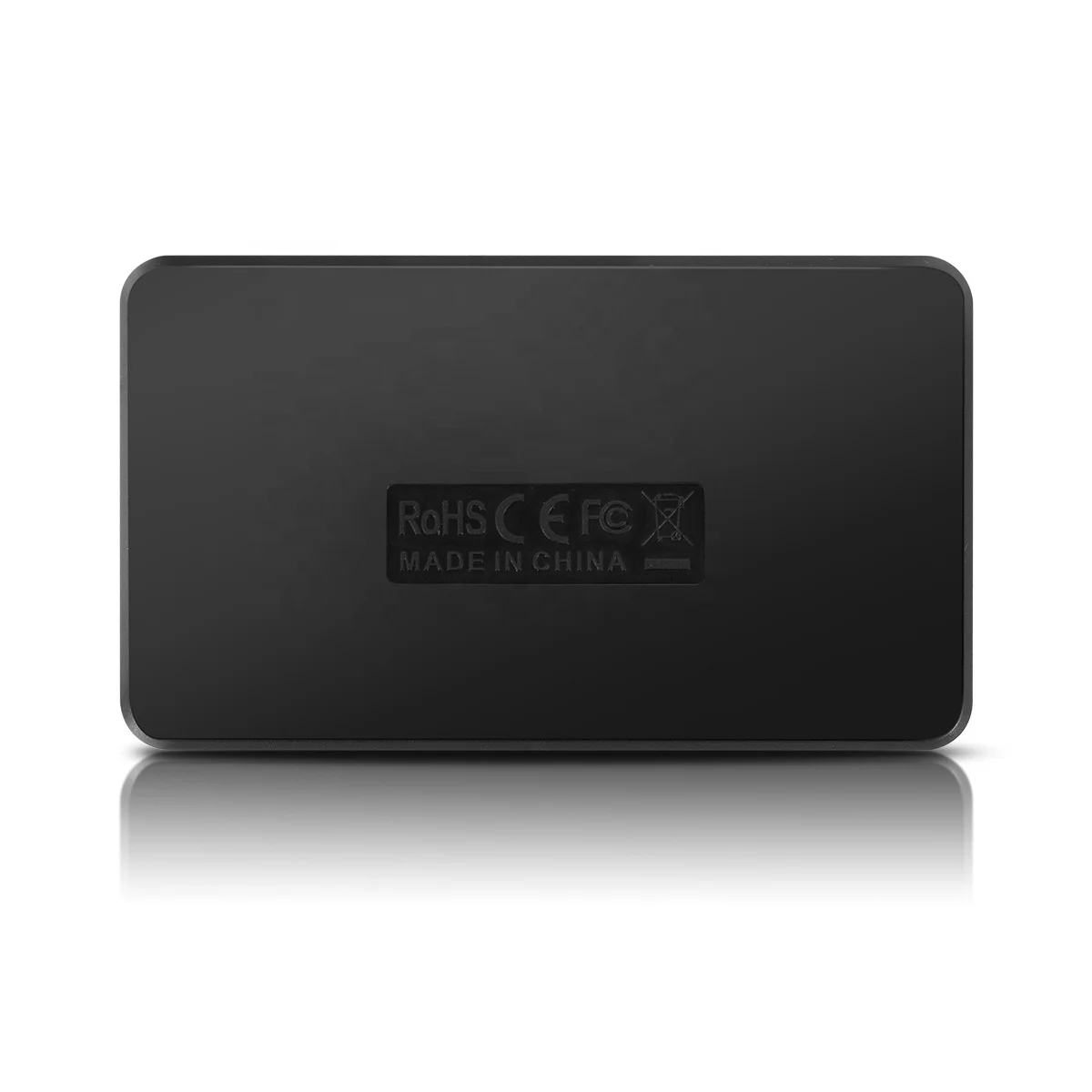

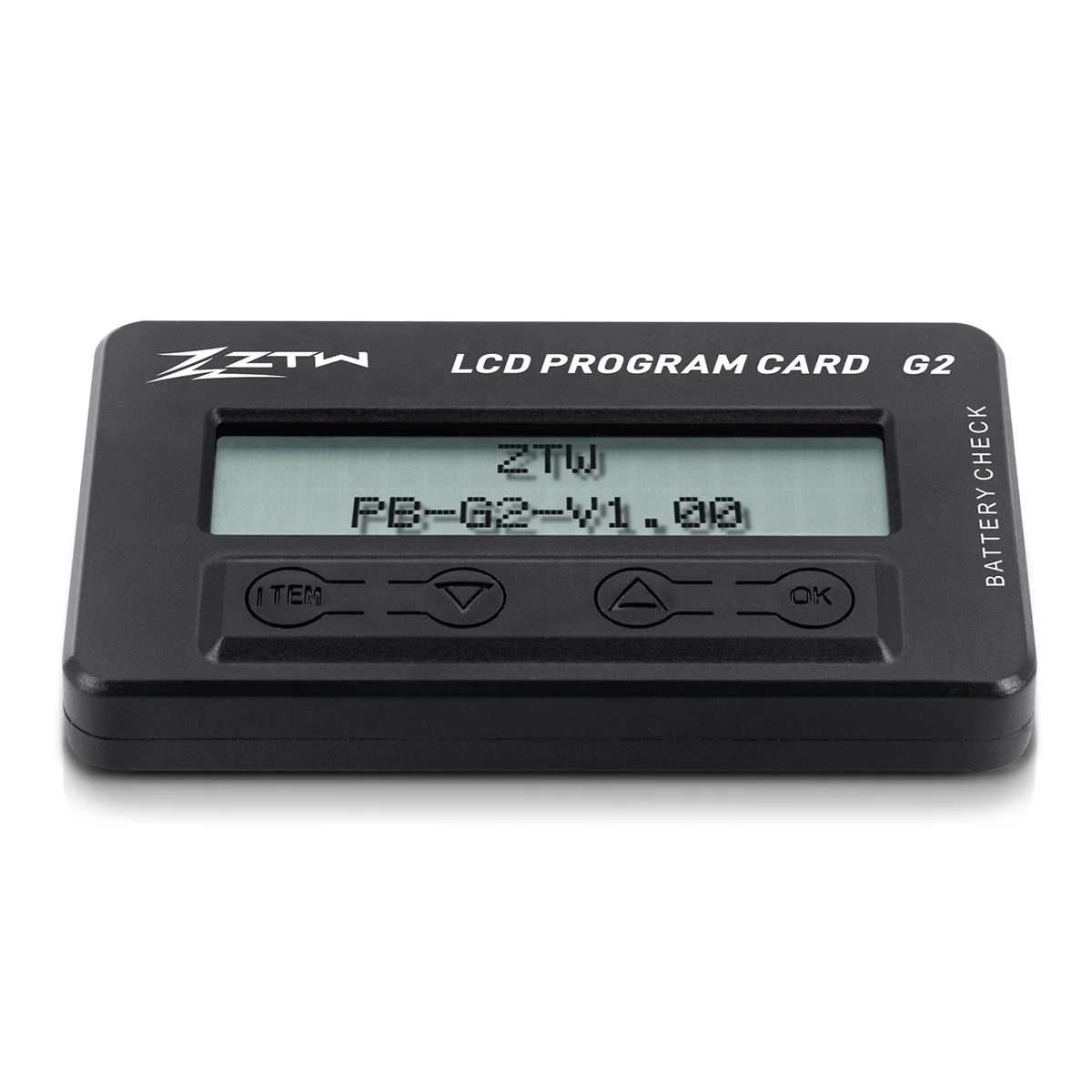

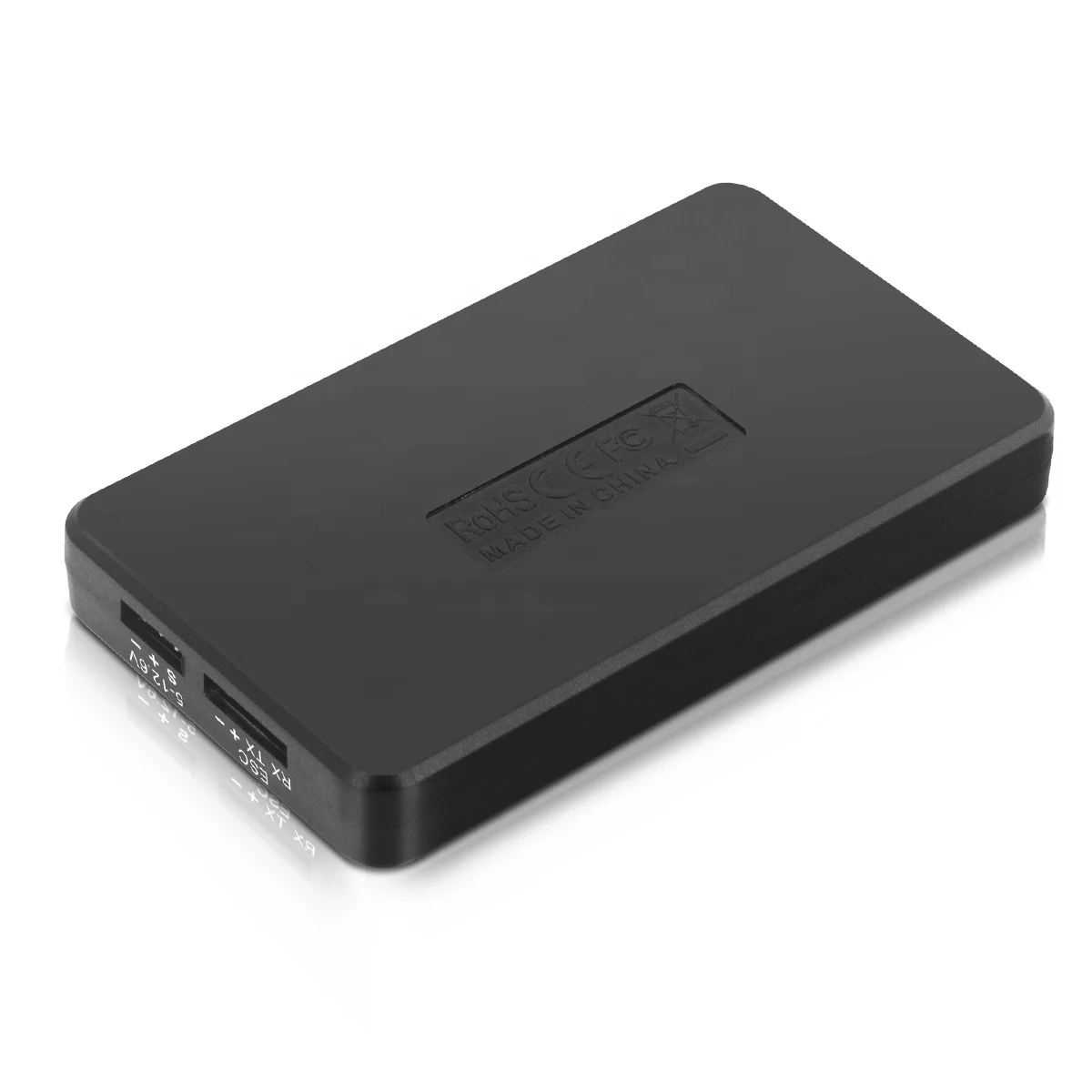

ZTW Multifunctional LCD Program Card Box G2 Servo Tester Battery Voltmeter For Beatles/Shark/Mantis Slim Series Brushless ESC
Note: This ZTW multifunctional LCD Program box G2 is a whole new product designed for ZTW G2 series ESCs, and it works with these series below: Beatles G2, Mantis G2, Mantis Slim G2, Skyhawk, Shark G2, Seal G2
Specification:
Dimension: 84*49*11.5mm(L*W*H)
Weight: 68g
Power supply: DC 5V~12.6V
Specification:
Dimension: 84*49*11.5mm(L*W*H)
Weight: 68g
Power supply: DC 5V~12.6V
Key Features:
1. Working as an individual device to set the parameters for the ESC.
2. Working as a Lipo battery voltmeter to measure the voltage of the whole battery pack and each cell.
3. For the ZTW ESC with data returning feature, it can display real-time data including: voltage, current, input throttle, output throttle, RPM, battery power, MOS temperature and motor temperature.
4. For the ZTW ESC with data logging feature, it can read the data including: maximum RPM, minimum voltage, maximum current, external temperature, and maximum temperature.
5. PWM throttle signal detection: Identify and display the input throttle pulse width and frequency.
6. ESC/Servo Tester: It works like remote control to adjust the speed for ESC/servo by press the program box’s button.
7. The LCD program box can be upgraded by the mobile App via the ZTW bluetooth module.
1. Working as an individual device to set the parameters for the ESC.
2. Working as a Lipo battery voltmeter to measure the voltage of the whole battery pack and each cell.
3. For the ZTW ESC with data returning feature, it can display real-time data including: voltage, current, input throttle, output throttle, RPM, battery power, MOS temperature and motor temperature.
4. For the ZTW ESC with data logging feature, it can read the data including: maximum RPM, minimum voltage, maximum current, external temperature, and maximum temperature.
5. PWM throttle signal detection: Identify and display the input throttle pulse width and frequency.
6. ESC/Servo Tester: It works like remote control to adjust the speed for ESC/servo by press the program box’s button.
7. The LCD program box can be upgraded by the mobile App via the ZTW bluetooth module.
Product name | ZTW Multifunctional LCD Program Card G2 |
Size | 84*49*11.5mm |
Weight | 68g |
MOQ | 5pcs |
