Peru Machine To Manufacturer Tr4 Tr5 1000 Zinc Calamines Tr4 Tr5 Roll Forming Machine
- Category: >>>
- Supplier: Henan Jane Machinery Co. Ltd.
Share on (1601020752156):
Product Overview
Description
Products Description

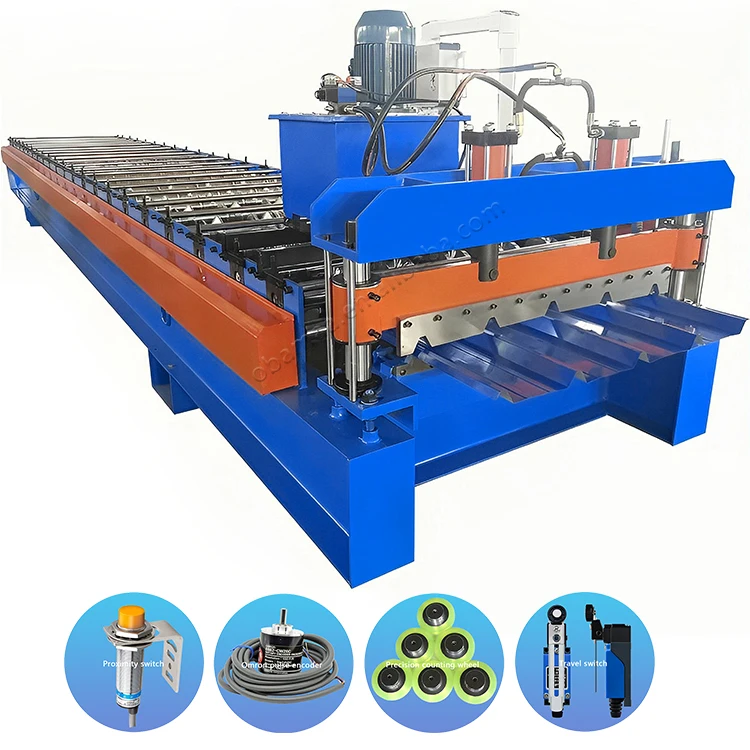

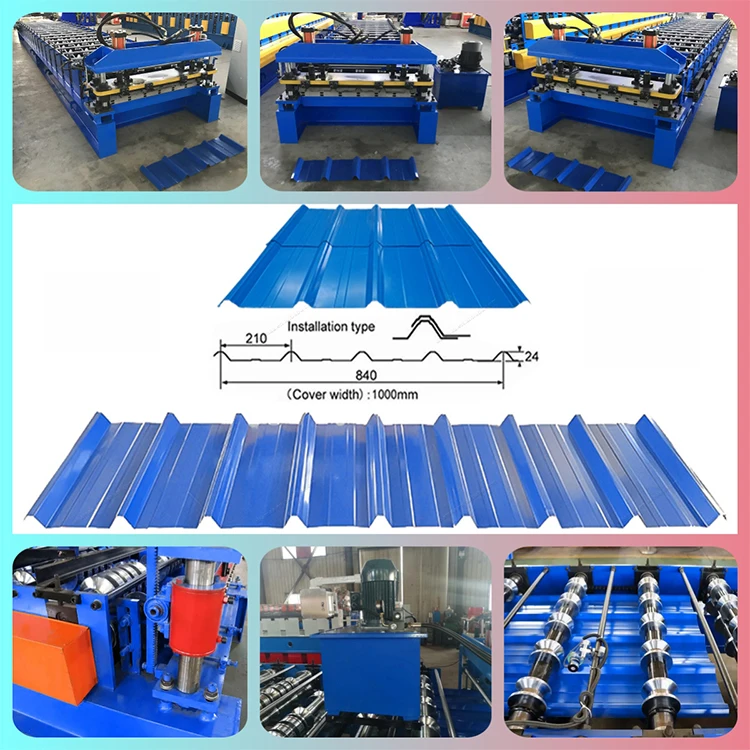

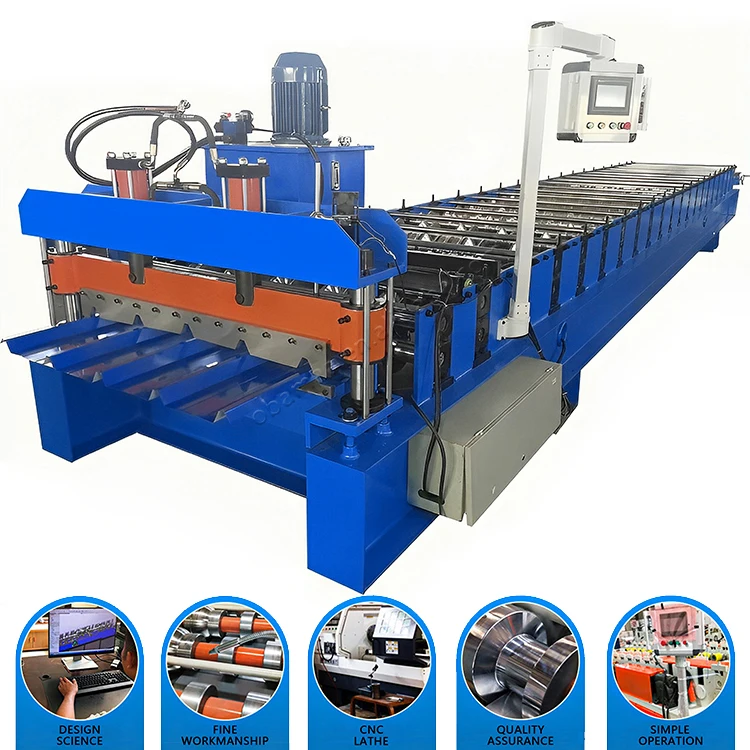

Trapezoidal Sheet Roll Forming Machine
The Features Of The Machine:
1. Machine provide customized, for produce different shapes roof sheet.
2. Our own Updated design-Easy installation and operation.
3. Full automatic-save labors.
4. Rollers with bearing inside which can eliminate linear velocity inconsistency, it can make the final product perfect.
1. Machine provide customized, for produce different shapes roof sheet.
2. Our own Updated design-Easy installation and operation.
3. Full automatic-save labors.
4. Rollers with bearing inside which can eliminate linear velocity inconsistency, it can make the final product perfect.
Work processing

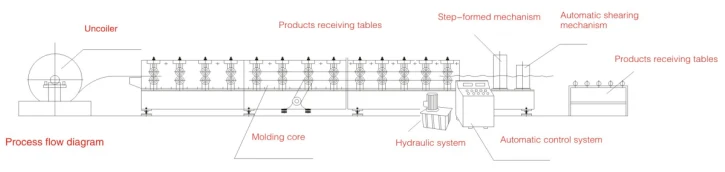

Processing Flow
Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving table
Specification
Double Layer Roof Sheet Roll Forming Machine | ||||||
SN | Part details | Item | Specification | |||
1 | Material | Raw material | Colored Steel | |||
Thickness | 0.3-0.8 mm | |||||
2 | Machine | Roller station | Depend on customer' drawing | |||
Shaft diameter | 70 mm | |||||
Shaft material | 45# steel with 0.05mm chrome | |||||
Roller material hardness 30-40 HRC | 45# steel with 0.05mm chrome | |||||
Machine size | About 7×1.5×1.3 m | |||||
Machine weight | About 5.5 ton | |||||
Machine color | As customer' request | |||||
Working speed | 10-25 m/min | |||||
3 | Power | Driving way | Chain 1 inch | |||
Main power | 7.5 kw | |||||
Pump power | 4kw | |||||
Voltage | Customize as customer' request | |||||
4 | Control system | PLC brand | Delta or Customize as customer' request | |||
Screen | Touchable screen | |||||
Language | English or add language as customer need | |||||
Product Details

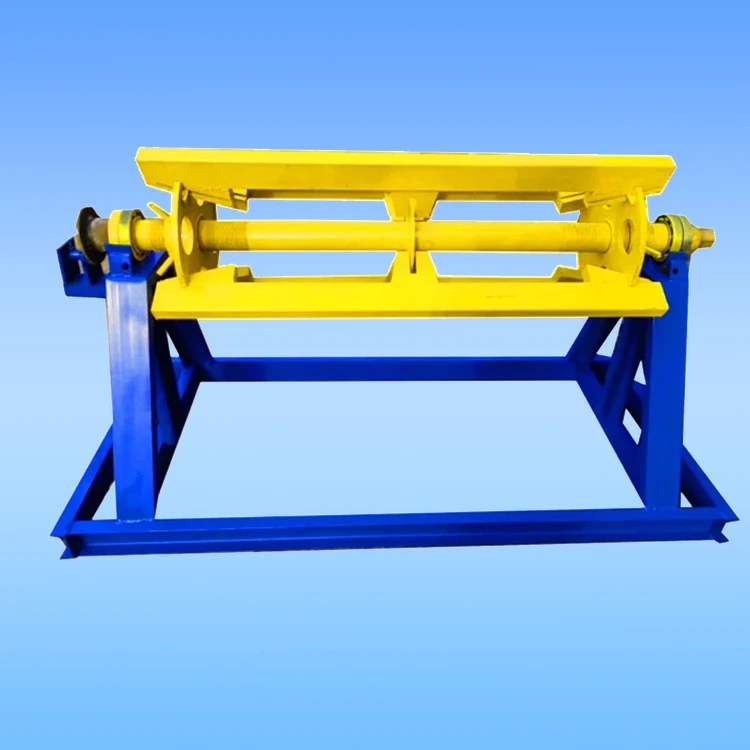

Manual decoiler
1. Capacity: 5T.
2. Coil diameter: 450-550mm.
3. Coil outer diameter: 1500mm.
4. Coil width: 1250mm(as customers' request).
5. Structure: welded by the steel plates and profiled bar.
2. Coil diameter: 450-550mm.
3. Coil outer diameter: 1500mm.
4. Coil width: 1250mm(as customers' request).
5. Structure: welded by the steel plates and profiled bar.
6.Free as gift.

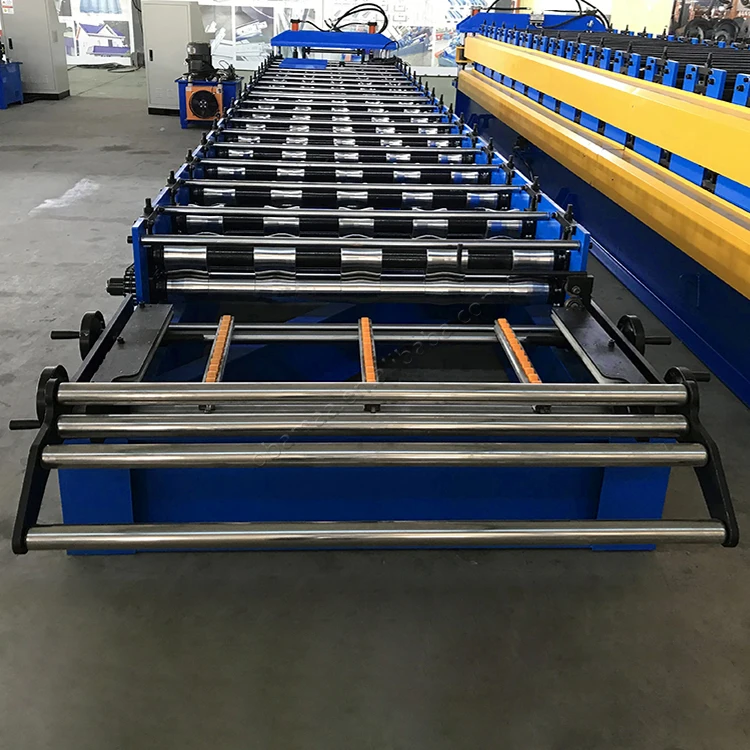

Feeding Part
1. The feeding rollers which we use is stainless steel.
2. And the ball bearing roller is inside the feeding rollers which is very convenient to feed the steel coil into it.
2. And the ball bearing roller is inside the feeding rollers which is very convenient to feed the steel coil into it.
3. Hand wheels on both sides can be used to adjust the feeding width.

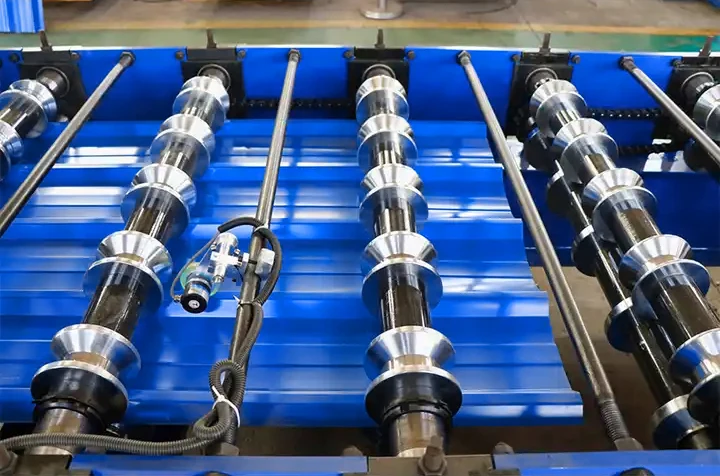

Roll Forming System
1. Frame: 350H steel,with 20mm middle plate support.
2. Roller material: 45# steel with quenched treatment and hard chroming .
3. Shaft diameter: 70mm,solid.
4. Shaft material: 45# steel with tempering treatment.
2. Roller material: 45# steel with quenched treatment and hard chroming .
3. Shaft diameter: 70mm,solid.
4. Shaft material: 45# steel with tempering treatment.

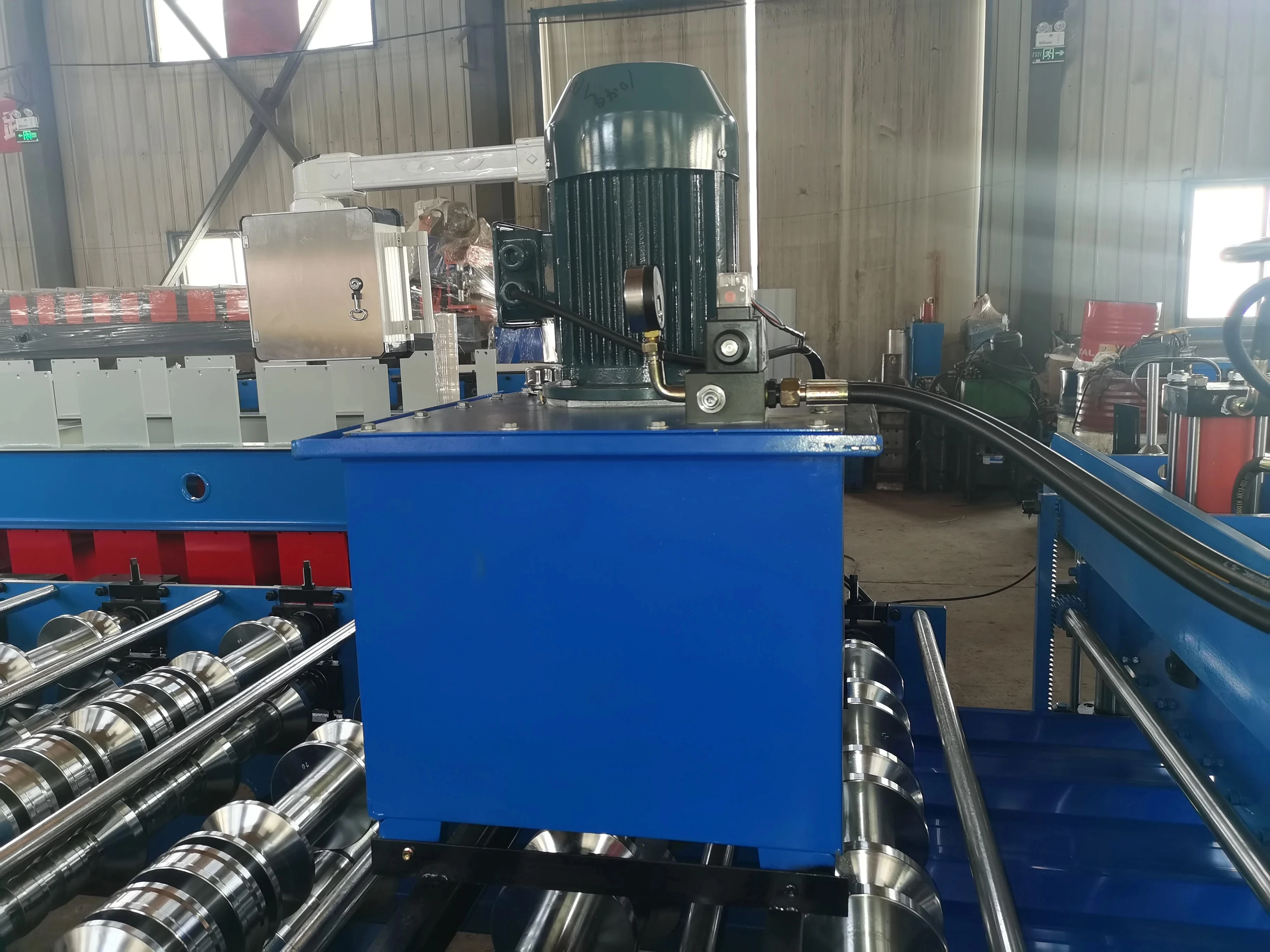

Hydraulic Cutting Device
1. Blade material: Cr12, with quenched treatment.
2. Hydraulic power: 4kw.
3. Cutting tolerance: ±1mm.
4. With fan cooling on the oil pump.
2. Hydraulic power: 4kw.
3. Cutting tolerance: ±1mm.
4. With fan cooling on the oil pump.
Fully automatic computer operation, easy to use, convenient and responsive.
The frame structure is welded with carbon steel plates, which has a long service life.
Low noise operation and short flattening time.
Good bearing capacity and easy operation.
Carefully selecting materials is the key to making good products.
On demand production, welcome to customize with pictures.

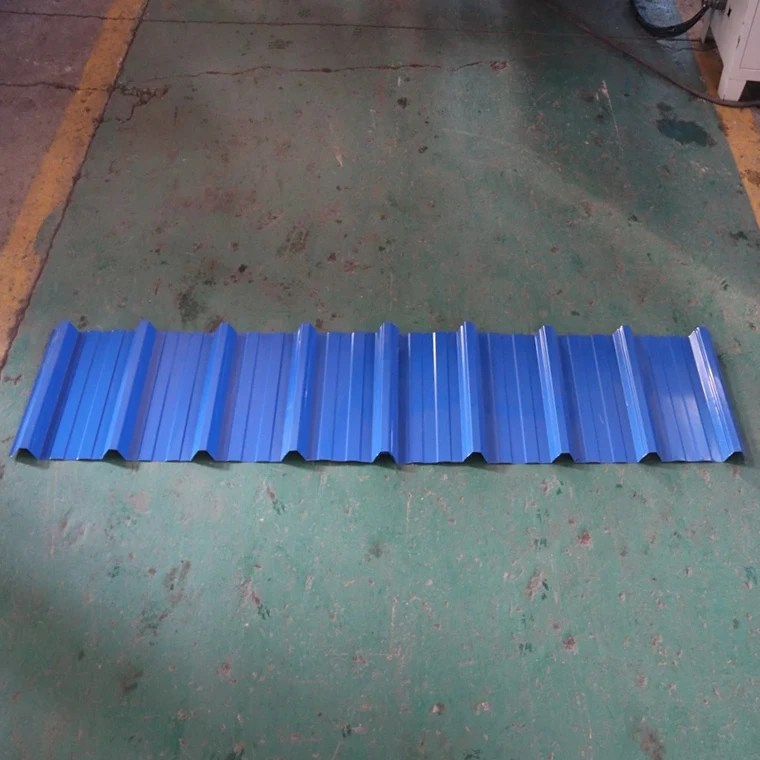

Glazed Type Roll Forming Sheet
Corrugated Type Roll Forming Sheet
IBR Type Roll Forming Sheet
Roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers’ demand.
Q1. How do I choose the right machine for me?
1. A machine doesn't just provide a few photos to prove what they can produce .
2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
Q2. You did not display the product I need. Can you produce it?
Our engineers have studied at well-known European companies and have significant advantages in mechanical design, research and development, and manufacturing.
Our engineers have studied at well-known European companies and have significant advantages in mechanical design, research and development, and manufacturing.
Q3. How long can the machine be built?
Generally speaking, the machine takes about 20 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q4. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate,and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, to be a service company that you have the strength to guarantee.
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Generally speaking, the machine takes about 20 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q4. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate,and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, to be a service company that you have the strength to guarantee.
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
