Products Description

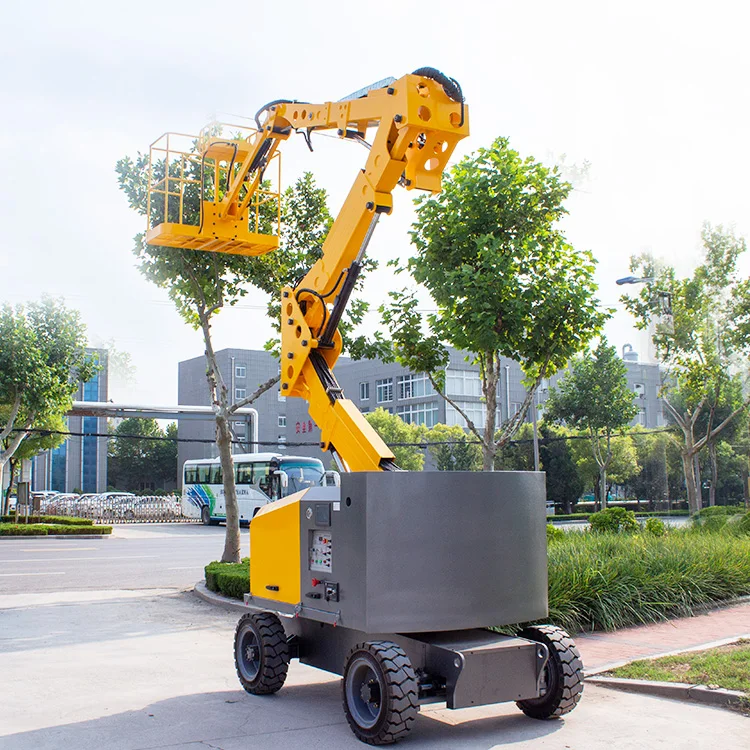

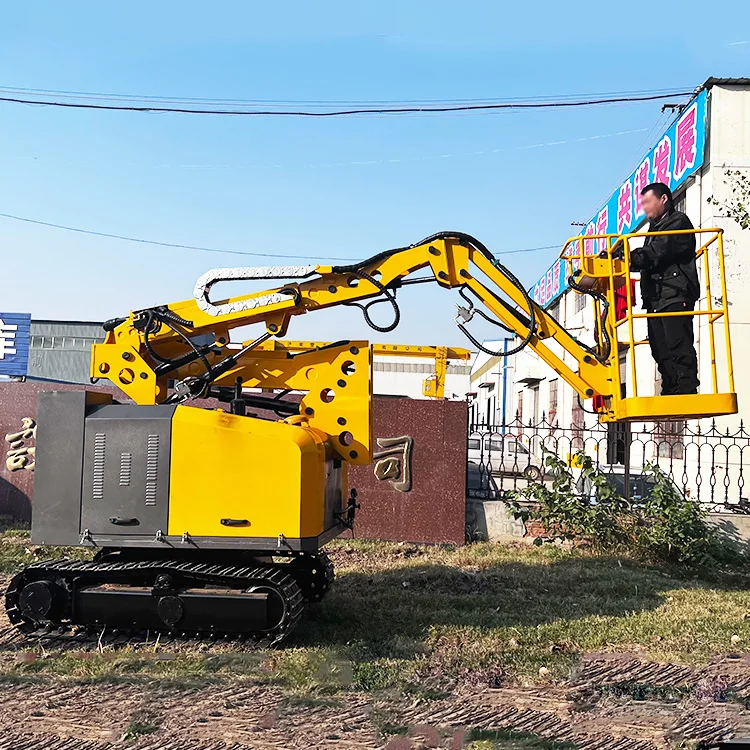

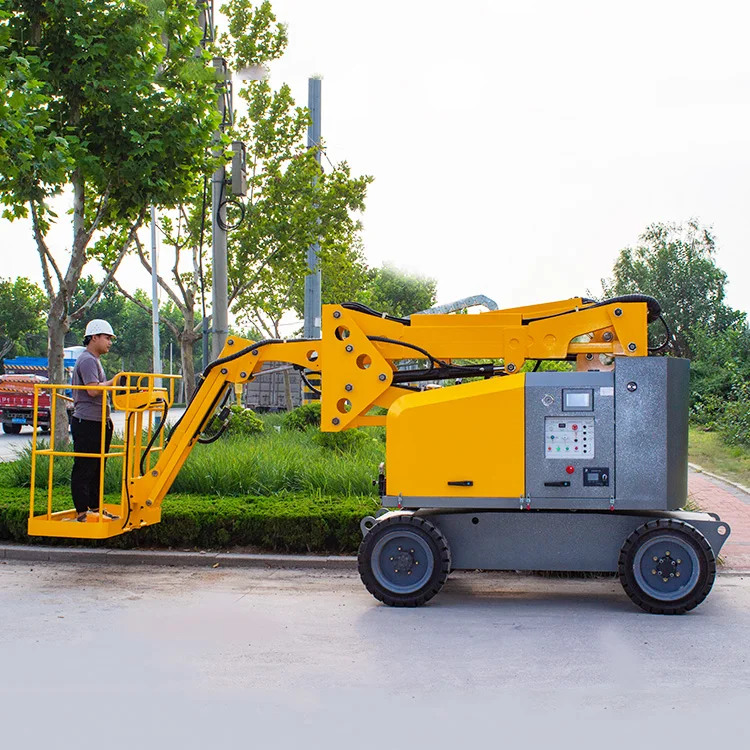

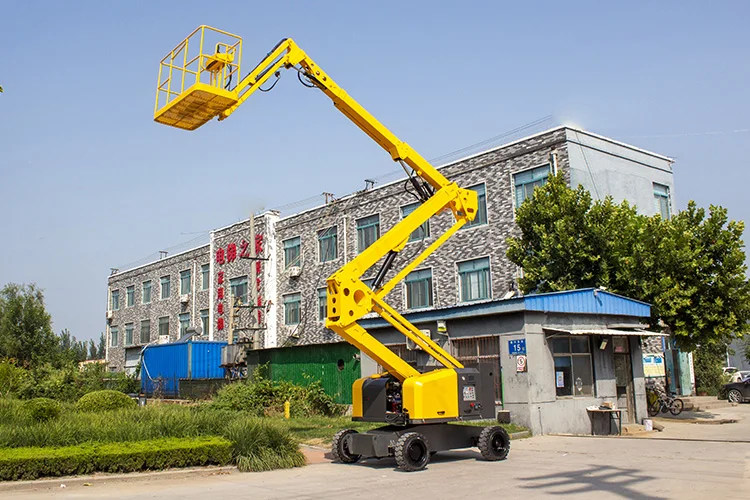

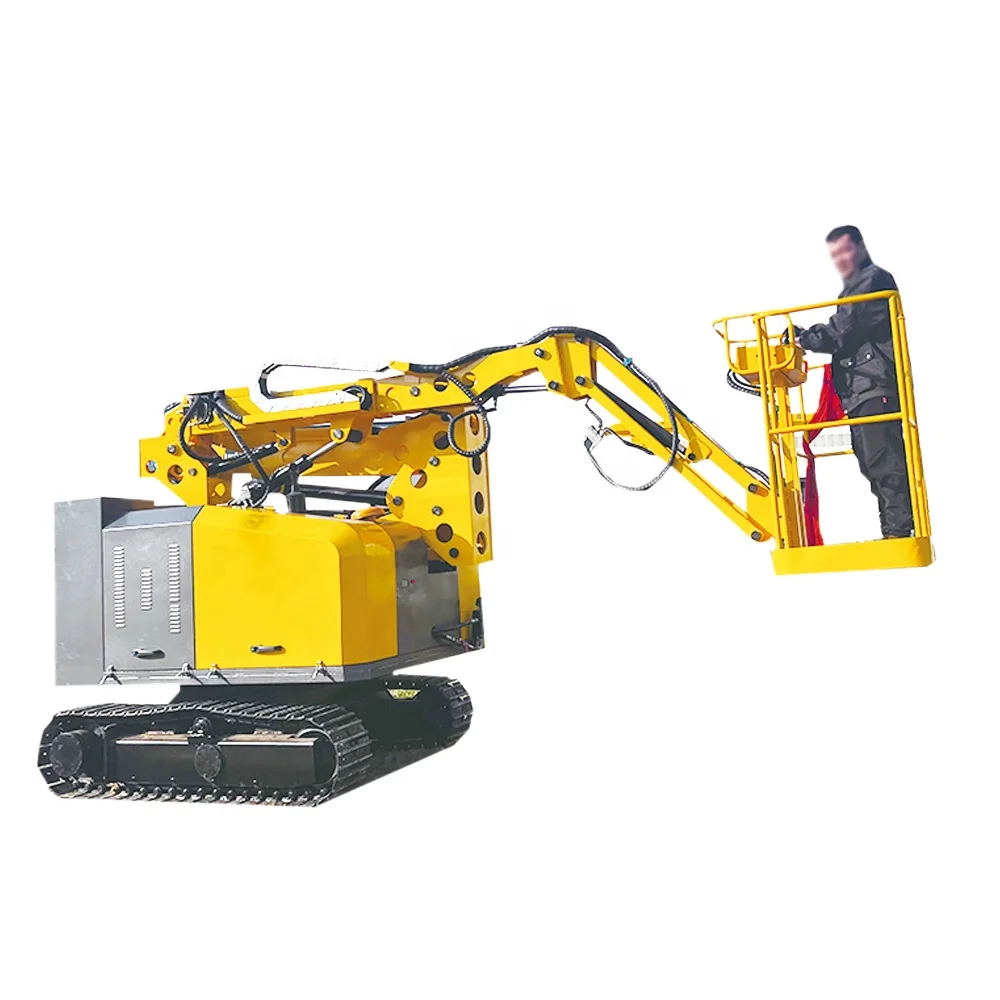

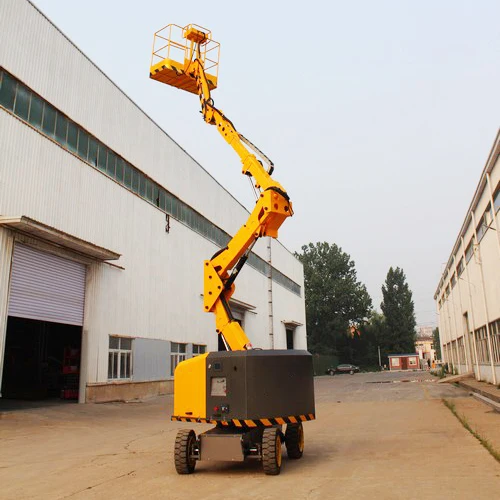

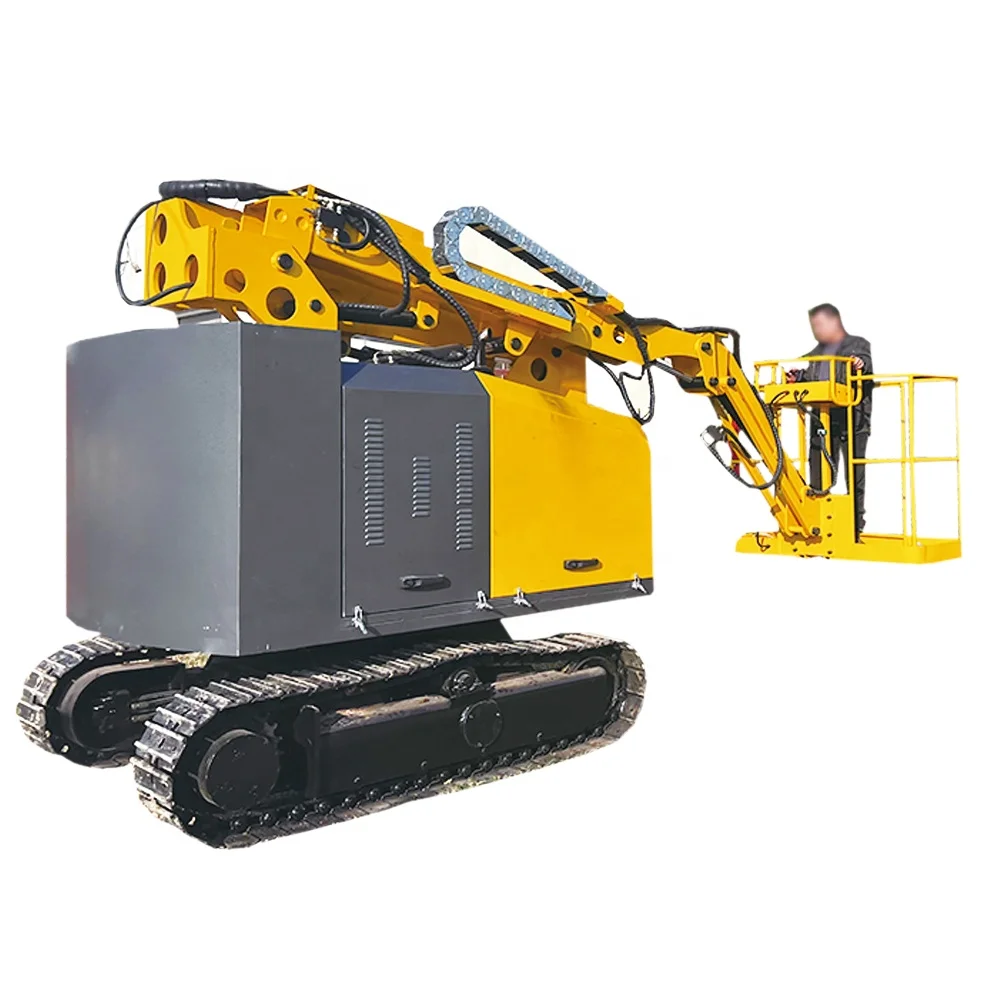

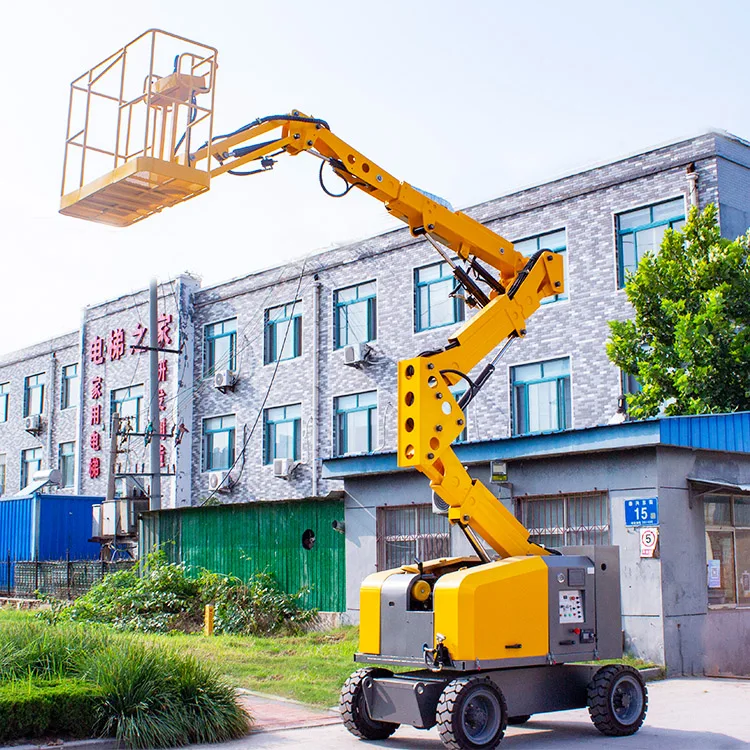

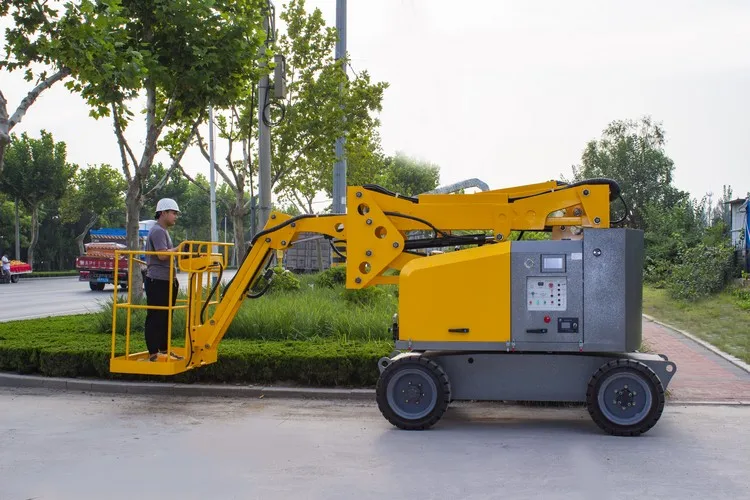

Introduction of Electric Bending Arm Lift Garden Maintenance Lifting Work Platforms Folding Arm Telescopic Arm Lift Truck
The curved arm lift is a kind of high-altitude working equipment, also known as the fork arm lift or the extension arm lift, which is usually composed of the chassis, the body, the curved arm, the platform and other parts. The structural shape of the curved arm is similar to that of a human arm, and it has a telescopic function, which can meet the construction needs of different heights. The curved arm lift is usually used for high-altitude work in construction, roads, Bridges, electric power, chemical industry and other fields, which can reach a relatively high working height and has good stability when suspended in space, which is conducive to improving construction efficiency and safety.zmwm17
Product Paramenters
Overall dimensions | ZMQBPT10D | ZMQBPT12D | ZMQBPT14D |
Overall length (folded) | 5.2m | 5.5m | 6.3m |
Overall length (folded) | 1.65m | 1.65m | 1.78m |
Overall height (folded) | 2.35m | 2.35m | 2.35m |
Table size | 1.6*0.8m | 1.6*0.8m | 1.6*0.8m |
Number of working arms | 5 sections | 5 sections | 5 sections |
Travelling speed (folded) | 4km/h | 4km/h | 4km/h |
Lifting Travelling speed （Unfolded） | 0.8km/h | 0.8km/h | 0.8km/h |
Mechanical arm swing | ≤0.5% | ≤0.5% | ≤0.5% |
forearm luffing angle | 130° | 130° | 130° |
Min.turning radius | Outer wheel 4.4m Inner wheel 2.25m | Outer wheel 4.4m Inner wheel 2.25m | Outer wheel 4.6m Inner wheel 2.35m |
Height of the worktable from the floor (folded) | 620mm | 630mm | 300mm |
wheelbases | 1907mm | 1907mm | 2017mm |
track width | 1440mm | 1440mm | 1550mm |
weight | 4900kg | 5800kg | 6596kg |
Voltage | 24v | 24v | 24v |
Tires specification | 28X9-15 Solid Tire | 28X9-15 Solid Tire | 28X9-15 Solid Tire |
Tires size | 580mm | 580mm | 670mm |
Colour | yellow/customized | yellow/customized | yellow/customized |
Max. working height | 10m | 12m | 14m |
Max. platform height | 8m | 10m | 12m |
Max. operating radius | 5.3m | 5.8m | 6.9m |
Max. spanning height | 5.1m | 5.7m | 6.6m |
Max. permissible chassis angle | 1.5°/3° | 1.5°/3° | 1.5°/3° |
Driving form | 4x2x2 | 4x2x2 | 4x2x2 |
Max. Climbing | 25% | 25% | 25% |
worktable load | 230kg | 230kg | 230kg |
Max. number persons carried | Two people | Two people | Two people |
worktable rtation angle (optional) | ±80° (overall length will increase 200mm ) | ±80° (overall length will increase 200mm ) | ±80° (overall length will increase 200mm ) |
wind rating | Level 3-4 | Level 3-4 | Level 3-4 |
Rotary angle of rotary table | 355°discontinuous | 355°discontinuous | 355°discontinuous |
Type of power | rechargeable battery | rechargeable battery | rechargeable battery |
Travel drive | 5.5kw | 5.5kw | 6.3kw |
Lifting drive | 4kw | 4kw | 4kw |
Battery Voltage | 2v | 2v | 2v |
battery capacity | 250ah | 250ah | 250ah |
Battery Charger | 48v35A | 48v35A | 48v35A |
Number of batteries | 24 pieces | 24 pieces | 24 pieces |
Hydraulic oil tank volume | 60L | 60L | 60L |
