OEM/ODM Available DC12V/24V Pir Human Body Proximity Sensor module 3A 36W 72W pir sensor switch for led light
- Category: >>>
- Supplier: Shenzhen Dejurenhe Industrial Technology Co. Ltd.
Share on (1601023915792):
Product Overview
Description

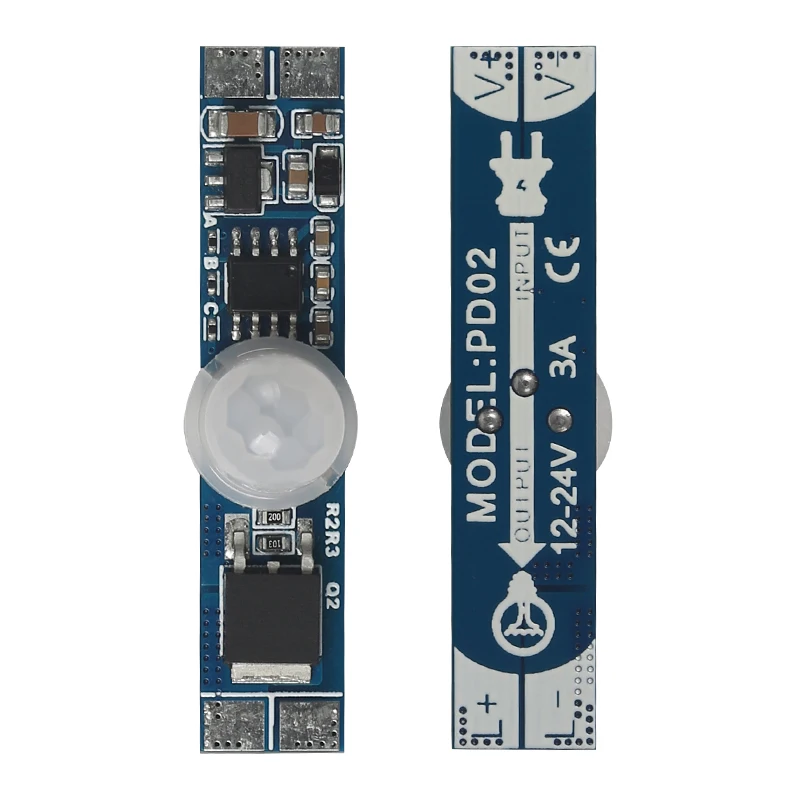

PD02 built-in touch switch with dimming function and last state memory function, with a 10 mm spring on a 48x10 mm board.

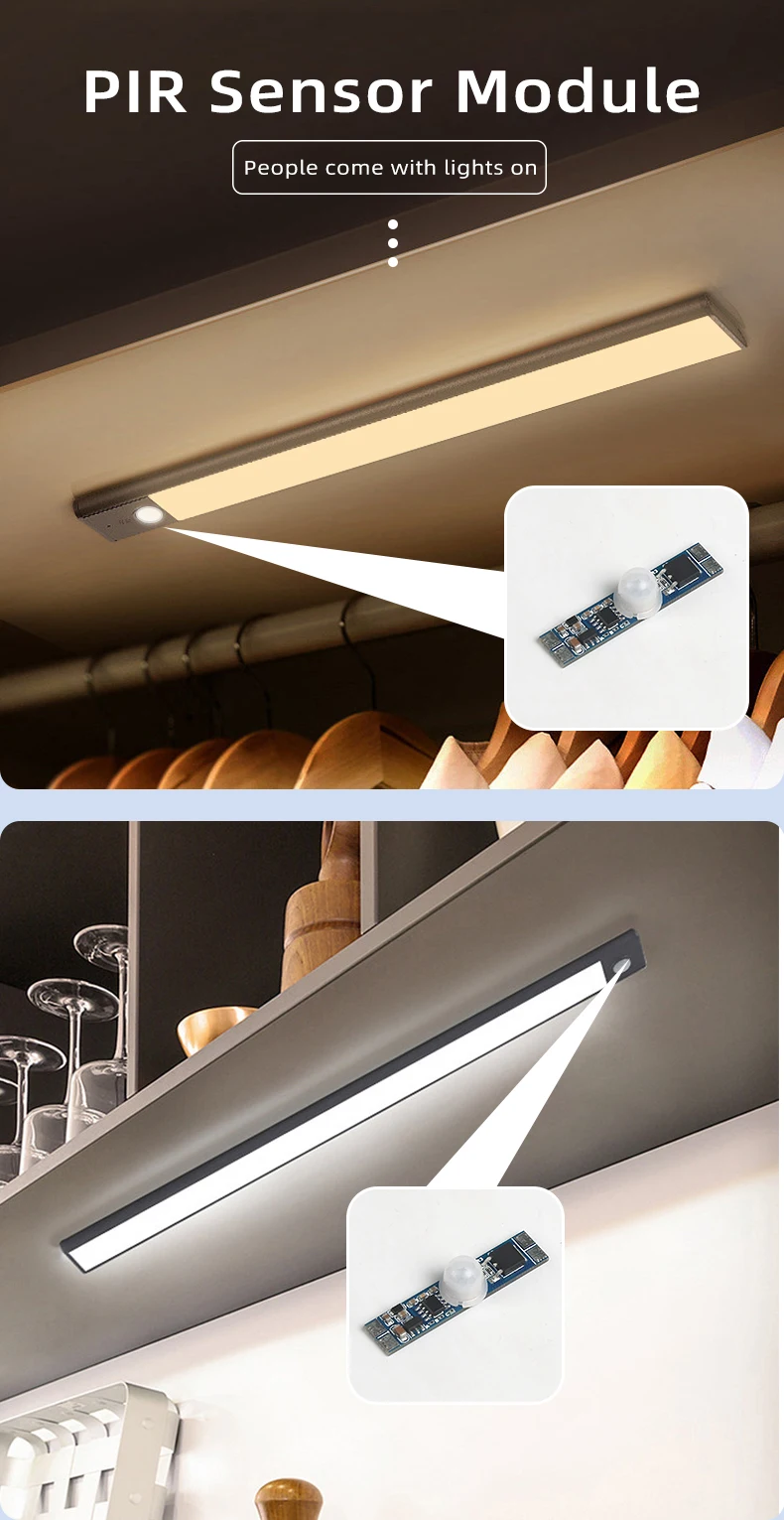

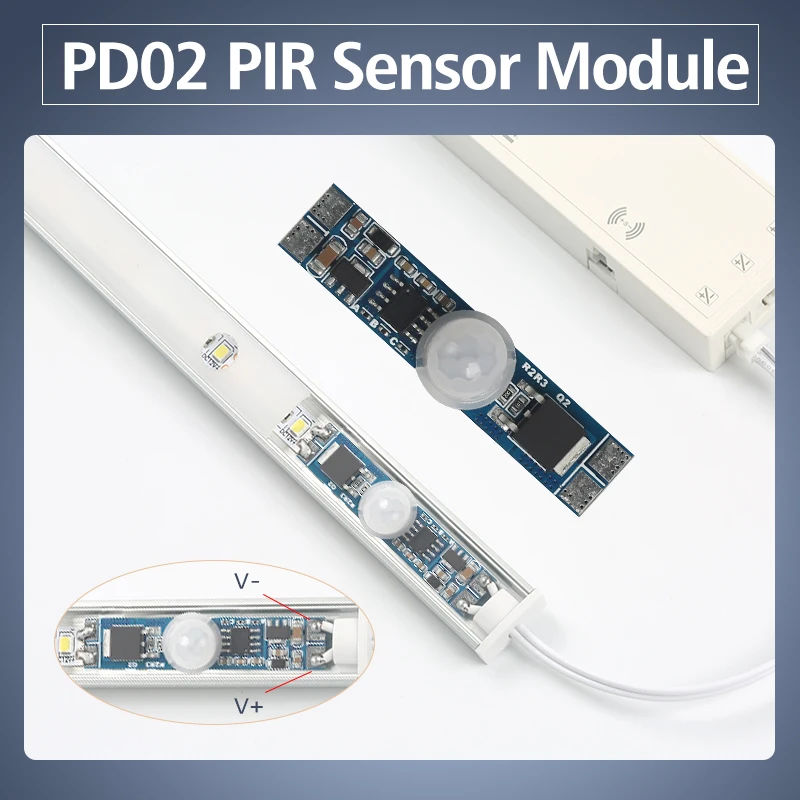

The PD02 body sensor switch has found wide application as a built-in switch in luminaires made on the basis of aluminum profiles with LED strip installed in them.
Scope Kitchen furniture, bedrooms, sliding wardrobes and other types of cabinet furniture.

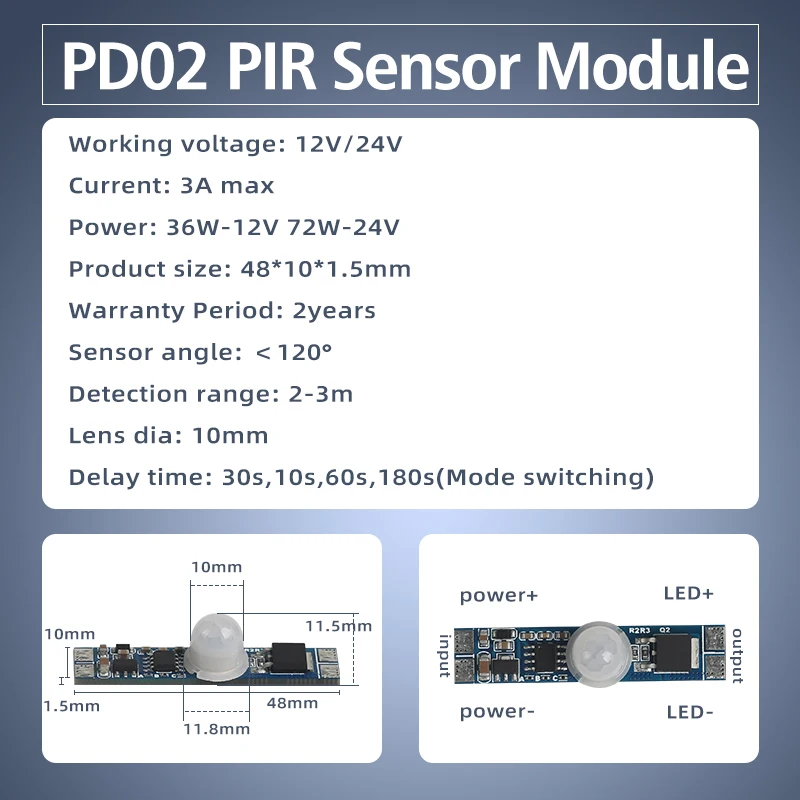

Product Name | PIR Sensor Module | ||||||
Model No | PD02-A1/PD02-B2 | PD02-A2/PD02-B2 | PD02-A3/PD02-B3 | PD02-A4/PD02-B4 | |||
Delay Time | 30s | 10s | 60s | 180s | |||

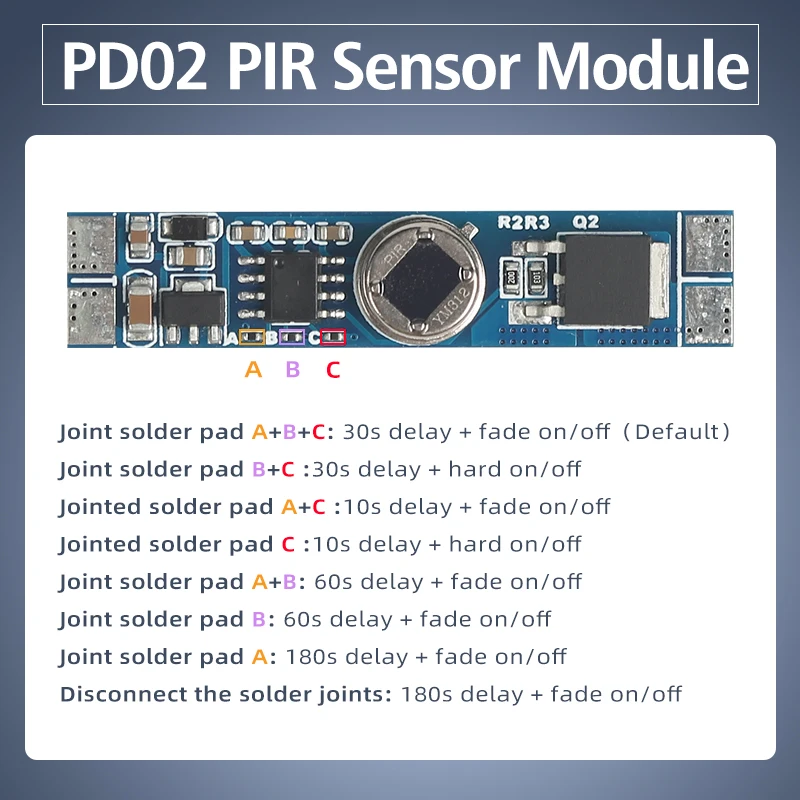

Function | Hard on/off / Fading on/off | Hard on/off+Dimming | Fading on/off （Door control） | Fading on/off+Dimming | |||
Input/Output | DC 12V/24V | ||||||
Power | 12V36W; 24V72W | ||||||
Current | 3A Max | ||||||
Product Size | 48*10*1.5mm | ||||||
Detection Range | 2-3m | ||||||
Sensor Angle | < 120° | ||||||
Warranty Period | 2years | ||||||
ATTENTION!
Install, connect, and maintain the switch only when the power is turned off.
ATTENTION!
Do not use acidic fluxes for soldering! This puts the device out of service and is not a warranty case!
