840 trapezoid metal roof panel making machine with 5 tons manual uncoiler single layer tile making machine
- Category: >>>
- Supplier: Henan Dingkou Industrial Co. Ltd.
Share on (1601026344158):
Product Overview
Description
Product information
1.Product Image

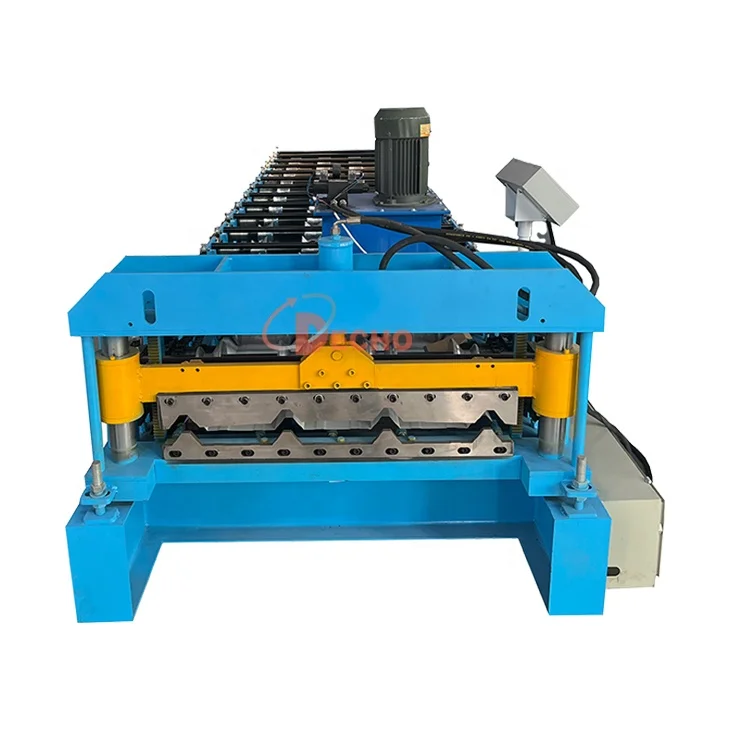

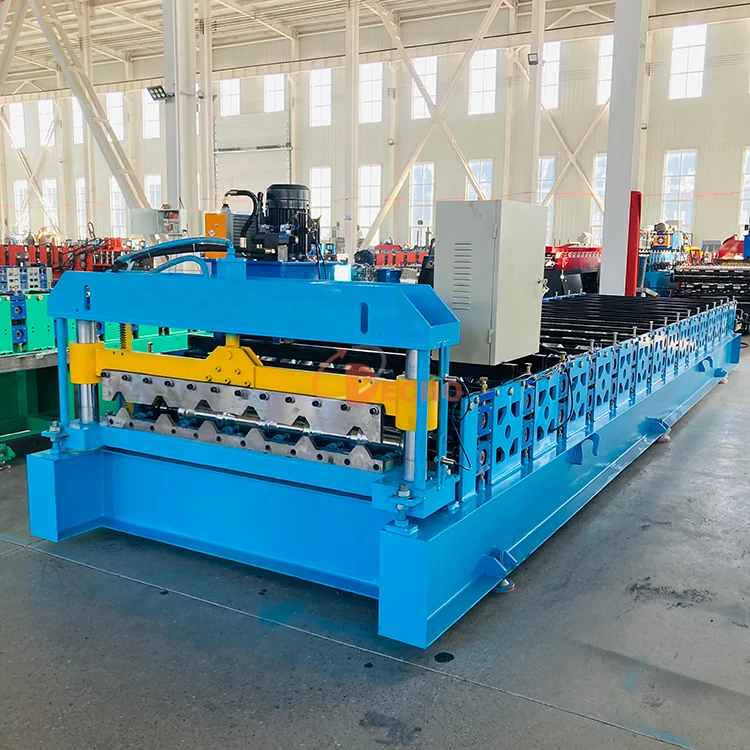

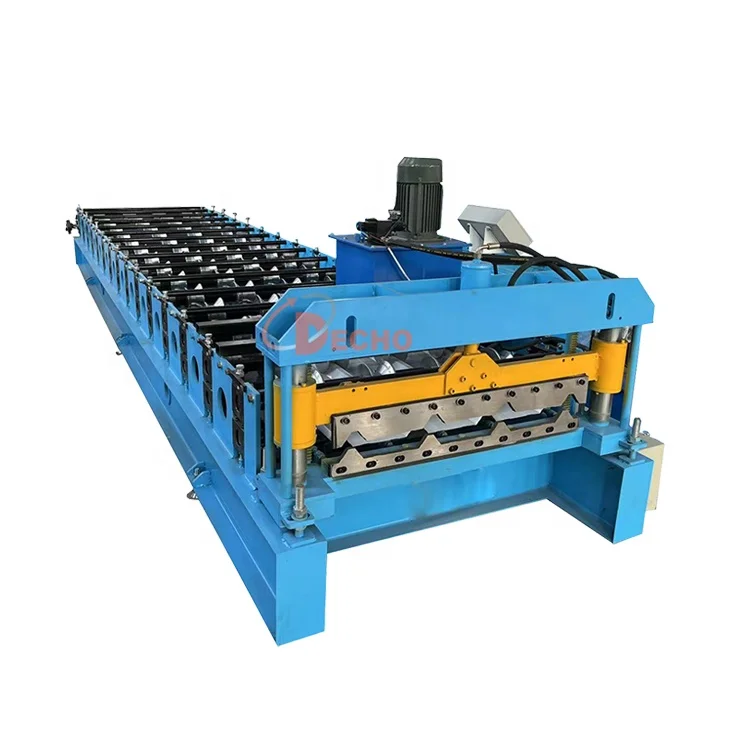

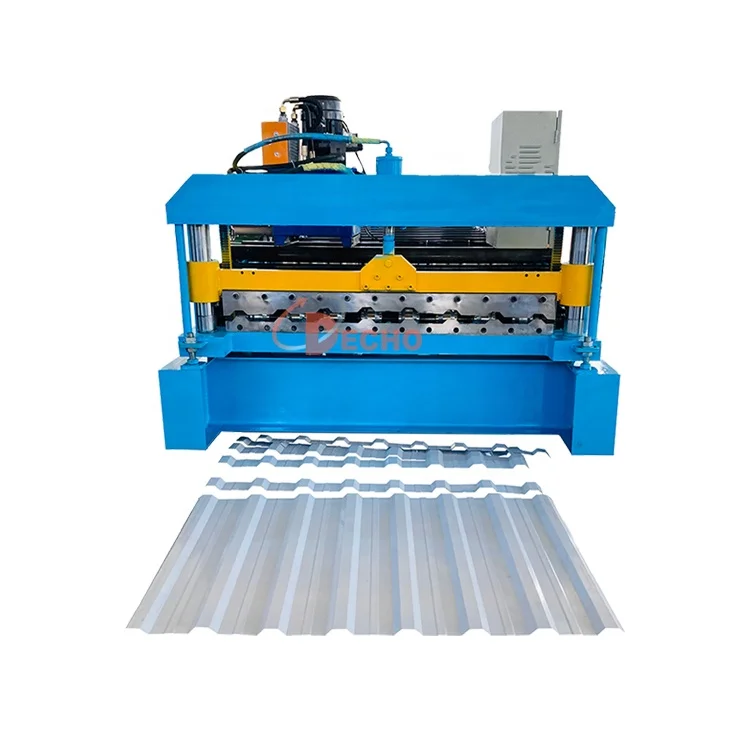

Single layer roof sheet roll forming machine, it can product trapezoidal tile.(Customized according to customer configuration requirements.)

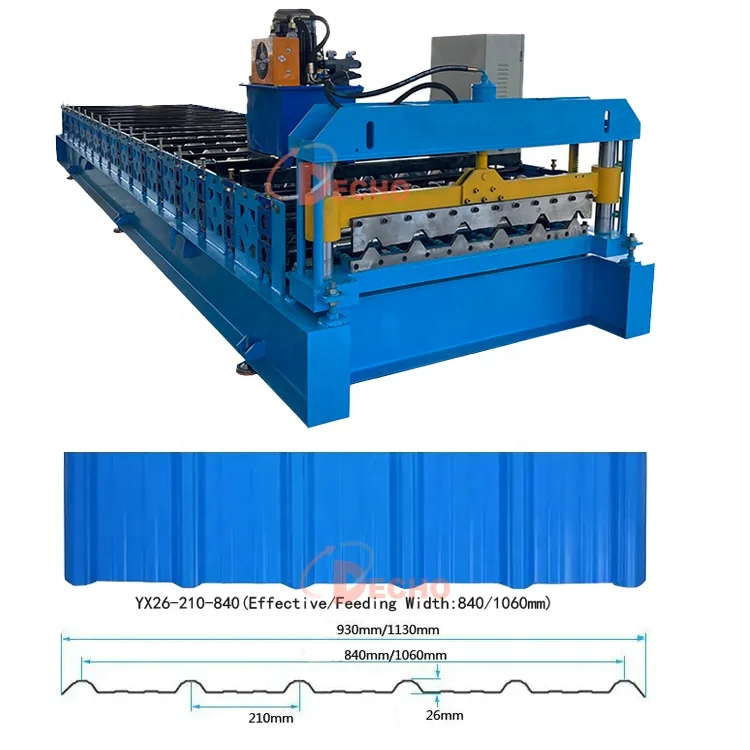

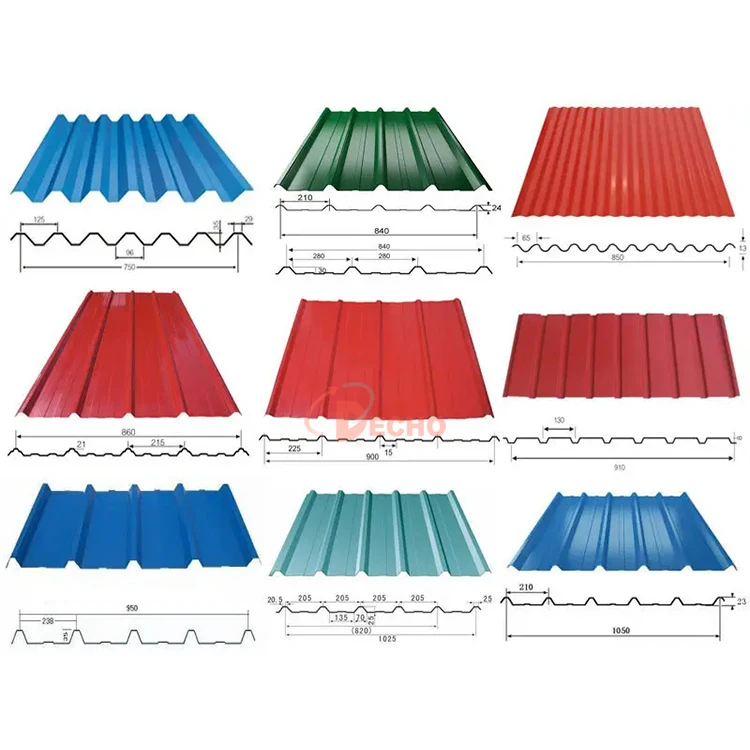

2.Typical tile type drawings
As the manufacturer of the roll forming machinery, we can produce most of the products according to your requirements, not just the size of the products on this page.
3. Work Flow

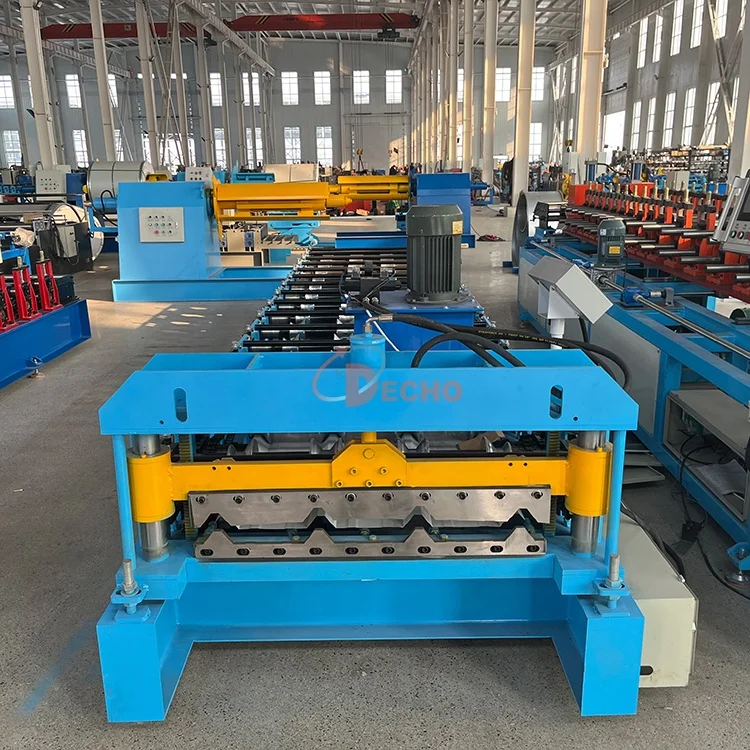

Capacity of the entire production line is 10-20m/min. It consists of 5 parts. Un-coiler→Feeding material →Roll forming→ Auto cutting→ Products receiving table, but It only takes 1 -2 worker.
4. Equipment List
NUM | Equipment Name | Quantity |
1 | Uncoiling Device | 1 set |
2 | Forming Main Machine | 1 set |
3 | Hydraulic Cutting System | 1 set |
4 | Material Receiving Table | 1 set |
5 | PLC Control System | 1 set |
6 | Supporting Accessories | 1 set |
5. Product Specification
Item | Parts | Specification & Description |
1.Raw Material | Type | GI / GL /PPGI / PPGL /Customization |
Thickness(mm) | Typically ranging from 0.3 to 0.8. Can customize according to customer needs. | |
2.Un-coiler Device | Type | Default 5T manual uncoiler (optional with 5T electric uncoiler or 8T hydraulic uncoiler) |
Bearing(Tons) | 5T | |
Way of working | Manual tensioning hand crank. The center of the four-bar linkage is supported outward | |
Panel Width(mm) | Typically ranging from 1000 to 1220. Can customize according to customer needs. | |
Coil Inner diameter | φ480-500mm | |
Inner contraction range | φ450-550mm | |
3.Forming Main Machine | Main frame | Material:Default 300H steel, optional 350H steel. Processing:Welding frame |
Material:45#steel Thickness:14mm Processing :laser cutting | ||
Material : 45# steel with chrome 0.05mm Diameter:70mm Processing : Precision machining, heat treatment, precision grinding | ||
Rollers | Material: 45# steel Chrome Plated Processing : Quenching, precision turning, polishing treatment | |
Roller Station | 12-14 stations or Customization | |
Specifications:1inch chain wheel with gear transmission Processing :Quenching heat treatment Gear oil:18 # hyperbolic gear oil | ||
Power:4KW Brand：Lichao(optional) Reducer: Cycloidal reducer Protection level:IP55 Explosion-proof level:ExdIICT4 | ||
Type | Automatic Hydraulic Cutting | |
Blade material | Cr12MOV heat treatment process | |
Pump | hydraulic pressure:10-12mpa Hydraulic oil: 46# | |
Pump motor for cutter | Power:3KW | |
5.Receiving rack | Type | manual receiving rack |
Plc brand：Delta(optional) Text control box:Vertical LCD touch screen control box Language: English / Chinese / Customized | ||
Inverter | Rated power:5.5KW |
6. Product details
Packaging & Shipping
Packaging Details
1. One container (20ft or 40ft ) for loading one set machine with manual decoiler and receiving rack.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
