Boot/Bench Cable V2 PCMFLASH Scanmatik (53 71 PCMFLASH)

Product Overview

Description

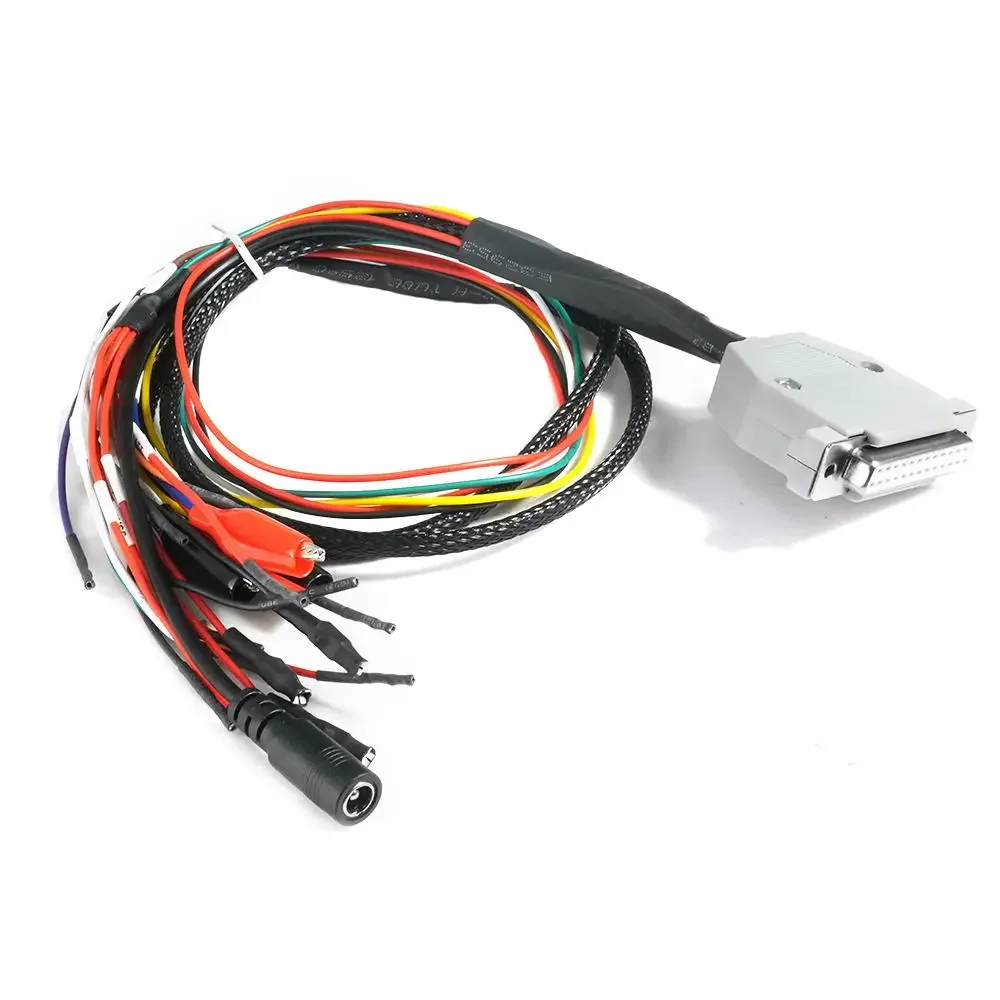

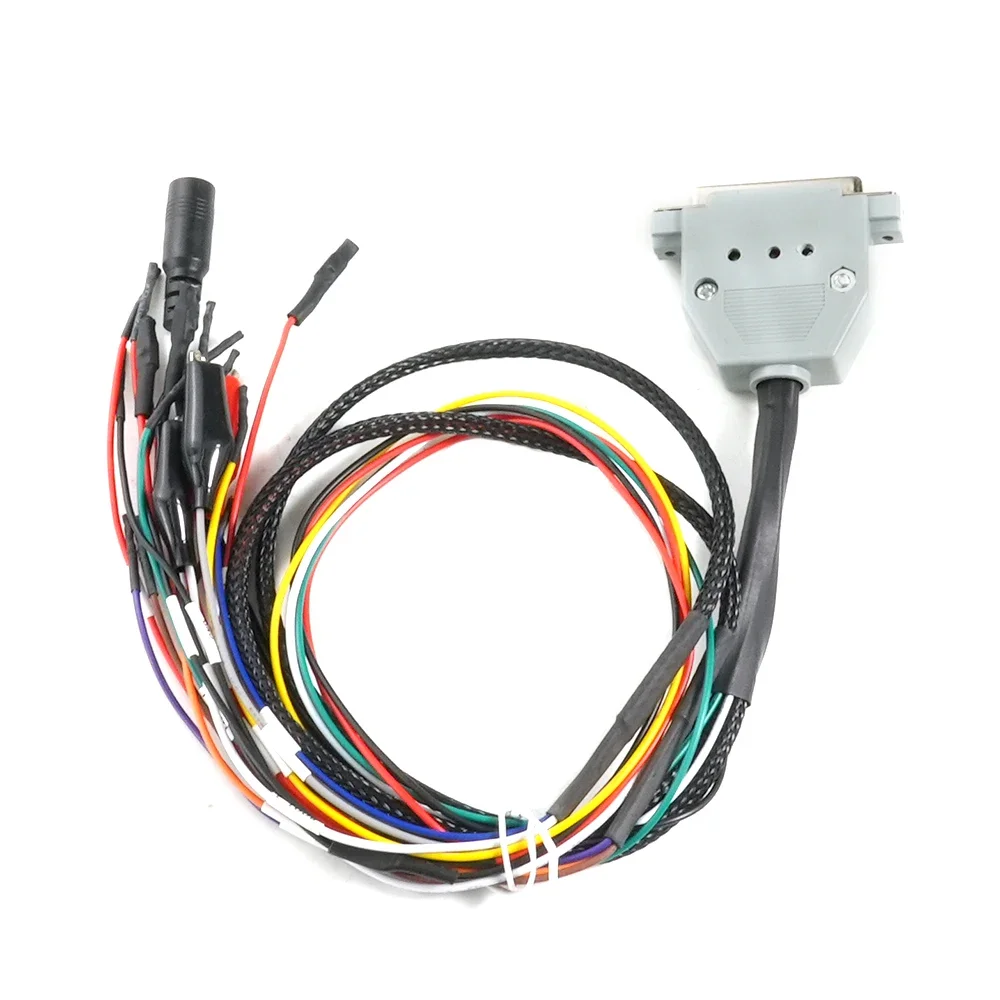

Boot/Bench Cable V2 PCMFLASH Scanmatik (53 + 71 PCMFLASH)





Boot/bench cable for Scanmatik 2 and Skanmatik 2 PRO. It works with PCMFlash.

version 2 (v 2).





It is for modules 53 and 71.





The best quality.

Power and signal management is automatic.





Pinout

red +12B

black GND

white CAN H

green CAN L

yellow with green K-Line

yellow GPT1

orange GPT2

blue CNF1(PCMFLASH 53 MODULE) 1 kOhm

gray boot1(PCMFLASH 53 MODULE) 1 kOhm

brown boot2(PCMFLASH 53 MODULE) 1 kOhm

We also have in stock adapters and keys for PCMFLASH. Scanmatik 2 pro, powerbox. See my listings.
