48V LED controller TUYA smart controller RGB RGBW and CCT 5 channels
- Category: >>>
- Supplier: Zhuhai Bincolor Electronic Technology Co. Ltd.
Share on (1601029402525):
Product Overview
Description

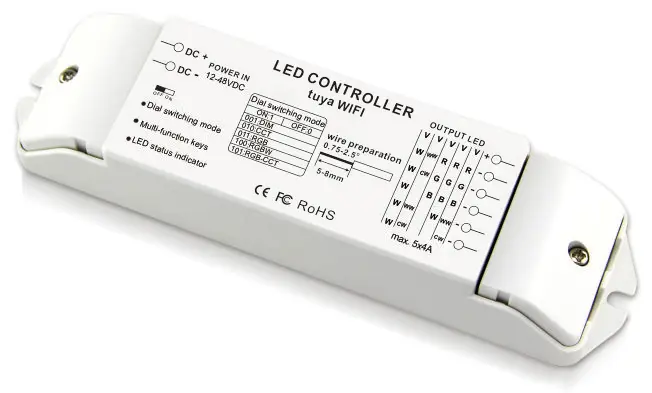

Tuya smart 5 pin 1 wifi RGB CCT led dimmer controller
Product Description
Welcome to use this Multi-platform mobile APP Cloud 5 in 1 controller, it adopted PWM(Pulse Width-Modulation) controlling technology, support Tuya/amazon Alexa /Smallzhi housekeeper and so on to control .Easy to use, it’s suitable for RGB+CCT, RGB, RGBW, color temperature or single color LED strip.
Product parameters
Model | TY5 |
Input Voltage | DC12V-DC48V |
Output Current | 4A×5CH |
Max output power | 240W(12V)480W(24V)/720W(36V)/960W(48V) |
Output | Constant Voltage PWM |
Dimming Rang | 1%-100% |
Grey Scale | 4096Levels×5CH |
PWM Frequencey | 1180hZ |
Product Dimension | L176×W46×H30(mm) |
Weight (G.W) | 120g |

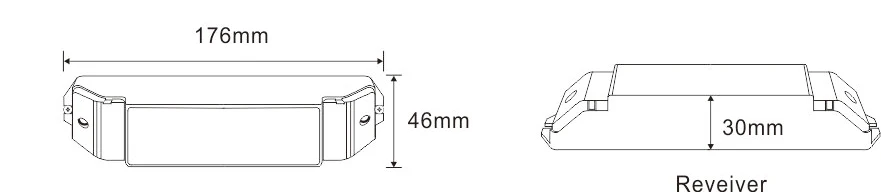

Dimension
Feature function
1. 5 in 1 function, used to control RGB+CCT, RGB, RGBW, color temperature or single color LED strip.
2. Tuya APP cloud control, support on/off, color temperature,brightness and color saturation adjust,
count down turn on/off light,cycle repeat turn on/off light, scene edit and music play function.
3. Voice control, support amazon Alexa and Smallzhi housekeeper.
4. Power loss memory function.
5. Light on/off fade time 0.5s, 3s setting.
6. Multi-controllers are controlled synchronously using an APP.
7. Multiple users share the same device to operate.

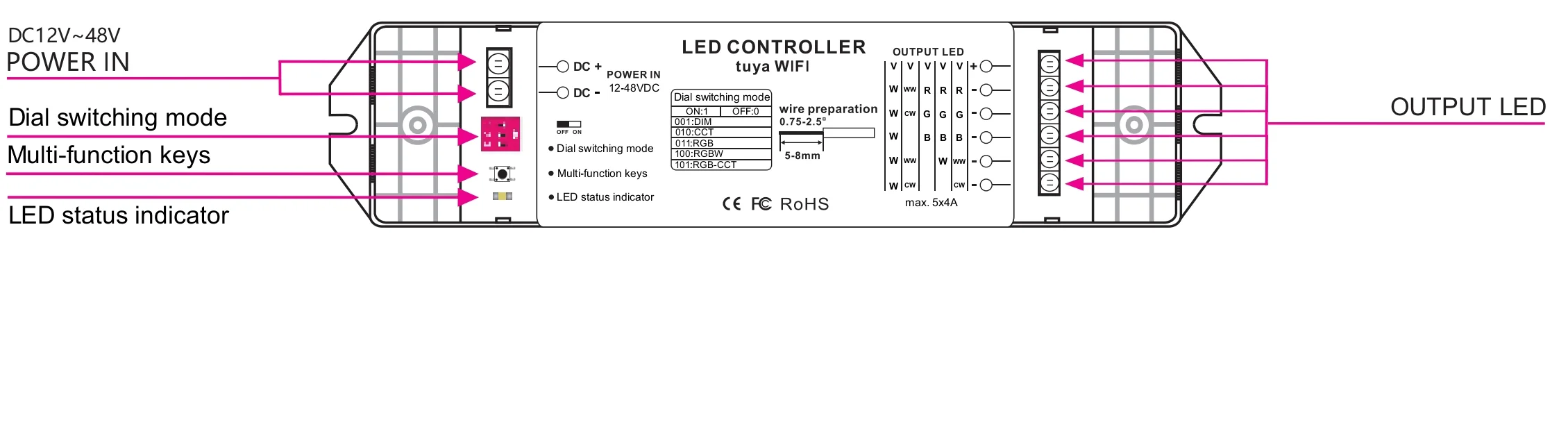

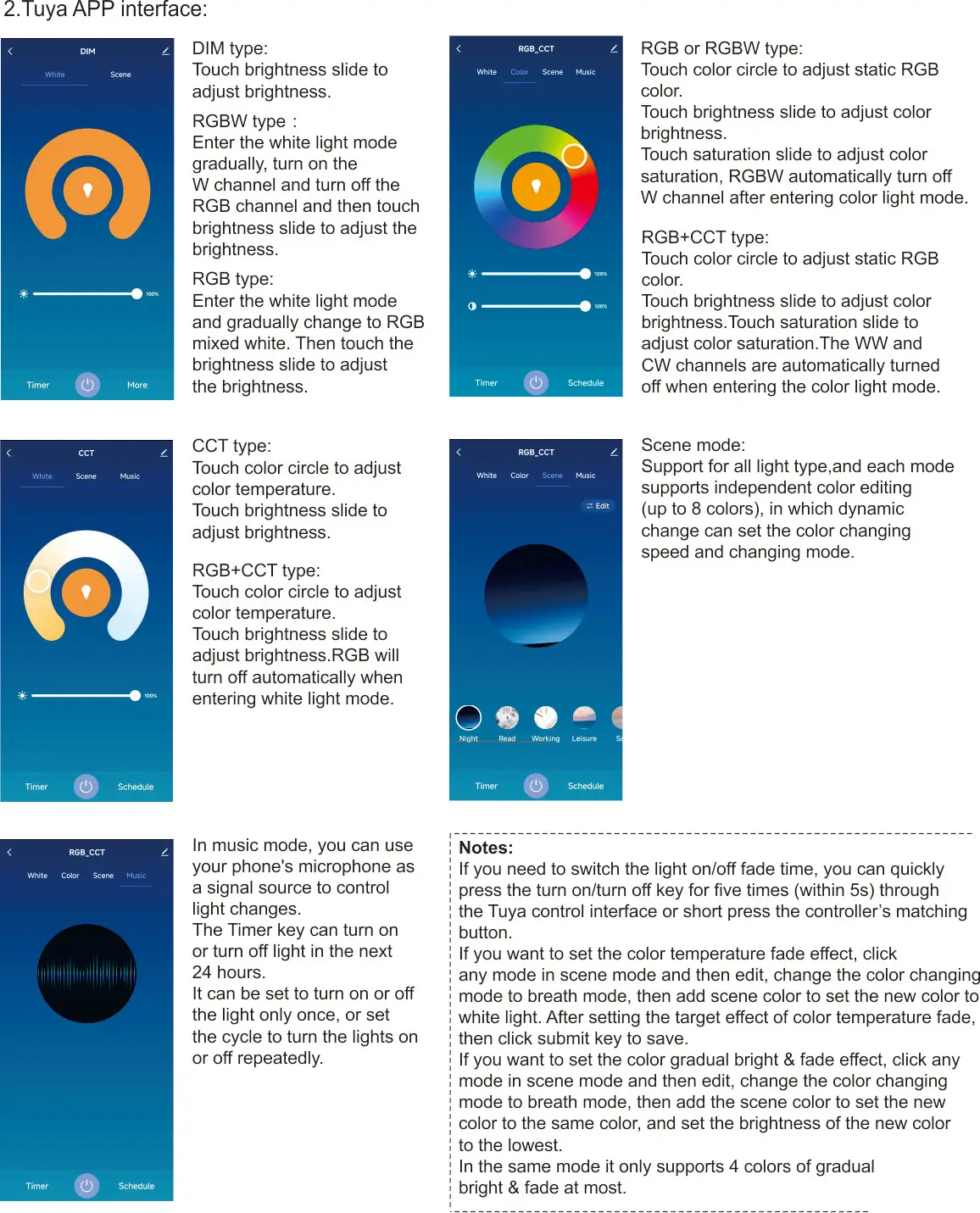

Operation:

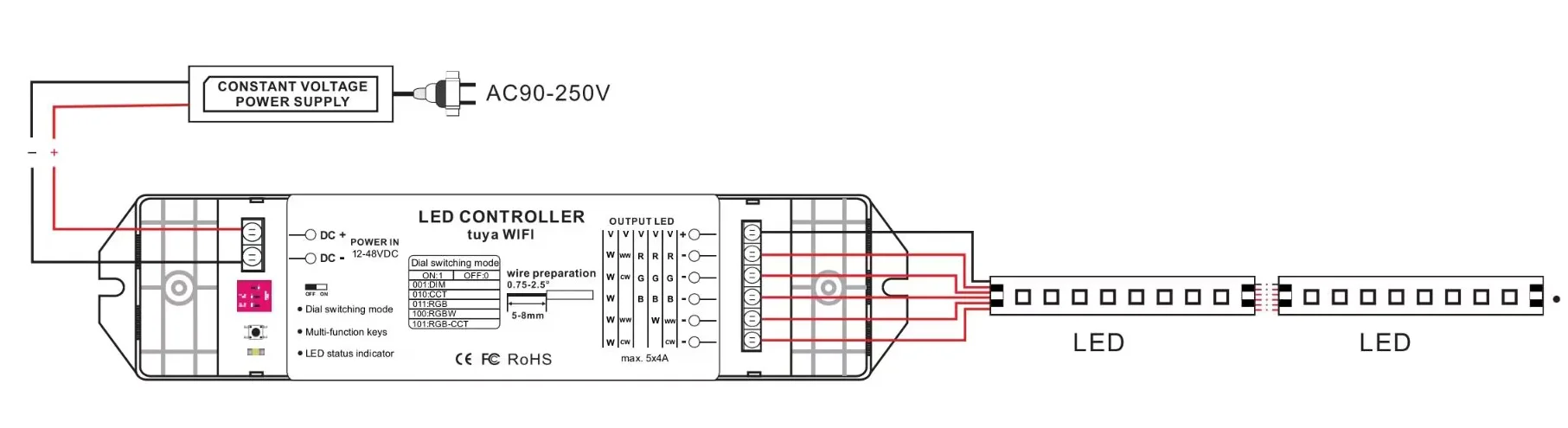

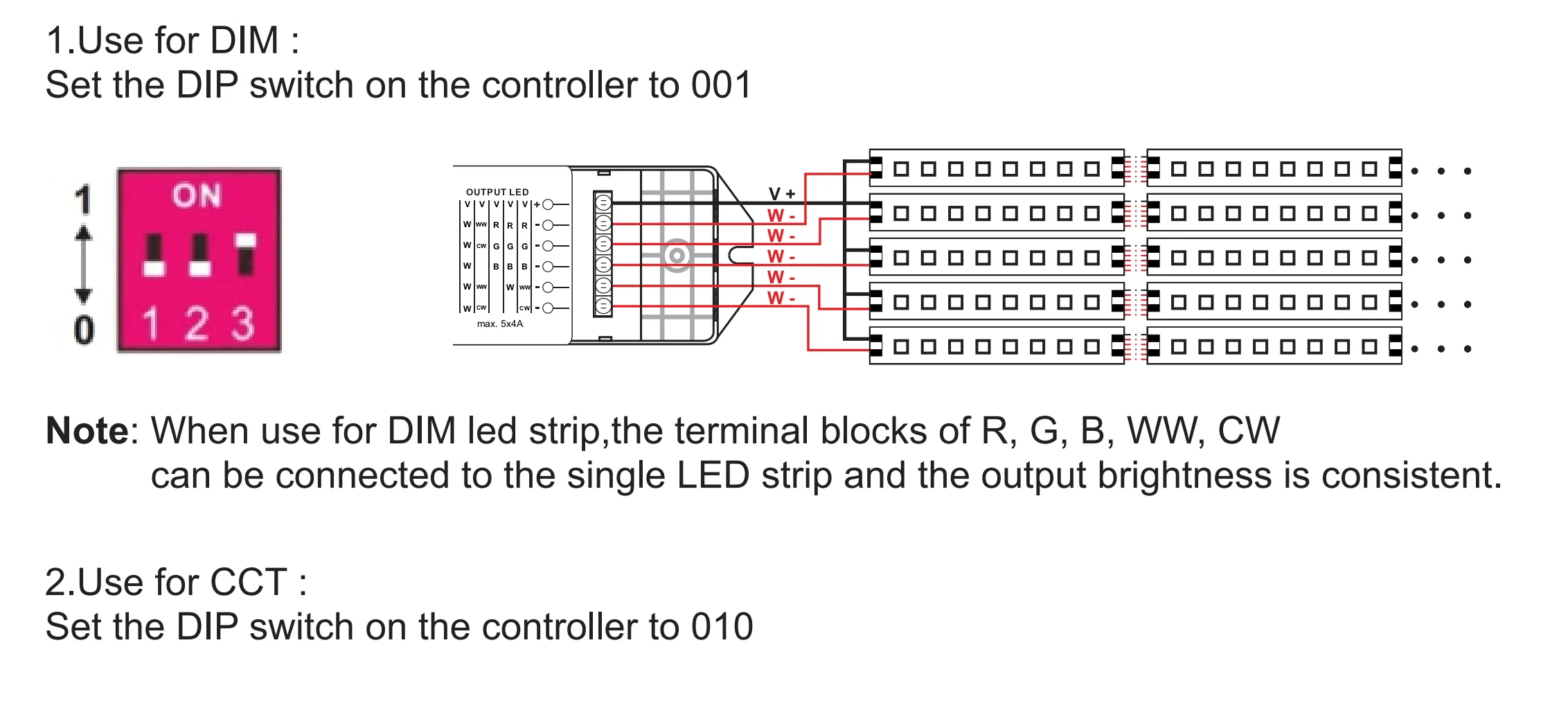

Wiring diagram

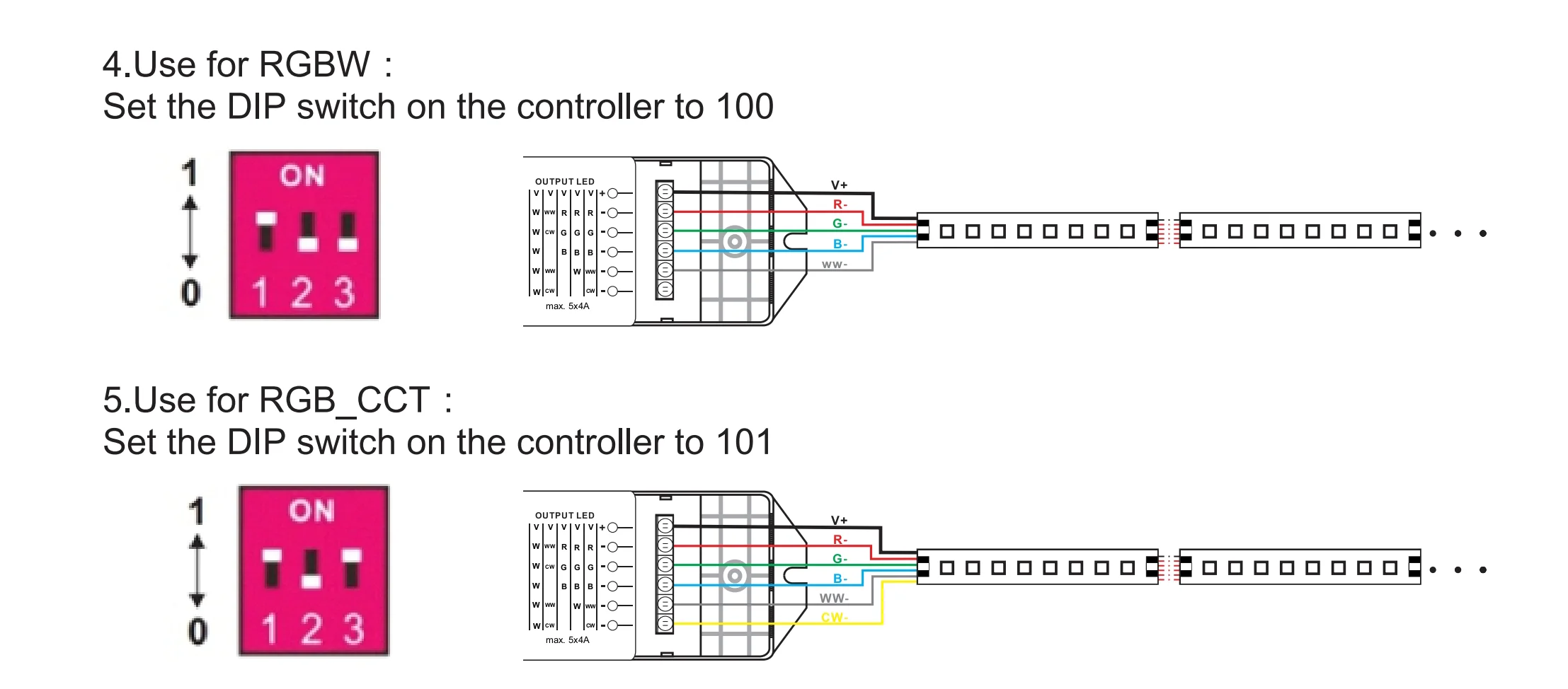

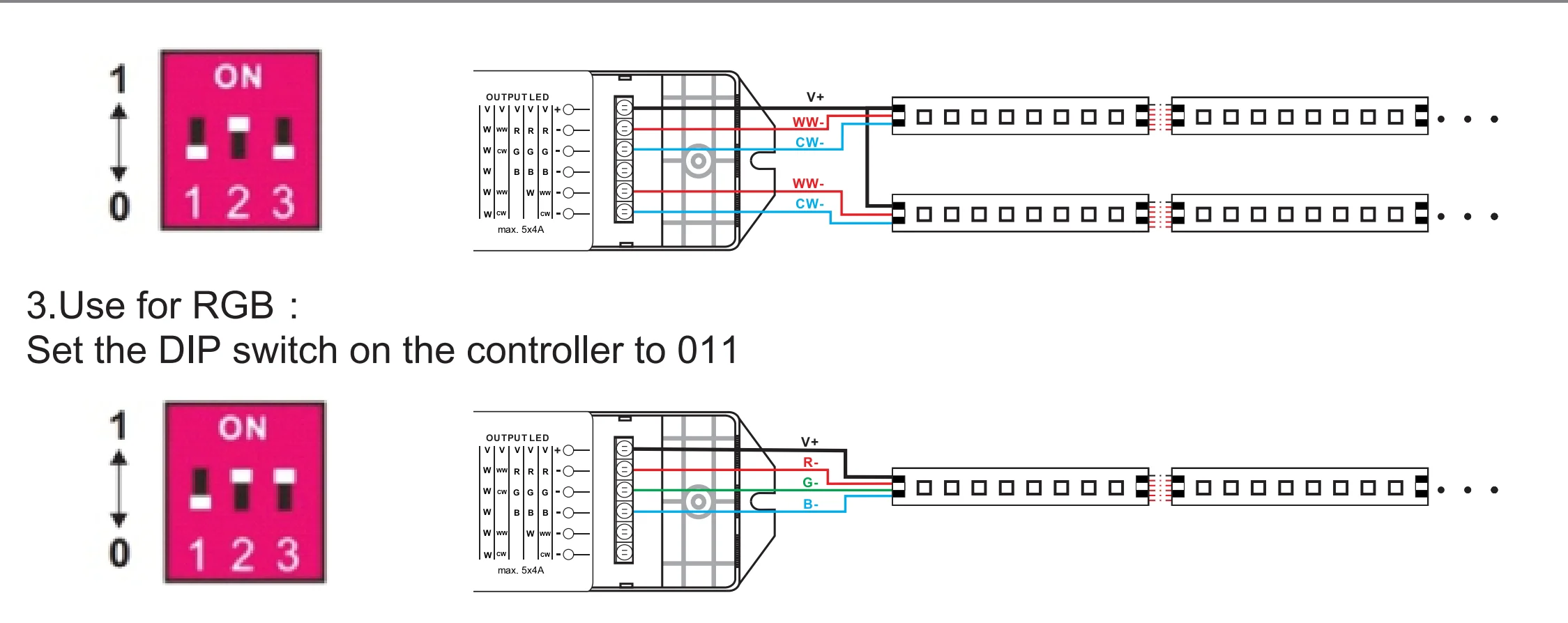

Wiring instructions:
Certifications
Packaging & Shipping
After inspection the goods are packed in white inner box and then carefully packed in cartons.
Shipping
INTERNATIONAL AIR MAIL
Payment
Fast Delivery
FAQ
1. How many years warranty of Bincolor items?
3 years warranty.
2. What kinds of export certifications of Bincolor items?
All Bincolor items pass CE, RoHS and FCC.
3. Could you provide the OEM or ODM service?
Bincolor have rich experience in OEM and ODM service, R&D the products completely according to customers’ demands.
4. Do all items design by your company?
All of our products are independent research and development production.
5. How long is the delivery time?
Within 1-3 working days for routine quantity, goods usually can be sent out on the same day or the next day. Within 20 working days for large quantity. Accurate time is according to the actual inventory.
Any other question, welcome to contact me, all question will be answered within 24 hours or immediately on instant contact!
