Automatic Metal Steel Fencing Roll Forming Making Machine /Fence Sheet Roll Forming Machine
- Category: >>>
- Supplier: Botou Kaiyite Cold Bending Machinery Co. Ltd.
Share on (1601029774552):
Product Overview
Description
Product Description

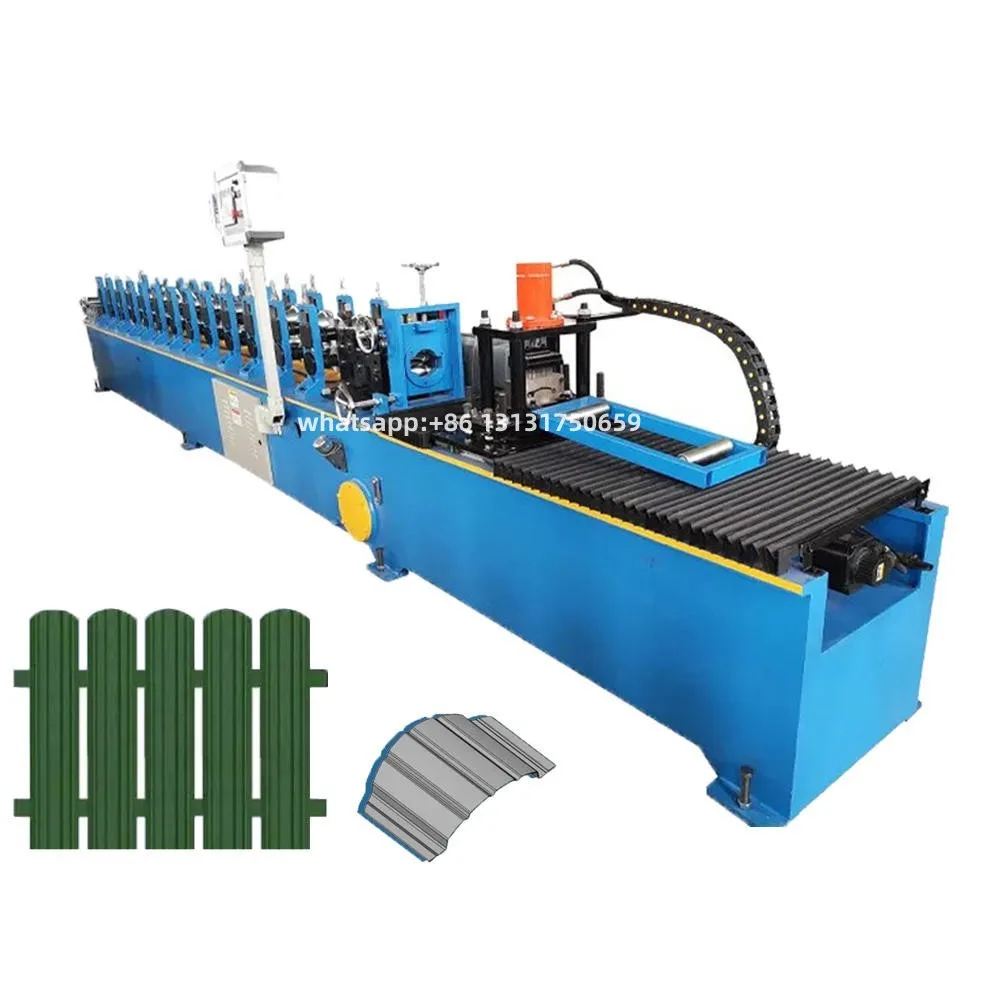

metal palisade fence roll forming machine
The characteristic of the guardrail plate forming machine is a non standardized assembly line, which can provide targeted equipment that can best meet customer needs according to customer requirements. This line can be easily controlled and monitored by one person, greatly reducing labor and operating costs on the original basis. The process is equipped with a PLC control terminal to ensure the stable operation and safety of the equipment.
Rolling forming machines have the following advantages:
1. It is convenient to receive data
2. Efficient and energy-saving
3.Adjustable speed
4. High accuracy
5. Easy to operate

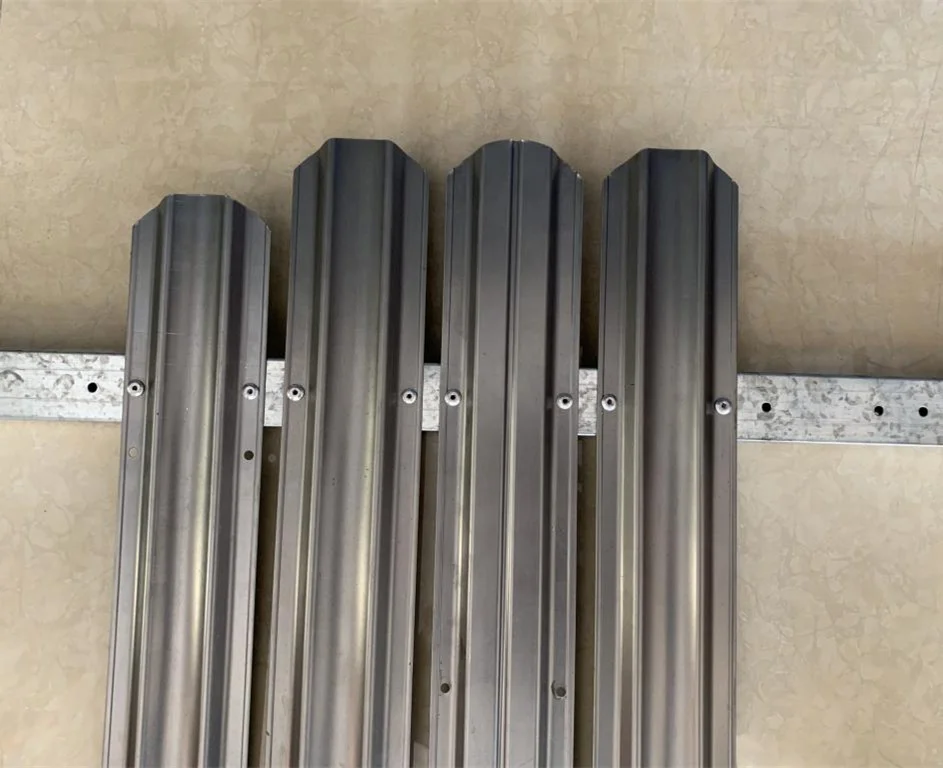

Compared to other metal forming methods, rolling forming machines have higher efficiency and greater production throughput. It can complete various types of metal processing, including cold rolling, hot rolling, boring, cold drawing, and other sheet metal processing methods. Guardrail plate function: Utilize the deformation of soil foundation, columns, beams, and endurance plates to absorb collision energy and force out of control vehicles to change direction,
restore normal driving direction, prevent vehicles from rushing out of the road, protect vehicles and passengers, and reduce losses caused by accidents.
2. Efficient and energy-saving
3.Adjustable speed
4. High accuracy
5. Easy to operate
Compared to other metal forming methods, rolling forming machines have higher efficiency and greater production throughput. It can complete various types of metal processing, including cold rolling, hot rolling, boring, cold drawing, and other sheet metal processing methods. Guardrail plate function: Utilize the deformation of soil foundation, columns, beams, and endurance plates to absorb collision energy and force out of control vehicles to change direction,
restore normal driving direction, prevent vehicles from rushing out of the road, protect vehicles and passengers, and reduce losses caused by accidents.
Specification
The price is only a reference, specific to the actual parameters, different speed, thickness, row number and other factors will lead to different prices.
Main motor power | 3kw | ||||||
Hydraulic motor power | 3kw | ||||||
Voltage | 380v 50hz 3phrase | ||||||
Control system | PLC | ||||||
Speed | 25m/min | ||||||
Roller station | 12 | ||||||
Shaft diameter | 60mm | ||||||
Shaft material | 45# Steel quenched and chromed | ||||||
Roller material | Cr12 Mov | ||||||
Transmission | gear and chain | ||||||
Processing Flow

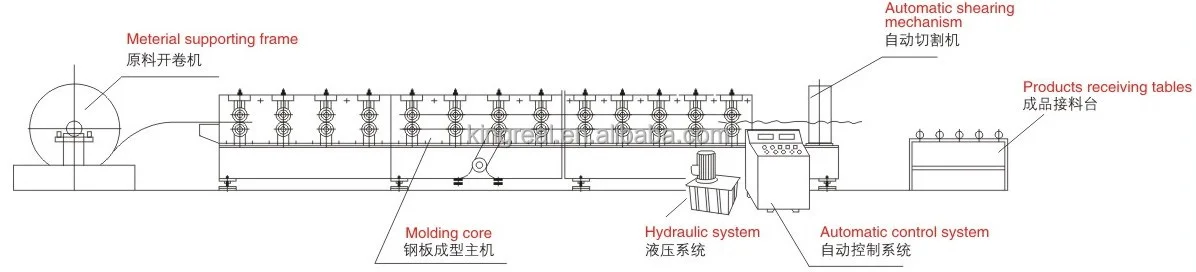

Uncoiling → Feeding And Leveling →Punching/Pre-Shearing→Roll Forming → Auto Cutting →Products Receiving Table
Component Of Machine
Decoiler
Mainly used to support steel coils, and manually uncoil and straighten the coil into the feeding table.
Oil Pump
Oil pumps are typically powered by an electric motor and connected to a tank that stores the oil. The pump draws oil from the tank and distributes it to various parts through fittings.

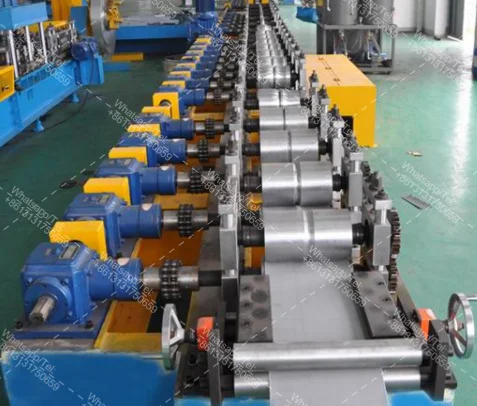

Main Forming Machine
After being forged, polished, heat-treated and finally chromeplated, they are very solid and not easy to wear. At the same time,the roof tiles are smooth without burrs
Hydraulic cutting
Once the metal strip has been formed into the desired profile, a cut-off system is used to separate the finished product from the remaining strip. stable cutting with high speed and low noise.
Receiving Table
Receiving table is to catch the pressed steel plate to prevent collision caused by the steel plate directly falling to the ground.
PLC Control System
It facilitates fully automatic production of machines and can set up different language systems according to customer needs
PACKING & DELIVERY
1.We will wipe anti rust oil for the whole machine .
2.Plc controller will be covered by foam film
3.Spare parts are some small parts are packed in a wodden case.
4.All componenets are fixed well by steel wire with container.
2.Plc controller will be covered by foam film
3.Spare parts are some small parts are packed in a wodden case.
4.All componenets are fixed well by steel wire with container.
Company Profile
Botou Kaiyite Cold Bending Machinery Co., Ltd is a professional roll forming machine manufacturer in Cangzhou city, China that supplys turn-key solutions for roller shutter door machine and metal door frame roll forming machines . We have experienced technicians and designers, who started machine designing and making since 2007, to ensure we are the highest standard in the same industry.
You can get any machines according to your needs. Because we can design and produce different machines according to your requirements, which are popular in international markets. Besides we manufacture some auxiliary equipment as accessory machine to our major products. This includes decoiler , output table , slitting machine and so on .
In order to solve the customers' worries , we also supply sales consultance, roll forming equipment designing, building , installation, training and maintaining service. Kaiyite machinery provides 5 years warranty for its equipment. Generally, the warranty covers rolling tools, cutting blades, Control system and electric motors! Besides, Kaiyite machinery provides installation and training service after equipment arrives at clients' warehouses.
We has shipped its designed roll forming machine equipment all over the world. As a result it has established long-run business relationship with many esteemed international companies under mutual benefits! Because all technical requirements about the machinery have been greatly satisfied, our shutter door machine and metal door frame machine would manufacture exquisite final products as per industry standard in the international markets.
You can get any machines according to your needs. Because we can design and produce different machines according to your requirements, which are popular in international markets. Besides we manufacture some auxiliary equipment as accessory machine to our major products. This includes decoiler , output table , slitting machine and so on .
In order to solve the customers' worries , we also supply sales consultance, roll forming equipment designing, building , installation, training and maintaining service. Kaiyite machinery provides 5 years warranty for its equipment. Generally, the warranty covers rolling tools, cutting blades, Control system and electric motors! Besides, Kaiyite machinery provides installation and training service after equipment arrives at clients' warehouses.
We has shipped its designed roll forming machine equipment all over the world. As a result it has established long-run business relationship with many esteemed international companies under mutual benefits! Because all technical requirements about the machinery have been greatly satisfied, our shutter door machine and metal door frame machine would manufacture exquisite final products as per industry standard in the international markets.
FAQ
1. who are we?
We are based in Hebei, China, start from 2016,sell to Western Europe(25.00%),South America(20.00%),Mid East(20.00%),Southeast Asia(20.00%),Africa(15.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Shutter Door Roll Forming Machine, Roofing Sheet Roll Forming Machine, Floor Deck Roll Forming Machine, Stud And Track Roll Forming Machine, Door Frame Roll Forming Machine
4. why should you buy from us not from other suppliers?
1. High quality materials for machine ;
2. Strict quality control ;
3. Professional and fast solutions for aftersale service ;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Arabic,French,Russian,Italian
We are based in Hebei, China, start from 2016,sell to Western Europe(25.00%),South America(20.00%),Mid East(20.00%),Southeast Asia(20.00%),Africa(15.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Shutter Door Roll Forming Machine, Roofing Sheet Roll Forming Machine, Floor Deck Roll Forming Machine, Stud And Track Roll Forming Machine, Door Frame Roll Forming Machine
4. why should you buy from us not from other suppliers?
1. High quality materials for machine ;
2. Strict quality control ;
3. Professional and fast solutions for aftersale service ;
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Arabic,French,Russian,Italian
